PDi PDI-P23LCDE User manual

Communication
System Inc.
Better Solutions Are Within ReachTM
MODEL NUMBER:
PDI-P23LCDE TV With DVD
Document Number:
PD196-221R1
QUICK START GUIDE
Page 1 of 14
PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH [phone] PH [phone]
PRODUCT ACCESSORIES
(Not Included with TV)
Programming Remote
PD108-420
Patient Remote
PD108-421
100mm VESA Wall Mount
PD168-103
¼” to 6-Pin Jumper Cable
PD106-416
¼” to 6-Pin Jumper Cable
PD106-417
DVD Module (Kit)
PD251-002
OVERHEAD FALLING HAZARD
TV can pose a striking hazard when mounted at an
elevated position. Use only PDI mounting brackets,
support arms, and appropriate hardware to assure TV
will not fall from the mounted position. Failure to do so
may cause injury or death.
RAIN AND MOISTURE
WARNING: To avoid the hazards of fire or electrical
shock, DO NOT expose this television to rain or moisture.
OXYGEN ENVIRONMENT
WARNING: Do not use in any oxygen tent or oxygen
chamber. Such use may cause a fire hazard.
WET LOCATION
Apparatus shall not be exposed to dripping or splashing
and no objects filled with liquids, such as vases, shall be
placed on the apparatus.
CLEANING AND DISINFECTION
Clean the exterior of this television by removing dust with
a lint-free cloth. CAUTION: To avoid damage to the
surface of the television, do not use abrasive or chemical
cleaning agents. Spot test a new disinfectant by applying
a test cleaning a non-obvious small spot on the TV’s back
cabinet, keypad, and LCD panel. Allow the disinfectant to
soak per its instructions and then wipe clean. Do not use
the disinfectant if the TV’s surfaces show any sign of
discoloration or softening.
PRODUCT MODIFICATION
Do not attempt to modify this product in any way without
written authorization. Unauthorized modification could
void the user’s authority to operate this product.
STACKING
Place the unit in a horizontal place, and DO NOT lay
anything heavy on it.
DVD PLAYER
Because of high voltage inside the unit, touching
internal parts is dangerous and may lead to serious
damage to the unit and even personal injury. DO NOT
attempt to disassemble this unit under any
circumstance. Only put a DVD or CD into the slot.
OTHER EQUIPMENT
Use only with the cart, stand, tripod, bracket or table
specified by the manufacturer or sold with the TV. Use
caution when moving the cart.
WARNING: To reduce the chance of fire or electric
shock, only utilize the accessories recommended by
the manufacture.
WARNINGS
CAUTION: To reduce the risk of electric shock does not
remove cover (or back). No user serviceable parts inside. Refer
servicing to qualified service personnel.
This symbol is intended to alert the user of the
presence of important operating and maintenance
(servicing) instructions in the literature
accompanying the appliance.
This symbol is intended to alert the user of the
presence of uninsulated ‘dangerous voltage’ within
the product’s enclosure that may be of sufficient
magnitude to constitute a risk of electric shock to
persons.
NOTE TO CABLE TV INSTALLER
This reminder is provided to call the cable TV
systems installer’s attention to Article 820-40 of the
National Electrical Code. The code provides
guidelines for proper grounding and, in particular,
specifies that the cable ground shall be connected to
the grounding system of the building, as close to the
point of the cable entry as practical.
The earth apparatus with Class I
construction shall be connected to a
mains socket outlet with a protective
earthing connection.
SERVICE INSTRUCTIONS
CAUTION: These servicing instructions are for use
by qualified service personnel only.
To reduce the risk of electric shock, do not perform
any servicing other than contained in the operating
instructions unless you are qualified to do so.

Communication
System Inc.
Better Solutions Are Within ReachTM
MODEL NUMBER:
PDI-P23LCDE TV With DVD
Document Number:
PD196-221R1
QUICK START GUIDE
Page 2 of 14
PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH [phone] PH [phone]
Important Safety Instructions
Important safeguards for you and your new product.
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in
accordance with the manufacturer’s instructions.
8. Do not install near any heat source such as
radiators, heat registers, stove, or other
apparatus (including amplifiers) that produce
heat.
9. Do not defeat the safety purpose of the polarized
or grounding-type plug. A polarized plug has two
blades with one wider than the other. A
grounding type plug has two blades and a third
grounding prong. The wide blade or the third
prong are provided for your safety. If the
provided plug does not fit into your outlet, consult
an electrician for replacement of the obsolete
outlet.
10. Protect the power cord from being walked on or
pinched particularly at plugs, convenience
receptacles, and the point where they exit from
the apparatus.
11. Only use attachments/accessories specified by
the manufacturer.
12. Use only with the cart, stand, tripod, bracket or
table specified by the manufacturer, or sold with
the apparatus. When a cart is used, use caution
when moving the
cart/apparatus combination
to avoid injury from tip-over.
13. Unplug this apparatus
during lightning storms or
when unused for long
periods of time.
14. Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has
been damaged in any way, such as when the
power supply cord or plug is damaged, liquid has
been spilled or objects have fallen into the
apparatus, the apparatus has been exposed to
rain or moisture, doe no operate normally, or has
been dropped.
15. Use only PDI mounts and appropriate hardware.
Failure to do so could cause the set to fall and
subsequent injury or death.
FCC
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a
residential or commercial installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Copyright
PDI Communication Systems, Inc. claims proprietary right to the material disclosed in this user manual. This manual is issued for
user information only and may not be used to manufacture anything shown herein. Copyright 2009-2012 by PDI Communication
Systems, Inc. All rights reserved.
Disclaimer
The author and publisher have used their best efforts in preparing this manual. PDI Communication Systems, Inc. makes no
representation or warranties with respect to the accuracy or completeness of the contents of this manual and specifically disclaim
any implied warranties or merchantability or fitness for any particular purpose and shall in no event be liable for any loss of profit
or any other damages. The information contained herein is believed to be accurate, but is not warranted, and is subject to change
without notice or obligation.
Trademarks
Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.
All other brand names and product names used in this manual are trademarks, registered trademarks, or trade names of their
respective holders. PDI® is a registered trademark of PDI Communication Systems, Inc., Springboro, Ohio.

Communication
System Inc.
Better Solutions Are Within ReachTM
MODEL NUMBER:
PDI-P23LCDE TV With DVD
Document Number:
PD196-221R1
QUICK START GUIDE
Page 3 of 14
PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH [phone] PH [phone]
LOCATION GUIDELINES
The model PDI-P23LCDE Hospital Grade LCD TV is a specialized LCD TV. This TV is intended for entertainment and educational purposes
for use in a hospital, a nursing home, a medical-care center, or a similar health-care facility in which installation is limited to a non-hazardous
area in accordance with the National Electrical Code, ANSI/NFPA 70. The PDI-P23LCDE is designed for mounting to PDI manufactured
mounts. Installation of the TV on any other mount is not recommended.

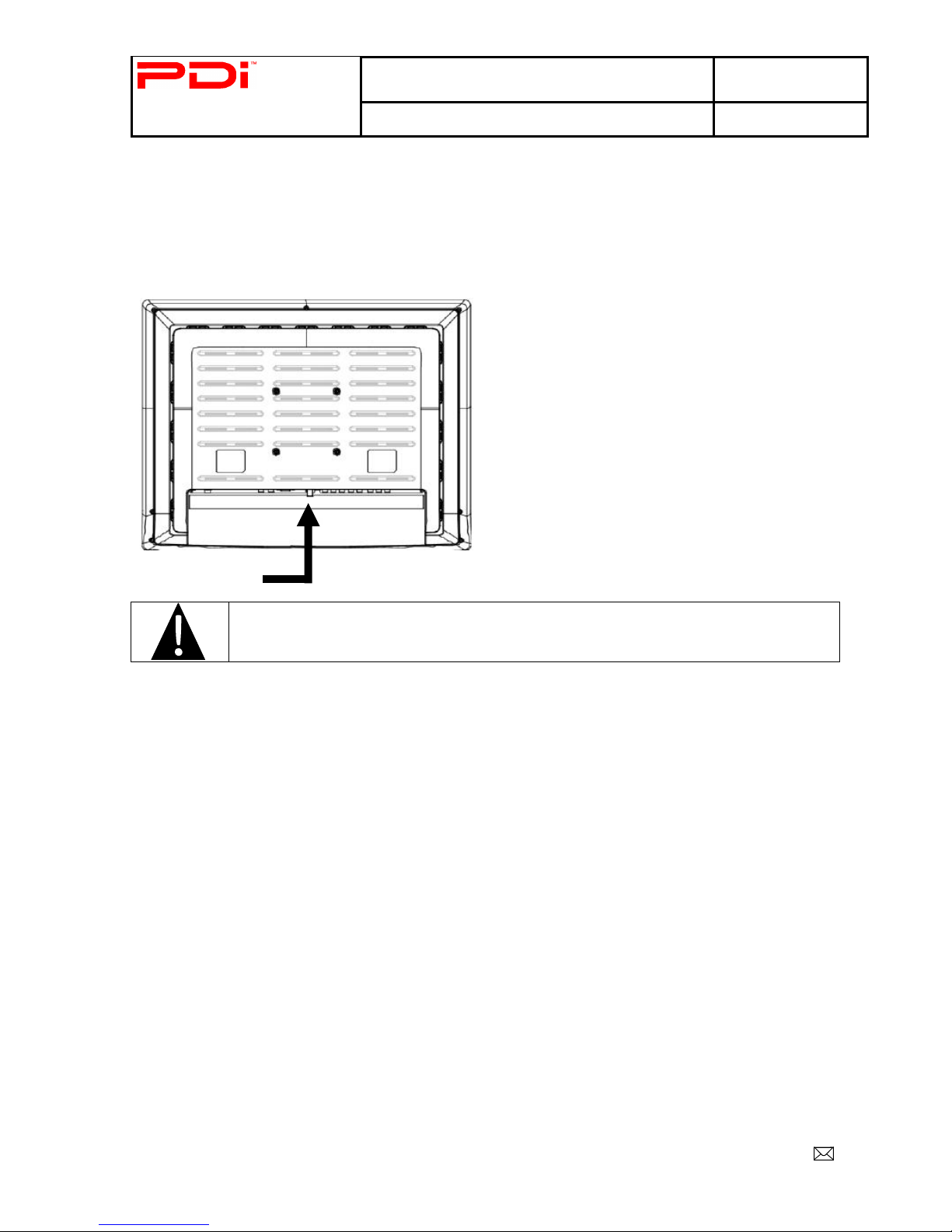

WARNING: The TV’s VESA mounting holes are designed for
M4 metric screws only. Use of a non-PDI approved mount or
SAE hardware could result in a condition where the TV could
unexpectedly fall and cause injury or death.
The PDI-P23LCDE TV mounts to the wall typically at the foot of a patient’s bed with the optional wall bracket. Select a location that is near an
AC wall outlet and that does not expose the TV to bright room lights or sunlight if possible. The LCD TV also requires connection of both
CATV cable signal and across-room wiring for the pillow speaker.
OSHPD (State of California Only)
The combined weight of the PDI-P23LCDE TV and PDI wall mount is less than 20 pounds. At the time of this writing, the
involvement of a written, submitted, reviewed, and approved plan by OSHPD is not required to install the PDI-P23LCDE TV in the
state of California.

Communication
System Inc.
Better Solutions Are Within ReachTM
MODEL NUMBER:
PDI-P23LCDE TV With DVD
Document Number:
PD196-221R1
QUICK START GUIDE
Page 4 of 14
PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH [phone] PH [phone]

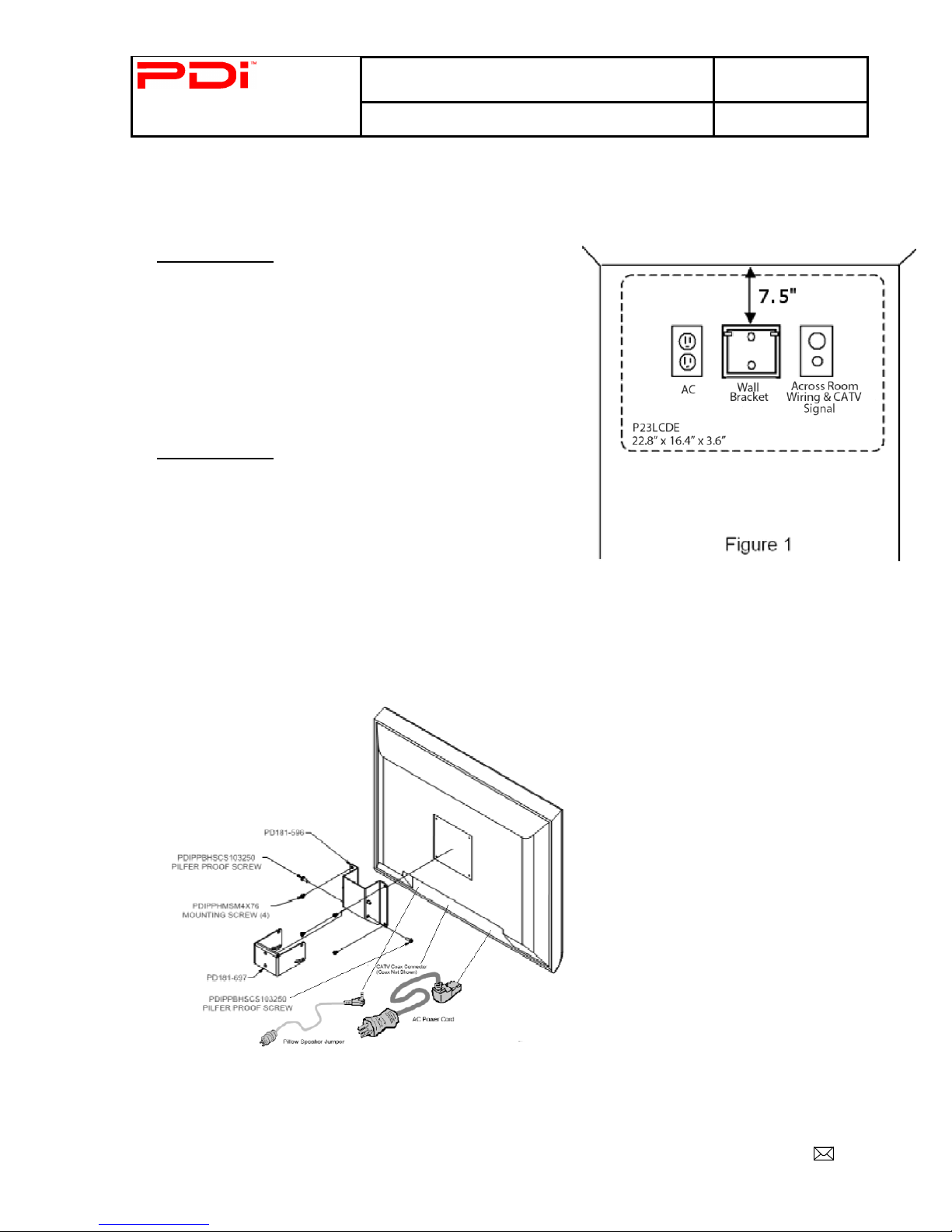

Wall Mounting with Optional Wall Bracket
NOTE: Across-Room Wiring may need to be completed before mounting the TV. (See Across-Room
Wiring diagram on page 4)
1. Refer to Figure 1. Select a location on the wall
approximately 7 ½ inches below the ceiling.
NOTE: DO NOT locate AC, Across-Room Wiring,
and CATV Signal outlets below the Wall Bracket’s
location as it will cause clearance issues and
interfere with the TV’s cabinet when mounted to the
bracket. Position the Wall Bracket and locate two
mounting holes. Secure the bracket to the wall
(mounting hardware is not included).
2. Refer to Figure 2. Position the Back Mount on the LCD TV
cabinet. Attach with four M4 screws provided.
3. Mate the Back Mount to the Wall Bracket making sure the
pivot pins are retained in the “U” shaped slot. Using the pilfer
security driver packed with the hardware, secure with two
10x32 pilfer screws.
4. Connect the AC line cord, Pillow Speaker Jumper Cable,
and CATV Coax Cable.
5. The TV’s tilt can be adjusted by loosening both Pilfer
Screws, adjusting tilt, and then tightening the screws.
Figure 2

Communication
System Inc.
Better Solutions Are Within ReachTM
MODEL NUMBER:
PDI-P23LCDE TV With DVD
Document Number:
PD196-221R1
QUICK START GUIDE
Page 5 of 14
PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH [phone] PH [phone]
Across-Room Wiring
A ¼” stereo style pillow speaker (pendant control) jack is located on the TV’s connector panel on the
backside. This TV is designed to work with either a digital pillow speaker that generates digital style
control codes or a single-button analog (switch-style) pillow speaker. A rear panel mounted switch allows
use of different brands of pillow speakers and supports the major brands: Zenith, Philips, and RCA.
Pillow Speakers

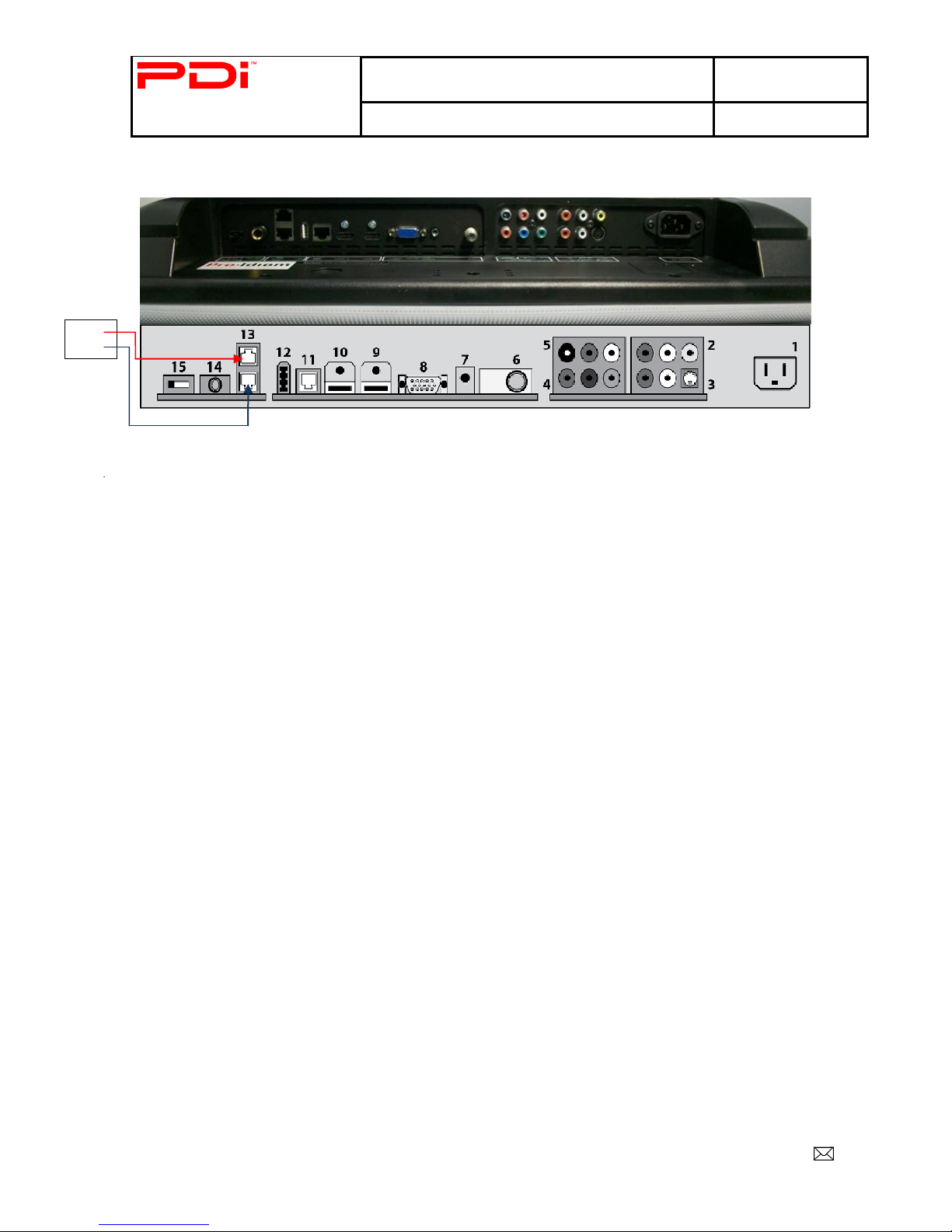

The pillow speaker (pendant control) jack is located on the TV’s connector panel. Control of the TV using
an externally wired pillow speaker is possible.
1. Select the appropriate brand of digital pillow speaker using the recess slide switch next to the PILLOW
jack. CZ for Zenith©
CP for Philips©
CR for RCA©
OFF to disable the pillow speaker
CAUTION: Confirm the pillow speaker type and set the slide switch appropriately
BEFORE connecting the pillow speaker to the TV. Failure to follow this procedure
could result in damage to the pillow speaker or cause improper operation of the TV.
