PDi PDI-E29LEDA User manual

Document Number: PD196-276R3
PDI-E29LEDA
Modular High Definition
Healthcare-grade LED Television

Your Source for Healthcare and
Wellness Infotainment
™
MODEL NUMBER:
PDI-E29LEDA-NK LED TV
Document Number:
PD196-276R3
Service Manual
Page 2 of 13
PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664
Table of Contents
Copyright, Disclaimer, and Trademarks..................................................................................................................................3
Regulatory Information............................................................................................................................................................4
Product Safety Servicing Precautions.....................................................................................................................................4
PDI-E29LEDA-NK Specifications............................................................................................................................................5
Disinfecting and Cleaning .......................................................................................................................................................6
Checking Points to Consider...................................................................................................................................................6
Product Identification...............................................................................................................................................................6
Speakers.................................................................................................................................................................................7
Board Removal........................................................................................................................................................................7
Parts List .................................................................................................................................................................................8
Cable Connections................................................................................................................................................................10
Basic Troubleshooting Steps ................................................................................................................................................11
Reassembly...........................................................................................................................................................................12
Safety Checks.......................................................................................................................................................................13

Your Source for Healthcare and
Wellness Infotainment
™
MODEL NUMBER:
PDI-E29LEDA-NK LED TV
Document Number:
PD196-276R3
Service Manual
Page 3 of 13
PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664

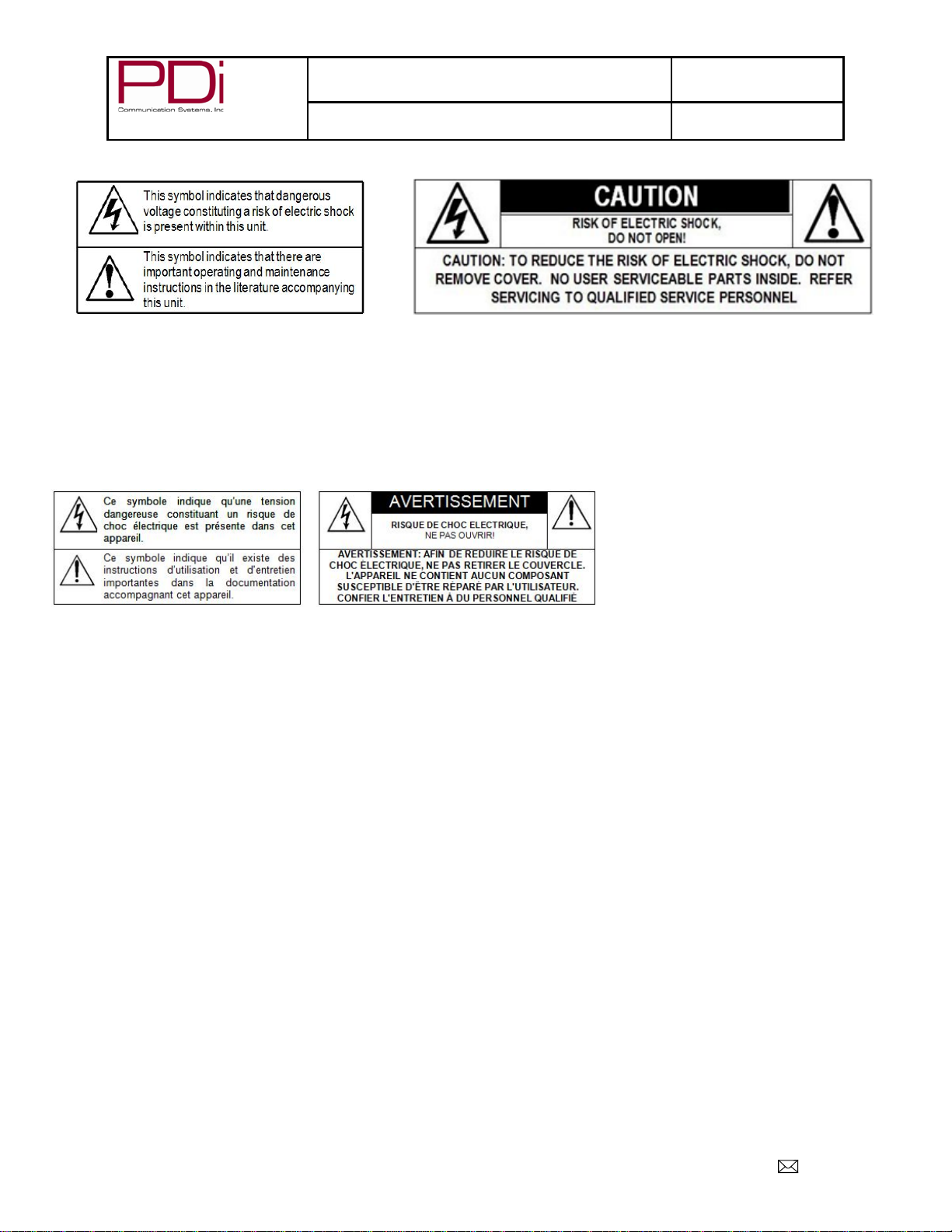

This Service Manual is intended for use by qualified service persons possessing an adequate background in
electrical equipment, electronic devices, and mechanical systems. In any attempt to repair a major product, personal
injury and property damage can result. The manufacturer or seller maintains no liability for the interpretation of this
information, nor can it assume any liability in conjunction with its use. When servicing this product, under no
circumstances should the original design be modified or altered without permission from PDi. Unauthorized modifications
will not only void the warranty, but may also lead to property damage or user injury.
Cette installation doit être effectuée par
un technicien qualifié et doit être
conforme à tous les codes locaux. Lire et
suivre les consignes de sécurité avant de
procéder à l’installation.
Copyright, Disclaimer, and Trademarks
Copyright
PDi Communication Systems, Inc. claims proprietary right to the material disclosed in this service manual. This manual is
issued in confidence for servicing information only and may not be used to manufacture anything shown herein.
Copyright 2014 by PDi Communication Systems, Inc. All rights reserved.
Disclaimer
The author and publisher have used their best efforts in preparing this manual. PDi Communication Systems, Inc. makes
no representation or warranties with respect to the accuracy or completeness of the contents of this manual and
specifically disclaim any implied warranties of merchantability or fitness for any particular purpose and shall in no event be
liable for any loss of profit or any other damages, including but not limited to special, incidental, consequential or other
damages. The information contained herein is believed accurate, but is not warranted, and is subject to change without
notice or obligation.
Trademarks
All brand names and product names used in this manual are trademarks, registered trademarks, or trade names of their
respective holders.
PDi®is a registered trademark of PDi Communication Systems, Inc., Springboro, Ohio.
Dolby Digital Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are trademarks of
Dolby Laboratories.

Your Source for Healthcare and
Wellness Infotainment
™
MODEL NUMBER:
PDI-E29LEDA-NK LED TV
Document Number:
PD196-276R3
Service Manual
Page 4 of 13
PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664
Regulatory Information
FCC
This equipment has been tested and found to comply with the limits pursuant to part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference when the equipment is operated in a
residential or commercial installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by
one of more of the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
•Consult the dealer or an experienced radio/TV technician for help.
Underwriters Laboratories
The model PDI-E29LEDA Hospital Grade TV Receiver is a specialized television. This TV is
intended for entertainment and educational purposes for use in a hospital, a nursing home, a
medical-care center, or a similar health-care facility in which installation is limited to a non-hazardous
area in accordance with the National Electrical Code.
This device is safety tested and listed by the Underwriters Laboratories as a product suitable for use
in health care facilities in both the United States and Canada.
Energy Star PDi Communication Systems, Inc. has voluntarily partnered with the US government as part of the
ENERGY STAR®program in support of energy efficiency initiatives. The US EPA has authority over
the ENERGY STAR program. As an ENERGY STAR partner, PDi Communication Systems, Inc. has
determined that, in the as-shipped factory default condition, this healthcare television product meets
the energy efficiency guidelines. Changes to the default as-shipped television configuration and
settings, such as enabling certain optional features and functionalities, may increase energy
consumption beyond the limits required for ENERGY STAR qualification. ENERGY STAR is a
registered mark owned by the US government. For more information, visit www.energystar.gov.
ESD Notice (Electrostatic Discharge)
Today’s electronics are electrostatic discharge (ESD) sensitive. ESD can weaken or damage the electronics in a manner
that renders them inoperative or reduces the time until their next failure. Connect an ESD wrist strap to a ground
connection point or unpainted metal in the product. Alternatively, you can touch your finger repeatedly to a ground
connection point or unpainted metal in the product. Before removing a replacement part from its package, touch the anti-
static bag to a ground connection point or unpainted metal in the product. Handle the electronic control assembly by its
edges only. When repackaging a failed electronic control assembly in an anti-static bag, observe these same
precautions.
Product Safety Servicing Precautions
1. POWER SOURCE Use only a power source indicated for use with this product. This TV will operate on AC voltage.
To avoid personal injury, disconnect the power before servicing this product. If electrical power is required for
diagnosis or test purposes, disconnect the power immediately after performing the necessary checks.
2. REPLACEMENT Replace only with the part number specified.
3. VOLTAGE CHECKS Exercise care when making voltage and waveform checks to prevent costly short circuits from
damaging the unit.
4. METAL OBJECTS Be cautious of lost screws and other metal objects to prevent a possible short in the circuitry.

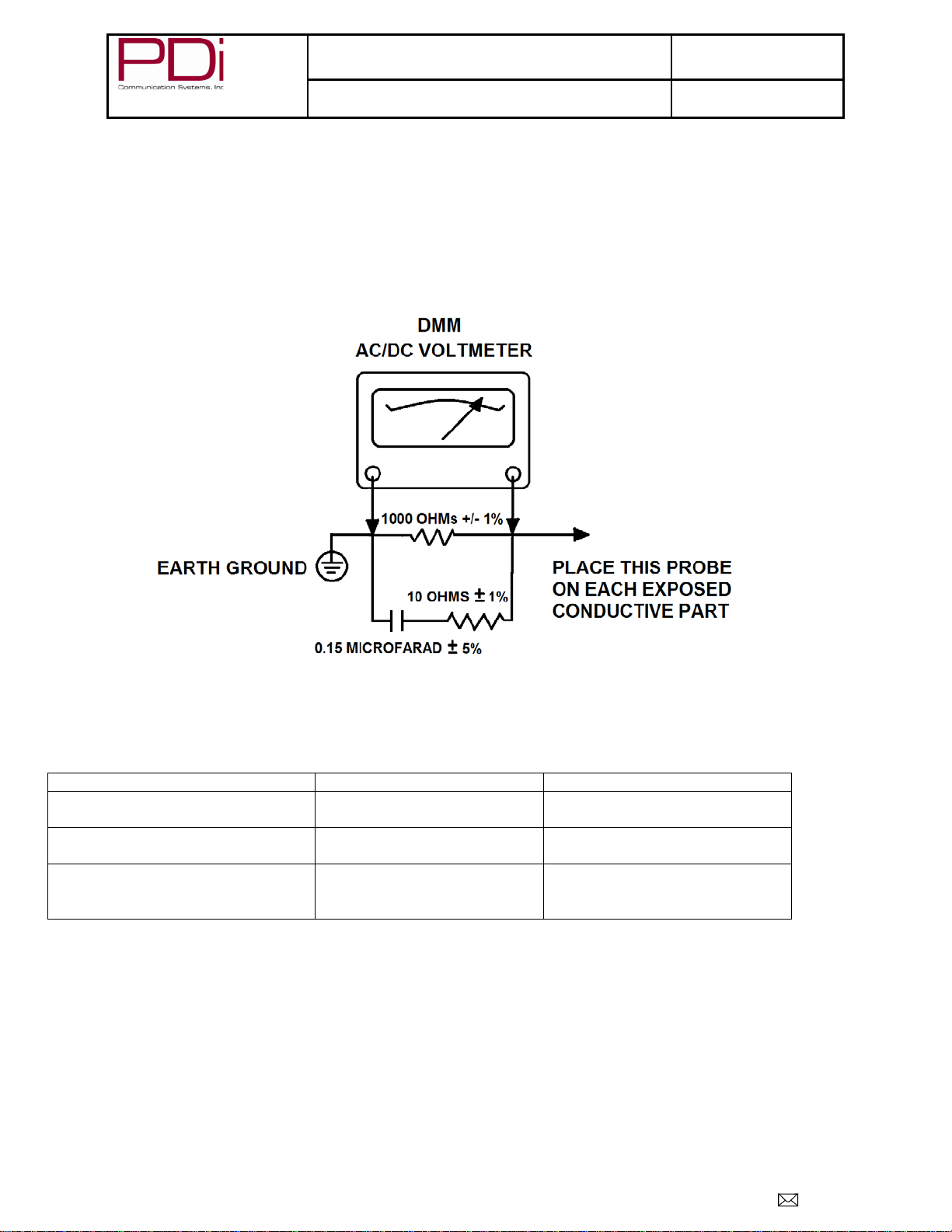

5. SAFETY CHECKS This hospital grade television requires special safety checks before returning to service. Observe
and follow the “Safety Check” section in this service manual.

Your Source for Healthcare and
Wellness Infotainment
™
MODEL NUMBER:
PDI-E29LEDA-NK LED TV
Document Number:
PD196-276R3
Service Manual
Page 5 of 13
PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664
PDI-E29LEDA-NK Specifications
PANEL
Diagonal Size
29” (73.7cm)
HDTV compatible
Yes
Aspect Ratio
16:9
Native Display Resolution
1366 x 768
Contrast Ratio
2500:1
Viewing Angle
176º V / 176º H
Response Time
8.5 ms
Color Depth
16.7M
Luminance (nits)
300
Backlight Lamp Life (hours)
30,000
Backlight Type
LED
VIDEO BROADCASTING
ATSC/NTSC/Clear QAM
Air VHF/UHF, CATV, IRC,HRC
MPEG4/Pro:Idiom
Yes
FM Tuner
88.1 – 107.9 MHz
Supported Formats
1080p/1080i/720p/576p/576i/480p/480i
AUDIO
Speakers/Audio Output Power
2 x 5W RMS
Analog Channels
Mono/Stereo/SAP
Digital Channels
Multilingual
Tone Control Balance
Yes
HEALTHCARE SPECIFIC FEATURES
Internal Speaker Disable
Yes
Min/Max Volume Limiter
Yes
Start/Power-on Volume
Yes
Selectable Pillow Speaker
+12VDC, +5VDC, OFF, -5VDC
Universal Pillow Speaker Recognition
Yes
Auto Power On
Yes
Channel Enable/Disable
Yes
Bed A/B/C/D
Yes
Programmable Source Selection
Yes
Direct Access to Source from Pillow Speaker
Yes
Progressive Scan
Yes
Parental Control (V-CHIP)
Yes
USB Clone Programmable
Yes
2D Digital Comb Filter
Yes
Sleep Timer
Yes
Factory Reset
Yes
OSD Language
English/French/Spanish
A/V INPUT/OUTPUT
AC
IEC Male, Hospital-grade
USB Port
Yes
RF Input
Yes
HDMI/HDCP Input
Yes, 2
VGA Input
Yes
PC Audio Input
Yes
Composite Input with L/R Audio
Yes
CCI/MTI/MPI Smart Plug
Yes
DVD Module Port
Yes
Pillow Speaker Output
Yes, 3 conductor ¼” female
Service Port
Yes
POWER
Source
120V +/- 15%, 60HZ
Max Consumption
45W
Standby Consumption – Normal/Low
<15W/<1W
REGULATORY
UL/ᶜUL 60065 Annex Q
Yes
Energy Star 6.0
Yes
CEC
Yes
FCC Title 15, Part 47, Subpart B
Yes
UNIT CHARACTERISTICS
Cabinet Color
Black Gloss
Mount Pattern
200 x 100MM VESA, 5MM Thread
Weight (kgs) (with Stand)
14.1 lbs (6.4 kg)
Unit Dimensions Inches (WxHxD) (cm)
26 x 16.6 x 1.9 (67.6 x 42.2 x 4.8)

Your Source for Healthcare and
Wellness Infotainment
™
MODEL NUMBER:
PDI-E29LEDA-NK LED TV
Document Number:
PD196-276R3
Service Manual
Page 6 of 13
PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664
Disinfecting and Cleaning
The P14W should be disinfected before performing any service. The following procedure is only a recommendation.
Your hospital or company may have a different procedure to follow.
Caution: Before using any cleaning or disinfecting agent on the P14W, perform a spot check by wetting a small
area of the cabinet. Verify the agent does not discolor or deteriorate the cabinet.
1. The E29LEDA has been designed to withstand up to a 5% chlorine based disinfectant. Many alcohol and
ammonia based disinfectants have also been tested with success. Apply the cleaner or disinfectant per its
recommended instructions.
Note: Most disinfectants require a waiting time following application and prior to wipe-down.
2. The manufacturer recommends isopropyl alcohol for the cleaning of the LCD screen.
Checking Points to Consider
Dynamic picture adjustments to Brightness, Contrast, Color, and Tint are available using the IR Remote Control, Part
number PD108-420, using the SETUP/Picture menu.
1. Check the appearance of the replacement panel and circuit boards for both physical damage and part number
accuracy.
2. Check the model label. Verify model names and board model matches.
3. Check details of defective condition and history. Contact PDi with serial number for details.
Product Identification
Product Label
The E29 is easily identified using the product label located on the back cabinet housing.
Serial Number Format Explanation
1. The first two digits compose the year of manufacture. 2012 would be 12.
2. The second two digits compose the week of manufacture. 38 would be week 38.
3. The single alphabetic character represents the place of manufacturing.
4. The next three alphanumeric characters compose the unique model ID.
5. The next character is the revision level.
6. The next five digits compose the serial number starting with the first unit produced in the current year.
Back Cover
1. Remove (24) screws from the back
cover.
2. Lift back cover and remove, being
careful of tabs and cable
connections.

Your Source for Healthcare and
Wellness Infotainment
™
MODEL NUMBER:
PDI-E29LEDA-NK LED TV
Document Number:
PD196-276R3
Service Manual
Page 7 of 13
PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664

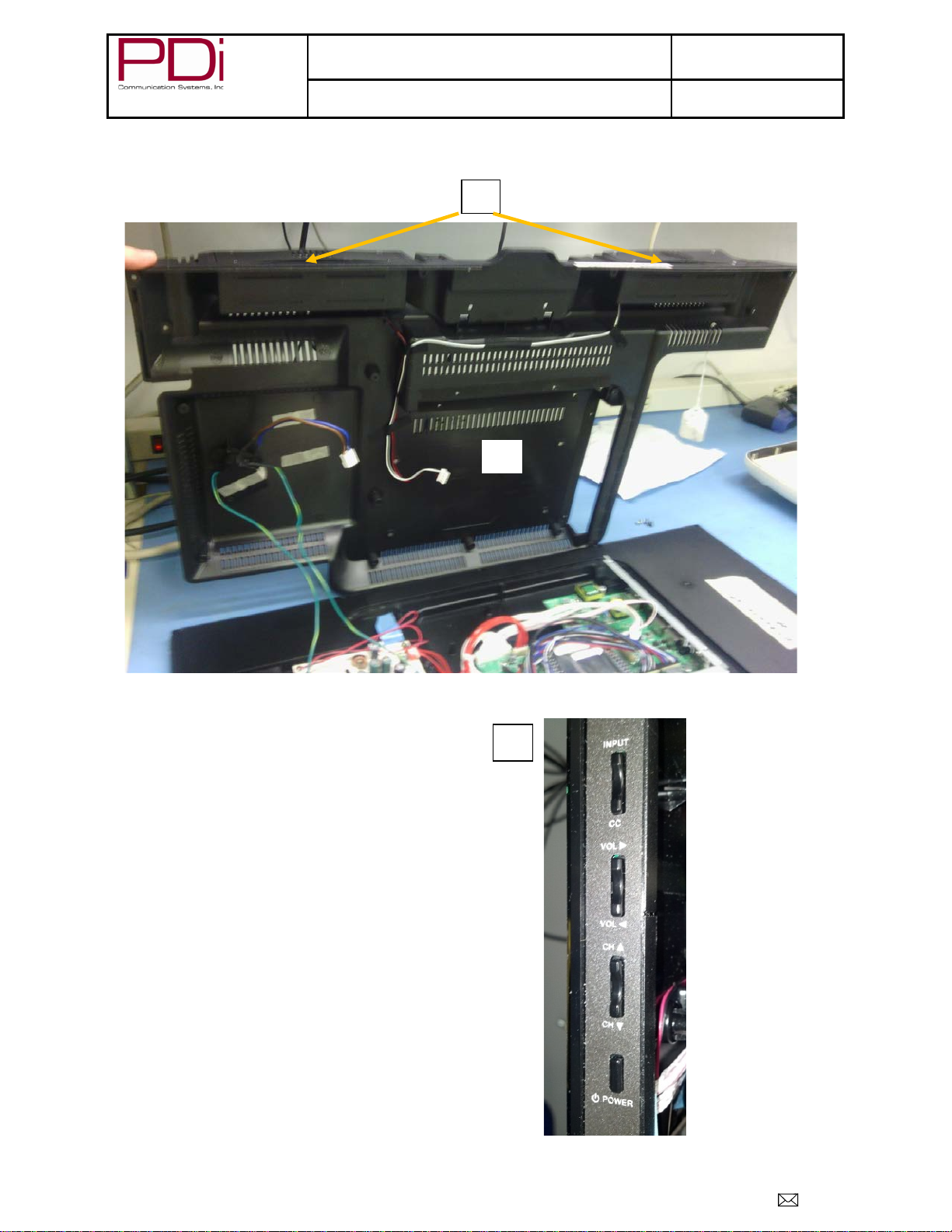

Speakers
The speakers PD164-046 are held to the rear cover
with (4) each screws.

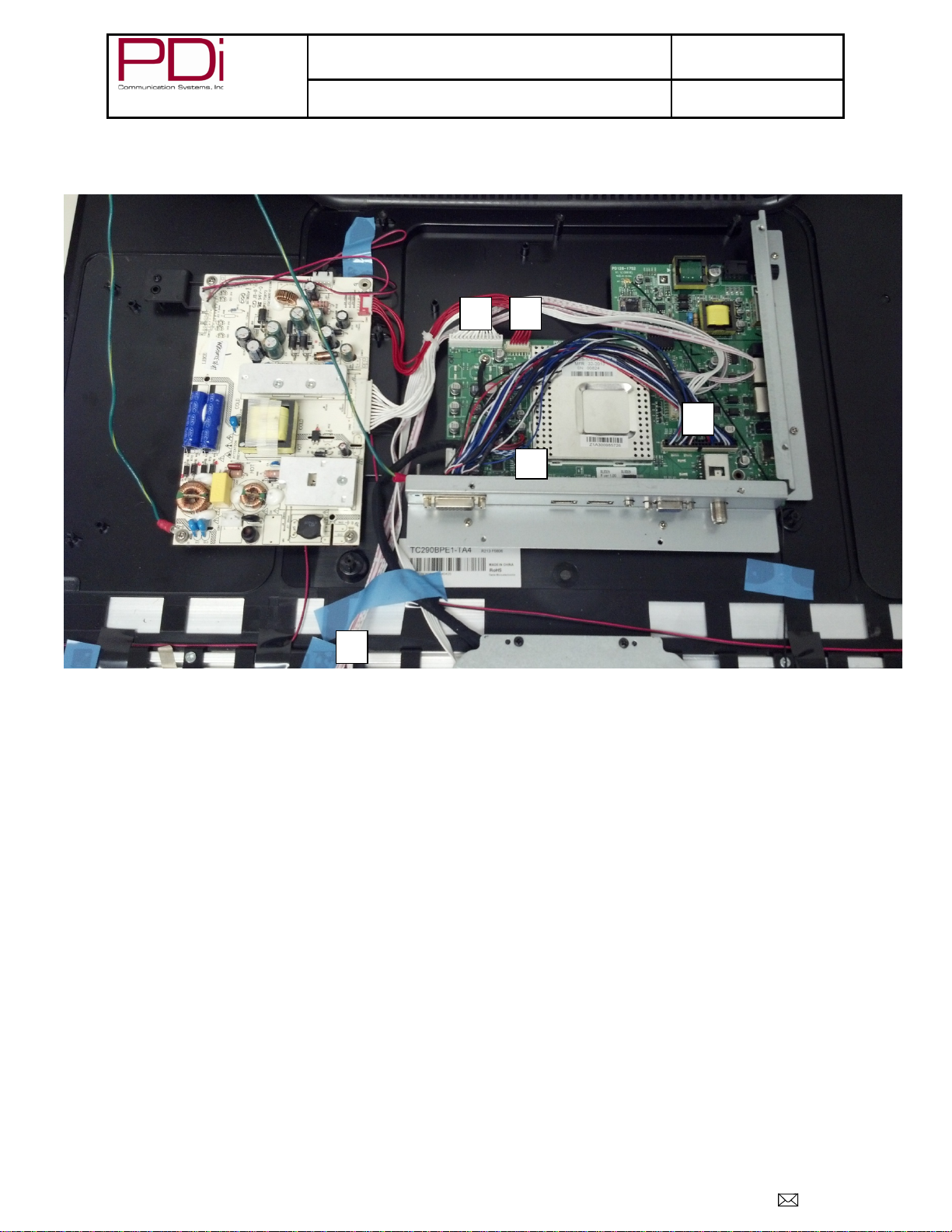

Board Removal
The main board PD128-1763 is secured with
3 screws.
The pillow speaker board PD128-1752 is
secured with 2 screws.
The power and LED driver/power supply
board PD128-1776 is secured with 4 screws.
The IR board PD128-1784 is secured with 1
screw.

Your Source for Healthcare and
Wellness Infotainment
™
MODEL NUMBER:
PDI-E29LEDA-NK LED TV
Document Number:
PD196-276R3
Service Manual
Page 8 of 13
PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664
Parts List
1. PD128-1763 MAIN BD.
2. PD128-1752 PILLOW SPEAKER BD.
3. PD128-1776 POWER AND LED DRIVER BD.
4. PD134-242 KEYPAD
5. PD133-931 BACK CABINET
6. PD289-141 29” ASSEMBLY LCD PANEL
7. PD180-013 RF I/O FRAME
8. PD180-014 PILLOW SPEAKER I/O FRAME
9. PD164-046 SPEAKERS
10. PD106-796 LVDS CABLE
11. PD106-803 IR/KEYBOARD CABLE
12. PD128-1784 IR BOARD
13. PD106-800 POWER CABLE P101 TO PSU
14. PD106-805 POWER CABLE P102 TO PSU
15. PD106-761 44-26 PIN D-SUB CABLE
2
3
6
11
7
8
14
10
1
13
12
15

Your Source for Healthcare and
Wellness Infotainment
™
MODEL NUMBER:
PDI-E29LEDA-NK LED TV
Document Number:
PD196-276R3
Service Manual
Page 9 of 13
PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664
(9) PD164-046 SPEAKERS
(5) PD133-931 BACK CABINET
(4) PD134-242 KEYPAD
4
9
5

Your Source for Healthcare and
Wellness Infotainment
™
MODEL NUMBER:
PDI-E29LEDA-NK LED TV
Document Number:
PD196-276R3
Service Manual
Page 10 of 13
PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664
Cable Connections
1. PD106-796 LVDS
2. PD106-803 IR/KEYBOARD
3. PD106-800 POWER CABLE P101 TO PSU
4. PD106-805 POWER CABLE P102 TO PSU
5. PD106-761 44-26 PIN D-SUB CABLE
1
2
3
4
5

Your Source for Healthcare and
Wellness Infotainment
™
MODEL NUMBER:
PDI-E29LEDA-NK LED TV
Document Number:
PD196-276R3
Service Manual
Page 11 of 13
PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664
Basic Troubleshooting Steps
Factory Reset Procedure
Many times issues can be resolved by performing a factory reset on the TV. Press and hold down “CC” button
on TV and press and hold down “Last” on the remote. Hold both down simultaneously until TV displays a reset
message on screen.
Symptom
Check
•Verify AC power cord is fully seated into TV’s power socket
•Verify AC plug is connected to a powered AC outlet
TV DEAD (No Power) •
Check Power cable for voltage.
•Replace power supply board (PD128-1776)
•Replace main board (PD128-1763) if red LED is lit
•
Tune TV to another channel. Check for color
•Adjust color settings in Setup/Picture menu
•Verify correct AC line voltage is used to power TV
•
Verify correct signal type is set in Setup/Channels menu
NO COLOR •Perform Auto Program
•Replace LVDS cable (PD106-796)
•Replace main board (PD128-1763)
•Replace panel (PD289-141)
•
Verify TV is connected to a coax cable that has RF signal
•Verify channel is programmed into current service level
•Tune to channel with remote
•Tune to channel with TV keypad
CANNOT TUNE TO A DESIRED CHANNEL •Verify correct Signal type is set in Setup/Channels menu
•
Verify Channel Memory Override is enabled in Setup/Channels.
•Verify Channel Lock is disabled
•Replace main board (PD128-1763)
•Verify TV is powered
•Check TV operation with remote control
•Disconnect pillow speaker jumper cable and recheck keypad
TV KEYPAD INOPERATIVE
•Verify that LVDS cable is seated correctly to main chassis
connector
•Replace keypad (PD134-242)
•Replace main board (PD128-1763)
•Verify TV RF signal level is (0 to+10dbmv at the TV)
•Tune to another channel
SNOWY PICTURE •
Verify correct Signal type is set in Setup/Channels Manual
•Replace LVDS cable (PD106-796)
•Replace main board (PD128-1763)
•Verify TV RF signal level is (0 to+10dbmv at the TV)
•Tune to another channel
NOISY PICTURE •
Turn off nearby equipment if possible and isolate noise source
•Move TV and cables to minimize or eliminate noise.
•Replace main board (PD128-1763)

Your Source for Healthcare and
Wellness Infotainment
™
MODEL NUMBER:
PDI-E29LEDA-NK LED TV
Document Number:
PD196-276R3
Service Manual
Page 12 of 13
PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664
•Verify pillow speaker is fully inserted into TV’s speaker jack
•Try a different pillow speaker
PICTURE OK, NO PILLOW SPEAKER SOUND •Verify TV is not muted. Adjust for maximum volume
•Replace head pillow speaker board (PD128-1752)
•
Replace main board (PD128-1763)
•Check for on-screen menu and adjust for maximum brightness
and contrast
•
Verify LVDS connector is seated on main board
•Verify Backlight connectors are plugged in and secure
BLACK OR DIM PICTURE, SOUND OK •Replace board, Power/LED driver board (PD128-1776)
•
Replace LVDS cable (PD106-796)
•Replace main board (PD128-1763)
•
Replace panel (PD289-141)
•Verify TV is not muted. Verify cable is seated into main chassis
and into IR board
•Verify pillow speaker is not being used
PICTURE OK, NO SPEAKER SOUND •Verify TV speaker has not been disabled for the current Service
Level in the Sound/Internal Speaker Enable menu
•Replace speaker (PD164-046)
•Replace pillow speaker board (PD128-1752)
•Check sound. If there is still no sound, replace the main board
LOW VOLUME OR VIBRATION IN SPEAKER •Check for missing or loose screw in speaker
Reassembly
Reassemble the unit in reverse manner as the disassembly paying special attention to:
•All parts removed in the repair of the TV are reassembled in original manner.
•Wires are dressed in a way not to be damaged by reassembly.
•All circuit boards should be mounted with screws (DO NOT over torque).

Your Source for Healthcare and
Wellness Infotainment
™
MODEL NUMBER:
PDI-E29LEDA-NK LED TV
Document Number:
PD196-276R3
Service Manual
Page 13 of 13
PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664
Safety Checks
Leakage Current
After re-assembly of the unit, always perform a leakage test on all exposed conductive parts such as metal connectors,
chassis, and mount.
With the unit powered, the following circuit should be connected from earth ground to each exposed conductive part on
the repaired unit. A DMM is placed in parallel with this circuit to measure AC rms or DC voltage. If leakage currents are
greater than the maximum allowed, inspect the TV for insulation or component breakdowns.
The maximum allowed leakage current depends on the type of power the unit receives and whether the unit is within
reach of the patient bed/chair.
TV Type
Max Leakage Current
Max DMM Voltage Reading
Footwall TV
(120VAC grounded wall outlet)
500µA AC rms
500mV AC rms
12VDC Arm Mount TV
(PDI-750XL power supply)
100µA DC
100mV DC
28VAC Arm Mount TV
(PDI-750A 750B or 772HE power
supply)
50µA AC rms
50mV AC rms
Contact Information
For any questions with servicing PDi televisions contact our Service Department at:
PDi Communication Systems, Inc.
40 Greenwood Ln.
Springboro, OH 45066 USA
800-628-9870
