PDi PDI-E24LEDA-NK User manual

PDi LED Televisions
PDI-E24LEDA-NK
PDI-E29LEDA-NK
PDI-E32LEDA-NK
PDI-E42LEDA-NK
Document Number: PD196-252R3

Better Solutions Are Within Reach®
MODEL NUMBER:
24”, 29”, 32”, 42”LED TELEVISION
Document Number:
PD196-252R3
Quick Start Guide
Page 2 of 7
PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664
This symbol indicates that dangerous
voltage constituting a risk of electric
shock is present within this unit.
CAUTION
RISK OF ELECTRIC SHOCK,
DO NOT OPEN!
This symbol indicates that there are
important operating and maintenance
instructions in the literature
accompanying this unit.
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER. NO USER SERVICEABLE
PARTS INSIDE. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL
Overhead Falling Hazard
TV can pose a striking hazard when mounted at
an elevated position. Use only PDi mounting
brackets, support arms, and appropriate hardware
to assure TV will not mall from the mounted
position. Failure to do so may cause injury or
death.
Rain and Moisture
WARNING: To avoid the hazards of fire or
electrical shock, DO NOT expose this television to
rain or moisture.
Oxygen Environment
WARNING: Do not use in any oxygen tent or
oxygen chamber. Such use may cause a fire
hazard.
Wet Location
Do not use this television near water. Television
shall not be exposed to dripping or splashing and
no objects filled with liquids, such as vases, shall
be placed on the television.
Note to Cable TV Installer
This reminder is provided to call the cable TV systems
installer’s attention to Article 820-40 of the National Electrical
Code. The code provides guidelines for proper grounding and,
in particular, specifies that the cable ground shall be connected
to the grounding system of the building, as close to the point of
the cable entry as practical. Canadian installations shall be
properly grounded in accordance with the Canadian Electrical
Code, Part 1.
FCC
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to part 15
of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the
equipment is operated in residential or commercial installation.
If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and
receiver.
•Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
•Consult the dealer or an experienced radio/TV
technician for help.
Maintenance and Servicing
The TV does not require periodic maintenance other than
cleaning. Never remove the back cover of the TV; this can
expose you to high voltage and other hazards. If the TV does
not operate properly, unplug it and call an authorized service
center or PDi.
Cleaning and Disinfection
Clean the exterior of this television by removing dust with a lint-
free cloth. CAUTION: To avoid damage to the surface of the
television, do not use abrasive or chemical cleaning agents.
Spot test a new disinfectant by test cleaning a non-obvious
small spot on the TV’s back cabinet, keypad, and LCD panel.
Allow the disinfectant to soak per its instructions and then wipe
clean. Do not use the disinfectant if the TV’s surfaces show
any sign of discoloration or softening.
Product Modification
Do not attempt to modify this product in any way without
written authorization. Unauthorized modification could void the
user’s authority to operate this product.
Trademarks
Manufactured under license from Dolby Laboratories, Dolby
and the double-D symbol are trademarks of Dolby
Laboratories. All other brand names and product names used
in this manual are trademarks, registered trademarks, or trade
names of their respective holder. “PDi” and “Better Solutions
Are Within Reach” are registered trademarks of PDi
Communication Systems, Inc. All rights reserved.

Document Number: PD196-252R3 PDI 24” 29”, 32”, 42” LED TV Quick Start Guide Page 3 of 7
PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664
IMPORTANT SAFETY INSTRUCTIONS
THIS INSTALLATION SHOULD BE MADE BY A QUALIFIED SERVICE PERSON AND SHOULD CONFORM TO ALL
LOCAL CODES. READ AND FOLLOW THE SAFETY INSTRUCTIONS BEFORE ATTEMPTING THIS
INSTALLATION.
1. Read these Instructions – All the safety and
operating instructions should be read before the
product is operated.
2. Keep these Instructions – The safety and
operating instructions should be retained for future
reference.
3. Heed all warnings – All warnings on the product
and in the operating instructions should be
adhered to.
4. Follow all instructions – All warnings on the
product and in the operating instructions should be
followed.
5. Do not use this apparatus near water – for
example, near a bath tub, wash bowl, in a wet
basement; or near a swimming pool; and the like.
6. Clean only with dry cloth. Do not use liquid
cleaners or aerosol cleaners.
7. Do not block any ventilation openings. Install in
accordance with the manufacturer’s instructions.
The openings should never be blocked by placing
the product on a bed, sofa, rug, or other similar
surface.
8. Do not install near any heat sources such as
radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce heat.
9. DO NOT defeat the safety purpose of the
polarized or grounding-type plug. This product is
equipped with a three-wire grounding-type plug, a
plug having a third (grounding) pin. This plug will
only fit into a grounding-type power outlet. This is
a safety feature. If you are unable to insert the
plug into the outlet, contact your electrician to
replace your obsolete outlet.
10. Protect the power cord from being walked on or
pinched particularly at plugs, convenience
receptacles, and the point where they exit from the
product.
11. Attachments – Only use attachments/accessories
specified by the manufacturer.
12. Use only with the cart, stand,
tripod, bracket, or table specified
by the manufacturer, or sold with the apparatus.
When a cart is used, use caution when moving the
cart/apparatus combination to avoid injury from tip-
over.
13. Unplug this apparatus during lightning storms or
when unused for long periods of time.
14. Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has
been damaged in any way, such as power-supply
cord or plug is damaged, liquid has been spilled or
objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture,
does not operate normally, or has been dropped.
15. Power Sources – This product should be operated
only from the type of power source indicated on
the marking label. If you are not sure of the type
of power supply to your home, consult your
product dealer or local power company. For
products intended to operate from battery power,
or other sources, refer to the operating
instructions.
16. Oxygen Environment – Do not use in an oxygen
tent or oxygen chamber. Such use may cause a
fire hazard.
17. Lightning – For added protection for this product
during a lightning storm, or when it is left
unattended and unused for long periods of time,
unplug it from the wall outlet and disconnect the
antenna or cable system. This will prevent
damage to the product due to lightning and power-
line surges.
18. Servicing – Do not attempt to service this product
yourself as opening or removing covers may
expose you to dangerous voltage or other
hazards. Refer all servicing to qualified service
personnel.

Document Number: PD196-252R3 PDI 24” 29”, 32”, 42” LED TV Quick Start Guide Page 4 of 7
PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664
Contact PDi for instructions on TV mounting options.

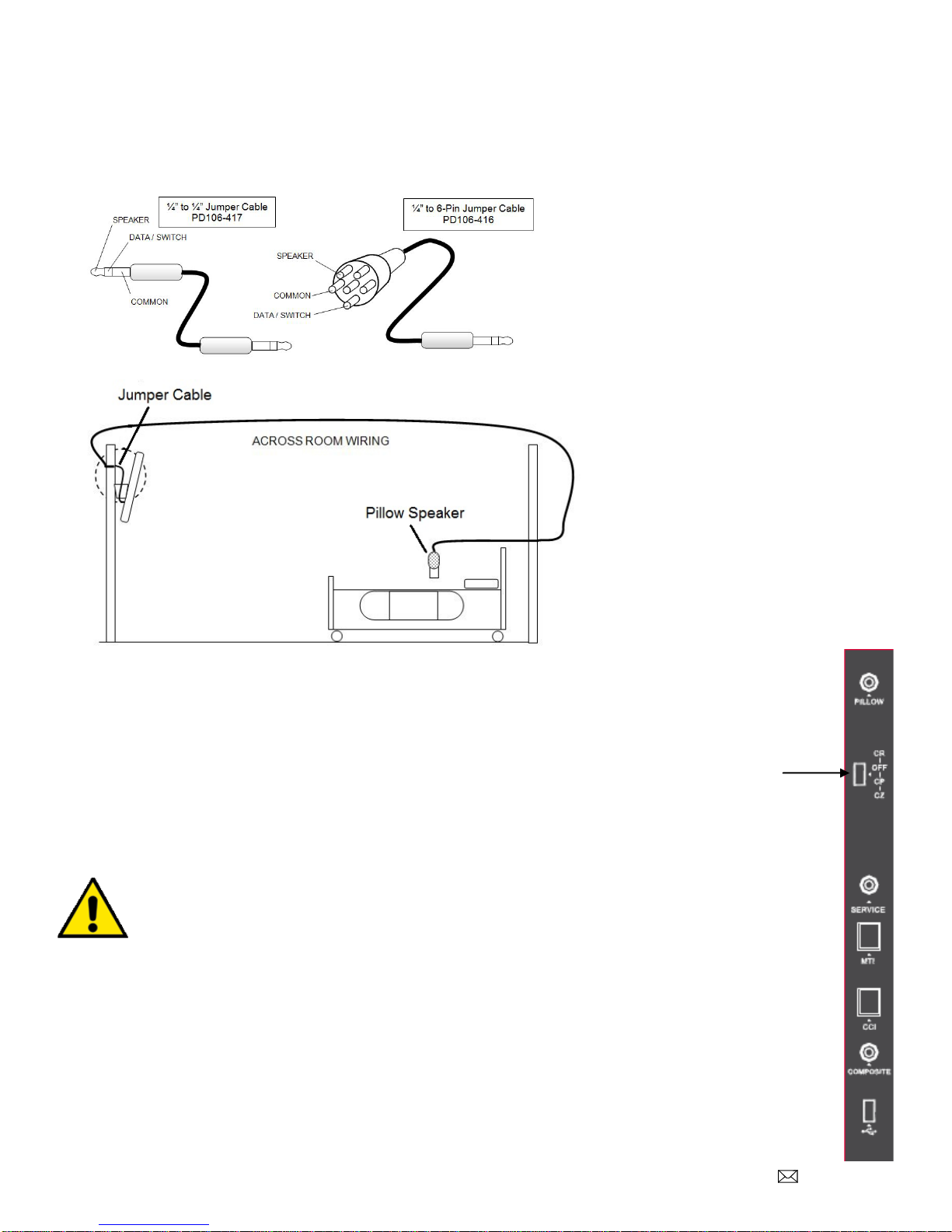

Across-Room Wiring
NOTE: A jumper Cable is NOT supplied with the TV and must be ordered separately.
Pillow Speaker
A ¼” stereo-style pillow speaker (pendant control) jack is located on the TV’s connector panel on the back
side. This TV is designed to work with either a digital pillow speaker that generates digital-style control codes
or a single-button analog (switch-style) pillow speaker. A rear panel mounted switch allows use of different
brands of pillow speakers and supports the major brands: Zenith, Philips, and RCA.
CAUTION: Confirm the pillow speaker type and set the side switch appropriately BEFORE
connecting the pillow speaker to the TV. Failure to follow this procedure could result in damage
to the pillow speaker and/or TV.
Pillow Speaker Switch

Document Number: PD196-252R3 PDI 24” 29”, 32”, 42” LED TV Quick Start Guide Page 5 of 7
PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664
PROGRAMMING
Note: A programming remote control is required to perform all setup operations for the television. The programming
remote (Part Number PD108-420) is NOT packaged with the TV and must be ordered separately. The following
instructions assume you have a programming remote, have correctly mounted the TV, and connected a coax cable that
provides an RF signal.
Channel Setup
This TV offers a four separate programmable service levels: Disabled, Free, Basic, and Premium. The current service
level can be quickly determined by accessing the SETUP menu using the remote control. Service level can be changed
to any of the four levels at any time by entering the SETUP menu and changing the Service Level setting.
DISABLED – This is like a mechanical key lock. The TV can be turned
OFF and ON, but cannot be used for viewing programs. A standard
message appears on a black screen.
FREE – This lets patients watch hospital education and information
channels without renting the TV. The channels containing
programming for no charge are typically programmed into this level of
service. This is the factory default setting for Service Level.
BASIC – This service typically allows additional channels beyond those
offered in the FREE level.
PREMIUM – This is the highest service level with typically the most
channels available for viewing.
Signal
Four different tuning types are available depending upon the healthcare facilities’ signal style. Selection of the correct
signal type is required for the TV to recognize all possible channels and before any channel programming can begin.
1. Press the SETUP button to display the SETUP MODE menu.
2. Press the VOL► to select desired service level. (Free, Basic, Premium)
3. Press the CH▲ /CH▼ to highlight CHANNEL menu
4. Press the VOL► to enter the menu and select Air, Cable STD, Cable IRC or Cable HRC.
NOTE: Most hospitals use the Cable STD signal style.

Document Number: PD196-252R3 PDI 24” 29”, 32”, 42” LED TV Quick Start Guide Page 6 of 7
PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664
Auto Program
The TV automatically scans each available channel for activity. Channels that display activity are memorized into the
selected Service Level.
1. From the Channels menu, select Auto Program
2. In the Auto Program menu, press the VOL► button to select
Mode.
3. Press VOL► to set the scope of channel scanning.
Analog Only: TV searches for analog channels only.
Digital Only: TV searches for digital channels only.
Analog and Digital: TV searches for both analog and digital
channels.
4. Press the CH▼ button to select the Channel Sequence menu
item.
5. Press ◄VOL► to set the Channel Sequence in which the
channels are displayed after searching.
Interleave A+D: In the order of channel number regardless of the
system.
All A then D: Digital channels are displayed after all analog
channels.
6. Press the CH▲ CH ▼ button to select the Service Level you wish
to program. The menu displays the current programming status of
each level as either Programmed or Blank. Press the VOL► to
choose the service level. NOTE: A Programmed service level can
also be reprogrammed if desired.
7. A confirmation menu will appear before proceeding. Press Yes▲
to select YES and start auto programming. The TV will now
search all available channels with an on-screen progress
percentage displayed. Once complete, press the SETUP button
to return to normal TV viewing.
NOTE: Any tuning mode that includes Digital channels will require
several minutes to complete the auto programming.
SOUND PROGRAMMING
The TV’s internal speakers can be disabled requiring the use of a
headphone for private listening. This option is commonly used in dialysis
clinics and multiple occupancy rooms.
Internal Speaker Enable
The speakers inside the TV’s cabinet can be Enabled (turned ON) or
Disabled (turned OFF).
1. In the Setup/Sound menu, press CH▲/CH▼ button to select the
Internal Speaker Enable menu item.
2. Press VOL◄/ VOL ►to activate the menu item.
3. Press the CH▲ /CH▼ button to select the desired Sources.
4. Press VOL◄/ VOL► to alternately select Disabled or Enabled to
turn OFF or ON the TV’s internal speakers.
5. Press the SETUP button to return to the preceding menu.

Document Number: PD196-252R3 PDI 24” 29”, 32”, 42” LED TV Quick Start Guide Page 7 of 7
PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664
CLONING
Cloning allows quick programming of a TV from a USB memory stick (Thumb Drive). Clone operation involves first
downloading setup information from a programmed host TV to a Thumb Drive and then uploading the setup information to
another TV. One USB thumb drive can be used to program an entire hospital of televisions.
Save Settings to USB
1. Turn on the TV
2. Insert a blank USB thumb drive into the cloning port. A Cloning Main Menu will appear on the TV screen.
3. Press CH▲ or CH ▼ to highlight Save Settings to USB.
4. Press VOL► to display the Save Settings to USB menu.
Restore Settings to TV
1. Press CH▲ or CH▼ to highlight Restore Settings to TV.
2. Press VOL► to display a list of previously stored TV setups on the USB thumb drive.
3. Press CH▲ or CH▼ to highlight desired setup file.
4. Press VOL► to select it.
5. A confirmation screen will appear Press CH▲ to restore the selected setup file or press VOL◄ to return to the
previous menu without restoring. A progress screen will appear as the settings are restored.
6. The TV will return to the Cloning Main Menu after restoring is complete
7. Remove the USB thumb drive.
*To exit cloning menu, you must remove the thumb drive.
