PDi PDI-A24A User manual

PDi LED Televisions
PDI-A24A, A32A, A42A, A55A
Document Number: PD196-389R1
User Manual

A Leader in Patient Communication Solutions™
MODEL NUMBER:
PDI-A24, A32, A42, A55 LED TV
Document Number:
PD196-389R1
User
Manual
Page 1 of 34
Contents
CAUTIONS AND WARNINGS ........................................................................................................................... 3
IMPORTANT SAFETY INSTRUCTIONS ..............................................................................................................4
SAFETY INSTRUCTIONS (FRENCH)................................................................................................................... 5
Connections .................................................................................................................................................... 6
DVD Connection (Module)......................................................................................................................6
Side-Panel Buttons ................................................................................................................................. 7
Remote Controls............................................................................................................................................. 7
Programming Remote Control.................................................................................................................... 7
Patient Remote Controls.............................................................................................................................8
Set up Wizard.................................................................................................................................................. 9
Main Menu Screen ....................................................................................................................................... 11
Programming ................................................................................................................................................ 12
Sub Menu Overview ..................................................................................................................................... 13
Source ........................................................................................................................................................... 13
Picture........................................................................................................................................................... 14
Contrast, Brightness, Color, Sharpness, Backlight .................................................................................... 14
Noise Reduction........................................................................................................................................ 14
Aspect Ratio .............................................................................................................................................. 14
Color Temperature.................................................................................................................................... 15
More Settings............................................................................................................................................ 15
Sound............................................................................................................................................................ 15
Default Volume ......................................................................................................................................... 15
Minimum Volume ..................................................................................................................................... 16
Maximum Volume.....................................................................................................................................16
Bass, Treble, Balance (this is available when Sound Mode = User).......................................................... 16
AVC............................................................................................................................................................ 16
Internal Speaker Enable............................................................................................................................17
More Settings............................................................................................................................................ 17
Channels ....................................................................................................................................................... 17
Service Levels ............................................................................................................................................ 18
Auto Scan .................................................................................................................................................. 19
Copy Service Level..................................................................................................................................... 19
Clear Service Level .................................................................................................................................... 20

Channel List...............................................................................................................................................20
Auto Channel Aliasing ............................................................................................................................... 20
Fill Analog Gaps with Digital Channels...................................................................................................... 21
Channel Override ...................................................................................................................................... 21
Features ........................................................................................................................................................ 21
Changing Password ................................................................................................................................... 21
System Lock............................................................................................................................................... 22
Block Unrated TV ......................................................................................................................................22
USA Parental Control ................................................................................................................................ 22
Canadian Parental Control........................................................................................................................23
Keypad Lock .............................................................................................................................................. 23
TV Rating ................................................................................................................................................... 23
Keypad Lock .............................................................................................................................................. 25
HOSPITAL MODE ....................................................................................................................................... 25
Lock Input Source ................................................................................................................................. 25
Source Name ........................................................................................................................................ 25
Default Source ...................................................................................................................................... 26
Default Aspect ......................................................................................................................................26
Default Service Level................................................................................................................................. 26
Cloning (Import/Export Database)............................................................................................................ 26
Clear Lock.............................................................................................................................................. 27
Common ....................................................................................................................................................... 27
OSD Timer (On Screen Display).................................................................................................................27
Sleep Timer ............................................................................................................................................... 27
Remoted Select: Bed A/B/C/D ..................................................................................................................27
Blue Screen ............................................................................................................................................... 28
Auto Power On.......................................................................................................................................... 28
CH/+- change source................................................................................................................................. 28
CC Settings ................................................................................................................................................ 29
System Info ............................................................................................................................................... 30
Menu Reset............................................................................................................................................... 30
Advance Setting............................................................................................................................................ 31
Network Setting ........................................................................................................................................ 31
Digital Mode Time Setup ..........................................................................................................................31
Common....................................................................................................................................................32
Language ................................................................................................................................................... 32
Input Method............................................................................................................................................ 32
Permission Manage................................................................................................................................... 32

System Upgrade........................................................................................................................................ 32
System Recovery.......................................................................................................................................33
Bluetooth function....................................................................................................................................34
Product Information ................................................................................................................................. 35
Troubleshooting Tips .................................................................................................................................... 36
Limited Warranty.......................................................................................................................................... 37

PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664
Page 3of 39
PD196-389R1 PDI-A24, A32, A42, A55
CAUTIONS AND WARNINGS
Overhead Falling Hazard
TV can pose a striking hazard when mounted
at an elevated position. Use only PDi
mounting brackets, support arms, and
appropriate hardware to assure TV will not fall
from the mounted position. Failure to do so
may cause injury or death.
Rain and Moisture
WARNING: To avoid the hazards of fire or
electrical shock, DO NOT expose this
television to rain or moisture.
Oxygen Environment
WARNING: Do not use in any oxygen tent or
oxygen chamber. Such use may cause a fire
hazard.
Wet Location
Do not use this television near water.
Television shall not be exposed to dripping or
splashing and no objects filled with liquids,
such as vases, shall be placed on the television.
Note to Cable TV Installer
This reminder is provided to call the cable TV systems
installer’s attention to Article 820-40 of the National
reasonable protection against harmful interference when
the equipment is operated in residential or commercial
installation. If this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or
more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment
and receiver.
• Connect the equipment into an outlet on a circuit
different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV
technician for help.
Cleaning and Disinfection
Clean the exterior of this television by removing dust with a lint- free
cloth. Suggested cleaning agent is 5% Bleach and Water solution.
CAUTION: To avoid damage to the surface of the television, do
not use abrasive or chemical cleaning agents. Spot test a new
disinfectant by test cleaning a non-obvious small spot on the TV’s
back cabinet, keypad, and LED panel. Allow the disinfectant to soak
per its instructions and then wipe clean. Do not use the
disinfectant if the TV’s surfaces show any sign of discoloration or
softening. Do not immerse this TV.
Electrical Code. The code provides guidelines for proper
grounding and specifies that the cable ground shall be
connected to the grounding system of the building, as
close to the point of the cable entry as practical.
Canadian installations shall be properly grounded in
accordance with the Canadian Electrical Code, Part 1.
FCC
This equipment has been tested and found to comply with
the limits for a Class A digital device, pursuant to part 15
of the FCC Rules. These limits are designed to provide
Trademarks
Manufactured under license from Dolby Laboratories, all
other brand names and product names used in this
manual are trademarks, registered trademarks, or trade
names of their respective holder. “PDi” is a registered
trademark of PDi Communication Systems, Inc. All rights
reserved.
Underwriters Laboratories
The A Series Model Hospital Grade TV is a specialized LED TV
and should be installed to National Electrical
Code specifications. This device is safety
tested and listed by the Underwriters
Laboratories as a product suitable for use in
health-care facilities in both the United States
and Canada.

PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664
Page 4of 39
PD196-389R1 PDI-A24, A32, A42, A55
IMPORTANT SAFETY INSTRUCTIONS
THIS INSTALLATION SHOULD BE MADE BY A QUALIFIED SERVICE PERSON AND SHOULD
CONFORM
TO ALL LOCAL CODES. READ AND FOLLOW THE SAFETY INSTRUCTIONS BEFORE ATTEMPTING THIS
INSTALLATION.
1. Read these Instructions –All the safety and
operating instructions should be read before
the product is operated.
2. Keep these Instructions –The safety and
operating instructions should be retained for
future reference.
3. Heed all warnings –All warnings on the
product and in the operating instructions
should be adhered to.
4. Follow all instructions –All warnings on the
product and in the operating instructions
should be followed.
5. Do not use this apparatus near water –for
example, near a bath tub, wash bowl, in a
wet basement; or near a swimming pool;
and the like.
6. Clean only with dry cloth. Do not use liquid
cleaners or aerosol cleaners.
7. Do not b l o c k a n y v e n t i l a t i o n
o p e n i n g s .
Install in accordance with the manufacturer’s
instructions. The openings should never be
blocked by placing the product on a bed, sofa,
rug, or other similar surface.
8. Do not install near any heat sources such as
radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce
heat.
9. DO NOT defeat the safety purpose of the
polarized or grounding-type plug. This
product is equipped with a three-wire
grounding-type plug, a plug having a third
(grounding) pin. This plug will only fit into a
grounding-type power outlet. This is a
safety feature. If you are unable to insert
the plug into the outlet, contact your
electrician to replace your obsolete outlet.
10. Protect the power cord from being walked
on or pinched particularly at plugs,
convenience receptacles, and the point
where they exit from the product.
11. Attachments –Only use
attachments/accessories specified by the
manufacturer.
12. Use only with the cart, stand, tripod, bracket,
or table specified by the manufacturer, or sold
with the apparatus.
When a cart is used, use
caution when moving the
cart/apparatus combination to
avoid injury from tip-over.
13. Unplug this apparatus during
lightning storms or when unused for
extended periods of time.
14. Refer all servicing to qualified service
personnel. Servicing is required when the
apparatus has been damaged in any way,
such as power-supply cord or plug is
damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus
has been exposed to rain or moisture, does
not operate normally, or has been dropped.
15. Power Sources –This product should be
operated only from the type of power source
indicated on the marking label. If you are
not sure of the type of power supply to your
home, consult your product dealer or local
power company. For products intended to
operate from battery power, or other
sources, refer to the operating instructions.
16. Oxygen Environment –Do not use in an
oxygen tent or oxygen chamber. Such use
maycause a fire hazard.
17. Lightning –For added protection for this
product during a lightning storm, or when it
is left unattended and unused for extended
periods of time, unplug it from the wall outlet
and disconnect the antenna or cable
system. This will prevent damage to the
product due to lightning and power-line
surges.
18. Servicing –Do not attempt to service this
product yourself as opening or removing
covers may e x p o s e you to dangerous
voltage or other hazards. Refer all servicing
to qualified service personnel.

PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664
Page 5of 39
PD196-389R1 PDI-A24, A32, A42, A55
SAFETY INSTRUCTIONS (FRENCH)
Danger chute d’objets
AVERTISSEMENT: Afin d’éviter toute blessure, cet
appareil doit être solidement fixé au sol/mur
conformément aux instructions d'installation. Les
télévisions peuvent présenter un risque de heurt
lorsqu’elles sont montées en position élevée. Utiliser uniquement
des supports de montage, des bras de support et le matériel
approprié de PDi afin d’assurer que la télévision ne tombe pas de
sa position de montage. Le non-respect de ces instructions peut
causer des blessures ou la mort.
Pluie et humidité
AVERTISSEMENT: Afin d’éviter les risques d'incendie ou
de choc électrique, NE PAS exposer cette télévision à la
pluie ou à l'humidité ou l’utiliser dans un endroit humide.
Environnement d'oxygène
AVERTISSEMENT: Ne pas utiliser dans une tente à
oxygène ou chambre à oxygène. Une telle utilisation peut
causer un risque d'incendie.
CONSIGNES DE SÉCURITÉ IMPORTANTES
CETTE INSTALLATION DOIT ÊTRE EFFECTUÉE PAR UN TECHNICIEN QUALIFIÉ ET DOIT ÊTRE CONFORME À TOUS LES CODES
LOCAUX. LIRE ET SUIVRE LES CONSIGNES DE SÉCURITÉ AVANT DE PROCÉDER À L’INSTALLATION.
1. Lire ces instructions. Toutes les consignes de
sécurité et d’utilisation doivent être lues avant
d'utiliser le produit.
2. Conserver ces instructions. Les consignes de
sécurité et d’utilisation doivent être conservées
pour référence future.
3. Respecter tous les avertissements. Tous les
avertissements sur le produit et dans les
consignes d'utilisation doivent être respectés.
4. Suivre toutes les instructions. Tous les
avertissements sur le produit et dans les
consignes d'utilisation doivent être suivis.
5. Ne pas utiliser cet appareil près de l'eau - par
exemple près d'une baignoire, d'un lavabo, dans
un sous-sol humide, ou près d'une piscine ou
similaire.
6. Nettoyer avec un chiffon sec. Ne pas utiliser de
nettoyants liquides ou en aérosol.
7. Ne pas obstruer les ouvertures de ventilation.
Installer conformément aux instructions dufabricant.
Les ouvertures ne doivent jamais être obstruées en
plaçant le produit sur un lit, un
canapé, un tapis ou toute autre surface similaire.
8. NE PAS installer près de sources de chaleur telles
que radiateurs, registres de chaleur, poêles ou
tout autre appareil (y compris les amplificateurs)
qui produit de la chaleur.
9. NE PAS neutraliser le dispositif de sécurité de la
fiche polarisée ou de terre. Ce produit est équipé
d'une prise de terre à trois fils, une fiche ayant une
troisième broche (mise à la terre). Cette fiche ne
peut s'insérer que dans une prise de courant avec
mise à la terre. Il s'agit d'une caractéristique de
sécurité. Si vous êtes incapable d’insérer la fiche
dans la prise, contacter votre électricien pour
remplacer votre prise obsolète.
10. Protéger le cordon d'alimentation pour qu’il ne soit
pas piétiné ni pincé, en particulier au niveau des
fiches, des prises de courant et au point de sortie
de l’appareil.
11. Accessoires - Utiliser uniquement les
attaches/accessoires recommandés par le fabricant.
12. Utiliser uniquement avec un chariot, stand, trépied,
support ou table recommandé par le fabricant ou
vendu avec l'appareil. Lorsqu’un chariot est
utilisé, faire attention lors du déplacement de
l'ensemble chariot/appareil afin d’éviter des
blessures en cas de basculement.
13. Débrancher cet appareil en cas d'orages ou
lorsqu'il reste inutilisé pendant de longues
périodes.
14. Confier toute réparation à un personnel de service
qualifié. Des réparations sont nécessaires si
l'appareil est endommagé d'une façon
quelconque, par exemple : cordon ou prise
d'alimentation endommagé, liquide renversé ou
des objets sont tombés dans l'appareil, l'appareil a
été exposé à la pluie ou à l'humidité, ne fonctionne
pas normalement ou s'il est tombé.
15. Sources d'alimentation - Ce produit doit être utilisé
uniquement à partir du type de source
d'alimentation indiqué sur l'étiquette. Si vous
n'êtes pas sûr sur le type d'alimentation de votre
domicile, consultez le détaillant de votre produit ou
la compagnie d'électricité locale. Pour les produits
proposés de fonctionner par piles, ou autres
sources d’alimentation, reportez-vous aux
consignes d’utilisation.
16. Environnement d’oxygène - Ne pas utiliser sous
une tente à oxygène ou chambre à oxygène. Une
telle utilisation peut causer un risque d'incendie.
17. Foudre - Pour une protection supplémentaire pour
ce produit lors d’un orage, ou lorsqu'il est laissé
sans surveillance et inutilisé pendant de longues
périodes de temps, le débrancher de la prise
murale et déconnecter l'antenne ou le système de
câble. Cela permettra d’éviter tout dommage à
l'appareil causé par la foudre et par les
surtensions des lignes électriques.

PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664
Page 6of 39
PD196-389R1 PDI-A24, A32, A42, A55
Connections
CAUTION: Some hospital cable systems provide power voltage on the coaxial cable. This TV is NOT
designed to be powered via a coaxial cable. DO NOT connect to a powered coaxial cable. Damage will result to
the TV.
DVD Connection (Module)
The A Series television are made to accept the PDi DVD module, PD251-043-1. This mounts on the back of the
television with side access. Detailed installation instructions are available with the DVD.
MTI
CCI
RJ45
MTI
PILLOW
SWITCH
FLASH
DRIVE
RF IN
HDMI1
HDMI2
PILLOW
SPEAKER
MODULE

PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664
Page 7of 39
PD196-389R1 PDI-A24, A32, A42, A55
Side-Panel Buttons
The buttons on the right side of the TV can be used to control a limited number of the television’s basic operating
functions.
• INPUT
Press this button to cycle through all enabled sources.
• CC
Caption OFF, On, Mute
• VOL ▲
Press this button to increase volume.
• VOL ▼
Press this button to decrease volume.
• CH ▲
Press this button to go to the next highest channel.
• CH ▼
Press this button to go to the next lowest channel.
• POWER
Press this button to turn the TV on and off.
Remote Controls
Programming Remote Control
A programmingremote control PD108-420 is required to perform all setup operations for the television. The
programming remote is NOT packaged with the TV and must be ordered separately. Power, setup, and the
directional buttons will be the main buttons used on this remote.
1. POWER button
Turns the TV on or off
2. MUTE button
Turns the sound on or off
3. SETUP button
Access programmingmenus
4. TV/AV button
Selects enabled external inputs or TV
5. CH LIST button
Display list of channels programmed into TV
6. TV/FM button
Switch between TV and FM Radio sources
7. SLEEP button
Sets the sleep timer
8. LAST button
Return to previously viewed channel
9. VOL ◄► buttons
Raises or lowers volume. Also used to navigate
programming menus.
10. OK button
Confirms the current channel selection
11. CH ▲▼ buttons
Selects next channel. Also used to navigate
programming menus.
12. ARC button
Changes the aspect ratio.
13. CC button
Cycles through Closed caption choices

PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664
Page 8of 39
PD196-389R1 PDI-A24, A32, A42, A55
14. PSM button
Adjust sound setting for content type
15. SAP button
Adjust audio mode
16. SSM button
Adjust sound setting for content type
17. Number buttons
Use to directly enter channels
18. DASH button
Use to enter second part of a digital channel
19. Teletext buttons
Navigates teletext displays.
Teletext is not used in the
USA
Patient Remote Controls
The patient remotes, PD108-421 and PD108-210 are used for controlling the TV.
The optional DVD remote PD108-427 (sold with DVD Module) will control the compatible DVD and TV.
Patient remotes offer independent Bed A or Bed B selectable codes and independent control of a single TV in a
two TV room.
For remote PD108-421, insert a paperclip to depress the CODE button to select Bed A or Bed B.
For patient remote PD108-210, to set bed A, B, C, or D:
Press and hold the function button while simultaneously pressing:
1 & 2 for bed A
2 & 3 for bed B
4 & 5 for bed C
5 & 6 for bed D
PD108-210 Enhanced Patient Remote

PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664
Page 9of 39
PD196-389R1 PDI-A24, A32, A42, A55
Set up Wizard
Upon the first time the medTV is powered up you will be prompted to use the Set-Up Wizard to help with
initial set up. To continue, press the right navigation arrow, ►.
Press ▲or ▼to select Language and press OK.
Press ▲or ▼to select Begin Setup (No Cloning-just this TV or with cloning-To copy the setup settings from other TV
using USB. Ppress OK.
Note: When using the “Begin Setup with Cloning” you will need a USB Drive to copy the setup settings from the
other TV from the USB drive. For import setting shown on next screen.
Note: When selecting Begin Setup with Cloning you will be taken to the Import screen.

PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664
Page 10 of 39
PD196-389R1 PDI-A24, A32, A42, A55
To get back to the Setup Wizard you will need to go to the System Recovery screen and delete the data and set up
the TV again.
Return to Factory Default Only.
1. Enter the Advance Settings Menu.
2. Press ►to select Common and click Ok. (Fig. 1)
3. Press ▲or ▼to select System Recovery.
4. Input password (Ex. 1234) and press ►which will prompt you that it will delete all the data of the
unit and restore all of the settings. Press ►for Recovery. Press OK to start the process or press OK when it
is on Cancel to stop the process
5. Press the SETUP button to return to the previous menu. To exit, press SETUP until the programming
menus disappear.
Press ▲or ▼to select Time Zone and press OK.

PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664
Page 11 of 39
PD196-389R1 PDI-A24, A32, A42, A55
Press ▲or ▼to select Network Setup and press OK.
Press ▲or ▼to select your medTV experience and press OK.
Main Menu Screen
When the television is powered on the screen that will come up first will be the Main Menu
screen. Press “one” to watch TV. To return to the Main Menu, press *, or Exit on the PD108-
210.

PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664
Page 12 of 39
PD196-389R1 PDI-A24, A32, A42, A55
Press “two” for the relaxation APP’s. Then choose the app that you want to view. To return to
the Main Menu, press *, or Exit on the PD108-210.
Programming
The following instructions assume you have a programming remote, have correctly mounted the TV, and connected
power and RF signal. Access the menus by pressing SETUP on the remote. These menus allow you to add TV
channels, adjust the picture and sound, setup external components, and control settings.
The SETUP menu is the first menu that appears. All the other menus and all the settings can be accessed through it.
This manual explains and shows how to setup the different features of the PDI-A Series LED TV.

PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664
Page 13 of 39
PD196-389R1 PDI-A24, A32, A42, A55
Sub Menu Overview
Source: TV, DVD, HDMI 1, HDMI 2, Media, and Android.
Picture: Picture Mode, Contrast, Brightness, Color, Sharpness, Backlight, Noise Reduction,
Aspect Ratio, Color Temp, and More Settings (DLC).
Sound: Sound Mode, Default Volume, Min Volume, Max Volume, Bass, Treble, Balance, AVC,
Video Description, Internal Speaker Enable, and More Settings (Surround & Audio only).
Channel: (Default Password 1 2 3 4) Antenna Type, Audio Lang Preference, EPG, Service
Level (Active Service Level, Auto Scan, Copy Free To, Copy Basic To, Copy Premium To,
Clear Free, Clear Basic, Clear Premium, & Channel List), Auto Channel Alias, and Channel
Override.
Features: (Default Password 1 2 3 4) Change Password, System Lock, Block Unrated TV,
USA Parental Control, Canadian parental Control, Keypad Lock, and Hospital Mode (Contains:
Lock Input Source, Source Name, Default Source, Default Aspect, Default Service Level,
Export Database, Import Database, Clear Lock)
Common: OSD Timer, Sleep Timer, Remote Select, Blue Screen, Auto Power On, ECO, CH+/-
Change Source, CC Settings, System Info (TV Version, MCU Checksum, MCU Version, Power
on Time, Used Time, Panel, MCU Software Update) and Menu Reset (Cancel or OK, all
settings will be deleted).
Advance Setting: Network Setting, Time Setting, Common, Bluetooth And Devices, and
Product Information
Source
The TV’s signal sources can be individuallyEnabled or Disabled. The available sources in this menu correspond with
the components you have connected to the TV’s connectors.
To select the input for the TV press setup on the remote.
1. From the SETUP menu.
2. Press ►highlight Source.
3. Press ▲or ▼to change the source to TV, DVD, HDMI1, HDMI2, Media or Android.
4. Press SETUP to return to the previous menu. To exit, press SETUP until the programming menus disappear.

PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664
Page 14 of 39
PD196-389R1 PDI-A24, A32, A42, A55
This menu allows you to make changes to settings that will change the picture’s appearance.
1. Press the SETUP button on the remote control.
2. Press ►to highlight Picture.
3. Press ▲or ▼to enter the Picture sub-menu.
Contrast, Brightness, Color, Sharpness, Backlight
These settings have a range of 1-100. To change one of them, change the number by following this process.
1. Enter the Picture menu
2. Press ▲or ▼to highlight the setting you want to change.
3. Press ◄or ►to the desired number.
4. Press SETUP to return to the previous menu. To exit, press SETUP until the programming menus
disappear.
Noise Reduction
This setting enables impulse, spatial, and temporal video noise filtering.
1. Enter the Picture menu
2. Press ▲or ▼to highlight Noise Reduction.
3. Press ►to choose Off, Low, Middle, High or Auto
4. Press SETUP to return to the previous menu.
Aspect Ratio
1. Enter the Picture menu
2. Access the menu by pressing ►.
3. Press ▲ or ▼to select Aspect Ratio.
4. Press SETUP to return to the previous menu. To exit, press
SETUP until the programming menus disappear.

PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664
Page 15 of 39
PD196-389R1 PDI-A24, A32, A42, A55
Color Temperature
Color Temperature adjusts the color balance of the picture, Cool, normal, Warm
1. Enter the Picture menu
2. Access the menu by pressing ►.
3. Press ▲ or ▼to select Color Temperature.
3. Press SETUP to return to the previous menu. To exit, press
SETUP until the programming menus disappear.
More Settings
1. Enter the Picture menu
2. Access the menu by pressing ►.
3. Press ▲ or ▼to select More Settings, to select DLC (dynamic light control).
3. Press SETUP to return to the previous menu. To exit, press
SETUP until the programming menus disappear.
Sound
The sound menu adjustment of several sound parameters. Standard, Music, Theatre, News, User.
1. Press the SETUP button on the remote control.
2. Press ►on to highlight Sound.
3. Press ▲or ▼to enter the Sound sub-menu.
Default Volume
Sets the initial volume for when the TV is turned on. Last will cause the TV to be at the same volume
setting before it was turned off.

PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664
Page 16 of 39
PD196-389R1 PDI-A24, A32, A42, A55
1. Enter the Sound menu
2. Press ▲or ▼to highlight Power on Volume.
3. Press ◄or ►to select the desired number (0-100) or Last.
4. Press SETUP to return to the previous menu. To exit, press SETUP until the programming
menus disappear.
Minimum Volume
Sets the minimum volume level the TV can reach. Setting this to any value other than 0 guarantees that some level
of sound will always be heard when the TV is operating.
1. Enter the Sound menu.
2. Press ▲or ▼to highlight Minimum Volume.
3. Press ◄or ►to select the desired number (0-100).
4. Press SETUP to return to the previous menu. To exit, press SETUP until the programming
menus disappear.
Maximum Volume
Sets the maximum volume level the TV is allowed to reach.
1. Enter the Sound menu
2. Press ▲or ▼to highlight Maximum Volume.
3. Press ◄or ►to select the desired number (0-100).
4. Press SETUP to return to the previous menu. To exit, press SETUP until the programming
menus disappear.
Bass, Treble, Balance (this is available when Sound Mode = User)
These settings have a range of 1-100. To change one of them,
change the number by following this process.
1. Enter the Sound menu
2. Press ▲or ▼to highlight the setting you want to change.
3. Press ◄or ►to the desired number.
4. Press SETUP to return to the previous menu. To exit, press SETUP until the programming menus
disappear.
NOTE: If Power on Volume is set to Last and the physical power is removed, the TV will power on with
a volume equal to the minimum volume setting.
AVC
1. Slide to enable
2. AVC is Automatic Volume Control to reduce a strong audio level by 3db.

PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664
Page 17 of 39
PD196-389R1 PDI-A24, A32, A42, A55
Internal Speaker Enable
More Settings
1. Enter the Sound menu
2. Access the menu by pressing ►.
3. Press ▲ or ▼to select More Settings, to select Surround, Slide to enable .or disable.
4. Press ▲ or ▼ to select Audio Only Mode which turns off the LCD panel to save energy playing audio only.
5. Press ► which will give you a screen that says: “Are you sure you want to open Audio Only Mode”.
6. Press ►to OK then push ok on the remote. Press any button to turn the picture back.
7. Press SETUP to return to the previous menu. To exit, press
SETUP until the programming menus disappear.

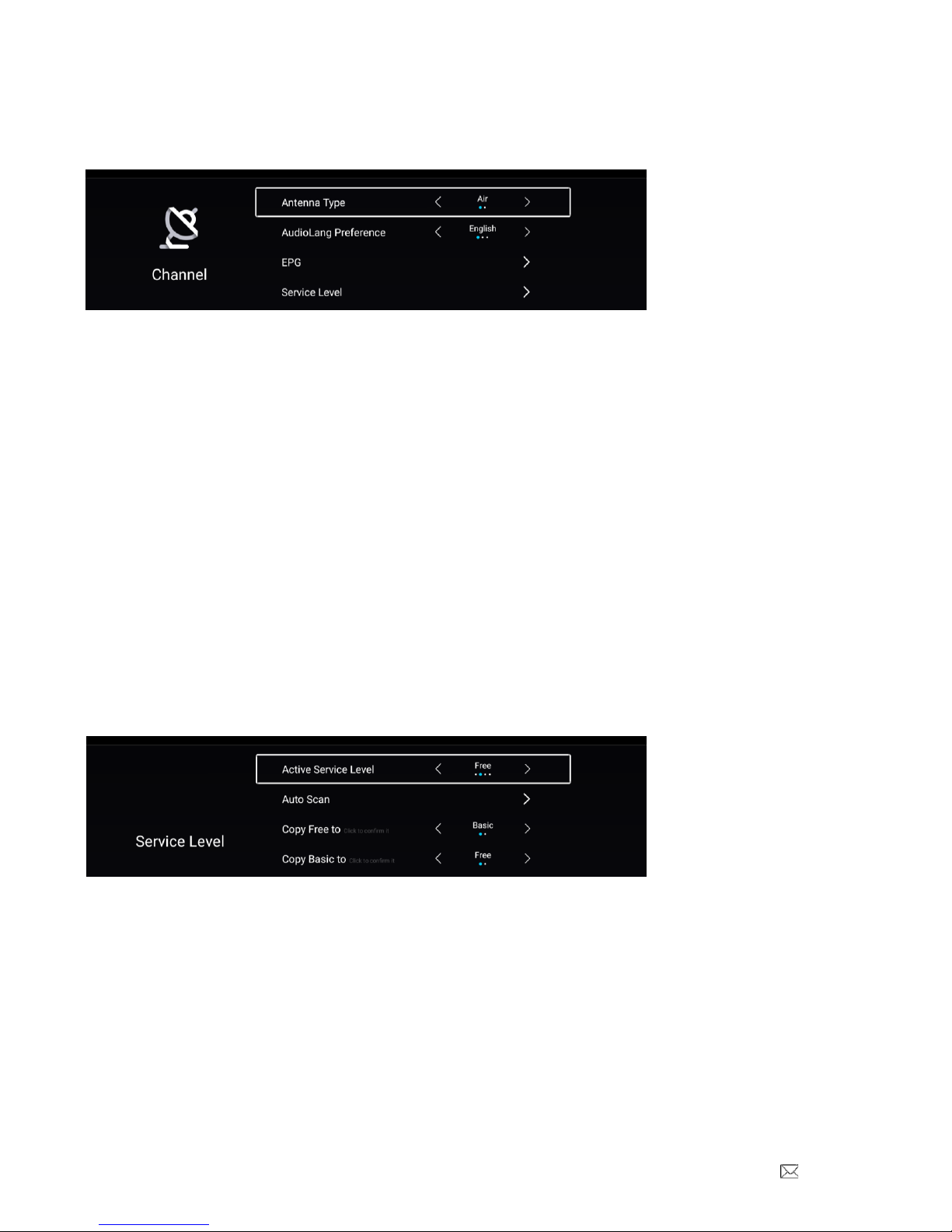

Channels
Signal (Enter Preset password 1234 press ▼ then OK)
Two different tuning types are available depending upon the healthcare facility’s signal type. Selection of the correct
signal type is required for the TV to recognize all possible channels and before any channel programming can begin.
NOTE: Most hospitals use the Cable signal style.
1. Enter the Channel Setup menu

PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664
Page 18 of 39
PD196-389R1 PDI-A24, A32, A42, A55
2. Press ▲or ▼to highlight Antenna Type.
3. Press ◄or ►to select Air, or Cable.
4. Now perform Auto Scan.
Service Levels
This TV contains four separate Service Levels, (Free, Basic, Premium or Disable) allowing the hospital to offer
either basic or enhanced viewing. The current Service Level can be quicklydetermined by accessing the
SETUP menu using the remote control. The Service Level can be changed to any of the 4 levels at any time by
entering the SETUP menu and changing the Service Level menu items.
To select the Service Levels for the TV.
1. Press the SETUP button on the remote control.
2. Press ►to highlight Channel.
3. Press ▼ and OK.
4. Press ▲or ▼to enter the Service Level sub-menu.
5. Press ◄or ►to select Free, Basic, Premium or Disable
6. Press SETUP to return to the previous menu. To exit, press SETUP until the programmingmenus
disappear.
DISABLED –This is like a mechanical key lock –when in Disabled Service Level, the TV can be turned off and on,
but it cannot be used for viewing. A standard message appears on a black screen.
FREE –This lets patients watch hospital education and information
channels without renting the TV. The channels containing programming for
no charge are typicallyprogrammed into this level of service. This is the
factorydefault setting for Service Level.
BASIC –This service level typically allows additional channels beyond those
offered in the FREE level.
PREMIUM –This is the highest service level with typically the most
channels available for viewing.
