Peachtree Audio decco65 User manual

peachtree audio
usa awtt (OUl c. t lUI
00 () 00

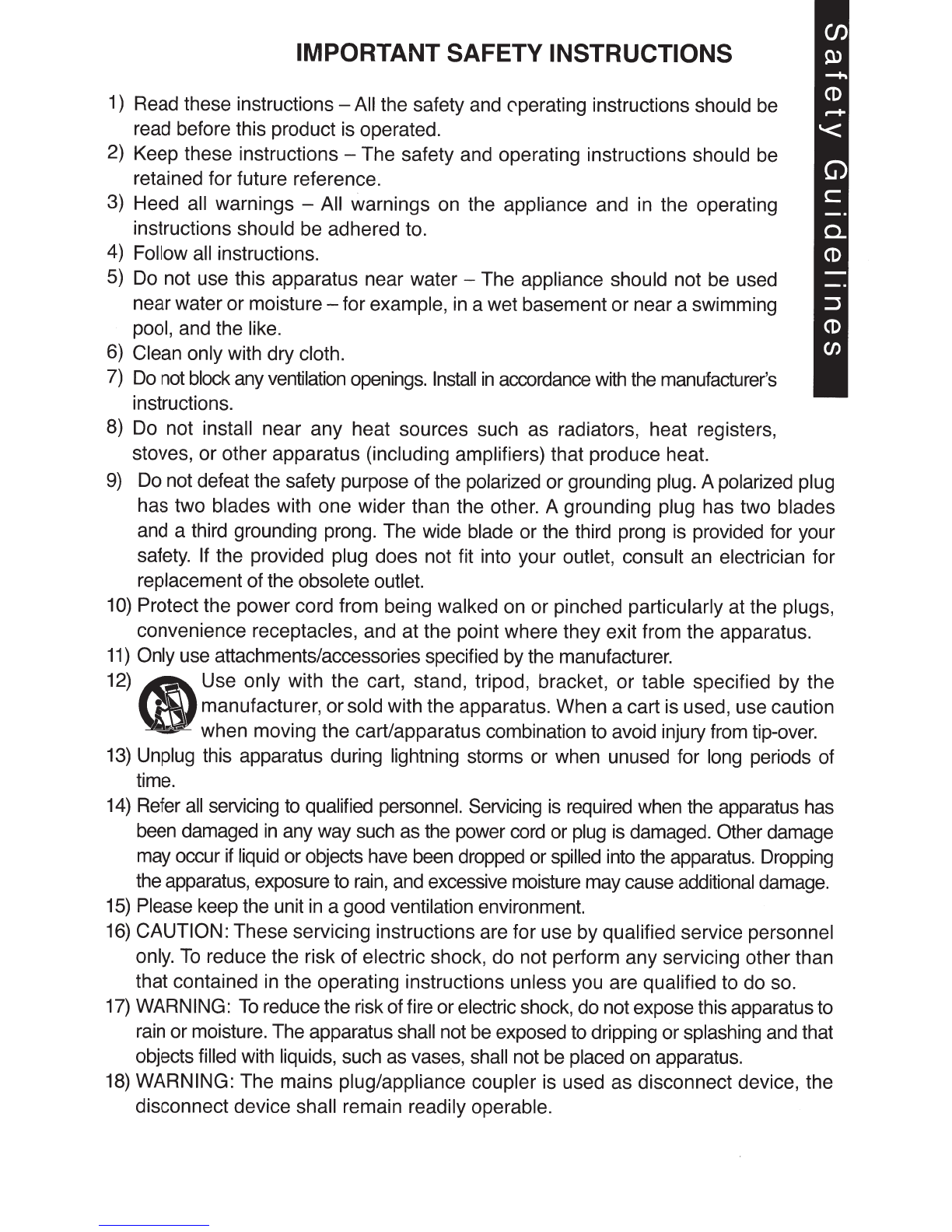

IMPORTANT SAFETY INSTRUCTIONS
1)
Read these instructions
-All
the safety and C'perating instructions should be
read before this product is operated.
2) Keep these instructions
-The
safety and operating instructions should be
retained for future reference.
3) Heed all warnings -All warnings on the appliance and in the operating
instructions should be adhered to.
4) Follow all instructions.
5) Do not use this apparatus near water -The appliance should not be used
near water or
moisture-
for example,
in
a wet basement or near a swimming
pool, and the like.
6) Clean only with dry cloth.
7)
Do
not block any ventilation openings.
Install
in
accordance
with
the manufacturer's
instructions.
8) Do not install near
any
heat sources such as radiators, heat registers,
stoves, or other apparatus (including amplifiers) that produce heat.
9)
Do not defeat the safety purpose of the polarized or grounding plug. A polarized plug
has two blades with one wider than the other. A grounding plug has two blades
and a third grounding prong. The wide blade or the third prong is provided for your
safety.
If
the provided plug does not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
10)
Protect the power cord from being walked on or pinched particularly at the plugs,
convenience receptacles, and at the point where they exit from the apparatus.
11)
Only use attachments/accessories specified by the manufacturer.
12)
~Use
only with the cart, stand, tripod, bracket,
or
table specified by the
~manufacturer,
orsold with the apparatus. When a cart is used, use caution
~
when moving the cart/apparatus combination to avoid injury from tip-over.
13)
Unplug this apparatus during lightning storms or when unused for long periods of
time.
14)
Refer
all
servicing
to
qualified personnel. Servicing
is
required when the apparatus has
been damaged
in
any way such as the power cord or plug is damaged. Other damage
may occur
if
liquid or objects have been dropped or spilled into the apparatus. Dropping
the apparatus, exposure to
rain,
and excessive moisture may cause additional damage.
15)
Please keep the unit
in
a good ventilation environment.
16)
CAUTION: These servicing instructions are for use by qualified service personnel
only.
To
reduce the risk of electric shock, do not perform any servicing other than
that contained
in
the operating instructions unless you are qualified to do so.
17)
WARNlNG:
To
reduce the risk offire or electric shock, do not expose this apparatus to
rain or moisture. The apparatus shall not
be
exposed to dripping or splashing and that
objects filled with liquids, such as vases, shall not be placed on apparatus.
18)
WARNING: The mains plug/appliance coupler is used as disconnect device, the
disconnect device shall remain readily operable.

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT
REMOVE COVER (OR BACK). NO USER-SERVICEABLE
PARTS INSIDE. REFER SERVICING TO QUALIFIED
SERVICE
PERSONNEL
19)
-The
lightning flash with arrowhead symbol within
an
equilateral triangle
is intended to alert the user to the presence of non-insulated "dangerous
voltage" within the product's enclosure that may be of sufficient magnitude
to constitute a risk of electric shock.
-WARNING:
To
reduce the risk of electric shock, do not remove cover
(or back) as there are no user-serviceable parts inside. Refer servicing
to qualified personnel.
-The exclamation point within an equilateral triangle is intended to alert the
user to the presence of important operating and maintenance instructions
in
the literature accompanying the appliance.
20)
No
naked flame sources, such as lighted candles, should be placed on the
apparatus.
21)
Batteries are included for the remote control. Do not expose these batteries
to direct sunlight or excessive heat such as a fire. Care should be taken
in
the
act of battery disposal as they include toxic materials that may harm the
environment. Please refer to your local recycling and hazardous waste center
for advise with battery disposal.
22)
WARNING: The terminals marked with symbol of
"+!- "
may be of sufficient
magnitude to constitute a risk of electric shock. The external wiring connect-
ed
to the terminals requires installation by
an
instructed person or the use of
readymade insulated leads or cords.
23)
"Q"'
,
''
Correct Disposal of this product. This marking indicates that this product
~should
not be disposed with other household wastes throughout the
EU.
· ·
To
prevent possible harm to the environment or human health from
uncontrolled waste disposal, recycle
it
responsibly to promote the sustain-
able reuse of material resources.
To
return your used device, please use the
return and collection systems or contact the retailer where the product was
purchased. They can take this product for environmental safe recycling.
Unpacking and Warranty
1)
Keep all packing materials for future shipments. (service)
2)
Keep a record of your bill of sale and a copy of the serial number for warranty
and insurance purposes.
3)
You
may register your unit
on
our website: www.peachtreeaudio.com.

•Introduction
•Back
Panel
• Front Panel
• Connections
peachtree
audi
~
C
I
• Hemote ontro
0
•~sef~
Tip~
an~
More
...
D
0
ng
~
~0
0
~
• Product Guarantee and Service
•Technical Specifications

Thank you for purchasing the Peachtree Audio decco65!
At Peachtree Audio we design products that provide a magical musical
experience. When you connect the digital output from a Sonos player,
a Squeezebox,
an
Apple TV or Apple Airport Express you'll get the full
benefit of the quality built into these products. And when you connect your
computer to the decco65's digital USB
input-
we think you're going to love
what you hear from your music library from compressed music files to high
resolution! The icing on the cake
is
the decco65's ability
to
asynchronously
process 24/96Khz streams through the USB input.
In
addition you can
stream 24/192Khz through the SPDIF inputs. The flexibility and performance
of the decco65 make it a must-have
in
your high end digital music sys-
tem. The decco65 combines a high quality, high resolution DAC, a terrific
65wpc amplifier, and a state-of-the-art hybrid tube preamp and head-
phone amp. Both analog and digital sources will sound exceptional.
This manual
is
a guide to the functions of your decco65.
It
shows you how
to connect both digital and analog sources, and offers tips on getting the
best performance. The ability
to
mate with virtually any digital source, while
providing superior sound makes the decco65 a special product. It's one we're
proud to offer. We sincerely hope the decco65 provides you with years of
enjoyable music listening. Visit our website at www.peachtreeaudio.com for
tips on getting the best sound from the music stored on your computer,
and from all your digital sources. Contact your dealer or us directly
if
you
have questions. Also, now is a good time to go to www.peachtreeaudio.
com to register your decco65 purchase.
Thanks
again-
and Happy Listening!
The Folks at Peachtree Audio
4

~0+-----r---+
~ '-----=----"'
peachtr e audio
Type:lnt ratedAmplifler
Modeldecco65
Max Power C sumption:60W
Fuse Rati :
2
~~~:~~
8
Designed In USA
Made in China
9
1) 12V Trigger: Enables automatic turn on and off from-or-to another source with the
same feature.
2) USB Digital Input: The USB connection takes digital audio content off yourcomputer
and sends it to the internal DAC.
3) Optical Digital Input 1: Toslink and fiber optic cable connections are common on
some CD players, cable boxes, Apple products, and other digital audio sources.
4) Coaxial Digital Input 1: Coaxial digital connections are common on some CD players,
cable boxes, Sonos modules, the Slim Devices Squeezebox, and a host of other digital
audio sources. Be sure to use a proper digital audio cable for this purpose.
5) Coaxial Digital Input
2: Coaxial digital connections are common on some CD players,
cable boxes, Sonos modules, the Slim Devices Squeezebox, and a host
of other
digital audio sources. Be sure to use a proper digital audio cable for this purpose.
6) Aux Analog Input: Line level input that is suitable for iPods, CD players, Tuners, etc.
7) Pre Out 1: (class A) Variable output stage to connect to a power amplifier or subwoofer.
8) Speaker Terminals: Marked +for positive and- for negative.
9) Voltage Switching: For international use. Unplug the decco65 before you make the
switch and be sure to use the
proper fuse for the voltage chosen. **WARNING**
Improper voltage setting may cause damage to the decco65.
1 0) AC Power Cord Attachment & Fuse: The three prong power cord is included in
the decco65 box. User replaceable after turning the decco65 off. You may call your
dealer or Peachtree Audio's service department with any questions regarding fuse
replacement.
**WARNING** using the wrong value fuse may ~ause damage to the
decco65.
11) Power On/Off switch
5

The selector buttons on the Front Panel are very straightforward but we have
included additional information for your benefit.
peachtree audio
USB
0
COAX
I
0
COAX2
0
OPT
0
AUX
0 0
0
2 3 4
5 6 7
8 9
10
1)
Standby Switch: After turning the decco65 on from the back panel
(#11
Power On/
Off switch) you can use this button to switch between "on" which displays a blue light
and "standby" which displays a green light. This function can also be controlled by your
wireless remote.
2) USB Digital Input: The USB connection takes digital audio content off your computer
and sends it to the internal DAC via
12S
configuration.
3) Coaxial Digital Input
1:
Coaxial digital connections are common on some CD players,
cable boxes, Sonos modules, the Slim Devices Squeezebox, and a host of other digital ·
audio sources. Be sure to use a proper digital audio cable for this purpose.
4) Coaxial Digital Input 2: Coaxial digital connections are common on some CD players,
cable boxes, Sones modules, the Slim Devices Squeezebox, and a host of other digital
audio sources. Be sure to use a proper digital audio cable for this purpose.
5) Optical Digital Input 1
:Toslink and fiber optic cable connections are common on some
CD players, cable boxes, Apple products, and other digital audio sources.
6) Aux Analog Input: Line level input that is suitable for iPods, CD players, Tuners, etc.
7)
IR
Receiver Port: Please aim your remote control at this port for best results. It passes
the infrared commands to the decco65 control software.
8) Tube Window: The tube window is really just for show, but we couldn't resist. There's
something about the warm glow of a tube and the kind of sound it produces.
9) Volume Control: The volume control is motorized from your remote control and has
.a
button indicator to allow the user to see levels from a distance.
1
0) Headphone Jack: Plug-in activates mute on the decco65. Please see specifications
for compatibility.
6

• Coaxial Digital Input: For connecting the coaxial output from any digital
source, using a coaxial digital cable. Push the "COAX" input button on the front
of the decco65 to listen.
·Optical
Digital Input (sometimes called Toslink): For connecting the optical
output from any digital source, using an optical digital cable. Push the "OPT"
input button on the front of the decco65 to listen.
•USB Digital Input: For connecting the USB output from a computer (or other source
component which can output audio via USB) using a USB cable. Push the "USB"
input button on the front of the decco65 to listen.
•Aux Inputs: For connecting analog inputs (CD player, Tuner, Phono preamp) using
RCA interconnects for unbalanced terminals and XLR interconnects for balanced
terminals. Aux input buttons are on the front panel, so push the one that corresponds
to the Aux input you're using on the back panel.
• Preamp Output: For connecting the variable preamp output of the decco65 to an
amplifier. The left and right cables should connect to the left and right inputs of the
power amp.
peachtree audio
deCG0
65
US
B
CO
AX1
COAX
2
OPT
AUX
0 on
0 0 0 0 0
® 0 0
7

1)
Mute:
This button will mute the decco65.
2)
On/Standby
Buttons 3-8 are universal controls for iPods so our many customers
who use Apple docks
in
their system can use a single remote
3)
Menu:
This button currently serves
no
function but may have
an
application at a
later date.
4)
+:This
button currently serves
no
function but may have
an
application at a later
date.
5)
Skip back:
This button skips back to the beginning of a music or video selection
except when the track has played for less than 10 seconds. Then
it
will skip back
to the beginning of the previous track.
6)
Play/Pause:
This button will start ("Play") or stop ("Pause") your music or video
selection. They operate
in
sequence. After activating "Play" the next push of the
button activates "Pause."
7)
Skip Forward:
This button skips ahead to
the next music or video selection.
8)
-:Thisbutton currentlyserves
no
function but
may have
an
application at a later date.
Buttons 9-16 are for control of the
decco65
9)
Volume-Nolume
+: These buttons reduce
and increase volume level.
1
0)
USB:
This button selects a digital audio
source at the USB connection.
11)
Coax 1:
This button selects a digital audio
source
at
the Coaxial digital connection.
12)
Coax
2:
This button selects a digital audio
source
at
the Coaxial digital connection.
13)
Tube:
This button allows the user to
choose either solid state or tube-hybrid
operation of the decco65's preamp stage.
The blue LED will turn
on
when the tube
is
activated.
14)
Aux:
This button selects
an
analog audio
source at the Aux connection.
15)
Opt:
Optical digital input for digital audio
sources with optical digital outputs, like
cable boxes and Apple TV's. Sometimes
called Toslink.
8

At
Peachtree Audio
we
think
products should be
easy
to use,
but
you need to
know
a few things before setup.
The
decco65's
USB
digital input accepts music
files from
your
computer's
hard drive and plays them
back
with
superb
fidelity.
See
instructions below.
Some
minor
changes
may
occur
with
Windows
or
Apple
OS
updates,
but
the
basics are
the
usually the same.
USB Connections
PC
1) Connectthe USB terminal on the decco65 to a USB connection on your computer.
2) Your
computer
will "see"
the
USB
Audio DAC inside the decco65. You might
get
a pop-up
box
noting a
new
USB
connection.
3)
Right click the
speaker
icon on
the
bottom
of
your
screen.
4) Select "Audio" tab.
5) Using the drop-down
box
choose
the
USB
DAC.
6) Click OK.
7) You will need to install the included
CD
software
download
for
24/96
playback
on a PC.
Launch Music Program and play.
Mac
1) Open System Preferences.
2) Click on Sound.
3) In the Outputtab you should see USBAudio DAC (or similar) as one ofthe choices.
4) Select it.
Launch iTunes and
enjoy
your
music.
Once
you
set
up
your
computer
following the
above
instructions it should recognize the
decco65's
USB
Audio
DAC
and default
to
it. If you unplug
the
USB
connection you,
may
have to repeat
some
steps; this is not unusual.
Other usefu
I tips...
For the best sound when listening to music from your computer, set your computer and music
program volume controls to maximum and use the decco65 volume knob
or
remote control as
the mastervolume control.
-Forcritical listening to music from your computer, avoid keeping multiple programs open.
It
can
compromise the sound quality and even cause signal dropouts.
Give the decco65 adequate ventilation as it
may
getwarm.
We'll post articles and other helpful tips on getting the best sound from your computer's music
files, your iPod, and your other digital music sources. Visit us at ourwebsite:
www.peachtreeaudio.com
@ Interested in
the
Green Movement?
The decco65 meets the European RoHS standards for non-hazardous metals.
The decco65 utilizes a standby transformer that draws less than one watt of power.
Wewill continue to investigate more waysof making ourproducts environmentallyfriendly. Feel
free to email uswith your suggestions:
[e-mail]
9

t
't,:t
lff~lli
~'
The
decooll'
wllt
not
1
\1
tumon.
_'.
~
,.
~""""
.,.
~r
When
MPM:IIitch!tom
t
one
'
source"
to
another
you
get a
l~ud
"click''
or
"•~
/
:
10
Check to
be
sure that both the power switch
on
the back panel and the
standby switch
on
the front panel are
on.
The front panel light should
be
blue.
It
is
green when
in
standby.
Be sure your system is not muted and that the decco65 has
been selected. Be sure your digital source is on and playing.
Be sure the decco65's standby button
is
glowing blue and that your
desired input is glowing blue. If the input button is blinking the
decco65
is
in
"mute" mode. Press the mute button
on
the remote to
un-mute the decco65. Check to be sure your digital cable
is
properly
connected.
Please check the batteries by removing the cover on the back of
the remote.
It
is
an infrared remote so it needs a clear line of sight
to the sensor
on
the front panel of the decco65. Check that no light
sources, like lamps, are interfering with the infrared remote signal.
First, try relaunching your music server program (iTunes,
WMP,
etc.).
If
your computer still doesn't recognize the USB DAC unplug the USB
cable from the computer and the decco65, wait a few seconds, then
reconnect. These are computer hookups, and sometimes you'll lose a
signal just as with your printer or other USB device.
You
should not
have this problem often.
We
designed the decco65 to remain locked
on
the USB signal at all times, but signal dropouts are still possible.
This can require some trial and error diagnostics. If
you
have music
files available
on
a laptop computer connect
it
(while
on
battery power)
to
the decco65. If it works properly, with no noise, then the computer
is
introducing a ground loop into the system. This is not uncom-
mon. However, the decco65's digital inputs are transformer-coupled
to minimize this problem. If a problem persists, please feel free to
contact Peachtree Audio.
Sometimes this
is
from static buildup but
it
should not occurconsistently
over a long period of time. Contact yourdealeror
Peachtree
Audio
if
this
persists.
The amplifier
in
the decco65 will shut down if it experiences an
unusually large power surge or overheats due to a short, or very
loud volumes over a long period of time. This
is
a protection circuit.
Turn down the volume. The amplifier should come back on after a
while.
Over
90°/o
of the time this is due to a software malfunction on your
computer. Shut down all music server programs and check to be
sure that the Peachtree DAC is chosen as the digital output device
by your computer. If you have trouble finding
it,
then unplug the
USB
from
the
decco65
and plug it
back
in 5
seconds
later.
It
almost
always shows up after that. Then re-launch your music
server program(s) and select a song.

International Guarantee and
Claims Under Warranty
International Guarantee
The decco65 has a two year Parts and Labor guarantee from the time of
purchase. The tubes (valves) have a 6 month guarantee. Units that are covered
under this guarantee include decco65's purchased from
an authorized decco65
distributor or dealer.
Peachtree Audio can take no responsibility for defects arising from accident,
misuse, abuse, wear and
tear, neglect or through unauthorized adjustment and/or
repair. The warranty does not cover shipping costs. Visit www.peachtreeaudio.com
for a copy of the complete warranty.
Claims Under Warranty
The unit should be packed in its original packing and returned to the dealer from
whom
it was purchased, or if unavailable, directly to the decco65 distributor.
You should use a suitable carrier. Do not send by Postal Service. Peachtree
Audio cannot accept responsibility for the decco65 while
in transit to the dealer,
distributor, or service facility. Please insure your unit against loss or damage
while
in transit.
In the unlikely event that you experience a failure with your decco65, please
call for a return authorization number before returning products for service. Any
decco65 received without an RA
#will be refused. You may also wish to route
your repair through your dealer, which we encourage.
Call 704-391-9337 for a return authorization number and additional information
on where and how to return your unit for service.
Main office (not service):
Peachtree Audio
2045 120th Avenue NE
Bellevue, WA 98005
www.peachtreeaudio.com
11

• 65 watts per channel
<0.5°/o
distortion into
80
• Stereo Class D amp modules
• Class A Preamp output stage
• <
50
output impedance
• Hybrid tube design using triode (Stereo
6N1
P)
• 5V output @ 2.0V input
• Max output: 7V rms I
11
.2V peak
• 4 Digital inputs (all transformer.coupled)
• Headphone amp: Class A output with
6N1
P tube
in
the circuit
• Suitable for all electro-dynamic headphones
• Frequency response:
20-
50 kHz
+1-
0.1
dB
• Headphone amp voltage gain: 9dB
• Headphone: Maximum output voltage: 7Vrms
• Headphone: Output impedance:<
300
• Headphone: Maximum output power:
100mW into
80
I 300mW into
1500
I 150mW into
3000
•
241192
ESS 9023 Sabre DAC
• Transformer coupled digital inputs for ground isolation
•
24196
asynchronous USB
• Galvanically isolated USB stage
•
AC
115vl230v switchable from back panel
• Maximum power consumption: 300W
• Standby power consumption < 1W
• Dimensions:
111
x 377 x 292 (mm)
4.37 x 14.8 x 11.5 (inches)
• Weight: 7.2
kg
15.891bs
12

p
~
~J
cfrtre
e
~JtJ
cJj
o
I
m
oorta
nt!
I
~
BEFORE
using
USB
for
audio
output
please install
the
··supplied
USB
driver included in
the
owner's manual pouch.
If
you have any questions please
visit
our
website
at
www.pe
achtreeaudto.com
or
call 704.391.9337

peachtree audio
Page
9
correction:
Under
PC
#2
and
Mac
#3
the
drop
down
box
will
include
"XMOS
Audio
2.0 Output". That is the device to select.
