Pearl PA6000 Owner's manual

Made in Japan
Pearl Abrasive Co. PA6000 GRINDER
REV. 2
5" PNEUMATIC REAR
EXHAUST WET GRINDER
MODEL PA6000
OWNER’S/OPERATOR’S MANUAL
Caution! Read Safety and General Instructions
carefully before using the tool for the first time.
serial number -
You should record the Serial Number of your
grinder on this Owner’s/Operator’s Manual

i. TABLE OF CONTENTS
ii. GENERAL SAFETY RULES AND PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
iii. SILICA DUST WARNING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
iv. FEATURES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
v. SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

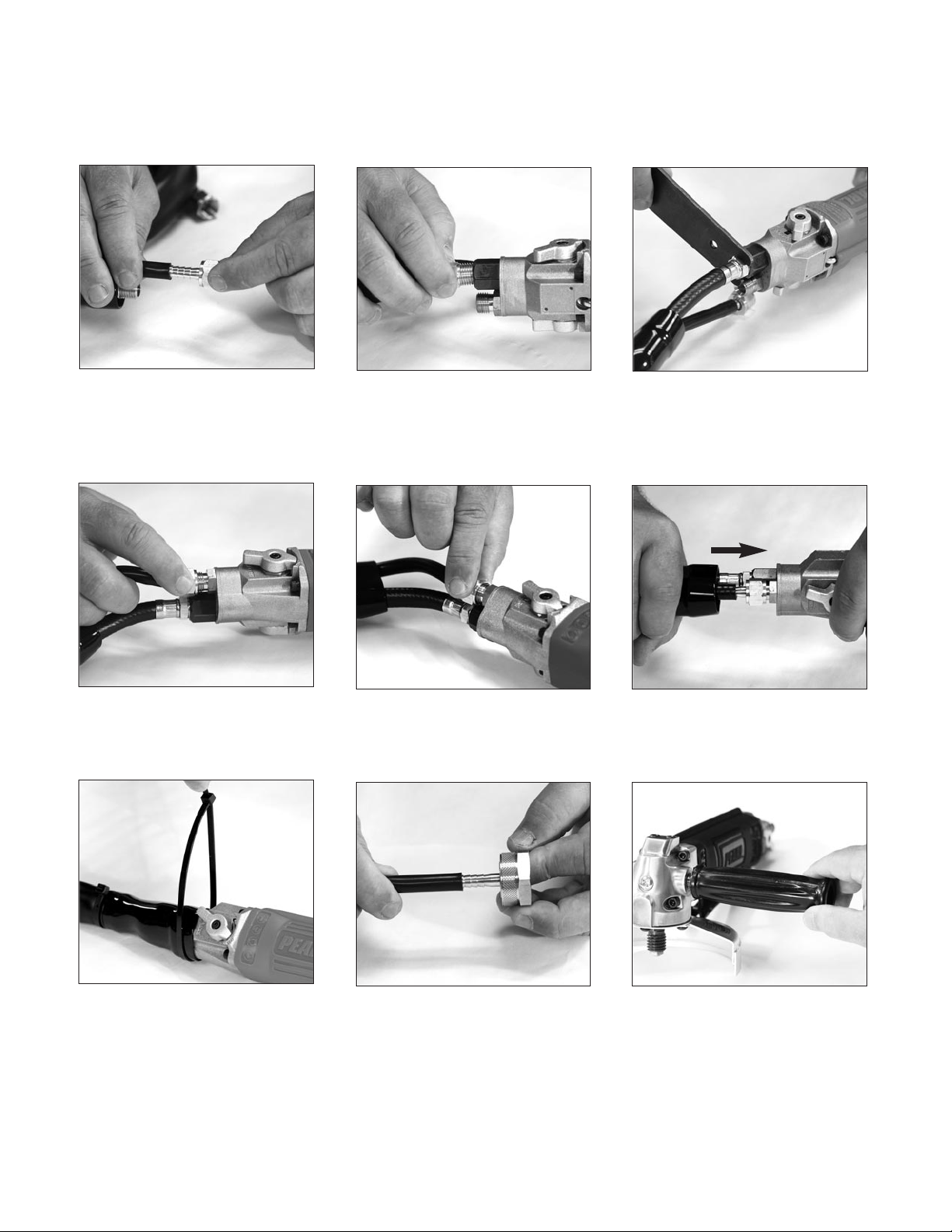

vi. UNPACKING, ASSEMBLY & OPERATION PROCEDURES . . . . . . . . . . . . . . . . . . . . . 8

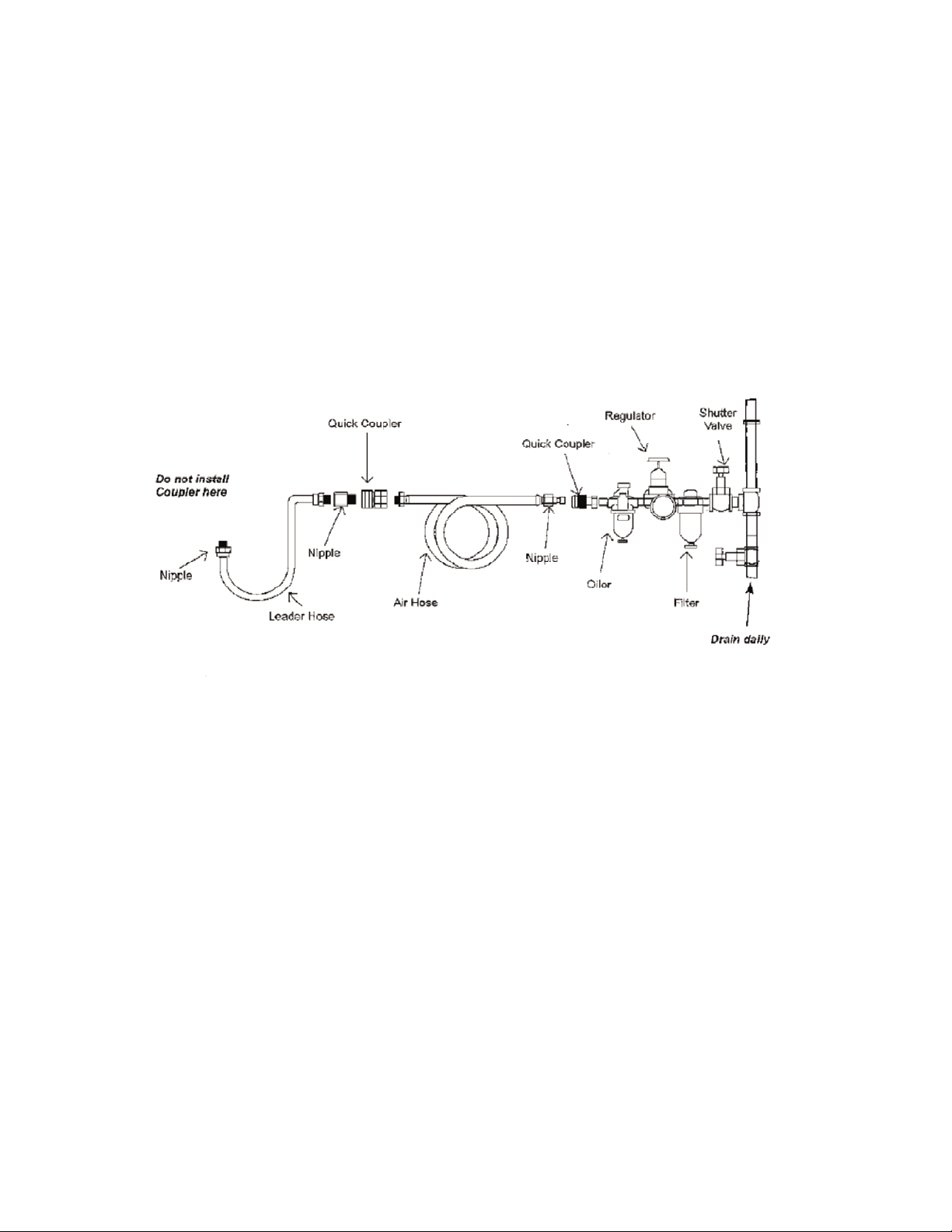

vii. SPECIFIC CAUTION FOR AIR SUPPLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
viii. ABOUT AIR PRESSURE AND VOLUME . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
ix. ABOUT SILENCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
x. MAINTENANCE & TROUBLESHOOTING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
xi. REPLACEMENT PARTS LIST. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
xii. HOW TO ORDER PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
xiii. CUSTOMER SERVICE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
PAGE

– 3 –
Read all instructions. As with all machinery there are certain hazards involved with
operation and use of the machine. The following basic safety precautions should be followed at all times to
reduce the risk of fire, electric shock and serious personal injury to you or others. Keep these important
operating instructions with this product.
WARNING!
1. Know your power tool - read owner’s/operator’s
manual carefully. Learn its applications and
limitations as well as the specific potential
hazards unique to this tool.
2. Keep guards in place - and in working order.
3. Ground all tools - if tools are equipped with
three prong plug, it should be plugged into a
three-hole electrical receptacle. If an adapter is
used to accommodate a two-prong receptacle,
the adapter lug must be attached to a known
ground. Never remove the third prong.
4. Remove wrenches - Form a habit of checking to
see that adjusting wrenches are removed from
tool before turning it “on”.
5. Keep work area clean. Cluttered areas and
benches invite accidents.
6. Do not use in dangerous environment. Do not
use power tools in damp or wet locations, or
expose them to rain. Keep work area well
lighted. Do not use tool in the presence of
flammable liquids or gasses.
7. Keep children and visitors away. All children and
visitors should be kept at a safe distance from
work area.
8. Make workshop childproof with padlocks,
master switches or by removing starter keys.
9. Do not force tool. It will do the job better and be
safer at the rate for which it was designed.
10. Use right tool. Do not force tool or attachment
to do a job for which it was not designed.
11. Wear proper apparel. Do not wear loose
clothing, gloves, neckties, rings, bracelets or
other jewelry that may get caught in moving
parts. Non-slip footwear is recommended.
Wear protective hair covering to contain long
hair.
12. Always use safety glasses. Wear safety
glasses (must comply with ANSI Z87.1) at all
times. Everyday eyeglasses only have impact
resistant lenses; they are not safety glasses.
Use face or dust mask if cutting operation is
dusty, and ear protectors (plugs or muffs)
during extended periods of operation.
13. Do not overreach. Keep proper footing and
balance at all times.
14. Maintain tools in top condition. Keep tools
sharp and clean for best and safest
performance. Follow instructions for lubricating
and changing accessories. Inspect tool cords
periodically and if damaged, have repaired by
authorized service facility.
15. Disconnect tools. When not in use, before
servicing, and when changing accessories, such
as blades, bits, cutters.
16. Avoid accidental starting. Make sure switch is in
“off” position before plugging in power cord.
17. Use recommended accessories only. Consult
the owner’s manual for recommended
accessories. The use of improper accessories
may cause risk of injury to persons.
18. Never stand on tool. Serious injury could occur
if the tool is tipped or if the cutting tool is
accidentally contacted.
19. Check Damaged Parts. Before further use of the
tool, a guard or other part that is damaged
should be carefully checked to ensure that it will
operate properly and perform it’s intended
function. Check for alignment of moving parts,
binding of moving parts, breakage of parts,
mounting, and any other conditions that may
affect it’s operation. A guard or part that is
damaged should be properly repaired or
replaced.
20. Never leave tool running unattended. Turn
power “off”. Do not leave tool until it comes to a
complete stop.
21. Extension cords. Make sure your extension
cord is in good condition. When using an
extension cord, be sure to use one heavy
enough to carry the current your product will
draw. An undersized cord will cause a drop in
line voltage resulting in loss of power and
overheating. If in doubt, use the next heavier
gage. The smaller the gage numbers the heavier
the cord.
ii. GENERAL SAFETY RULES AND PRECAUTIONS

– 4 –
22. Do not abuse cord. Never carry tool by cord or pull it to
disconnect from receptacle, Keep cord from heat, oil, and
sharp edges.
23. Guard against electric shock. Prevent body contact with
grounded surfaces. For example, pipes, radiators, ranges
and refrigerator enclosures.
24. Outdoor use extension cords. When tool is used outdoors,
use only extension cords intended for use outdoors and so
marked.
25. Stay alert. Watch what you are doing. Use common sense.
Do not operate tool when you are tired.
26. Drugs, alcohol, medication. Do not operate tool while
under the influence of drugs, alcohol or any medication.
27. Store idle tool. When not in use, tool should be stored in
a dry and locked place, out of reach of children.
28. Do not use the tool for a purpose other than designated by
the manual.
29. Please check both air hose and water hose not to mix-up
connecting.
30. Keep work area clean and well lit. Cluttered or dark areas
invited accidents.
31. Always wear personal protective equipment such as safety
goggles, hearing protectors and dust mask or respiratory
protective equipment (PPE).
32. Follow ANSI Z87.1 or local/national standards for eye-wear
and other personal protective equipment requirements.
Everyday eyeglasses are not safety glasses.
33. Exposure to certain chemicals in dust generated from
workpiece and/or abrasive materials can result in lung
damage and other physical injury. Your risk of exposure
varies, depending on how often you do this type of work.
To reduce your exposure to dust, work in a well-ventilated
area and work with approved safety equipment designed to
filter out microscopic particles.
34. Dress properly. Do not wear loos clothing or jewelry as
they can be caught in moving parts. Contain long hair with
a cap or a hair cover.
35. When operating an air tool outside, always wear gloves,
safety shoes (preferably non- skid) and hard hat.
36. Use sound insulation walls if required by your local
provisions and regulations.
37. Stay alert, be careful with what you are doing when
operating an air tool. Do not use tool while tired or under
the influence of drugs, alcohol or medication.
38. Do not overwork and have a rest before you get too tired.
39. Always check ration direction before use.
40. Never place you hand or face near the rotating accessory
42. Do not operate the tool continually at full throttle without a
work load on the tool.
43. Do not dismantle or modify the tool.
44. Do not direct the tool towards bystanders and/or animals.
Fragments of workpiece or of a broken accessory may fly
away and cause injury. Keep bystanders out of work area.
45. Do not abuse the hose. Never use the air hose for carrying.
The tool can start suddenly and may cause injury. Keep the
air hose away from sharp edges.
46. Do not use damaged air hose. Damaged air hose increase
the risk of accident.
47. Never work near inflammable liquid or in a highly explosive
area.
48. Make sure that the tool is off before connecting to the air
compressor.
49. Always disconnect the tool from air supply before
removing any accessory or maintenance work.
50. Do not force tool. Use the correct tool for your application.
The correct tool will do the job better and safer.
51. If any physical hand/wrist discomfort is experienced, stop
work promptly and seek medical attention. Hand, wrist and
arm injury may result from repetitive work, motion and
overexposure to vibration. Thake frequent rest and limit
daily time of use.
52. Handle the tool with care. Dropping the tool on a ground,
crashing it into objects any cause the tool to deform and
crack.
53. Use only an air compressor. Use of high pressure gas
other than an air such as an oxygen and acetylene will
increase the risk of explosion.
54. Pneumatic tool’s exhaust air contains oil and contaminated
moisture. Make sure it is not directed towards you or
anyone within the work area.
55. Do not overreach. Keep proper footing and balance at all
times.
56. When working at height, make sure that nobody in
underneath, and ensure also that the tool is kept on a
stable platform.
57. Always inspect wires and pipes inside the workpiece.
Carefully use the tool so that the rotating part will not
contact them. The rotating part contacting electric wires
and gas pipes while operating the tool will increase the risk
of electric shock and gas leak.
58. When grinding, pay attention to dust and sand on the
surface of cup wheels, so that they do not leave scratches
on the workpiece.
GENERAL SAFETY RULES AND PRECAUTIONS

– 5 –
59. Do not press the tool too hard against the workpiece. It is
not only inefficient but also may cause damages to the
tool.
60. Never lay the tool until the accessory has come to a
complete stop.
61. Do not abuse the tool. Do not throw, drop or shock the
tool.
62. Do not carry the tool by the air hose, and do not pull it to
disconnect at the same time.
63. Do not cover or block an exhaust. Blocked exhaust
obstructs the tool from working properly. Also, do not
direct exhaust air towards bystanders and/or animals.
64. Dress properly.
65. Do not wear loose fitting clothing or jewelry that could be
caught in moving parts.
66. Immediately stop operating the tool if you feel the
tool is not working correctly. If damaged, have the tool
serviced.
67. Stay alert, be careful while operating this tool. Do not use
tool while tired or under the influence of drugs, alcohol,
or medications.
68. Keep children and by standers at a safe distance from
work area.
69. Do not use tooling that could be hazaedous if it becomes
wet. (i.e.grinding stones)
70. Never place hand or face near a moving accessory.
71. Use only genuine Pearl replacement parts for repairs.
72. Always turn it off and disconnect from air compressor
before installing and removing accessories, before
adjusting or when making repairs.
73. Never use damaged accessories.
74. Wear personal protective equipment such as safety
glasses that conforms to NSI/ISEA Z87.1, and ear
protection that conforms to ANSI/ISEA S12.6.
75. Always securely clamp and support work piece.
76. Do not use damaged air hose.
77. Always wear proper respiratory protection. A dust mask
or similar dust respirator should be used.
78. Keep tools clean and lubricated.
79. Always disconnect tool when not in use, especially when
changing tools.
80. Inspect before using, check alignment of moving parts
and breakage or improper mounting.
81. Use the Pearl PA6000 for wet grinding only.
82. Only use a Backing pad rated for 5000 RPM or higher.
SPECIFIC WARNINGS FOR PA6000
1. Only qualified/trained operators should use this tool.
2. Use clamps etc. to secure and support the workpiece.
3. Use accessories made for pneumatic tools.
4. Hold the tool firmly, especially when starting.
CAUTION
1. Do not abuse the tool. Do not throw, drop or shock the
tool.
2. Do not carry the tool by the air hose, and at the same
time, do not pull it to disconnect.
3. Do not cover or block an exhaust. Blocked exhaust
prevents the tool from working properly. Also, never
direct exhaust air towards bystanders and/or animals.
4. Dress properly
5. Do not wear loose fitting clothing or jewelry that could be
caught in moving parts.
6. Do not cover or block exhaust. Blocked exhaust prevents
the tool from working properly.
7. Immediately stop operating the tool if you feel the tool is
not working correctly. If damaged have the tool serviced.
8. Stay alert, be careful while operating this tool. Do not use
tool while tired or under the influence of drugs, alcohol,
or medications.
SPECIFIC CAUTION FOR MAINTENANCE
1. Immediately stop operating the tool whenever you fell
that the tool is not working properly. If damaged, have the
tool serviced.
2. Use appropriate pressure. Excessively high pressure will
increase the number of revolutions or strokes causing
potential failure and accidental injury.
3. Use only identical replacement parts when servicing.
4. Do not store unused accessories and tools in an area
where temperature changes a lot and/or under the direct
sunlight. Store them in a dry area and out of reach of
children.
5. Inspect tool before use; check if parts and accessories are
free from damage.
6. Do not use damaged accessory.
7. Never use solvents or other harsh chemicals to clean the
non-metallic parts of the tool.
GENERAL SAFETY RULES AND PRECAUTIONS

– 6 –
KEEP GUARD IN PLACE
DIAMOND BLADE
BLADE CUTTING DEPTH
ELECTRIC SWITCH OFF
ELECTRIC SWITCH ON
ELECTRICAL HAZARD
REMOVE TOOLS
PAY EXTREME
ATTENTION
REPAIRS TO BE DONE
MACHINE HAZARD
FLAMMABLE
READ INSTRUCTIONS
CAREFULLY
WARNING
FRAGILE
KEEP DRY
DO NOT STEP ON
WEAR HEARING
PROTECTION
WEAR EYE PROTECTION
WEAR BREATHING
PROTECTION
WEAR HARD HAT
WEAR PROTECTIVE
CLOTHING
WEAR SAFETY SHOES
WELL VENTILATED
NO NON-WORKING
PERSONNEL
CALIFORNIA PROPOSITION 65: Sawing and drilling generates dust. Excessive airborne
particles may cause irritation to eyes, skin and respiratory tract. To avoid breathing impairment always employ
dust controls and protection suitable to the material being saw or drilled in accordance with OSHA (29 CFR Part
1910.1). Diamond blades improperly used are dangerous. Comply with ANSI Safety Code B7.1 and OSHA covering
speed, safety guards, flanges, mounting procedures, general operating rules, handling, storage and general
machine condition.
WARNING!
8. Before use each day place 2-3 drop of pneumatic tool oil
in the air inlet of the tool. Run tool for 2-3 seconds to
allow moving parts to become lubricated. Lubricating the
tool before and during work is not needed. Excessive oil
will turn into a tar-like substance inside the tool, causing
the vanes to stick in the rotor and slow the tool down.
9. At the end of the shift disconnect air and water line and
hang the tool upside down to allow any water to drain
from the tool.
10. Clean coupler fittings on air hoses so that a motor will
not ingest powder dust and sand. Also, use clean water
from a tap.
11. If you notice deformation of a backing pad in any way,
discontinue its use and replace the backing pad.
12. Do not submerge the tool in water. This will expose the
inner moving parts to moisture that will shorten the life
expectancy.
13. Do not leave accessories attached to the threads of the
spindle. This can result in damage to the spindle or
accessory. Excessive force to the spindle trying to
remove corroded accessories could damage the gears
and bearings.
14. If you notice any abnormal noise or vibration when
operating the product, immediately discontinue its use.
Inspect and replace any damaged parts. If abnormal
noise or smell persist, return the machine for service or
repair.
15. For further operational and handling information or for
replacement of parts and components, please contact
the agent from whom you purchased the tool.
GENERAL SAFETY RULES AND PRECAUTIONS

– 7 –
iii. SILICA DUST WARNING
Grinding/cutting/drilling of tile, masonry, concrete, metal and other materials with silica in their composition may give off
dust or mists containing crystalline silica. Silica is a basic component of sand, quartz, brick clay, granite and numerous
other minerals and rocks. Repeated and/or substantial inhalation of airborne crystalline silica can cause serious or fatal
respiratory diseases, including silicosis. In addition, California and some other authorities have listed respirable
crystalline silica as a substance known to cause cancer. When cutting such materials, always follow respiratory
precautions.
Use appropriate NIOSH-approved respiratory protection where dust hazard may occur. Paper masks or surgical masks
without NIOSH approval number are not recommended because they do little to protect the worker. For more information
about respirator programs, including what respirators have received NIOSH approval as safe and effective, please visit the
NIOSH website at http://www.cdc.gov/niosh/topics/respirators
Observe OSHA regulations for respirator use (29 C.F.R.§1910.134).
Visit http://www.osha.gov for more information.
iv. FEATURES
•Professional design for continuous production applications
•Aircraft aluminum casting
•Watertight sealed bearings provide long life and smooth operation
•Air and water controls are conveniently located and easy to use
•Rear air vent exhaust protector
•15' water hose and 5' air hose
•Handle and wrenches included
•90-day limited warranty
v. SPECIFICATIONS
PA6000
Grinder
Air Pressure 90 PSI
RPM 10,000 (no load)
Shaft Thread 5/8"-11
Air Inlet 1/4" NPT
Length 9 in.
Air Consumption 15 CFM
Air Compressor Required 5 hp min.
Max. Disc Size 5"
Weight 4 lbs.
Water Connection 3/4" GHT

– 8 –
UNPACKING
Your PA6000 Wet Grinder has been shipped from the factory thoroughly inspected. Only minimal assembly
is required. Check the content for the following items before discarding any packaging:
vi. UNPACKING, ASSEMBLY & OPERATION PROCEDURES
PA6000 Air, Water & Exhaust Hoses
Water Hose Joint
Hose Nipple Spanner Wrenches Hose Fastener
Owner’s Manual
Tool Oil
Handle
Proceed to the following section to complete assembly of the grinder.

– 9 –
ASSEMBLY
1. Insert the Hose Nipple into
the Water Hose. 3. Tighten the air hose nut.2. Thread the air hose to the
grinder air hose fitting.
4. Thread the water hose to
the water hose fitting. 6. Slide the exhaust hose over
the water and air hoses.
5. Tighten the water hose nut.
7. Use the fastener to secure
exhaust hose to the grinder. 9. Attach the handle and
tighten.
8. Attach water hose joint to
end of water hose.

– 10 –
OPERATION PROCEDURES
1. Place wrench on bottom of
spindle. 2. Screw on cup wheel and tighten.
3. Turn the water on to desired
water volume. 4. Use the lever to control air flow.
Begin grinding.

– 11 –
vii. SPECIFIC CAUTION FOR AIR SUPPLY
1. Use a clean lubricated air supply that will give
a measured pressure at the tool of 90 PSI/6 bar
(0.6 MPa)
2. Air pressure for this tool MUST NOT exceed 90
PSI/6 bar (0.6 MPa); excessively high air
pressure will increase the number of
revolutions causing not only potential failure or
breakage but could also lead to an unexpected
accident or injury.
3. Equip the air compressor with a replaceable
filter that can be easily cleaned.
4. Use safety shuttle valves so air flow can be
stopped in case of a line break.
5. Use anti-whip devices across hose couplings
to prevent hose from whipping in the event of
hose failure or coupling disconnect.
6. Regularly clean the tool’s air vents.
7. Connect the tool to the air supply as shown
below.
viii. ABOUT AIR PRESSURE AND VOLUME
1. The manufacturer specification on the tool is
10,000 RPM at 80-90 PSI. Pressure over 90
PSI exceeds the max speed rating for the rotor
bearings that could potentially cause them to
overheat and lock.
2. The air consumption of this grinder is very
important. This tool requires 15 CFM (cubic
feet per minute) for the tool to run at a constant
speed. Each additional tool that is attached to
an air compressor will require 15 CFM.
ix. ABOUT SILENCE
To comply with OSHA code 1926.52 Noise exposure Standard, this grinder comes fitted with and
internal silencer. When operated within factory specifications (80-90 PSI @ 16 CFM) the silencer
bring the noise to less than 84 db. The silencer also provides back pressure to help assure that you are
getting a constant RPM level.

– 12 –
MAINTENANCE
•During operation, lubricate the air tool oil, if
necessary. Lubricate a few drops of oil from
the air inlet, and operate it for a few
seconds so as for oil to diffusing into the
whole housing.
•After operations, air-blow moisture attached
to the machine body, and cleanly wipe off
the dirty moisture. And lubricate a few
drops of air tool oil from the air inlet. After
a few seconds operations, store the tool in
dry place.
•Keep the hose attached port clean so as to
prevent dust to enter from the air inlet into
the housing.
•Make sure to install the handle and the pad
so as not to loosen.
•Use the cup wheels specific and adequate
to this machine.
•In order to replace or install the cup wheels
and other attachments, be sure to remove
the air hose.
•Be sure to use the dry and clean
compressed air.
•Don't use the tool in pressure exceeding air
pressure 0.63Mpa.
•The air tool is precious machine. Don't
throw, drop or give a strong shock thereto,
which will cause damage to the machine.
•Avoid using the tool beyond the usage, and
forced operations exceeding the
performance.
•It irregular noise or vibration should occur,
or tool performance is deteriorated,
immediately stop the operation. Check if
any failure such as a breakage is found in
attachments or the machine. If troubles are
not resolved, though the attachment has
been replaced or lubricated, contact to the
purchase shop.
viii. MAINTENANCE & TROUBLESHOOTING
WARNING!
Use 3-4 drops of spindle/machine oil in the air
intake valve. The grinder must be oiled daily.
Grease gears as needed using a multi-purpose
EP lithium grease or moly EP lithium grease.
DO NOT use oil.

– 13 –
TROUBLESHOOTING
Note:
Do not submerge the grinderer in water. Water
and moisture will harm and rust the inner parts
of the grinder.
Remove backer pads after each use and use a
drop of oil on the spindle to prevent rust.
Excessive downward force on grinder will result
in premature failure of gears and bearing.
IN CASE OF NO OPERATION AND
WRONG OPERATION
1. Check if the sufficient air is supplied with
adequate pressure.
2. Check if the air hose is connected in place,
and air leak found or not.
3. Check if the air regulator lever is opened.
4. Considering oil level down, try idling
operation in lubrication.
WATER WON'T COME OUT
1. Check if sufficient water is supplied from the
faucet.
2. Check if water leaks or clogs, while the water
hose is connected in place.
3. Check if the water adjusting lever is opened.
4. Check if the water injecting nozzle is clogged
with dust.
Wear in front plate due to
worn bearings
Wear in rear plate due to
worn bearings.
A broken rotor blade is due to
excessive downward pressure
on the grinder and lack of
regular oiling.

– 14 –
ix. REPLACEMENT PARTS LIST
42
36
50
47
12
3
4
48
49
7
66
68
67
74
71
33
31
8
8
7
8
5
76
5
5
5
75
70
70 73
72
12
11
14
18
1920
22
6
46
45
44
41
40
39
38
58
57
56
61
59
63
55
54
62
64
65
60
53
51
13
15
16
28
29
27
26
25
23
24
30
30
9
10
17
32
35
35
37
43
52
34
21
69
77
Please have the following information ready before calling:
Model Number and Part Description
For warranty purpose, please have the following ready: Serial
Number and When purchased and where
All parts listed may be ordered from your Local warehouses. If the
part is not stocked locally, call our Corporate office and ask for our
Customer Service Department. For Technical Support call 1-800-
969-5561. In Canada, call 1-800-387-0008. There is a $25.00
minimum order.
Return Policy: Return goods for credit or exchange on the basis of
the following terms: (1) They must be current products; (2) Items
returned for replacement or refund should be in original cartons and
must be accompanied by a packing slip with the following
information: Returned Goods Authorization (RGA) number
obtainable from Customer Service Department • List of items
returned • Reason(s) for return(s) • Copy of original invoice(s); (3)
Freight charges must be assumed by sender; (4) Returning goods
are subject to a 15% handling charge to cover our cost of repacking
and restocking. All Prices are subject to change without notice.
Disclaimer: Pearl Abrasive Co. reserves the right to make changes
or improvements on its products without incurring an additional
obligation including any obligation to make corresponding changes
or improvements to products previously manufactured or sold.
Pearl reserves the right to discontinue products at any time without
notice.
All illustrations displayed in this manual are the property of Pearl
Abrasive Co. and shall not be duplicated or reproduced without the
express written consent of Pearl Abrasive Co.
xii. HOW TO ORDER PARTS

– 15 –
1 Inlet Bushing 1 670265
2 Hose Nipple 1 670201
3 Hose Adaptor 1 670202
4 Cap Screw 4 670268
5 Washer 12 670269
6 Outer Pipe 1 670270
7 Pipe Bush 2 670206
8 O-Ring 3 670207
9 Steel Ball 1 670209
10 Spring 1 670274
11 Cap Screw 1 670208
12 Lever 1 670211
13 Valve Nut 1 670212
14 Water Valve 1 670216
15 O-Ring 1 670214
16 Valve Bush 1 670280
17 Valve Housing 1 670281
18 Gasket 1 670282
19 Valve Spring 1 670283
20 Valve 1 670284
21 Roll Pin(3φ-28mm) 1 670285
22 Valve Seat 1 670286
23 Housing Cover 1 670287
24 Motor Housing 1 670288
25 Valve Pin 1 670289
26 Roll Pin(4φ-30mm) 1 670290
27 Throttle Lever 1 670291
28 Plunger 1 670292
29 Roll Pin(3φ-12mm) 2 670293
30 Pendulum 6 670294
31 Governor 1 670295
32 Governor Spring 1 670296
33 Adjust Screw 1 670297
34 Adjust Nut 1 670298
35 Ball Bearing 2 670230
36 Rear Plate 1 670300
37 Rotor Blade 4 670301
38 Rotor 1 670302
39 Cylinder 1 670303
PART NAME QTY. PART NUMBER
40 Roll Pin(2.5φ-6mm) 1 670304
41 Roll Pin(2.5φ-4mm) 1 670219
42 Front Plate 1 670306
43 Ball Bearing 1 670307
44 Pinion Gear 1 670308
45 Gasket 1 670309
46 Cap Screw 2 670310
47 Pipe Connector 1 670311
48 Inner Pipe 1 670312
49 Angle Head 1 670313
50 Cap Screw 2 670314
51 Screw 1 670315
52 Cap Screw 2 670316
53 Handle 1 670317
54 Ball Bearing 1 670318
55 Retaining Ring 1 670319
56 Wave Washer 1 670320
57 Bevel Gear 1 670321
58 Ball Bearing 1 670322
59 Key 1 670247
60 Spindle 5/8" 1 670324
61 Nozzle 1 670250
62 Gasket 1 670326
63 Felt Seal 1 670327
64 Retainer 1 670328
65 Disc Cover 1 670329
66 Spanner Wrench 1 670330
67 Wipe Hose Black 1 670254
68 Water Hose Black 1 670260
69 Water Hose Joint 1 670259
70 Harness Band 2 670257
71 Exhaust Cover A 1 670255
72 Connector 1 670256
73 Exhaust Hose 1 670258
74 Disc Receiver 1 670338
75 Disc Nut 1 670339
76 Button Head Screw 4 670340
77 Pin Wrench 1 670341
PART NAME QTY. PART NUMBER
xiii. CUSTOMER SERVICE
AFTER SALE SERVICE. All customer service (technical questions, re-order of parts, etc.) will be provided by our company. All
spare parts for after sales service will be stocked and shipped from our warehouse. If requested, we may arrange for our sales
representatives to hold a training class for product knowledge at dealer’s location.

©2020 PEARL ABRASIVE CO., COMMERCE CA 90040 • 09/20
CORPORATE OFFICE: SO. CALIFORNIA • USA
4900 ZAMBRANO ST., COMMERCE, CA 90040
FAX [phone]
PHONE [phone]
www.pearlabrasive.com
GEORGIA • USA
3950 STEVE REYNOLDS BLVD.,
NORCROSS GA 30093
ONTARIO • CANADA
375-2 PIDO ROAD
PETERBOROUGH, ONTARIO K9J-6X7
90 DAYS
