Pearl PA10SDG Series Owner's manual

Caution! Read Safety and General Instructions carefully before using saw for the first time.
Made in the U.S.A.
PEARL ABRASIVE CO. - SINGLE-HEAD FLOOR GRINDER
REV. 1
You should record the Serial Number of your Floor Grinder on this
Owner's/Operator's Manual and on the Warranty Card. The Warranty
Card must be sent back with all the required pertinent information for
the warranty to take effect.
SERIAL NUMBER -
MODEL PA10SDG SERIES
10'' SINGLE-HEAD FLOOR GRINDER
OWNER'S/OPERATOR'S MANUAL

2
INTRODUCTION
Congratulations on your purchase of a PA10SDG Grinder. We are certain that you will be
pleased with your purchase. PEARL takes pride in producing the nest construction power tools
and diamond blades in the industry.
Operated correctly, your PA10SDG Grinder should provide you with years of service. In order to
help you, we have included this manual. This owners manual contains information necessary to
operate and maintain your PA10SDG Grinder safely and correctly. Please take the time to famil-
iarize yourself with the PA10SDG Grinder by reading and reviewing this manual.
Read and follow all safety, operating and maintenance instructions.
If you should have questions concerning your PA10SDG Grinder, please feel free to call our
friendly customer service department at: 800 969-5561
Regards,
PEARL
NOTE THIS INFORMATION FOR FUTURE USE:
MODEL NUMBER:
SERIAL NUMBER:
PURCHASE PLACE:
PURCHASE DATE:
NOTE: For your (1) one year warranty to be effective, complete the warranty card
(including the Serial Number) and mail it in as soon as possible.

3
TABLE OF CONTENTS
SAFETY
Safety Messages 4
Damage Prevention Message 4
General Safety Precautions and Hazard Symbols 4
Rules for Safe Operation 5
California Proposition 65 Message 6
Hazard Symbols 7
Electrical Requirements 8-10
Safety Label Locations 11
Product Specications 12
UNPACKING and TRANSPORT
Unpacking 13
Contents 13
Transport 13
ASSEMBLY and OPERATION
Handlebar Adjustment 14
Grinding Discs Installation 14

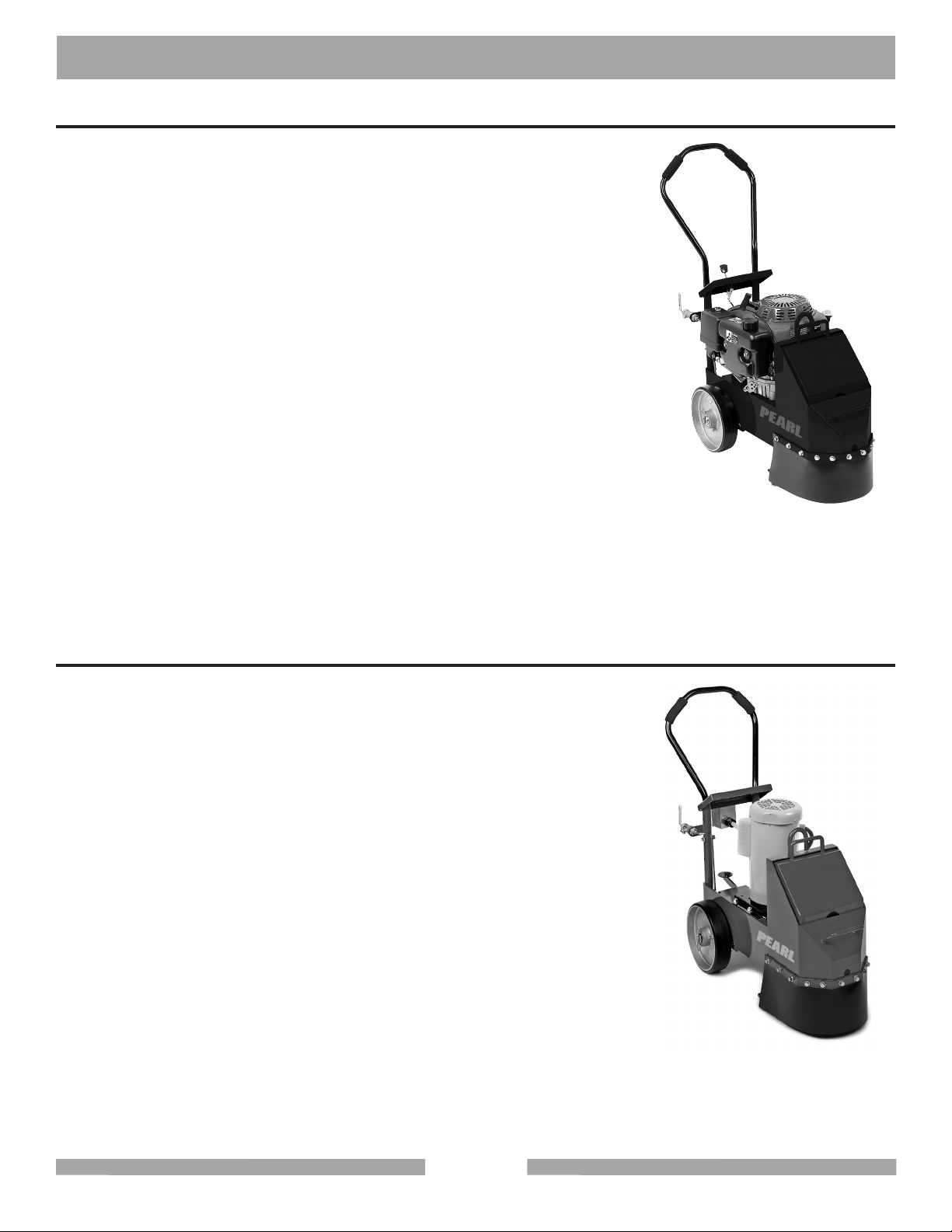

Gasoline Engine Unit 15
Electric Motor Unit 15
MAINTENANCE AND TROUBLESHOOTING
Cleanup 16
Filling Fuel Tank 16
EXPLODED VIEW AND PARTS LIST

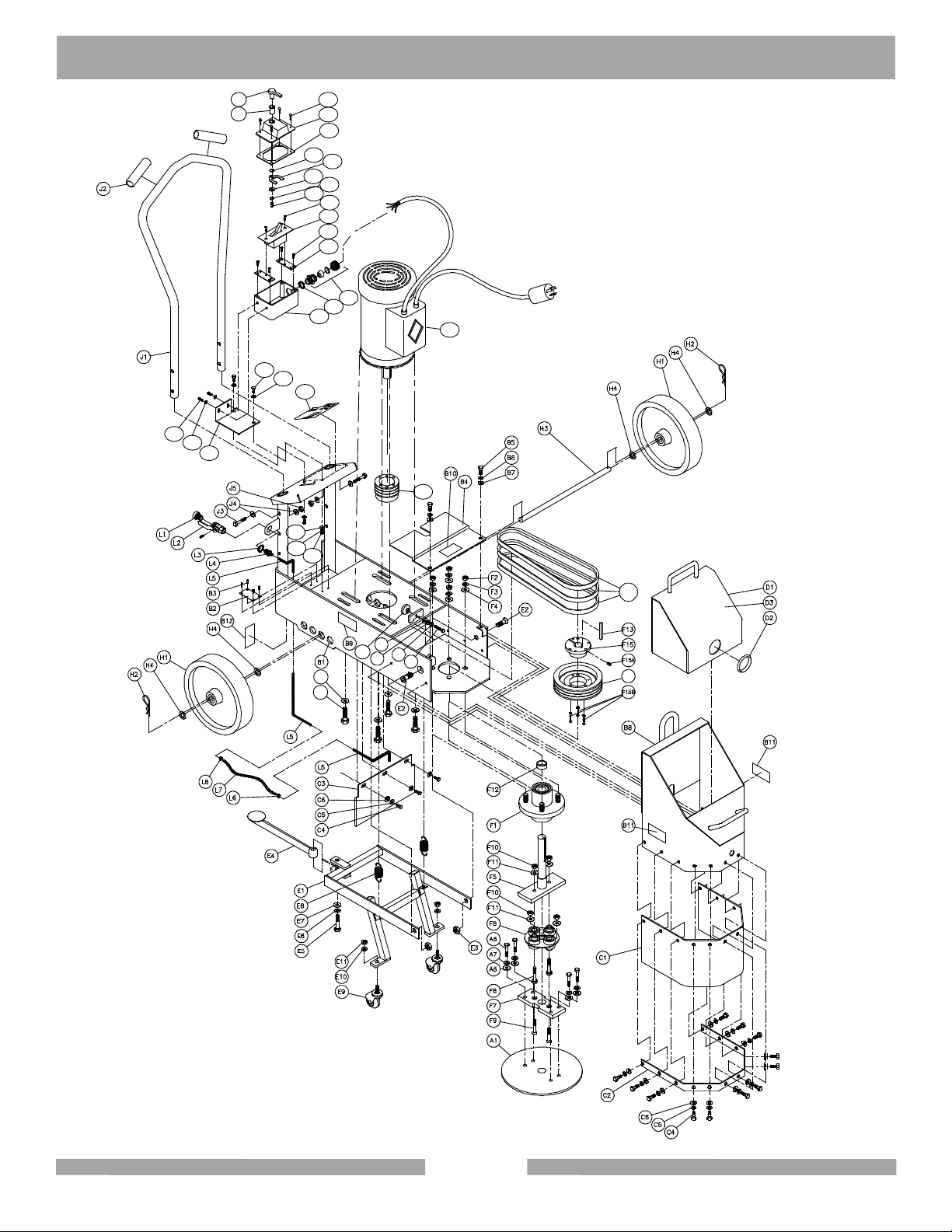

Exploded View 17-19
Parts List 20-22
ACCESSORIES ORDERING and RETURN INSTRUCTIONS
Accessories 23
Ordering Information 24
Return Material Policy 24
Packaging Instructions 24
Authorized Service Centers 24
CONTACT& LIMITED WARRANTY
Contact & Limited Warranty 25

4
Read and follow all safety, operating and maintenance instructions. Failure to read and follow
these instructions could result in injury or death to you or others. Failure to read and follow these
instructions could also result in damage and/or reduced equipment life.
SAFETY MESSAGES
A Damage Prevention Message is to inform the user of important information and/or instructions that
could lead to equipment or other property damage if not followed. Information Messages convey
information that pertains to the equipment being used. Each message will be preceded by the word
NOTE, as in the example below.
DAMAGE PREVENTION AND INFORMATION MESSAGES
NOTE: Equipment and/or property damage may result if these instructions are not followed.
In order to prevent injury, the following safety precautions and symbols should be followed at all times!
GENERAL SAFETY PRECAUTIONS AND HAZARD SYMBOLS
SAFETY PRECAUTIONS
Form a habit of checking to see that keys and adjusting wrenches are removed from
the power tool before it is turned on.
Cluttered work areas and benches invite accidents.
DO NOT use power tools in damp or wet locations nor expose them to rain. Always
keep the work area well lighted.
All visitors and children should be kept a safe distance from work area.
A safety message alerts you to potential hazards that could hurt you or others. Each safety message is preced-
ed by a safety alert symbol ( ) and one of three words: DANGER, WARNING, or CAUTION.
DANGER You WILL be KILLED or SERIOUSLY INJURED if you do not follow directions.
WARNING You CAN be KILLED or SERIOUSLY INJURED if you do not follow directions.
CAUTION You CAN be INJURED if you do not follow directions. It may also be used to alert
against unsafe practices.
ALWAYS read this Owner’s Manual before operating the machine.
ALWAYS keep the Blade Guards in place.
REMOVE ADJUSTING KEYS AND WRENCHES
KEEP WORK AREA CLEAN
KEEP CHILDREN AWAY
DO NOT USE IN DANGEROUS PLACES
PA10SDG SAFETY

5
If using an extension cord make sure it is in good condition first. When using an extension
cord, be sure to use one heavy enough to carry the current your product will draw. An
undersized cord will cause a drop in line voltage that will result in a loss of power and
overheating. TABLE 1, Page 10 shows the correct AWG size to use depending on cord
length and nameplate ampere rating. If in doubt, use the next heavier gage. The smaller
the gage number, the heavier the cord.
DO NOT wear loose clothing, gloves, neckties, rings, bracelets, or other jewelry that may
be caught in moving parts. Non-slip footwear is recommended. Wear protective hair
covering to contain long hair.
Keep proper footing and balance at all times by not overreaching.
Clamps or a vise should be used to hold work whenever practical. Keeping your
hands free to operate a power tool is safer.
Keep tools clean for the best and safest performance. Always follow maintenance
instructions for lubricating, and when changing accessories.
Power tools should always be disconnected before servicing or when changing
accessories, such as blades, bits, cutters, and the like.
Make the workshops kid proof by using padlocks, master switches or by removing starter
keys.
A power tool will do a job better and safer operating at the rate for which it was designed.
DO NOT force a tool or an attachment, to do a job that it was not designed to do.
MAKE THE WORKSHOP KID PROOF
DO NOT FORCE THE TOOL
USE THE RIGHT TOOL
USE THE PROPER EXTENSION CORD
USE PROPER APPAREL
ALWAYS wear approved eye protection.
ALWAYS wear approved respiratory protection.
ALWAYS place the power ON/OFF switch in the OFF position when the saw is not in use.
SECURE WORK
DO NOT OVERREACH
MAINTAIN TOOLS WITH CARE
DISCONNECT TOOLS
PA10SDG SAFETY

6
Consult the owner’s manual for recommended accessories. Using improper accessories
may increase the risk of personal or by-stander injury.
Serious injury could occur if a power tool is tipped, or if a cutting tool is unintentionally
contacted.
Before using a power tool, check for damaged part. A guard or any other part that is
damaged should be carefully checked to determine ifwould operate properly and perform
its intended function. Always check moving parts for proper alignment or binding. Check
for broken parts and mountings and all other conditions that may affect the operation of
the power tool. A guard, or any damaged part, should be properly repaired or replaced.
TURN POWER OFF - Do not leave a tool until it comes to a complete stop. Always
turn a power tool OFF when leaving the work area, or, when a cut is finished.
CALIFORNIA PROPOSITION 65 MESSAGE
USE RECOMMENDED ACCESSORIES
NEVER LEAVE A TOOL UNATTENDED
NEVER STAND ON THE TOOL
CHECK FOR DAMAGED PARTS
WARNING
Some dust created by power sanding, sawing, grinding, drilling, and other construction activities
contain chemicals known [to the State of California] to cause cancer, birth defects or other
reproductive harm. Some examples of these chemicals are:
• Lead, from lead-based paints
• Crystalline silica, from bricks and cement and other masonry products and
• Arsenic and chromium, from chemically treated lumber
For further information, consult the following sources:
http://www.osha.gov/dsg/topics/silicacrystalline/index.html
http://www.cdc.gov/niosh/consilic.html
http://oehha.ca.gov/prop65/law/P65law72003.html
http://www.dir.ca.gov/Title8/sub4.html
Your risk from these exposures varies depending on how often you do this type of work. To reduce
your exposure to these chemicals, work in a well-ventilated area, and work with approved safety
equipment, such as those dust masks that are specially designed to filter out microscopic particles.
PA10SDG SAFETY

7
Sawing, grinding and drilling generates dust. Excessive airborne particles may cause irritation
to eyes, skin and respiratory tract. To avoid breathing impairment, always employ dust controls
and protection suitable to the material being sawed, grinded, or drilled; See OSHA (29 CFR Part
1910.1200). Diamond Blades improperly used are dangerous. Comply with American National
Standards Institute Safety Code, B7.1 and, Occupational Safety and Health Act covering Speed,
Safety Guards, Flanges, Mounting Procedures, General Operating Rules, Handling, Storage and
General Machine Conditions
HAZARD SYMBOLS
NEVER touch electrical wires or components while the engine is running. They can be
sources of electrical shock which could cause severe injury or burns.
Keep hands, feet, hair, and clothing away from all moving parts to prevent injury.
Never operate the motor with covers, shrouds, or guards removed.
NEVER tamper with the governor components or settings to increase the maximum
speed. Severe personal injury and damage to the engine or equipment can result if
operated at speeds above maximum.
DO NOT expose to rain or use in damp locations.
WARNING
ROTATING PARTS
ELECTRICAL SHOCK
OVER SPEED
DO NOT EXPOSE TO RAIN
PA10SDG SAFETY

8

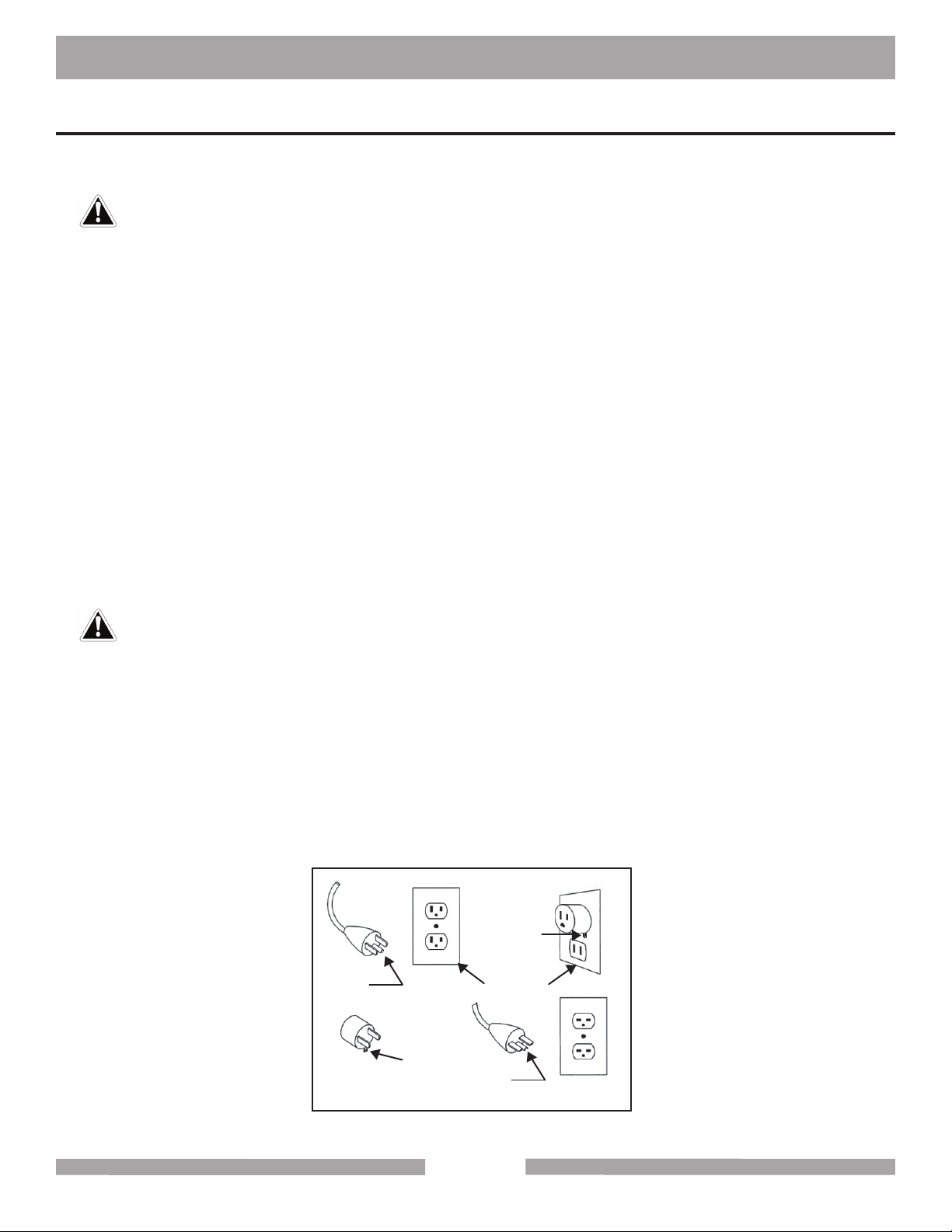

ELECTRICAL REQUIREMENTS AND GROUNDING INSTRUCTIONS
In order to prevent potential electrical shock and injury, the following electrical safety precautions and
symbols should be followed at all times!
In case of a malfunction or breakdown, grounding provides a path of least resistance for electric cur-
rent to reduce the risk of electric shock. This tool is equipped with an electric cord having an equip-
ment-grounding conductor and a grounding plug. The plug must be plugged into a matching outlet
that is properly installed and grounded in accordance with all local codes and ordinances.
WARNING
• Do not modify the plug provided – if it will not t the outlet; have the proper outlet installed by a
qualied electrician
• Improper connections of the equipment-grounding conductor can result in a risk of electric
shock. The equipment-grounding conductor is the insulated conductor that has an outer
surface that is green, with or without yellow stripes. If repair or replacement of the electric cord
or plug is necessary, do not connect the equipment-grounding conductor to a live terminal
• Check with a qualied electrician or service personnel if the grounding instructions are not
completely understood, or if in doubt as to whether the tool is properly grounded
• Use only 3-wire extension cords that have 3-prong grounding plugs and 3-pole receptacles that
accept the tool’s plug
• Repair or replace a damaged or worn cord immediately
WARNING
This tool is intended for use on a circuit that has an outlet that looks like the one shown in Sketch A.
The tool has a grounding plug that looks like the plug illustrated in Sketch A. A temporary adapter,
which looks like the adapter illustrated in sketches B and C, may be used to connect this plug to a
2-pole receptacle as shown in Sketch B, if a properly grounded outlet is not available. The temporary
adapter should be used only until a properly grounded outlet can be installed by a qualied electri-
cian. The green-colored rigid ear, lug, and the like, extending from the adapter, must be connected
to a permanent ground such as a properly grounded outlet box.
NOTE: Use of a temporary adapter is not permitted in Canada.
Grounding
Means
(A)
Metal Screw
Cover of
Grounded
Outlet Box
(D)
ADAPTER
(C) Grounding
Pin
Grounding
Pin (B)
Circuit and Adapter Information
PA10SDG SAFETY

9
Supporting
Surface
Power
Tool
Drip Loop
Power
Cord

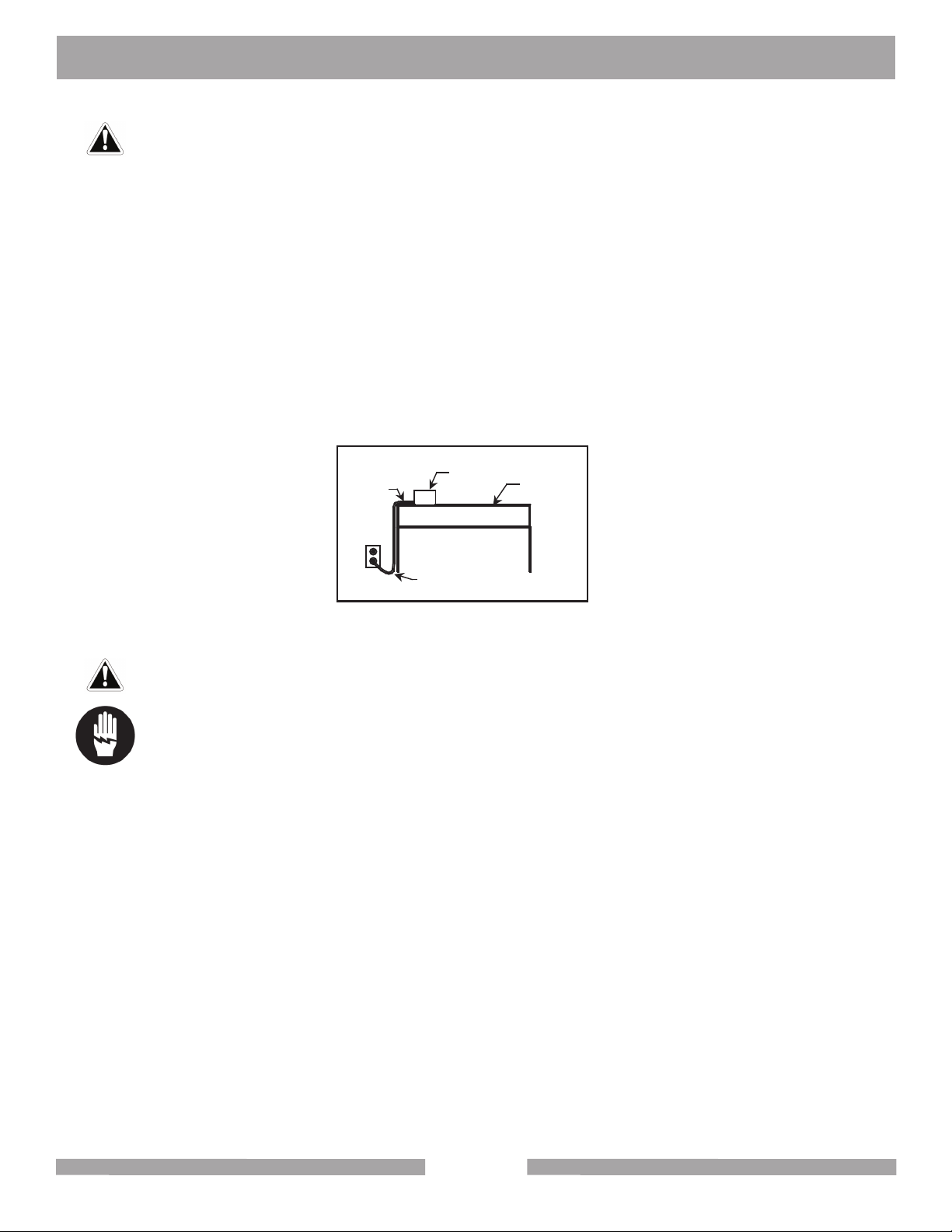

Drip Loop Information
To avoid the possibility of the appliance plug or receptacle getting wet, position the machine to one
side of a wall mounted receptacle. This will prevent water from dripping onto the receptacle or plug. A
“drip loop,” shown in the picture below, should be arranged by the user to properly position the power cord
relative to the power source.
The “drip loop” is that part of the cord below the level of the receptacle, or the connector, if an exten-
sion cord is used. This method of positioning the cord prevents the travel of water along the power
cord and coming in contact with the receptacle.
If the plug or receptacle gets wet, DO NOT unplug the cord. Disconnect the fuse or circuit breaker
that supplies power to the tool. Then unplug and examine for presence of water in the receptacle.
WARNING
Use only extension cords that are intended for outdoor use. These extension cords are
identified by a marking “Acceptable for use with outdoor appliances; store indoors while
not in use." Use only extension cords having an electrical rating not less than the rating
of the product. Do not use damaged extension cords. Examine extension cords before
using and replace if damaged. Do not abuse extension cords and do not yank on any
cord to disconnect. Keep cords away from heat and sharp edges. Always disconnect the
extension cord from the receptacle before disconnectingthe product from the extension
cord.
WARNING
PA10SDG SAFETY

10
Use of under sizedextension cords result in low voltage to the motor that can result
in motor burnout and premature failure. PEARL warns that equipment returned to us
showing signs of being run in a low voltage condition, through the use of undersized
extension cords will be repaired or replaced totally at the customer's expense. There
will be no warranty claim.
To choose the proper extension cord,
• Locate the length of extension cord needed in the table below.
• Once the proper length is found, move down the column to obtain the correct
AWG size required for that length of extension cord.
To reduce the risk of electrocution, keep all connections dry and off the ground. Do
not touch the plug with wet hands.
WARNING
WARNING
EXTENSION CORD MINIMUM GAGE FOR LENGTH
VOLTS TOTAL LENGTH OF CORD IN FEET
25 ft. AWG 50 ft. AWG 100 ft. AWG 150 ft. AWG
115v 14 12 Not Recommended Not Recommended
230v N/A 14 12 N/A
PA10SDG SAFETY

11
PA10SDG SAFETY
OPERATION & SAFETY DECALS
The PA10SDG is equipped with a number of safety decals. These decals are provided for operator
safety and maintenance information. Should any of these operation or safety decals become unread-
able, replacements can be obtained by calling [phone].
WARNING
Grinding/cutting/drilling of masonry, concrete, metal and other materials with silica in
their composition may give off dust or mists containing crystalline silica. Silica is a basic
component of sand, quartz, brick clay, granite and numerous other minerals and rocks.
Repeated and/or substantial inhalation of airborne crystalline silica can cause serious
or fatal respiratory diseases, including silicosis. In addition, California and some other
authorities have listed respirable crystalline silica as a substance known to cause cancer.
!
DO NOT operate
this equipment
before reading
the owners’
manual!
WARNING
!
CAUTION
DO NOT
operate without
guards in place.
!
(A)
(B)
(C)
(D)
DANGER
The exhaust from this product
contains chemicals known to
the State of California to cause
cancer, birth defects or other
reproductive harm.
!
(E)
CAUTION
DO NOT
touch hot
surface.
!
DANGER
Lethal exhaust
gases. Use only
in well ventilated
areas. DO NOT
use indoors.
(F)
(G)
(H)
(L)
Electric Grinder
CAUTION
Accidental start hazard.
Disconnect spark plug
prior to servicing.
!
(I)
(J)
(K)
WARNING
When refueling
stop engine and
allow to cool.
DO NOT overll
tank.
!
CAUTION
Keep
hands and
feet clear.
!
SERVICE OR
WARRANTY
FOR INFORMATION ON
PLEASE CALL
1-800-474-5594
NOTICE
Overtensioning of belts
will result in premature
crank and/or bearing failure.
!
Most Motor Problems are caused by improper
voltage and extension cords. Cord should be
one-piece and short as possible. Cord
selection should match the following table.
1-2 H.P.
25’
50’
75’
100’
150’
250’
Max. Cord Lgth.
Max. Cord Lgth.
Max. Cord Lgth.
Max. Cord Lgth.
No. 12 Wire
No. 10 Wire
No. 8 Wire
No. 6 Wire
115v 230v
5 H.P.
230v
50’
100’
150’
250’
NOTICE
!
F
J
E, I, K
H
B
C & D
A
G
Label Sheet Part# PA66010
Gas Engine
Gas Engine
Gas Engine
Gas Engine
Gas Engine
Electric Engine
Gas Engine

12
PRODUCT SPECIFICATIONS
The PA10SDG is a versatile unit. Operated and used according to this manual, the
PA10SDG will provide years of dependable service.
FEATURES
SPECIFICATIONS
• Uses either a 10 or 20 segment 10" diameter diamond grinding discs to level, smooth or
clean the top surface of concrete slabs. (A)
• Provides a smoother finish compared to other methods such as scarifiers or scabblers.
• Two-position wheel carriage for grinding and easy transport. (B)
• Front taper for enhanced visibility.
• Removable nose weight and handle for easy transportation. (C)
• Dust shroud helps contain grinding debris.
• Works on concrete slabs, terrazzo, brick, stone and ceramic tile floors.
Specifications for the PA10SDG are listed in the table below.
Model PA10SDG PA10SDG3
Engine Honda Baldor / Leeson
Power GX340 3 HP
Disc RPM 980 980
Disc Capacity 10" (254mm) 10" (254mm)
Ballast 70 lbs. (32kg) 70 lbs. (32kg)
Weight 212 lbs. (96kg) 212 lbs. (96kg)
LxWxH (inches) 40” x 16” x 42” 40” x 16” x 42”
LxWxH (mm) 1016 x 406 x 1066 1016 x 406 x 1066
A B C
PA10SDG PRODUCT SPECIFICATIONS

13
06.2010
MK-SINGLE DISK GRINDER
OWNERS MANUAL
PARTS LIST &
OPERATING INSTRUCTIONS
www.mkdiamond.com
Caution: Read all safety and operating instructions
before using this equipment. This parts list MUST
accompany the equipment at all times.
Revision 201
Manual 158273
SDG-11
SDG-1.5
CONTENTS
PA10SDG UNPACKING & TRANSPORTATION
Caution!Read Safety and General Instructions carefully before using saw for the first time.
Made in the U.S.A.
PEARL ABRASIVE CO. - SINGLE-HEAD FLOOR GRINDER
REV.1
Youshould record the Serial Number of your Floor Grinder on this
Owner's/Operator'sManual and on the Warranty Card. TheWarranty
Cardmust be sent back with all the required pertinent information for
thewarranty to take effect.
SERIAL NUMBER -
MODEL PA10SDG
10'' SINGLE-HEAD FLOOR GR INDER
OWNER'S/OPERATOR'S MANUAL
Use proper lifting techniques when lifting the PA10SDG.
If not already done, remove the PA10SDG, accessory box from the carton.
In your container, you will find
One (1) PA10SDG
One (1) PA10SDG Owners Manual
Owners
Manual
Motor
Manual
PA10SDG
Warranty
Card
CAUTION
One (1) Motor Manual
One (1) warranty card
Name
address
City
state zip Code
phoNe Fax
e-mail
produCt model
part NumBer
maChiNe serial#
MK DiaMonD Warranty CarD
q tile distriButor q home CeNter q equipmeNt supply house
q tool supply q Bldg material supply q reNtal equipmeNt house
are you a do-it-yourselFer qor CoNtraCtor qIF so, what type? tile qmasoNry qother
what Criteria was importaNt iN ChoosiNg this saw? (rate From 1 to 5, 5 BeiNg the most importaNt)
power preCisioN porta Bility availaBility other
If within one (1) Year from the date of purchase, this MK Diamond saw fails due to defect in material or workmanship, MK will repair it, free of charge when the unit is re-
turned to the dealer where it was purchased. This warranty DOES NOT cover normal wear or damage resulting from operator abuse. In no event shall MK Diamond Products,
Inc. be liable for consequential damages arising out of the failure of any product if operated improperly. MK Diamond Products may act as a warranty station for motor/en-
gine repairs based on an individual agreement with the manufacturer. This warranty is in lieu of all other warranties express or implied.
©2010 All Rights reserved. MK Diamond Products, Inc. • P/N 155037 MK Warranty Card (02/10)
mK diamoNd warraNty 1315 Storm Parkway, Torrance, CA 90509 USA | www.mkdiamond.com | 1.800.421.5830 | 1.310.539.5158
where did you purChase this saw Fro m ? N a me
CommeNts or suggestioNs:
priCe
date purChased
TRANSPORT
1. The PA10SDG weighs approximately two hundred and twelve (212) pounds;
use care when transporting. The unit needs to be rolled from one location to
another.
2. Never try to lift the unit by yourself.
CAUTION
Handle
Wheels
GAS GRINDER ELECTRIC GRINDER
Handle
Wheels

14
PA10SDG ASSEMBLY
Follow the diagram below to prepare your PA10SDG for operation.
ASSEMBLY
HANDLEBAR ADJUSTMENT
Adjust the Handlebar, as shown in the figure to the right, for
ease of operation and comfort of the user.
GRINDING DISCS INSTALLATION
You need to install the grinding discs before operation of the PA10SDG
The figure to the left
shows the components
needed to install the discs.

15
PA10SDG OPERATION
BEFORE STARTING
FOR GASOLINE ENGINE
1. Use correct diamond wheel for grinding conditions.
2. Ensure wheel mountings are clean and bolts are tightened securely.
3. Check water jet for adequate flow.
4. Place grinding wheels on surface.
5. Start and warm up engine. Refer to engine owners manual for details.
6. If application requires water, adjust water flow.
7. Adjust speed as required by application.
DAILY MAINTENANCE
1. Check engine oil level. Refer to engine owners manual for details.
2. Check and clean air filter.
3. Lubricate grease points.
4. Check belt tension
5. Check for fluid leaks and loose or damaged parts.
BEFORE STARTING
FOR ELECTRIC MOTOR
1. Choose correct diamond wheels for the job condition.
2. Ensure grinding wheel mountings are clean and the
retaining bolts are securely tightened.
3. Check for adequate water flow. (If water is required.)
4. Be sure the grinding wheels are positioned over the work area.
5. Adjust water flow. (If application requires water)
6. While holding securely to the handlebar, turn power switch to "ON"
position. Refer to motor owners manual for details.
DAILY MAINTENANCE
1. Lubricate grease points.
2. Check belt tension.

16
CLEAN UP
Engine parts are extremely hot following use. Allow engine to cool 1/2 hour
before cleaning. Use care during cleanup to avoid injury.
NOTE: 1. To extend operating life, the PA10SDG should be cleaned following every use.
2. Using a garden hose or pressure washer can force water into the air cleaner or
muffler opening.
3. Use care when cleaning around electrical components.
FILLING FUEL TANK
1. Gasoline is highly flammable and explosive. You can be burned or seriously injured when
handling fuel.
2. To fuel, stop engine if running, and allow it to cool.
3. Refuel in a well-ventilated area.
4. Keep gasoline away from appliance pilot lights, barbecues, electric appliances, power
tools, etc.
5. Wipe up spills immediately
NOTE: 1. Fuel can damage paint and plastic. Be careful not to spill fuel when filling
the fuel tank.
2. Damage caused by spilled fuel IS NOT covered under the warranty.
3. DO NOT use stale or contaminated gasoline, or an oil/gasoline mixture.
4. Use unleaded gasoline with a pump octane rating of 86 or higher.
WARNING
CAUTION
PA10SDG CLEANUP
Refer to engine owners manual.

17
PA10SDG EXPLODED VIEW
Gas Engine

18
PA10SDG EXPLODED VIEW
Gas Engine

19
PA10SDG3 EXPLODED VIEW
Electric Engine
GD6
GD8 GD4
GD9
GD7
GD10
GD8
GD12
GD5
GD33
GD34
GD35
GD1
GD13 GD15
GD16
GD17
GD18
GD19
GD20
GD21
GD23
GD24
GD23
GD25
GD27
GD28
GD26
GD32
GD33
GD33
GD29
GD20
GD22
GD14
GD2
GD32

20
PA10SDG PARTS LIST
Item Description Qty Part No.
AAssembly, Accessory Pack
A1 Grinding Wheels 10” (Reference only) 0 Reference
A2 Pallet (not shown) 1 PA58259
A3 Carton, SDG-11 Grinder (not shown) 1 PA58272
A4 Tube, Owner’s Manual (not shown) 1 PA55419
A5 Manual, Owner’s (not shown) 1 PA58273
A6 Bolt, Hex HD, 3/8-24 x 1 Grinding Disk, Mounting 4 PA57803
A7 Washer, 3/8 Split Lock 4 PA50925
A8 Washer, 3/8 SAE Flat 4 PA50923
BAssembly, Frame
B1 Frame Weldment 1 PA57780
B2 Plate, Serial Number 1 PA57500
B3 #7 X 5/16 Drive Screw 2 PA57849
B4 Tray, Weight 1 PA57785
B5 Screw, 5/16-18 x 3/4 Hex Head 2 PA51369
B6 Washer, 5/16 lock, split 2 PA51747
B7 Washer, 5/16 SAE Flat 2 PA51754
B8 Housing, Weight 1 PA57783
B9 Label, Caution, Belt Tension 2 PA55583
B10 Label, Caution, Guards in Place 1 PA55587
B11 Label, Caution, Hands and Feet 2 PA55585
B12 Label, Lower/Raise 1 PA58141
CAssembly, Skirt
C1 Skirt, Front 1 PA57817
C2 Skirt, Retainer 1 PA57819
C3 Skirt, Rear 1 PA57818
C4 Screw, 5/16-18 x 3/4 Hex Head 15 PA51369
C5 Washer, 5/16 lock, split 15 PA51747
C6 Washer, 5/16 SAE Flat 15 PA51754
DAssembly, Weight Box
D1 Box, Weight 1 PA57784
D2 Cap, Weight Box 1 PA57890
D3 Label, 1 ¾ x 5” MK Logo 1 PA54335
EAssembly, Lifting Frame
E1 Frame, Lifting 1 PA57781
E2 Screw, Flat HD SOC. 1/2-13 x 1” 2 PA57822
E3 Nut, Center Lock 1/2-13 2 PA53943
E4 Pedal, Lifting Frame 1 PA57782
E5 Bolt, 1/2-13 x 2 Hex Head 1 PA53533
E6 Washer, Lock, Split 1/2 1 PA53524
E7 Washer, Flat SAE 1/2 1 PA50924
E8 Spring, Lifting Frame 2 PA57821
E9 Wheel, 2” Caster (LA-E2-XD) 2 PA60455
E10 Washer, 5/16 lock, split 2 PA51747
E11 Nut, 5/16-18 Hex 2 PA01196
FAssembly, Components, Hub
F1 Hub, 1” Assembly (3 ½ C) 1 PA57820
F2 Nut, Jam 1/2-20 4 PA54460
