Pedigo P-2205 User manual

OPERATION & CARE
MANUAL
OPERATION & CARE
MN-37073 (MM-1074) Rev 0 (07/15)
P-2220
P-2210
P-2205
(shown with optional timer)
P-2230
(shown with optional timer)
P-2240
(shown with optional timer)
Elite Series
Blanket Warming Cabinet
P-2205 1.5ft3
P-2210 2.5ft3
P-2220 3.5ft3
P-2230 4.0ft3
P-2240 7.5ft3

MN-37073 (MM1074) Rev 0 (07/15) • Pedigo Elite Series Blanket Warming Cabinets
TABLE OF CONTENTS
Environmental Conditions........................................ 1
Delivery...................................................... 1
Transportation Damage and Claims................................ 1
Unpacking.................................................... 2
Safety Procedures and Precautions................................ 3
Installation
Preparation ................................................. 4
ElectricalInformation ..........................................4
General Information .......................................... 5

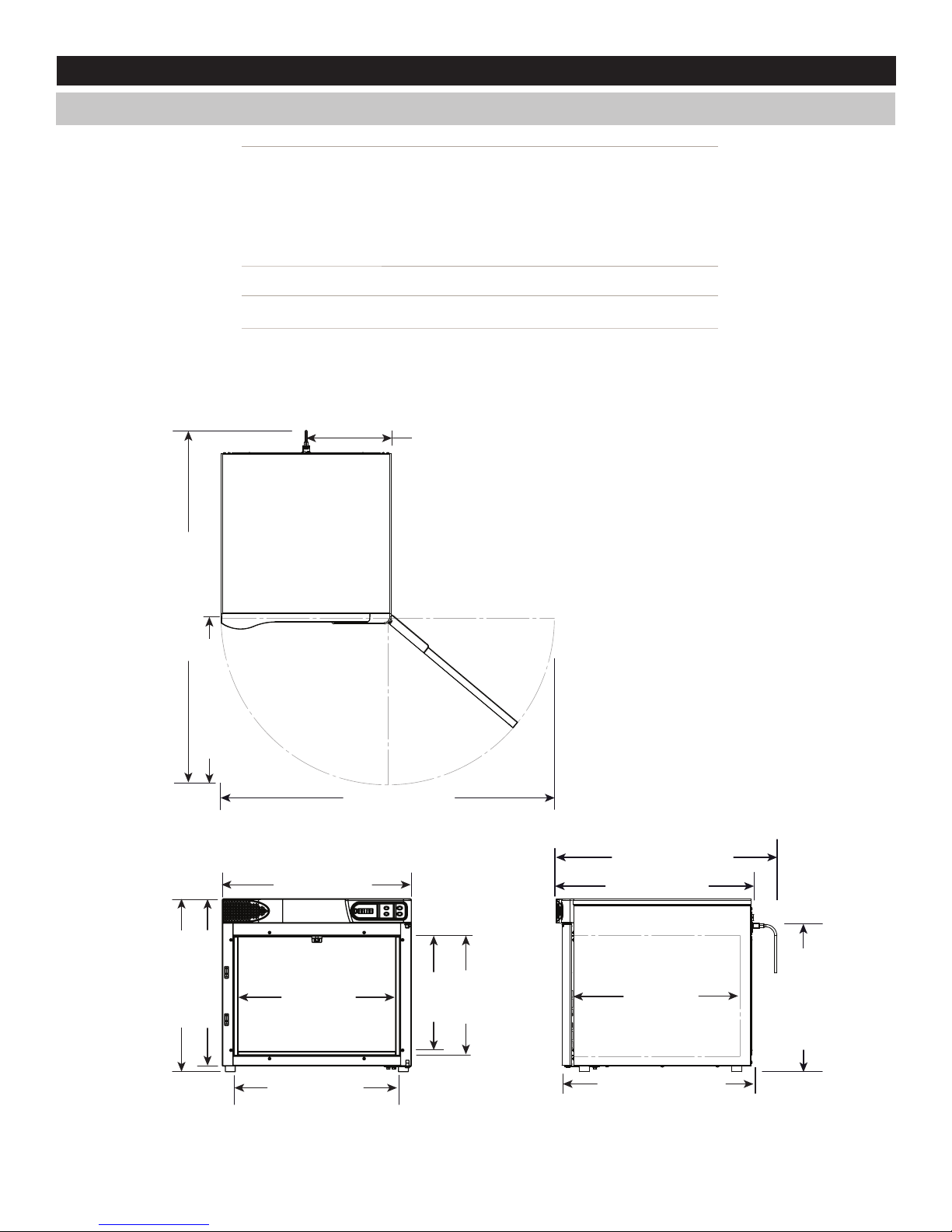

Dimension Drawings, Weights & Capacities
P-2205 .................................................6-7

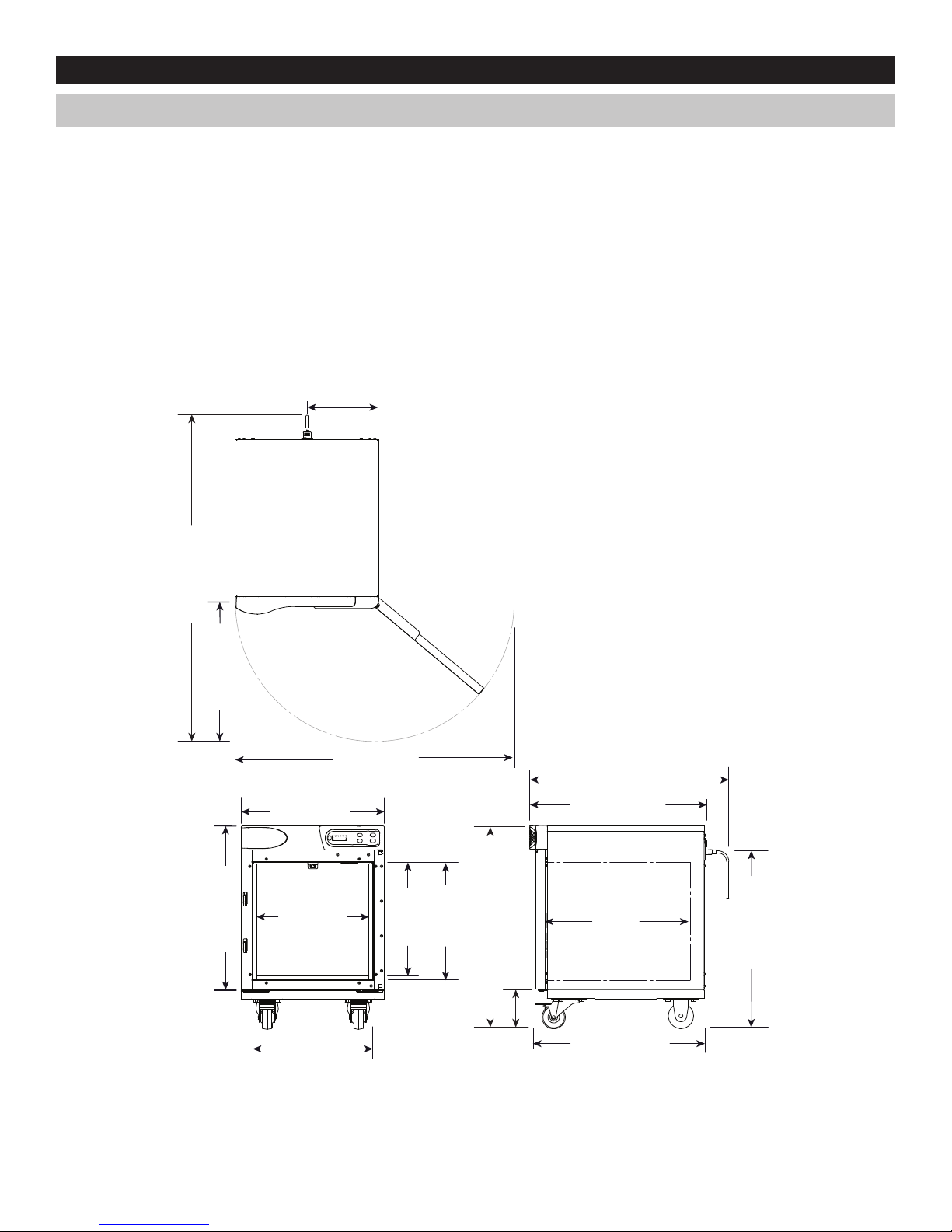

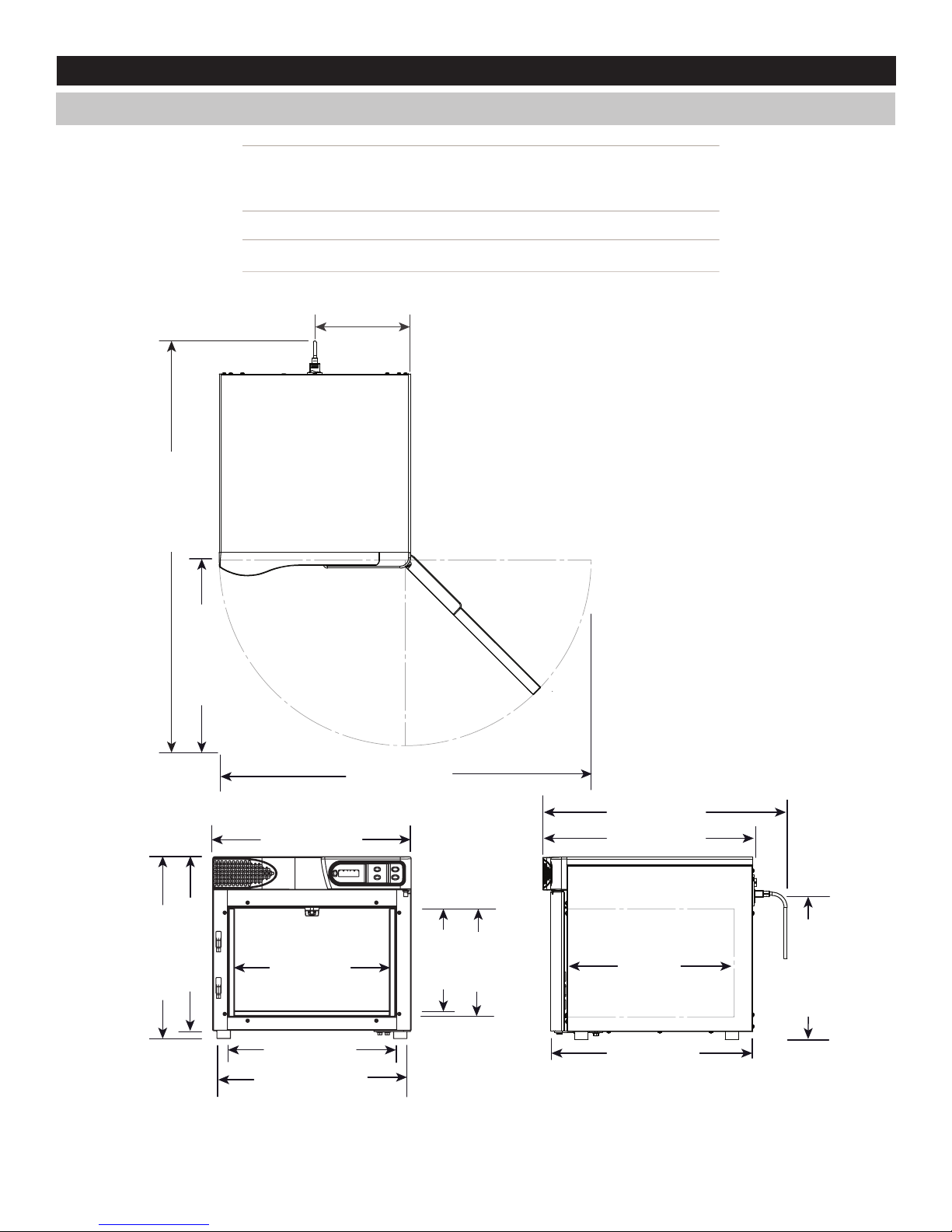

P-2210 ................................................8-11

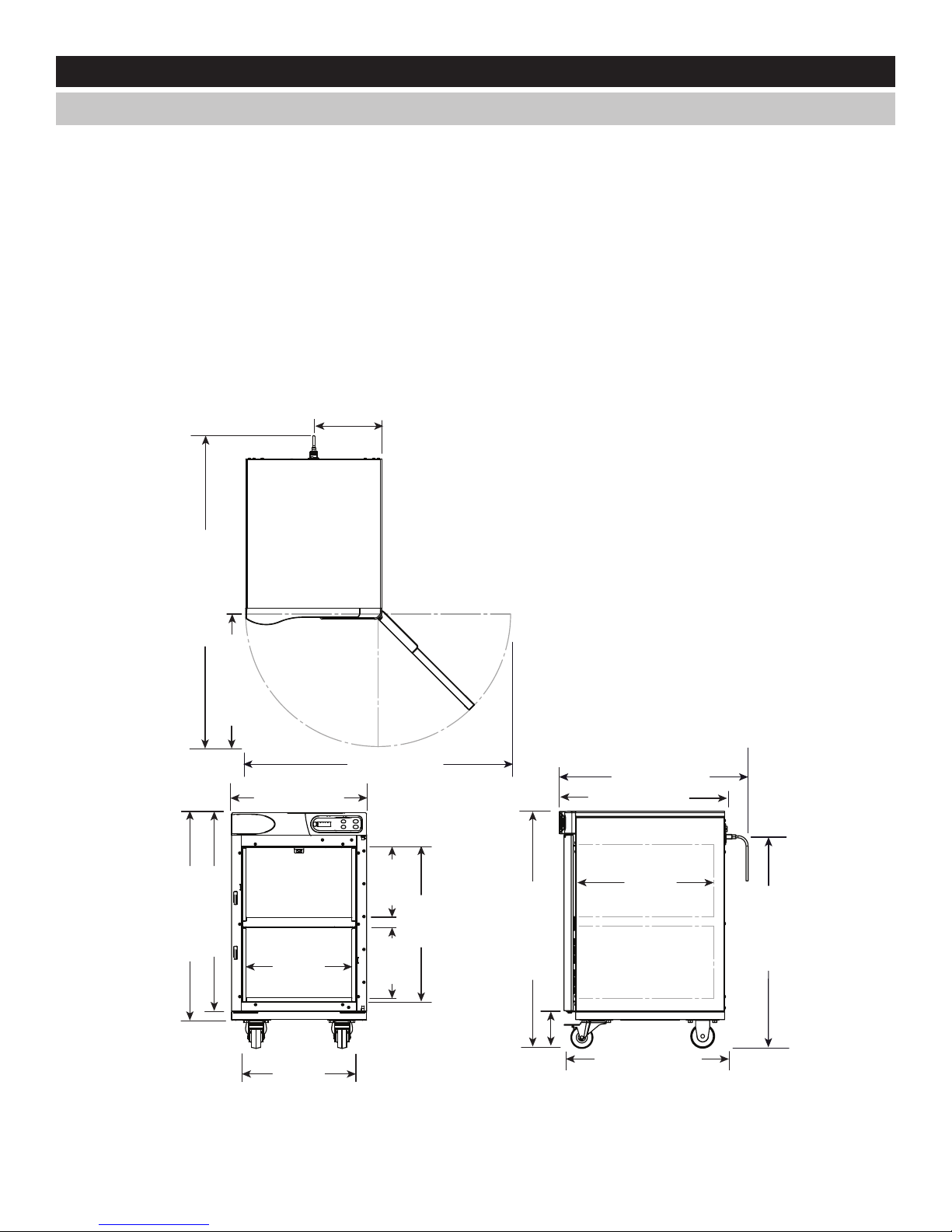

P-2220 ...............................................12-15

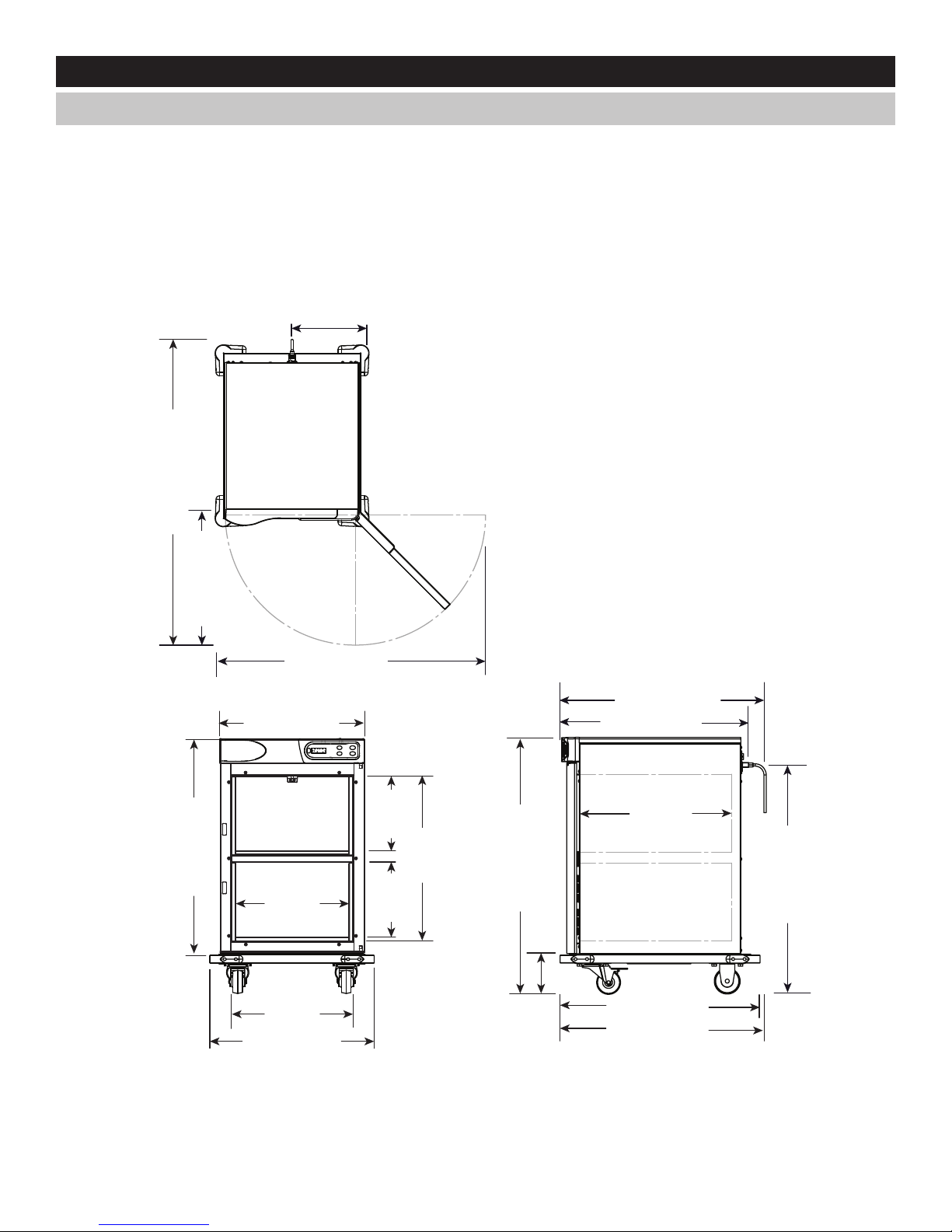

P-2230 ...............................................16-
P-2240 ...............................................-23
General Warnings........................................... 24
Guidance and Manufacturer’s Declaration .....................24-25
Operating Instructions
Blanket Control Features ..................................... 26
Optional Features ........................................... 27
Operation Procedures ....................................... 28
Care and Cleaning
Cleaning and Preventative Maintenance
Protecting Stainless Steel Surfaces ........................... 29
Cleaning Agents .......................................... 29
Cleaning Materials ........................................ 29
Annual Preventative Maintenance ............................ 29
Clean the Unit Regularly...................................... 30
Service
Troubleshooting Guide .....................................31-32
Fuse Replacement .......................................... 32
Zone Heating Pad Locations .................................. 32
Options & Accessories ....................................... 33
Full Assembly Service View .................................34-36
ElectricalChassisServiceView................................ 37
Door Latch & Sensor Service View ............................. 38
Control Interface Service View ................................. 39
Shelf (P-2220/P-2240) Service View ............................ 40
Wire Diagrams ..............refertowirediagramincluded with the unit.

MN-37073 (MM1074) Rev 0 (07/15) • Pedigo Elite Series Blanket Warming Cabinets • 1
DELIVERY
The warming cabinet has been thoroughly tested and
inspected to insure only the highest quality unit is provided.
Upon receipt, check for any possible shipping damage and
report it at once to the delivering carrier. See Transportation
Damage and Claims section located below.
This appliance, complete with unattached items and
accessories, may be delivered in one or more packages.
Check to ensure that all standard items and options have
been received with each model as ordered.
Save all the information packed with the appliance. Complete
and return the warranty card to the factory as soon as
possible to assure prompt service in the event of a warranty
parts and labor claim.
This manual must be read and understood by all people
using or installing the equipment model. Contact the
service department if you have any questions concerning
installation, operation, or maintenance.
Always include both model and serial numbers in your correspondence
regarding the unit.
Model:
_____________________________________
Serial Number: _____________________________________
Purchased From: _____________________________________
Date Installed: ____________ Voltage: _______________
SERIAL NUMBER IS REQUIRED FOR ALL INQUIRIES
Transport and Storage Environmental Conditions (not to exceed 15 days)
•Ambient temperature range of -40° to +70°C (-40° to +159°F).
•Relative humidity range of 10% to 95%, non-condensation.
•Atmospheric pressure range of 50KPa to 106KPa.
Operational Environmental Conditions
•Unit must acclimate to room temperature in the environment it will be placed. 24 hours is recommended.
•Recommended environmental temperature range is 15°C to 32°C (60°F to 90°F).
•Recommended relative humidity is above 20%, non-condensation.
ENVIRONMENTAL CONDITIONS
All Pedigo Products, Inc. equipment is sold
F.O.B. shipping point, and when accepted
by the carrier, such shipments become the
property of the consignee.
Should damage occur in shipment, do not put the appliance
into service until the damage has been inspected by an
authorized service provider.
Should damage occur in shipment, it is a matter between
the carrier and the consignee. In such cases, the carrier
is assumed to be responsible for the safe delivery of the
merchandise, unless negligence can be established on the
part of the shipper.
1. Make an immediate inspection while the equipment is
still in the truck or immediately after it is moved to the
receiving area. Do not wait until after the material is
moved to a storage area.
2. Do not sign a delivery receipt or a freight bill until
you have made a proper count and inspection of all
merchandise received.
3. Note all damage to packages directly on the carrier’s
delivery receipt.
4. Ensure the driver signs this receipt. If he refuses
to sign, make a notation of this refusal on the receipt.
5. If the driver refuses to allow inspection, write the
following on the delivery receipt: Driver refuses to allow
inspection of containers for visible damage.
6. Telephone the carrier’s of¿ce immediately upon ¿nding
damage, and request an inspection. Mail a written
con¿rmation of the time, date, and the person called.
7. Save any packages and packing material for further
inspection by the carrier.
8. Promptly ¿le a written claim with the carrier and attach
copies of all supporting paperwork.
We will continue our policy of assisting our customers in
collecting claims which have been properly ¿led and actively
pursued. We cannot, however, ¿le any damage claims for
you, assume the responsibility of any claims, or accept
deductions in payment for such claims.
TRANSPORTATION DAMAGE & CLAIMS

MN-37073 (MM1074) Rev 0 (07/15) • Pedigo Elite Series Blanket Warming Cabinets • 2
•Carefully remove the appliance from the carton (A) or crate (B)
NOTICE: Do not discard the carton and other packaging material
until you have inspected the unit for hidden damage and
tested it for proper operation.
•Read all instructions in this manual carefully before initiating
the installation of this appliance, using the appliance or
performing routine maintenance. Following procedures
other than those indicated in this guide to use and clean
the appliance is considered inappropriate and may cause
damage, injury or fatal accidents, in addition to invalidating
the guarantee and relieving the manufacturer of all liability.
•DO NOT DISCARD THIS MANUAL. This manual is considered
to be part of the appliance and is to be provided to the owner
or manager of the business or to the person responsible for
training operators. Additional manuals are available from the
service department.
•Remove all protective plastic ¿lm, packaging materials,
and accessories from the appliance before connecting
electrical power. Store any accessories in a convenient
place for future use.
AB
UNPACKING AND SET-UP

MN-37073 (MM1074) Rev 0 (07/15) • Pedigo Elite Series Blanket Warming Cabinets • 3
SAFETY PROCEDURES AND PRECAUTIONS
NOTICE: Used to notify personnel of installation,
operation, or maintenance information that is
important but not hazard related.
Used to indicate that referral to operating
instructions is a mandatory action. If not
followed the operator or patient could suffer
personal injury.
Used to indicate that referral to operating
instructions is recommended to understand
operation of equipment.
Knowledge of proper procedures is essential to the safe
operation of electrically energized equipment. The following
hazard signal words and symbols may be used throughout
this manual.
CAUTION
Used to indicate the presence of a hazard that can or
will cause minor personal injury, property damage, or a
potential unsafe practice if the warning included with this
symbol is ignored.
DANGER
Used to indicate the presence of a hazard that
WILL cause severe personal injury, death, or
substantial property damage if the warning
included with this symbol is ignored.
WARNING
Used to indicate the presence of a hazard that
CAN cause personal injury, possible death, or
major property damage if the warning included
with this symbol is ignored.
CAUTION
Used to indicate the presence of a hazard that
can or will cause minor or moderate personal
injury or property damage if the warning included
with this symbol is ignored.
NOTICE: For equipment delivered for use in
any location regulated by the
following directive:
DO NOT dispose of electrical or
electronic equipment with other
municipal waste.
1. This blanket warmer is intended for warming DRY, cotton
blankets ONLY. No other use for this device is authorized
or recommended.
2. This warmer is intended for use in commercial
establishments where all operators are familiar with the
purpose, limitations, and associated hazards of this device.
The warmer can be used wherever there is appropriate
space and electrical source including patient support areas,
ER, ICU, PACU, surgical suites, patient rooms, and nursing
stations. Operating instructions and warnings must be read
and understood by all operators and users.
3. Any trouble shooting guides, component views, and parts
lists included in this manual are for general reference only
and are intended for use by qualified technical personnel.
4. This manual should be considered a permanent part of this
device. This manual and all supplied instructions, diagrams,
schematics, parts lists, notices, and labels must remain with
the device if the item is sold or moved to another location.
WARNING
Transport shall only be done with the doors closed.
WARNING
Appliance and accessories may be
heavy. To prevent serious injury,
ALWAYS use a sufficient number
of trained and experienced workers
when moving or leveling appliance
and handling accessories.
NOTICE: Due to the energy efficient design of the
warming cabinet and tight seal around the
door, the water vapor from moist or damp
blankets placed in the warming cabinet may
cause condensation to collect on interior
surfaces. To avoid this accumulation, use DRY
blankets or towels.
NOTICE: A temporary odor may be noticeable upon
initial start-up of unit. Contact manufacturer
if the odor persists after a day or longer of
continuous use.

MN-37073 (MM1074) Rev 0 (07/15) • Pedigo Elite Series Blanket Warming Cabinets • 4
ELECTRICAL INFORMATION
The power specifications are located on the unit identification rating tag. This tag is
permanently attached to the unit and must be located to verify power requirements.
PREPARATION
Before operating the unit, clean both the interior and exterior of the unit with a damp cloth and
mild soap solution. Wipe with an appropriate disinfectant.
Wipe dry with a clean cloth or air dry.
Hazardous
Voltage Present
Protective Earth
Ground Symbol
Medical Equipment classi¿ed by Underwriters
Laboratories with Respect to Electrical Shock,
Fire and Mechanical Hazards only, in Accordance
with UL 60601-1 and CAN/CSA C22.2 No. 601.1.
UL File No.
E201645
Grounding reliability can only be achieved when equipment is
connected to an equivalent receptacle marked “Hospital Grade.”
120 V.A.
C
. — 60 Hz, 1 ph
0.6 kW, 5.0 Amps
Safety Class I Equipment
No Applied Parts
Mode of Operation: Continuous
NEMA 5-15P
15A - 125V Plug
Hospital Grade
IPX-0
P-2210
120 V.A.C. — 60 Hz, 1 ph
0.8 kW, 6.7 Amps
Safety Class I Equipment
No Applied Parts
Mode of Operation: Continuous
NEMA 5-15P
15A - 125V Plug
Hospital Grade
IPX-0
P-2220
120 V.A.C. — 60 Hz, 1 ph
0.8 kW, 6.7 Amps
Safety Class I Equipment
No Applied Parts
Mode of Operation: Continuous
NEMA 5-15P
15A - 125V Plug
Hospital Grade
IPX-0
P-2240
120 V.A.
C
. — 60 Hz, 1 ph
0.6 kW, 5.0 Amps
Safety Class I Equipment
No Applied Parts
Mode of Operation: Continuous
NEMA 5-15P
15A - 125V Plug
Hospital Grade
IPX-0
P-2205
120 V.A.C. — 60 Hz, 1 ph
0.8 kW, 6.7 Amps
Safety Class I Equipment
No Applied Parts
Mode of Operation: Continuous
NEMA 5-15P
15A - 125V Plug
Hospital Grade
IPX-0
P-2230
Wire diagram is located under top lid of warmer.

MN-37073 (MM1074) Rev 0 (07/15) • Pedigo Elite Series Blanket Warming Cabinets • 5
Specifications:
•Single-chamber warming cabinet.
•White epoxy-coated steel exterior
casing and interior insert.
•Single pane, energy-efficient,
e-coated glass window in door
allows for inventory observation.
•Easy push-button door for
hands-free operation.
•Door is fully gasketed and hinged
on the right side of the unit.
•WarmSafe™ incorporates a multiple
zone warming technology (Patent No:
US 8,217,316; US 8,581,152) that heats
where and when it is needed. All
chamber surface temperatures are
monitored, providing an efficient balance
of heat, low-energy consumption and
minimal heat loss.
•P-2220 & P-2240 include a heated
center shelf to further optimize heat
distribution throughout the cavity.
•Four (4) non-skid rubber feet
are standard.
Control:
•Adjustable temperature range of
32° - 71°C (90° - 160°F)
•Operates in Celsius or Fahrenheit.
•Four digit L.E.D. display.
•On/off button.
•Up and down adjustment buttons.
•Actual temperature button.
•Interior light button.
•Built-in speaker for audible feedback.
•Integrated control lockout feature.
Additional features:
•L.E.D. interior lighting casts a comforting
blue glow with two (2) different intensity
settings and off mode.
•Safety: In the event of a power failure
the cabinet will retain its programming
and operates as previously set when
power is restored.
•Safety: A warming shut-off system,
separate from the electronic control,
prevents overheating.
•Convenience: Access point and
removable cover has been added to
the back panel that allows the addition
of data logging or temperature
management hardware.
•Convenience: Stackable configurations
are available for additional capacity or to
pair with fluid warmers.
GENERAL INFORMATION
DANGER
Ensure power source matches
voltage identified on appliance rating
tag. The rating tag provides essential
technical information required for any
appliance installation, maintenance
or repairs. Do not remove, damage or
modify the rating tag.
DANGER
TO PREVENT SERIOUS INJURY,
DEATH, OR PROPERTY DAMAGE:
DO NOT use this warming appliance
in the presence of flammable
anesthetic mixtures (with air or with
oxygen or nitrous oxide).
(Not category AP or APG equipment )
Clearance requirements:
3" (76mm) from rear
1" (25mm) from top and sides
3/4" (19mm) from bottom
ELECTRICAL INFORMATION

MN-37073 (MM1074) Rev 0 (07/15) • Pedigo Elite Series Blanket Warming Cabinets • 6
DIMENSIONS
9.2 " (235mm)
IEC Cord Inlet
18.0" (456mm)
39.1" (994mm)
18.5" (470mm)
17.0" (431mm)
16.2" (412mm)
14.4" (366mm)
INSERT
10.1" (258mm)
CAVITY
9.6" (245mm)
INSERT
14.5" (368mm)
CAVITY
17.7" (450mm)
18.8" (477mm)
19.8" (504mm)
13.5
" (344mm)
IEC Cord Inlet
15.5" (394mm)
CAVITY
36.0" (914mm)
Cord length: 6 ft (1.83m) (est.)
22.7" (577mm)
P-2205
Dimensions (HxWxD)
With feet Šd&&š:17.0" x 18.5" x 22.7" (431mm x 470mm x 577mm)
With casters Šl|GldYš:20.5" x 18.5" x 22.7" (521mm x 470mm x 577mm)
Capacity 1.5 ft3
W
eight** (est.) NET 56 lbs (25 kg) SHIP, CRATED 118 lbs (54 kg)
**Domestic ground shipping information. Contact factory for export weight and dimensions.
WITH STANDARD FEET

MN-37073 (MM1074) Rev 0 (07/15) • Pedigo Elite Series Blanket Warming Cabinets • 7
18.5" (470mm)
14.4" (366mm)
INSERT
14.5" (368mm)
CAVITY
18.2" (463mm)
20.0" (509mm)
19.8" (504mm)
15.5" (394mm)
CAVITY
4.3" (110mm)
20.5" (521mm)
9.2 " (235mm)
IEC Cord Inlet
18.0" (456mm)
39.1" (994mm)
36.0" (914mm)
Cord length: 6 ft (1.83m) (est.)
22.7" (577mm)
17.0
" (433mm)
IEC Cord Inlet
10.1" (258mm)
CAVITY
9.6" (245mm)
INSERT
P-2205 (ldGd*&)
WITH OPTIONAL CASTERS
DIMENSIONS

MN-37073 (MM1074) Rev 0 (07/15) • Pedigo Elite Series Blanket Warming Cabinets • 8
DIMENSIONS
18.5" (470mm)
21.9" (557mm)
21.2" (538mm) 18.0" (457mm)
9.3 " (235mm)
IEC Cord Inlet
CORD LENGTH: 6 ft (1.83m) (est.)
15.5" (394mm)
CAVITY
14.5" (369mm)
INSERT
15.1" (385mm)
CAVITY
14.6" (372mm)
INSERT
18.6" (472mm)
CAVITY
22.8" (580mm)
42.2" (1071mm)
36.0" (914mm)
18.5
" (470mm)
IEC Cord Inlet
25.7" (653mm)
22.1" (561mm)
P-2210
Dimensions (HxWxD)
With feet Šd&&š:21.9" x 18.5" x 25.7" (557mm x 470mm x 653mm)
With plate and
casters Šl|GldYš:26.2" x 18.5" x 25.7" (666mm x 470mm x 653mm)
With bumper and
casters Šl|GldYš:26.3" x 21.3" x 25.9" (667mm x 540mm x 657mm)
With casters Šl|GldYš:25.5" x 18.5" x 25.7" (647mm x 470mm x 653mm)
Capacity 2.5 ft3
W
eight** (est.) NET 67 lbs (30 kg) SHIP, CRATED 135 lbs (62 kg)
**Domestic ground shipping information. Contact factory for export weight and dimensions.
WITH STANDARD FEET

MN-37073 (MM1074) Rev 0 (07/15) • Pedigo Elite Series Blanket Warming Cabinets • 9
18.5" (470mm)
21.2" (539mm)
15.5" (394mm)
CAVITY
14.5" (369mm)
INSERT
15.1" (385mm)
CAVITY
14.6" (372mm)
INSERT
18.6" (472mm)
CAVITY
22.2" (563mm)
26.2" (666mm)
5.0" (128mm)
CASTER HEIGHT
18.0" (457mm)
9.3 " (235mm)
IEC Cord Inlet
CORD LENGTH: 6 ft (1.83m) (est.)
42.2" (1071mm)
36.0" (914mm)
22.8
" (579mm)
IEC Cord Inlet
22.8" (580mm)
25.7" (653mm)
P-2210 (ldGd*&)
WITH OPTIONAL PLATE AND CASTERS
DIMENSIONS

MN-37073 (MM1074) Rev 0 (07/15) • Pedigo Elite Series Blanket Warming Cabinets • 10
P-2210 (ldGd*&)
DIMENSIONS
18.5" (470mm)
21.2" (539mm)
15.5" (394mm)
CAVITY
14.5" (369mm)
INSERT
15.1" (385mm)
CAVITY
14.6" (372mm)
INSERT
18.6" (472mm)
CAVITY
22.8" (580mm)
26.3" (667mm)
5.0" (128mm)
CASTER HEIGHT
10.6" (270mm)
IEC Cord Inlet
18.0" (457mm)
42.2" (1071mm)
37.4" (949mm)
21.3" (540mm)
25.1" (631mm)
CORD LENGTH: 6 ft (1.83m) (est.)
22.8
" (579mm)
IEC Cord Inlet
25.7" (653mm)
25.9" (657mm)
WITH OPTIONAL BUMPERS AND CASTERS

MN-37073 (MM1074) Rev 0 (07/15) • Pedigo Elite Series Blanket Warming Cabinets • 11
P-2210 (ldGd*&)
DIMENSIONS
18.5" (470mm)
21.2" (539mm)
15.5" (394mm)
CAVITY
14.5" (369mm)
INSERT
15.1" (385mm)
CAVITY
14.6" (372mm)
INSERT
18.6" (472mm)
CAVITY
22.2" (563mm)
25.5" (647mm)
4.3" (109mm)
CASTER HEIGHT
18.0" (457mm)
9.3 " (235mm)
IEC Cord Inlet
CORD LENGTH: 6 ft (1.83m) (est.)
42.2" (1071mm)
36.0" (914mm)
22.0
" (560mm)
IEC Cord Inlet
22.8" (580mm)
25.7" (653mm)
WITH OPTIONAL CASTERS

MN-37073 (MM1074) Rev 0 (07/15) • Pedigo Elite Series Blanket Warming Cabinets • 12
9.3 " (235mm)
IEC Cord Inlet
18.0" (457mm)
18.5" (470mm)
CAVITY
22.2" (564mm)15.5" (394mm)
CAVITY
14.5" (369mm)
INSERT
18.5" (470mm)
21.1" (537mm)
CAVITY
9.6" (244mm)
INSERT
27.2" (691mm) 27.9" (709mm)
9.6" (244mm)
INSERT
22.8" (580mm)
42.3" (1073mm)
36.0" (914mm)
Cord length: 6 ft (1.83m) (est.)
24.5
" (621mm)
IEC Cord Inlet
25.7" (653mm)
DIMENSIONS
P-2220
WITH STANDARD FEET
Dimensions (HxWxD)
With feet Šd&&š:27.9" x 18.5" x 25.7" (709mm x 470mm x 653mm)
With plate and
casters Šl|GldYš:32.2" x 18.5" x 25.7" (819mm x 470mm x 653mm)
With bumper and
casters Šl|GldYš:32.2" x 21.3" x 25.9" (819mm x 540mm x 657mm)
With casters Šl|GldYš:31.5" x 18.5" x 25.7" (799mm x 470mm x 653mm)
Capacity 3.5 ft3
W
eight** (est.) NET 91 lbs (41 kg) SHIP, CRATED 143 lbs (65 kg)
**Domestic ground shipping information. Contact factory for export weight and dimensions.

MN-37073 (MM1074) Rev 0 (07/15) • Pedigo Elite Series Blanket Warming Cabinets • 13
22.8" (580mm)
18.5" (470mm)
CAVITY
22.2" (563mm)
15.5" (394mm)
CAVITY
14.5" (369mm)
INSERT
18.5" (470mm)
21.1" (537mm)
CAVITY
9.6" (244mm)
INSERT
27.2" (691mm) 28.4" (722mm)
9.6" (244mm)
INSERT
5.0" (128mm)
32.2" (819mm)
9.3 " (235mm)
IEC Cord Inlet
18.0" (457mm)
42.3" (1073mm)
36.0" (914mm)
Cord length: 6 ft (1.83m) (est.)
28.8
" (730mm)
IEC Cord Inlet
25.7" (653mm)
DIMENSIONS
P-2220 (ldGd*&)
WITH OPTIONAL PLATE AND CASTERS

MN-37073 (MM1074) Rev 0 (07/15) • Pedigo Elite Series Blanket Warming Cabinets • 14
DIMENSIONS
P-2220 (ldGd*&)
18.5" (470mm)
CAVITY
25.1" (638mm)
21.3" (540mm)
14.5" (369mm)
INSERT
18.5" (470mm)
21.1" (537mm)
CAVITY
9.6" (244mm)
INSERT
27.2" (691mm)
9.6" (244mm)
INSERT
22.8" (580mm)
5.0" (128mm)
32.3" (819mm)
15.5" (394mm)
CAVITY
10.6 " (270mm)
IEC Cord Inlet
18.0" (457mm)
42.2" (1072mm)
37.3 " (948mm)
Cord length: 6 ft (1.83m) (est.)
28.8
" (730mm)
IEC Cord Inlet
25.7" (653mm)
25.9" (657mm)
WITH OPTIONAL BUMPERS AND CASTERS

MN-37073 (MM1074) Rev 0 (07/15) • Pedigo Elite Series Blanket Warming Cabinets • 15
DIMENSIONS
P-2220 (ldGd*&)
WITH OPTIONAL CASTERS
22.8" (580mm)
18.5" (470mm)
CAVITY
22.2" (564mm)
15.5" (394mm)
CAVITY
14.5" (369mm)
INSERT
18.5" (470mm)
21.1" (537mm)
CAVITY
9.6" (244mm)
INSERT
27.2" (691mm)
9.6" (244mm)
INSERT
4.3" (109mm)
31.5" (799mm)
9.3 " (235mm)
IEC Cord Inlet
18.0" (457mm)
42.3" (1073mm)
36.0" (914mm)
Cord length: 6 ft (1.83m) (est.)
28.0
" (711mm)
IEC Cord Inlet
25.7" (653mm)

MN-37073 (MM1074) Rev 0 (07/15) • Pedigo Elite Series Blanket Warming Cabinets • 16
24.3" (618mm)
18.5
" (470mm)
IEC Cord Inlet
28.0" (712mm)
12 " (305mm)
IEC Cord Inlet
23.5" (597mm)
50.0" (1270mm)
47.0" (1194mm)
21.1" (537mm) 21.9" (557mm)
21.0" (533mm)
CAVITY
20" (507mm)
INSERT
24.0" (610mm)
21" (533mm)
CAVITY
25.1" (638mm)
14.6" (372mm)
INSERT
15.1" (384mm)
CAVITY
Cord length: 6 ft (1.83m) (est.)
DIMENSIONS
P-2230
WITH STANDARD FEET
Dimensions (HxWxD)
With feet Šd&&š:21.9" x 24" x 28" (557mm x 610mm x 712mm)
With plate and
casters Šl|GldYš:26.1" x 24" x 28" (664mm x 610mm x 712mm)
With bumper and
casters Šl|GldYš:26.2" x 26.8" x 28.9" (665mm x 679mm x 734mm)
With casters Šl|GldYš:25.5" x 24" x 28" (647mm x 610mm x 712mm)
Capacity 4.0 ft3
W
eight** (est.) NET 85-1/2 lbs (39 kg) SHIP, CRATED 165 lbs (75 kg)
**Domestic ground shipping information. Contact factory for export weight and dimensions.

MN-37073 (MM1074) Rev 0 (07/15) • Pedigo Elite Series Blanket Warming Cabinets • 17
21.2" (538mm)
21.0" (533mm)
CAVITY
20" (507mm)
INSERT
14.6" (372mm)
INSERT
15.1" (384mm)
CAVITY
25.1" (638mm)
5.0" (128mm)
26.1" (664mm)
24.4" (621mm)
21" (533mm)
CAVITY
12 " (305mm)
IEC Cord Inlet
23.5" (597mm)
50.0" (1270mm)
47.0" (1194mm)
Cord length: 6 ft (1.83m) (est.)
22.8
" (578mm)
IEC Cord Inlet
28.0" (712mm)
24.0" (610mm)
DIMENSIONS
P-2230 (ldGd*&)
WITH OPTIONAL PLATE AND CASTERS

MN-37073 (MM1074) Rev 0 (07/15) • Pedigo Elite Series Blanket Warming Cabinets • 18
DIMENSIONS
P-2230 (ldGd*&)
13.4 " (339mm)
IEC Cord Inlet
23.5" (597mm)
50.0" (1270mm)
48.4" (1229mm)
21.2" (539mm)
21.0" (533mm)
CAVITY
20" (507mm)
INSERT
24" (610mm)
21.0" (533mm)
CAVITY
25.1" (638mm)
14.6" (372mm)
INSERT
15.1" (384mm)
CAVITY
27.4" (695mm)
5.0" (127mm)
26.2" (665mm)
Cord length: 6 ft (1.83m) (est.)
26.8" (679mm)
22.8
" (578mm)
IEC Cord Inlet
28.9" (734mm)
28.0" (712mm)
WITH OPTIONAL BUMPERS AND CASTERS
