PEERLESS VL30 User manual
Commercial and Industrial Ovens
IF REPLACEMENTS PARTS ARE NEEDED,
Please retain this manual for future reference
Model #
NEW STANDARD LIMITED PARTS & LABOR WARRANTY
Peerless products are guaranteed against manufacturing defects for one
year from date of installation for parts and labor. All SC Series ovens qualify
for two years parts and labor. Proper start-up procedures must be followed
and warranty card submitted to activate either warranty. If warranty is not
activated, parts will be covered until the term of the warranty expires but labor
will not be covered. Excluded from this warranty are any claims related to
items that should have been performed at the time of installation such as:
improper utility connections, poor methods of venting, checking gas pressure
and calibration of controls, also excluded are normal maintenance items such
as adjustments to pilots, burners and cleaning related issues.
When making a claim for warranty service, during a claim inspection by
Peerless or its service representative, it is determined that the equipment
been properly maintained, or has been subject to misuse, abuse, has not
been properly installed / calibrated* or misapplication, neglect, accident,
be VOID.
* Warranty terms are VOID if instructions provided with equipment are not
followed.
ovens
CE41 CE51 CE61 CE121 CE131
P.O. Box 859 •Sandusky, Ohio 44870 •(419) 625-4514 •FAX 625-4597
www.Peerlessovens.com •ofce@peerlessovens.com
InstructIon Manual
table of contents
Congratulations ..................................... 1
Set Up Instructions (all models). . . . . . . . . . . . . . . . . . . . . . . . . 2
CE Series Operation Instructions . . . . . . . . . . . . . . . . . . . . . . . 3
CE Series Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
CE Series Suggested Maintenance. . . . . . . . . . . . . . . . . . . . . . 5
Parts Replacements Instructions........................ 6
PartsListCE131IE ................................. 7
Parts List CEIE Electric Series B, P Models . . . . . . . . . . . . . . . 8
Parts List B121IE.................................... 9
DTB Temperature Controller . . . . . . . . . . . . . . . . . . . . . . . . . . 10

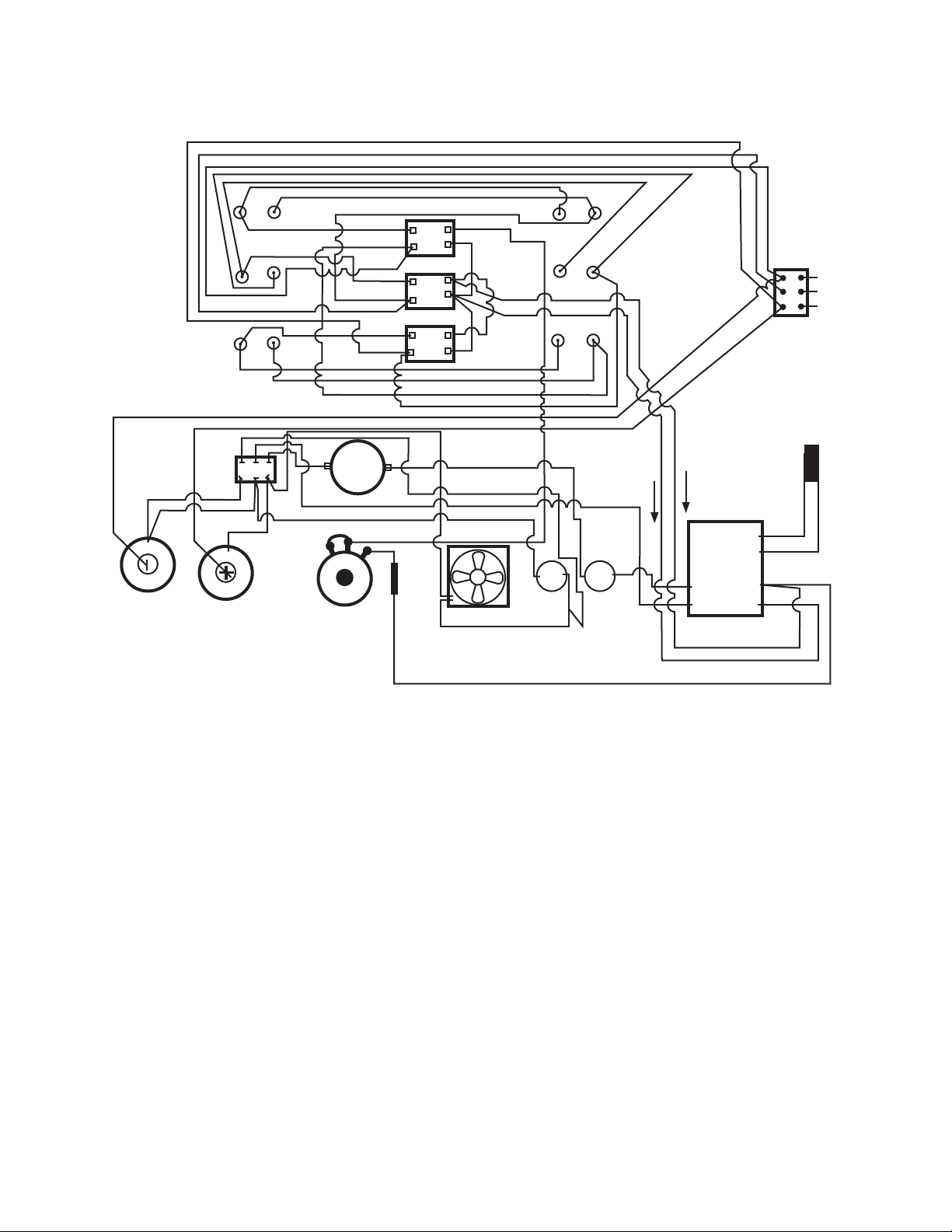

Wiring Diagram CE61 Single Phase . . . . . . . . . . . . . . . . . . . . 12
Wiring Diagram CE61 Three Phase . . . . . . . . . . . . . . . . . . . . 13
Wiring Diagram CE41/51 Single Phase. . . . . . . . . . . . . . . . . . . 14
Wiring Diagram CE41/51 Three Phase .................. 15
Wiring Diagram CE131 Single Phase . . . . . . . . . . . . . . . . . . . 16
Wiring Diagram CE131 Three Phase . . . . . . . . . . . . . . . . . . . 17
WiringDiagramB121 ............................... 18
Ventless Models Operating Instructions . . . . . . . . . . . . . . . . . 19
Ventless Models Safety Precautions .................... 20
Ventless Models Maintenance......................... 22
.......................... 23
Congratulations on your selection of this piece of cooking equipment.
on the market today.
Please read these instructions before attempting installation. Set up and
and someone considered a professional in the installation of such
equipment or all the terms and conditions in our Limited Warranty will be
rendered void. If in doubt, call Peerless for the nearest Service Agency.
Retain this manual for future use.
1
FOR YOUR SAFETY
liquids in the vicinity of this or any other appliance.
WARNING
Improper installation, adjustment, alteration, service or
maintenance can cause property damage, injury or death.
Read the installation, operating and maintenance instructions
thoroughly before installing or servicing this equipment.
2
SET UP INSTRUCTIONS
(All Floor Model Ovens)
1. Uncrate Oven
Check to be sure owners manual, handles and
legs and brackets (required for stacked units) are
packed inside. Check unit for possible damage
during transit. Notify Peerless immediately if any
damage is found.
2. Place oven in its permanent location.
Level unit using the adjustable legs provided.
3. Leg Installation
Mount legs on the side of the unit while blocked,
(refer to Figure 1) NOTE: Ovens can be lightened
leg has four mounting bolts, packed inside oven.
After completing Step 1, proceed to the other two
legs. (refer to Figure 2)
3. For double or triple stacks
Locate the stacking brackets and legs with each
unit.
4. Minimum Clearance
6” from sides and rear from combustible and non-
combustible construction.
ELECTRICAL HOOK-UP
1.
2. Each unit comes with calrod elements. Check rating plate for amperage
load to determine wire size for proper installation.
3. Counter models can be 120V or 220V. Floor models are 220V, single
(standard) or three phase (optional).
4. Access to hook-up is located on the back cover. Remove top portion to
reveal terminal block for hook-up.
5. Be sure to use a separate case ground.
Figure 1
Figure 2
CE SERIES OPERATING INSTRUCTIONS
BURN OFF
unit will smoke considerable during this period. Burn off is oil residue and
insulation break in. Allow for good ventilation during this time. There is no
danger if you follow these directions and proceed with care and caution.
1. Turn on toggle switch
2. Set controller for desired temperature
Industrial 0 to 500 degrees
Bake 0 to 550 degrees
Pizza 0 to 650 degrees
* Press ENTER when setting or changing temperature
3. Allow at least one (1) hour for preheat. A longer preheat is better for
complete stabilization of your unit.
4. CE61 B, I and P Models Only
Your oven is equipped with a variable power control for the top deck only.
Set controller for desired temperature and adjust the top to balance top
and bottom decks as needed.
5. To learn how to use this feature, start by setting the top heat control
at 10 and reduce to balance
6. Turn off toggle to shut down unit. Cooling fan may run until a safe
controller temperature is reached. It will then shut down automatically.
3
4
CE SERIES TROUBLESHOOTING GUIDE
PROBLEM CAUSE REMEDY
Unit on, but will not heat One or more elements not working Replace bad elements
Loss of one or more legs of Call electrician to
power source restore power
Bad solid state relay (SSR) Replace
Unit power is off Toggle switch off Turn on
Unit in high limit shut down Controller bad
SSR stuck
Replace
Fan not working Clean fan or replace
In Fan Limit shut down
Blown Fuses Call service tech or
electrician for
assistance
Fan is off Bad fan Replace
Bad fan switch Replace
Blown fuses Call for assistance
5
CE SERIES SUGGESTED MAINTENANCE
DAILY Wash all exposed cleanable areas
MONTHLY Clean around lower front and fan for accumulation
of lint, dirt, or grease.
OVEN INTERIOR The interior of your unit is aluminized steel and must
be treated with care. Clean by using mild detergents
and a brillo type pad. Best to remove spillage
immediately to avoid carbonizing of the spill.
DO NOT USE CHEMICAL CLEANERS, such as
aluminized coating.
OVEN EXTERIOR Wipe with dampened cloth and a mild detergent.
STAINLESS STEEL To remove normal dirt, grease, use mild detergent
applied with a sponge or cloth. Dry thoroughly.
PIZZA DECKS Pizza stones must be treated with care.
Clean with a deck brush that can be purchased from
any food service equipment dealer. Wipe with a well
wrung damp cloth to remove dust or residue. DO NOT
CLEAN WITH WATER! Decks will crack.
IMPORTANT
Clean your fan periodically. Dirty fans will cause
shut downs to protect the unit’s controller.
CE SERIES PARTS REPLACEMENT INSTRUCTIONS
CONTROLLER Disconnect from power
Remove screws on lower front to access control
Remove controller and mount replacement
Carefully replace wires to the proper terminals
SOLID STATE RELAY Disconnect from power
Remove back cover
Remove relay and mount replacement
Carefully replace wires to the proper terminals
CALROD ELEMENTS Disconnect from power
Remove back cover
Remove wires from desired element
Open door, remove fasteners and remove stone
and steel deck
Remove elements
Reverse procedure
COOLING FAN Disconnect from power
Remove screws on lower front to access fan
Remove fan and mount replacement fan
Unplug old fan and plug in new fan
Replace front
DOOR HINGE PINS Hinge place assembly is fastened to door frame
Remove door weights, both sides
Remove screws and move door forward enough
to slide hinge pin clear of frame
Insert new pin and mount to frame using new
screws provided
Old units may require drilling out of the screw
heads and drilling new holes
In this case, you may have to rotate hinges
6
7
CE131IE ELECTRONIC MODELS PARTS LIST
CE131IE ELECTRONIC MODELS (2013 - PRESENT)
CEI1311 Electronic controller 1 $320.00
CEI1312 Toggle switch 1$15.00
CEI1313 Fuse holders 2$18.00
CEI1314 Fuses 2 $21.00
CEI1315 Cooling Fan - 3" 220V 1 $60.00
CEI1316 1$10.00
CEI1317 Fan Control switch(PEPI C) 1 $36.00
CEI1318 Thermocouple 1$85.00
CEI1319 SSR 1$195.00
CEI1320 Terminal Block 1$40.00
CEI1321 Calrod elements 220V 4$95.00
CEI1322 2000W Heating elements 220V 4$95.00
CEI1323 Oven Door Complete with Handle (Stainless) 1 $195.00
CEI1324 Stainless Steel Lower Front Panel 1$105.00
CEI1325 Door Handle 1$45.00
CEI1326 Hinge Pin Assembly (Sold in Pairs!) 2$110.00
CEI1327 1/2" Pizza Decks (3 required) 4 $125.00
CEI1328 Lower Heater Holder and Baffle 4$105.00
CEI1329 Peerless Nameplate 1$22.00
CEI1330 Instruction Manual 1$15.00
CEI1331 Back Cover 1$55.00
CEI1332 4" Legs(set of 4) 4$125.00
CEI1333 Oven Door weights 1$65.00
CEI1334 High Limit (360º) Synsys 1$55.00
CEI1335 Fan limit switch(PEPI C) 1 $36.00
PEERLESS 1 1/25/2019
8
CEIE ELECTRONIC SERIES B, P MODELS PARTS LIST
CEIE "ELECTRONIC" SERIES B, P MODELS
PART # DESCRIPTION CE41 CE51 CE61 List Price
CEI01 Electronic controller 2 1 2 320.00
CEI02 Toggle switch 2 1 2 15.00
CEI03 Fuse Holders 2 2 2 18.00
CEI04 Fuses 2 2 2 21.00
CEI05 Terminal Block 1 1 1 40.00
CEI06 Calrod Heater 4 4 6 95.00
CEI07 Cooling Fan 1 1 1 60.00
CEI08 1 1 1 10.00
CEI09 SSR 1 1 1 195.00
CEI10 Thermocouple for Electronic Controller 1 1 1 85.00
CEI11 Upper SSR 1 195.00
CEI12 Potentiometer 150.00
CEI13 Potentiometer Knob 140.00
CEI14-A Fan Switch 1 1 1 36.00
CEI14-B Fan Limit Switch 1 1 1 36.00
CEI15 Inside Lower Front 1 1 1 85.00
CEI16 Lower Heater Holder and Baffles 1 1 1 150.00
CEI17 Oven Door Complete with Handle (Stainless) 1 1 2 395.00
CEI18 Hinge Pin Assembly (Sold in Pairs!) 2 2 4 110.00
CEI19 Oven Door Weights 2 2 4 65.00
CEI20 n/a n/a n/a n/a
CEI21 Oven Door Handle 1 1 2 45.00
CEI22 Stainless Steel Lower Front Panel 1 1 2 195.00
CEI23 7" Legs (Set of 4) Black 205.00
CEI24 18" Legs (Set of 4) Black 245.00
CEI25 28" Legs (Set of 4) Black 295.00
CEI26 1" Pizza Deck (1- 2Pcs. Deck) P models 1 2 675.00
CEI27 Steel Deck B Models 1 1 1 295.00
CEI28 Peerless Nameplate 1 1 22.00
CEI29 Stainless Steel Front Trim 1 1 85.00
CEI30 Instruction Manual 1 1 15.00
CEI31 High Limit 2 3 95.00
CEI32 Back Cover 1 1 85.00
PEERLESS 1 1/25/2019
9
B121IE 110V, 220V MODELS PARTS LIST
B121IE 100V, 200V MODELS
PART # DESCRIPTION Qty. List Price
BEI121-1 Electronic controller 1 320.00
BEI121-2 Toggle switch 115.00
BEI121-3 Fuse holders 218.00
BEI121-4 Fuses 2 21.00
BEI121-5A Cooling Fan - 220V 1 60.00
BEI121-5B Cooling Fan - 110V 1 60.00
BEI121-6 110.00
BEI121-7 Fan Control switch 1 36.00
BEI121-8 Thermocouple 185.00
BEI121-9 SSR 1195.00
BEI121-10 Terminal Block 140.00
BEI121-11 1000W Heating Elements 120V 495.00
BEI121-12 2000W Heating elements 220V 495.00
BEI121-13 Oven Door Complete with Handle (Stainless) 1 195.00
BEI121-14 Stainless Steel Lower Front Panel 1105.00
BEI121-15 Door Handle 145.00
BEI121-16 Hinge Pin Assembly (Sold in pairs!) 2110.00
BEI121-17 1/2" Pizza Decks (2 required) 2 125.00
BEI121-18 Lower Heater Holder and Baffle 4105.00
BEI121-19 Peerless Nameplate 122.00
BEI121-20 Instruction Manual 115.00
BEI121-21 Back Cover 155.00
BEI121-22 4" Legs(set of 4) 4125.00
BEI121-23 Cord 165.00
BEI121-24 High Limit (360º) 155.00
BEI121-25 1" PIZZA STONE 1 275
PEERLESS 1 1/25/2019
DTB TEMPERATURE CONTROLLER
10
11
12
CE61 B, I, & P 1 PHASE 220V WIRING DIAGRAM
F.H.
F.H.
FAN
H.L.
CONT.
3.90K
RESISTOR
RED
F.S. L.S.
YELLOW THC.
15 10 5
14 9 4
13 8 3
12 7 2
11 6 1
T.B. LINE
10
PC
SSR
21
10 PC RELAY
SSR RELAY
T.B. TERMINAL BLOCK
F.H. FUSE HOLDER
CLAROSTAT
CONT. CONTROLLER
THC THERMOCOUPLE
CLARoSTAT
2 KOLMS
13
CE61 B, I & P 3 PHASE WIRING DIAGRAM
CONTROLLER
15 10 5
14 9 4
13 3
12 2
11 1
RED T.C.
YELLOW
TO #2
TO #1
FAN
F. S . L.S.
H.L.
3.90K RESISTOR
F.H.
F.H. 2 KOLMS
SSR
SSR
10
PCV
RED
WHITE
BLACK
14
CE41 - 51 P, B & I 220V 1 PHASE WIRING DIAGRAM
15 10 5
14 9 4
13 8 3
12 7 2
11 6 1
F.H.
F.H.
SSR
T.S.
F.L. F.S.
H.L.
FAN CONTROLLER
THERMOCOUPLE
YELLOW
RED
T.B.
A2 A1
T1
15
CE 41 - 51 B, I & P 220V 3 PHASE WIRING DIAGRAM
15 10 5
14 9 4
13 8 3
12 7 2
11 6 1
F.H.
F.H.
SSR
3HP
2 1
T.S.
F.L. F.S.
H.L.
FAN CONTROLLER
THERMOCOUPLE
YELLOW
RED
T.B.
LINE V
16
CE131 1 PHASE 220V WIRING DIAGRAM
F.H. F.H.
F.S.
F.L.
15 10 5
14 9 4
13 8 3
12 7 2
11 6 1
SSR
A2 A1
FAN
CONTROLLER
THERMOCOUPLE
YELLOW
RED
T.S.
H.L.
T.B.
SSR RELAY
T.B. TERMINAL BLOCK
F.H. FUSE HOLDER
CONT. CONTROLLER
L.S. LIMIT SWITCH
F.S. FAN SWITCH
LINE V
17
CE131 220V 3 PHASE WIRING DIAGRAM
F.H. F.H.
F.S.
F.L.
15 10 5
14 9 4
13 8 3
12 7 2
11 6 1
SSR
2 1
FAN
CONTROLLER
THERMOCOUPLE
YELLOW
RED
T.S.
H.L.
T.B.
LINE
18
B121 220V WIRING DIAGRAM
FOR 4 HEATING ELEMENTS
F.H. F.H.
F.S.
F.L.
15 10 5
14 9 4
13 8 3
12 7 2
11 6 1
SSR
2 1
T.S.
H.L.
FAN CONTROLLER
THERMOCOUPLE
YELLOW
RED
This manual suits for next models
22
Table of contents
Other PEERLESS Oven manuals
Popular Oven manuals by other brands
The Stone Bake Oven
The Stone Bake Oven Primo Assembly and operation manual
NEFF
NEFF B46C74.3 instruction manual
Bosch
Bosch HBA533B 1 Series User manual and installation instructiions
NEFF
NEFF B6CCG7A 0B Series User manual and installation instructions
Lintel
Lintel PSB-10 operating manual
Zanussi
Zanussi ZDQ 695 Instruction booklet
