PEERLESS CW41 User manual
Commercial and Industrial Ovens
IF REPLACEMENTS PARTS ARE NEEDED,
be sure to give the model number when ordering, including prex and sufx letters.
Please retain this manual for future reference
Model # Serial #
NEW STANDARD LIMITED PARTS & LABOR WARRANTY
Peerless products are guaranteed against manufacturing defects for one
year from date of installation for parts and labor. All SC Series ovens qualify
for two years parts and labor. Proper start-up procedures must be followed
and warranty card submitted to activate either warranty. If warranty is not
activated, parts will be covered until the term of the warranty expires but labor
will not be covered. Excluded from this warranty are any claims related to
items that should have been performed at the time of installation such as:
improper utility connections, poor methods of venting, checking gas pressure
and calibration of controls, also excluded are normal maintenance items such
as adjustments to pilots, burners and cleaning related issues.
When making a claim for warranty service, during a claim inspection by
Peerless or its service representative, it is determined that the equipment
been properly maintained, or has been subject to misuse, abuse, has not
been properly installed / calibrated* or misapplication, neglect, accident,
be VOID.
* Warranty terms are VOID if instructions provided with equipment are not
followed.
ovens
CW41 CW61 CW100 C131
CW51 2324 2348
P.O. Box 859 •Sandusky, Ohio 44870 •(419) 625-4514 •FAX 625-4597
www.Peerlessovens.com •ofce@peerlessovens.com
InstructIon Manual
table of contents
Congratulations ......................................1
Requirements for Pressure Testing .......................3
Set Up Instructions (all models). . . . . . . . . . . . . . . . . . . . . . . . . . 5
Flue Box Connections .................................7
Do’ and Don’ts of Venting (all models) . . . . . . . . . . . . . . . . . . . . 8
Installation Instructions CW Series . . . . . . . . . . . . . . . . . . . . . . . 9
CW41, CW61, CW100, CW51
CW Series Operation Instructions .......................11
CW Series Troubleshooting............................13
CW Series Suggested Maintenance . . . . . . . . . . . . . . . . . . . . . 15
Parts Replacements Instructions........................16
..................17
2324, 2348 Installation Instructions......................21
2324, 2348 Operations Instructions. . . . . . . . . . . . . . . . . . . . . . 23
...............24
2324, 2348 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
2324, 2348 Suggested Maintenance.....................26
Parts List 2324 & 2348 B, M and P models................27
Cautions ..........................................29
FibraMent-D Baking Stone Information (all models) . . . . . . . . . 31
Robertshaw Flame Master Oven Control Information ........33
Robershaw Auto-Calibrator Oven Heat Control Information . . 35
Robertshaw TS Series Thermomagnetic Safety Valves . . . . . . 37
CW/PE Series Wiring Diagram . . . . . . . . . . . . . . . . . . . . . . . . . 39
11/ 2 017
1
Congratulations on your selection of this piece of cooking equipment.
on the market today.
Please read these instructions before attempting installation. Set up
person experienced concerning the installation of commercial gas cooking
equipment), or all the terms and conditions in our Limited Warranty will be
rendered void. If in doubt, call Peerless for the nearest Service Agency.
CAUTION CAUTION
POST IN PROMINENT LOCATION INSTRUCTIONS TO BE FOLLOWED
KEEP APPLIANCE AREA FREE AND CLEAR FROM COMBUSTIBLES.
Retain this manual for future use.
FOR YOUR SAFETY
liquids in the vicinity of this or any other appliance.
WARNING
Improper installation, adjustment, alteration, service or
maintenance can cause property damage, injury or death.
Read the installation, operating and maintenance instructions
thoroughly before installing or servicing this equipment.
2
3
REQUIREMENTS FOR PRESSURE TESTING
(ANSI Z223.1 - 1984)
1. The oven and its individual shut off valve must be disconnected from the
gas supply piping system during any pressure testing of that system at
test pressures in excess of 1/2” psig (3.45KPA).
2. The oven must be isolated from the gas supply piping system by closing
its individual manual shut off valve during any pressure testing at the gas
supply piping system at test pressures equal to or less than 1/2” psig
(3.45KPA).
WARNING
For an appliance equipped with casters, instructions that
(1) shall be made with a connector that complies with the
Standard for Connectors for Movable Gas Appliances,
ANSI Z21.69 - CSA 6.16, and a quick disconnect device
that complies with the Standard for Quick Disconnect
Devices for use with Gas Fuel, ANSI Z31.41 - CSA 6.9,
(2) adequate means must be provided to limit the movement
of the appliance without depending on the connector and
the quick disconnect device or its associated piping to
limit the appliance movement and
(3) the location(s) where the restraining means may be
4
5

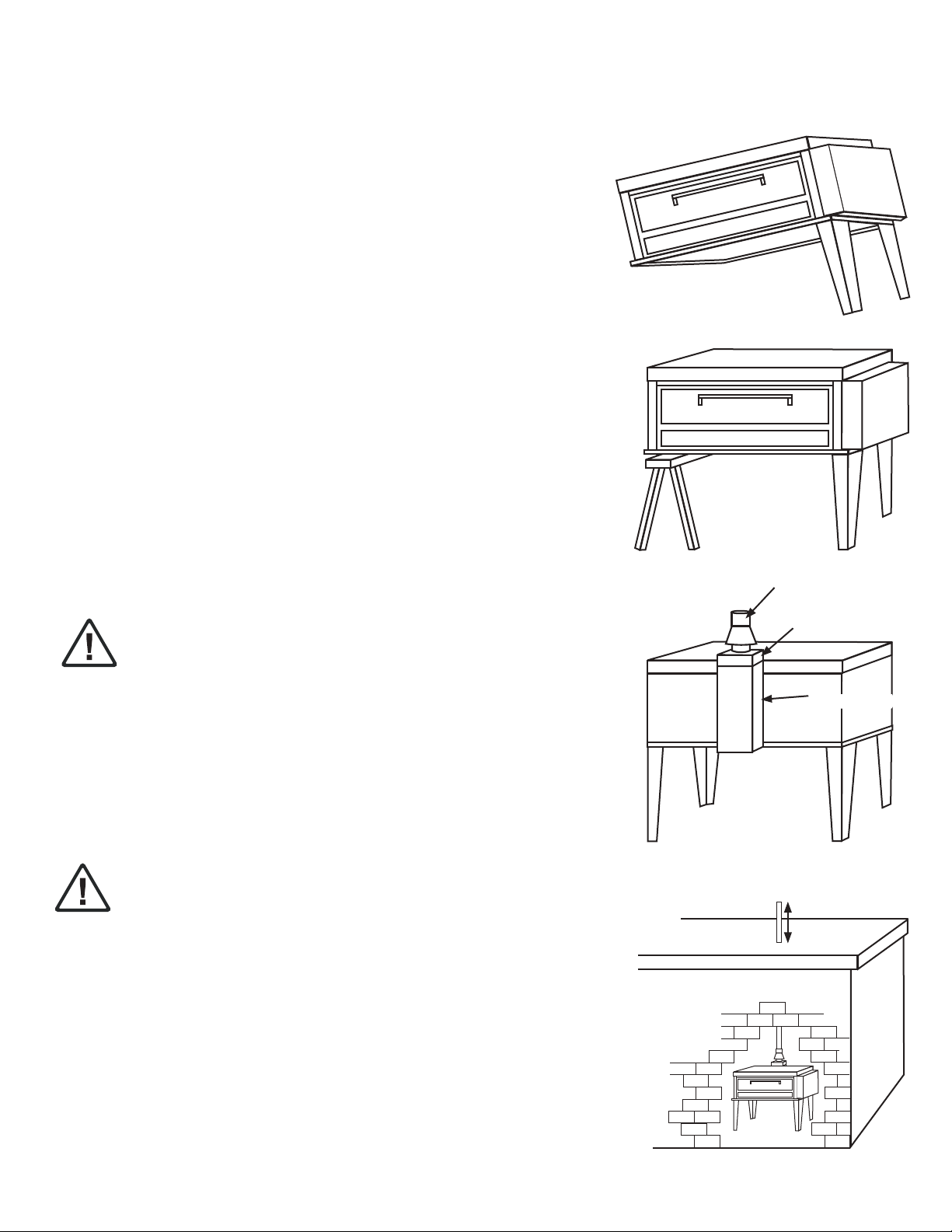

SET UP INSTRUCTIONS
(All Floor Model Ovens)
1. Uncrate Oven
Check to be sure owners manual, pressure
inside.
2. Leg Installation
Mount legs on the side of the unit while blocked,
(refer to Figure 1) NOTE: Ovens can be lightened
leg has four mounting bolts, packed inside oven.
After completing Step 1, proceed to the other two
legs. (refer to Figure 2)
3. Direct Vent
divertor which must vent outside.
WARNING: Flue pipe must be higher than nearest
roof peak (refer to Figure 4).
Canopy Vent
(refer to Figure 5 on following page).
4. Gas Connection
Install pressure regulator to lead in pipe, rear of
oven.
CAUTION: The oven is piped with 3/4” NPT
therefore supply line cannot be smaller. If using
5. Purge Air Out of Gas Lines
Depress red button on Safety Pilot and hold until
pilot lights. Once lit, hold for 30 to 60 seconds for it
to remain lit. If pilot goes out during this procedure,
repeat. Once pilot is set, turn valve “ON,” turn
thermostat dial to 350° and burner will ignite.
Figure 1
Figure 2
Figure 3
Figure 4
10 feet
Flue Divertor
Flue Adapter
Flue Box
SET UP INSTRUCTIONS, cont.
(All Floor Model Ovens)
type of gas shown on name plate. If this does not
checked. There is a 1/8” test plug in manifold pipe
inside front panel. Tell the service professional you
want 4” water column for natural gas and 10” for
propane. This should be done by an experienced
gas technician or licensed plumber.
The technician or plumber can raise or lower
pressure by adjusting the regulator.
LP or PROPANE GAS
It is recommended you operate the oven at 550°
at all times.
STACKING UNITS
VENTING
Flue boxes have been premounted at the factory for easy installation. Flue
caps mount the same as single units, mount on top of oven.
PIPING
Each oven has a 3/4” NPT outlet located at the lower right corner, in the
back, (refer to Figure 3). Each oven must be piped separately. Be sure to
have a supply line large enough to handle both ovens.
NOTE:
Screws holding burners down are for shipping purposes only.
from going into the top oven.

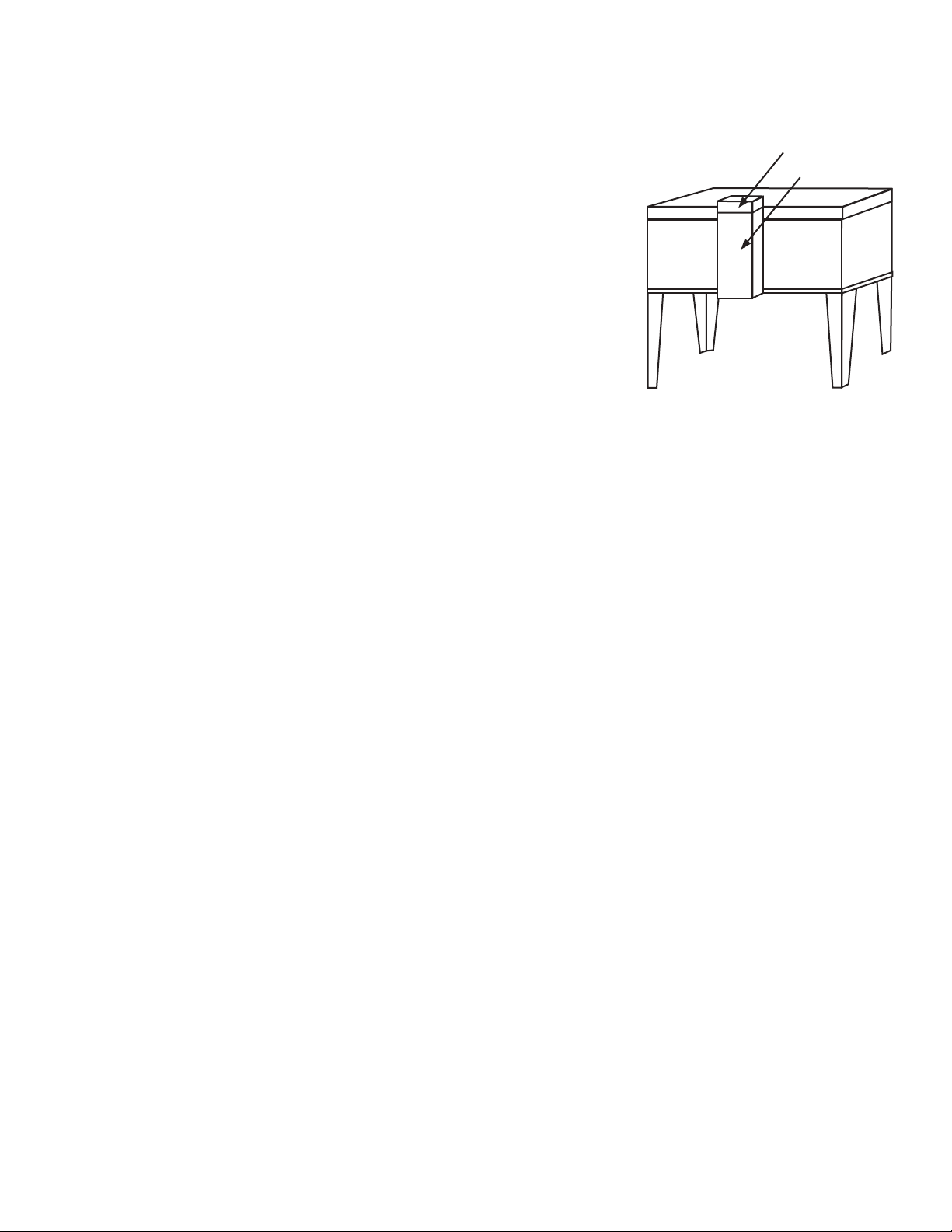

Figure 5
6
Canopy Shield
Flue Box
7

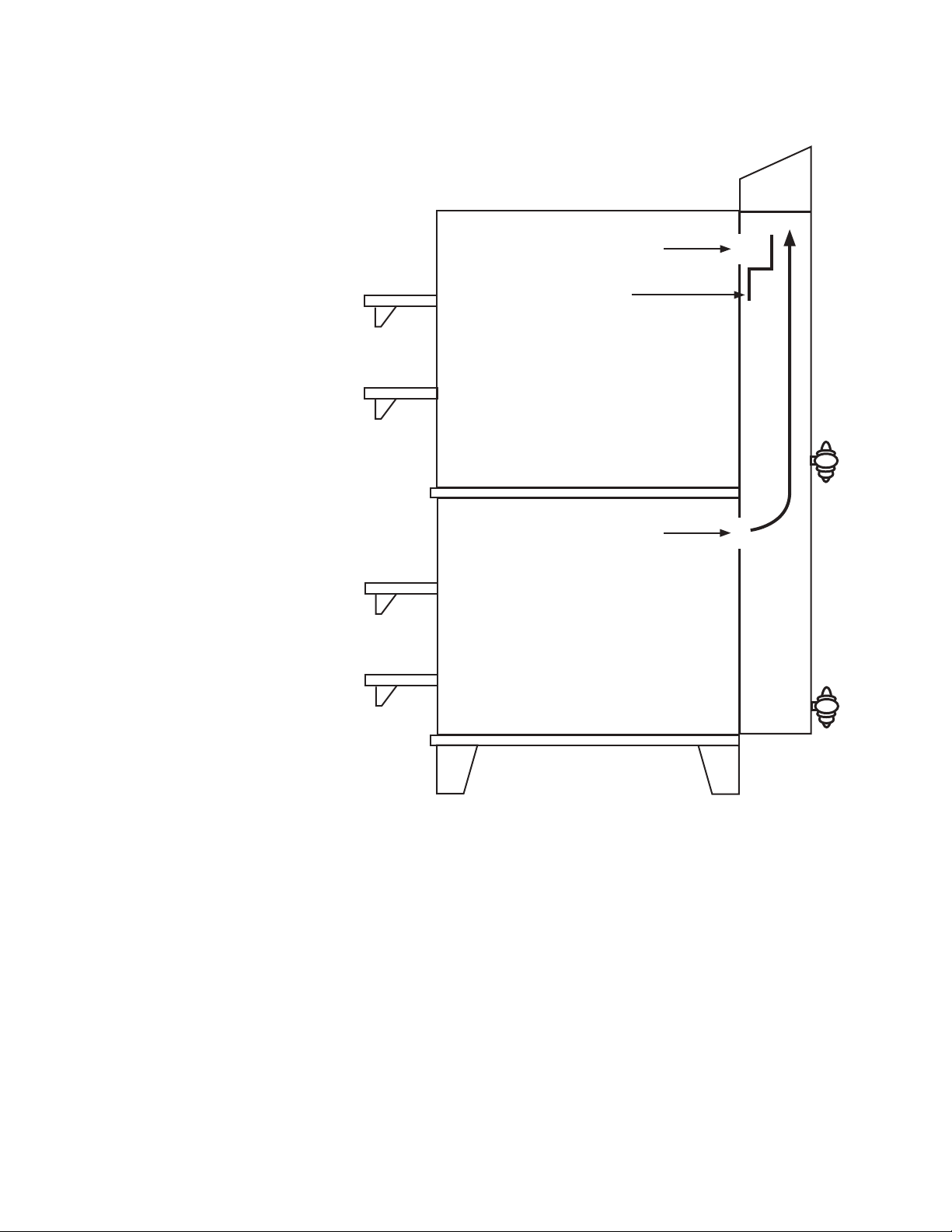

PROPER FLUE BOX CONNECTION
FOR STACKING UNITS
Step 1
opening of TOP oven.
Step 2
Mount both Flue Boxes
and interconnect.
Step 3
Mount proper Flue Hat
and Utility connections.
Flue Opening
Heat Flow
Flue Opening
DO’S AND DON’TS OF VENTING
DON’T: Do not install direct vent without direct vent divertor or Peerless
factory vent parts CW678 and CW679
Do not install vent pipe with 90 degree elbows
(two 45’s in place of one 90)
Do not install direct vent in a kitchen with a hood! Provided you
install a 5” commercially available power vent in the vent pipe
hooked to a variable power control to increase or decrease the
Do not
DO: Do install under a hood
Do install direct vent
Do
elbow. NOTE: This installation is not acceptable in all locations.
Check your local codes.
8
With Divertor Without Divertor
Hood Hood
9
INSTALLATION INSTRUCTIONS
Models CW41, CW61, CW100, C131, CW51
The installation must conform with local codes, or in the absence of local
codes, with the National Fuel Code, ANSI Z223.1/NPA 54, Or the National
Gas and Propane Installation Code, CSA B149.1 - Latest Edition.
(All Models)
The appliance should be connected ONLY to the type of gas for which it is
equipped. All equipment is adjusted at the factory. Check type of gas on the
serial plated in the compartment below the oven door.
1. Place oven in desired location and level, using adjustable legs.
Then properly tighten lock nuts. Refer to “Set up” Instructions on page 4.
NOTE: On all threaded connections the pipe joint compound must be
approved for using on Natural and Propane gases.
3. Canopies are set over ovens for ventilation purposes. A strong exhaust
fan may create a vacuum in the room and may interfere with the burner
performance, check with the fan “OFF”.
and ventilation air are not obstructed. Provisions for an adequate air
supply must also be provided. Do not obstruct the front of the unit just
below the oven door, as air for combustion enters here.
Minimum clearance for combustible and noncombustible construction.
6” from sides
6” from rear
No additional clearance from the side and back is required for service, as
the units are serviceable from the front.
4. Legs have been packed inside the oven. Legs screw into the pads under
the unit base with bolts provided.
INSTALLATION INSTRUCTIONS, cont.
5. Install pressure regulator supplied with ovens. An adequate gas supply
is imperative, so that a manifold pressure of 4” WC for natural gas and 10”
WC for Propane units can be manifold pressure of 4” WC for Natural gas
and 10” WC for Propane units can be maintained with all units operating.
any kind.
7. To light pilot; open front access door, depress red button on the pilot
safety valve and light pilot burner. Maintain pressure on red button for 30
to 45 seconds, then release. If pilot goes out, repeat above procedure.
for the unit to operate.
9. Necessary adjustments have been made at the factory; however, units
should be checked at the place of installation to allow for local conditions.
10. Turn burner valve “ON” set thermostat to desired temperature, make
sure burner ignites before leaving the room.
12. During normal operation; if the pilot goes out, wait 5 minutes before
attempting to relight the oven. This allows any accumulated gas to
dissipate.
13. To shut oven down, turn thermostat and oven burner valve to the “OFF”
position. Disconnect gas supply after pilot has gone out. Repeat steps 6
and 10 to relight.
10
11
CW SERIES LIGHTING AND SHUT DOWN INSTRUCTIONS
Before turning gas supply on, make sure all control valves are in the “OFF”
position.
WARNING
All adjusting and service should be performed by a person
knowledgeable in making such adjustments. If in doubt, call
Peerless, a Peerless representative, or the local service company to
perform maintenance and repairs.
LIGHTING AND SHUT DOWN PROCEDURES
1. Open access door, depress red button on safety valve and light pilot.
2. Hold button in for 30 to 45 seconds, then release. If pilot goes out wait
5 minutes and repeat procedure.
NOTE: The lighting procedure is also inside lower access panel.
4. For daily shut down turn burner valve to the “OFF” position. For complete
shut down turn burner valve “OFF” and extinguish pilots.
NOTE: Keep area surrounding oven free and clear of combustibles. All
ventilation air are not obstructed. Provisions for an adequate air supply must
also be provided. Do not obstruct the front of the unit just below the oven
door, as air for combustion enters here.
NOTE:
oven will smoke considerably. It is nothing but the oil coating on the steel
parts. Allow good ventilation during this period.
For other important information concerning the operation of your oven, refer
to the Robertshaw bulletins in this booklet. (By-Pass, Calibration, etc.)
NOTE: Calibration is not covered by warranty.
12
13
CW SERIES TROUBLESHOOTING GUIDE
PROBLEM CAUSE REMEDY
burns food on bottom, and manifold pressure Install regulator and have gas
side and back not checked technician check pressure at
front of oven at manifold
Improper venting Check nameplate to see if
oven is equipped for type of
gas being used
Burner and pilot light goes out Too much gas pressure Check to make sure regulator
blows pilot light out has been installed and
manifold pressure checked
pilot
Clogged supply line to pilot Remove and clean line
Loose mini-pilot connection Tighten
Inoperative mini-pilot Replace
off burner
scale and rust to enter technician clean and
thermostat lubricate with high
temperature grease
High heat exposure Regrease - check venting
system and gas pressure
Main burner will not Pilot out Relight
come on Improper adjustment Reset air adjustment
Safety pilot defective Replace
Slow baking Recalibrate thermostat See Instructions
Oven not pre-heated
down when desired temperature thermostat capillary
reached
14
CW SERIES TROUBLESHOOTING GUIDE, Cont.
PROBLEM CAUSE REMEDY
burner
Pizza in burnt Incorrect temperature Lower thermostat setting
setting
Left in oven too long Adjust timer setting
Thermostat out of Re-calibrate thermostat
calibration For instructions see
Robertshaw Field Service
Bulletin, Section III
setting
Faulty pans Use even surface pans only
(warped or buckled)
Door has been opened Maintain proper operation
too often of oven
Uneven thickness of Improve stretching of dough
dough to an even thickness
Overproofed dough Check instructions for
making dough
15
CW SERIES SUGGESTED MAINTENANCE
DAILY Wash all exposed cleanable areas
MONTHLY Clean around burner air mixer and pilot checking for
accumulation of lint, dirt, or grease.
VENT SYSTEM At least twice a year the unit venting system should
be examined and cleaned.
OVEN INTERIOR Clean by using a mild detergent and a brillo type pad.
Clean spill over as soon as possible to avoid
carbonizing.
OVEN EXTERIOR Wipe with dampened cloth and a mild detergent.
STAINLESS STEEL To remove normal dirt, grease, detergent applied
with a sponge or cloth. Dry thoroughly.
BAFFLES
NOTE: Depending on the amount of use, the pilot and burner adjustments
and the thermostat calibration should be checked periodically by a service
technician.
CW SERIES PARTS REPLACEMENT INSTRUCTIONS
THERMOSTAT
steel lower door, which is fastened by two small
caution in removing capillary tube and wire. To
replace, reverse procedure.
SAFETY PILOT
out.
BURNER Remove transite shelves and oven bottom. Unbolt
pilot from cross arm. Lift burners up at rear of
front.
REPLACE DOOR Plates are fastened to door frame. Remove
HINGE PINS screws and move door forward enough to slide
hinge pin clear of frame. Insert new pin and put
back into position. Drill new holes for screws to
refasten.
COUNTER-BALANCED With door in closed position, open S/S lower
WEIGHTS door. Weights are visible, including cap screws
that hold them in place. Remove screws releasing
weights from door arms. Remove hinge pins as
described above and door can be removed from
oven.
TO CHANGE Contact Factory
GAS TYPES
16
Other manuals for CW41
1
This manual suits for next models
6
Table of contents
Other PEERLESS Oven manuals
