Pegasus 67589-0004 User manual

THANK YOU
USE AND CARE GUIDE
WALL-MOUNTED POT FILLER
Questions, problems, missing parts? Before returning to the store,
call Pegasus Customer Service
8 a.m. - 6 p.m., EST, Monday - Friday
1-877-580-5682
WWW.HOMEDEPOT.COM/PEGASUS
Model #67589-0004
67589-0027H2
We appreciate the trust and condence you have placed in Pegasus through the purchase of this pot ller
faucet. We strive to continually create quality products designed to enhance your home. Visit us online to see
our full line of products available for your home improvement needs. Thank you for choosing Pegasus!

2
Table of Contents
Safety Information....................................2
Warranty ...................................................2
Pre-Installation.........................................3
Planning Installation ..............................3
Tools Required .......................................3
Hardware Included.................................3
Package Contents ..................................4
Installation................................................5
Operation...................................................8
Care and Cleaning ....................................8
Service Parts ........................................... 9
Safety Information
Please read and understand this entire manual before
attempting to assemble, operate, or install the product.
CAUTION: Always turn off the water supply before
removing an existing faucet or replacing any part of a
faucet. Open the faucet handle to relieve water pressure
and ensure that the water is completely shut off.
Warranty
LIMITED LIFETIME WARRANTY
Pegasus products are manufactured with superior quality standards and workmanship and are backed by our
limited lifetime warranty. Pegasus products are warranted to the original consumer purchaser to be free of
defects in materials or workmanship. We will replace FREE OF CHARGE any product or parts that proves defective.
Simply, return the product / part to any of The Home Depot retail locations or call 1-877-580-5682 to receive the
replacement item. Proof of purchase (original sales receipt) from the original consumer purchaser must be made
available for all Pegasus warranty claims.
This warranty excludes incidental/inconsequential damages and failures due to misuse, abuse or normal wear and
tear. This warranty excludes all industrial, commercial & business usage, whose purchasers are hereby, extended
duration of warranty.
Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages, so the
above limitations may not apply to you. This warranty gives you specic legal rights and you may also have other
rights that vary from state to state and province to province. Please see a store or contact 1-877-580-5682 for
more details.

3 WWW.HOMEDEPOT.COM/PEGASUS
Please contact 1-877-580-5682 for further assistance.
Pre-Installation
PLANNING INSTALLATION
Before beginning the installation of this product, ensure all parts are present. Compare parts with the Package
Contents and Hardware Included list. If any part is missing or damaged, do not attempt to install the product.
TOOLS REQUIRED
Adjustable
wrench
Safety
goggles
Phillips
screwdriver
HARDWARE INCLUDED
NOTE: Hardware not shown to actual size.
AA
Part Description Quantity
AA 1Hex wrench
Flashlight
SILICONE
Silicone
Pencil Electric drill
Thread
sealant tape

4

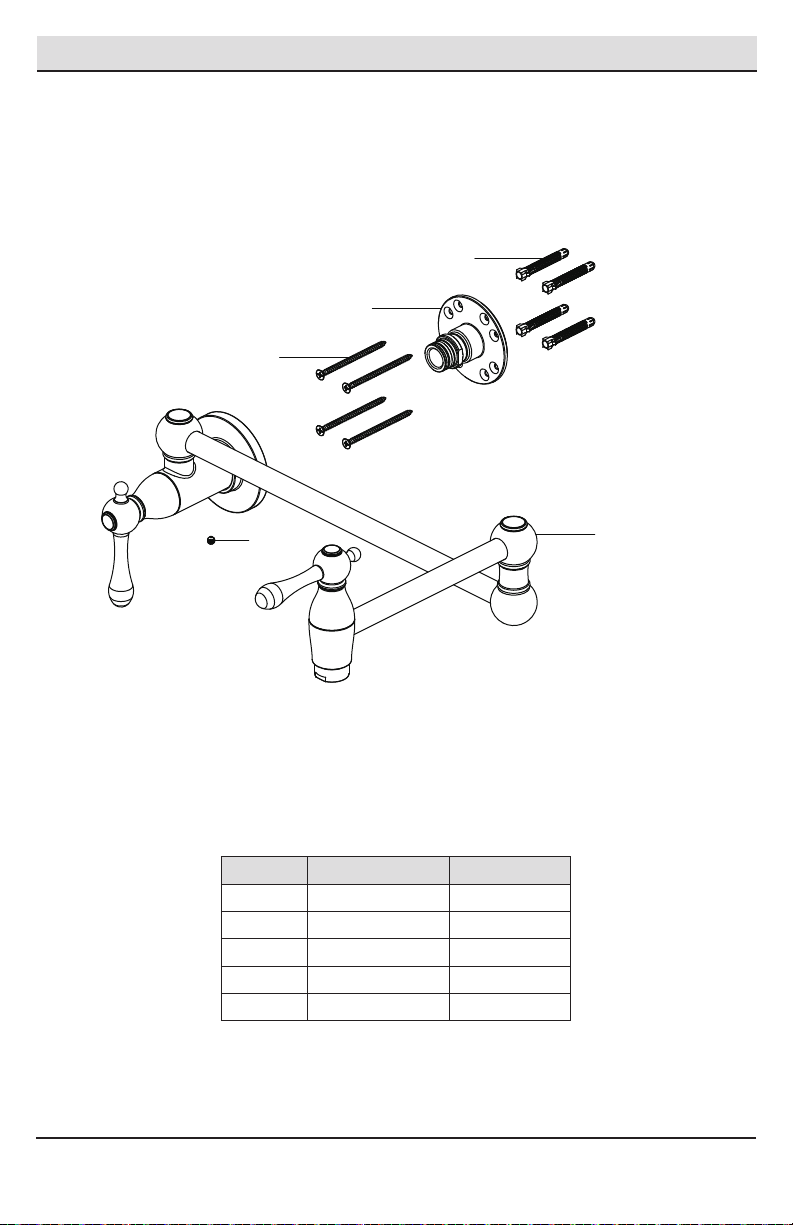

Pre-Installation (continued)
PACKAGE CONTENTS
C
A
B
D
Part Description Quantity
A 1
B Anchor 4
C Mounting bracket 1
Spout assembly
D 4
E Set screw 1
Screw
E

5 WWW.HOMEDEPOT.COM/PEGASUS
Please contact 1-877-580-5682 for further assistance.

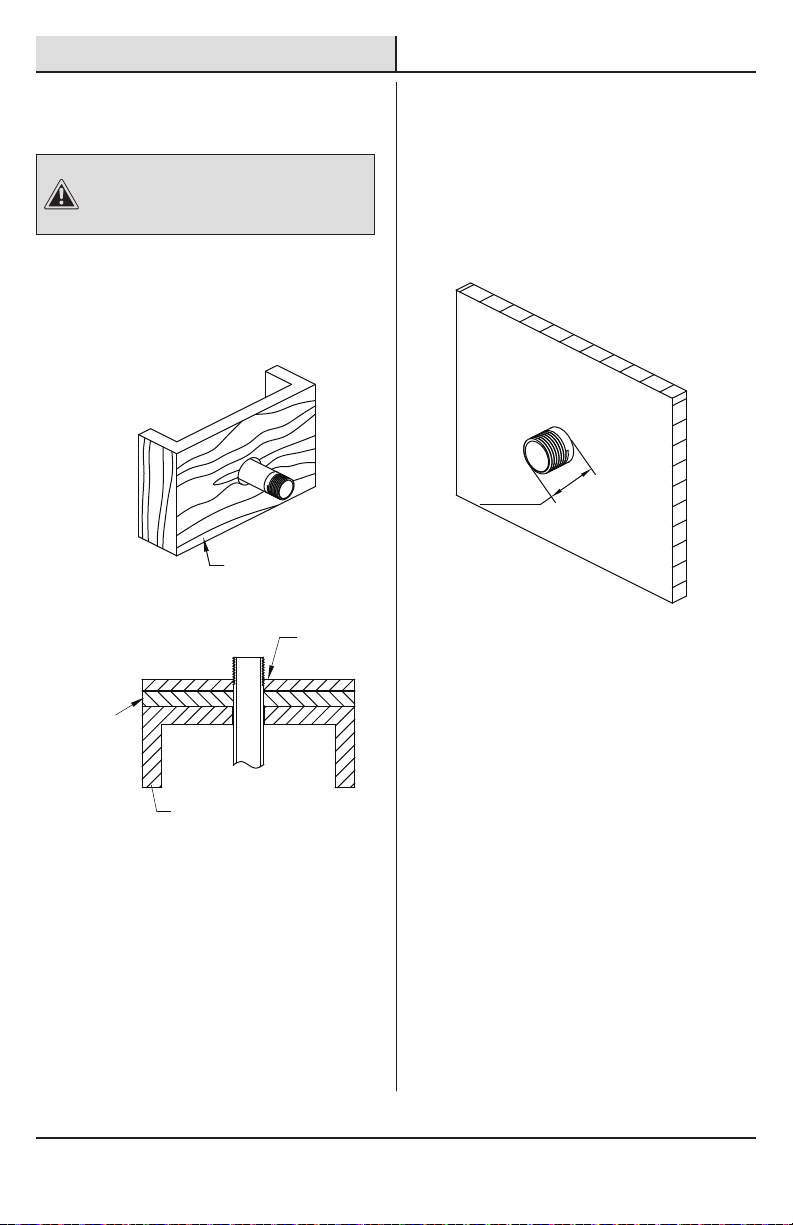

Installation

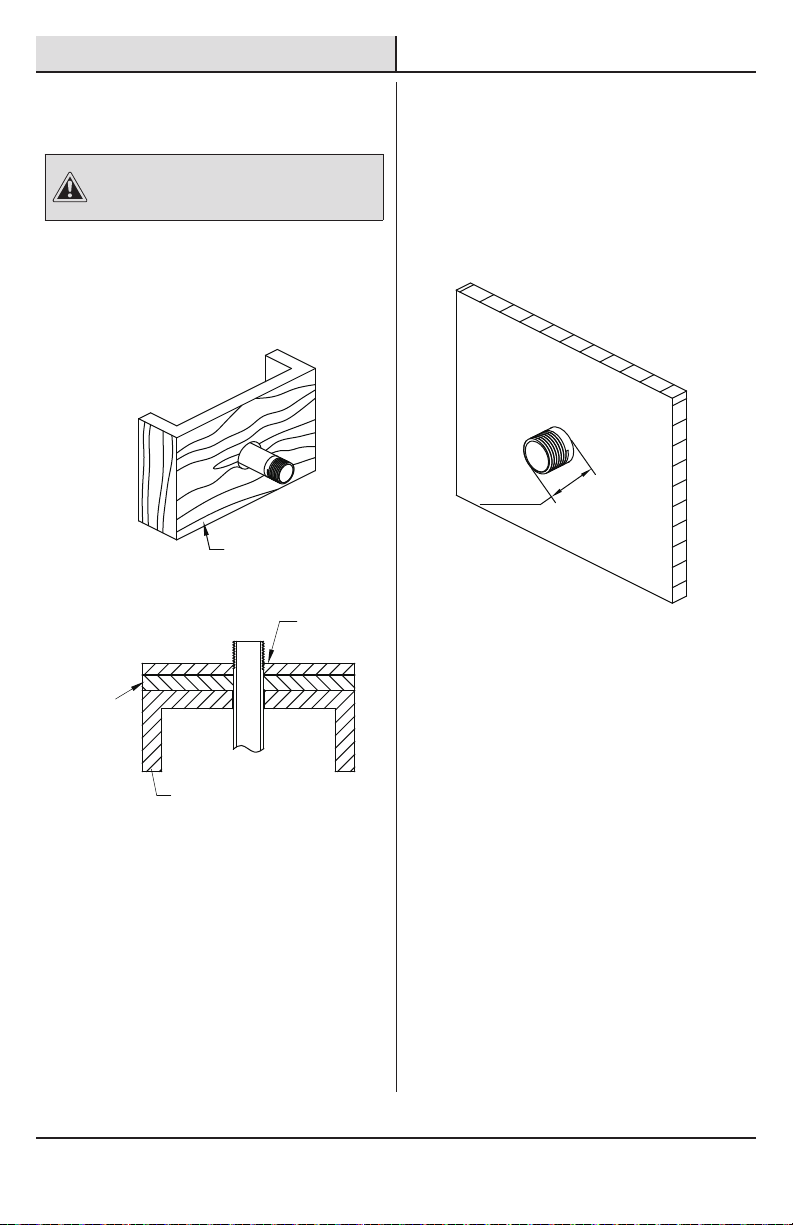

1 Preparing for installation
□It is recommended to install a wood backing
behind the wall as shown in the above diagram.
This backing offers support to the mounting
bracket as installed in steps 5 and 6.
2Installing the supply piping
□Install the supply piping so that the 1/2"
threaded connection protrudes approximately
1/2" beyond the nished wall.
CAUTION: Always turn off the water supply before
removing an existing faucet or replacing any part of a
faucet. Open the faucet handle to relieve water pressure
and ensure that the water is completely shut off.
wall nished
surface
wallboard
1x4 blocking
1x4 blocking
3/8"-1/2"

6

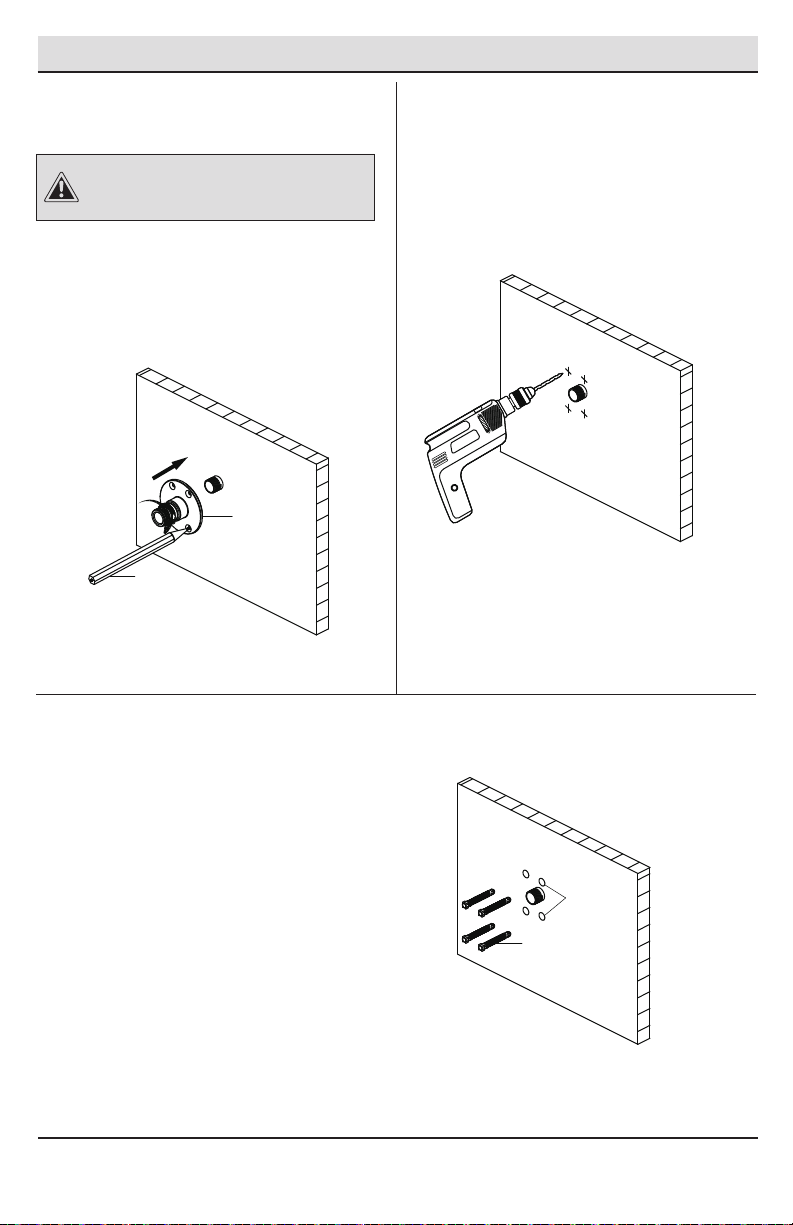

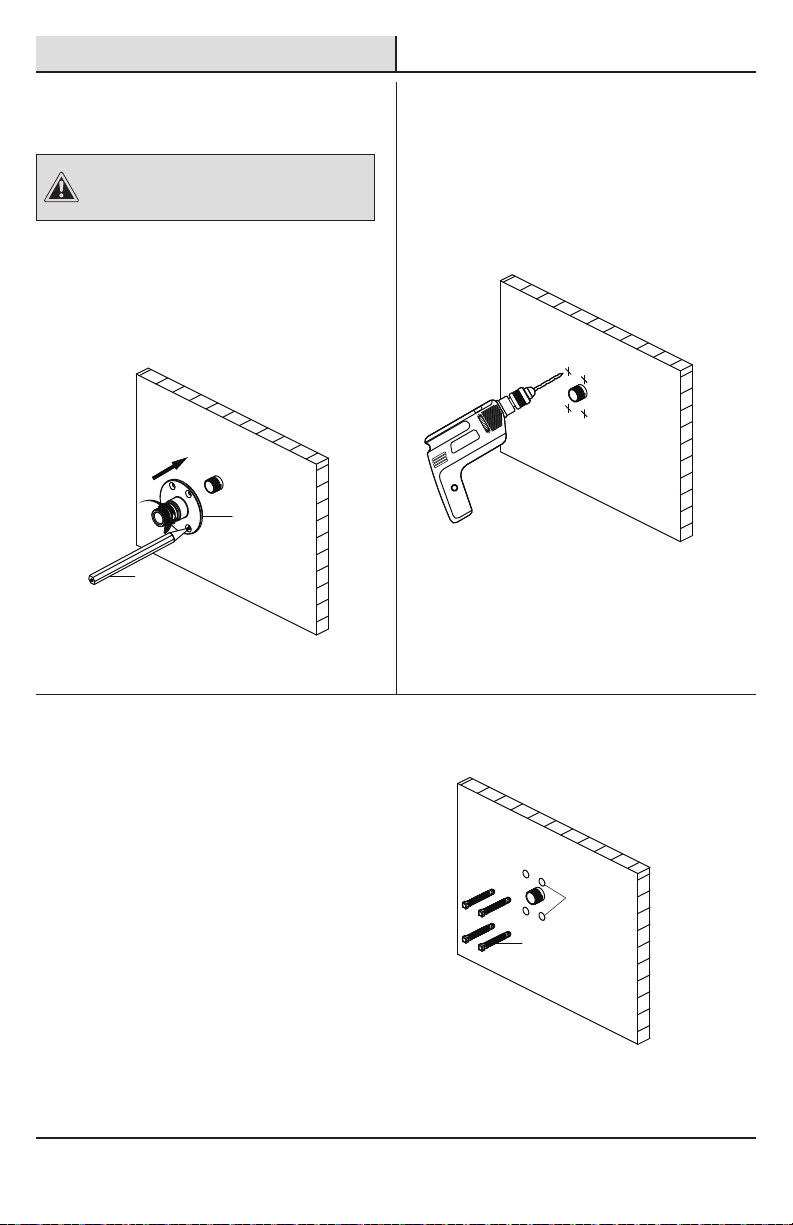

Installation (continued)
3 Marking the location for the
mounting bracket
□Install the mounting bracket (C) onto the
nished wall. Screw the mounting bracket
onto the supply tubing and mark the
locations for the support screws with a
pencil (1).
4 Drilling the hole
□Remove the mounting bracket and drill four
holes on the positions marked in step 3.
C
1
CAUTION: When marking the location for the mounting
bracket screws, be sure that the screws will not interfere
with or come in contact with water supply piping that is
concealed behind the wall.
5 Installing the anchor
□Insert the anchors (B) into the holes (1) and tap
ush with wall.
1
B

7 WWW.HOMEDEPOT.COM/PEGASUS
Please contact 1-877-580-5682 for further assistance.

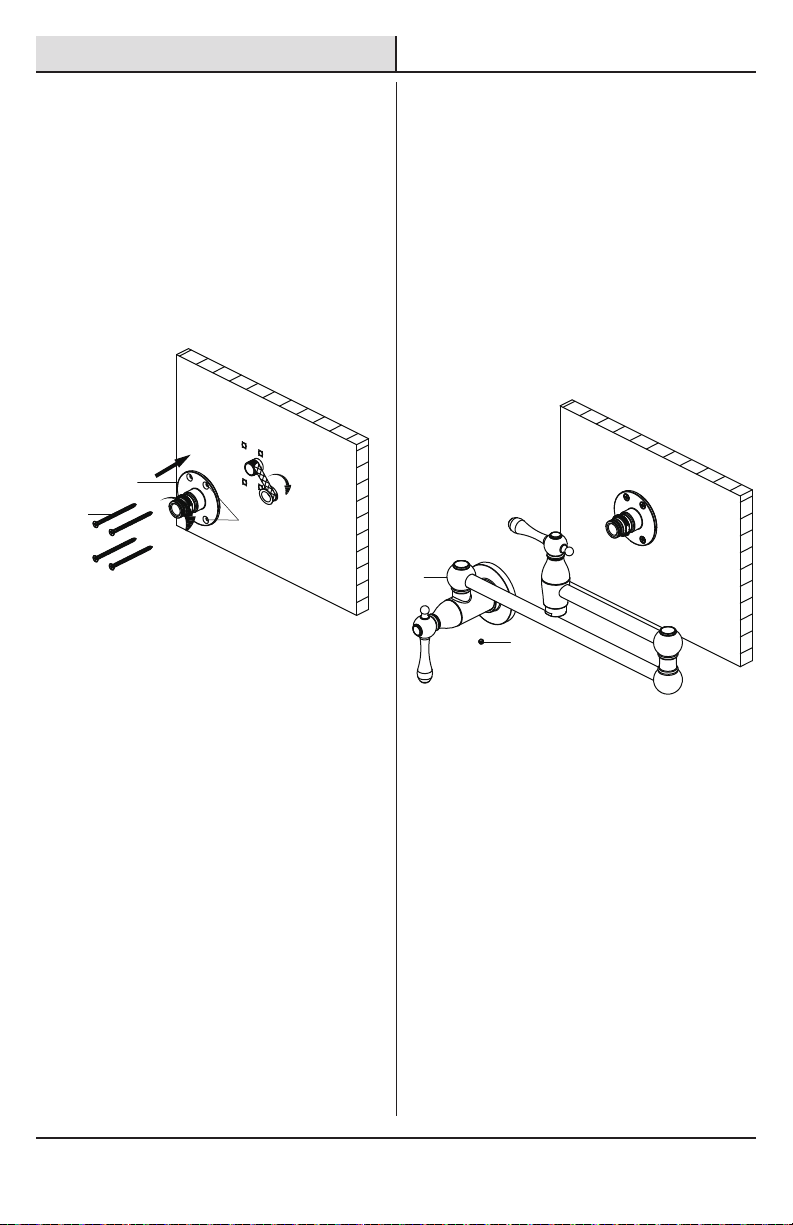

Installation (continued)

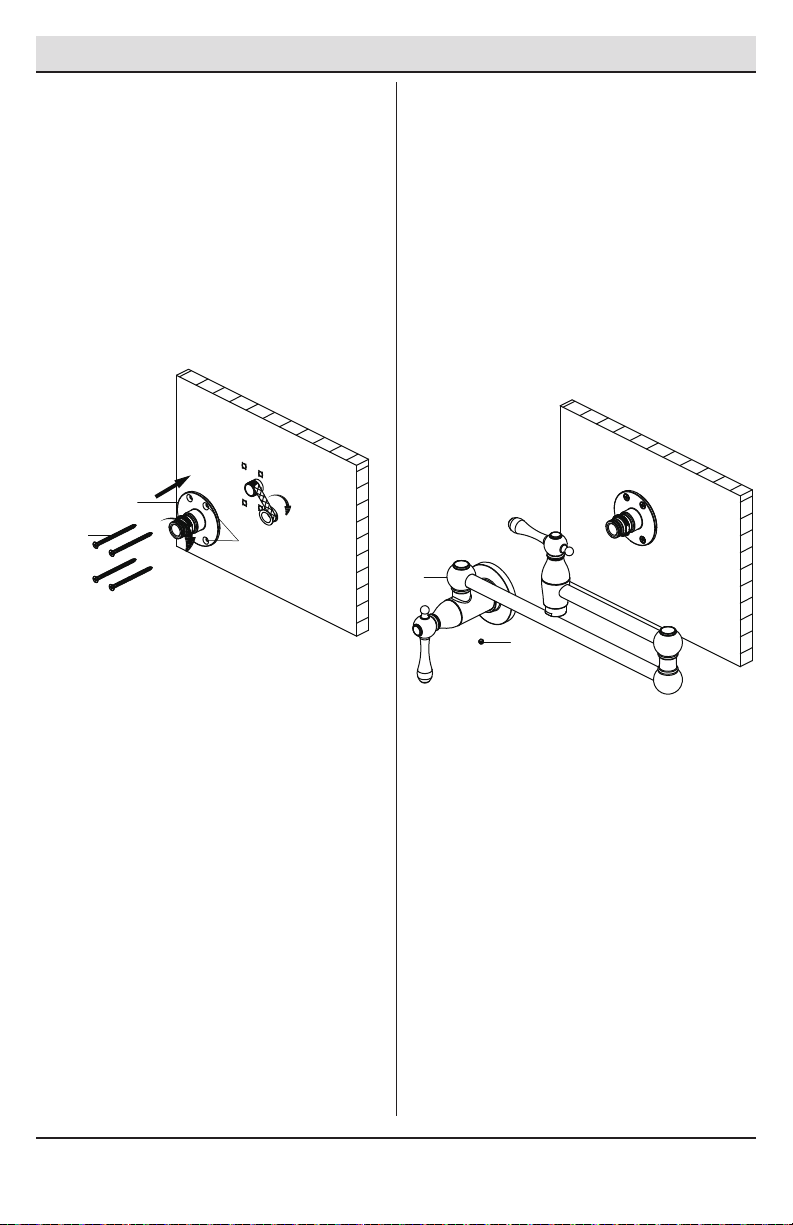

6Installing the mounting bracket
□Apply thread sealant tape to the threads of the
supply pipe in a clockwise direction, as shown.
7 Installing the faucet assembly
□Rotate the faucet assembly (A) until correct
alignment is made (spout should be pointing
straight down).
□Push the faucet body onto the quick connector
over the two o-ring. The splines inside the
faucet body should line up with the splines on
the quick connector.
□Secure the faucet assembly (A) by tightening
the bottom set screw (E) with the Hex wrench.
1
D
C
□Screw the mounting bracket (C) onto pipe nipple
and insert the screw (D) through the mounting
bracket holes (1) and tighten until the mounting
bracket (C) is ush with the wall. Do not over
tighten.
E
A

8

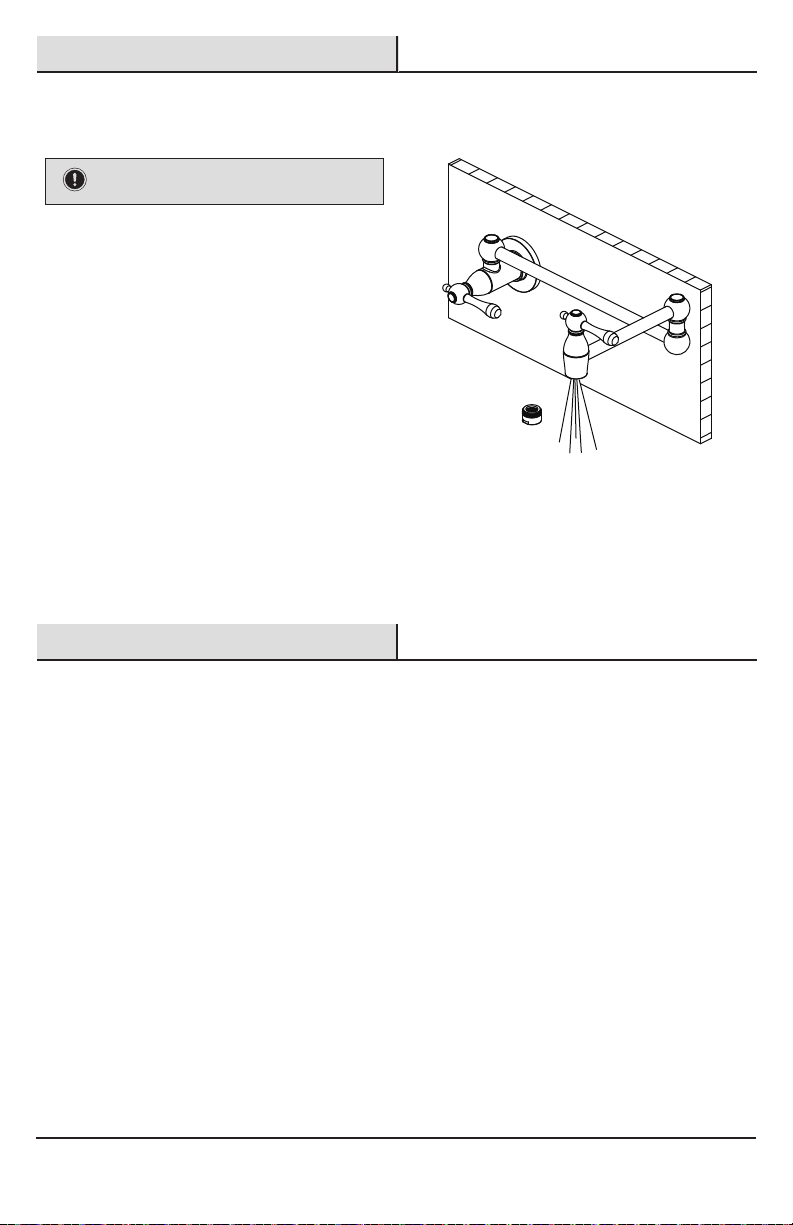

Care and Cleaning
□
□
□Do not use abrasive cleaners when cleaning this faucet.
1Flushing and checking for leaks
□Turn on the water supply and allow both hot
and cold water to run for at least one minute
each. This ushes away any debris that could
cause damage to internal parts.
□Run water into a large pan or bucket. While
the water is running, check for leaks.
□Turn off the water, replace the aerator
and clean faucet with warm water and
a soft cotton towel.
Operation
IMPORTANT: After installation is complete, remove the
aerator to ush the water lines.

9 WWW.HOMEDEPOT.COM/PEGASUS
Please contact 1-877-580-5682 for further assistance.

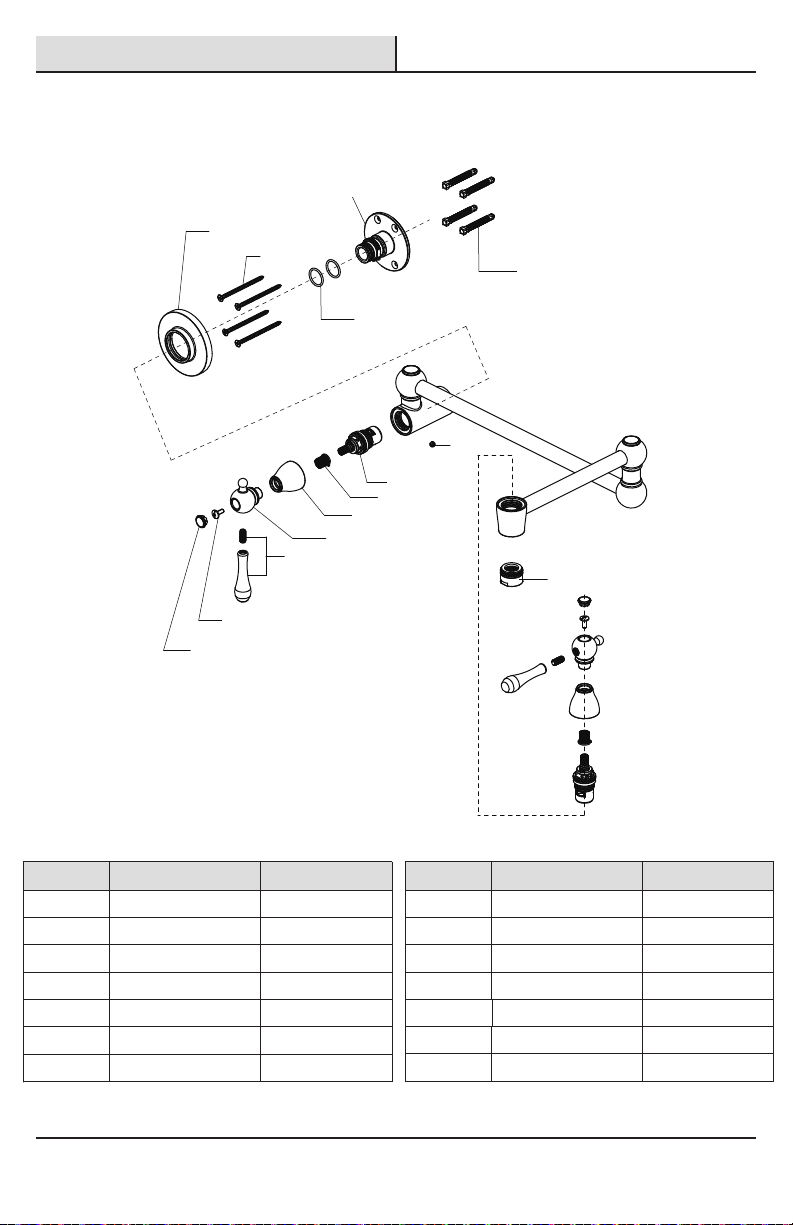

Service Parts
*Specify Finish
Part Description Part Number
1
2 Screw
3 Handle
4 Connector
5 Handle seat
6 Inverter
7 Cartridge
8 Set screw
9 Flange
Cap
12 Mounting bracket
Part Description Part Number
10 Screw
11 O-ring
13 Anchor
14 Aerator
RP10007*
RP50049
RP13113*
RP13272*
RP17141*
RP70396
RP20051
RP50002
RP80343*
RP70395
RP50150
RP60068
RP50151
RP30144*
3
4
6
5
9
7
8
12
11
2
10
1
13
14

Questions, problems, missing parts? Before returning to the store,
call Pegasus Customer Service
8 a.m. - 6 p.m., EST, Monday - Friday
1-877-580-5682
WWW.HOMEDEPOT.COM/PEGASUS
Retain this manual for future use.
