Pegatron IPMTB-GS User manual

IPMTB-GS
Motherboard Reference Guide

2IPMTB-GS Motherboard Reference Guide
Contents
Contents....................................................................................2
Notices.......................................................................................3
Safety information....................................................................4
Specications summary ..........................................................5
Hardware Installation
1 Before you proceed............................................................................... 6
Package contents.........................................................................6
2 Motherboard layout ............................................................................... 7
Top view .......................................................................................7
Rear panel connectors .................................................................7
3 Central Processing Unit (CPU) ............................................................. 8
Installling the CPU........................................................................8

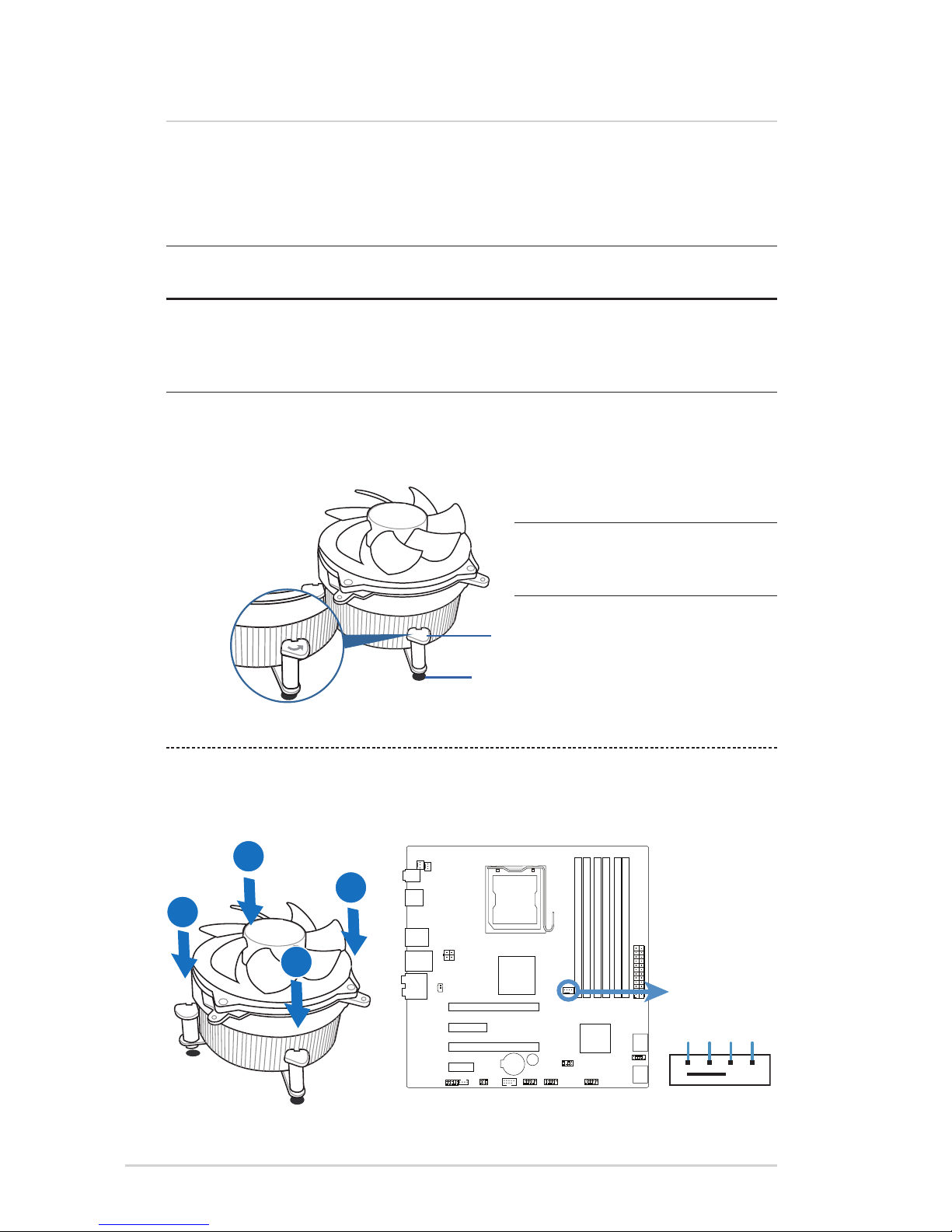

Installling the CPU heatsink and fan ..........................................10
Uninstalling the CPU heatsink and fan....................................... 11

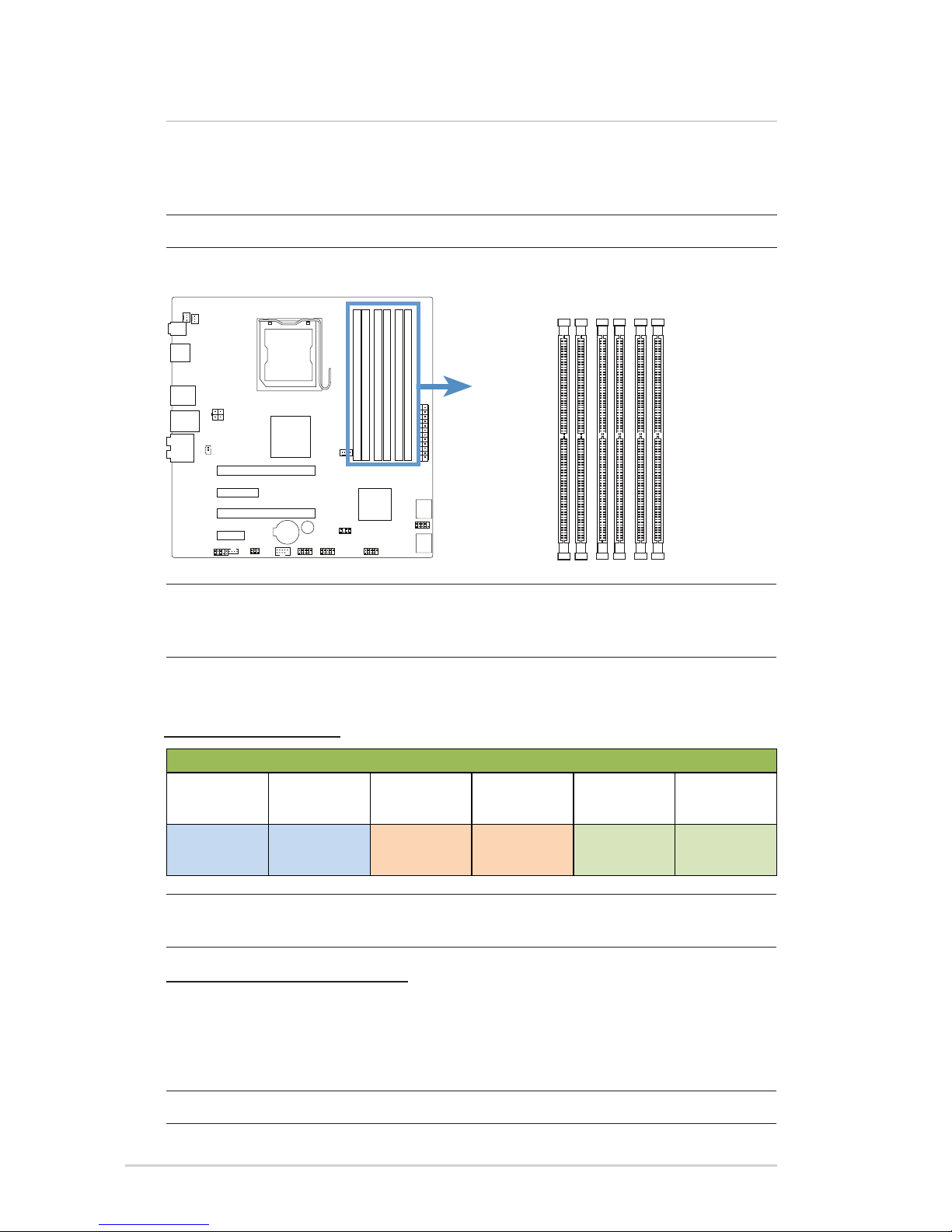

4 System memory................................................................................... 12
Memory types.............................................................................12
Memory module rules and congurations ..................................12
Installing a DIMM........................................................................14
Removing a DIMM......................................................................14
5 Expansion slots ................................................................................... 15
Installing an expansion card.......................................................15
6 Selectors............................................................................................... 16
7 Connectors........................................................................................... 17
8 BIOS Setup reference.......................................................................... 23
Main............................................................................................23
Advanced ...................................................................................24
Power .........................................................................................25
Security ......................................................................................26
Boot............................................................................................28
Exit .............................................................................................29

IPMTB-GS Motherboard Reference Guide 3
Notices
Federal Communications Commission Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
• This device may not cause harmful interference, and
• This device must accept any interference received including interference that
may cause undesired operation.
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with manufacturer’s
instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment to an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
NOTE: The use of shielded cables for connection of the monitor to the graphics
card is required to assure compliance with FCC regulations. Changes or
modications to this unit not expressly approved by the party responsible for
compliance could void the user’s authority to operate this equipment.
Canadian Department of Communications Statement
This digital apparatus does not exceed the Class B limits for radio noise emissions
from digital apparatus set out in the Radio Interference Regulations of the
Canadian Department of Communications.
This class B digital apparatus complies with Canadian ICES-003.

4IPMTB-GS Motherboard Reference Guide
Safety information
Electrical safety
• To prevent electrical shock hazard, disconnect the power cable from the
electrical outlet before relocating the system.
• When adding or removing devices to or from the system, ensure that the power
cables for the devices are unplugged before the signal cables are connected. If
possible, disconnect all power cables from the existing system before you add
a device.
• Before connecting or removing signal cables from the motherboard, ensure
that all power cables are unplugged.
• Seek professional assistance before using an adapter or extension cord.
These devices could interrupt the grounding circuit.
• Make sure that your power supply is set to the correct voltage in your area. If
you are not sure about the voltage of the electrical outlet you are using, contact
your local power company.
• If the power supply is broken, do not try to x it by yourself. Contact a qualied
service technician or your retailer.
Operation safety
• Before installing the motherboard and adding devices on it, carefully read all
the manuals that came with the package.
• Before using the product, make sure all cables are correctly connected and the
power cables are not damaged. If you detect any damage, contact your dealer
immediately.
• To avoid short circuits, keep paper clips, screws, and staples away from
connectors, slots, sockets and circuitry.
• Avoid dust, humidity, and temperature extremes. Do not place the product in
any area where it may become wet.
• Place the product on a stable surface.
• If you encounter technical problems with the product, contact a qualied
service technician or your retailer.
IMPORTANT: This symbol of the crossed out wheeled bin indicates that
the product (electrical and electronic equipment) should not be placed
in municipal waste. Check local regulations for disposal of electronic
products.

IPMTB-GS Motherboard Reference Guide 5
CPU Socket : Intel LGA1366
Supports : Bloomeld
FSB : Intel QPI
Chipset North bridge : Intel X58 IOH
South bridge : Intel ICH10R
Memory Triple channels, 6 slots, ECC, 240-pin DDR3,
Max. 24GB
Types: 800/PC3-6400, 1066/PC3-8500
Expansion
slots
2x PCI express slots (x16)
1x PCI express slot (x4)
1x PCI express slot (x1)
Audio Realtek ALC888S CODEC (8 Channels)
LAN Intel 82567-V Gigabit LAN
Storage 4x SATA ports (4 onboad headers) SATA300/150
2x eSATA ports
USB 10x USB 2.0 ports (6 onboard, 4 on rear panel)
1394 Via VT6315N
Rear panel
I/O ports
1x SPDIF output port
2x eSATA ports (optional)
1x 1394 port + 2x USB ports
1x LAN port + 2x USB ports
6x Audio ports
Internal
connectors
1x ATX power connector
1x ATX +12V power connector
1x CPU fan connector
1x System fan connector
1x Chassis fan connector
1x Line-In connector (optional)
1x Front panel audio connector
1x SPDIF output connector
1x IEEE1394 connector
3x USB2.0 connectors
1x ROM recovery connector
1x Front panel connector
BIOS AMI 8Mb SPI
Form factor microATX: 9.6 in. x 9.6 in.
Specications summary
*The specications are subject to change without notice.

6IPMTB-GS Motherboard Reference Guide
1 Before you proceed
Take note of the following precautions before you install motherboard components
or change any motherboard settings.
• Unplug the power cord from the wall socket before touching any
component.
• Use a grounded wrist strap or touch a safely grounded object or
to a metal object, such as the power supply case, before handling
components to avoid damaging them due to static electricity
• Hold components by the edges to avoid touching the ICs on them.
• Whenever you uninstall any component, place it on a grounded antistatic
pad or in the bag that came with the component.
• Before you install or remove any component, ensure that the ATX power
supply is switched off or the power cord is detached from the power
supply. Failure to do so may cause severe damage to the motherboard,
peripherals, and/or components.
• Before you install the motherboard, study the conguration of your
chassis to ensure that the motherboard ts into it.
• Make sure to unplug the power cord before installing or removing the
motherboard. Failure to do so can cause you physical injury and damage
motherboard components.
Package contents
Check your package for the following items.
Motherboard 1x IPMTB-GS
Cables
Accessories 1x I/O shield
Support disc 1x Drivers & Utilities
Documentation 1x This Motherboad Reference Guide
Hardware Installation

IPMTB-GS Motherboard Reference Guide 7
2 Motherboard layout
USB
connectors
Audio
connectors
SAT A
connectors
ROM
recovery
connector
Front panel
connector
Memory
sockets
Front panel
audio connector
CPU fan
connector
PCIE1
connector
PCIE16
connector
PCIE4
connector
PCIE16
connector
AT X power
connector
AT X CPU power
connector
ATX_CPU
CHASSIS_FAN
Chassis fan
connector
eSAT A
ports
SPDIF_OUT1
eSAT A
System fan
connector
SYS_FAN
1394 & USB
connectors
LAN & USB
connectors
LAN+USB
1394+USB
AUDIO
SPDIF_OUT2
CPU_FAN
F_AUDIOF_LINE_IN
BATTERY
BUZZER
USB
connector
CMOS+PW
IEEE1394
connector
F_1394
intel
LGA1366
CPU Socket
North Bridge
Clear CMOS
& password
Audio line in
connector
(optional)
ROM_RECOVERY
F_PA NEL
F_USB3 F_USB2
F_USB4
SATA4(top) (top)
(bottom)SATA3
SATA2
(bottom) SATA1
ATXPWR
SAT A
connectors
PCIE X16 SLOT1
PCIE X16 SLOT2
DIMM2 DIMM1 DIMM4 DIMM3 DIMM6 DIMM5
South Bridge
Internal SPDIF
connector
PCIE X1 SLOT
PCIE X4 SLOT
SPDIF output
port
Rear panel connectors
Top view
USB 2.0 ports
IEEE1394
port
SPDIF
output port
LAN (RJ-45)
port
eSATA ports
Blue: Line input
Black: Rear Surround L/R output
Orange: Center/ Subwoofer output
Lime: Front L/R output
Pink: Microphone input
Gray: Side surround L/R output

8IPMTB-GS Motherboard Reference Guide
A
B
3 Central Processing Unit (CPU)
The motherboard comes with a surface mount socket designed for various
processors.
NOTE: Your boxed processor package should come with installation instructions
for the CPU, fan and heatsink assembly. If the instructions in this section do not
match the CPU documentation, follow the latter.
NOTE: Upon purchase of the motherboard, make sure that the socket cap is on
the socket and the socket pins are not bent. Contact your retailer immediately
if the socket cap is missing, or if you see any damage to the socket cap/socket
pins/motherboard components.
NOTE: Keep the cap after installing the motherboard. It is required for product
returns or repairs.
NOTE: The product warranty does not cover damage to the socket pins resulting
from incorrect CPU installation/removal, or misplacement/loss/incorrect removal
of the socket cap.
Installling the CPU
1. Locate the CPU socket on the
motherboard.
NOTE: To prevent damage to the socket pins, do not remove the socket cap
unless you are installing a CPU.
Socket cap
3. Move it to the left (B) until it is
released from the retention tab.
This side of the cam box
should face you.
Retention tab
Load lever
2. Press the load lever with
your thumb (A).

IPMTB-GS Motherboard Reference Guide 9
NOTE: The CPU ts in only one correct orientation. DO NOT force the CPU into
the socket to prevent damaging the delicate CPU!
Alignment key
Gold triangle mark
7. Position the CPU over the socket
as shown.
B
A
8. Close the load plate (A), then push the load lever (B)
until it snaps into the retention tab.
Alignment key
Gold triangle mark
4. Lift the load lever in the direction of the arrow (A).
Load plate
A
B
C
5. Lift the load plate with your
thumb and forenger (B).
6. Remove the socket cap
from the CPU socket (C).
3 Central Processing Unit (CPU)

10 IPMTB-GS Motherboard Reference Guide
3 Central Processing Unit (CPU)
CPU FAN
Installling the CPU heatsink and fan
The processor require a specially designed heatsink and fan assembly to ensure
optimum thermal condition and performance. When you buy a boxed processor,
the package includes the CPU fan and heatsink assembly.
NOTE: Install the motherboard to the chassis before you install the CPU fan and
heatsink assembly
NOTE: If you buy a CPU separately, make sure that you use only Intel®-certied
multi-directional heatsink and fan and make sure that a Thermal Interface
Material is properly applied to the CPU heatsink or CPU before you install the
heatsink and fan assembly.
NOTE: Make sure each fastener
is oriented as shown, with the
narrow groove directed outward.
Fastener
Motherboard hole
3. When the fan and heatsink assembly is in place, connect the CPU fan
cable to the connector on the motherboard.
2. Push down two fasteners at a time in a
diagonal sequence to secure the heatsink
and fan assembly in place.
A
B
B
A
1. Place the heatsink on top of the installed CPU, making sure that the four fasteners match the holes on the
motherboard.
GND +12V FAN_TACH FAN_PWM

IPMTB-GS Motherboard Reference Guide 11
Uninstalling the CPU heatsink and fan
3. Pull up two fasteners at a time in a diagonal sequence to disengage
the heatsink and fan assembly from the motherboard.
A
A
B
B
4. Remove the heatsink and fan assembly from the motherboard.
5. Rotate each fastener clockwise to reset the
orientation.
NOTE: The narrow end of the
groove should point outward after
resetting.
1. Disconnect the CPU fan cable from the connector on the
motherboard.
2. Rotate each fastener counterclockwise.
3 Central Processing Unit (CPU)

12 IPMTB-GS Motherboard Reference Guide
4 System memory
IMPORTANT: Always install DIMMs with the same CAS latency. For optimum
compatibility, it is recommended that you obtain memory modules from the
same vendor.
Memory types
The motherboard comes with Double Data Rate 3 (DDR3) Dual Inline Memory
Modules (DIMM) sockets.
The gure illustrates the location of the DDR3 DIMM sockets:
2 1 4 3 6 5
WARNING: Only DDR3 RAM modules can be used on this motherboard.
Memory module rules and congurations
Note: DIMM2 is the socket closest to the CPU and DIMM5 is the socket farthest
from the CPU.
Memory Module Insertion Rule
1. Insert modules starting from the DIMM closest to the CPU.
2. Insert 2GB modules rst, then 1GB modules if both are used.
3. Fill each channel (two sockets) with modules to fully utilize triple channel
performance.
IMPORTANT: One of the blue sockets (DIMM1/3/5) must be populated.
DIMM Socket Labeling
Socket Color and Channel
DIMM2
Black
DIMM1
Blue
DIMM4
Black
DIMM3
Blue
DIMM6
Black
DIMM5
Blue
(Channel A) (Channel A) (Channel B) (Channel B) (Channel C) (Channel C)

IPMTB-GS Motherboard Reference Guide 13
4 System memory
System
Memory
Memory
Channel
Conguration
DIMM 2
(Ch A,
Black)
DIMM 1
(Ch A,
Blue)
DIMM 4
(Ch B,
Black)
DIMM 3
(Ch B,
Blue)
DIMM 6
(Ch C,
Black)
DIMM 5
(Ch C,
Blue)
2GB Dual - 1GB - 1GB - -
3GB Triple - 1GB - 1GB - 1GB
4GB Dual - 2GB - 2GB - -
4GB Triple
(unbalanced) - 2GB - 1GB - 1GB
5GB Triple
(unbalanced) - 2GB - 2GB - 1GB
6GB Triple - 2GB - 2GB - 2GB
7GB Triple
(unbalanced) 1GB 2GB - 2GB - 2GB
8GB Triple
(unbalanced) 2GB 2GB - 2GB - 2GB
9GB Triple 1GB 2GB 1GB 2GB 1GB 2GB
9GB Triple
(unbalanced) 2GB 2GB 1GB 2GB - 2GB
10GB Triple
(unbalanced) 2GB 2GB 2GB 2GB - 2GB
11GB Triple
(unbalanced) 2GB 2GB 2GB 2GB 1GB 2GB
12GB Triple 2GB 2GB 2GB 2GB 2GB 2GB
Possible Memory Congurations

14 IPMTB-GS Motherboard Reference Guide
TIP: Support the DIMM lightly with your ngers when pressing the retaining clips.
The DIMM might get damaged when it ips out with extra force.
Installing a DIMM
WARNING: Unplug the power supply before adding or removing DIMMs or
other system components. Failure to do so can cause severe damage to
both the motherboard and the components.
To install a DIMM:
1. Unlock a DIMM socket by pressing the
retaining clips outward.
2. Align a DIMM on the socket such that
the notch on the DIMM matches the
break on the socket.
3. Firmly insert the DIMM into the socket
until the retaining clips snap back
in place and the DIMM is properly
seated.
1. Simultaneously press the retaining
clips outward to unlock the DIMM.
2. Remove the DIMM from the socket.
NOTE: A DDR3 DIMM is keyed with a notch so that it ts in only one direction. Do
not force a DIMM into a socket to avoid damaging the DIMM.
NOTE: The DDR3 DIMM sockets do not support non-DDR3 DIMMs.
DDR3 DIMM notch
2
1
1
2
1
1
3
Unlocked retaining clip
DDR3 DIMM notch
Removing a DIMM
Follow these steps to remove a DIMM:
4 System memory

IPMTB-GS Motherboard Reference Guide 15
5 Expansion slots
In the future, you may need to install expansion cards. The following shows the
slots and the expansion cards that they support.
Installing an expansion card
IMPORTANT: Make sure to unplug the power cord before adding or
removing expansion cards. Failure to do so may cause you physical injury
and damage motherboard components.
To install an expansion card:
1. Before installing the expansion card, read the documentation that came with it
and make the necessary hardware settings for the card.
2. Remove the system unit cover (if your motherboard is installed in a chassis).
3. Remove the bracket opposite the slot that you intend to use.
4. Align the card connector with the slot and press rmly until the card is
completely seated on the slot.
5. Secure the card to the chassis with the screw you removed earlier.
6. Replace the system cover.
PCI Express card (x1) PCI Express card (x4)
PCI Express card (x16)

16 IPMTB-GS Motherboard Reference Guide
Clear password
This selector allows you to clear the password in CMOS.
IMPORTANT: Except when using this function, do not remove the jumper
cap from the default position or else there may be a system boot failure!
6 Selectors
To clear the password:
1. Turn OFF the computer.
2. Move the cap to Clear.
3. Turn ON the computer to POST screen.
4. Turn OFF the computer.
5. Move the cap back to Default.
6. Enter BIOS setup to verify or congure new settings.
Clear RTC RAM (CMOS)
This selector allows you to clear the Real Time Clock (RTC) RAM in CMOS.
You can clear the CMOS memory of date, time, system setup parameters, and
passwords by erasing the CMOS RTC RAM data.
IMPORTANT: Except when using this function, do not remove the jumper
cap from the default position or else there may be a system boot failure!
To erase the CMOS RTC RAM user settings:
1. Turn OFF the computer and unplug the power cord.
2. Move the cap to clear for 5 to 10 secs, then move the
cap back to default.
3. Plug the power cord and the computer will turn on
automatically.
4. During the boot process, enter BIOS setup to re-enter
user settings.
Normal (Default)
Normal (Default)
2 4 6 2 4 6
Clear Password
Clear CMOS
1 3 5 1 3 5

IPMTB-GS Motherboard Reference Guide 17

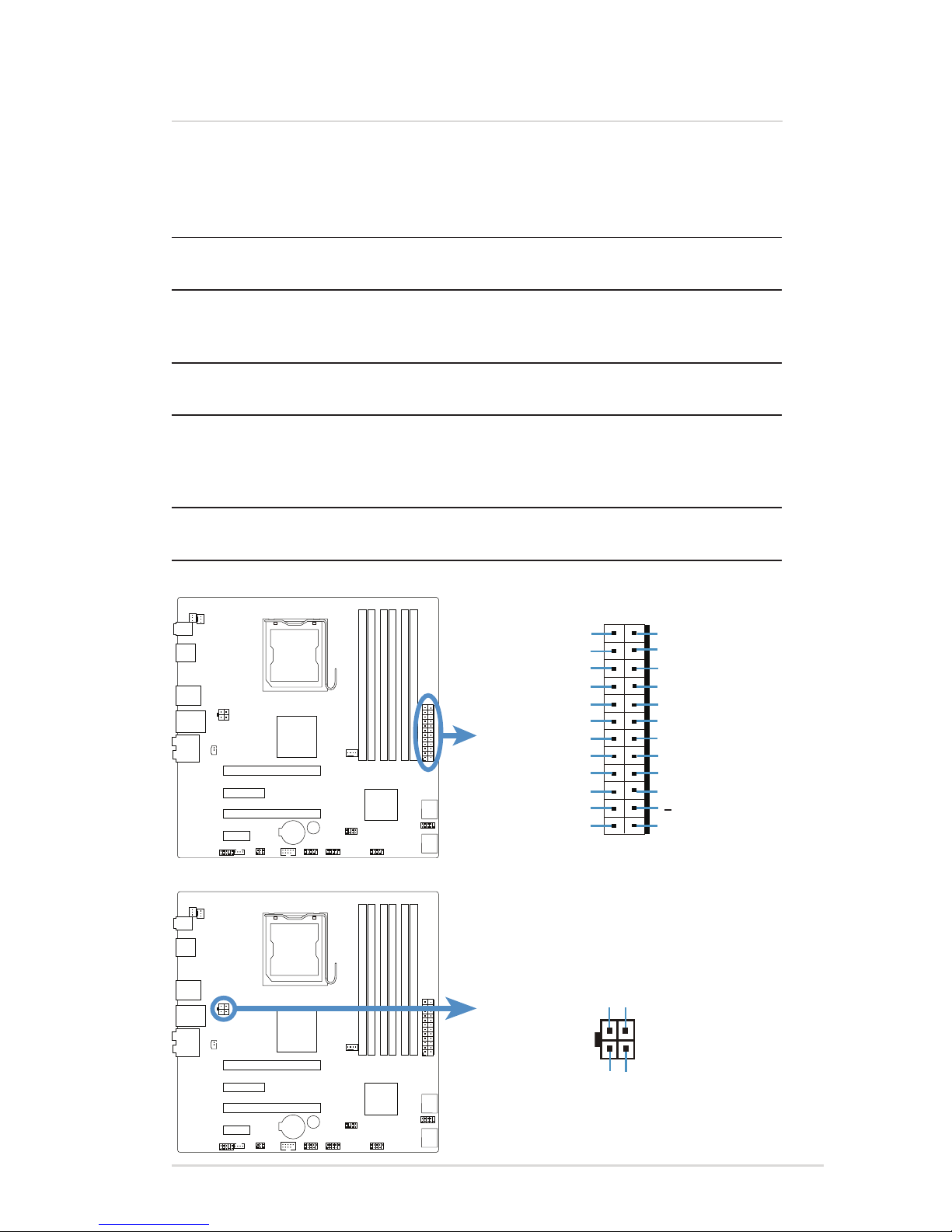

ATX power connectors (24-pin ATXPOWER and 4-pin ATX_CPU)
These connectors are for ATX power supply plugs. The power supply plugs are
designed to t these connectors in only one orientation. Find the proper orientation
and push down rmly until the connectors completely t.
N OTE: Do not forget to connect the 4-pin ATX +12 V power plug; otherwise, the
system will not boot.
NOTE: Use of a PSU with a higher power output is recommended when
conguring a system with more power-consuming devices. The system may
become unstable or may not boot up if the power is inadequate.
NOTE: Make sure that your power supply unit (PSU) can provide at least the
minimum power required by your system.
NOTE: If you intent to use a PSU with 20-pin and 4-pin power plugs, make sure
that the 20-pin power plug can provide at least 15A on +12V and that the PSU
has a minimum power rating of 350 W. The system may become unstable or may
not boot up if the power is inadequate.
NOTE: You must install a PSU with a higher power rating if you intend to install
additional devices.
7 Connectors
ATXPOWER
+3 Volts
Power OK
Ground
Ground
Ground
Ground Ground
Ground
Ground
Ground
PSON#
+5 Volts
+5 Volts
+5 Volts
NA
12 Volts
+3 Volts
+12 Volts
+12 Volts
+5V Standby
+5 Volts
+5 Volts
+3 Volts
+3 Volts
ATX_CPU
+12V DC
Ground Ground
+12V DC

18 IPMTB-GS Motherboard Reference Guide
Chassis/ System fan connector
Connect the fan cables to the fan connectors on the motherboard, making sure
that the black wire of each cable matches the ground pin of the connector.
7 Connectors
CHASSIS_FAN
Ground
+12V
Rotation
SYS_FAN
Ground
+12V
Rotation
Left Audio Channel Ground Right Audio Channel Ground
CD
F_LINE-IN
Audio line in connector (optional)
This connector allows you to receive stereo audio input from sound sources such
as an optical disc drive, a TV tuner, or a specialized audio/sound-processing card.

IPMTB-GS Motherboard Reference Guide 19
Serial ATA connectors
These connectors are for the Serial ATA signal cables for Serial ATA devices.
SATA3
SATA4
Ground Ground Ground
SATA_RX(+)
SATA_RX(-)
SATA_TX(-)
SATA_TX(+)
Ground Ground Ground
SATA_RX(+)
SATA_RX(-)
SATA_TX(-)
SATA_TX(+)
7 Connectors
USB connectors
These connectors are for USB 2.0 ports. Connect a USB module cable to any
of these connectors, then install the module to a slot opening at the back of the
system chassis. These USB connectors comply with USB 2.0 specication that
supports up to 480 Mbps connection speed.
WARNING: Never connect a 1394 cable to the USB connectors. Doing so
will damage the motherboard!
F_USB4 F_USB3 F_USB2
USB*(-)
USB*(+) USB*(+)
USB*(-)
Ground Ground
SBV SBV
NC
USB*(-)
USB*(+) USB*(+)
USB*(-)
Ground Ground
SBV SBV
NC
USB*(-)
USB*(+) USB*(+)
USB*(-)
Ground Ground
SBV SBV
NC
SATA1
SATA2

20 IPMTB-GS Motherboard Reference Guide
7 Connectors
F_1394
IEEE 1394 port connector
This connector is for a 1394 port. Connect the 1394 cable from the system front
panel to this connector.
WARNING: Never connect a USB cable to the IEEE 1394 connector. Doing
so will damage the motherboard!
TPA*(-) Ground TPB*(-) (+)12V Ground
TPA*(+)
Ground
TPB*(+)
(+)12V
Digital Audio connector
This connector is for the S/PDIF audio module to allow digital sound output.
Connect one end of the S/PDIF audio cable to this connector and the other end to
the S/PDIF module (may require separate purchase).
SPDIF_OUT2
SPDIF Out
Ground
