Pel 2009 User manual

All cautions & notes on this refrigerator are important: please pay attention to them.

Refrigerator

Instruction Manual

Before operating the Refrigerator,

please read this manual carefully

and retain for future reference.

Wide Body Series

6 Series

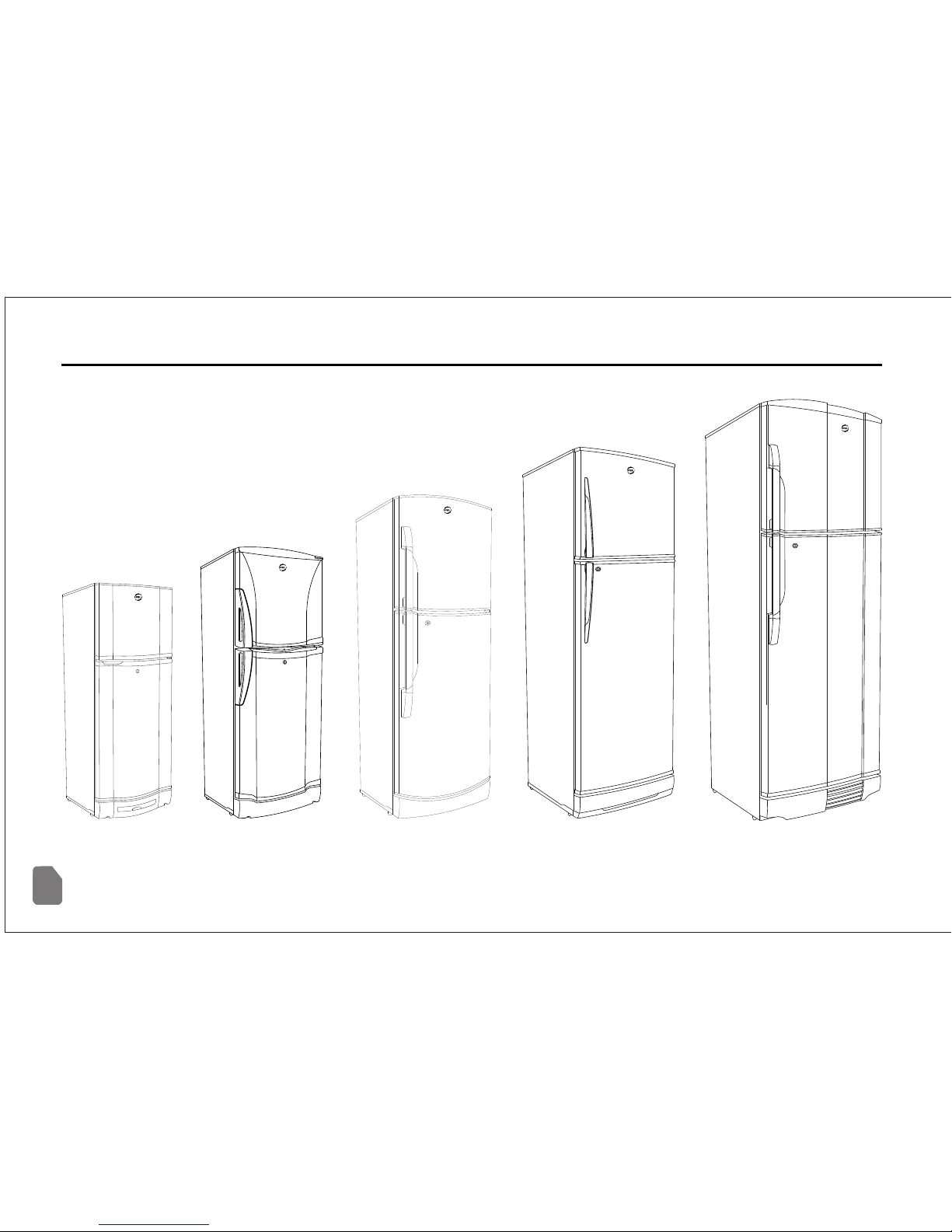

REFRIGERATOR MODELS & SERIES

WB Series

20145JF

20165

2017

20175

20185

SL Series

2009

2010

2012

2300JF

2500JF

6 Series

6200

6300

6400

Please read all safety and operating instructions before operating this appliance.

Slim Line Series

Premier

Slim Line Series

Star Plus

Slim Line Series

Crystal

REFRIGERATOR MODELS & SERIES 01

PARTS IDENTIFICATION 03

INSTALLATION 04

Leveling the Appliance

Personal safety

GETTING STARTED 05

Food storage

Vegetable / Fruit compartment

ICE CUBES MAKING 06

TEMPERATURE CONTROL 06

DEFROSTING 07

Single Door Refrigerator

Double Door Refrigerator

GENERAL CARE AND CLEANING 09

DEODORIZER 10

TROUBLE SHOOTING TIPS 11

SAFETY PRECAUTIONS 13

INSIDE YOUR STARTER PACK

Dear Valued Customer

We congratulate you on your choice. You now are a

proud owner of a PEL product having joined millions

of others who are benefitting from quality PEL

products for more than 50 years.

We want to assure you that each PEL product is built

to last with state-of-the-art, energy efficient

technology adapted to suit our local environment.

Distinctive qualities that we are proud to share with all

our valued customers providing high performance,

reliability, durability and most of all prompt customer

care whenever and wherever you need it.

Kindly fill out the Warranty Card and send the

Company's Copy to the given address for Warranty

Registration.

Please read this Instruction Manual carefully as it will

guide you to install, operate and maintain this

appliance in its original condition for years to come.

Welcome to the PEL family, and wishing you many

years of ease and comfort that come with the PEL

name.

Thank you

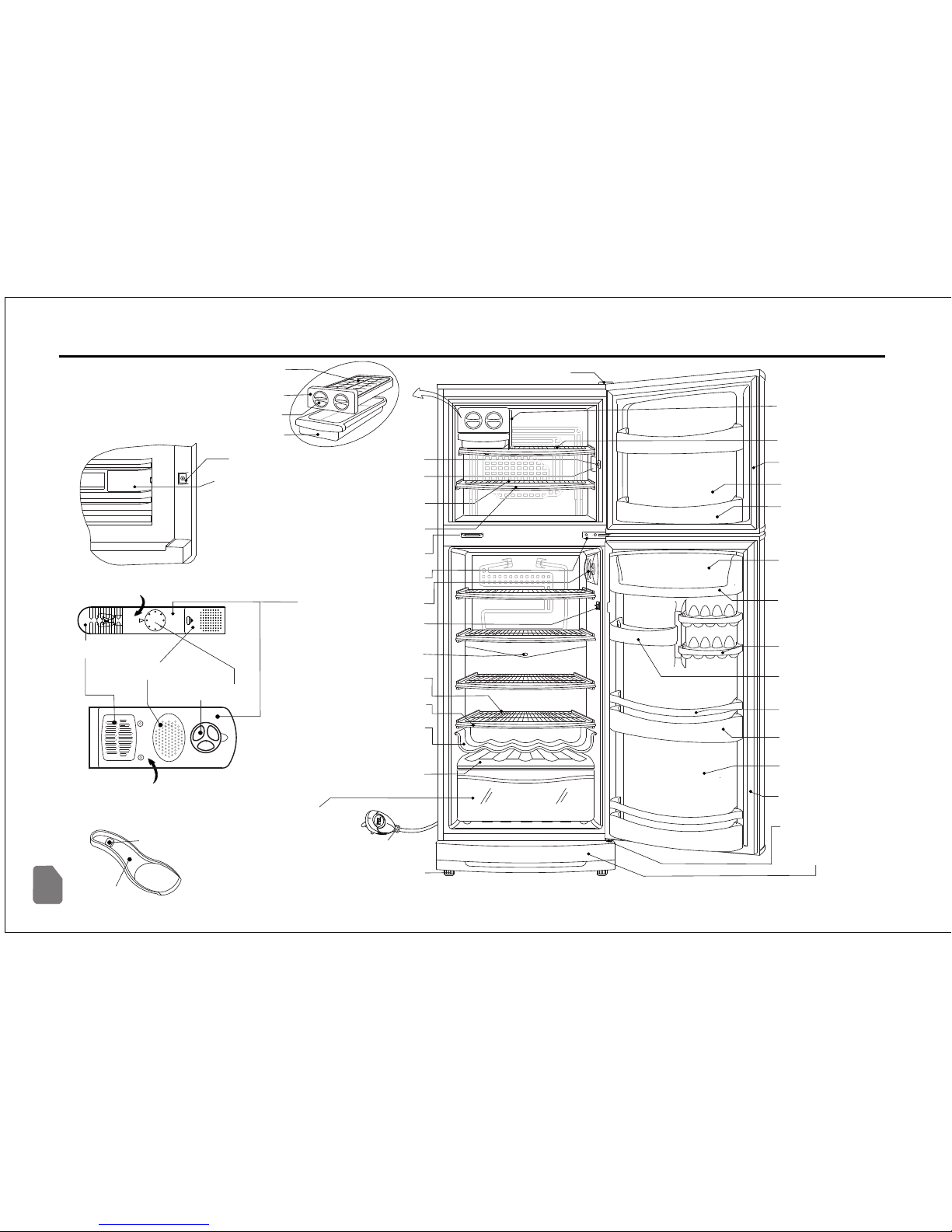

PARTS IDENTIFICATION

(For 6 Series) Door Switch

(For 6 Series) Frz. Light Cover

Thermostat Box

Door Switch

Ice Cube Container

Ice Trays

Ice Tray Knob

Ice Tray Carrier

Leveling Screw

Main Cable with 3 pin Plug

NOTE: Specifications may vary from model to model.

Kick Plate

Bottle Shelf

Lock Latch

Ref. Grid Frame/Trim

Frz. Grid Frame/Trim

Ref. Grid Shelf

Ref. Drain Hole

Central Hinge

Ref. Light Cover

Frz. Grid Shelf

Vegetable / Fruit Compartment

Veg./Fruit Cover

Upper Hinge

Ref. Inner Liner

Frz. Inner Liner

Ref. Balcony

Ref. Door Gasket

Frz. Door Gasket

Frz. Supporting Grid

Frz. Central

Supporting Plate

Frz. Balcony

Eggs Balcony

Butter & Cheese

Compartment

Butter & Cheese

Cover

Utility Pocket

Ref. Balcony Strip

Lower Hinge

Thermostat Knob

Deodorizer Cover

Thermostat Box SL & WB Series

Thermostat Box 6 Series

Ice Scraper

Bottle Opener

INSTALLATION

1. Remove packing carton and all thermopore pieces from the

refrigerator, specially one at the back of the compressor.

Install the Appliance on a firm, flat surface or a Wooden

Pedestal (Chowki).

2. For optimum performance install the refrigerator in a well ventilated

place. Avoid installing the refrigerator near heat generating home

appliances such as heater, stove and in small nooks / corners, direct

sun light.

Leveling the Appliance

To compensate any floor unevenness, adjust the balance of Appliance

by rotating the Leveling Screws clock wise or anti clock wise.

4. Always install your refrigerator in a tilted position as shown.

For personal safety, properly ground this Appliance.

Do not ground the refrigerator with a telephone line, gas pipe, etc. It is

necessary that refrigerator should be connected to the proper earth point.

The manufacturer will not be responsible for any loss or damage if

precaution in this regard is not observed.

IMPORTANT:

NOTE: Retain the original packing in case you need to ship it at a later date.

above 12”

ab e 4”ov

aprox. 1/3

p”

FOOD STORAGE

1. Seal food in containers with lids or in plastic bags to prevent drying and mingling of

odour.

2. In Freezer compartment keep food in small quantities for quick freezing.

3. Allow hot food and drinks to cool down before placing in the refrigerator or freezer.

4. Food should be arranged so as to ensure free circulation of cool air in the

compartment, never cover grid shelves with plastic mats or sheets.

5. Food stored in the refrigerator compartment can be refrigerated up to a certain limit.

6. Wash and dry meat, fruits and vegetables before placing them in the refrigerator.

VEGETABLE / FRUIT COMPARTMENT

This compartment maintains the moisture of veget & , to sustain their freshness

for longer period.

ables fruits

GETTING STARTED

Clean the refrigerator before turning it ON. After plugging check that the light inside the cabinet is ON, when

the door is opened. Turn the thermostat knob to the maximum position “8”, close the refrigerator doors, let it

run idle for 2 ~3 hours, then turn the thermostat knob to the medium position (4) in normal condition, now the

refrigerator is ready to store food . If it is peak summer, set the thermostat position at (5 ~ 6).

Do not freeze the meat again after getting it defrosted. It can be

harmful for health.

CAUTION:

Incase of prolonged power failures, it is recommended that stored

food should be consumed within 6~8 hours.

NOTE:

When you want to make ice cubes, take out complete set of ice tray carrier, pour water in ice

trays and slide it back.

After ice cubes have been formed in the ice trays, free the ice cubes from the ice trays by turning

the ice tray’s knob clockwise. Twist it again and allow ice cubes to drop into the ice cube

container underneath.

PRECAUTION: Make sure that the ice cube container is beneath the ice trays.

NOTE: Ice tray design may differ in different models.

TEMPERATURE CONTROL

The temperature inside the refrigerator may vary according to the frequency of door opening,

food status or the amount of food stored in the refrigerator. Adjust the thermostat knob to change

the internal temperature according to the enviro ,nmental temperature. For reference please see

the following table:

ICE CUBES MAKING

Position “0” Off position

Position “2 ~ 3” When environmental temperature is below 15 °C

Winter season

Position “4” When environmental temperature is 15 °C - 30 °C

Moderate season

Position “5 ~ 6” When environmental temperature is 30 °C - 40 °C

Summer Season

Position “7 ~ 8” When environmental temperature is above 40 °C

In special cases, not

recommended normally

Ice Tray set

Ice Cube container

Ice Tray Knob

Thermostat Knob

Do not remove frost with knife or sharp metal tools.

Always use company provided Ice Scraper.

CAUTION:

Defrosting is necessary for efficient performance of the Appliance. When the layer of frost on the walls of

freezer compartment becomes 5 ~ 8 millimeters or over, the Appliance needs to be defrosted.

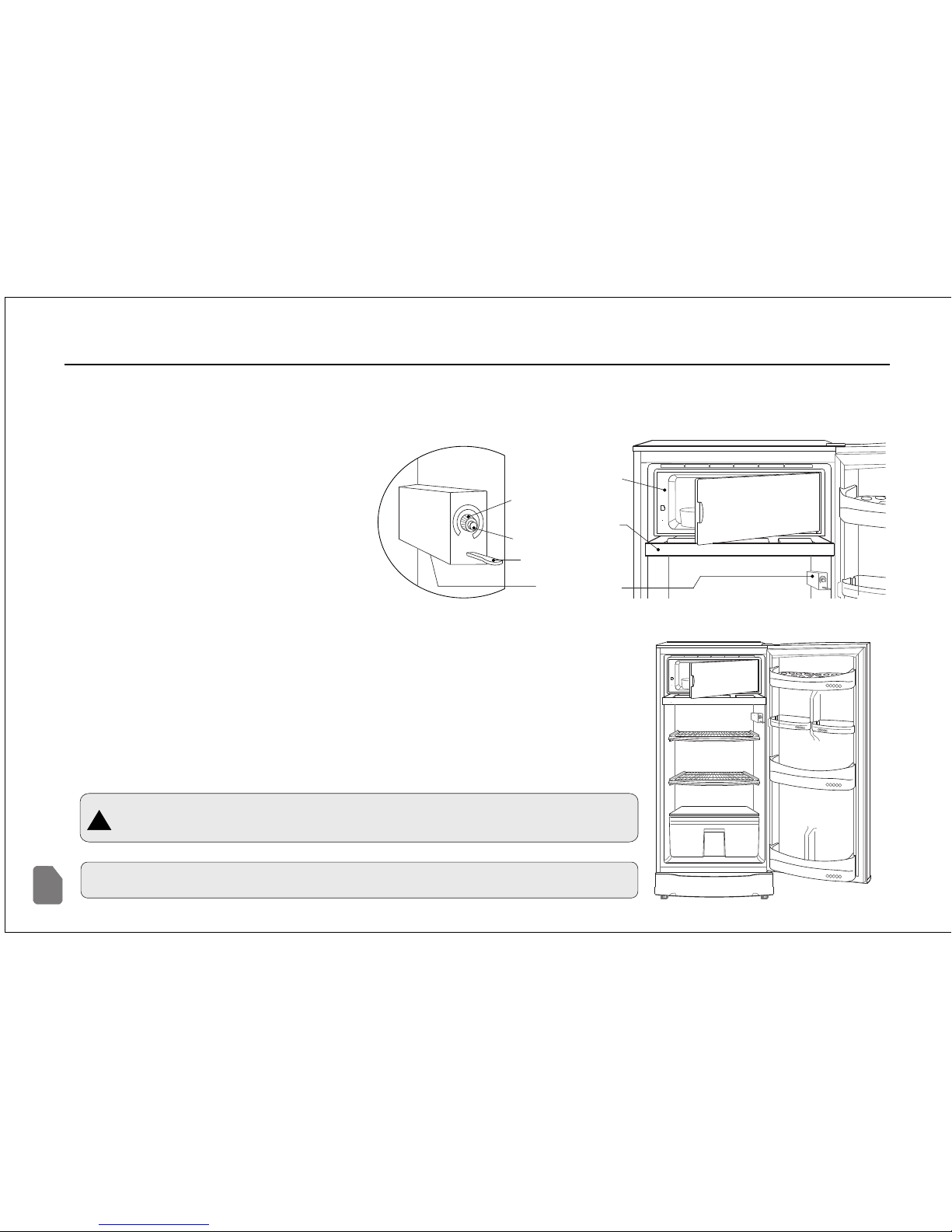

Single Door Refrigerator

To defrost the refrigerator, follow

these instructions:

1. Remove food and ice trays from freezer compartment.

2. Press Push-Button of thermostat knob, let the Refrigerator & Freezer

doors open for defrosting.

3. Wait till the frost melts then remove it carefully with the help of Ice scraper.

4. Take out Drip tray carefully when it is filled with water, dispose of

this water and slide it back to its original position. You may repeat

this action till defrosting is completed.

5. Push-Button will automatically come back to its original position

when defrosting is completed.

DEFROSTING

This refrigerator is equipped with a

semi automatic defrosting

thermostat with a Push-Button.

NOTE: Complete defrosting is recommended after every month.

Freezer Compartment

Defrosting Push-Button

Door Switch

Thermostat Knob

Thermostat Box

Drip Tray

Refrigerator Compartment

This compartment defrosts automatically. Manual defrosting is not required.

To defrost the freezer compartment, follow the instructions given below:

1. Remove food, ice trays set, ice cube container and grid shelves from Freezer compartment.

2. Turn the thermostat knob to position “0” unplug theAppliance and

let the Freezer door open for defrosting.

3. Wait till the frost melts then remove it carefully with the help of Ice Scraper.

4. When frost is removed, take out protection plate care fully and detach

the drain plug in order to drain out defrosted water.

5. (a) (For 6 series only) Place a container exactly under the drain to

collect defrosted water.

(b) In Slim Line series & Wide Body series defrosted water will drain

out and collect in the condensate tray provided at the back of the

cabinet as shown in page # 9.

6. Now clean the whole compartment with a soft dry cloth. Insert drain plug

back to its original position and place protection plate over it.

. Close the Freezer oor and let it run for about one hour befor

Freezer Compartment

7 d e reloading the food.

DEFROSTING

NOTE: Complete defrosting is recommended after every month.

Do not remove frost with knife or sharp metal tools. Always

use company provided Ice Scraper.

CAUTION:

Double Door Refrigerator

Ice Scraper

Drain Plug

Frz. Protection Plate

Drain Hole 6 Series

Models only

This refrigerator does not require any special maintenance. It is however advised to

keep your refrigerator neat and clean, this will increase the life of your refrigerator.

1. Always unplug the refrigerator before cleaning. Do not use liquid

cleaners or aerosol cleaners.

2. Never apply water directly inside or outside the refrigerator. Water

spoils the insulation of electric parts and may cause electrical shock.

Interior Cleaning

For inside cleaning take out all food and accessories from refrigerator,

use a solution of 9 parts water and 1 part vinegar, rinse thoroughly with

a sponge and fresh water. Finally dry whole cabinet with a soft cloth.

Door Gasket

Clean the gasket thoroughly in order to maintain its sticking quality.

Exterior Cleaning

To clean the external side of the refrigerator use only

a slightly damp soft cloth.

Condenser

Clean the refrigerator condenser with a brush or vacuum

cleaner, this the efficiencymaintains of your refrigerator.

refrigerator.

GENERAL CARE AND CLEANING

Gasket

Dry all the accessories completely before putting them

back at their original position.

NOTE:

Compressor

Condenser

Condensate tray

Drain Pipe

Compressor base plate

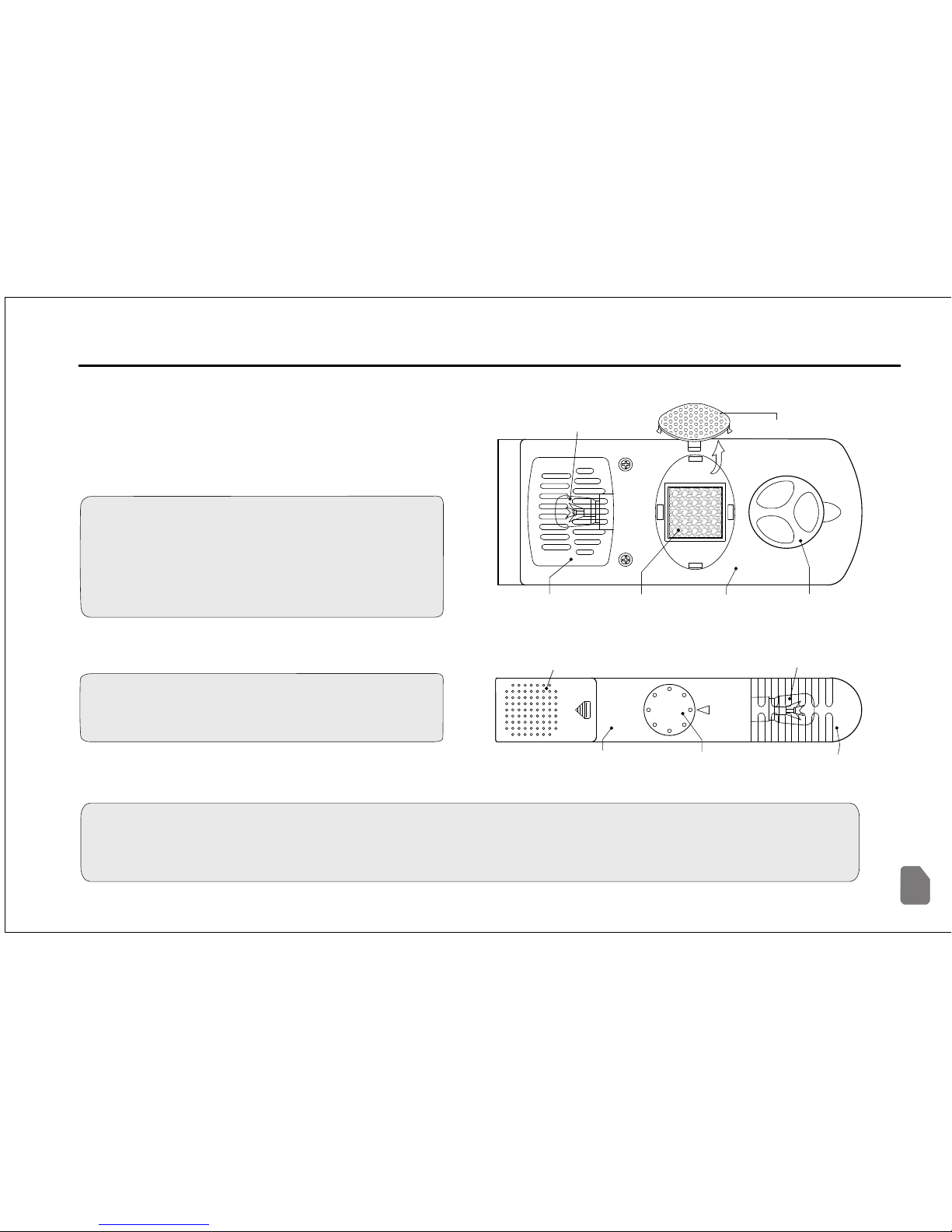

DEODORIZER

Deodorizer removes odour from the refrigerator.

DEODORIZER

If you are not using the refrigerator for more than 01 week, unplug the appliance,

take out all the food stuffs, clean both Ref. & Frz. inner cabinets properly and keep

the doors open. If you keep the doors in closed position, it will give foul smell.

IMPORTANT:

PRECAUTION:

NOTE:

Storing food or liquids

which can pick up or

transmit odour or flavors

easily, must be kept in

sealed container.

The deodorizer does not

harm stored Food.

Lamp / Bulb

Light Cover

Thermostat Box Thermostat Knob

Deodorizer Cover

SL Series & WB Series

Lamp / Bulb

Light Cover Thermostat Box Thermostat Knob

Deodorizer Cover

Deodorizer

6 Series

PROBLEMS CAUSES SOLUTIONS

When the refrigerator

does not operate at

all.

·There might be a power connection or

electrical failure problem.

·The thermostat knob is at position “0”.

·Check the power cord and plug it

properly.

·Select the appropriate thermostat

position. See page # 6.

When the refrigerator

does not operate well.

·The refrigerator is exposed to direct

sunlight or installed near a heating

device. The appliance does not have

enough clearance from the wall in all

directions.

·The thermostat knob is at position 1or 2.

·The refrigerator contains hot food or too

much food?

·The refrigerator door opening is frequent

or left open for long time.

·Check the installation place. See

page # 4.

·Set the thermostat position

appropriately. See page # 6.

·Check the condition and quantity

of stored food. See page # 5.

·Close the door and avoid opening

it frequently.

When water comes

out of the refrigerator.

·The drain passage is blocked.

·Water accumulates under Fruit &

Vegetable compartment.

·Refrigerator level is improper.

·Check the drain passage and

remove sludge.

·Take out Fruit & Vegetable

compartment, remove water with a

soft dry cloth.

·Adjust the level through Leveling

Screws.

TROUBLE SHOOTING TIPS

PROBLEMS CAUSES SOLUTIONS

When there is a

severe noise.

·The refrigerator is installed on an

uneven floor.

·The Leveling Screws are set incorrectly.

·The refrigerator is touching back wall.

·Compressor tubes are touching one

another.

·Check the installation place.

See page # 4.

·Adjust the Leveling Screws.

See page # 4.

·Give sufficient space as described

on page # 4.

·Separate them softly.

When food freezes in

the refrigerator

compartment.

·The thermostat knob is at its maximum

position 7 or 8.

·The ambient temperature is too low.

·Set the thermostat position

appropriately. See page # 6.

When there are

dewdrops in the

Refrigerator interior.

·The refrigerator door is being opened

frequently or left open for longtime.

·High moisture air or humidity during

monsoon season.

·Keep the door closed and avoid

frequent opening of door.

·Clean the interior with soft dry

cloth.

When there are

dewdrops on the

Refrigerator exterior.

·High moisture air or humidity during

monsoon season.

·Wipe with a soft dry cloth.

When outer cabinet

gets warm.

·Built-in heating system is used. ·No remedial action required.

TROUBLE SHOOTING TIPS

Do not splash water directly on

the refrigerator. Water impairs

the insulation of electric parts

and may cause an electric shock

or a shock hazard

Do not allow anything to rest on

the power cord. Do not locate

this product where the cord will

be abused by persons walking

on it.

Avoid using flammable sprays

such as lacquer and paint near

the refrigerator.

Do not allow infants to hang on

the door, they may get hurt or

could damage the appliance.

BENZENE

ETHER

ADHESIVE

GASOLENE

Do not leave the doors open for

longer period because it can

affect the efficiency of the

refrigerator.

Do not store volatile chemicals

such as ether and benzene in the

refrigerator. The fumes besides

damaging food can buildup and

cause an explosion.

Do not use the refrigerator if it is not

operating correctly or has been

damaged. Disconnect it from the

power supply and call PEL

Customers Service Center or PEL

authorised work shops.

Do not use extension cords as this

can result in the risk of fire or

electric shock.

To prevent fire or electrical shock hazard do not expose this product to

rain/moisture or wet locations.

CAUTION:

SAFETY PRECAUTIONS

Ref. Serial No._____________________ Compressor Serial No. _______________

Model No. ________________________ Date of Purchase ___________________

Buyer’s Name _______________________________ Phone No. _______________

Buyer’s Address _____________________________________________________

___________________________________________________________________

E-mail _____________________ Authorized dealer stamp ____________________

This non-transferable warranty applies to the original buyer only and the unit must have been

purchased from PEL or one of its authorised dealers to avail the warranty coverage.

PEL Refrigerator Warranty

PAK ELEKTRON LTD.

Customer Services Department

14 Km, Ferozepur Road, P.O Box 1614, Lahore, Pakistan.

Ph: 042- 5811951- 59, Fax: 042-5810156, 5822682

www.pel.com.pk

(To be filled in by the customer & sent back to PEL for necessary registration.)

Sr. No.

(Company’s copy)

ear

Cmpre sor

Pa ts

Yare

WARRANTY CERTIFICATE

WARRANTY FOR PEL REFRIGERATOR

PEL refrigerators are made par excellence and are free from all workmanship and material defects.

A. Compressor Warranty:

This warranty covers free replacement of a faulty COMPRESSOR with a new or functionally operative compressor only once

within five years from the date of its production*.

B. Cabinet & Parts Warranty:

PEL refrigerators are also backed by a 1-year warranty against rust on cabinet, by either repair or replacement. Other parts

of PEL refrigerator, which if found defective in material or workmanship within 1- year from the date of purchase, will be replaced

or repaired free of cost, however, this does not cover bulbs, grid shelves, plastic and rubber accessories.

C. Terms and conditions:

1. * The Warranty period will commence from the date of production, which will be considered as date of purchase . However

06 months relaxation will be given from actual production date irrespective of the date of purchase.

2. Customer has to pay Rs. 150/- as visit fee in case of complaint after one month of date of purchase.

3. Transportation will be charged from the customers in case complaint is registered after one

month of date of purchase.

4. In case of complaint after 01 year from the date of purchase, the cost of spare parts and

labour will be borne by the customer.

5 Gas charges will be payable by the buyer, after one year of date of purchase.

6 No claim will be entertained unless the warranty certificate has been registered at our following office within fifteen

days of purchase.

7. This non-transferable warranty applies to the original buyer only and the unit must have been purchased from PEL or

one of its authorised dealers to avail the warranty coverage.

8. It is the obligation of the buyer to supply proper voltage and check the domestic electrical wiring before installation.

9. The warranty will become null & void in case of following:

a. Any defect arising out of improper wiring, high/low voltage, short-circuiting or use of a substandard voltage

stabilizer.

b. The warranty does not cover any part of the refrigerator, which may have been subjected to misuse, neglect,

breakage or accident.

c. If the unit is given to any un-authorized dealer/workshop or tampered with or it's serial numbers are illegible,

Company’s decision regarding any warranty claim would be considered as final.

PAK ELEKTRON LTD: 14 Km, Ferozepur Road, P.O Box 1614, Lahore, Pakistan.

Ph: 042- 5811951- 59, Fax: 042-5810156.

Customer Services Department

Ref. Serial No._____________________ Compressor Serial No. _______________

Model No. ________________________ Date of Purchase ___________________

Buyer’s Name _______________________________ Phone No. _______________

Buyer’s Address _____________________________________________________

___________________________________________________________________

E-mail ____________________ Authorized dealer stamp ____________________

This non-transferable warranty applies to the original buyer only and the unit must have been

purchased from PEL or one of its authorised dealers to avail the warranty coverage.

PEL Refrigerator Warranty

PAK ELEKTRON LTD.

14 Km, Ferozepur Road, P.O Box 1614, Lahore, Pakistan.

Ph: 042- 5811951- 59, Fax: 042-5810156, 5822682

www.pel.com.pk

Customer Services Department

(CSD’s copy)

Sr. No.

ear

Cmpre sor

Pa ts

Yare

WARRANTY CERTIFICATE

WARRANTY FOR PEL REFRIGERATOR

PEL refrigerators are made par excellence and are free from all workmanship and material defects.

A. Compressor Warranty:

This warranty covers free replacement of a faulty COMPRESSOR with a new or functionally operative compressor only once

within five years from the date of its production*.

B. Cabinet & Parts Warranty:

PEL refrigerators are also backed by a 1-year warranty against rust on cabinet, by either repair or replacement. Other parts

of PEL refrigerator, which if found defective in material or workmanship within 1- year from the date of purchase, will be replaced

or repaired free of cost, however, this does not cover bulbs, grid shelves, plastic and rubber accessories.

C. Terms and conditions:

1. * The Warranty period will commence from the date of production, which will be considered as date of purchase . However

06 months relaxation will be given from actual production date irrespective of the date of purchase.

2. Customer has to pay Rs. 150/- as visit fee in case of complaint after one month of date of purchase.

3. Transportation will be charged from the customers in case complaint is registered after one

month of date of purchase.

4. In case of complaint after 01 year from the date of purchase, the cost of spare parts and

labour will be borne by the customer.

5 Gas charges will be payable by the buyer, after one year of date of purchase.

6 No claim will be entertained unless the warranty certificate has been registered at our following office within fifteen

days of purchase.

7. This non-transferable warranty applies to the original buyer only and the unit must have been purchased from PEL or

one of its authorised dealers to avail the warranty coverage.

8. It is the obligation of the buyer to supply proper voltage and check the domestic electrical wiring before installation.

9. The warranty will become null & void in case of following:

a. Any defect arising out of improper wiring, high/low voltage, short-circuiting or use of a substandard voltage

stabilizer.

b. The warranty does not cover any part of the refrigerator, which may have been subjected to misuse, neglect,

breakage or accident.

c. If the unit is given to any un-authorized dealer/workshop or tampered with or it's serial numbers are illegible,

Company’s decision regarding any warranty claim would be considered as final.

PAK ELEKTRON LTD: 14 Km, Ferozepur Road, P.O Box 1614, Lahore, Pakistan.

Ph: 042- 5811951- 59, Fax: 042-5810156.

Customer Services Department
