PELHAM & WHITE PWS101 User manual

Product Features
• High quality 16-Gauge 304 stainless steel alloy
• Sound deadening rubber pads and undercoating
• 10mm/0.4” radius corners for easy cleaning
• Includes stainless steel wire grid
• Includes stainless steel strainer drain
Unpack and inspect your sink upon delivery to avoid costly contractor delays
Rough-In Dimensions
Observe all applicable plumbing codes in your municipality
This sink is intended only for under-counter installations of solid-surface composite or natural
stone countertops. It should never be installed in laminated countertops. Thus, specialized
tools are required. It is highly recommended that this product be installed by professionals.
Section A-A
10”
9.6”
4.7”
16” 18”
1” 28”
30”
3.5”
4.5”
MINIMUM CABINET SIZE:
AT LEAST
33” WIDE
Model(s): PWS101 / PWS101-A
PWS101-C / PWS101-D

Pelham & White reserves the right to make specication and pricing changes without notice or obligation, and to change or discontinue models and nishes.
548 South Columbus Avenue • Mount Vernon, New York 10550
1-855-561-5222 • www.pelhamandwhite.com All rights reserved. Copyright Pelham & White 2023.
Installation
Installer:
• Template supplied with product is for
reference only. Be sure to double check
with the actual sink before cutting opening.
Be sure to properly allow clearance for the
mounting hardware, faucet, and other sink
accessories.
• Mounting anchors and brackets have been
supplied with this product, but it is always
best to use your own preferred methods
of sink securement and attachment, given
the different applications and countertop
materials that may be involved.
• Mounting the faucet to the countertop before
installing sink is highly recommended.
Silicone
Adhesiv
e
And
Care
Stainless steel sinks are durable, but they do benet from proper care. If you want your sink
to always look it’s best we recommend the following:
• Clean using a non-abrasive, mild detergent.
• Use only a sponge or soft cloth for cleaning.
• Avoid using steel wool for cleaning anything within the sink.
• Remove any cast iron or steel pans promptly after cleaning.
• Keep the sink clean, dry and empty when not in use.
• Don’t leave sponges and other wet items in the sink.
• If you want to avoid water spots, wipe your sink dry after each use.
Warranty
Limited lifetime warranty on residential applications or limited one year for commercial
applications extended to the original purchaser or owner covering defects in material
and workmanship. Excluded is damage done to the surface by disregarding the care
recommendations provided in the installation instructions, or improper installation. This
warranty does not cover products not installed by a qualied professional installer. Warranty
covers replacement of the defective product only and does not cover installation or other
consequential costs or damages.

Product Features
• Stainless steel PVD nish
• Ceramic disc cartridge
• Dual-mode metal sprayer
• Lever style handle
• Integrated supply lines with 3/8” compression
connections
• Max ow rate: 1.8 GPM @ 60 PSI
Product ID tag can be found
on the hot supply line.
Las etiquetas de
identificación del
grifo
se encontrarán en la tubería
de alimentación de agua caliente.
DATE CODE :
DO NOT REMOVE
Model# :
1-888-560-5222
GIAGNI
HOT
Kinkingwill weaken hoses and can reduce water fl ow.
Avoidinstalling hoses that could cause them to kink.
Sise retuercen las mangueras, se debilitan y se reduce el flujo de agua.
Eviteinstalar mangueras que puedan retorcerse .
Destuyaux entortill és sont moins solides et peuvent réduire le débit d'eau.
Éviterd'installer des tuyaux susceptibles de s'entortiller.
CAUTION/ CUIDADO / ATTENTION
7PLFP0083ND
Single-Handle Pull-Down Sprayer
Model: FP4AF222
If you contact Customer Service, you will need the Model#, Serial
Number and Date Code.
Please locate the Product ID tag and Serial number tag.
Please record the serial number and date code here
BEFORE YOU INSTALL:
Si se comunica con Servicio al Cliente, necesitará el modelo #,
número de serie y código de fecha.
Por favor, busque la etiqueta de identicación del producto y la
etiqueta del número de serie.
Anote el número de serie y el código de fecha aquí
ANTES DE INSTALAR:
Serial Number
número de serie
Please attach your receipt for proof of purchase.
Adjunte su recibo como prueba de compra.
Date Code
Fecha Código
BEFORE INSTALLATION / ANTES DE LA INSTALACIÓN

MOUNT FAUCET / GRIFO DE MONTAJE
Turn off water supplies
Cierra los suministros de agua
Remove hardware
Quitar hardware
Unscrew the pre-assembled guide
washer screws on guide washer until
they are ush with the face of the
guide washer.
Retire los tornillos preensamblados
en la arandela guía hasta que estén
al ras con la cara de la arandela guía.
Re-Assemble hardward and
tighten
Reensamble los herrajes y
apriete

CONNECT FAUCET FLUSH LINES AND TEST / CONECTE LAS LÍNEAS DE DESCARGA DEL GRIFO Y PRUEBE
Install weight
Instalar peso
Replace Sprayer
Reemplace el pulverizador
Remove Sprayer
Quitar pilverizador
PUSH to Connect
PULSAR para conectar
Turn on water and ush lines
Encienda el agua y las líneas de descarga
Connect supply hoses
Conecte las mangueras de suministro
Remove cap
Quite la tapa

Leak from under handle.
Goteo debajo de la llave.
Damaged cartridge.
El cartucho está dañado.
Remove handle. Replace cartridge.
Retire la manija. Reemplace el
cartucho.
TROUBLESHOOTING / SOLUCIÓN DE PROBLEMAS
PROBLEM
PROBLEMA
POSSIBLE CAUSE
CAUSA POSIBLE
CORRECTIVE ACTION
ACCIÓN CORRECTIVA
Inconsistent water ow pattern.
El ujo de agua es irregular.
Cartridge needs to be replaced.
Se necesita reemplazar el cartucho.
Remove handle assembly, trim cap
and locking nut. Take out existing
cartridge and discard. Replace with
new cartridge and reassemble.
Retire el ensamble de la manija, la
tapa para el reborde y la
contratuerca. Saque el cartucho
existente y deséchelo. Reemplácelo
por un nuevo cartucho y vuelva a
ensamblar.
CARE AND MAINTENANCE / CUIDADO Y MANTENIMIENTO
• Clean periodically with a soft cloth. Avoid abrasive cleaners, steel wool, and harsh chemicals as these will dull the
nish and void your warranty.
• Limpie periódicamente con un paño suave. Evite utilizar limpiadores abrasivos, lana de acero y químicos agresivos,
ya que pueden dañar el acabado y anular la garantía.

WARRANTY / GARANTÍA
The manufacturer warrants this faucet to be free from defects in workmanship and material present at time of shipment
from the factory for a limited lifetime from the date of purchase. This warranty applies only to the original purchaser.
The manufacturer agrees to correct such defects at no charge or, at our option, replace the faucet with a comparable or
superior model. You may be required to present a copy of your sales receipt as proof of purchase. All cost of removal
and reinstallation are the expressed responsibility of the purchaser. Any damage to the faucet by accident, misuse or
improper installation, or by axing accessories not produced by the manufacturer, are the purchaser’s responsibility.
The manufacturer assumes no responsibility whatsoever for faucet installation during the warranty period. There is
no further expressed warranty. The manufacturer disclaims any and all implied warranties. The manufacturer shall not
be liable for incidental, consequential or special damages arising at or in connection with product use or performance
except as may otherwise be accorded by law. This warranty gives you specic legal rights, and you may also have other
rights which vary from state to state, province to province. This warranty supersedes all prior warranties.
El fabricante garantiza que este grifo no presenta defectos en la mano de obra ni en los materiales presentes en el
momento del transporte desde la fábrica durante un período limitado de por vida a partir de la fecha de compra. Esta
garantía es válida sólo para el comprador original. El fabricante acepta reparar dichos defectos sin cargo o, según
nuestro criterio, reemplazar el grifo por un modelo comparable o superior. Es posible que se le exija presentar una copia
del recibo de venta como comprobante de compra. Todos los costos de extracción y reinstalación son de responsabilidad
explícita del comprador. Cualquier daño al grifo producido por accidente, uso indebido o instalación incorrecta, o a causa
del uso de elementos accesorios que no son del fabricante, será responsabilidad del comprador. El fabricante no asume
ningún tipo de responsabilidad por la instalación del grifo durante el período de garantía. No existe otro tipo de garantía
explícita. El fabricante rechaza cualquiera y todas las garantías implícitas. El fabricante no se hará responsable por
daños accidentales, resultantes o especiales que surjan en relación con el uso o el funcionamiento del producto, excepto
que la ley indique lo contrario. Esta garantía le otorga derechos legales especícos, pero podría tener también otros
derechos que varían de estado/provincia a estado/provincia. Esta garantía sustituye cualquier garantía previa.

1
3
7
11
4
6
10
94132-1
94132-3
94132-7
94132-11
94132-4
94132-6
94132-10
Handle Cap Assembly / Ensamblaje del Tapón
Handle Trim Ring / Capuchón ornamental de la manija
Clip / Seguro
Weight / Pesas
Adjusting Ring / Anillo de ajuste
Hose Sleeve / Manguera de Manga
Hose Adapter / Adaptador de manguera
2
5
8
12
9
13
94132-2
94132-5
94132-8
94132-12
94132-9
94132-13
Metal Handle / Ensamblaje de manija metálicas
Ceramic Disc Cartridge / Cartucho de disco cerámico
Spray Head 1.75gpm / Cabezal del rociador 1.75gpm
Spray Hose 67 ‘’ / Manguera del rociador 67 ‘’
Mounting Hardware Assembly / Ferreterria de montaje
Spring / Resorte
PART
PIEZA DESCRIPTION / DESCRIPCIÓN PART # PIEZA #

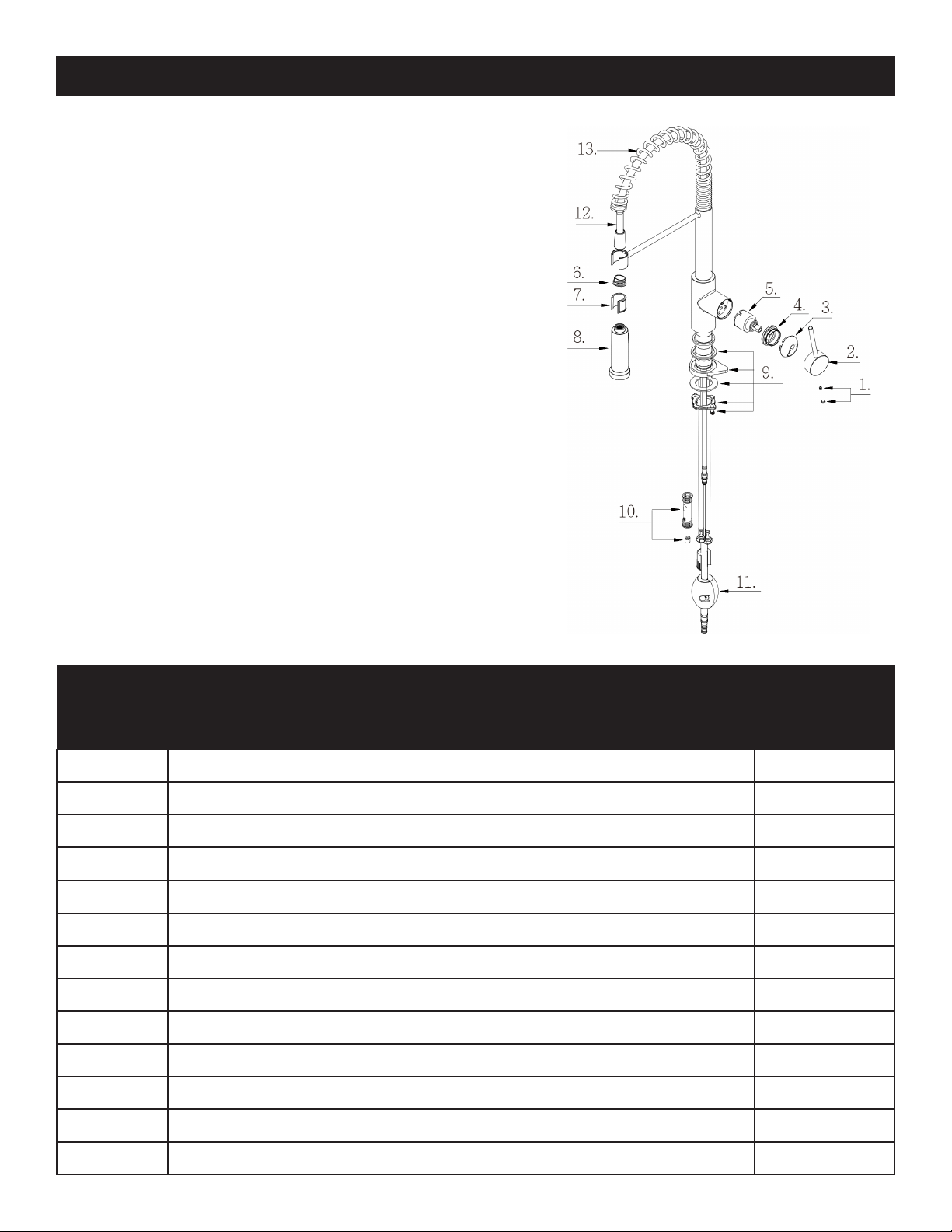

REPLACEMENT PARTS LIST / LISTA DE PIEZAS DE REPUESTO
For replacement parts, call our customer service department.
Para obtener piezas de repuesto, por favor póngase en contacto
con Servicio al Cliente.
