pellenc EXCELION 2000 User manual
53_107869_G -
02/2018
Quartier Notre-Dame
84120 Pertuis (FRANCE)
Tél : +33 (0)4 90 09 47 00
Fax : +33 (0)4 90 09 64 09
www.pellenc.com
USER GUIDE
ENG
EEEIEEEOEE
BRUSH CUTTER
EXCELION 2000
ONEN
•Brush cutter with safety parts
•An adjusting key
•Comfort harness strap
•A user guide
ONEN
SAFETY INSTRUCTIONS 4
ENEEINIONOEOO ..........................................................................5
ENINOEEEIONENIE ................................................6
EEEOIEIENEE.........................................................7
EEIEN ....................................................................................................8
EIN .......................................................................................................8
DESCRIPTION AND TECHNICAL CHARACTERISTICS 9
ENIEE .................................................................................................10
PUTTING THE MACHINE INTO SERVICE 11
NEEININ ...................................................................................11
EIEOENE .............................................................11
EIEOEINE ..............................................................12
EIEOEEOEIEOOE ........................................12
INEOKINOIION ....................................................................................13
INEOIENIONOENE .......................................................................13
NEENOENE .....................................................................14
EINprovided with the toolOEOONEoption)..............................................14
INENIN ..................................................................................................15
USAGE 15
EONONOKINEIIEN .........................................................................17
OINE ..............................................................................................19
INE ...............................................................................................21
INE ........................................................................................................23
IINE..............................................................................................25
EINE .............................................................................................27
IINE ...............................................................................................28
EIEENOKENIE .....................................................................................29
MAINTENANCE 31
NENIIONIION ....................................................................................32
ENONEEEENE .........................................................................32
INCIDENTS 38
PELLENC. WARRANTY AND AFTER SALES SERVICE 41
"EC" STATEMENT OF COMPLIANCE 42
4
■SAFETY INSTRUCTIONS
PLEASE SAVE THESE INSTRUCTIONS
E
IIMPERATIVEENTIRE
All through this user guide you will nd advisory notes and information entitled: EK, ION/NIN.
AEK provides additional information, claries a point or explains a step to be followed in detail.
The ION and NIN advisories are used to dene a procedure which, if neglected or incorrectly performed,
may lead to serious damage to the equipment and/or personal injury.
This advisory:
G
indicates that if the procedures or instructions are not complied with, any damage will not be covered
by the warranty and the owner will be responsible for the repair costs.
Safety indications are also given on the tool; they remind you of the safety precautions to be taken. Identify and read
these indications before using the tool. Immediately replace any indications that may become partially illegible or
deteriorated.
EINIION
No part of this manual may be reproduced without the written consent of PELLENC. The illustrations given in this manual
are for information purposes and are in no way contractual. PELLENC reserves the right to make any modication
or improvement to its products as deemed necessary without informing customers already in possession of a similar
model. This manual forms an integral part of the tool and must accompany the tool if it changes hands.
5
■SAFETY INSTRUCTIONS
•The Excelion 2000 Professional brush cutter is a professional tool to be used exclusively for cleaning green areas
(grass, dense grass, woody weeds, brambles and small shrubs).
•The PELLENC company declines all responsibility for any damage caused by improper or unspecied use other
than that for which it is intended.
•The PELLENC company also declines all responsibility for any damage caused by the use of non-original parts or
accessories.
ENEEINIONOEOO
WARNING
OKEE
Keep the work area clean and well lit.
Do not operate power tools in an explosive atmosphere, for example in the presence of ammable liquids, gases,
or dust.
Keep children and persons present away when using the tool.
EEIE
The power tool's connector must be adapted to the socket. Never modify the plug in any way. Do not use adaptors
with grounded tools.
Avoid any body contact with grounded surfaces such as pipes, radiators, cookers and refrigerators.
Do not expose tools to the rain or damp conditions.
Do not misuse the power cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep the
power lead away from heat, lubricant, sharp edges or moving parts.
When using a tool outdoors, use an extension adapted to outdoor use.
If you must use a tool in a damp place, use power supply protected by a residual current device (RCD).
EONE
Stay alert, watch what you are doing, and use common sense when operating the tool. Do not use a tool if you
are tired or under the inuence of drugs, alcohol or medication.
Use personal safety equipment. Always wear eye protection.
Avoid any untimely starting of the device. Make sure the switch is in the off position before connecting the tool to
the mains and/or battery pack, picking it up or carrying it.
Remove any adjusting wrenches before switching the tool on.
Do not rush. Keep proper footing and balance at all times.
Dress appropriately. Do not wear loose clothing or jewellery.
Keep hair, clothing and gloves away from moving parts.
If devices are provided for connecting dust extraction and collection equipment, ensure that these are connected
and properly used.
6
ENINOEEEIONENIE
Do not use the metal cutting tools near walls, fences, tree trunks, rocks or similar obstacles. Contact with these
types of elements can cause a rebound effect, increase the risk of ricochet and damage the cutting tool. Pellenc
recommends using the CITY CUT for such work conditions.
Clear the work zone of all obstacles (glass, stone, metal, waste, and other solid objects) as they can be projected
when working with the cutting tool.
Never use the Excelion 2000 Professional brush cutter with only one hand.
Always use the machine with the cutting head parallel to the ground. The safety guard no longer provides sufcient
protection if the angle of the cutting head is excessive, which is likely to increase the risk of injury.
Stop the Excelion 2000 Professional brush cutter immediately if the cutting tool starts responding differently (different
noise, increased vibrations). Check that the cutting tool is properly attached and verify its condition (no distortion,
sufciently sharp). Replace any damaged cutting tool as it can explode and cause serious, even fatal injuries.
CAUTION: The cutting tool continues rotating for a few seconds after the control trigger has been released.
Always keep your hands and feet clear of the rotating cutting tool.

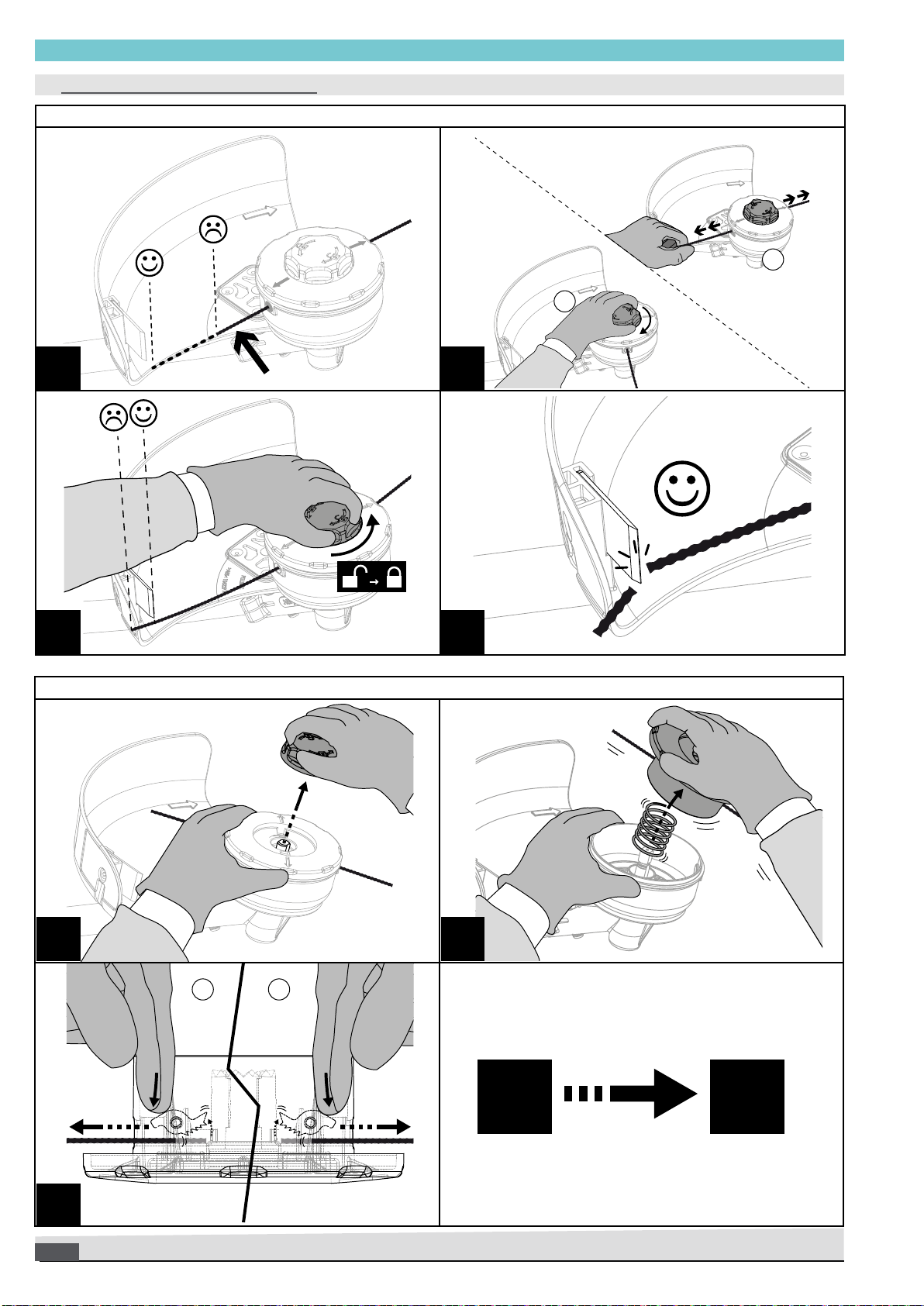

Cutting wire
•Never remove the blade installed in the safety guard as it trims the wire to the appropriate length.
•Never use metal wire or any other material instead of the nylon cutting wire. Metal wire is likely to break and be
projected, causing serious injuries.
•Only use nylon cutting wire recommended by Pellenc with a max. diameter of 3 mm.
Cutting blades
Always use an original Pellenc cutting tool.
■SAFETY INSTRUCTIONS
OOENINENNE
Do not force the tool. Use the tool adapted to your application.
Do not use the tool if the switch does not allow switching between on and off positions.
Disconnect the plug from the power source and/or battery pack prior to any adjustment, change of accessories,
or before putting the tool away.
When not in use, keep tools out of reach of children, and do not allow people to use the tool if they do not know
how to use it and if they are not familiar with these instructions.
Comply with the tool servicing instructions. Check that the moving parts are not out of alignment or jammed, that
there are no broken parts or that there is no other condition which could affect the operation of the tool. In case of
damage, get the tool repaired before using it.
Keep the cutting elements sharp and clean.
Use the tool, accessories and blades, etc. in accordance with these instructions, taking into account the working
conditions and the work to be carried out.
EOEOEEOONEEION
Only recharge using the charger specied by the manufacturer.
Only use the tools with specically designated battery packs.
When a battery pack is not used, store it away from other metal objects such as paper clips, coins, keys, nails,
screws or other small items which can form a connection from one terminal to another.
If in bad condition, a liquid may be ejected from the battery; avoid all contact. In the event of accidental contact,
clean with water. If the liquid gets into your eyes, seek medical help.
INENNENKEE
Have the tool serviced by a qualied technician, using only identical spare parts.
7
53_13_086A 53_13_087A
53_12_050B
53_13_070B
EEEOIEIENEE
Keep the original packaging for storing the Excelion 2000 Professional brush cutter in the possible event of shipping the
tool for overhaul or repair.
Never carry the machine or the battery by the power cord.
Always release the control trigger to stop the electric motor and ensure the cutting tool is no longer moving before putting
the machine on the ground.
Place metal cutting tool(s) in their original packaging, or place them in their transport bag.
Put the battery back in its original packaging.
Turn the handlebar so that it is aligned with the pole to facilitate the transport of several tools.
Secure the packed machine and battery in the transport vehicle.

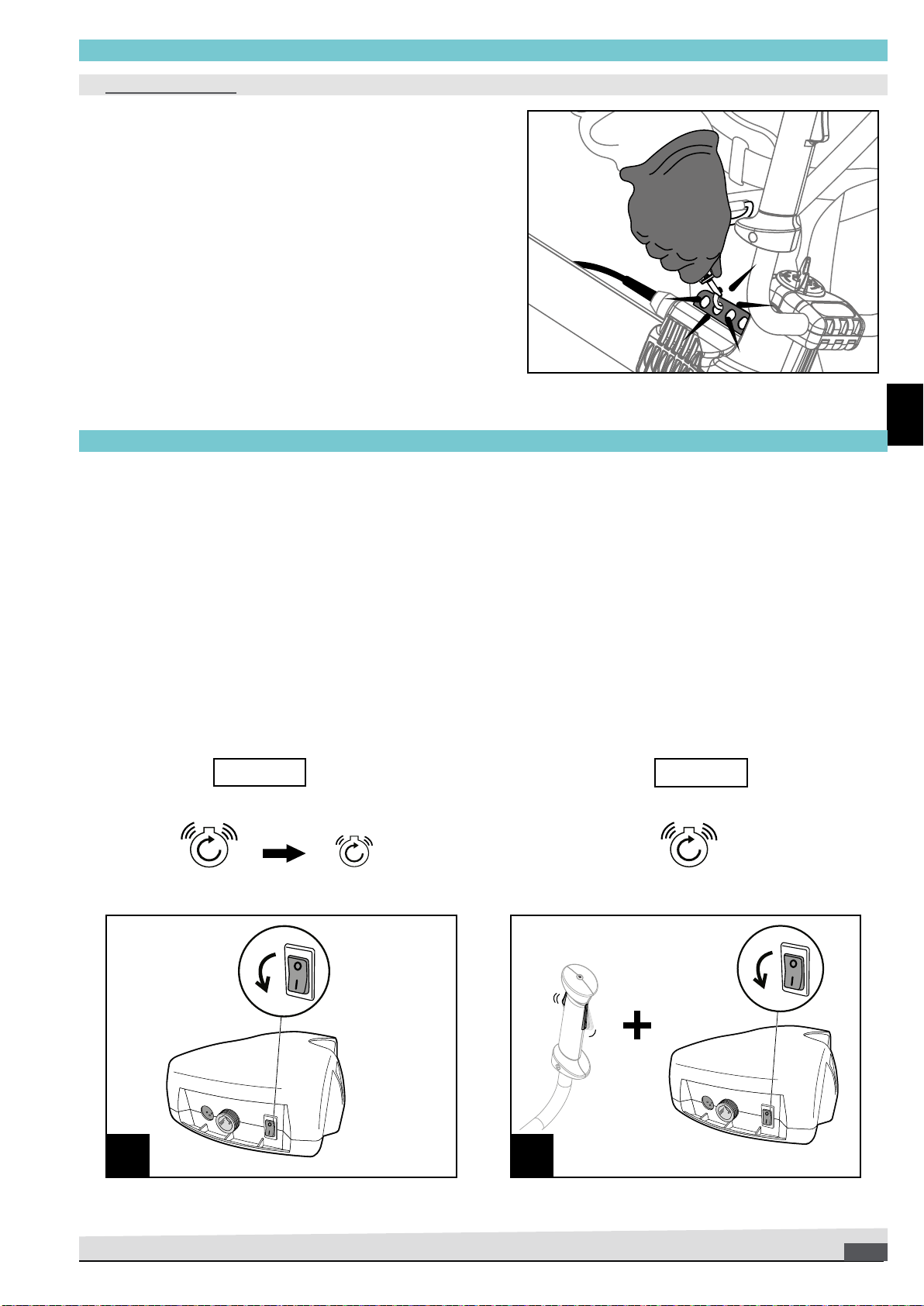

A rapid tool release system makes it possible for operators to get away quickly from the tool.
storage of the Excelion 2000 Professional brush cutter
Keep the original packaging for storing the machine
Store the machine in a dry place out of children's reach.
Lubricate the output shaft angle during prolonged storage.
E

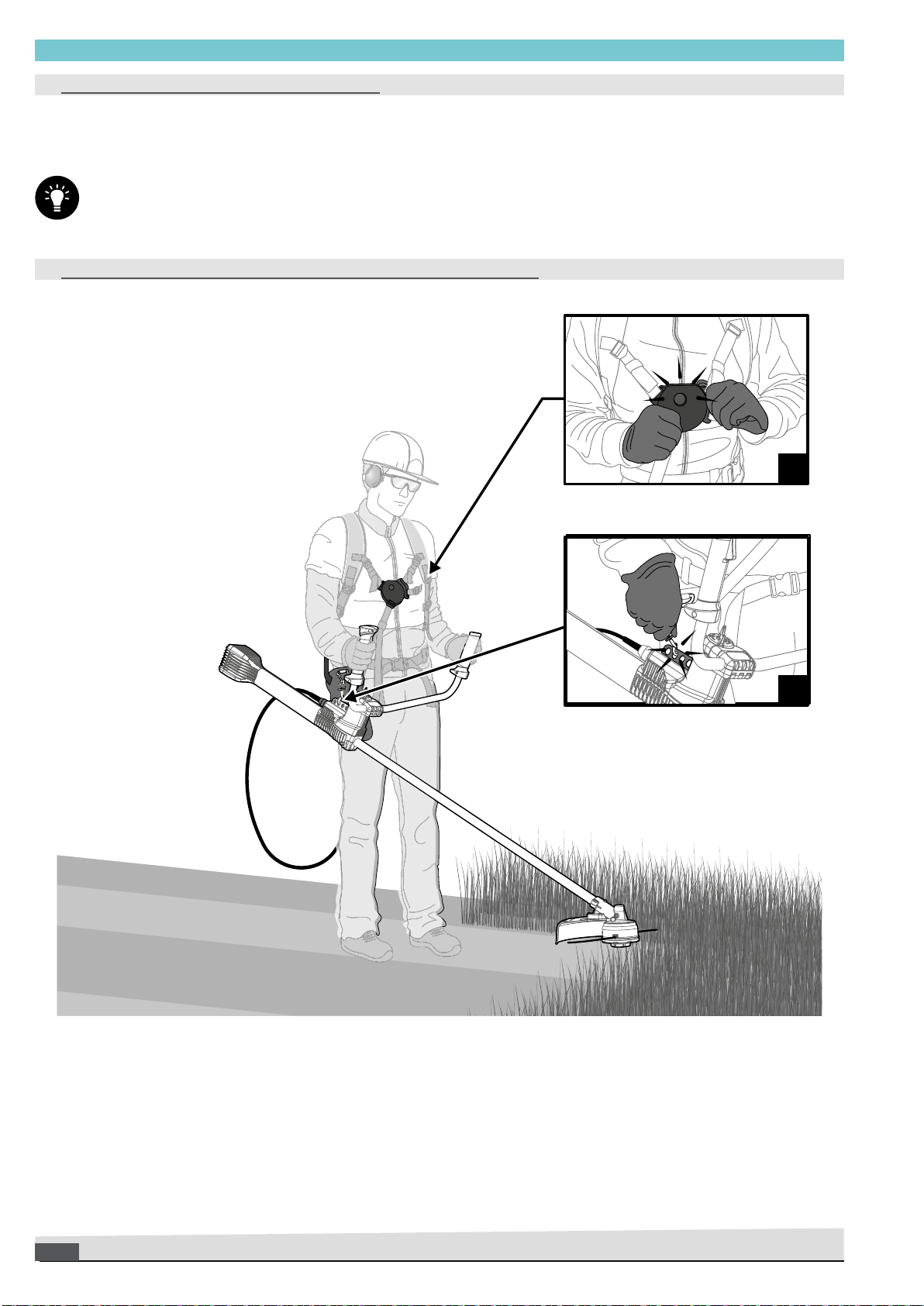

emergency release of the Excelion 2000 professional brush cutter
■SAFETY INSTRUCTIONS
8
53_12_006C
1
3
2
4
5
6
7
8
9
10
5
6
7
8
1
2
3
4

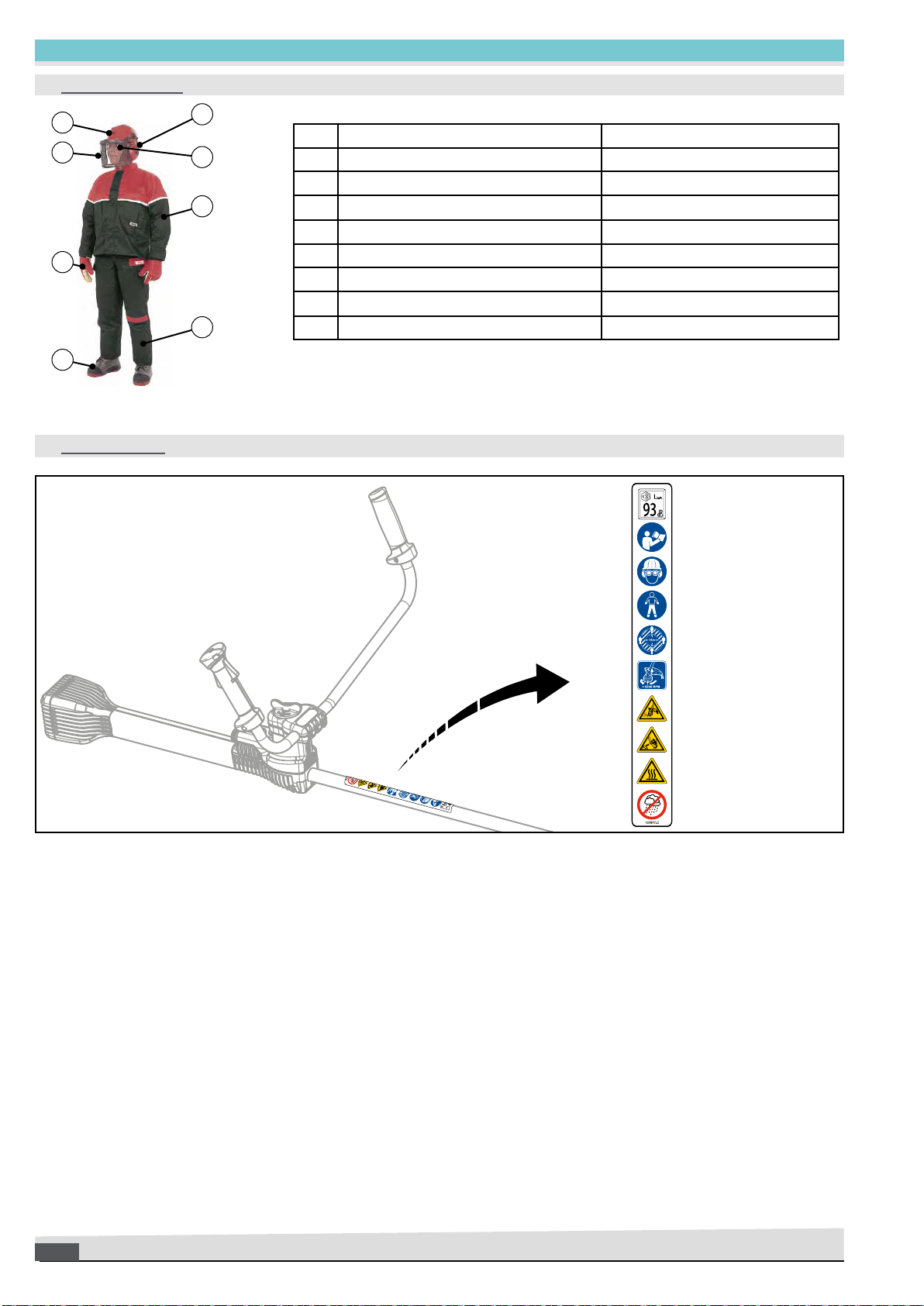

1Helmet Mandatory
2 Visor Mandatory
3Resistant work gloves Required
4Safety footwear Required
5Ear protection Required
6Safety goggles Mandatory
7Safety jacket or over-sleeves Recommended/advised
8Work trousers Required
■SAFETY MEASURES
EEIEN
■SAFETY INSTRUCTIONS
EIN
NSound power 93 dB
Read the instructions carefully and follow the safety precautions.
Pellenc recommends wearing a protective visor for the face and
an approved safety helmet.
Be sure to maintain an adequate safety distance of 15 m and ensure that
there are no people (especially children) or animals in the working area of the machine. Stop the machine immediately
if a person or animal approaches.
Be aware of the direction of rotation of the Excelion
2000 Professional brush cutter. This is indicated on the safety guard.
Avoid all contact between the blade and solid objects.
Do not touch the engine crankcase and the radiator of the electronic motor control board either during
or immediately after use of the machine.
9
56_10_016A
1 2 3 4 5 6 7 8 9 10 11
12
NIN
OO
■DESCRIPTION AND TECHNICAL CHARACTERISTICS

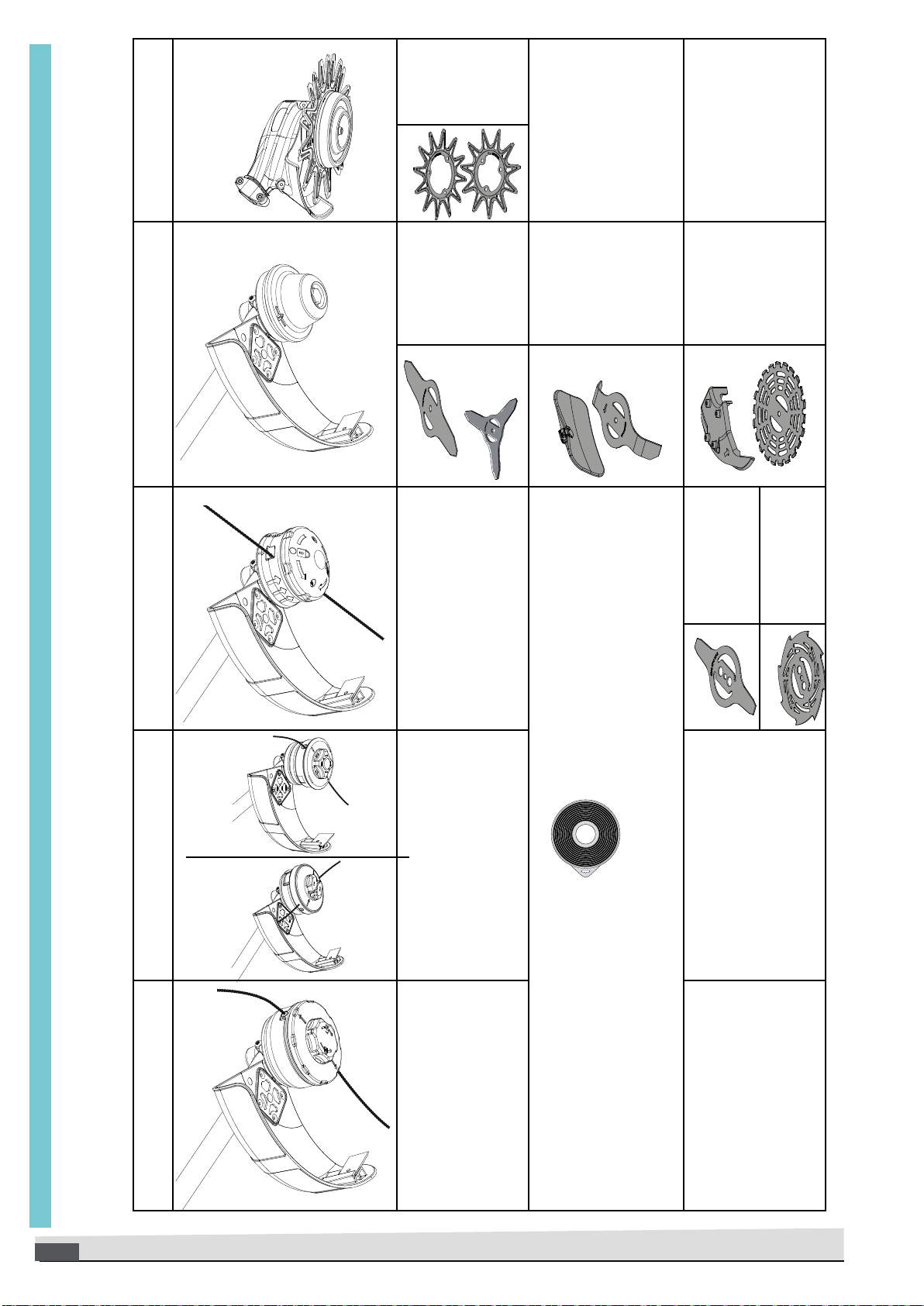

The Excelion 2000 Professional brush cutter is supplied without a cutting head:
They must be ordered independently.
Protects the electric motor and allows heat to dissipate.
Used to guide and manoeuvre the Excelion 2000 Professional brush cutter
Connects the machine to the Pellenc power tool battery.
Used to hang the tool from the user’s harness.
Protects the control circuit board and allows heat to dissipate.
Used to adjust the angle of the handlebar and put the tool in its transport position.
Prevents inadvertent activation of the control trigger; the safety trigger must be activated prior to
activating the control trigger.
Limits the risk of the operator being hit by ying objects (stones, bits of metal). A blade attached to
the safety guard makes it possible to obtain the correct length for the cutting wires.
Limits the risk of the operator being hit by ying objects (stones, bits of metal, etc.). A blade attached
to the rim of the safety guard makes it possible to adjust the length of the cutting wires.
10
ENIEE
Excelion 2000
Model Version
Cutting head: ROLL CUT
Power in Watts 2000*
Weight (excluding cutting tool and safety guard) in kg 5.4
Dimensions (l x w x h) in mm 1,800 x 450 x 225
Cutting diameter in mm 340
Rotational speed in rpm 2,000 to 6,200
Battery life Depending on the use and type of battery
■DESCRIPTION AND TECHNICAL CHARACTERISTICS
Determination of the sound levels and vibration rates is based on the operating conditions at the nominal maximum speed.
* Optimal functioning will be obtained with a tool whose serial number is higher than 53P00821 plus a 700 battery (starting
from serial no. 56N07968) or an 1100 battery (starting from serial no. 56N01725)
Maximum weighted acoustic pressure level A (ref. 20 µPa) at the user's position LpA = 84 dB(A) K = 2.5 dB(A)
Weighted peak sound pressure level C (ref. 20 µPa) at the user's position LpC < 130 dB(C)
Values dened according to sound measurement standards NF EN ISO 11201 and NF EN ISO 3744.
Symbol Value Unit Reference Comment
LWAm 92 dB(A) 1 pW Measured sound power level
LWAg 93 dB(A) 1 pW Guaranteed sound power level
The recording of the measured sound power level and of the guaranteed sound power level has been performed according
to a procedure in accordance with directive 2000/14/EC appendix V.
Values measured at maximum rated speed*
ahvalue
of the
right wrist
measured
in m/s²
ahvalue
of the
left wrist
measured
in m/s²
MultiCut
Ø3 wire 1.7 2.1
Ø3 wire 1.7 2
Twin blade 1.5 1.3
8 teeth 2.4 2
RollCut Ø3 wire 1 1.3
Ø3 wire 1.9 2
TapCut Ø3 wire 3.8 3.2
Ø3 wire 3.5 3.5
TapCut 2 Ø3 wire 3.9 3.3
Ø3 wire 3.7 1.9
BladeCut
Twin blade 3.5 4.5
Trident 3.5 4.5
Mulching 2.7 2.1
Saw 2.6 2.4
CityCut Blades 1.2 1
Values measured at maximum rated speed in eco
mode*
ahvalue
of the
right wrist
measured
in m/s²
ahvalue
of the
left wrist
measured
in m/s²
MultiCut
Ø3 wire 1.4 1.3
Ø3 wire 1.5 1.2
Twin blade 1 0.9
8 teeth 1.9 1.5
RollCut Ø3 wire 1 0.8
Ø3 wire 1.6 1.8
TapCut Ø3 wire 4.4 3.5
Ø3 wire 3.6 2.7
TapCut 2 Ø3 wire 2.6 1.6
Ø3 wire 2.6 1.6
CityCut Blades 1.1 0.8
Vibration emission values according to EN 60745-1, EN ISO 22867:
*Measurement uncertainty: K = 1.5 m/s²
*Measurement uncertainty: K = 1.5 m/s²
11
53_12_012B 53_12_013B
53_12_008A
53_12_009A
53_12_011B
53_12_010B
A
CD
B
1
1
2
2
3
1 2
3
A B
EIEOENE
■PUTTING THE MACHINE INTO SERVICE
NEEININ
*supplied with the tool
12
53_14_023E
53_14_025A
53_14_024C
53_14_026A
BC
A B
A
■PUTTING THE MACHINE INTO SERVICE
EIEOEINE
EIEOEEOEIEOOE
To properly position the mulching safety guard, use the key
as a measuring guide and position it ush with the angle
gear of the tool. The distance between the angle gear and
the mulching safety guard should correspond to the length
of the key.
13
53_12_014B
53_12_017B
53_12_015B
53_12_016B
A B
CD
INEOKINOIION
Before using the Excelion 2000 Professional brush cutter, its working position must be adjusted to the operator's size.
This makes it easier for the operator to use and requires little effort.
Adjusting the machine's working position to the operator's size is a 3-step process:
adjusting the orientation of the handlebar,
installing and adjusting the harness,
balancing the machine.
These various adjustments are repeated until the brush cutter is in a suitable working position.
These operations help adjust the position of the handlebar to the shape of the user. Users must not work with their arms
stretched out or completely bent.
INEOIENIONOENE
■PUTTING THE MACHINE INTO SERVICE
14
2
1
53_12_019B
EINprovided with the toolOEOONEoption)
■PUTTING THE MACHINE INTO SERVICE
Adapting the length of the harness helps adjust the "vertical position" of the Excelion 2000 Professional brush cutter so
that it is within reach and the cutting head is pointing slightly downwards.
NEENOENE
15
2
1
53_12_019B
53_14_002A
6200 rpm
53_14_007A
53_14_001A
4200 rpm
6200 rpm
53_14_003A
A1 A2
1 - Position the harness equipped with its battery.
2- Attach the machine to the harness and make sure it is balanced and well adjusted.
4- Connect the power cord to the machine
5. Power up the tool to select one of the following operating modes:
3- Check that the cutting tool does not touch the ground. Make sure the work area is clear and there is nobody within a
15 metre radius. Check your safety devices.
INENIN
Put the harness hook on one of the 4 attachment positions
available on the tool.
Use the attachment point which gives you the best tool balance.
■USAGE
■PUTTING THE MACHINE INTO SERVICE
Mode 1 Mode 2
16
53_14_008A
53_14_004A
6200 rpm
53_14_009A
6200 rpm
X2 4200 rpm
53_14_005A
53_14_010B
X2
X2
X2
4200 rpm
4200 rpm
6200 rpm
6200 rpm
53_14_006A
B1
C1
D1
B2
C2
D2
■USAGE
The pressure exerted on the trigger makes it possible to progressively increase the speed to its maximum value.
The tool is now powered up and ready to operate.
17
53_12_054A
To optimise the autonomy of your PELLENC battery tool, the rotational speed of the cutting tool used must be adapted
to the type of mowing operation required.
The higher the rotational speed of the cutting tool is, the higher the energy consumption. Therefore the progressive
nature of the control trigger must be used to adjust the rotational speed of the cutting tool.
■USAGE
EONONOKINEIIEN
Type of Vegetation or operation Cutting tool recommended Rotational speed recommended
Edges PELLENC wire Ø 2,4 mm 2000 rpm (eco mode)
Lawn PELLENC wire Ø 2,4 mm 2000 rpm (eco mode)
Grass PELLENC wire Ø 3 mm 3000 rpm (eco mode)
Dense and tall grass PELLENC wire Ø 3 mm 6200 rpm
Tall, dense scrub brush Twin blade 3000 rpm (eco mode)
Woody plants 8-toothed blade 3000 rpm (eco mode)
Brambles, plant regrowths, shrubs Mulching blade 6200 rpm
Thinning Chisel-tooth saw 3000 rpm (eco mode)
Minimum speed
Minimum stroke
2000 rpm
Stop
Trigger released
Average speed
50% of the stroke
3000 rpm
Maximum speed
100% of the stroke
6,200 rpm
18
53_12_021B
DOC_53_17_016A
53_12_023B
53_12_025B
53_12_027B
53_14_048A
53_13_066A
53_14_049A
53_14_020B
53_12_022C
53_12_029B
+
53_12_024A
53_12_028B
+
53_13_067A
1- Head: ROLL CUT 2- Head: TAP CUT / TAP CUT 2 3- Head: MULTI-CUT 4- Head: BLADE CUT 5- Head: CITY CUT
For mowing large areas. The
diameter of the wire must be
adapted to the vegetation.
For mowing and clearing edges.
Mainly used in situations when the
cutting wire suffers signicant wear
and tear (along walls or fences).
For all types of mowing, requiring a
quick change of tools
Ø 320 mm
Mowing of
dense grass and
scrub brush
Ø 320 mm
Ø 230 mm
Ø 240 mm
Mulching of
woody weeds,
dense scrub or
thorny vegeta-
tionØ 2.4 PELLENC (up to 9 m) = lawn
Ø 3 PELLENC (up to 6 m)= dense grass and scrub brush
Ø 255 mm
For the mowing of
dense grass and
thick shrub brush
Cutting of shrubs,
plant regrowths
or coppices to
be used with a
specific safety
guard
8-tooth blade
■USAGE
Choosing the adequate cutting head is important for the result of your mowing operation, regardless of whether you goal is cleaning and enhancing your green space, or
eliminating tall grass and wild vegetation, or even thickets or bushes obstructing the way. regardless of whether you goal is cleaning and enhancing your green space, or
eliminating tall grass and wild vegetation, or even thickets or bushes obstructing the way.
19
53_13_062A
53_13_056A
53_13_063A
53_13_055B
= 3,5 M
X3
53_12_030C
53_12_031B
53_12_033B
53_12_032B
A1 A2
A3 A4
12
B1 B2
B3 B4
OINE
■USAGE
ENIEIIONNOEION
ROLL CUT ASSEMBLY:
CUTTING WIRE ASSEMBLY:
20
53_12_034B
x1
53_12_035B
53_12_037B
53_12_036B
53_13_059B
53_13_057B
53_13_061B
C1
D1
C3
D3
D4
C2
D2
C4
1
2
1 2
■USAGE
ADJUSTMENT OF THE CUTTING WIRE'S POSITION:
ROLL CUT RECHARGING:
ENIEIIONNOEION
