pellenc SELION M12 User manual

pellenc s.a.
Route de Cavaillon
B.P. 47
84122 PERTUIS cedex
(France)
Tel : [phone] Fax : [phone]
E-mail : [email protected]
www.pellenc.com
51_72425_H - 04/2014
51_14_002A
*
USER GUIDE
ENG
Translation of the
original user guide
READ THE USER GUIDE CAREFULLY BEFORE USING THE TOOL
*Carving guide sold separately (ref. 80343)

2
INTRODUCTION.............................................................................3
BILAN CARBONE ..............................................................................................9
SAFETY INSTRUCTIONS ....................................................................10
GENERAL SAFETY INSTRUCTIONS FOR THE TOOL.................................................................10
SAFETY INSTRUCTIONS FOR THE CHAINSAW .....................................................................12
CAUSES OF KICKBACK AND HOW THE USER CAN PREVENT IT ......................................................13
SAFETY EQUIPMENT ..........................................................................................14
SAFETY REFLEXES............................................................................................14
SAFETY INDICATIONS .........................................................................................15
DESCRIPTION AND TECHNICAL CHARACTERISTICS ............................................16
TECHNICAL CHARACTERISTICS .................................................................................16
PUTTING THE TOOL INTO SERVICE ...........................................................17
CHAIN LUBRICATING SYSTEM ..................................................................................17
FORCED CHAIN LUBRICATING SYSTEM ..........................................................................17
CHAIN PROTECTION...........................................................................................17
STARTING ...................................................................................................18
HOLDING THE TOOL...........................................................................................18
STARTING AND USE ........................................................................19
INTRODUCTION...............................................................................................19
CHAIN BRAKE ................................................................................................19
CHECKING THE CHAIN BRAKE ..................................................................................19
INSTALLING THE CHAIN GUIDE..................................................................................20
INSTALLING THE CHAIN ........................................................................................20
AUTOMATIC CHAIN TENSIONING ................................................................................20
CHECKING AND REPLACING THE SPROCKET .....................................................................21
CLEANING THE CHAIN GUIDE ...................................................................................21
LUBRICATING THE CHAIN GUIDE ................................................................................21
THE FOUR BASIC RULES .......................................................................................22
SERVICING................................................................................23
CLEANING ...................................................................................................23
SERVICING INTERVALS ........................................................................................23
REPLACING THE CHAIN AND THE GUIDE .........................................................................24
GENERAL INSTRUCTIONS FOR SHARPENING THE CUTTERS .....................................25
SHARPENING THE CUTTERS USING A ROUND FILE ................................................................25
ADJUSTING THE DEPTH LIMITERS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
MAINTENANCE ............................................................................27
STORAGE OUT OF SEASON ....................................................................................27
OIL RESERVOIR ...........................................................................27
«PELLENC SA» TERMS OF WARRANTY AND NON-RESPONSIBILITY CLAUSE .......................28
"EC" DECLARATION OF CONFORMITY ........................................................29
Table of contents

3
Dear Customer,
Thank you for purchasing the SELION M12 chainsaw. Correctly used and maintained, this tool will give
satisfactory performance for years to come.
INTRODUCTION
With more than 20 years of experience in portable electric equipment, Pellenc proposes a large
range of Lithium-Ion and Lithium-Polymer powered tools intended for professional use and
designed for maintenance work in green spaces, orchards and vineyards, and cleaning equipment
for public roads.
Pellenc sets the stage for a new generation of tools combining the advantages of cordless electricity with
the power of Lithium-Ion and Lithium-Polymer, designed for intensive, high quality work.
Increasingly quiet and compact, environmentally friendly, economically very protable and complying with
ever more strict specications regarding ergonomics, power and autonomy, Pellenc tools prove their worth
every day, whether in vineyards, orchards or for the maintenance of green spaces and public sectors.
Pellenc tools are the world leader in this eld.
Because of the lightweight nature and easy handling of PELLENC tools, users can work better, with less
effort, without noise and faster than with heat-engine powered tools.
A single unique energy source powers PELLENC tools intended for professional use: The Ultra Lithium
Battery. This revolutionary battery is available in several models, with extended work capabilities. Once
purchased, this battery is compatible with most of the Pellenc Green and City Technology range of
products.
«Innovation, ability to listen, quality and environmental friendliness are PELLENC priorities.»
OUR high capacity Ultra Lithium-Ion BATTERIES
PELLENC is the rst and only manufacturer worldwide to propose a whole range of professional tools
for Parks and Gardens, Local Authorities, Golf Courses, Orchards, Vineyards etc. operated using ultra-
high capacity ternary Lithium-Ion batteries.
PELLENC has developed its own Lithium-based technology for the best results in terms of output
power, autonomy, weight and ergonomics. The result is enlightening as the Pellenc Lithium-Ion
technology is nearly twice more efcient than the Manganese Lithium-Ion technology. Manganese Lithium-
Ion contains 125 W/kg, while Pellenc Lithium-Ion contains 250 W/kg.
Furthermore, our ultra-high capacity batteries have an ranging from 800 to 1,500 cycles (one cycle
corresponds with a full charge and discharge). Even after hundreds of days of use, the battery still reaches
over 80% of its initial capacity.
Equipped with a patented intelligent system, Pellenc batteries can be charged at any time without
memory effect and without altering their lithium-ion components. They automatically discharge after several
days of non-use in order to be stored risk free for several months.
The ultra-high capacity of Ultra Lithium Batteries guarantees pollution free, odourless and quiet
operation with a record level of autonomy.

4
56_12_001A
INTRODUCTION

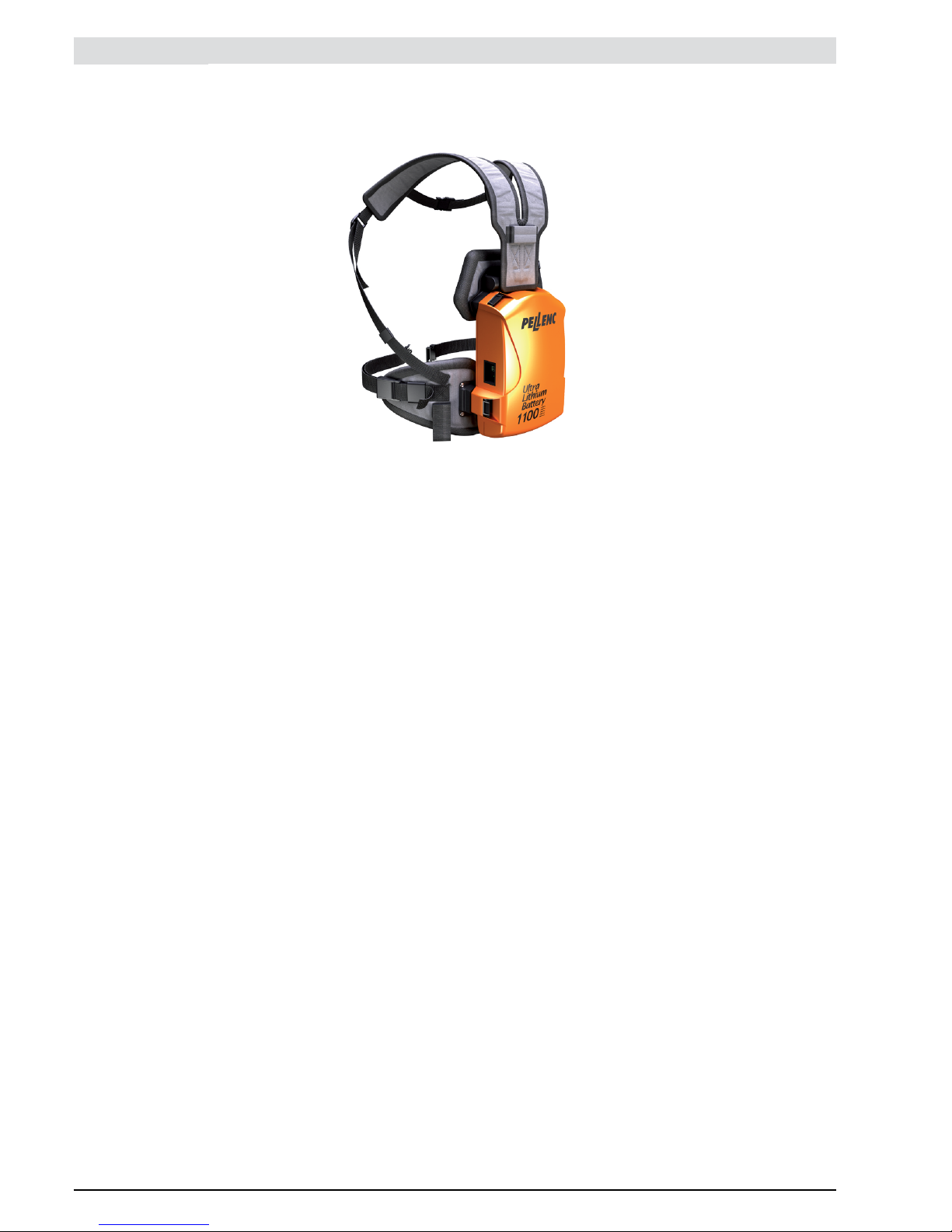

Characteristics of the ULTRA LITHIUM BATTERY
- Secure system (patented) guarantees the preservation of your battery in the event of overloading,
discharging or over-heating
- Life system (patented): ensures an optimum service life for your battery by protecting each of the
components individually
- Balance system (patented): guarantees the balancing of the various battery components in order to
optimise balanced operation
- Power system (patented): enables use of the entire range of PELLENC tools within the scope of a
professional activity thanks to the restitution of the battery’s maximum capacity
Advantages of the ULTRA LITHIUM BATTERY
- Environmentally friendly the energy used by PELLENC tools is environmentally friendly and
participates in an initiative towards sustainable development. Compared to equivalent heat engine
powered tools, CO2 emissions are 30 to 90 times lower.
- Power: PELLENC equipment ensures the user has an unequalled power supply of up to 3,000 W.
- Savings: the battery permits up to a full day of work at a derisory total cost.
- Ergonomics: PELLENC tools are very quiet and light, offering unrivalled comfort and optimal working
conditions.
- Cost-effectiveness: the cost of your battery will be recovered in under a year of use (from 135 days).
The return on investment in the battery over its service life is greater than 5,000 € thanks to the savings
on fuel which is not required*.
Compatibility of our batteries with our machines:
All PELLENC multi-function Ultra Lithium Batteries can be used on all of our machines. However, we
recommend the use of batteries according to the tool, in order to achieve an increased optimization of
autonomy, power and weight.
* You use 5L of mixture per day at a price of €1.50 per litre.
Data calculated for the regular use of the ULiB 1100 battery.
For example, a PELLENC ULB 1100 battery is equivalent to over
4700 liters of gasoline and 90 liters of mixture!

5
INTRODUCTION
RECOMMENDED USE OF BATTERIES AND TOOLS ACCORDING TO THEIR POWER AND
AUTONOMY*
Recommended use
SPECIFIC
BATTERY MULTIFUNCTION BATTERIES
200 400 700 1100 POLY 5 OLIVION
Weight in kg (no harness nor belt) 1.9 3.4 5.5 5.9 3.4 5.5
LIXION Evolution - vineyard
pruning shears 1 to 3 days
LIXION Evolution adaptable - vineyard pruning shears 2 / 6 days 5 days 10 days 3 / 7 days 5 days
TREELION autonomous orchard pruning shears 1 to 2 days TREELION adaptable orchard pruning shears 3 days 4 / 5 days 7 days 3.5 days 4 / 5 days
HELION – hedge trimmer 1/2 day Up to
1 day
Up to
2 days 1/2 day Up to
1 day
OLIVION – olive harvester 2 to 4 hours Up to
1 day
Up to
2 days 3 to 5 hours Up to
1 day
CULTIVION – hoeing machine 2 to 4 hours Up to
1 day
Up to
2 days 3 to 5 hours Up to
1 day
SELION Pole - chainsaw 1 to 3 hours Up to
1 day
Up to
2 days 2 to 5 hours Up to
1 day
SELION M12 - chainsaw 1 to 3 hours Up to
1 day
Up to
2 days 2 to 5 hours Up to
1 day
SELION C20 - chainsaw 1 to 3 hours 3 to 5 hours Up to
1.5 days 2 to 5 hours
EXCELION 1200 – grass-cutting brush cutter 1 hour 2 to 3.5 hours 3 to 5 hours 1 to 2 hours EXCELION 2000 – brush cutter** 2 to 3 hours 3 to 4,5 hours 1 to 2 hours AIRION - blower 1 hour 2 to 3.5 hours 3 to 5 hours 1 to 2 hours
* Battery life depends on the tool, the use and the vegetation being worked on.
** Autonomy is calculated using the Eco mode

6
53_10_071A
INTRODUCTION
By using PELLENC battery and motor technology, you benet from several advantages:
- energy savings
- ease and comfort of use
- free from motor maintenance
- power equivalent to and often higher than combustion engines
- extremely protable tools
- lightweight
- no noise pollution or odors
- virtually inexistent carbon emissions
- Immediate start-up, no need for a starter.
PELLENC OFFERS TECHNOLOGY WHICH MAKES THE HEAT ENGINE OBSOLETE

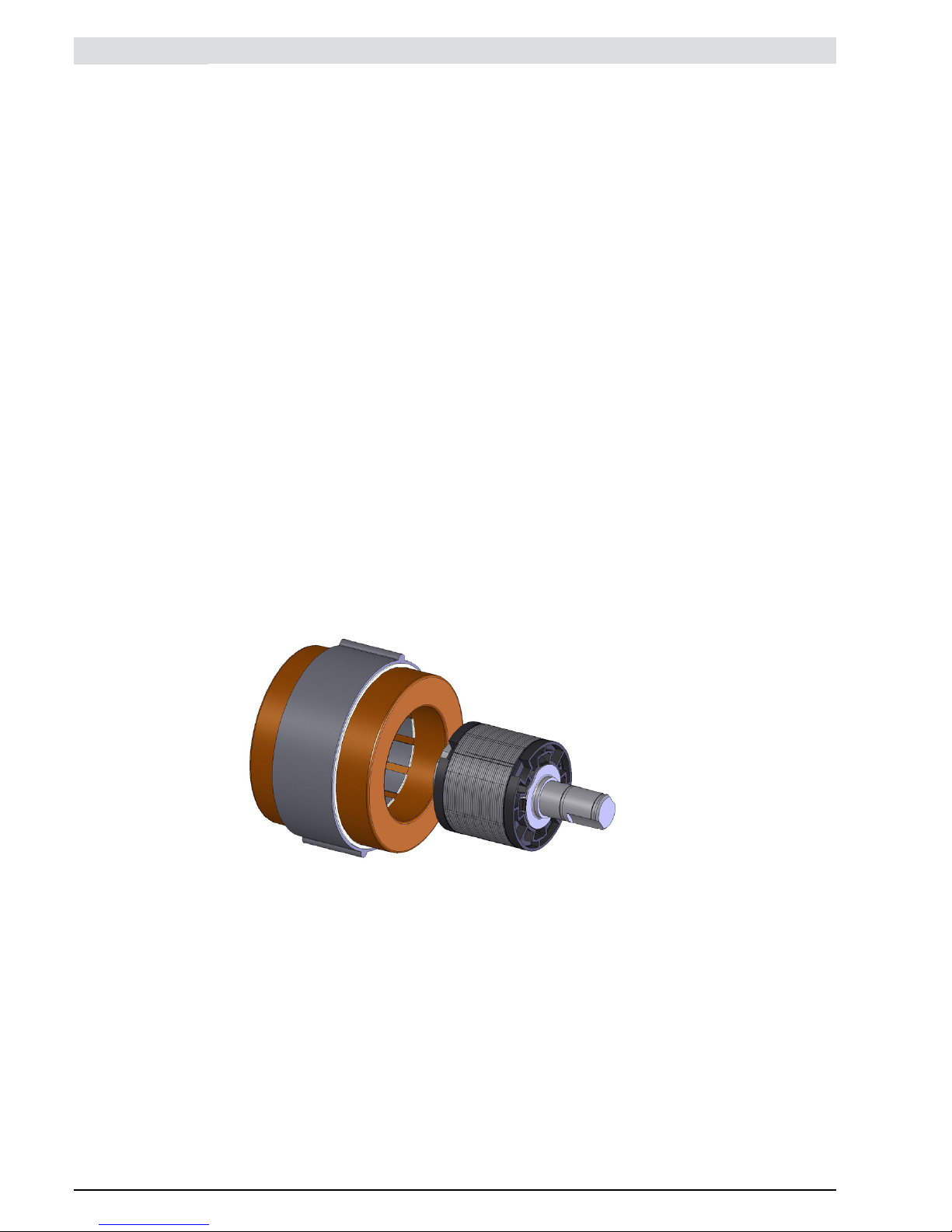

OUR high output MOTORS
As well as Lithium-Ion technology, PELLENC masters the use of another: revolutionary PELLENC
electronic commutation motors.
With these revolutionary motors, PELLENC has effectively rendered the heat engine obsolete. PELLENC
intends to impose its idea of the tool for tomorrow: powerful, light and pollution-free tools.
Furthermore, the PELLENC technology motor is the only electric motor with as much power output with
the added advantage of being small, giving it an ideal weight. The output of this motor is signicantly
higher than that of traditional direct-current motors with brushes. Friction caused by the brushes
disappears, the output of PELLENC motors is nearly 90 %.
PELLENC motors are Brushless motors. This means that their service life is theoretically innite, with
only the service life of the ball bearings limiting the motor’s service life. There is no need for motor
maintenance, as opposed to heat engines.
PELLENC Brushless motors stop completely each time the trigger is pressed, on the contrary to
heat engines. Therefore, sound emissions are very low to the benet of the user and his immediate
surroundings!
Finally, PELLENC Brushless motors often drive the cutting element directly (no clutch or reduction
gearbox, meaning less noise and wear). Motor control is electronic, as is the power supply, meaning that
noises linked to mechanical part movements are extremely limited.

7
56_10_037B
INTRODUCTION

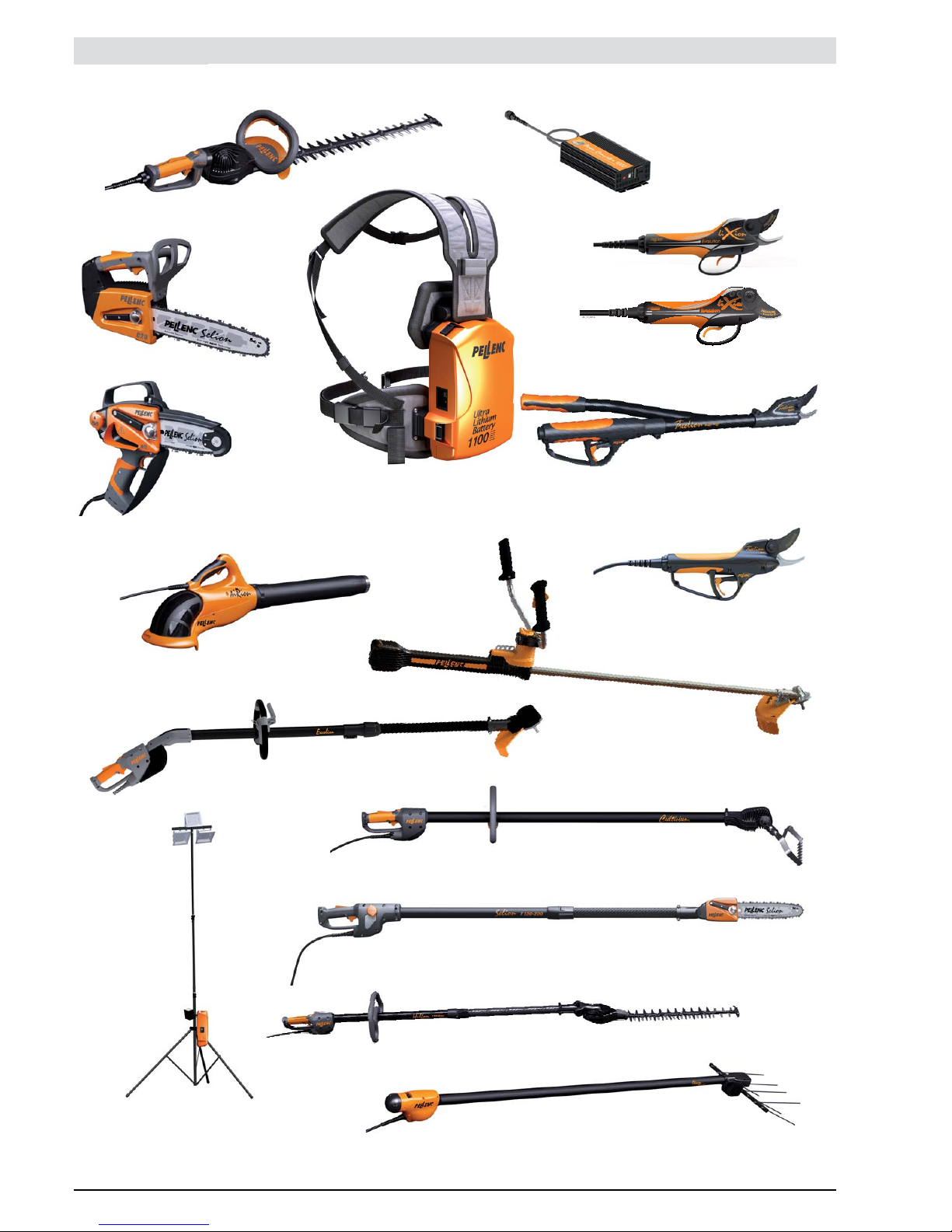

OUR RANGE OF PRODUCTS
PELLENC Green and City Technology develops new products every year in an aim to meet the
requirements of professionals.
Today, our range of products is growing and our engineers are doing their utmost to create tools, thus
pushing technology advances further.
Our passion is innovation, with an aim to improve the working quality and conditions for professionals by
supplying a complete range of powerful, lightweight, easy-to-handle and very protable tools:
- our blowers operate quietly with power modulation.
- our hedge-trimmers combine comfort and performance.
- our grass-cutting brush cutters are robust and multi-functional.
- our chainsaws are lightweight, powerful and very easy to handle.
- our pruning shears are the most powerful in the world.
- our hoeing machines, which are unique in the world, replace cumbersome rotary hoes.
- our olive harvesters are exceptionally efcient.
- our vine tying machine combines efciency and protability.
- our batteries have a very high autonomy.
- our mobile solar panel offers the possibility to charge your batteries anywhere.
- Exceptional light output of our autonomous lighting systems.
All of our tools have minimal CO2 emissions and meet the requirements of Local Collectivities or other
associations in terms of a sustainable environment and ecology.
PELLENC is the only company to propose a full range of tools which are 100 % clean and with zero
CO2 emissions thanks to the SOLERION solar panels which can be used to recharge our batteries.

8
26_13_001A
INTRODUCTION
Hedge-trimmer
HELION Universal
Orchard and green space pruning
shears
- 2 hands -
TREELION D45
Grass-Cutting Brush Cutter
EXCELION 1200
Brush Cutter
EXCELION 2000
Chainsaw
SELION M12
Hoeing machine
CULTIVION
Chainsaw
SELION C20
Chainsaw on pole
SELION Pole or Telescopic
Orchard and
green space pruning shears
TREELION M45
Hedge-trimmer on pole
HELION Pole or Telescopic
Vineyard pruning shears
LIXION Evolution
Vineyard pruning shears
LIXION Evolution II
Olive harvester
OLIVION Pole or Telescopic
Blower
AIRION
ULiB Battery
200 - 400 - 700 - 1100 -
POLY 5 - OLIVION
Lighting system
LUMENION
Battery converter
Power Convertor 1000 W

9
Lithium-Ion technology combined with the electric PELLENC motor means that the SELION emits very
little CO2 into the atmosphere, giving it the image of a clean tool.
When comparing the direct CO2 emissions of the SELION and a heat-engine powered chainsaw, a huge
difference can be seen. A heat-engine powered chainsaw has direct CO2 emissions of over 4.9 tons per year,
while the SELION only emits 40 kg.
Using the SELION means reducing direct emissions by approximately 99% compared to a heat-engine;
that’s 121 times less!

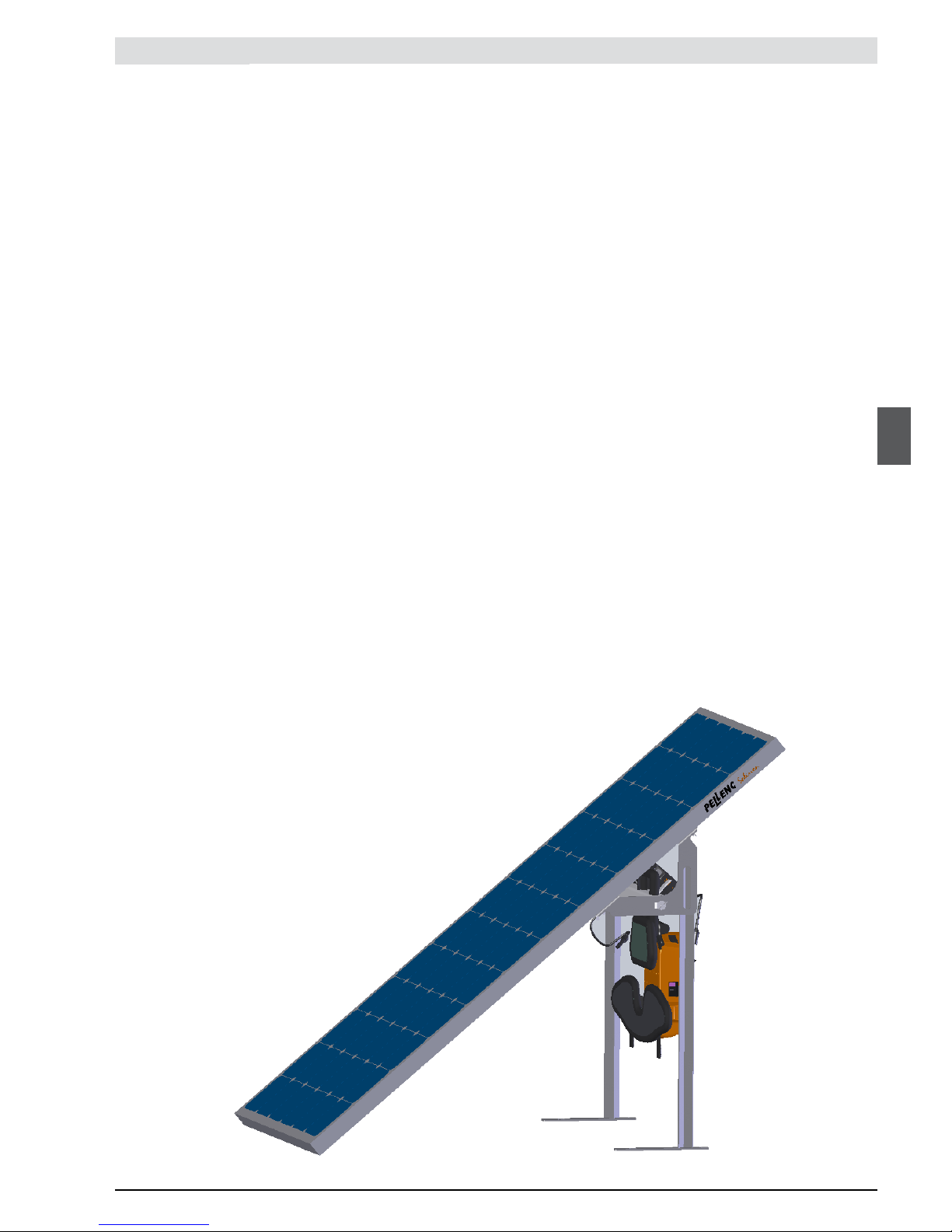

If you recharge PELLENC batteries using our SOLERION solar charger,
direct CO2 emissions are reduced to ZERO
Heat-engine powered
chainsaw SELION WITH SOLERION
Direct emission + production of
petrol
Direct emission + production of
electricity Direct emission
Carbon equivalent/
hour 4,084 g CO2/hour 34 g CO2/hour 0 g CO2/hour
Carbon equivalent/
day 24 kg CO2/day 204 g CO2/day 0 g CO2/day
Carbon equivalent/
year 4.9 tons CO2/year 40 kg CO2/year 0 g CO2/year
By using PELLENC tools:
- you considerably reduce greenhouse gas emissions,
- you strongly participate in protecting the environment.
Data: On average, 1 kWh EDF has a carbon equivalent to 90 g of CO2 per kWh in France, covering production and remaining life
(ADEME-France).
1 liter of SP95 unleaded fuel corresponds to a direct carbon emission equivalent of 2,542g CO2/l and a production + direct carbon
emission of 5,518g CO2/l.
Based on: 6 hours of work per day and 200 days of work annually.
BILAN CARBONE
“Every type of human activity creates greenhouse gas emissions, whether directly or indirectly. Therefore,
every company, administration or association may quite rightly take an interest in the emissions they
generate. To enable them to act, they have to establish an analysis to nd their room for maneuver. The
Bilan Carbone® method is a greenhouse gas (GHG) emissions assessment tool. It uses easily available
data to correctly evaluate your activity in terms of direct or indirectly generated emissions.” (Source:
ADEME-France)
In order to act responsibly, PELLENC has launched an environmentally friendly range of tools with
minimum CO2 emissions, which can be as low as zero thanks to the SOLERION solar charger.
Thanks to the development of its own Lithium-Ion clean technology, PELLENC proposes ultra-high capacity
batteries with a record level of autonomy and power to rival heat motors. In addition, the PELLENC
motor makes the tool exceptionally protable as it consumes very little energy and is unbeatably
lightweight.
INTRODUCTION

10
ENVIRONMENTAL PROTECTION
Your equipment comprises numerous materials which can be valorised or recycled. Entrust
these to your reseller or to an approved service centre so that they can be processed.
INTRODUCTION
Comply with the regulations in force in your country as concerns environmental protection
associated with your activity.
SAFETY INSTRUCTIONS
This appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been given
supervision or preliminary instructions by a person responsible for their safety.
KEEP THESE INSTRUCTIONS
GENERAL SAFETY INSTRUCTIONS FOR THE TOOL
CAUTION Read all the safety measures and all the instructions.
Retain all the safety measures and instructions for later reading.
All through this user guide you will nd advisory notes and information entitled: REMARK, CAUTION /
WARNING.
A REMARK provides additional information, claries a point or explains a step to be followed in detail.
The CAUTION and WARNING advisories are used to dene a procedure which, if neglected or incorrectly
performed, may lead to serious damage to the equipment and/or personal injury.
This advisory:
G
indicates that if the procedures or instructions are not complied with, any damage will not
be covered by the warranty and the owner will be responsible for the repair costs.
Safety indications are also given on the tool; they remind you of the safety precautions to be taken. Identify
and read these indications before using the tool. Immediately replace any indications that may become
partially illegible or deteriorated.
Refer to the «SAFETY INDICATIONS» heading in order to identify the location of the safety
indications on the tool.
No part of this manual may be reproduced without the written consent of PELLENC. The technical
characteristics and the illustrations given in this manual are for information purposes and are in no way
contractual. PELLENC reserves the right to make any modication or improvement to its products as
deemed necessary without informing customers already in possession of a similar model. This manual
forms an integral part of the tool and must accompany the tool if it changes hands.
It is IMPERATIVE that you read through the ENTIRE USER'S MANUAL before using or servicing the tool.
Always comply with the instructions and illustrations in the manual.
PLEASE SAVE THESE INSTRUCTIONS
This manual contains important information and operating instructions for the following
tool: SELION M12.

11
SAFETY INSTRUCTIONS
WORK AREA SAFETY
1– Keep the work area clean and well lit. Cluttered or dark areas invite accidents.
2– Do not operate power tools in an explosive atmosphere, for example in the presence of
ammable liquids, gases, or dust. Power tools create sparks, which can ignite dust or fumes.
3– Keep children and bystanders away while operating the tool. Distractions could cause you to lose
control of the tool.
ELECTRICAL SAFETY
1– Do not expose tools to rain or damp conditions. Water penetrating inside a power tool will increase
the risk of electric shock.
2– Do not misuse the power cord. Never use the cord for carrying, pulling or unplugging the power
tool. Keep cord away from heat, oil, sharp edges, and moving parts. Damaged or entangled cords
increase the risk of electric shock.
PERSONAL SAFETY
1– Stay alert, watch what you are doing, and use common sense when operating the tool. Do not
use a power tool when you are tired or under the inuence of drugs, alcohol, or medication. A
moment of inattention while operating a power tool may result in serious personal injury.
2– Use safety equipment. Always wear eye protection. Safety equipment such as dust masks, non-slip
safety shoes, helmets, or ear protection used at the appropriate times will reduce personal injuries.
3– Avoid accidental starting of the tool. Make sure the switch is in the off position before
connecting the tool to the power source and/or battery pack, picking it up, or carrying it. Carrying
the tools with your nger on the switch or connecting tools with the switch in the ‘on’ position can cause
accidents.
4– Remove any adjusting wrench before switching the tool on. A wrench left attached to a rotating part
can cause injury.
5– Do not rush. Keep proper footing and balance at all times. This provides better control of the tool in
unexpected situations.
6– Dress appropriately. Do not wear loose clothing or jewellery. Keep hair, clothing, and gloves
away from moving parts. Loose clothing, jewellery or long hair can get caught in moving parts.
TOOL USAGE AND MAINTENANCE
1– Do not force the tool. Use the tool suited for the job. The adapted tool will do a better and safer job,
in accordance with the purpose for which it was designed.
2– Do not use the tool if the switch does not allow it to be switched on and off. Any tool the cannot be
controlled by the switch is hazardous and must be repaired.
3– Disconnect the plug from the power source and/or battery pack prior to any adjustment, change
of accessories or before putting the tool away. These preventive safety measures reduce the risk of
starting the tool accidentally.
4– When not in use, keep tools out of the reach of children and do not allow persons unfamiliar with
the power tool or these instructions to operate it. Tools are dangerous for inexperienced users.
5– Comply with the tool servicing instructions. Check that the moving parts are not out of alignment
or jammed, that there are no broken parts or that there is no other condition which could affect the
operation of the tool. If damaged, have the tool repaired before using it. Many accidents are due to
poorly maintained tools.

12
MAINTENANCE AND UPKEEP
1– Have the tool serviced by an authorised PELLENC distributor, using only identical spare parts.
This will guarantee that the tool safety is maintained.
SAFETY INSTRUCTIONS FOR THE CHAINSAW
1– Keep the cutting chain away from all parts of your body when the chainsaw is operating. Before
starting the chainsaw, make sure that the cutting chain is not in contact with anything. A momentary
distraction while using the chainsaws can result in your clothes or a body part getting caught in the cutting
chain.
2– Always hold the rear handle of the chainsaw with your right hand and the front handle with your
left hand. Holding the chainsaw the other way round increases the risk of bodily injury and should never be
attempted.
3– Hold the tool only by its insulated gripping surfaces as the chainsaw can come into contact with
the hidden wiring or the tool’s own power cord. Saw-chains coming into contact with a "live" wire can
result in the electrication of the exposed metal parts of the electric tool and cause electric shock to the
operator.
4– Wear safety goggles and auditory protection. Additional protective equipment for your head,
hands, legs and ears is recommended. Appropriate protective clothing will reduce the risk of bodily injury
caused by ying debris or accidental contact with the cutting chain.
5– Always remain steady on your feet and only use the chainsaw while on a stationary, secure, and
level surface. Slippery or unstable surfaces such as ladders can cause a loss of balance or control of the
chainsaw.
6– When cutting a bent branch, beware of it springing back. When the tension of the wood bres is
released, the branch can spring back and hit the operator and/or result in a loss of control of the chainsaw.
7– Be extremely careful when cutting scrub and young shrubs. Fine materials can catch in the cutting
chain and be projected in your direction like a whip, or make you lose your balance because of the traction
effect.
8– Hold the chainsaw by the front handle, switch the power off and keep it away from your
body. When transporting or storing the chainsaw, always t the protective cover over the chain.
Appropriate handling of the chainsaw will reduce the likelihood of accidental contact with the mobile cutting
chain.
9– Follow the instructions concerning accessories for lubrication, tension, and chain replacement.
A chain with incorrect tension and lubrication can break or increase the risk of kickback.
10– Keep the handles, dry, clean and free from oil and grease. Greasy, oily handles are slippery and
cause a loss of control.
11– Only cut wood. Do not use the chainsaw for any purpose other than for which it is intended. do
not use the chainsaw to cut plastic materials, masonry or constructions other than wood. Using the
chainsaw for operations other than those for which it is intended can cause hazardous situations.
6– Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting parts are less
likely to jam and are easier to control.
7– Use the tool, accessories and blades, etc. in accordance with these instructions, taking into
account the working conditions and the work to be done. Using the tool for operations other than those
provided for could result in hazardous situations.

13
Increased safety thanks to three revolutionary PELLENC technologies!
The rst safety mechanism is the PELLENC electronic safety sensor: this mechanism instantly engages a
brake electrical system in case of a fall or rebound (kickback phenomenon), and is 8 times more sensitive
than the chain brake on a petrol chainsaw.
The second safety feature is provided by the tool’s auto-diagnostic system: on rst use, the Selion M12
veries that the electronic kickback sensor is operational, if this is the case, the machine will be able to
function!
The third safety feature is the use of OREGON chains with low kickback: the kickback phenomenon, if it
occurs, will be much less violent than that of a conventional chainsaw.
That makes the SELION M12 an overall safer tool than conventional chainsaws.
CAUSES OF KICKBACK AND HOW THE USER CAN PREVENT IT

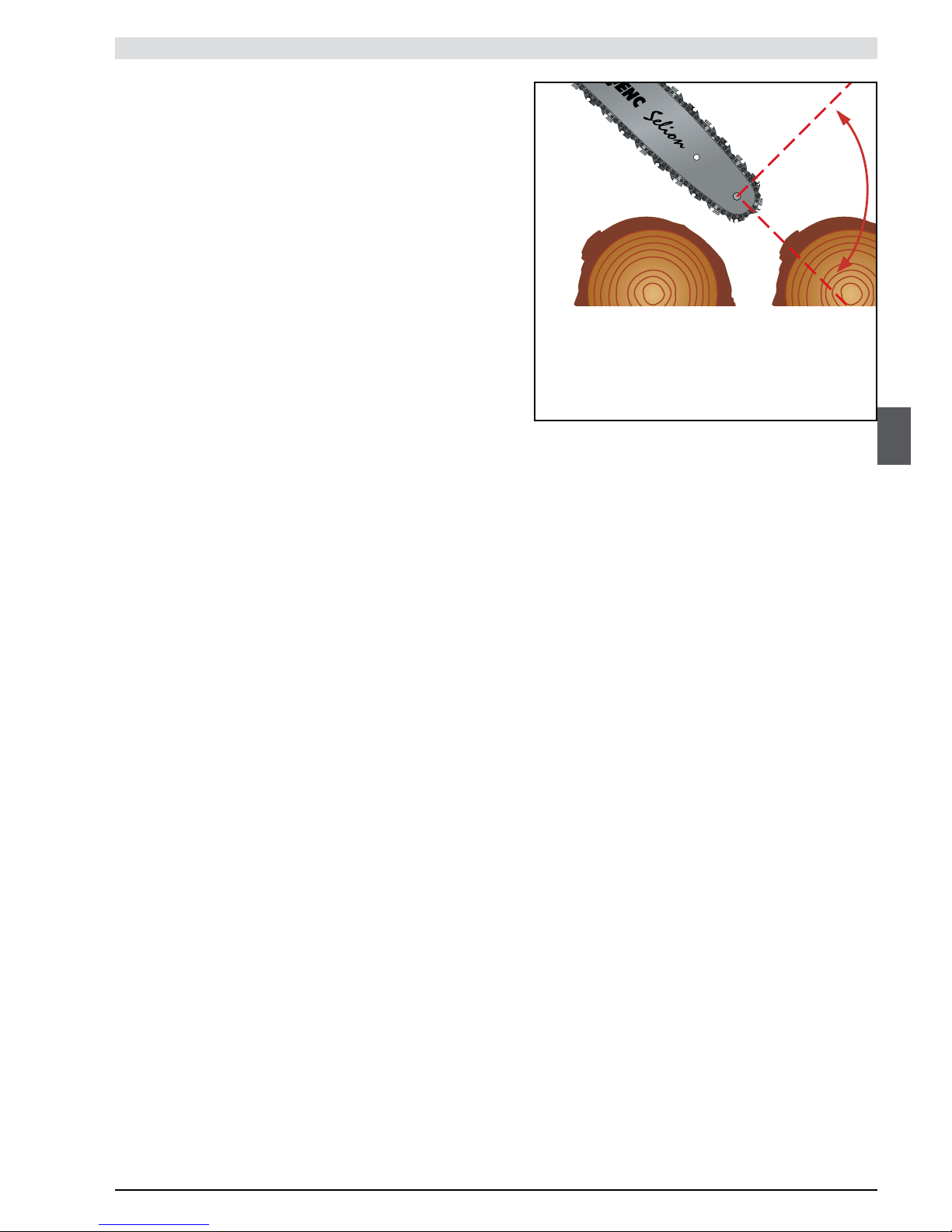

Kickback can occur if the front or end of the chain guide
touches an object or if the cut in the wood closes and
traps the cutting chain in the cut.
In some cases, contact with the end of the chain guide
can suddenly cause the chain guide to kick upwards and
backwards towards the user.
If the cutting chain is trapped on the upper part of the
chain guide, the chain guide can abruptly push back
towards the user.
Either of these reactions can cause a loss of control
of the saw, likely to lead to serious injury. Do not rely
exclusively on the safety features built into your saw. The
user of the chainsaw must take all necessary measures
to prevent risks of accident or injury when cutting.
Kickbacks result from incorrect use of the tool and/or
incorrect operating conditions or procedures, and can be avoided by taking the appropriate precautions
specied below:
• Hold the saw rmly in both hands with thumbs and ngers around the handles of the saw, and
position your body and arm to allow you to resist kickback forces. Kickback forces can be controlled
by the operator if proper precaution taken. Do not let go of the chainsaw.
• Do not reach your arms out too far and do not cut above shoulder height. This helps prevent
unwanted contact with the end and facilitates control of the chainsaw in unforeseen situations.
• There are different models of chains according to the work to be done. Only use genuine
PELLENC chains and guides. Incorrect chain guides and replacement chains can cause the chain to
break and/or kickbacks.
• Follow the instructions for sharpening and servicing the chainsaw. Reduction in the depth gauge
level can lead to increased kickbacks.

14
1 5
2
6
3
7
4
8
NOTE: Chain speed : 10,3m/s. Wear safety clothes suited to this chain speed. (Class 0 as per standard EN 381)
and which are not too big.
Protective equipment Wearing is
1 Helmet Mandatory
2 Visor Recommended
3 Gloves Mandatory
4 Non-slip safety boots Mandatory
5 Ear protection Recommended
6 Safety goggles Mandatory
7 Safety jacket or over-sleeves Mandatory
8 Protective trousers Mandatory
Keep your left arm straight for better control.
Hold the chainsaw at your side, and not in front of you.
Use Pellenc genuine chains and guides.
Keep the chain, the guide and the sprocket in good working condition.
Stand with your legs apart and well balanced.
Remember to vary your working position and to take regular breaks from work.
WARNING!
Clear the work area before cutting.
Calculate the point where the object you are cutting will fall.
Take care that the chainsaw is not pushed back by the object to be cut.
Position yourself correctly to prevent accidents.
Never cut when on a ladder.
Keep all other persons clear. Never have someone hold the object you are cuttting.
Cut the branches into suitably sized pieces from the outside of the tree towards the trunk.
Be careful of branches that bounce back when they drop to the ground.
SAFETY EQUIPMENT
SAFETY INSTRUCTIONS
SAFETY REFLEXES

15
51_10_012B
2
3
4
5
6
1
1– Sound power level LwA warranted
2– Read the user manual
3– Goggles, hearing protectors and helmets must be worn
4– Suitable fore-arm, leg and foot protection is mandatory
5– Risk of burns (motor)
6– Do not expose to rain
SAFETY INDICATIONS

16
1
4
2
18
12
17 10 21
22
19
8
9
3
6
11
20
9
51_09_005A

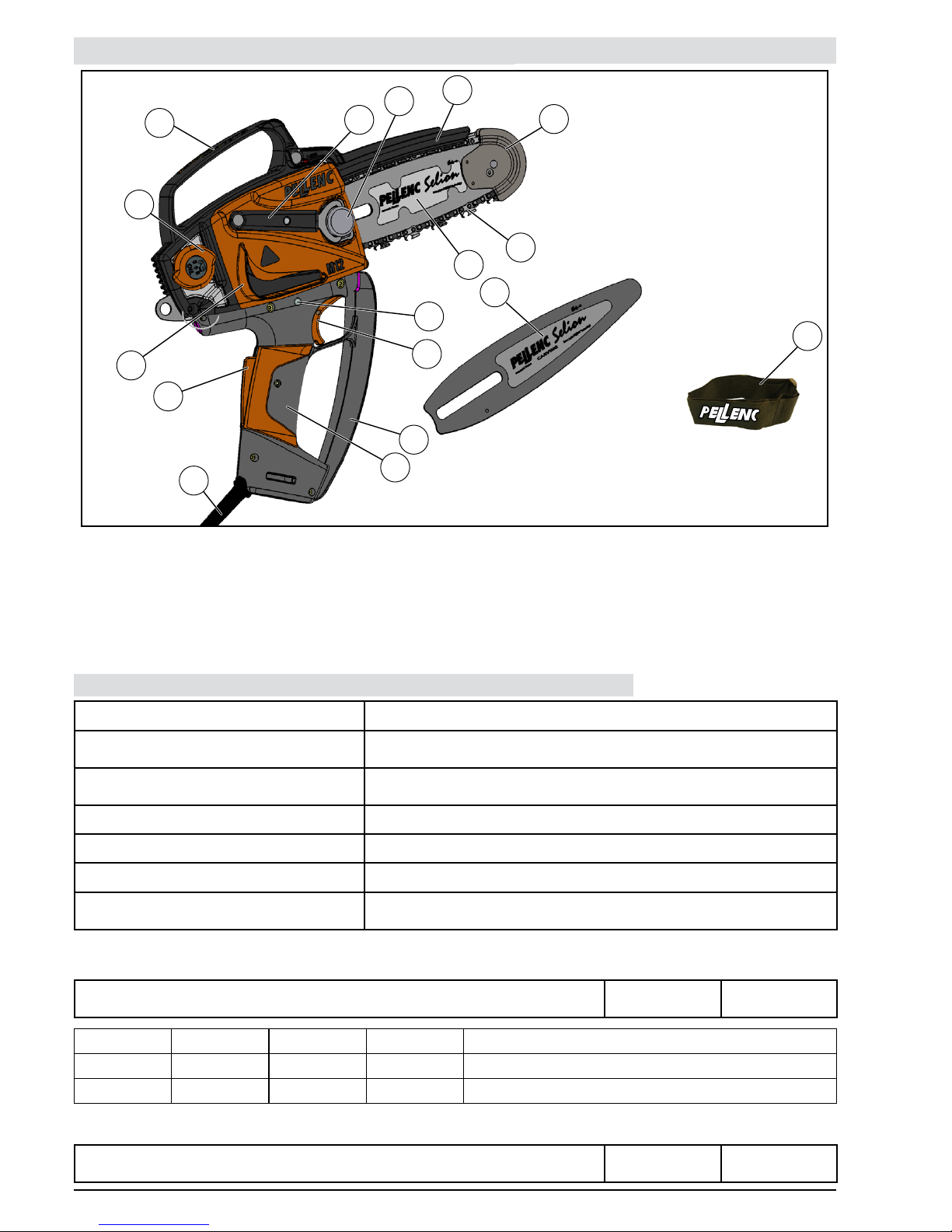

DESCRIPTION AND TECHNICAL CHARACTERISTICS
TECHNICAL CHARACTERISTICS
1: Handle
2: Operating trigger
3: Safety trigger
4: Front right hand protection
6: Chain casing
8: Saw chain
9: Chain guide (carving guide ref. 80343 sold
separately)
10: Chain guard tightening nut
11: Oil reservoir cap
12: Tool power lead
17: Telescopic tightening wrench
18: Power-on light.
19: Arm band
20: Upper handle
21: Chain protection
22: Anti-kickback nose guide
Symbol Value Unit Reference Comment
LWAm 93,5 dB(A) 1 pW Measured sound power level
LWAg 96 dB(A) 1 pW Guaranteed sound power level
The recording of the measured sound power level and of the guaranteed sound power level has been performed according to a
procedure in accordance with directive 2000/14/CE appendix V.
Working capacity (time) According to use and battery type
Chain oil reservoir capacity 7 cm3
Useful cutting length / chain guide 15 cm (6’’) / specific to Pellenc
Chain Type / Pitch / Gage 25AP / 6.35 mm (1/4’’) / 1.3 mm (0.05’’)
Sprocket 9 teeth 1/4’’
Chain speed 10.3 m/s
Weight of tool without guide or chain 1.65 kg
Vibration emission value as per EN 60745-2-13:2008 left hand
ah= 2.8 m/s²
uncertainty
Kd = 1.5 m/s²
Acoustic pressure level at work station - Equivalent weighted value A as per EN
ISO 11201:1996 LpA = 86 dB K = 3 dB
Determining the sound levels and vibration rates is based on the operating conditions at the maximum
nominal rating.

17
51_09_011B
51_09_009A
51_09_010A
G
G
PUTTING THE TOOL INTO SERVICE

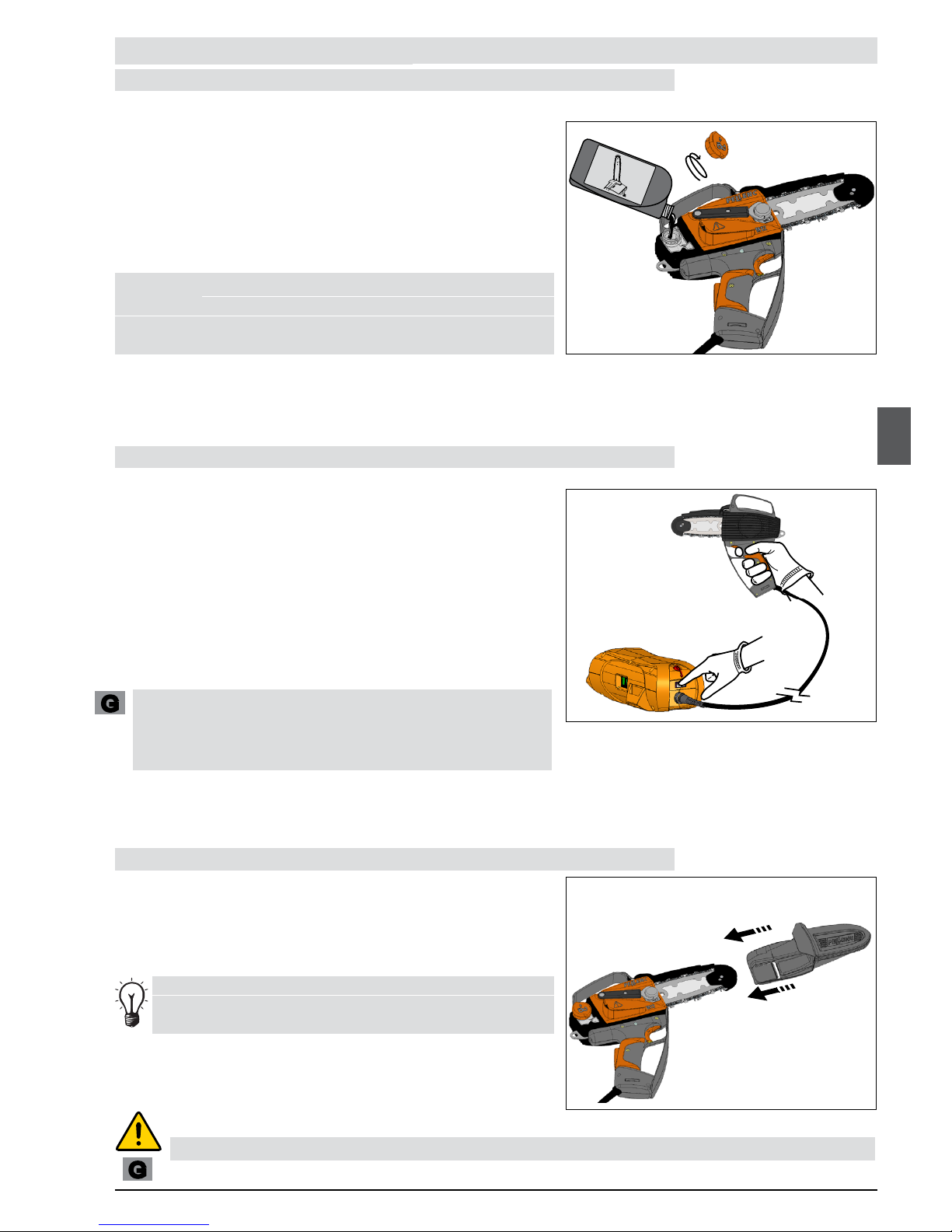

CHAIN LUBRICATING SYSTEM
1– Hold the tool vertically. Press the triggers and keep them
hold.
2– Set the battery switch to «I».
3– An automatic cycle starts which sends oil from the
reservoir to the chain guide.
- 1 short beep every 20 seconds during the cycle.
- 3 beeps to validate the end of the cycle.
4– Loosen the triggers when you hear the rst beep.
FORCED CHAIN LUBRICATING SYSTEM
Fit the guide and chain protection whenever you transport,
handle and store the chain saw.
CHAIN PROTECTION
Never transport the chain saw without its protective
cover. The chain saw must always have its protective
cover on when moved.
CAUTION: Never use dirty or used oil.
CAUTION:
Carry out forced lubrication at the start of each season
in order to check the chain lubricating function.
Carry out forced lubrication when necessary.
Reasonable oil consumption!
Oil consumption has been signicantly reduced by the
electronic control of the oil ow. This is a PELLENC
innovation.
1– Use special guide and chain oil (ref. 85920).
2– Carefully pour the guide and chain oil into the reservoir.
3– Check the oil level every hour and top it up if necessary.
COMMENT:
PELLENC recommends using biodegradable chain oil in
compliance with RAL-UZ-48 norm (ref. 85920 or, by default,
any oil in compliance with RAL-UZ-48 norm)

18
51_10_013A
51_09_013A
G
G
PUTTING THE TOOL INTO SERVICE

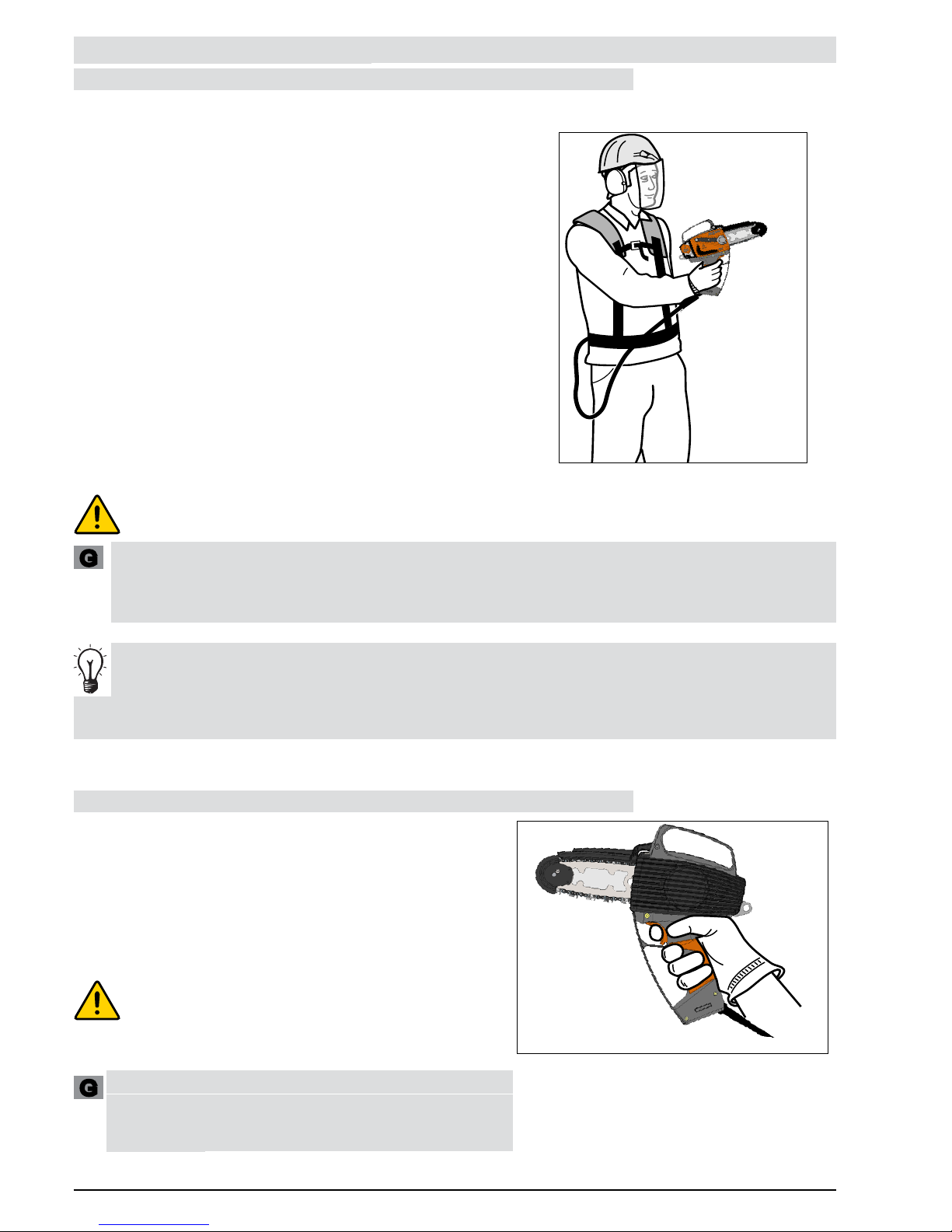

STARTING
CAUTION! Do not cut anything other than wood.
Always keep your left hand back from your right
hand or on the upper handle.
1. Take the chain saw by the handles and ensure nothing is
touching the chain.
2. Attach the power supply cord to your arm using the suuplied
armband. .
3. The chain saw is in its “start-up” position.
HOLDING THE TOOL
The tool is equipped with a Pellenc-designed electric motor. The motor maintains a constant
speed, both off load and when cutting.
Allow the chainsaw to cut without pressing excessively.
Always start the motor before bringing the chainsaw into contact with the wood.
To prevent the motor from overheating, alternate between large cuts and small cuts.
The light on the handle indicates that the power supply is switched on.
1– Put the tool in its starting position (see page &MISE_EN_
SERVICE&). Remove the chain guide protector.
2– Set the battery On/Off switch. to the on position «I». From
the moment the indicator light (18) comes on, the tool is
energized and ready to operate.
3– Press and hold the safety trigger (3) while holding the
chainsaw by the upper handle.
4– In order to guarantee chainsaw safety when relocating, an
electronic device blocks the motor control 3 seconds after the
motor is stopped. Press the trigger (2) twice consecutively to
restart the motor. The chainsaw runs by keeping at least the
trigger (2) pressed.
5– Release the trigger (2) to stop the motor.
CAUTION:
Never disconnect the power lead from the battery
without checking that the On / Off switch is in the off
position «0».
CAUTION:
When either the guide or the chain is replaced, they must be run in by operating the tool off load
for 1 to 2 minutes.
Check the chain tension after running in (see page 20).

19
51_09_014A
51_09_015A
51_09_016A
STARTING AND USE
INTRODUCTION
Make sure that the chain tension is correct by pulling the chain.
1 to 3 drive links should appear.
CHAIN BRAKE
Your chain saw is tted with an impact detection system
In the event of impact (bounce) your chain saw will stop
immediately.
Ensure the chain is not in contact with anything before you
start up the chain saw again.
CHECKING THE CHAIN BRAKE
Realize dry movements from top to bottom to activate the
safety device.
WARNING: never operate the chain saw if the safety
device is not operating.
The automatic chain tensioning (PELLENC innovation)
facilitates tool maintenance!
The automatic chain tensioning system (PELLENC
innovation) facilitates the installation of the chain and its
tension adjustment. Position the guide, and clip it, the guide
is in position! You can permanently lock it in position using
the retractable wrench (PELLENC innovation).
The automatic chain tensioning along with the PELLENC
retractable wrench can also be used to retighten the guide in
a few seconds: no need for additional wrenches!

20
51_09_006A
51_09_007A
x3 1
2
3
51_09_017A
STARTING AND USE

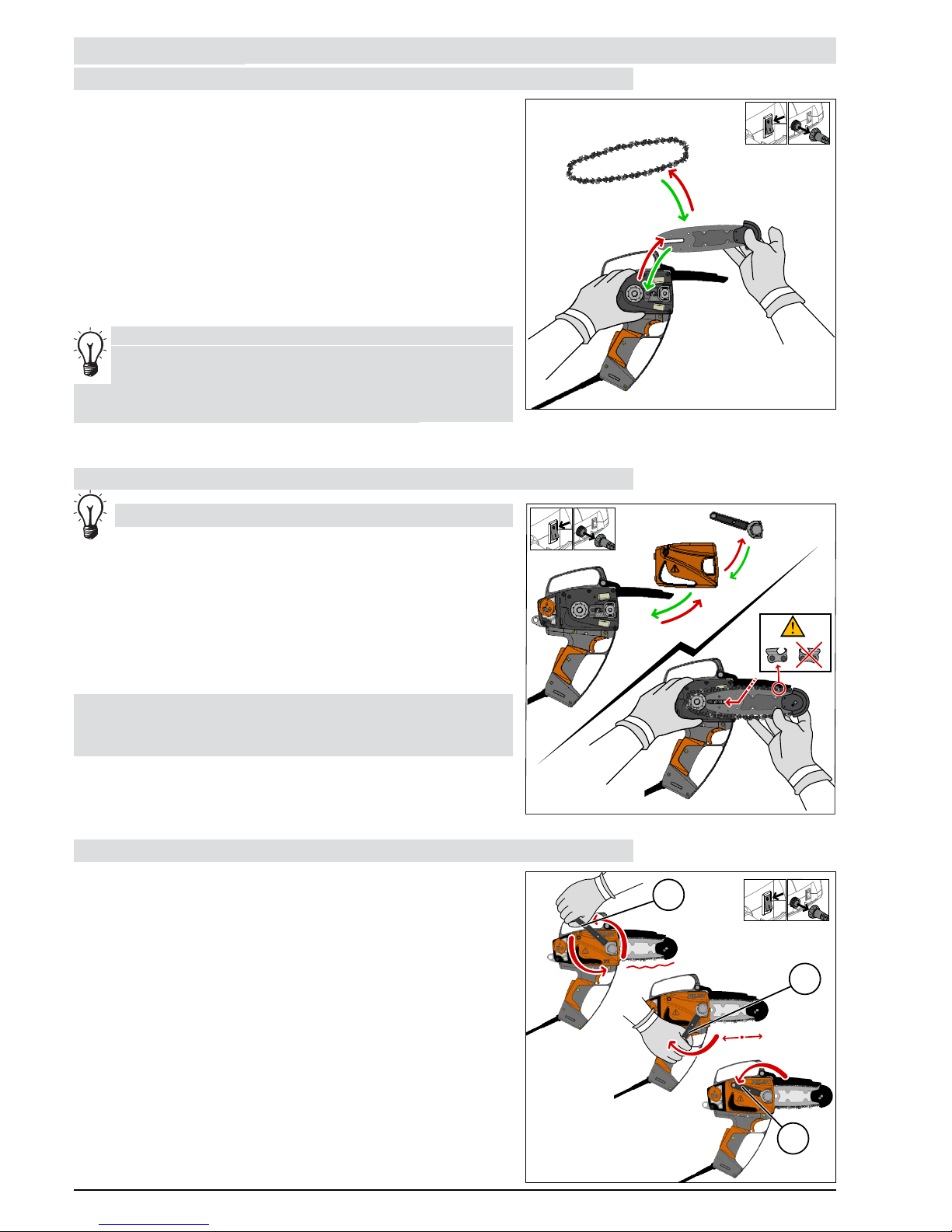

INSTALLING THE CHAIN GUIDE
AUTOMATIC CHAIN TENSIONING
INSTALLING THE CHAIN
Adjust the tension of the chain.
Always set the switch to the off position «0» and disconnect
the battery connector before doing any work.
Remove the chain guard by unscrewing the chain guard (10)
lock.
Push the guide towards the sprocket to enage the lock.
Install the chain in accordance with the cutting direction.
Reinstall the chain guard.
Simplied chain maintenance!
No need for an additional wrench to remove and reinstall the
chain, PELLENC’s innovative retractable wrench system can
be used to tighten the chain in a few seconds.
Loosen the chain guard (10) nut by 3 turns.
The chain is tensioned automatically when the guide moves
forward.
Tighten the chain guard nut correctly using the telescopic
wrench and put the wrench handle back on its magnetic
holder.
2 types of chain guide bar can be mounted on the chainsaw:
antikickback 6’’ guide bar (ref. 78790)
carving 6’’ guide bar (ref. 80343).
Do not use other chain guide bar than those recommended.
Follow the chain installation procedure.
Replace the chain guide or turn it round if necessary.
The chain guide must be replaced whenever necessary
or when 3 or 4 chains have been replaced. Turn the
chain guide round every week.
Always set the switch to the off position «0» and disconnect
the battery connector before doing any work.
(P/No. 71550).
