pellenc SELION M12 User manual

CHAINSAW
SELION M12
Operating instructions 51_149238-C
06/2021
ENG
Translate of the
original manual
READ THE USER GUIDE CAREFULLY BEFORE USE
.

CHAINSAW SELION M12
51_149238-C
TABLE OF CONTENTS
1. INTRODUCTION ..................................................................................................................... 6
2. SAFETY ................................................................................................................................... 7
2.1. INTENDED USAGE .......................................................................................................................... 7
2.2. GENERAL SAFETY WARNINGS FOR THE TOOL ........................................................................ 7
2.2.1. WORK AREA SAFETY ...................................................................................................................... 7
2.2.2. ELECTRICAL SAFETY ....................................................................................................................... 7
2.2.3. PERSONAL SAFETY ......................................................................................................................... 8
2.2.4. POWER TOOL USE AND CARE ........................................................................................................ 8
2.2.5. BATTERY TOOL USE AND CARE ..................................................................................................... 8
2.2.6. SERVICE ........................................................................................................................................... 9
2.2.7. TOOL’S END OF LIFE MANAGEMENT .............................................................................................. 9
2.3. CHAIN SAW SAFETY WARNINGS ................................................................................................. 9
2.4. CAUSES AND OPERATOR PREVENTION OF KICKBACK .......................................................... 9
2.5. SAFETY MEASURES RELATED TO THE USE OF THE PELLENC BATTERY AND CHARG-
ER ........................................................................................................................................................... 10
2.6. PERSONAL PROTECTION EQUIPMENT ..................................................................................... 10
2.7. SAFETY SIGNAGE ........................................................................................................................ 11
2.8. RESIDUAL RISKS ......................................................................................................................... 11
3. DESCRIPTION AND TECHNICAL CHARACTERISTICS .................................................... 12
3.1. DESCRIPTION ................................................................................................................................ 12
3.2. TECHNICAL FEATURES ............................................................................................................... 13
3.2.1. GENERAL CHARACTERISTICS ....................................................................................................... 13
3.2.2. CHAINS AND CHAIN GUIDES COMPATIBILITY ............................................................................... 13
3.2.3. CHARGERS AND BATTERIES COMPATIBILITY .............................................................................. 13
3.2.4. NOISE LEVELS ............................................................................................................................... 13
3.2.5. VIBRATION LEVELS ........................................................................................................................ 14
4. COMMISSIONING ................................................................................................................. 15
4.1. CONTENTS OF THE KIT .............................................................................................................. 15
4.2. USEFUL TIPS FOR COMMISSIONING ........................................................................................ 15
4.3. ASSEMBLY OF THE CHAIN AND CHAIN GUIDE (1ST USE) .................................................... 15
4.3.1. CHAIN GUIDE FUNCTIONS ............................................................................................................. 16
4.4. AUTOMATIC CHAIN TENSIONING (FIRST USE) ........................................................................ 17
4.5. CHAIN LUBRICATION (FIRST USE) ............................................................................................ 19
4.5.1. FILLING THE CHAIN OIL RESERVOIR ............................................................................................ 19
4.5.2. FIRST FORCED LUBRICATION CYCLE ........................................................................................... 19
4.6. RUNNING-IN (BEFORE FIRST USE) ............................................................................................ 20
4.7. CHAIN PROTECTION .................................................................................................................... 20
4.8. FITTING THE BATTERY ON THE HARNESS .............................................................................. 21
4.9. CONNECTING PELLENC BATTERIES TO THE TOOL ............................................................... 21
4.9.1. ULIB 250 BATTERY ......................................................................................................................... 21
4.9.2. ULIB 750 / ALPHA 260 / ALPHA 520 BATTERIES ............................................................................. 21
3

CHAINSAW SELION M12
51_149238-C
4.9.3. ULIB 700 / OLIVION+ BATTERY ...................................................................................................... 22
4.10. DISCONNECTING PELLENC BATTERIES FROM THE TOOL ................................................. 22
4.10.1. ULIB 250 BATTERY ....................................................................................................................... 23
4.10.2. ULIB 750 / ALPHA 260 / ALPHA 520 BATTERIES ........................................................................... 23
4.10.3. ULIB 700 / OLIVION+ BATTERY .................................................................................................... 23
5. USAGE .................................................................................................................................. 24
5.1. USAGE SITUATION ....................................................................................................................... 24
5.2. ADJUSTING THE HARNESS ........................................................................................................ 24
5.3. SWITCHING THE BATTERY ON AND OFF ................................................................................. 24
5.3.1. ULIB 250 BATTERY ......................................................................................................................... 24
5.3.2. ULIB 750 BATTERY ......................................................................................................................... 25
5.3.3. ALPHA 260 / ALPHA 520 BATTERY ................................................................................................. 25
5.3.4. ULIB 700 / OLIVION+ BATTERY ...................................................................................................... 25
5.4. HOLDING THE TOOL .................................................................................................................... 26
5.5. START-UP ...................................................................................................................................... 26
5.6. ELECTRONIC ................................................................................................................................. 27
5.6.1. CHECKING THE CHAIN BRAKE ...................................................................................................... 27
6. SERVICE ............................................................................................................................... 28
6.1. MAINTENANCE ADVICE ............................................................................................................... 28
6.2. THE FOUR BASIC RULES ........................................................................................................... 28
6.3. MAINTENANCE FREQUENCY ...................................................................................................... 29
6.4. REPLACING THE CHAIN AND THE CHAIN GUIDE ................................................................... 30
6.5. AUTOMATIC CHAIN TENSIONING .............................................................................................. 32
6.6. CHAIN LUBRICATION ................................................................................................................... 34
6.6.1. FILLING THE CHAIN OIL RESERVOIR ............................................................................................ 34
6.6.2. FIRST FORCED LUBRICATION CYCLE ........................................................................................... 34
6.7. SHARPENING THE CHAIN ........................................................................................................... 35
6.8. ADJUSTING THE DEPTH LIMITERS ........................................................................................... 36
6.9. CHECKING AND REPLACING THE SPROCKET ........................................................................ 38
6.10. CLEANING THE CHAIN GUIDE .................................................................................................. 38
6.11. GREASING THE ANTI-KICKBACK CHAIN GUIDE .................................................................... 39
6.12. CLEANING THE TOOL ................................................................................................................ 39
6.13. FILLING THE CHAIN OIL RESERVOIR ..................................................................................... 39
7. INCIDENTS AND TROUBLESHOOTING ............................................................................. 40
8. STORAGE AND TRANSPORT ............................................................................................ 41
8.1. CHAIN PROTECTION .................................................................................................................... 41
8.2. OFF-SEASON STORAGE ............................................................................................................. 41
9. ACCESSORIES AND CONSUMABLES .............................................................................. 42
9.1. ACCESSORIES .............................................................................................................................. 42
9.2. OPTIONAL ACCESSORIES .......................................................................................................... 42
9.3. CONSUMABLES ............................................................................................................................ 43
10. WARRANTIES .................................................................................................................... 44
4

CHAINSAW SELION M12
51_149238-C
10.1. GENERAL WARRANTIES ........................................................................................................... 44
10.1.1. STATUTORY WARRANTY ............................................................................................................. 44
10.1.2. COMMERCIAL WARRANTYPELLENC ............................................................................................ 44
10.1.3. PAID AFTER-SALES SERVICE ...................................................................................................... 45
11. COMPLIANCE STATEMENTS ........................................................................................... 47
11.1. "EC" DECLARATION OF CONFORMITY: SELION M ............................................................... 47
5

CHAINSAW SELION M12
51_149238-C
1. INTRODUCTION
Dear Customer,
Thank you for purchasing your Chainsaw Selion M12. Correctly used and maintained, this tool will give a satisfactory
performance for many years.
Warning
Your device contains numerous recoverable or recyclable materials. Return it to your
dealer or, failing this, to an approved servicing centre to be treated.
Comply with the regulations in force in your country as concerns environmental protection associated with your
activity.
Warning
It is imperative that you read through the ENTIRE user’s manual before using or servicing the
tool. Always comply with the instructions and illustrations in the manual.
All through this user guide you will find advisory notes and information entitled: NOTE, IMPORTANT, ATTENTION
and WARNING.
The points marked “NOTE” indicate additional information.
The points marked “IMPORTANT” warn the user of a potential risk to the equipment.
The points marked “ATTENTION” warn the user of a potentially hazardous situation which if not avoided leads to
minor injuries.
The points marked “WARNING” warn the user of a potentially hazardous situation which if not avoided leads to
serious injury or death.
The warning indicates that damage resulting from failure to comply with the procedures and instructions is not
covered by the warranty and the owner will be liable for any repair costs.
Safety indications are also given on the tool; they remind you of the safety precautions to be taken. Identify and
read these indications before using the tool. Immediately replace any indications that may become partially illegible
or deteriorated.

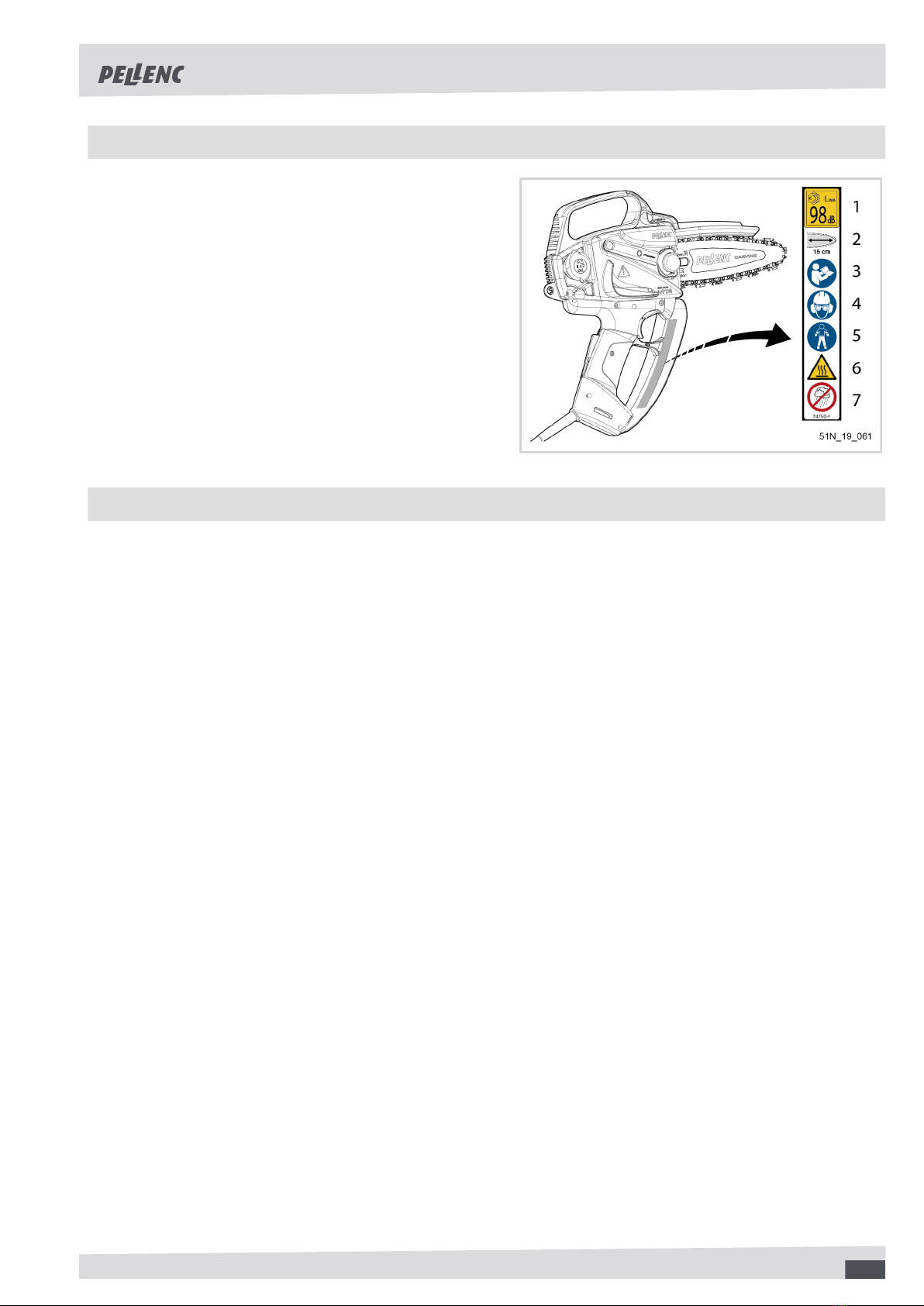

Refer to Section 2.7, “Safety signage” for the location diagram of the safety stickers affixed to the tool.
No part of this manual may be reproduced without the written permission of the company PELLENC. The illustrations
given in this manual are for information purposes and are in no way contractual. The PELLENC company reserves
the right to make any modification or improvement to its products as deemed necessary without informing customers
already in possession of a similar model. This manual forms an integral part of the tool and must accompany the
tool if it changes hands.
6

CHAINSAW SELION M12
51_149238-C
2. SAFETY
2.1. INTENDED USAGE
• The Chainsaw Selion M12 is intended for cutting only wood and branches up to a diameter corresponding to the
length of the chain guide.
• The Chainsaw Selion M12 must be used at ground level or from a suitable platform that is completely stable
and secure.
• When is use the Chainsaw Selion M12 should be held in both hands, right hand on the trigger handle and left
hand on the top handle.
• The Chainsaw Selion M12 is intended for outdoor use only.
• The Chainsaw Selion M12 is not intended for any other use.
• Mounting of parts on the Chainsaw Selion M12 is authorized only for original or manufacturer-approved spare
parts (chain guides or saw chains for example) as well as for authorized chain guide / saw chain combinations
as indicated in the manual.
• The user is responsible for any accident resulting from improper use or unauthorized modification of the Chainsaw
Selion M12.
2.2. GENERAL SAFETY WARNINGS FOR THE TOOL
Warning
Read all safety warnings and all instructions. Failure to follow the warnings and instructions
may result in electric shock, fire and/or serious injury.
Note
Save all warnings and instructions for future reference.
The term "power tool" in the safety warnings refers to your battery-powered electric tool (without power cord).
2.2.1. WORK AREA SAFETY
1. Keep the work area clean and well lit. Cluttered or dark areas invite accidents.
2. Do not operate power tools in an explosive atmosphere, for example in the presence of flammable
liquids, gases or dust. Power tools create sparks, which may ignite the dust or fumes.
3. Keep children and bystanders away while operating the power tool. Distractions can cause you to lose
control of the tool.
2.2.2. ELECTRICAL SAFETY
1. The power tool connector must be adapted to the socket. Never modify the connector in any way what-
soever. Do not use adapter plugs with earthed (grounded) power tools. Unmodified plugs and suitable
sockets reduce the risk of electric shock.
2. Avoid contact with earthed surfaces such as pipes, radiators, cookers, and refrigerators. There is an
increased risk of electric shock if your body is in direct contact with the ground.
3. Do not expose power tools to rain or damp conditions. The entry of water into a power tool increases the
risk of electric shock.
4. Do not mishandle the power cord. Never use the cord for carrying, pulling or unplugging the power
tool. Keep cord away from heat, oil, sharp edges and moving parts. Damaged or entangled cords increase
the risk of electric shock.
7

CHAINSAW SELION M12
51_149238-C
5. When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord
suitable for outdoor use reduces the risk of electric shock.
6. If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) pro-
tected supply. Use of an RCD reduces the risk of electric shock.
2.2.3. PERSONAL SAFETY
1. Stay alert, watch what you are doing, and use common sense when operating the power tool. Do not
use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment
of inattention when using a power tool can result in serious personal injury.
2. Use personal protective equipment. Always wear eye protection. Safety equipment such as dust masks,
non-slip safety shoes, helmets, or ear protection used at the appropriate times reduces injuries.
3. Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power
source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the
switch or energising power tools that have the switch on invites accidents.
4. Remove any adjusting wrench before switching the electric tool on. A wrench left attached to a rotating
part can cause injury.
5. Do not overreach. Keep proper footing and balance at all times. This enables better control of the power
tool in unexpected situations.
6. Dress appropriately. Do not wear loose clothing or jewellery. Keep hair and clothing away from moving
parts. Loose clothes, jewellery or long hair can get caught in moving parts.
7. If devices are provided for connecting dust extraction and collection equipment, ensure that these are
connected and properly used. Use of dust collection can reduce dust-related hazards.
2.2.4. POWER TOOL USE AND CARE
1. Do not force the power tool. Use the correct power tool for your application. The correct power tool will
do the job better and safer at the rate for which it was designed.
2. Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled
with the switch is dangerous and must be repaired.
3. Unplug the tool from the socket or remove the battery (if possible) before any adjustment, change of
accessory or storage. These preventive safety measures reduce the risk of accidentally starting the power
tool.
4. Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power
tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained
users.
5. Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any
other condition that may affect the power tool’s operation. If damaged, have the power tool repaired
before use. Many accidents are caused by poorly maintained power tools.
6. Keep the cutting elements sharp and clean. Properly maintained cutting tools with sharp cutting elements
are less likely to jam and are easier to control.
7. Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into
account the working conditions and the work to be performed. Use of the power tool for operations different
from those intended could result in a hazardous situation.
2.2.5. BATTERY TOOL USE AND CARE
1. Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of
battery pack may create a risk of fire when used with another battery pack.
2. Use power tools only with specifically designated battery packs. Use of any other battery packs may
create a risk of injury and fire.
3. When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys,
nails, screws or other small metal objects, that can make a connection from one terminal to another.
Shorting the battery terminals together may cause burns or a fire.
4. Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally
occurs, wash away with water. If liquid contacts eyes, seek additional medical help. Liquid ejected from
the battery may cause irritation or burns.
8

CHAINSAW SELION M12
51_149238-C
2.2.6. SERVICE
1. Have your power tool serviced by a qualified repair person using only identical replacement parts. This
will ensure that the safety of the power tool is maintained.
2.2.7. TOOL’S END OF LIFE MANAGEMENT
1. When the tool reaches the end of its life, PELLENC keeps the end of life sheet of the equipment at
disposal. The end of life sheet provides instructions for safely removing components.
2.3. CHAIN SAW SAFETY WARNINGS
1. Keep all parts of the body away from the saw chain when the chain saw is operating. Before you start the
chain saw, make sure the saw chain is not contacting anything. A moment of inattention while operating
chain saws may cause entanglement of your clothing or body with the saw chain.
2. Always hold the chain saw with your right hand on the rear handle and your left hand on the front
handle. Holding the chain saw with a reversed hand configuration increases the risk of personal injury and
should never be done.
3. Hold the power tool by insulated gripping surfaces only, because the saw chain may contact hidden
wiring. Saw-chains coming into contact with a "live" wire can result in the electrification of the exposed metal
parts of the electric tool and cause electric shock to the operator.
4. Wear safety glasses and hearing protection. Further protective equipment for head, hands, legs and
feet is recommended. Adequate protective clothing will reduce personal injury by flying debris or accidental
contact with the saw chain.
5. Do not operate a chain saw in a tree. Operation of a chain saw while up in a tree may result in personal injury.
6. Always keep proper footing and operate the chain saw only when standing on fixed, secure and level
surface. Slippery or unstable surfaces such as ladders may cause a loss of balance or control of the chain saw.
7. When cutting a limb that is under tension be alert for spring back. When the tension in the wood fibres is
released the spring loaded limb may strike the operator and/or throw the chain saw out of control.
8. Use extreme caution when cutting brush and saplings. The slender material may catch the saw chain and
be whipped toward you or pull you off balance.
9. Carry the chain saw by the front handle with the chain saw switched off and away from your body. When
transporting or storing the chain saw always fit the guide bar cover. Proper handling of the chain saw will
reduce the likelihood of accidental contact with the moving saw chain.
10. Follow instructions for lubricating, chain tensioning and changing accessories. Improperly tensioned or
lubricated chain may either break or increase the chance for kickback.
11. Keep handles dry, clean, and free from oil and grease. Greasy, oily handles are slippery causing loss of
control.
12. Cut wood only. Do not use chain saw for purposes not intended. For example: do not use chain saw
for cutting plastic, masonry or non-wood building materials. Use of the chain saw for operations different
than intended could result in a hazardous situation.
2.4. CAUSES AND OPERATOR PREVENTION OF KICKBACK
Kickback can occur if the front or end of the chain guide touches an object or if the cut in the wood closes and
traps the cutting chain in the cut.
Tip contact in some cases may cause a sudden reverse reaction, kicking the guide bar up and back towards the
operator.
Pinching the saw chain along the top of the guide bar may push the guide bar rapidly back towards the operator.
Either of these reactions may cause you to lose control of the saw which could result in serious personal injury. Do
not rely exclusively upon the safety devices built into your saw. As a chain saw user, you should take several steps
to keep your cutting jobs free from accident or injury.
9

CHAINSAW SELION M12
51_149238-C
Kickback is the result of tool misuse and/or incorrect operating procedures or conditions and can be avoided by
taking proper precautions as given below:
1. Maintain a firm grip, with thumbs and fingers en-
circling the chain saw handles, with both hands
on the saw and position your body and arm to al-
low you to resist kickback forces. Kickback forces
can be controlled by the operator, if proper precau-
tions are taken. Do not let go of the chain saw.
2. Do not overreach and do not cut above shoul-
der height. This helps prevent unintended tip con-
tact and enables better control of the chain saw in
unexpected situations.
3. Only use replacement bars and chains specified
by the manufacturer. Incorrect replacement bars
and chains may cause chain breakage and/or kick-
back.
4. Follow the manufacturer’s sharpening and main-
tenance instructions for the saw chain. Decreas-
ing the depth gauge height can lead to increased
kickback.
51N_19_008
2.5. SAFETY MEASURES RELATED TO THE USE OF THE PELLENC BATTERY AND CHARGER
Refer to the instructions supplied with the PELLENC battery and charger.
2.6. PERSONAL PROTECTION EQUIPMENT
Equipment Wearing of
1 Safety helmet Mandatory
2 Protective visor Recommended
3 Resistant work gloves Mandatory
4 Safety footwear Mandatory
5 Ear protection Mandatory
6 Protective goggles Required
7 Safety jacket or over-sleeves Mandatory
8 Work trousers Mandatory
10

CHAINSAW SELION M12
51_149238-C
2.7. SAFETY SIGNAGE
1. LwA sound power level guaranteed
2. Chain guide size (useful cutting length)
3. Read the user guide
4. Safety goggles, hearing protection and a protective
helmet must be worn
5. Wearing of safety shoes and work trousers is
mandatory
6. Risk of burns, hot surfaces (motor)
7. Do not expose to rain
2.8. RESIDUAL RISKS
Even when using the Chainsaw Selion M12 as intended, there is always a degree of unavoidable residual risk. The
following potential risks may apply:
• Risk of cuts due to contact with exposed saw teeth of the Chainsaw Selion M12
• Risk of cuts due to contact with the moving chain
• Risk of cuts due to unexpected and sudden movement of the guide bar
• Risk of cutting or piercing injuries related to the projection of parts of the Chainsaw Selion M12
• Risk of projections of splinters, bark, etc. while sawing
• Risk of allergy related to skin contact with chain oil
• Risk of fire resulting from cutting of certain particularly flammable wood species
• Risk of electrification / electrocution in the event of contact or proximity between the chainsaw and live cables.
11

CHAINSAW SELION M12
51_149238-C
3. DESCRIPTION AND TECHNICAL CHARACTERISTICS

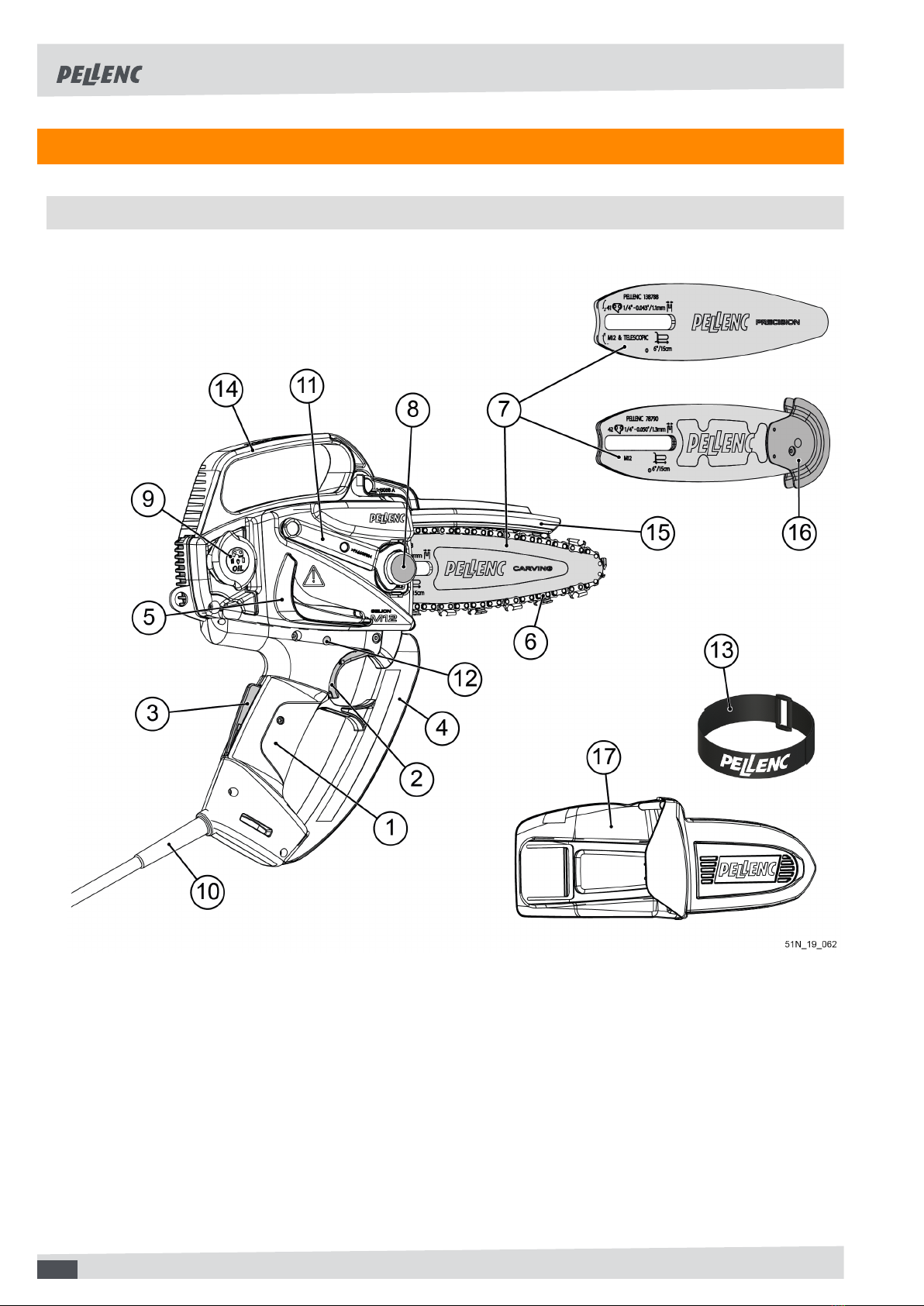

3.1. DESCRIPTION
1. Handle
2. Operating trigger
3. Safety trigger
4. Right hand guard
5. Chain casing
6. Saw chain
7. Chain guide
8. Chain guard tightening nut
9. Oil tank cap
10. Tool power cable
11. Telescopic tightening wrench
12. “On” light
13. Arm band
14. Left hand safety guard
15. Retractable chain guard
16. Anti kickback guide bar nose
17. Chain guard
12

CHAINSAW SELION M12
51_149238-C
3.2. TECHNICAL FEATURES
3.2.1. GENERAL CHARACTERISTICS
Selion M12
Battery life Depending on the use and type of battery
Chain oil tank capacity 7 cl
Useful cutting length / chain guide
Chain Type / Pitch / Gauge
See the chart Section 3.2.2, “Chains and chain guides compatibility”
Battery compatibility ULIB 250 / ALPHA 260 / ALPHA 520 / ULIB 700 / ULIB 750 / OLIVION +
Sprocket wheel 9-tooth 1/4’’
Chain speed 10.3 m/s
Weight of tool without guide or chain 1.95 kg
3.2.2. CHAINS AND CHAIN GUIDES COMPATIBILITY
Chain guide type Chain guide size
(useful cutting
length)
Chain pitch Chain gauge Chain guide ref-
erence
Chain reference
Carving guide
(sold as standard)
15 cm (6") 6.35 mm (1/4") 1.3 mm (0.05") 80343 71550
Anti-kickback
guide (sold as an
option)
15 cm (6") 6.35 mm (1/4") 1.3 mm (0.05") 78790 71550
Precision guide
(sold as an op-
tion)
15 cm (6") 6.35 mm (1/4") 1.1 mm (0.04") 138788 138880
3.2.3. CHARGERS AND BATTERIES COMPATIBILITY
Battery Charger Remarks
ULIB 250 CB5010HV
ALPHA 260 CB5022; CB5022HV *with adapter cord ref. 57239
ALPHA 520 CB5022 ; CB5022HV *with adapter cord ref. 57239
ULIB 700 CB5022; CB5022HV
ULIB 750 CB5022; CB5022HV
OLIVION+ CB5022; CB5022HV
3.2.4. NOISE LEVELS
Determination of the sound levels is based on the operating conditions at the nominal maximum speed.
Noise value measured by EN 60745-1 and EN ISO 60745-2-13
Level of acoustic pressure measured at the work position (uncertainty of KpA =
3 dB (A))
LpA= 84 dB(A)
Sound power level (measurement uncertainty KWA= 3 dB (A)). LWA= 95 dB(A)
13

CHAINSAW SELION M12
51_149238-C
3.2.5. VIBRATION LEVELS
Determination of the vibration levels is based on the operating conditions at the nominal maximum speed.
Vibration level according to 6.2 of EN 60745-1 and EN 60745-2-13
Vibration emission value (measurement uncertainty K = 1.5 m / s²) ah < 2.5 m/s²
14

CHAINSAW SELION M12
51_149238-C
4. COMMISSIONING
4.1. CONTENTS OF THE KIT
Make sure the carton contains:
• A Chainsaw Selion M12 that comes with:
• 1 carving chain guide (7),
• 1 saw chain (6),
• 1 chain guard (17),
• 1 arm band (13),
• 1 user guide,
• 1 warranty card.
4.2. USEFUL TIPS FOR COMMISSIONING
Caution
Always disconnect the tool battery before starting tool maintenance.
• Use products recommended by PELLENC.
• In the event of any problem, consult an authorised PELLENC distributor.
4.3. ASSEMBLY OF THE CHAIN AND CHAIN GUIDE (1ST USE)
Note
Refer to the numbering of the parts in the illustration Section 3.1, “Description”.

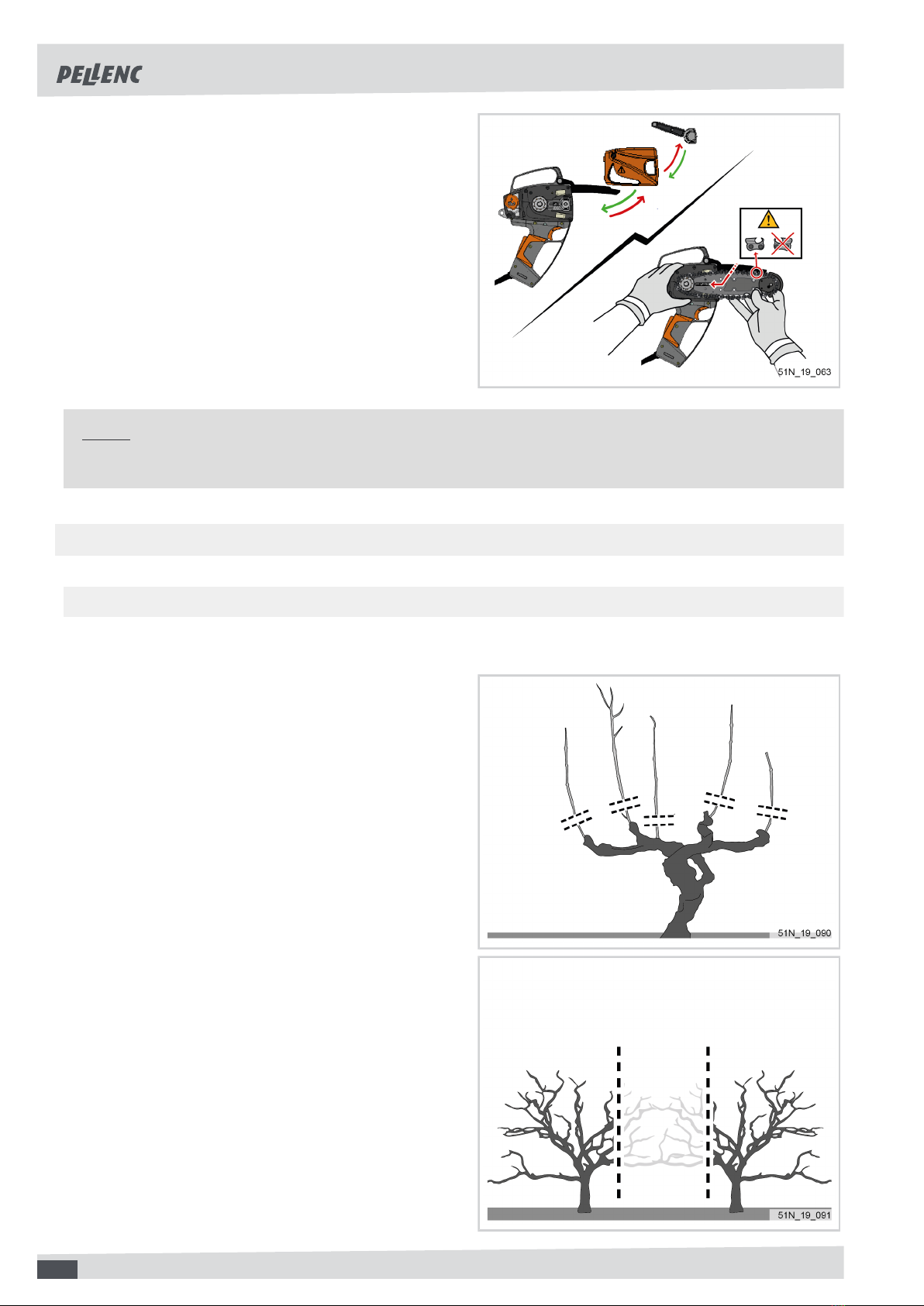

1. Remove the chain protector (5) and remove the
foam plug that blocks the oil outlet before fitting the
bar and chain.
15

CHAINSAW SELION M12
51_149238-C
The chain guide and the chain are delivered unassem-
bled. Assemble the chain guide and the chain.
2. Position the chain guide (7) in its place.
3. Push the guide (7) towards the sprocket to engage
the lock.
4. Fit the chain (6) while respecting the cutting direc-
tion.
5. Refit the chain protector (5).
6. Retighten the lock nut (8) using the captive telescop-
ic tightening wrench (11). During this operation, the
automatic chain tensioning mechanism should be
triggered.
Note
For more details on the procedure, consult: Section 6.4, “REPLACING THE CHAIN AND THE CHAIN GUIDE”.
4.3.1. CHAIN GUIDE FUNCTIONS
- 4.3.1.1. THE ANTI-KICKBACK CHAIN GUIDE

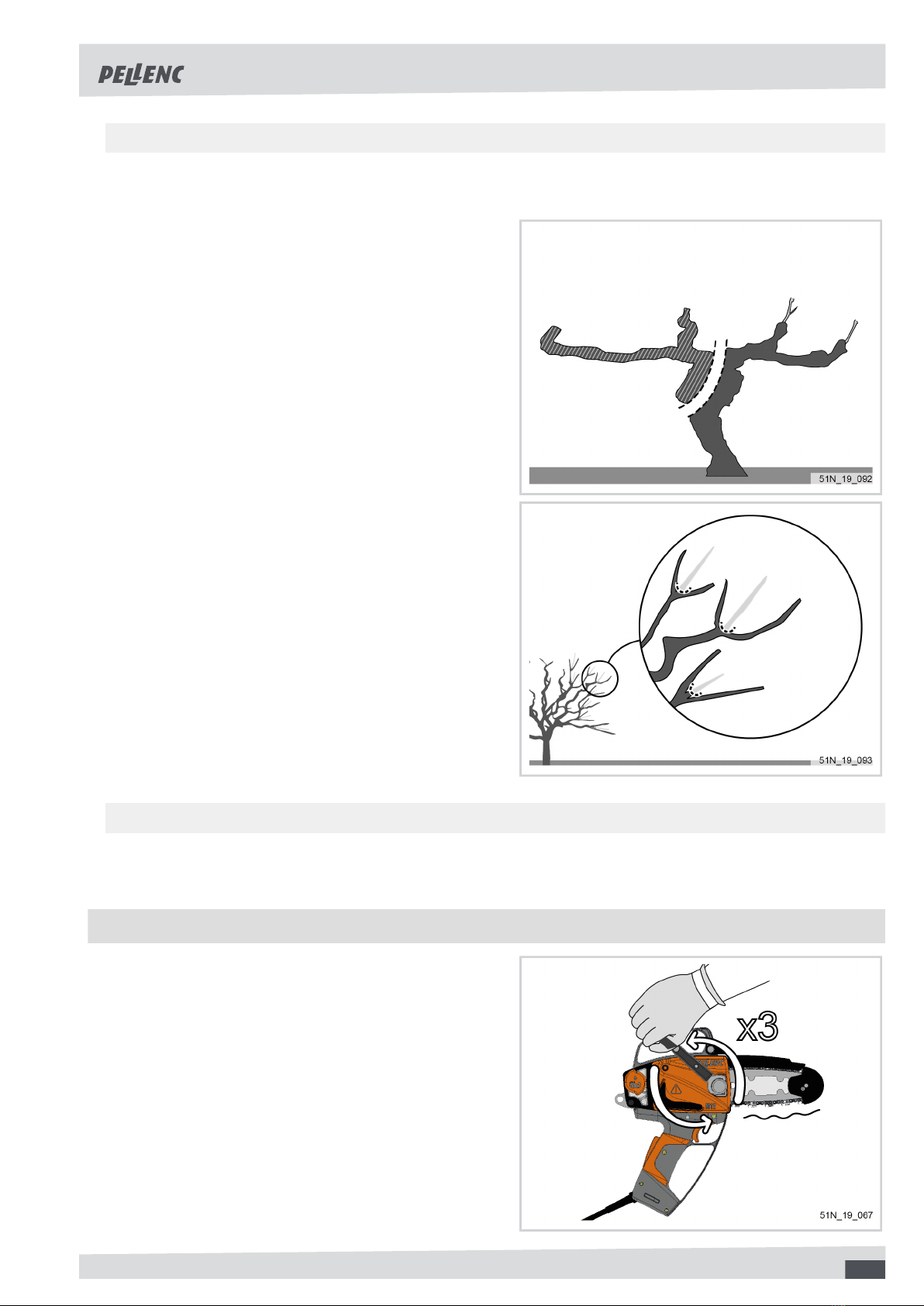

The anti-kickback chain guide can be used for:
• regular trimming
• restructuring orchards to allow passage between two
rows of trees.
16

CHAINSAW SELION M12
51_149238-C
- 4.3.1.2. THE CARVING CHAIN GUIDE
The carving chain guide has a very narrow profile that allows for easier access to difficult areas, while incurring very
little kickback. It is used for more precise cuts such as:
• surgical trimming of the tree or vine (curettage of dis-
eased vines),
• selective trimming in dense vegetation on fruit trees
- 4.3.1.3. PRECISION CHAIN GUIDE
The precision chain guide, like the carving chain guide, has a very narrow profile and has the same advantages.
The reduced thickness of the precision guide ensures a cleaner cut and a reduction in energy consumption.
4.4. AUTOMATIC CHAIN TENSIONING (FIRST USE)
1. Loosen the chain guard (8) lock nut by 3 turns.
17

CHAINSAW SELION M12
51_149238-C
2. Tighten the chain guard lock nut (8) correctly using
the telescopic wrench (11), the chain guide (7) then
moves forward and automatically tensions the chain
(6).
3. Re-position the handle of the telescopic wrench (11)
on its holding magnet.
Checking the tension of the chain
Important
Adjust the tension as often as necessary. Tension
is checked by pulling on the chain (6) in the middle
of the chain guide: 1 to 3 drive links should appear.
18

CHAINSAW SELION M12
51_149238-C
4.5. CHAIN LUBRICATION (FIRST USE)
4.5.1. FILLING THE CHAIN OIL RESERVOIR
Before the first use, it is essential to fill the chain oil reser-
voir with the specific chain and guide oil (Ref.: 116688)
1. Unscrew the guide and chain oil reservoir cap (9)
2. Carefully pour the guide and chain oil into the reser-
voir.
3. Tighten the chain oil tank cap (9)
Important
Check the oil level every hour and top it up if nec-
essary.
Note
PELLENC recommends using a biodegradable chain oil that complies with the RAL-UZ-48 standard (ref.
116688, otherwise any oil that complies with the RAL-UZ-48 standard)
Consumables sold separately.
Warning
Never use dirty or used oil.
4.5.2. FIRST FORCED LUBRICATION CYCLE
The forced lubrication cycle distributes the oil from the
reservoir to the different components. It is imperative to
carry out this forced lubrication cycle before first use of
the Chainsaw Selion M12.
1. Press and hold the triggers (3) and (2).
2. Switch on the battery (see Section 5.3, “Switching
the battery on and off”.)
3. An automatic cycle starts which sends oil from the
reservoir to the chain guide.
a. short beep every 20 seconds during the cycle.
b. 3 beeps to validate the end of the cycle.
4. Release the triggers when you hear the first beep.
Note
The chain does not turn during the forced lubrication cycle phase.
19

CHAINSAW SELION M12
51_149238-C
Warning
Carry out a forced lubrication cycle at the start of each season in order to check the chain
lubricating function. Carry out forced lubrication whenever necessary.
4.6. RUNNING-IN (BEFORE FIRST USE)
Warning
Before the first use, it is imperative to run-in the chain guide and chain.
To run-in the chain guide and the chain:
1. Run the chainsaw for 1 or 2 minutes without contact
2. After this running-in phase, check the tension of the chain, and tighten it if necessary.
Note
Once all commissioning procedures have been completed, the tool is ready for use
4.7. CHAIN PROTECTION
Put on the chain protector whenever transporting, han-
dling and storing the tool.
Note
Never transport the chainsaw without its protective
cover. The chainsaw must always have its protec-
tive cover on when moved.

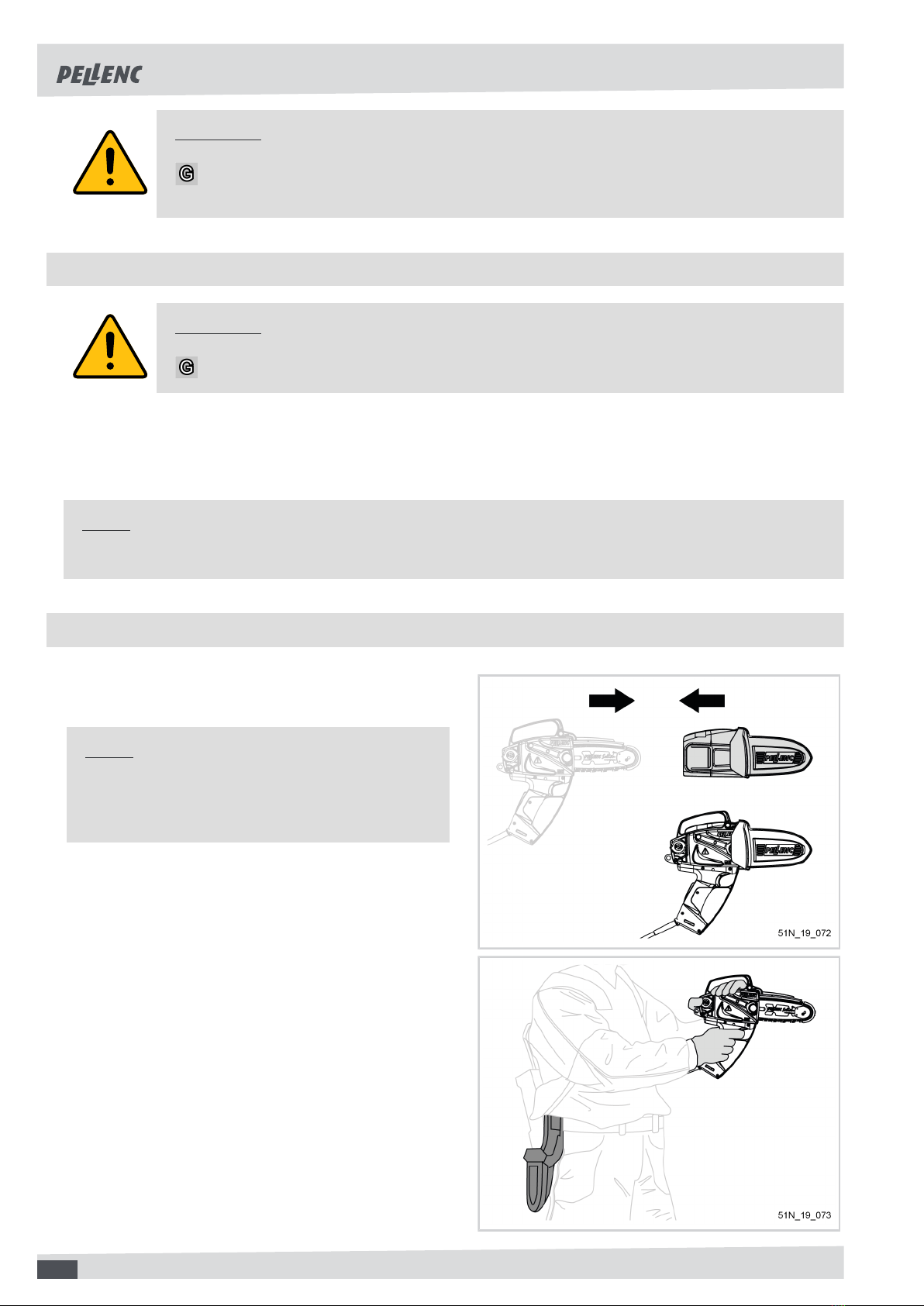

The chain protector can be used as a holster that hangs
from the belt.
20
