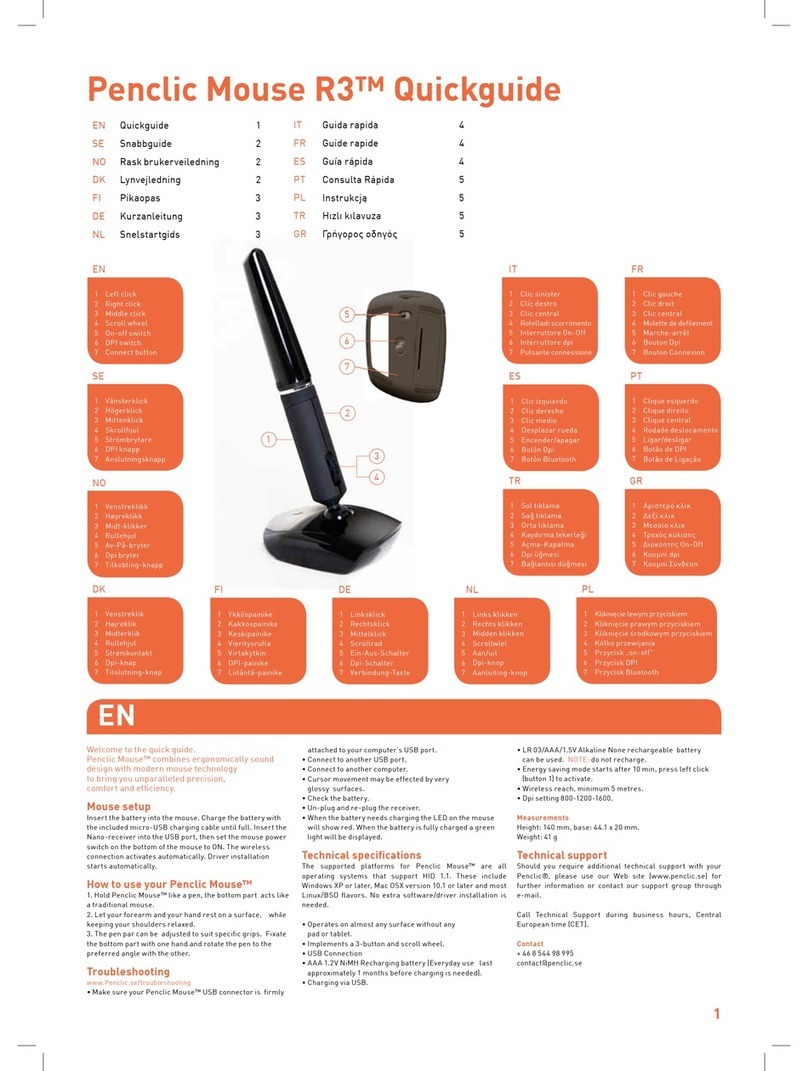

Penclic R3 User manual

WELCOMEtothequickguide

PenclicMousecombinesergonomicallysounddesignwithmodernmousetechnologytobring
youunparalleledprecision,comfortandefficiency.

Mousesetup
Insertthebatteryintothemouse
Chargethebatterywiththeincludedmicrousbchargingcableuntilfull.
SetthemousepowerswitchonthebottomofthemousetoON

TroubleinstallingyourPenclicMouseR3.Pleaselookatwww.penclic.se/troubleshooting

HOWTOUSEYOURPenclicMouse
1,HoldPenclicMouselikeapen,thebottompartactslikeatraditionalmouse.
2,Letyourforearmandyourhandrestonasurface,whilekeepingyourshouldersrelaxed.
3,Thepenpartcanbeadjustedtosuitspecificgrips.
Fixatethebottompartwithonehandandrotatethepentothepreferredanglewiththeother.

•Leftclick1
•Rightclick2
•Middleclick3
•Scrollwheel4
•On‐offswitch5
•DPIswitch6
•Connecttonewreceiverbutton7

TROUBLESHOOTING
http://www.Penclic.se/troubleshooting
•Check the battery.
•When the battery needs charging the LED on the mouse will show red. When
the battery is fully charged a green light will be displayed.
•Cursor movement may be effected by very glossy surfaces.
TECHNICAL SPECIFICATIONS
The supported platforms for Penclic Mouse are all operating systems that support
HID 1.1. These include Windows XP or later, Mac OSX version 10.1 or later and
most Linux/BSD flavors. No extra software/driver installation is needed.
•Operates on almost any surface without any pad or tablet.
•Implements a 3-buttons and scroll wheel mouse.
•AAA 1.2V NiMH Recharging battery (Everyday use last approximately 3
months before charging is needed).
•LR 03/AAA/1.5V Alkaline None rechargeable battery can be used. NOTE: DO
NOT RECHARGE
•Energy saving mode starts after 10 min, press left click (button 1) to activate.
•Wireless reach, minimum 5 metres.
•Dpi settings 800-1200-1600.
Measurements:
• Height: 140 mm Base: 44.1 x 20 mm
• Weight: 41 g

TECHNICAL SUPPORT
Should you require additional technical support with your Penclic Mouse™, please
use our Web site for further information or contact our support group through e-
mail. Call Technical Support during business hours, central European time plus one
hour.

Contact:+46854498995oremail:[email protected]e

FCC WARNING
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
NOTE 1: Any changes or modifications to this unit not expressly approved by the
party responsible for compliance could void the user's authority to operate the
equipment.

IC WARNING

This device complies with Industry Canada RSS-210 standard(s). Operation is
subject to the following two conditions: (1) this device may not cause interference,
and (2) this device must accept any interference, including interference that may
cause undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux
appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions
suivantes: (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de
l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est
susceptible d'en compromettre le fonctionnement.
Under Industry Canada regulations, this radio transmitter may only operate using
an antenna of a PCB and maximum -1.2dBi gain approved for the transmitter by
Industry Canada. To reduce potential radio interference to other users, the antenna
type and its gain should be so chosen that the equivalent isotropically radiated
power (e.i.r.p.) is not more than that necessary for successful communication.





SPRÅK:ordpå13språk
Svenska, norska, danska, finska, tyska, franska, spanska, italienska, holländska,
portugisiska, turkiska och grekiska. + polska
