Pentair Pool Products Super Charger II User manual

REV. B 4-30-01 1 P/N 99300000
WARNING
Super Charger II & Turbo Charger
Residential Blowers Owners Manual
Important Notice
AttentionInstaller.
Thismanualcontainsimportantinformationabouttheinstallation,
operationandsafe use of thisproduct.Thisinformationshouldbe given to
theowner/operatorofthisequipment.
Before installing this product, read and follow all warning notices and instructions
accompanying this filter. Failure to follow safety warnings and instructions can
result in severe injury, death, or property damage. Call [phone] for additional
free copies of these instructions.
IMPORTANTSAFETY INSTRUCTIONS
READANDFOLLOWALLINSTRUCTIONS
SAVETHESEINSTRUCTIONS
Table of Contents
SECTIONI.RESIDENTIALBLOWERINSTALLATION ...........................................................3
SECTIONII.RESIDENTIALBLOWERSIZING .........................................................................5
SECTIONIII.TECHNICALDATA .............................................................................................7
PentairPoolProducts
1620 Hawkins Ave., Sanford, NC 27330 • [phone]
10951 West Los Angeles Ave., Moorpark, CA 93021 • [phone]

P/N 99300000 2 REV. B 4-30-01
Theelectrical supplyforthisproduct mustincludeasuitable ratedswitchorcircuit breaker
toopenallungroundedsupplyconductorstocomplywithSection422-20 oftheNational
ElectricalCode,ANSI/NFPA70-1987.Thedisconnectingmeansmustbereadilyaccessible
tothe tub occupant but installedat least 5 ft. (1.5m)from tub water.
WARNING
Installatleast5ft. (1.5m) from tub water using nonmetallic plumbing.Installblowerno
lessthan1foot(305mm)abovethemaximumwaterleveltopreventwaterfromcontacting
electricalequipment.Installinaccordancewiththeinstallationinstruction.Failuretodoso
mayresult in anelectricalhazardwhich canresultinseriousinjury orpropertydamage.
WARNING
WARNING
Toreducetheriskof injury, do not permit children to use this product unless theyareclosely
supervisedatalltimes.
Super Charger II Blower Turbo Charger Blower

REV. B 4-30-01 3 P/N 99300000
I.RESIDENTIALBLOWERINSTALLATION
Wheninstallingandusingthiselectricalequipment,basicsafetyprecautionsshouldalwaysbe
followed,includingthefollowing:
1. Theblowermustbeinstalledinaverticalposition,fittingenddown.Thefittingonthe
bottomoftheblowerismadetoaccepta2in.schedule40PVCpipeinside.Nopipe
sizelessthan2in.shouldbeusedasrunningpipeonairblowers.Installationofblowers
usingpipelessthan2in.indiameterwillcausetheunittooverheatandwillvoidthe
warranty,seeFigure1.
2. Blowermustbeinstallednolessthan5ft.fromthespaortubandatleast12in.above
waterline,withnon-metallicplumbing.
3. Thecheckvalvesuppliedwiththisblowermustbepressedintothepipebefore
positioningblower,seeFigure2,pg.4.
4. Wiringinstructionstofollow,seeFigure3,pg.4.
a. BlowershouldbewiredwithNo.14AWGorlargerwire.
Figure 1.

P/N 99300000 4 REV. B 4-30-01
b. Connectblowercircuittoa15ampcircuitbreaker.Allelectricalwiringmustbe
doneinaccordancewiththeNationalElectricalCodeandlocalelectricalcodesand
regulations.
c. 120VoltConnection:Removeweatherproofswitchcoverandconnectelectric
wiring.Connectonlyblackwirestoswitch.Whitewireswillsplicetogetherinbox,
seeFigure3.
d. 240VoltConnection:Sameasaboveexceptallblackwireswillconnecttoswitch,
seeFigure3.
e. Connectthegreenwiretoground,seeFigure3.
f. AwireconnectorisprovidedonthisunittoconnectaminimumNo.8AWGsolid
copperconductorbetweenthisunitandanymetalequipment,metalenclosuresof
electricalequipment,metalwaterpipe,orconduitwithin5ft.oftheunit.

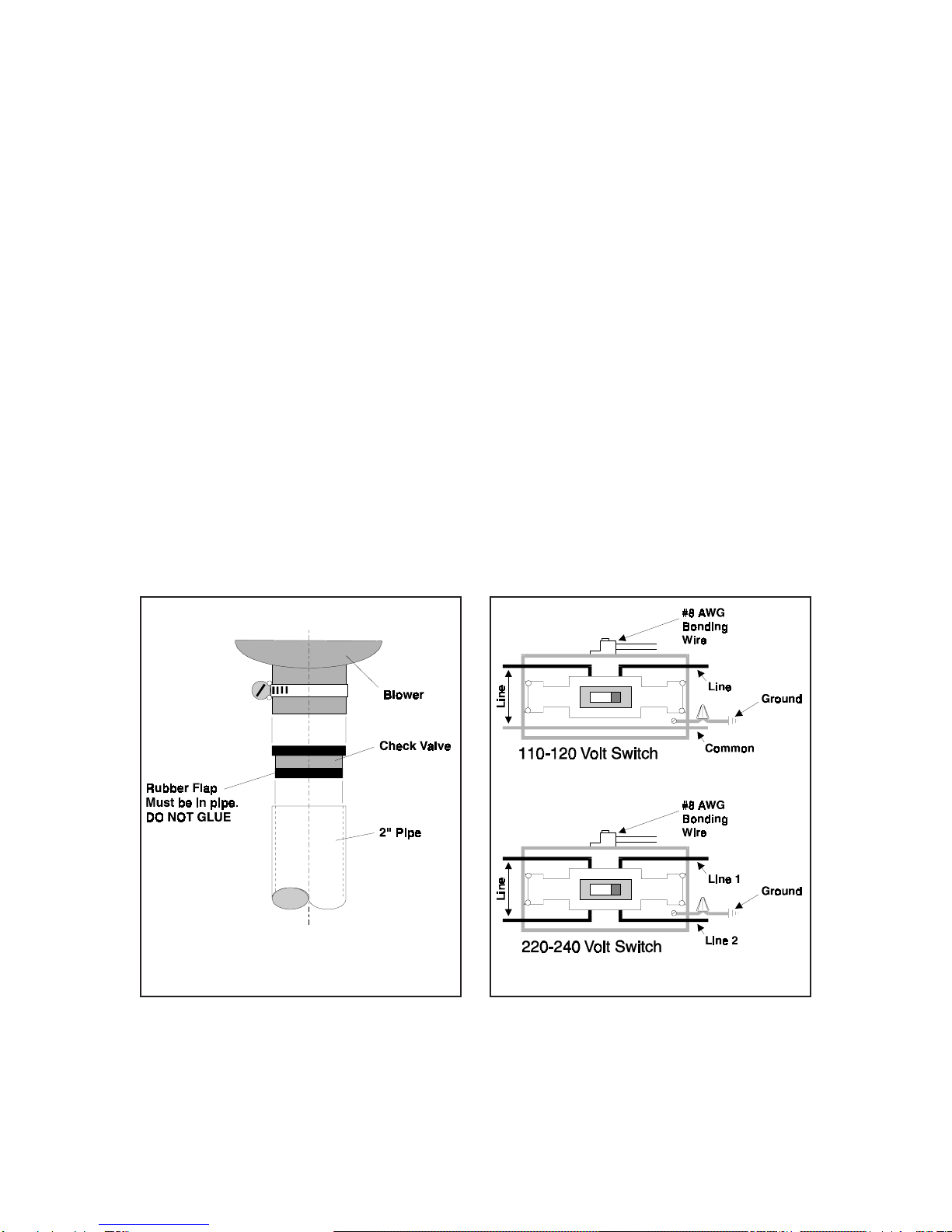

Figure 3.Figure 2.

REV. B 4-30-01 5 P/N 99300000
II.RESIDENTIALBLOWERSIZING
Thefollowingtablesprovidesizingdatatoselectthecorrectblowerforaninstallation.To
calculatethecorrectsizeblower,followtheinstructionsafterthesetables.
Supercharger II (Air Ring Only)
Max. Safe (Jets Only)
Pressure Rec.
in Inches of Number
Part No. H.P. Voltage Amps Water Depth of Jets*
411200 1 120Volts 6.0Amp 40in. 5-10
411300 1 240Volts 3.9Amp 35in. 4-9
411400 1.5 120Volts 9.0Amp 60in. 12-17
411500 1.5 240Volts 5.0Amp 55in. 12-17
411700 2 120Volts 9.4Amp 60in. 12-17
411900 2 240Volts 5.8Amp 55in. 12-17
Turbo Charger (Air Ring Only)
Max. Safe (Jets Only)
Pressure Rec.
in Inches of Number
Part No. H.P. Voltage Amps Water Depth of Jets*
414100 1 120Volts 6.6Amp 40in. 5-10
414200 1 240Volts 3.9Amp 35in. 4-9
414300 1.5 120Volts 9.0Amp 50in. 9-15
414400 1.5 240Volts 5.0Amp 45in. 8-13
414500 2 120Volts 9.3Amp 60in. 12-17
414600 2 240Volts 5.8Amp 55in. 12-17
*The number of jets are calculated based upon a maximum distance of 25 ft. from blower to spa.

P/N 99300000 6 REV. B 4-30-01
A. BlowerSizingInstructions
1. Thenumberofjetsarecalculatedbaseduponamaximumdistanceof25ft.from
blowertospa.Seesteps2through6belowforsizingblowersonspaswithairholesin
lieuofjets.Forspaswithairholesandjets,separateblowersarerecommended.
2. Allowancehasbeenmadeinthecalculationsforacheckvalveintheairlineorbuiltinto
theblower,whicheverapplies.
3. Forairholesinsteadofjetsadd1in.foreach10ft.of2in.PVCpipefromtheblower
tothespa.
4. Add.5in.foreach90°elbowinthe2in.PVCpipefromtheblowertothespa.
5. Add5in.forholesinseatandfloorPLUStheactualwaterdepth,whichismeasured
fromtheairholetothewaterline.ThisisnotTOTALSPADEPTH.
EXAMPLE: 15ft.airlinerun = 1.5in.
3elbows = 1.5in.
5in.+ 36in.waterdepth = 41.9in.
44.9 in. = 1.5 hp
6. Thenumberofholesinseatorfloororbothshouldequal1.6sq.in.offreeairspace.
Todeterminefreeairspace,usethetableprovided.Addnumberofholesandmultiply
byitssquarearea.
1/8 in. hole - .0123 sq. in.
3/16 in. hole - .0276 sq. in.
5/32 in. hole - .0192 sq. in.
1/4 in. hole - .0491 sq. in.
EXAMPLE: 60 each 1/8 in. seat holes - 60 x.0123 = .7380
30 each 3/16 in. floor holes - 30 x .0276 = .8280
Freeair space (1.6) = 1.5660
7. Two45°fittingsinplaceofone90°elbowisrecommendedwhereveritispossible.
8. Foranyairlinerunover15ft.fromblowertospa,a12in.loopmustbeinstalledabove
thewaterlevelatthespatorestrictthewaterfrombackingallthewaytotheblower,
andtoavoidunnecessarybackpressurewhenthebloweristurnedon.

REV. B 4-30-01 7 P/N 99300000
SECTION III. TECHNICAL DATA
Replacement Parts
Item Part Description
No. No.
1 40002700 Screw, 10 x 2½ in. phillips, 3 req.
2 41110100 Lid with foam
3 41111800 Switch, 120 volt, on/off, UL
3 41112800 Switch, 240 volt, on/off, UL
3 41113300 Switch, 120 volt, CSA
4 41111500 Cover, junction box, UL/CSA
5 40002800 Screw, 10 x 1-3/4 in. phillips, flat head, 3 req.
Replacement Parts
Item Part Description
No. No.
1 41473500 Acorn nut 8-32
2 98213800 Lock washer #8
3 41413000 Blower lid assembly
4 41475200 Foam support
5 41473200 Foam ring
6 41412005 Bracket - 1 stage
6 41412006 Bracket - 2 stage
7 98205100 Screw, 5/8 in. hex washer
8 41473700 Switch, box cover switch
9 40000100 Clamp, 2 in. hose
10 41411900 Check valve
Super Charger II Turbo Charger













SAVE THESE INSTRUCTIONS

P/N 99300000 8 REV. B 4-30-01
