Pentair Pool Products IntelliChlor SCG User manual

EasyTouch®/IntelliTouch®SCG Power Supply Replacement Parts Installation Guide
Installation Guide
IntelliChlor Salt Chlorine Generator
(SCG) Replacement Parts
(For EasyTouch®, IntelliTouch®
Pool & Spa Control System
with IntelliChlor®SCG)
IMPORTANT SAFETY INSTRUCTIONS
READ AND FOLLOW ALL INSTRUCTIONS
SAVE THESE INSTRUCTIONS

EasyTouch®/IntelliTouch®SCG Power Supply Replacement Parts Installation Guide
Contents
WARNING AND SAFETY INSTRUCTIONS ........................................... i
Introduction ........................................................................................... 1
Summary Installation Steps .................................................................. 1
IntelliChlor SCG Power Supply Replacement Parts:
Removal and Installation ....................................................................... 2
Required Tools .................................................................................. 2
SCG Power Cable Removal and Installation .......................................... 3
SCG Circuit Board Removal and Installation ......................................... 3
SCG Circuit Breaker Assembly Removal and Installation ..................... 4
SCG Transformer Assembly Removal and Installation .......................... 5
SCG Transformer High Voltage Wiring .................................................... 8
IntelliChlor SCG Power Supply Replacement kit Contents..................... 8
© 2011 Pentair Water Pool and Spa, Inc. All rights reserved.
1620 Hawkins Ave., Sanford, NC 27330 • [phone]
10951 West Los Angeles Ave., Moorpark, CA 93021 • [phone]
EasyTouch®, IntelliTouch®, IntelliChlor®and Pentair Water Pool and Spa® are trademarks and/
or registered trademarks of Pentair Water Pool and Spa, Inc. and/or its affiliated companies
in the United States and/or other countries. Unless noted, names and brands of others that
may be used in this document are not used to indicate an affiliation or endorsement between
the proprietors of these names and brands and Pentair Water Pool and Spa, Inc. Those
names and brands may be the trademarks or registered trademarks of those parties or
others.
P/N 521093 Rev A 07/05/11
Technical Support:
Sanford, North Carolina (8 A.M. to 5 P.M. ET)
Moorpark, California (8 A.M. to 5 P.M. PT)
Phone: [phone] - Fax: [phone]

EasyTouch®/IntelliTouch®SCG Power Supply Replacement Parts Installation Guide
i
SERIOUS BODILY INJURY OR DEATH CAN RESULT IF THIS
PRODUCT (UNIT) IS NOT INSTALLED AND USED
CORRECTLY.
INSTALLERS, POOL OPERATORS AND POOL OWNERS
MUST READ THESE WARNINGS AND ALL INSTRUCTIONS
BEFORE USING THIS PRODUCT. This Guide provides installa-
tion and operation instructions for the product. Consult
Pentair Water Pool and Spa, Inc. with any questions regarding
this product.
This product is intended for use in swimming pool applications
only.
Most states and local codes regulate the construction, installa-
tion, and operation of public pools and spas, and the construc-
tion of residential pools and spas. It is important to comply with
these codes, many of which directly regulate the installation and
use of this product. Consult your local building and health codes
for more information.
IMPORTANT NOTICE - Attention Installer: This Installation
Guide (“Guide”) contains important information about the
installation, operation and safe use of this product. This Guide
should be given to the owner and/or operator of this equipment.
Attention User: This Guide contains important information that
will help you in operating and maintaining this product. Please
retain it for future reference.
Head
Body
Upper
Arm
Upper
Arm
LegJoint
LegJoint
LegJoint
LegJoint
Head
Body
Upper
Arm
LegJoint
LegJoint
LegJoint
LegJoint
This product is designed and manufactured for safe and reliable
service when installed, operated and maintained according to the
information and installation codes referred to in this Guide. This is a safety alert
symbol. When you see this symbol in this manual or on the product, look for one
of the following signal words; DANGER, WARNING,CAUTION and NOTICE
and comply with the information. Be alert to the potential hazard. Ensure to read
and comply with all of the warnings and cautions in this manual.
IMPORTANT WARNING AND SAFETY INSTRUCTIONS
EasyTouch and IntelliTouch replaceable parts must be installed
by a licensed or certified electrician or a qualified pool
professional in accordance with the National Electrical Code
(NEC), NFPA 70 or the Canadian Electrical Code (CEC), CSA
C22.1. All applicable local installation codes and ordinances
must also be adhered to. Improper installation will create an
electrical hazard which could result in death or serious injury to
pool users, installers or others due to electrical shock, and may
also cause damage to property.
Before installing this product, read and follow all safety warning notices and
instructions which are included. Failure to follow safety warnings and instructions
can result in severe injury, death, or property damage. Call [phone] for
additional free copies of these instructions.
Risk of Electrical Shock or Electrocution!

EasyTouch®/IntelliTouch®SCG Power Supply Replacement Parts Installation Guide
IntelliChlor®SCG Power Supply Replacement Parts:
Removal and Installation
To remove the EasyTouch/IntelliTouch load center high voltage panel:
1. SWITCH OFF AC POWER AT THE MAIN HOUSE PANEL CIRCUIT
BREAKER before removing the high voltage panel from the
load/power center.
2. Unlatch the front door and open the door.
3. Loosen the two retaining screws securing the high voltage front panel.
Remove the panel from the load/power center.
Read Safety Precautions and Important Instructions (page 1). Before
attempting any electrical wiring, be sure to read and follow Safety
Instructions. Wiring should only be performed by a qualified
professional.
WARNING! When installing electrical products in the EasyTouch/
IntelliTouch load/power center, basic precautions should always
be followed, including the following:
DANGER: RISK OF ELECTRIC SHOCK, WHICH CAN
RESULT IN SERIOUS INJURY OR DEATH. Before
attempting removal and installation of replaceable parts in
the EasyTouch/IntelliTouch load/power center, be sure that
all power to the circuit supplying power to the load/power
center is disconnected/turned off at the main house panel
circuit breaker.
Load Center Parts Removal to access SCG replacement parts
The following procedure describes how to remove the EasyTouch/IntelliTouch
load center parts to access the SCG transformer, circuit board and connection
cable.
Introduction
This manual describes how to remove and install the EasyTouch and
IntelliTouch IntelliChlor Salt Chlorine Generator (SCG) replacement
parts.
Summary Installation Steps
• Before removing and replacing part first switch OFF the main
power to the EasyTouch/IntelliTouch load center.
• To access the SCG transformer, SCG circuit board and connection
cable, parts of the EasyTouch/IntelliTouch load center must first be
removed. Refer to “Load Center Parts Removal”, on page 1.
• After replacing the SCG parts, switch the power on to the
EasyTouch/IntelliTouch load center and verify that the GREEN
SCG circuit board power LED is on.
1

EasyTouch®/IntelliTouch®SCG Power Supply Replacement Parts Installation Guide
2

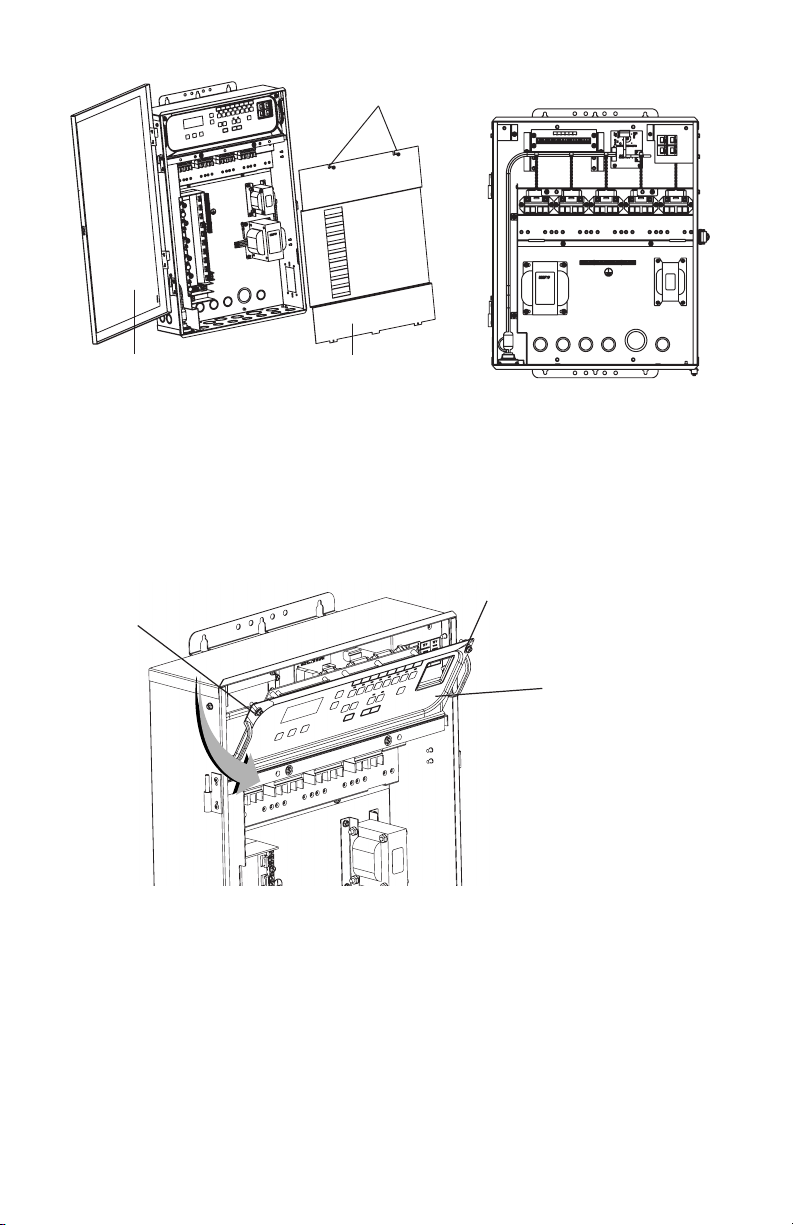

Retaining Screws (2x)
Load Center (front view)
(front door and high voltage panel removed)
Load center
front door
High voltage
cover panel Power Center (front view)
(front door and high voltage
panel removed)
4. Loosen the two retaining screws securing the automation control panel.
Lower the control to allow access the low voltage compartment behind
the control panel.
5. After removal and installation procedures are complete: Close
the control panel and secure with the two retaining screw. Reinstall the
high voltage panel and secure with the two retaining screw. Close and
latch the front door.
Load Center (front view)
(front door and high voltage panel removed)
Control panel
(fold down to
access circuit
board and low
voltage
compartment)
Retaining screw
Retaining screw
RequiredTools
• Medium size flat blade screwdriver or 1/4” and 5/16” sockets.
• 0-30 lb-in torque wrench.

EasyTouch®/IntelliTouch®SCG Power Supply Replacement Parts Installation Guide
3

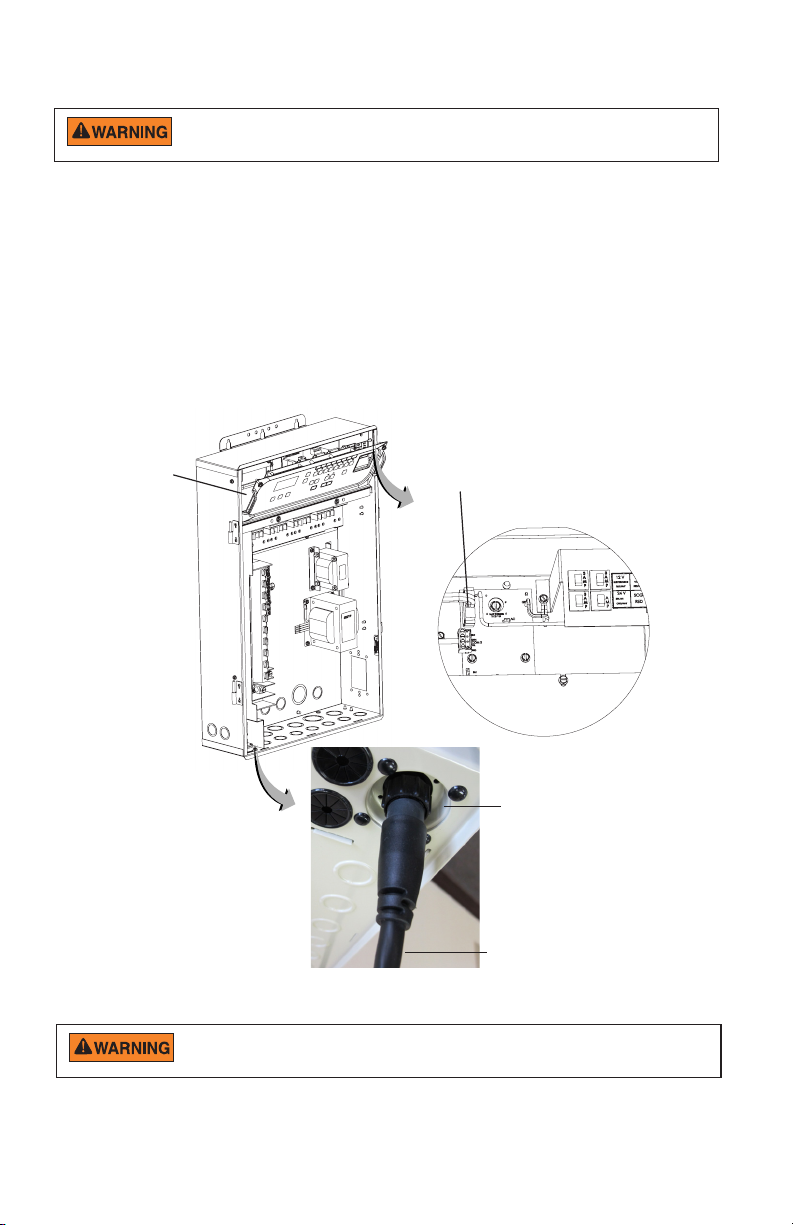

SCG Power Cable Removal and Installation
Note: Before removing the SCG connection cable, remove the high
voltage panel and fold down the control panel (see page 1). To remove
and replace the SCG connection cable:
1. Removal: Carefully disconnect the cable from the SCG circuit board.
2. Remove the two push rivets securing the connector to the bottom of the
load center.
3. Installation: Install the cable connector onto the enclosure. Secure the
connector with the two push rivets previously removed.
4. Route the cable up through side of the enclosure into the low voltage
compartment. Connect the cable connector to the SCG circuit board.
Low voltage
compartment
12
SCG cable
(circuit board
connector)
Before removing and installing the SCG circuit board, first be sure
to switch OFF the main AC power to the load/power center.
Connector
socket nut
To IntelliChlor cell
Before removing and installing the SCG circuit board, first be sure
to switch OFF the main AC power to the load/power center.
SCG Circuit Board Removal and Installation
Note: Before removing the SCG circuit board, first remove the EasyTouch/
IntelliTouch load center high voltage panel and fold down the control panel (see
page 1).

EasyTouch®/IntelliTouch®SCG Power Supply Replacement Parts Installation Guide
4
1. Carefully disconnect the RED lead from the SCG breaker.
2. Disconnect the COM port plug, power connector, RED transformer lead,
and the GREEN ground lead from the enclosure base.
3. Remove the three (3) screws securing the SCG circuit board.
1. Circuit board installation (Caution! Torque screws to 10 lb-in max.):
Secure the circuit board with the three (3) screws previously removed.
Secure the GREEN ground lead to the enclosure base.
2. Connect the RED transformer lead (1/4” quick-disconnect) onto the rear
of the 12 A circuit breaker.
3. Connect the other red transformer wire (3/16” quick-disconnect) onto
the circuit board terminal.
4. Connect the COM port SCG power plug, transformer RED lead and the
ground terminal lead to the enclosure base.
1. Removal: Remove the three (3) screws securing the SCG circuit
breaker bracket to enclosure to gain access to the four (4) circuit
breakers and wiring.
2. Installation: To replace circuit breaker bracket, reverse removal
instructions above. Be sure to reattach SCG circuit board GREEN
GROUND lead if present.
Before removing and installing the circuit breaker assembly, first
be sure to switch OFF the main AC power to the EasyTouch/
IntelliTouch load/power center.

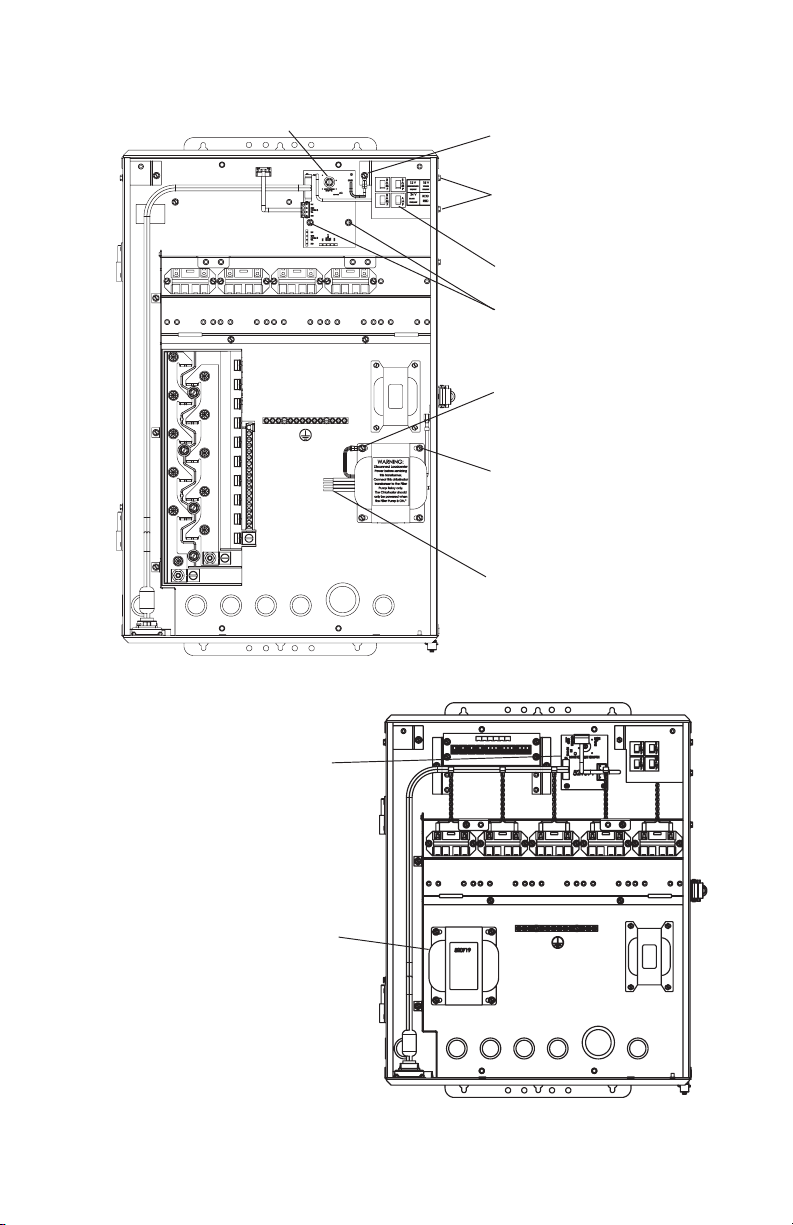

Circuit Breaker Assembly Removal and Installation
Note: Before removing the circuit breaker assembly, first remove the EasyTouch/
IntelliTouch high voltage panel and fold down the control panel (see page 1). To
remove and install the circuit breaker assembly (see Figure 1 & 2, page 7 & 8.
12
Screws (2)
(circuit
breaker
bracket)
12
Screw (1)
circuit breaker
bracket
SCG RED
circuit breaker
lead (12A)
SCG circuit
breakers
To remove and install the SCG circuit board - see Figure 1 and 2 on page 7 & 8:

EasyTouch®/IntelliTouch®SCG Power Supply Replacement Parts Installation Guide
SCG Transformer Removal and Installation
To remove the SCG transformer assembly (see Figure 1 & 2, page 7 & 8):
1. Remove the screw securing the green ground wire and the circuit
breaker bracket to the enclosure.
2. Remove the two remaining screws securing the circuit breaker bracket
to the enclosure to access the circuit breaker leads.
3. Disconnect RED transformer wire (1/4” quick-disconnect) from the rear
of the 12 A circuit breaker.
4. Disconnect the other RED transformer wire (3/16” quick-disconnect)
from the circuit board terminal.
5. Remove the transformer ground wire screw.
6. Disconnect all the SCG transformer primary leads.
7. Remove the three remaining screws securing the transformer. Remove
the transformer from the enclosure.
To install the transformer assembly (see Figure 1 & 2, page 7 & 8):
1. Mount the transformer onto the back panel of the enclosure. Secure the
transformer with three #8-32 x 3/8” screws.
2. Install the GREEN transformer ground lead screw and remaining
screw.
3. Connect the red transformer wire (1/4” quick-disconnect) onto the rear
of the 12 A circuit breaker.
4. Connect the other RED transformer wire (3/16” quick-disconnect) onto
the circuit board terminal.
5. Install the circuit breaker bracket onto the enclosure and secure with
two #8-32 x 3/8” screws.
6. Secure the green circuit board ground wire to the enclosure with
#8-32 x 3/8” screw.
7. Connect the transformer primary AC wires as required. See “Figure 3:
SCG Transformer AC Wiring Diagram” on page 9 for transformer AC
wiring information.
See IMPORTANT NOTE below for required SCG transformer filter
pump relay connection information:
Before removing and installing the SCG transformer, first be sure
to switch OFF the main AC power to the load/power center.
IMPORTANT! IntelliChlor (SCG) AC Wiring Instructions: When
using the IntelliChlor salt chlorine generator and an IntelliFlo pump
(or 2-speed pump) with a Pentair Water Pool and Spa®IntelliTouch®,
EasyTouch® automation control system , the IntelliChlor AC power
center wires must be connected to the PUMP SIDE OF THE MAIN
FILTER PUMP RELAY located in the load/power center. This ensures
that the IntelliChlor cell produces chlorine only when the main filter
pump is on. This method does not require a separate ground fault
circuit-interrupter (GFCI) to protect the circuit.
5

EasyTouch®/IntelliTouch®SCG Power Supply Replacement Parts Installation Guide
6
12
Transformer screw (4x)
(8-32 x 3/8”)
Transformer
green/yellow GRN wire
(screw, 8-32 x 3/8”)
Figure 1: Load Center Transformer Connections
Circuit Breaker
Bracket Screw
(8-32 x 3/8”)
Circuit Breaker
Circuit Board Screw
(8-32 x 7/8”)
(Tighten 10 lb-in max.)
SCG Transformer primary
AC wires (see label on
transformer and page 6 for
connection information)
Ground Wire/Screw
(Circuit Breaker Bracket)
Power Center Transformer Connections
CAUTION: Do not overtighten
rectifier mounting screw
(Tighten 10 lb-in max.)
SCG Transformer primary
AC wires (see label on
transformer and page 6 for
connection information)
SCG circuit board

EasyTouch®/IntelliTouch®SCG Power Supply Replacement Parts Installation Guide
12
Figure 2: SCG Circuit Board / Transformer Connections
Transformer
secondary wires
(RED) connect to
circuit breaker and
SCG circuit board
SCG Circuit
Breaker (12A)
Ground Wire/
Screw (Circuit
Breaker Bracket)
SCG
Power
Cable
COM Port
connector (To
EasyTouch/
IntelliTouch
Circuit Board
Transformer
primary AC wires
Circuit Board #8-32x7/
8”Screw
(Tighten 10 lb-in max.)
Red Circuit
Breaker Wire
7
CAUTION: Do not overtighten
rectifier mounting #10-32x3/4
screw (Tighten 10 lb-in max.)
RED transformer
wire (3/16” quick-
disconnect)

EasyTouch®/IntelliTouch®SCG Power Supply Replacement Parts Installation Guide
8
SCG Transformer High Voltage Wiring
IMPORTANT! IntelliChlor®(SCG) AC Wiring Instructions: When using the
IntelliChlor salt chlorine generator and an IntelliFlo®pump
(or 2-speed pump) with an EasyTouch and IntelliTouch automation control
system, the IntelliChlor AC power center wires must be connected to the PUMP
SIDE OF THE MAIN FILTER PUMP RELAY located in the load/power center.
This ensures that the IntelliChlor cell produces chlorine only when the main filter
pump is on. This method does not require a ground fault circuit-interrupter
(GFCI) to protect the circuit.
IntelliChlor SCG Power Supply Replacement kit Contents
Description Part Number
SCG Transformer P/N 521299
SCG Circuit Board P/N 521091
SCG Power Cable P/N 520721
SCG COM Cable P/N 521327
SCG Circuit Breaker P/N 521142
INPUT: 120 VAC AT 2.5 A, 50/60 Hz
240 VAC AT 1.3 A, 50/60 Hz
Figure 3: SCG Transformer AC Wiring Diagram

EasyTouch®/IntelliTouch®SCG Power Supply Replacement Parts Installation Guide
P/N 521093 Rev A
*521093*
