Pentair MBSP-3 User manual

OWNER’S MANUAL
BATTERY BACKUP SYSTEM
NOTICE D’UTILISATION
SYSTÈME DE SECOURS À BATTERIE
MANUAL DEL USUARIO
SISTEMA DE BATERÍA DE RESPALDO
ENGLISH: PAGES 2-16
Installation/Operation/Parts
For further operating, installation,
or maintenance assistance:
888-987-8677 US • 800-387-4386 CA
FRANÇAIS: PAGES 17-31
Installation/Fonctionnement/Pièces
Pour plus de renseignements concernant
l’utilisation, l’installation ou l’entretien,
[phone] US • [phone] CA
ESPAÑOL: PAGINAS 32-46
Instalación/Operación/Piezas
Para mayor información sobre el funcionamiento,
instalación o mantenimiento de la bomba:
888-987-8677 US • 800-387-4386 CA
NOTE! To the installer: Please make sure you provide this manual to the owner of the equipment or to the responsible
party who maintains the system.
MY979 (02/08/19) © 2019 Pentair plc.
Models
MBSP-3
MYERS
Pump Activity
Activité de pompe
Actividad de la bomba
System Alert
Alerte du système
Alerta del sistema
AC Power
Courant AC
CA
Charging
Recharge
En carga
Battery Status
État de batterie
Estado de la batería
Alarm Silenced
Alarme arrêtée
Alarma apagada
Test System
Tester
Probar sistema
Silence Alarm
Arrêter l’alarme
Apagar alarma
Light
Lumière
Luz
Circuit Breaker
Disjoncteur
Disyuntor
Pump
Pompe
Bomba
Float Switch
Interrupteur à otteur
Interruptor del otador
Power
Courant
Encendido
Reset System
Réinitialise
Restrablecer sistema
+
MBSP-3

Safety 2
Important Safety Instructions
SAVE THESE INSTRUCTIONS - This manual contains
important instructions that should be followed during
installation, operation, and maintenance of the product.
This is the safety alert symbol. When you see this
symbol on your pump or in this manual, look for one of the
following signal words and be alert to the potential for
personal injury!
indicates a hazard which, if not avoided, will
result in death or serious injury.
indicates a hazard which, if not avoided, can
result in death or serious injury.
indicates a hazard which, if not avoided, can
or may result in minor or moderate injury.
NOTICE addresses practices not related to personal injury.
Carefully read and follow all safety instructions in this
manual and on pump.
Keep safety labels in good condition. Replace missing or
damaged safety labels.
To avoid risk of serious bodily injury due to electrical
shock or burns and property damage due to flooding,
read the safety instructions carefully before installing
pump.
Battery acid is corrosive. Do not spill on
skin, clothing, or battery charger. Wear eye and head
protection when working with battery. Connect and
disconnect DC output terminals only after removing the
charger from the AC outlet. Never allow the DC terminals
to touch each other.
Hazardous Voltage. Can cause severe or
fatal electrical shock. Do not plug in or unplug battery
charger while standing on a wet floor or in water. Be sure
one hand is free when plugging in or unplugging charger.
If basement floor is wet, disconnect power to basement
before walking on floor.
Risk of flooding. Do not run pump dry. To
do so will damage seals and can cause leaking and
property damage.
Follow local and/or national plumbing and electrical
codes when installing the system. A ground fault circuit
interrupter (GFCI) is recommended for use on any
electrical appliance submerged in water.
Use this system only for backup sump pump duty in a
residential application. It is not designed as a primary
sump pump.
Do not lift pump by electrical cord.
Risk of electrical shock. Do not lift the
pump by the electrical cord; lift pump only by the
discharge pipe, lifting ring or handle on the pump. Lifting
by the cord can damage the cord.
Pump clear water only with this pump.
Pump is permanently lubricated at the factory. Do not try
to lubricate it!
Keep battery charger and battery box off of the floor and
in a dry, cool, well ventilated area.
NOTICE: If a Carbon Monoxide (CO) sensor is installed,
it must be at least 15 feet away from battery charger in
order to avoid nuisance CO alarms. Please refer to your
CO detector’s installation guidelines for more information.
To avoid danger of fire or explosion, keep sparks and
flame (pilot light) away from battery.
Maximum vertical pumping distance is 15 feet (4.6M) for
Model MBSP-3.
Make sure sump is clear of debris. Debris can damage the
pump which can result in flooding.
GENERAL INFORMATION
The battery backup sump system is not a substitute for
your primary sump pump. It is designed to temporarily
backup your primary sump pump during a power outage
or other problem which prevents normal operation of the
primary pump. Do not use this system to pump flammable
liquids or chemicals. Pump clear water only with this
pump.
Keep the battery charger dry and protected from
damage.
This system is designed to work with a deep cycle sealed
maintenance free lead-acid AGM battery. It will also
work with a flooded lead acid battery. Gell and Sealed
flooded lead acid batteries are not recommended. In
an emergency (such as an extended power outage)
which depletes the system deep cycle battery, your
automobile battery may be temporarily substituted. Be
sure to replace the system deep cycle battery as soon
as possible. Use of an automobile battery instead of a
deep cycle battery in this system will significantly reduce
the system’s total performance. Automobile batteries
are not designed for this type of application and will be
quickly ruined by the repeated charge/discharge cycling.
NOTICE: This system is not designed for applications
involving salt water, brine, or where fish may be present!

California Proposition 65 Warning
This product and related accessories contain
chemicals known to the State of California to cause
cancer, birth defects or other reproductive harm.

Installation 3
BASIC TOOLS AND PARTS NEEDED
(Purchase Separately)
Large adjustable pliers
Tape measure
Socket wrench or 5/16” nut driver
Side cutters
Hacksaw (to cut PVC pipe)
Medium size pliers
Slotted screwdriver
Phillips head screwdriver
Pencil or marker
PTFE pipe thread sealant tape
PVC glue (solvent weld)
PVC pipe cleaner
Cloth towel
Plastic fittings
Check valve(s) - 1 or 2 depending on installation
38-120 Ampere-Hour Storage or Deep Cycle Battery
Required Battery Capacity:
For best results, use the following AGM Storage Batteries:
Part Amp-Hour
Gal/Charge
at 10’
Approx
Run Time
BAT40 40 4,800 5 Hours
BAT75 75 11,500 11.5 Hours
• Unit equipped with dual battery capability
• Maximum amp-hour: 120
NOTICE: The charger will not fully charge batteries with
excessive amp hour ratings without resetting system.
MBSP-3 Performance
Head in Feet 0 5 10 15
Head in Meters 0 1.5 3 4.6
GPM 45 34 21 0
LPM 170 129 80 0
BATTERY BACKUP SYSTEM (BBU)
INSTALLATION AND OPERATION
NOTICE:
• Install this system during a time when the primary
pump will not be needed. Gather all supplies before
starting. Read all warnings and installation steps
before you start.
• Be prepared for water to leak from the coupling or
piping when disassembling or cutting the discharge
pipe. Protect system components, tools and supplies
from getting wet. Dry any work areas that get wet.
NOTICE: Study pages 4-6 to determine which installation
method will be best for you. The “Separate Discharge”
(Figure 2, Page 4), installation is recommended.
NOTICE: Check your local codes and ordinances
regarding waste water disposal (especially when running
the pump discharge outside the house) before you start.
The installation must conform to all legal requirements.
If possible, install the BBU so that the discharge goes
directly outdoors (separate discharge pipe from the
primary sump pump discharge pipe). If this is not a
practical option, see the “Common Discharge” (Figure 3,
Page 4) option.
NOTICE: For ALL installations, once the installation is
complete, run both the primary sump pump and the BBU
through at least one complete cycle to make sure that
everything operates correctly.
Personal injury and flood hazard. Do not
turn the pump on until all the fittings are glued and the
glue has dried. Loose fittings can explode off of pipes
and cause personal injury and flooding.
Risk of electrical shock. At the circuit breaker
or fuse box, turn off the electrical power to the sump
pump before beginning this installation.
Setup
1. Locate the high water level in your sump pit (the
water level at which the existing (primary) sump
pump starts - see Figure 1). Turn off power to pump
and mark this point on the discharge pipe with a
pencil or marker.
2. Drain the sump pit as far as possible without running
the pump dry. Do this by:
A. PUnplug the pump and switch
from the outlet, then unplug the pump from the
piggyback switch. Reset the circuit breaker or
reinstall the fuse and plug the pump directly into
the outlet. The pump will start. Drain the pit and
unplug the pump. OR
B. : Reset the circuit breaker
or reinstall the fuse and use a non-conducting
broom handle or stick to raise the float switch;
the pump should start. Drain the pit and then
release the switch.
3. When the pit has drained, turn off (open) the circuit
breaker or remove the fuse again to avoid electrical
shock while working on the installation.

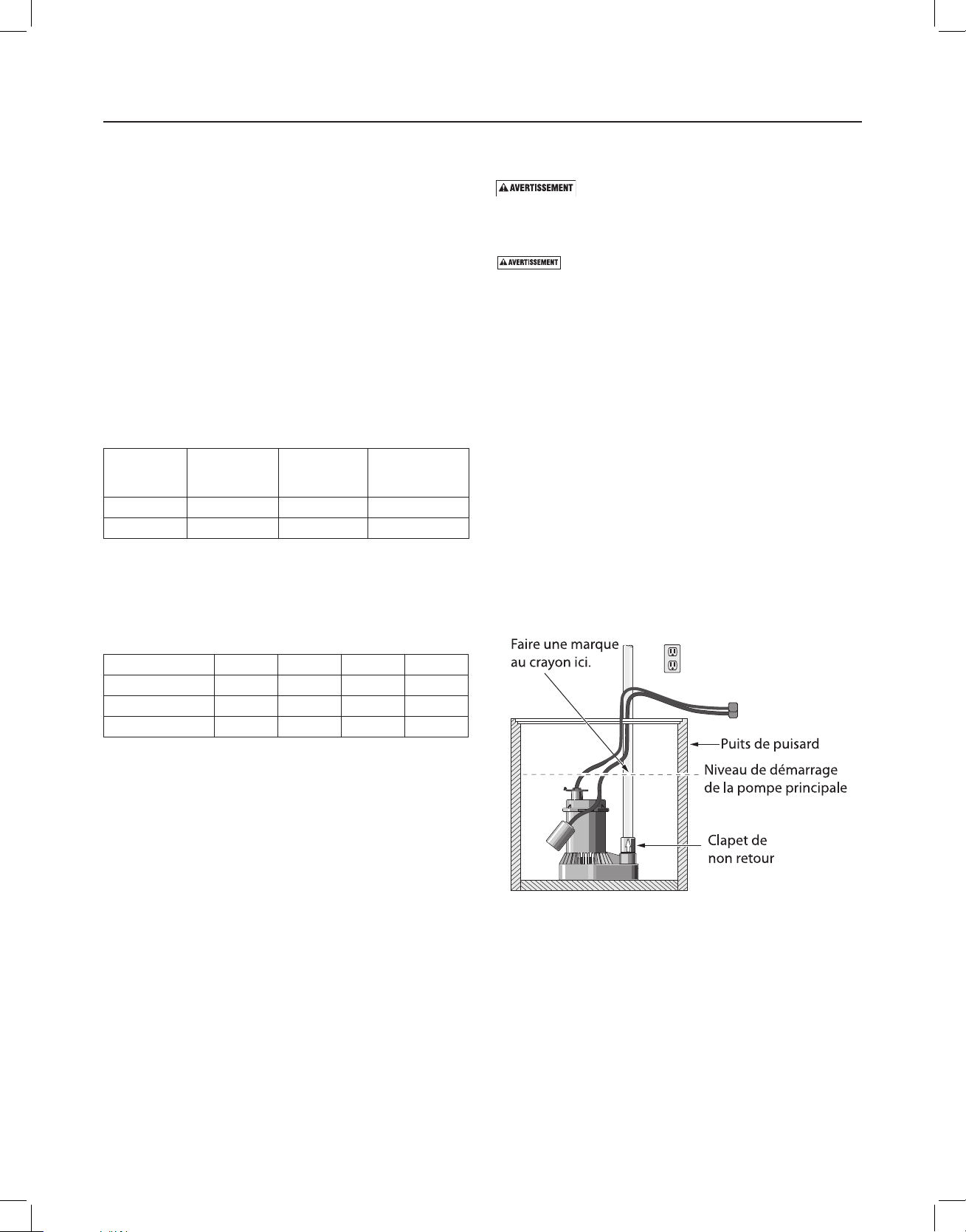

Figure 1: Mark pipe at ‘start’ water level

Installation 4

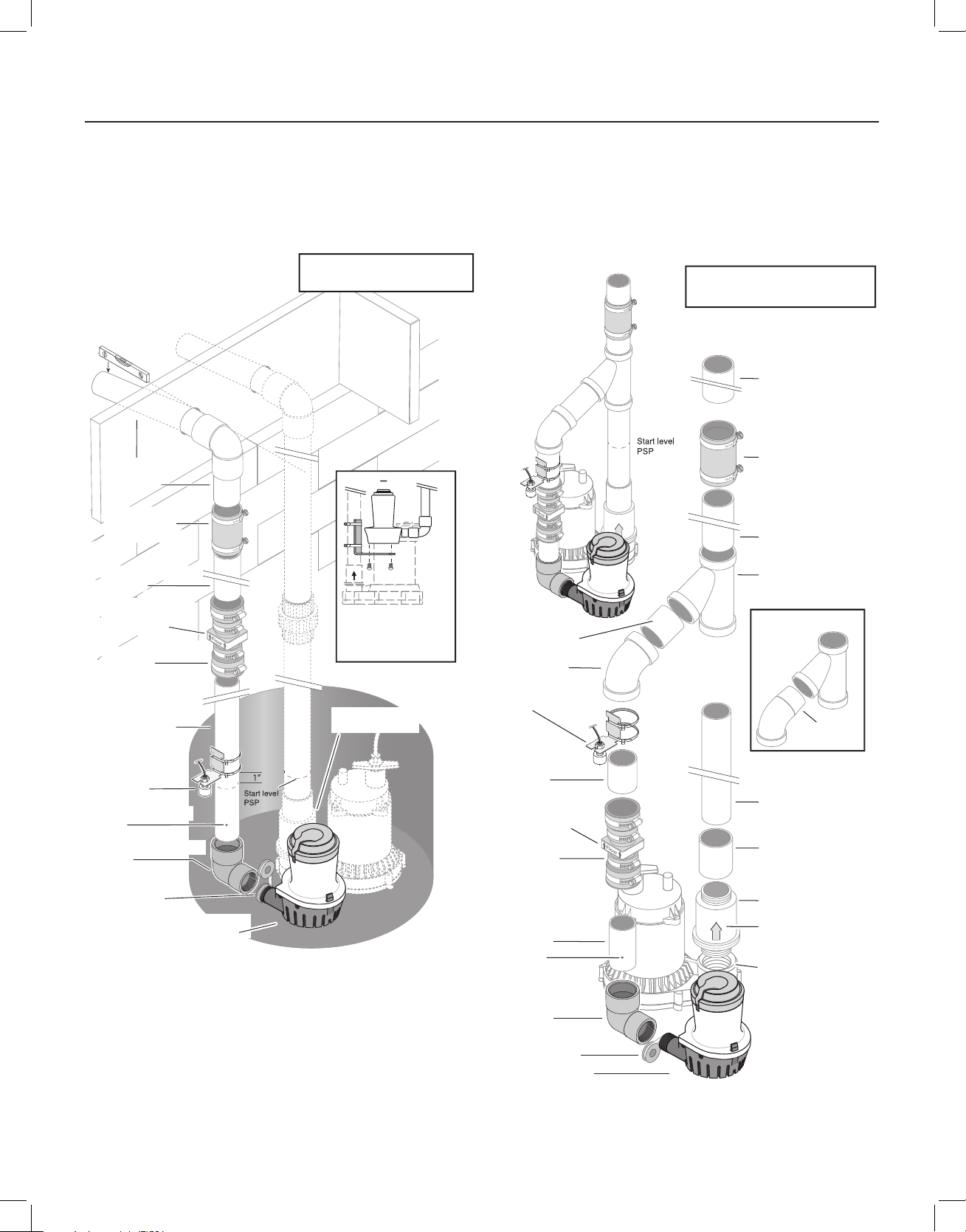

Figure 2: Typical installation with separate
discharge pipes.
Figure 3: Typical installation with common
discharge pipe.
“Separate Discharge”
NOTICE:
Check Valve Flapper(s) must swing AWAY and flow arrow(s) must point
AWAY from pump being protected.
The water level when the switch shuts off must be above the BBU
pump intake.
*Supplied with the Battery Backup System.
Items in italics must be purchased separately.
FLOW
Slope DOWN
to outlet Sill
FP0026-10
Check Valve
(Purchase
Separately)
PTFE pipe thread
sealant tape on all
threaded joints
1-1/2” PVC Riser Pipe
(cut to fit)
1-1/4” FNPTx1-1/2” Slip
Elbow*
Battery Back Up
Sump Pump*
Lower Discharge Pipe
1-1/2” PVC Pipe
(cut to fit)
Primary Sump Pump
Check Valve
Flow Arrow; Must point
AWAY from Pump
being Protected
1-1/2” PVC Upper
Discharge Pipe
(cut to fit)
Battery Backup
Switch*
If the sump is small,
hang the BBU from
the Primary discharge
pipe on an angle bracket.
Floor
Joist
U74-68 Hose and
Clamp Assembly
(Purchase Separately)
Drill 1/8” Anti-Airlock
Hole
6782 0313a
Not to scale.
Wiring omitted for clarity.
Battery Backup
Switch*
Primary Pump
Discharge Pipe
(cut to fit)
Primary Sump Pump
Discharge Port
Primary Pump
Check Valve
Flow Arrow; Must point
AWAY from Pump
being Protected
45º Slip Elbow
PTFE pipe thread
sealant tape on all
threaded joints
1-1/4” FNPTx1-1/2”
Slip Elbow*
Battery Back Up
Sump Pump*
Thread to Slip
Adapter
45 degree Slip Wye
FLOW
Optional 1-1/2”
PVC Pipe (cut to fit)
1-1/2” PVC Pipe
(cut to fit)
Lower Drischarge Pipe
1-1/2” PVC Pipe
(cut to fit)
AlternateWye/Elbow
Setup
45º Slip Street
Elbow
FLOW
“Common Discharge”
NO
TICE: In this installation, if the Primary Sump Pump (PSP) does not have a
c
heck valve installed below the wye, you MUST install a check valve for the PSP
as sho
wn. This prevents backflow of water into the sump from the Battery Bac
kup
System. Chec
k Valve Flapper(s) must swing AWAY and flow arrow(s) must point
AWA
Y from the pump being protected.
T
he water level when the switch shuts off must be above the BBU pump intake.
*Supplied with the Battery Backup System.
Items in italics must be purchased separately
T
ypical installation,
assembled
.
Both check v
alves
must be installed
on the pump side
of the
wye.
FP0026-10
Check Valve
(Purchase
Separately)
1-1/2” PVC Riser Pipe
(cut to fit)
1-1/2” PVC Upper
Discharge Pipe
(cut to fit)
Flow Arrow; Must point
AWAY from Pump
being Protected
U74-68 Hose and
Clamp Assembly
(Purchase Separately)
Drill 1/8”
Anti-Airlock Hole
6783 0313a
Not to scale.
Wiring omitted for clarity.

Installation 5
INSTALLATION (Typical): Separate Discharge
Risk of electrical shock. Can shock, burn, or
kill. Unplug the primary sump pump before beginning this
procedure.
NOTICE: Allow for overlap when cutting piping and run a trial

1. Use PTFE pipe thread sealant tape on male ends of
discharge pipe. Thread the 1-1/4” x 1-1/2” elbow (supplied)
onto the discharge. When tight, the elbow must point up.
2. If possible, install the Battery Backup Unit (BBU) on

not touch each other and do not interfere with switch
operation.
NOTICE: If debris or gravel is present in the bottom of
the sump pit that could get sucked up into the pump, set
both the primary sump pump and the BBU up on bricks or
cinder blocks to prevent clogging.
3. If the sump is too small to allow both pumps to sit on
the bottom of the sump, install an angle bracket on the
primary sump pump’s discharge pipe with stainless
steel hose clamps. Mount the backup pump on the angle
bracket. See Figure 1, “Separate Discharge”.
4. Cut a piece of 1-1/2” PVC pipe to reach from the backup
pump discharge elbow to about one (1) foot above the

5. To prevent airlocking the pump during operation, drill a
1/8” hole in the lower discharge pipe about 2” above the

6. Install FP0026-10 check valve (purchase separately) on
the upper end of the pipe. Tighten the hose clamps se-

the BBU). If they point down, the valve will not pass water
and the pump will not work.
7. Cut a short length of 1-1/2” PVC pipe for a riser pipe and
clamp it into the top of the check valve.
8. Install a U74-68 Hose and Clamp Assembly on the top
of the riser pipe. For 1-1/2” pipe, remove and discard
the short piece of 1-1/4” hose in the Hose and Clamp
Assembly. Leave the hose clamps loose and slide the
Assembly down below the top of the riser pipe.
9. Determine where you want the discharge to exit the
basement. At that point, drill the necessary holes (large
enough to have clearance for a 1-1/2” pipe) to allow you
to run the discharge pipe from above the sump to the
outdoors.
10. Install the horizontal discharge pipe. Install a 90° elbow
on the inside end but do not glue.
11. Cut another short piece of 1-1/2” PVC for the Upper
Discharge Pipe to run from the top of the riser pipe up
to the 90° elbow. Be sure to allow enough overlap for the
glue joint in the elbow.
12. 
discharge pipe in the 90° elbow and the upper discharge
pipe in the vertical end of the 90° elbow. The upper

the elbow.
13. Risk of re and chemical inhalation.
Whenever using PVC primer and PVC cement, follow the
glue manufacturer’s instructions.
14. Make sure that the BBU will clear the primary sump pump
and its switch. If there isn’t room for both pumps to sit

(depending on your particular situation).
15. Clean, prime and glue the upper discharge pipe into the
90º elbow. When the glue has set, slide the Hose and
Clamp Assembly up to cover the joint and tighten all the
hose clamps.
16. Install the Battery Backup Switch as shown, 1” above start
water level of primary pump. Fasten it to the pipe with
cable ties.
17. Tape the pump cord to the riser pipe so that the plug
cannot fall into the sump.
18. Go to “BBU WIRING AND SETUP” (Page 8) for wiring
instructions.
19. 
verify that the PSP removes the water and the BBU

water. Verify that the BBU pump removes the water.
20. Make sure that the power is on to both pumps, and your
system is ready to use.

Installation 6
INSTALLATION (Typical): Common Discharge
Risk of electrical shock. Can shock, burn, or
kill. Unplug the primary sump pump before beginning this
procedure.
NOTICE: Allow for over lap when cutting piping and run a trial

NOTICE: If there is no check valve in the primary sump pump’s
discharge, you will need to install one. You must also install
one in the BBU’s discharge pipe (Figure3,Page4). Make sure

is protecting.
1. Use PTFE pipe thread sealant tape on male ends of
discharge pipe. Thread the 1-1/4” x 1-1/2” elbow (supplied)
onto the discharge. When tight, the elbow must point up.
2. 
sure that the two pumps do not touch each other and do
not interfere with switch operation.
NOTICE: If debris or gravel is present in the bottom of
the sump pit that could get sucked up into the pump, set
both the primary sump pump and the BBU up on bricks or
cinder blocks to prevent clogging.
3. If the sump is too small to allow both pumps to sit on the

interfere with the PSP switch.
4. Cut a piece of 1-1/2” PVC pipe to reach from the backup
pump discharge elbow to about one (1) foot above the

5. To prevent airlocking the pump during operation, drill a
1/8” hole in the lower discharge pipe about 2” above the

6. Install FP0026-10 check valve (purchase separately)
on the upper end of the pipe. Tighten the hose clamps

from the backup pump). If they point down, the valve will
not pass water and the pump will not work.
7. Cut the discharge pipe for the primary sump pump (PSP)
above the union and check valve (if any). Make this cut
about 18” above the top of the BBU’s riser pipe with the
backup pump sitting as installed.
8. If the PSP does not have a check valve installed in the
discharge pipe, install one now.
9. 
the check valve and a 45° slip wye. Be sure to allow for
the overlap needed for gluing joints.
10. Install the 45° wye on the PSP’s discharge pipe.
11. Install a 45° elbow on the 1-1/2” BATTERY BACKUP
discharge pipe.
NOTICE: You may need to insert a piece of straight pipe
between the elbow and the wye. If so, use a standard 45°
elbow. If you do not need to insert a piece of straight pipe
between the elbow and the wye (elbow goes directly into
the wye), use a 45° slip street ell.
12. Fit the upper discharge pipe to the upper end of the wye.
NOTICE: It is good practice to cut a short length of
pipe to go into the wye and install a union on the pipe.
Continue the discharge pipe from the outlet side of the
union. This will allow easier removal of the system for
cleaning or service. A U74-68 Hose and Clamp Assembly
can be used for this.
13. Make sure that the BBU will clear the primary sump pump
and its switch. If there isn’t room for both pumps to sit

(depending on your particular situation).
14. Do a trial assembly to make sure that everything is going


Mark all joints before gluing.
Risk of re and chemical inhalation. Follow the

ventilation when using PVC solvents, primer, and cement.
15. Take all the pipe apart, clean all joints, and then
reassemble the system, gluing it with PVC primer and
glue.
16. Install the Battery Backup Switch as shown, 1” above start
water level of primary pump. Fasten it to the pipe with
the cable ties provided.
17. Tape the pump cord to the riser pipe so that the plug
cannot fall into the sump.
18. Go to “BBU WIRING AND SETUP” (Page 8) for wiring
instructions.
19. 
verify that the PSP removes the water and the BBU

water. Verify that the BBU pump removes the water.
20. Make sure that the power is on to both pumps, and your
system is ready to use.

Battery Requirements 7
BATTERY REQUIREMENTS
Hazardous electric current. Can cause
severe burns and start a fire if the battery terminals are
short circuited. Install the battery in the battery case. To
prevent accidental shorting across battery terminals,
close and latch the battery case securely. Do not leave
the battery uncovered.
Do not allow children to play around the battery
backup system installation.
The performance of your backup sump pump depends
on the battery used with it for power. We recommend
using our BAT40 or BAT75. You can also use a group 24M
or 27M Deep Cycle battery. They will provide acceptable
performance and will stand up well to long periods of
little or no use.
This system is designed to work with either a sealed
lead-acid AGM battery or a flooded lead-acid battery.
Use of a true Gell Cell (often confused for AGM) or a
standard automotive battery with this charger is not
recommended. An automotive battery may require
charging after only 1-2 hours of continuous use, and the
repeated charging cycles may cause early plate failure in
the battery.
Use only lead-acid batteries. This unit is not designed to
use with Li-Ion, NiMh, NiCAD, Liquid Polymer, etc.
Use only the recommended battery or one of the same
type and size so it will fit in the battery box (maximum
size: 13” long x 7” wide x 10” tall (330.2mm x 177.8mm x
254mm) including terminals) and supply enough voltage
for full performance.
BATTERY MAINTENANCE
Severe burn hazard. An acid-filled standard
lead-acid battery contains sulfuric acid. Avoid contact with
skin, eyes or clothing.
NOTICE: To protect the battery case from chipping and
gouging, do not let the battery sit on a concrete floor.
Install the battery on a shelf or protective pad (plywood,
2x4s, etc.). Always install the battery in a dry location that
is protected from flooding.

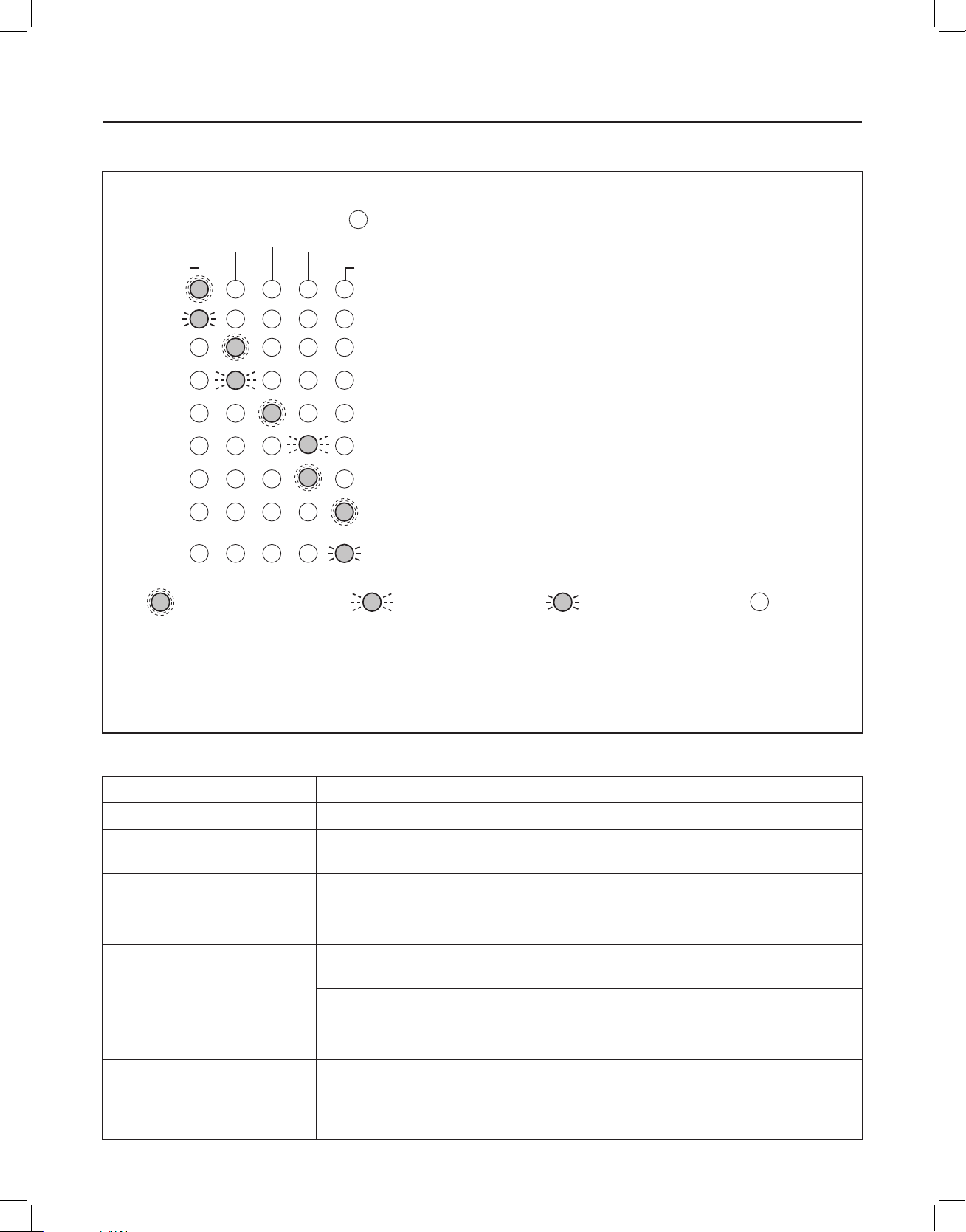

Pre-Qualification Test – 1 and 2
Charger is charging at a very low level to try to bring a
dead battery back to life. If the battery is taking too long,
try resetting the charger once or twice (push the ‘SYSTEM
TEST’ and ‘SILENCE ALARM’ buttons together to reset the
charger).
Special Features:
The charger is equipped with reverse battery, short
circuit, and “runaway charge” protection.

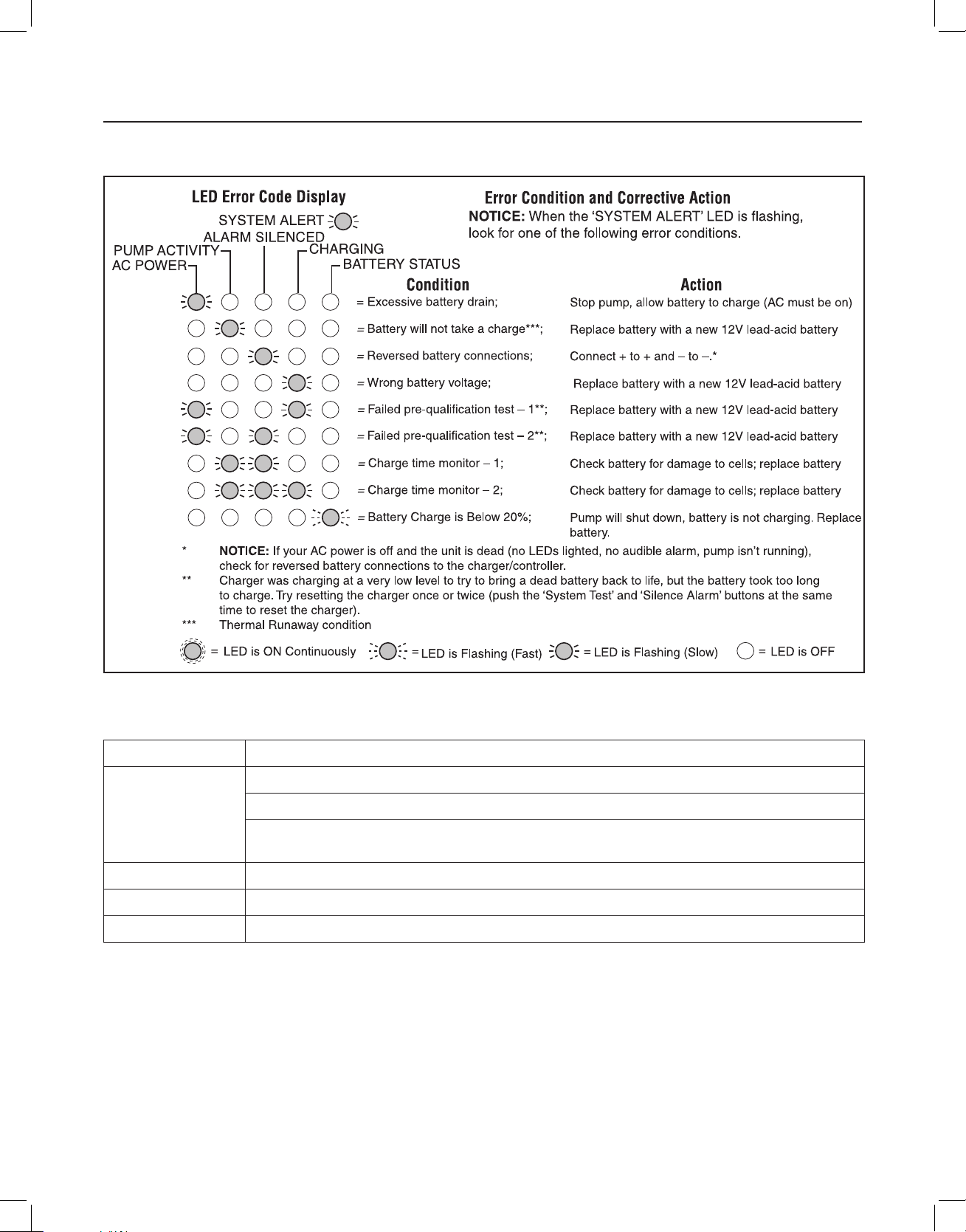

Possible Problems and Remedies
1. Wrong Battery Voltage
Reconnect charger to a 12 volt battery.
2. Reversed Battery Connections
Check all connections. The negative (black) on the
battery must connect to the negative (black) on
the charger, and the positive (red) on the battery
must connect to the positive (red) on the charger.
Reversing the battery connections will cause the
‘SYSTEM ALERT’ and ‘SILENCED AUDIBLE ALARM’
LEDs to flash.
3. Thermal Runaway Condition
“Thermal Runaway” is the technical term for the
condition of the battery when some (or all) of the
cells have deteriorated to the point that they won’t
take a charge. In this case, replace the battery.
4. Charge Time Monitor – 1 and 2
Battery took too long to complete its charge. The
“Charge Time Monitor” will shut down the charger
after 84 hours of continuous charging.
Possible causes are:
A) Pump ran for a long period of time during
charging, or
B) Battery is too large for the charger (including
several batteries connected in a parallel circuit).
Excessive Battery Drain
Pump may have run for a very long time, discharging the
battery. In this case:
1. If 115VAC power is OFF, the charger shuts down until
the power comes back on, but the pump will run as
long as the battery charge lasts. You may need to
replace the battery afterwards.
2. If 115VAC power is ON, the charger/controller
continues to try to charge the battery at a charging
rate of .5 AH until the battery charge is more than
20%, at which point the charger will resume charging
at a rate of 2 AH.
3. If the pump is running and the AC power is on, you
may need to stop the pump to allow the battery to
charge.
Follow the battery manufacturer’s recommendations for
maintenance and safe use of the battery.

Wiring •Setup 8
BBU WIRING AND SETUP
1. Connect the positive (+) charger/controller lead wire
(red) to the positive (+) battery terminal (red). Connect
the negative (–) charger/controller lead wire (black)
to the negative (–) terminal (black) on the battery. If
you are using two batteries, use the set of optional
terminals and connect the second battery. Use
lead wires (not included) to connect the positive (+)
charger/controller terminal to the positive (+) battery
terminal and the negative (–) charger/controller
terminal to the negative (–) battery terminal.
2. The backup pump leads are polarity sensitive;
connect the positive pump lead to the terminal
labeled Pump ‘+’ and the negative pump lead to the
terminal labeled Pump ‘–’.
NOTICE: If the leads are reversed, the pump will run
backward and not pump water.
3. The float switch leads are not polarity sensitive;
connect the float switch leads to the ‘Float Switch’
tabs on the charger/controller.
4. Test the float and the pump by lifting and holding the
float. The system alert LED will blink while the float
is up. The ‘PUMP STATUS’ LED will light continuously
and the buzzer will beep steadily. The pump should
start after 3 seconds. If the pump does not run,
check all the connections and remake them as
necessary.
5. To stop the pump, lower the float; after 25 seconds
the pump should stop, the ‘PUMP STATUS’ LED should
flash, and the buzzer should beep.
6. With the pump operating, test the ‘SILENCE ALARM’
button; hold for one second; release. The ‘ALARM
SILENCED’ LED should illuminate and the buzzer
should stop sounding. To reset the buzzer (allow it to
sound) and extinguish the ‘ALARM SILENCED’ LED,
press the ‘SILENCE ALARM’ button again for one
second.
Depress the ‘TEST SYSTEM’ button; hold it for one
second; release. The ‘PUMP STATUS’ LED should stop
flashing.

Wiring •Setup 9
NOTICE: When the unit is first plugged in, or when it first receives power from the battery, the ‘BATTERY STATUS’ LED
will flash for 3 seconds.
NOTICE: To activate any Control Button, press and hold it for 1 second.
LED Display and Control Buttons
NOTICE: During normal operation, the flashing ‘PUMP
STATUS’ LED indicates that the pump has run in your
absence.
1. Press and hold ‘TEST SYSTEM’ button. All LEDs will
light up, pump will run and buzzer will sound. Release
the button and LEDs should go off, pump should stop,
buzzer should stop.
2. The ‘BATTERY STATUS’ LED indicates the battery
capacity when the A.C. power is off.
A. Continuously ON - the battery voltage is above
10.9 Volts Direct Current (10.9VDC) and capacity
is above 20%.
B. Slow Beep/Slow LED Flash - the battery’s
capacity is between 0 and 20%.
C. Fast Beep/Fast LED Flash - the battery is
severely discharged. The battery will continue
to charge (as long as the 115V AC power to
the charger is on) at the rate of .5 AH until the
battery’s charge is above 20%.
When the first warning occurs (slow beep/slow flash),
you will have approximately 2 hours (or less) of pump
operation left. The actual time of operation will
depend on the condition of the battery and may be as
little as 15 minutes.
4. Connect the Power Supply cable (supplied) to the
Charger/Controller’s Power Input jack.

Battery Backup Internet Connection and
Alerts Conguration
Before setting up the Link2O, make sure your Battery
Backup Unit - MBSP-3 is installed correctly, refer to Own-
er’s Manual for instruction. Make sure the primary pump
and battery backup unit has power. Verify the system is
operational by pressing the ‘TEST SYSTEM’ button and
observing the test sequence.

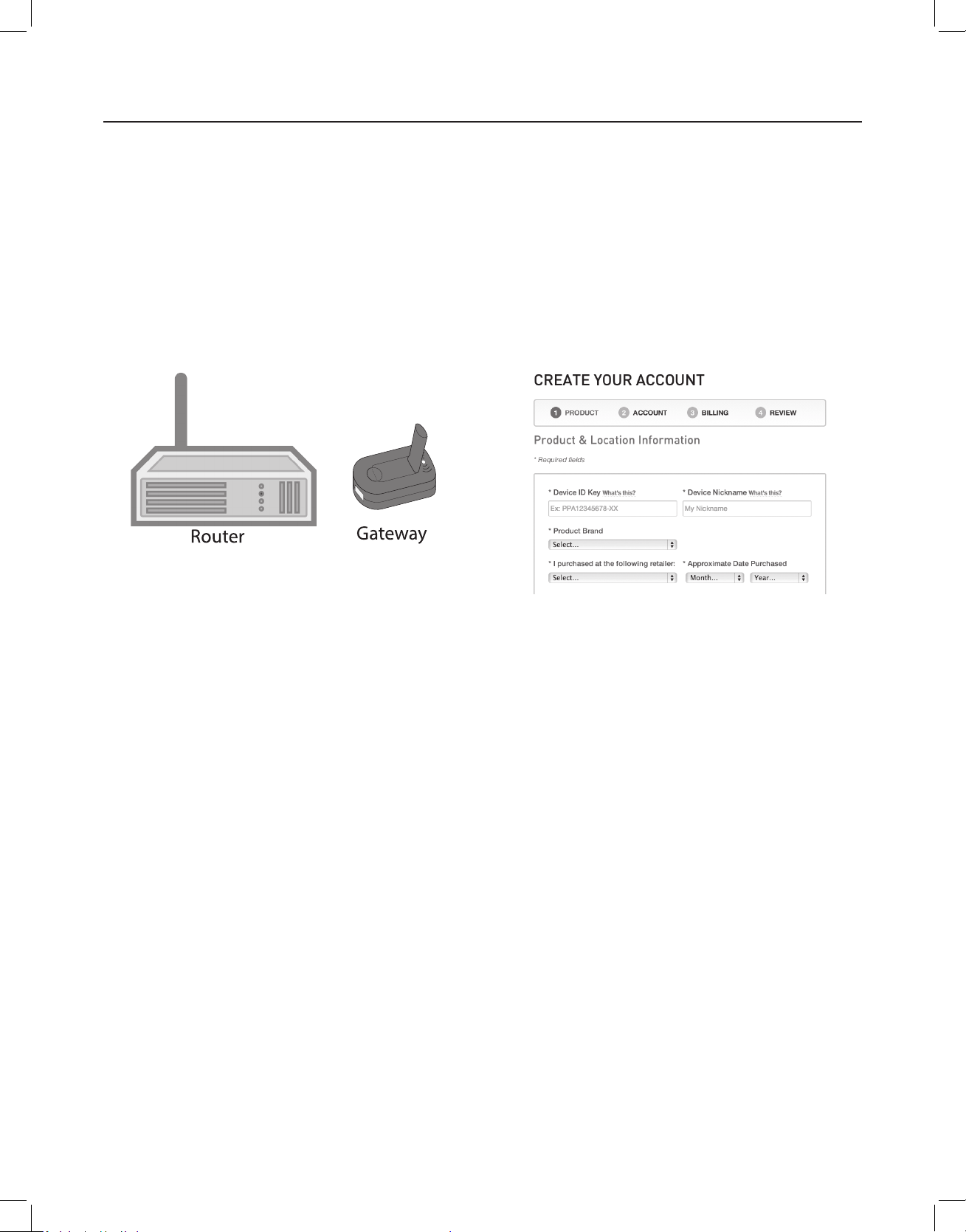

1. Find an open network connection on your internet
router or other hard-wired connection. Rotate the
antennae up on the gateway.
NOTICE: We recommend the use of an uninterrupted
power supply for your internet modem, home router
and the gateway power supply.
2. Using the supplied 1 meter Ethernet cable (or longer
cable if necessary), connect the gateway to an open
network port.
3. Connect the gateway power supply to a 115 VAC outlet,
plug into the back of the gateway.
• The LED will blink red for a few seconds.
• When the LED becomes solid green or solid green
with an occasional blink your gateway is con-
nected to the VWA servers.
If not, refer to Gateway Troubleshooting.
4. Once the gateway LED is green, go to the BBU and
verify that the AC power LED is solid green. If not, the
gateway will have to be moved closer to the BBU.
5. Log onto the website www.mylink2o.com
• Select “Sign Up”
• Follow the online instructions and enter the
required personal information to create a user
account. The Alerts will use the e-mail addresses
and phone numbers entered here.
• Enter the Unique Device ID Key included with the
MBSP-3 - located on BBU case and manual cover.
6. Test installation by clicking the “Test” icon on the web
page and verify the unit has run the test.
7. Refer to the Link2O website to set alerts.
8. Alerts can be tested by activating the pump with the

Link2O™Setup 10

IF GATEWAY LED LIGHT IS NOT GREEN (GREEN, SLOW BLINK) FIRST TRY TO “POWER CYCLE” THE GATEWAY (UNPLUG THE POWER
CORD, WAIT 15+ SECONDS, THEN RE-APPLY POWER).
Gateway Status
Indicator (LED Color)
Denition Action Needed
Green Power on: gateway connected to servers. OK - Connection complete and operational
Green, quick blink  OK - Operating, data is moving between BBU and
Server
Green, slow blink
(1-2 blinks per second)
Power on: gateway connected to local router, but
not connected to Internet or servers.
System is online and scanning for destination/server

Red Power on: gateway has no local connection to
router. The gateway does not "recognize/see" that it
is connected to the router.
Check Ethernet cable connections and/or quality
or cable. Try a different router port. Is the router
turned on.
Red, slow blink
(1-2 blinks per second)
Power on: gateway communicating with router, but

Protocol (DHCP) or Domain Name System (DNS) to
gateway.
Router is not permitting the gateway to access the

unit).
Off Power off or product fault. Check power source, verify power adapter is
functioning. Defective gateway.
Gateway Troubleshooting
Link2O™Setup 11

Charger/Controller LED Display 12
LED Operating Code Display System Operating Condition
CHARGING
BATTERY STATUS
PUMP ACTIVITY
AC POWER
ALARM SILENCED
SYSTEM ALERT
Indicates 115V AC Power is connected / Unit online
NOTICE: All of the situations listed above indicate normal system operation; no action is required.
However, if the BBU pump is running or has run, check the primary pump and actively monitor the
charger status for battery life. Always reset the charger after the pump runs.
During normal system operation, the ‘SYSTEM ALERT’ LED blinks while the float switch is on,
indicating the pump should start within 3 seconds. The “AC POWER” LED is lighted
(solid or blinking) as long as the system is plugged in to an operating AC power circuit.
Indicates Pump is running (continuous LED)
Indicates Audible alarm is switched off
Indicates Battery is charging normally
Indicates Continuous LED: battery charge is above 20%,
system is maintaining charge
Indicates Slow flashing LED: battery charge is below 20%
6790 0313
LED is Flashing (Slow)
=LED is OFF
LED is ON Continuously
= =
LED is Flashing (Fast)
=
Indicates Fast flashing LED: Pump has run
Indicates Fast flashing LED: Battery pre-qualification test is running
Indicates 115V AC Power is connected / Unit offline
TABLE II – Operating Code Displays (LEDs Lighted Continuously or Flashing)
TABLE III – LED Function Displays (LEDs Lighted Continuously)
Control LED: Continuous Illumination Indicates Normal Operation:
AC Power AC power is present. Unit is online.
Pump Status The float switch has been activated. The LED remains on (flashing) after the pump
has stopped. Depress the ‘SYSTEM TEST’ button to reset it.
Silenced Audible Alarm Audible Alarm has been silenced. Press and release the ‘SILENCE ALARM’ button to
reset (activate) the audible alarm and turn OFF the LED.
Charging Indicates that the battery is charging – see Table II, above.
Battery Status A. Continuous ON - the battery voltage is above 10.9 Volts DC and capacity is
above 20%.
B. Slow Beep/Slow LED Flash - the battery’s capacity is below 20%, and voltage is
between 8.2VDC and 10.9VDC.
C. Fast Beep/Fast LED Flash - the battery has been discharged to less than 8.2VDC.
System Alert Flashing (in unison with the buzzer) indicates that the charger has entered ‘Failure
Mode’. Press the ‘SYSTEM TEST’ and ‘SILENCE ALARM’ buttons to reset it.
NOTICE: If the source of the failure is not corrected, the charger will reenter
“Failure Mode”. See Table IV for error code information.

Charger/Controller LED Display 13
TABLE IV – Error Code Displays (LEDs Flashing)
TABLE V – Control Button Functions
Control Button: Result of Pushing Button:
System Test Pump starts and all LEDs light up.
Will reset the ‘PUMP ACTIVITY’ LED.
When pushed with the ‘SILENCE ALARM’ button, the Charger/Controller microprocessor resets
and error code resets.
Silence Alarm Toggle; Prevents the audible alarm sounding. Press and release to reset.
Light Toggles the light on the Charger/Controller on and off.
System Reset Press and release ‘TEST SYSTEM’ and ‘SILENCE ALARM’ to reset system.

Pump won’t run: Check all the wiring connections.
Check for a low or defective battery.
Check that the automatic switch is free to move up and down.
Press the circuit breaker reset button on the control panel.
Motor hums but pump won’t run: Check for low or defective battery.
Pump runs but pumps very little or no water: Make sure a check valve is installed and functioning between the
primary pump discharge and the Battery Backup wye.
Check for an obstruction in the discharge pipe.
The discharge pipe length and/or height exceeds the capacity of the
pump.
Check for a low or defective battery.
The Positive (+) and negative (–) pump wires are reversed.
Disconnect them and reconnect correctly.
Pump cycles too frequently: The check valve located between the discharge of the primary
pump and the Battery Backup wye is not installed or is not working
properly. Install an auxiliary check valve or replace the existing
check valve as required.
TROUBLESHOOTING - PUMP
Troubleshooting 14

Repair Parts 15
Key No. Part Description Part Number
1DC Backup Pump PS17-2005**
21-1/4 FNPT x 1-1/2 Slip Elbow U78-1012
3Float Switch PS17-2003
4 Charger/Controller PS217-1522
5Battery Case Base
Battery Case Cover
PS17-2044
PS17-2045
6AC Adaptor PS17-2008
7Cable Ties - 11” *
8Gateway Kit U117-1568
-Gateway
-Power Supply
-1m RJ45 Cable
* Sold separately.
** If pump fails, replace entire system.
NOTICE: All check valves must be installed as described in the installation instructions
or the warranty is void. This includes the check valve for the primary sump pump in a
Common Discharge installation.
Key No. Part Description Part Number
XAGM 75A-Hour BAT75
XAGM 40A-Hour BAT40
XSecond Battery Case & Cable U117-1577
Optional Battery Supplies
*Sold Separately

Limited Warranty
Myers®warrants to the original consumer purchaser (“Purchaser” or “You”) of the products listed below, that they will be free from
defects in material and workmanship for the Warranty Period shown below.
Product Warranty Period
Jet pumps, small centrifugal pumps, submersible pumps and

whichever occurs first:
12 months from date of original installation,
or 18 months from date of manufacture
Fibrewound Tanks 5 years from date of original installation
Steel Pressure Tanks 5 years from date of original installation
Sump/Sewage/Effluent Products 12 months from date of original installation,
or 36 months from date of manufacture
Battery Backup Units
MBSP-2, MBSP-2C 12 months from date of original installation,
or 18 months from date of manufacture
MBSP-3, MBSP-3C 24 months from date of original installation,
or 30 months from date of manufacture
Wastewater Solids Handling Pumps 12 months from date of shipment from factory
or 18 months from date of manufacture
Our warranty applies only where such products are used in compliance with the requirements of the applicable product catalog
and/or manuals. For additional information, please refer to the applicable standard limited warranty featured in the product
manual.
Our warranty will not apply to any product that, in our sole judgement, has been subject to negligence, misapplication, improper
installation, or improper maintenance. Without limiting the foregoing, operating a three phase motor with single phase power
through a phase converter will void the warranty. Note also that three phase motors must be protected by three-leg, ambient
compensated, extra-quick trip overload relays of the recommended size or the warranty is void.
Your only remedy, and MYERS’s only duty, is that MYERS repair or replace defective products (at MYERS’s choice). You must pay
all labor and shipping charges associated with this warranty and must request warranty service through the installing dealer as
soon as a problem is discovered. No request for service will be accepted if received after the Warranty Period has expired. This
warranty is not transferable.
MYERS SHALL NOT BE LIABLE FOR ANY CONSEQUENTIAL, INCIDENTAL, OR CONTINGENT DAMAGES WHATSOEVER.
THE FOREGOING LIMITED WARRANTIES ARE EXCLUSIVE AND IN LIEU OF ALL OTHER EXPRESS AND IMPLIED WARRANTIES,
INCLUDING BUT NOT LIMITED TO IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. THE
FOREGOING LIMITED WARRANTIES SHALL NOT EXTEND BEYOND THE DURATION PROVIDED HEREIN.
Some states do not allow the exclusion or limitation of incidental or consequential damages or limitations on the duration of an
implied warranty, so the above limitations or exclusions may not apply to You. This warranty gives You specific legal rights and You
may also have other rights which vary from state to state.
This Limited Warranty is effective April 1, 2014 and replaces all undated warranties and warranties dated before April 1, 2014.
F.E. MYERS
293 Wright Street, Delavan, WI 53115
Phone: [phone] • Fax: [phone] • www.femyers.com
In Canada: 490 Pinebush Road, Unit 4, Cambridge, Ontario N1T 0A5
Phone: [phone] • Fax: [phone]

Sécurité 17
Consignes de sécurité importantes
CONSERVER CES DIRECTIVES - Ce manuel contient des directives
importantes devant être respectées lors de l’installation, de l’utilisation
et de l’entretien de ce produit.
Il s’agit du symbole d’alerte à la sécurité. Ce symbole, lorsqu’il se
trouve sur votre pompe ou votre manuel, signale qu’il faut chercher la
présence de l’un de ces mots indicateurs et être conscient des risques
de blessure!
indique un risque qui, s’il n’est pas évité, causera des
blessures graves, voire la mort.
indique un risque qui, s’il n’est pas évité, peut causer
des blessures graves, voire la mort.
indique un risque qui, s’il n’est pas évité, peut causer
des blessures mineures, voire modérées.
AVIS vise des pratiques qui ne concernent pas les blessures.
Lire soigneusement et respecter toutes les consignes de sécurité
contenues dans ce manuel ou placées sur la pompe.
Faire en sorte que les étiquettes de sécurité demeurent en bon état.
Remplacer les étiquettes de sécurité manquantes ou endommagées.
Pour éviter tout risque de blessures graves causées par un choc
électrique ou des brûlures de même que tout risque de dommage à
cause d’une inondation, prendre le temps de bien lire les consignes de
sécurité avant d’installer la pompe.
L’acide de batterie est une matière corrosive. Ne pas
mettre en contact avec la peau, les vêtements ou le chargeur de
batterie. Porter une protection oculaire et à la tête lorsqu’il est
nécessaire de manipuler des batteries. Brancher et débrancher les
bornes de sortie CC uniquement après avoir débranché le chargeur de la
prise CA. Ne jamais laisser les bornes CC se toucher.
Tension dangereuse. Peut causer des chocs
électriques graves, voire mortels. Ne pas brancher ou débrancher le
chargeur de batterie lorsque vous vous tenez sur une surface mouillée
ou inondée. S’assurer qu’une main demeure libre au moment de
brancher ou de débrancher le chargeur. Si le plancher du sous-sol est
mouillé, couper l’alimentation électrique vers le sous-sol avant de
marcher sur le plancher.
Risque d’inondation. Ne pas faire fonctionner la
pompe à sec. Ce faisait, les joints de la pompe seront endommagés,
créant potentiellement une fuite et des dommages à la propriété.
Suivre les consignes des codes de plomberie et d’électricité locaux et
nationaux au moment d’installer le système. Il est recommandé d’utiliser
un disjoncteur de fuite de terre (GFCI) avec tout appareil électrique
submergé dans l’eau.
N’utiliser ce système que comme pompe de puisard de secours dans un
milieu résidentiel. Il n’a pas été conçu pour servir de pompe de puisard
principale.
Ne pas soulever la pompe à partir de son cordon électrique.
Risque de choc électrique. Ne pas soulever la pompe
par son cordon électrique; plutôt, la soulever par le tuyau de décharge,
l’anneau de levage ou la poignée qui se trouve dessus. Le cordon
pourrait être endommagé s’il est utilisé pour soulever la pompe.
Ne pomper que de l’eau propre avec cette pompe.
La pompe a été lubrifiée de manière permanente en usine. Ne pas
essayer de la lubrifier!
Garder le chargeur de batterie et le boîtier de batterie en hauteur, dans
un endroit sec, frais et bien aéré.
AVIS : si un détecteur de monoxyde de carbone (CO) est installé, il
doit se trouver à au moins 4,6 m (15 pi) du chargeur de batterie, ce afin
d’éviter l’occurrence de fausses alarmes. Se reporter aux directives
d’installation du détecteur de CO pour en apprendre davantage.
Pour éviter les risques d’incendie ou d’explosion, assurer que les
sources d’étincelles ou de flammes (pilote) se trouvent à l’écart de la
batterie.
La distance de pompage verticale maximale de la pompe est de 4,3 m
(14 pi), dans le cas du modèle MBSP-3.
S’assurer qu’il n’y a pas de débris encombrant la pompe de puisard. Les
débris peuvent endommager la pompe et ainsi entraîner une inondation.
RENSEIGNEMENTS GÉNÉRAUX
La pompe de puisard à batterie de secours ne peut pas se substituer à
votre pompe de puisard principale. Elle a été conçue pour agir en tant
que support pour votre pompe principale en cas de panne d’électricité
ou de tout autre problème nuisant au fonctionnement normal de la
pompe primaire. Ne pas utiliser ce système pour pomper des liquides
inflammables ou des produits chimiques. Ne pomper que de l’eau propre
avec cette pompe.
Assurer que le chargeur de batterie demeure au sec et bien protégé
contre tout dommage.
Ce système a été conçu pour fonctionner avec une batterie AGM
(plomb-gel et feutre) scellée et sans entretien. Il peut aussi fonctionner
avec une batterie plomb-acide à électrolyte liquide à décharge
poussée. Les batteries à électrolyte gélifié et scellées plomb-acide
à électrolyte liquide ne sont pas recommandées. En cas d’urgence
(comme une panne de courant prolongée), si la batterie à décharge
poussée est complètement déchargée, il est possible d’utiliser une
batterie automobile à la place. Prendre soins de remettre la batterie
à décharge poussée en place aussi rapidement que possible. Utiliser
une batterie automobile à la place d’une batterie à décharge poussée
réduira significativement la performance totale du système. Les batteries
automobiles ne sont pas conçues pour ce type d’application; elles seront
rapidement rendues inutiles par les cycles répétés de charge/décharge.
AVIS: ce système n’a pas été conçu pour les applications impliquant
l’eau salée, la saumure ou la présence de poissons; l’utiliser dans ces
conditions entraînera l’annulation de la garantie!.
Avertissement lié à la Proposition 65 de la Californie
Ce produit et les accessoires connexes contiennent
des produits chimiques reconnus dans l’État de la Californie comme
pouvant provoquer des cancers, des anomalies congénitales ou d’autres
dangers relatifs à la reproduction.

Installation 18
OUTILS DE BASE ET PIÈCES NÉCESSAIRES
(VENDUS SÉPARÉMENT)
Pince multiprise à crémaillère ou autre pince réglable de grande taille
Ruban à mesurer
Clé à douille ou tourne-écrou de 7,9 mm (5/16 po)
Couteau latéral
Scie à métaux (pour couper du tuyau de PVC)
Pinces de taille moyenne
Tournevis à lame plate
Tournevis cruciforme
Crayon ou marqueur
Ruban scellant pour filets de tuyau en PTFE
Colle pour PVC (soudure par solvant)
Nettoyant à tuyau de PVC
Chiffon
Raccords de plastique
Clapet(s) de non-retour - 1 ou 2, selon l’installation
Batterie à stockage de 38-120 ampères-heures ou à décharge poussée
Capacité de batterie requise :
Pour obtenir de meilleurs résultats, se servir des batteries à stockage
AGM suivantes :
Pièce Amp-Heure
Gal/Charge à 3
m (10 pi)
Temps de
fonctionnement
approx
BAT40 40 4800 5 heures
BAT75 75 11500 11,5 heures
• Unité pouvant être équipée d’une batterie double
• Amp-heure maximum : 120
AVIS : Le chargeur ne parviendra pas à charger complètement les
batteries dont la cote d’ampères-heure est excessive sans procéder à la
réinitialisation du système.
Performance du MBSP-3
Hauteur en pieds 0 5 10 15
Hauteur en mètres 0 1.5 3 4.6
gal/min 45 34 21 0
L/min 170 129 80 0
SYSTÈME DE SECOURS À BATTERIE (SSB)
INSTALLATION ET FONCTIONNEMENT
AVIS :
• Installer ce système à un moment où il n’est pas nécessaire de
faire fonctionner la pompe principale. Rassembler tout le matériel
nécessaire avant de commencer. Lire tous les avertissements et
les étapes d’installation avant de commencer.
• Prendre en considération que l’eau pourrait couler des raccords
ou de la tuyauterie lors du démontage ou de la coupe du tuyau de
décharge. Protéger les composantes du système, les outils et le
matériel pour ne pas les mouiller. Sécher la surface de travail à
mesure qu’elle elle mouillée.
AVIS : lire attentivement les pages 4 à 6 pour déterminer la méthode
d’installation la plus appropriée. L’installation de type « décharge

AVIS : 
l’élimination des eaux usées (particulièrement lorsque la pompe se
décharge hors de la maison) avant de commencer. L’installation doit se
conformer à toutes les exigences légales.
Si possible, installer le SSB de manière à ce que la décharge soit
évacuée directement à l’extérieur (tuyau de décharge distinct du tuyau
de décharge de la pompe de puisard principale). Si cette option n’est pas

AVIS : Applicable pour TOUTES les installations une fois terminées, il
faut faire fonctionner en même temps les deux pompes de puisard (la
pompe principale et la pompe de secours) pendant un cycle complet

Risque de blessure et d’inondation. Ne pas mettre la
pompe en marche tant que tous les raccords n’ont pas été collés et que
la colle n’a pas eu le temps de sécher. Les raccords lâches peuvent
exploser et causer des blessures ou une inondation.
Risque de choc électrique. Sur le panneau électrique ou
la boîte de fusibles, couper l’alimentation électrique se rendant vers la
pompe de puisard avant de commencer l’installation.
Mise en place
1. Déterminer le niveau d’eau élevé dans le puits de puisard (le niveau
d’eau auquel la pompe de puisard en place (principale) se met en
marche - se reporter à la figure 1). Couper l’alimentation vers la
pompe et indiquer ce niveau sur le tuyau de décharge à l’aide d’un
crayon ou d’un marqueur.
2. Vider le puits de puisard aussi profondément que possible sans
que la pompe se mette à fonctionner à vide. Pour ce faire :
A. INTERRUPTEUR DE SORTIE CONJOINTE : débrancher
la pompe et l’interrupteur de la prise puis débrancher la
pompe de l’interrupteur de sortie conjointe. Réinitialiser le
disjoncteur de circuit ou remettre le fusible en place puis
brancher la pompe directement dans la prise. La pompe va
démarrer. Vidanger le puits et débrancher la pompe. OU
B. SANS INTERRUPTEUR DE SORTIE CONJOINTE : réinitialiser
le disjoncteur de circuit ou remettre le fusible en place et
se servir d’un manche à balai ou d’un bâton pour soulever
l’interrupteur à flotteur, ce qui devrait faire fonctionner la
pompe. Vidanger le puits puis relâcher l’interrupteur.
3. Une fois le puits vidangé, couper (ouvrir) le disjoncteur de circuit
ou enlever le fusible à nouveau pour éviter tout choc électrique
pendant l’installation.
Fig 1 : faire une marque au niveau d’eau de «
démarrage »

Installation 19
Fig 2 : Installation typique avec tuyaux de décharge
distincts.
Fig 3 : Installation typique avec tuyau de décharge
commun.
Ruban d'étanchéité
à filet de tuyau de PTFE
sur tous les joints filetés
Pompe de puisard
de secours à batterie*
« décharge commune »
A
VIS : dans cette installation,il FAUT installer un clapet de non retour sur
la pompe de puisard principale (PPP) s'il 'y en a pas un déjà en place sous
la division,
comme montré. Ceci permet de prévenir tout retour d'eau de puisard
prov
enant du système de secours à batterie. Les volets du clapet de non retour
et les flèches de débit doiv
ent pivoter à l'ÉCART de la pompe à protéger.
Le
niveau d'eau entraînant la fermeture de l'interrupteur doit être plus
haut que l'entrée de la pompe du SSB
.
Installation typique
,
une
fois monté.
Pas à l'échelle.
Câblage ignoré pour meilleure clarté.
* Fourni avec le système de secours à batterie.
Les éléments en italique doivent être achetés séparément
L
es deux clapets de
non retour doiv
ent
être installés sur la
division,
du côté
de la pomp
e.
Tuyau de décharge
supérieur en PVC 3,8 cm
(1-1/2 po) (couper à la
longueur désirée)
U74-68 Ensemble
flexible et colliers
(vendu séparément)
Colonne montante en
PVC 3,8 cm (1-1/2 po)
(couper à la longueur désirée)
Division ABS à 45 degrés
Tuyau de PVC 3,8 cm
(1-1/2 po) optionnel
(couper à la longueur désirée)
Coude ABS de 45°
Interrupteur de
secours à batterie*
Mise en place de
l'ensemble
division/coude
alternatif
Coude ABS
de 45°
Tuyau de PVC 3,8 cm
(1-1/2 po) (couper à la
longueur désirée)
Flèche de débit; doit
être orientée à l'ÉCART
de la pompe à protéger
FP0026-10
Clapet de non
retour (vendu
séparément)
Tuyau de décharge
inférieur en PVC 3,8 cm
(1-1/2 po) (couper à la
longueur désirée)
Percer un trou
antiblocage d'air
de 3,2 mm (1/8 po)
Pompe principale
Tuyau de décharge
(couper à la longueur désirée)
Fileter sur le coude
ABS Adaptateur
Pompe principale
Clapet de non retour
Flèche de débit; doit
être orientée à l'ÉCART
de la pompe à protéger
Port de décharge de la
pompe de puisard principale
Coude ABS 3,2 cm
(1-1/4 po) FNPT x
3,8 cm (1-1/2 po)*
«décharge distincte»
AVIS:
"Les volets du clapet de non retour doivent pivoter à l'ÉCART
de la pompe qui doit être protégée, les èches de débit aussi."
Le niveau d'eau entraînant la fermeture de l'interrupteur doit
être plus haut que l'entrée de la pompe du SSB.
* Fourni avec le système de secours à batterie.
Les éléments en italique doivent
être achetés séparément. Pas à l'échelle.
Câblage ignoré pour meilleure clarté.
Pente DESCENDANTE
vers la sortie
Solive de
plancher
Appui
Tuyau de décharge supérieur
en PVC 3,8cm (1-1/2po)
(couper à la longueur désirée)
U74-68 Ensemble
exible et colliers
(vendu séparément)
Colonne montante en
PVC 3,8cm (1-1/2po)
(couper à la longueur désirée)
Flèche de débit; doit être
orientée à l'ÉCART de la
pompe à protéger
Si le puisard est petit,
suspendre le SSB sur le
tuyau de décharge principal
à partir d'un support angulé.
FP0026-10
Clapet de non retour
(vendu séparément)
Tuyau de décharge inférieur
en PVC 3,8cm (1-1/2po)
(couper à la longueur désirée)
Clapet de non retour de la
pompe de puisard principale
Interrupteur de
secours à batterie*
Percer un trou antiblocage
d'air de 3,2mm (1/8po)
Coude ABS 3,2cm(1-1/4po)
FNPT x 3,8cm (1-1/2po)*
Ruban d'étanchéité à
let de tuyau de PTFE
sur tous les joints letés
Pompe de puisard de
secours à batterie*

Installation 20
INSTALLATION (typique) : décharge distincte
Risque de choc électrique. Possibilité de choc, de brûlure
et même de décès. Débrancher la pompe de puisard principale avant de
commencer cette procédure.
AVIS : laisser une longueur en surplus au moment de couper la tuyauterie et
faire un essai de raccordement (sec) avant de mettre la colle.
1. 
mâle du tuyau de décharge. Fileter un coude de 3,2 à 3,8 cm (1-1/4 à
1-1/2 po) (fourni) sur la décharge. Une fois bien serré, le coude doit être
orienté vers le haut.
2. Si possible, installer le système de secours à batterie (SSB) sur le
plancher du puisard et s’assurer que les deux pompes n’entrent pas en
contact ou ne se nuisent pas lorsqu’elles fonctionnent.
AVIS : en cas de présence de débris ou de caillou pouvant se loger dans
la pompe dans le fond de puits de puisard, installer les deux pompes
sur des briques ou des blocs de béton pour prévenir toute occlusion.
3. Si le puisard est trop petit et qu’il est impossible d’y installer les deux
pompes, installer un support angulé sur le tuyau de décharge de
la pompe de puisard principale à l’aide de colliers à tuyau en acier
inoxydable. Installer la pompe de secours sur le support angulé. Se

4. Couper un morceau de tuyau de PVC de 3,8 cm (1-1/2 po) à placer dans
le coude de la décharge de la pompe de secours; il doit avoir une lon-

cm (1 pied). Il s’agit du tuyau de décharge inférieur.
5. Pour empêcher le blocage de la pompe par l’air pendant son fonction-
nement, percer un trou de 3,2 mm (1/8 po) dans le tuyau de décharge
inférieur, à environ 5,1 cm (2 po) au-dessus de la base du tuyau (sous le
niveau du plancher).
6. Installer un clapet de non retour FP0026-10 (acheté séparément)
sur l’extrémité supérieure du tuyau. Resserrer les colliers à tuyau


clapet ne laissera pas passer l’eau et la pompe ne fonctionnera pas.
7. Couper un court bout de tuyau de PVC de 3,8 cm (1-1/2 po) de diamètre

non retour.
8. 
colonne montante. Dans le cas d’un tuyau de 3,8 cm (1-1/2 po), retirer


l’ensemble sous le sommet de la colonne montante.
9. Déterminer l’endroit où la décharge devra sortir du sous-sol. À ce
point, perforer les trous nécessaires (juste assez large pour laisser
passer un tuyau de 3,8 cm (1-1/2 po) pour faire passer le tuyau de
décharge au-dessus du puisard vers l’extérieur.
10. Installer le tuyau de décharge horizontal. Installer un coude de 90° à
l’extrémité intérieure, mais ne pas coller.
11. Couper un autre bout de tuyau de PVC de 3,8 cm (1-1/2 po) de diamètre
pour agir en tant que tuyau de décharge supérieur; il permet de faire le
lien entre la colonne montante et le coude de 90°. Assurer qu’il y a une

12. Faire un essai de raccordement SANS COLLE; installer le tuyau de
décharge supérieur de 3,8 cm (1-1/2 po) dans l’extrémité verticale
du coude de 90°. Le tuyau de décharge supérieur devrait s’insérer
parfaitement entre la colonne montante et le coude.
13. Risque d’incendie et d’inhalation de produits
chimiques. Il est important de suivre les recommandations du
fabricant lorsque de la colle, de l’apprêt ou du ciment à PVC est utilisé.
14. S’assurer que le SSB se trouve à l’écart de la pompe principale et de

SSB près de la pompe principale au fond du puisard, il faut surélever le
SSB (selon votre situation particulière).
15. Nettoyer, mettre de l’apprêt et coller le tuyau de décharge supérieur
dans le coude de 90°. Une fois la colle bien prise, glisser l’ensemble

16. Installer l’interrupteur du système de secours à batterie comme
montré, soit 2,5 cm (1 po) au-dessus du niveau d’eau de démarrage de
la pompe principale. L’attacher au tuyau avec des attaches de câble.
17. Fixer le cordon de la pompe avec du ruban adhésif sur la colonne mon-
tante avant que la prise ne puisse pas tomber dans le puisard.
18. Se rendre à la section « CÂBLAGE ET MISE EN PLACE DU SSB » (page
8) pour obtenir les directives de câblage.
19. 
pompe de puisard principale fonctionne mais que le SSB ne démarre
pas. Ensuite, débrancher la pompe de puisard principale et remplir le

l’eau.
20. S’assurer que les deux pompes sont alimentées en électricité; votre
système est maintenant prêt à utiliser.
