Tourmaster Synergy 7.4V User manual

www.tourmaster.com
www.tourmaster.com
INTRODUCTION
Thank you for purchasing our Tourmaster®Synergy®7.4V
battery and charger; please read the entire user manual prior
to use. The Tourmaster®Synergy®7.4V battery is a slim and
lightweight lithium-ion external battery pack designed speci-
cally for use with Tourmaster®Synergy®7.4V heated apparel
and gloves.
FEATURES
• Ultra-lightweight construction reduces bulk & weight
• LED battery power gauge (Part #8761-7401-01)
• Extended runtimes up to 10 hours
• AC and DC charging options
• Do not wear against bare skin
• Should only use the battery provided with garment/gloves
• Do not attempt to disassemble or alter any part of product
• Do not store below -4ºF (-20ºC) or above 140ºF (60ºC).
• Do not allow batteries/charger to come into contact with
water or other liquids. If water or other liquids enter the
battery interior, immediately unplug the product from the
battery. Continued use of the product may result in re or
an electrical shock.
• Do not place this product near a heat source or expose
battery to direct ame or heat, as the battery may explode.
• Disconnect the battery pack from garment/gloves when
not in use, because even when it is turned off, the
garment will continue to slowly drain power from the
battery pack.
• Do not place in re or incinerate
• Do not dispose in garbage
• Recycle in accordance with local regulations
It is important to maintain at least 25% of your battery power
when it is not in use. Failure to do this will result in performance
problems and reduced battery life. Be certain to use your battery
with product with an amp rating less than the maximum capacity
output rating for the battery. For instance, the li-ion battery
has a maximum capacity output rating of 2 amps and should
not be used with heated products that draw more than 2 amps.
Please check product’s amp draw before connecting battery
pack. Failure to do so can overheat the battery, causing damage.
FAILURE TO CHARGE BATTERY PRIOR TO USE WILL
REDUCE BATTERY LIFE. CHARGE BATTERY REGULARLY.
7.4V 2.2AH LITHIUM-ION
BATTERY and CHARGER
USER GUIDE
WARNING
CAUTION
DISPOSAL
100
75
50
25
%

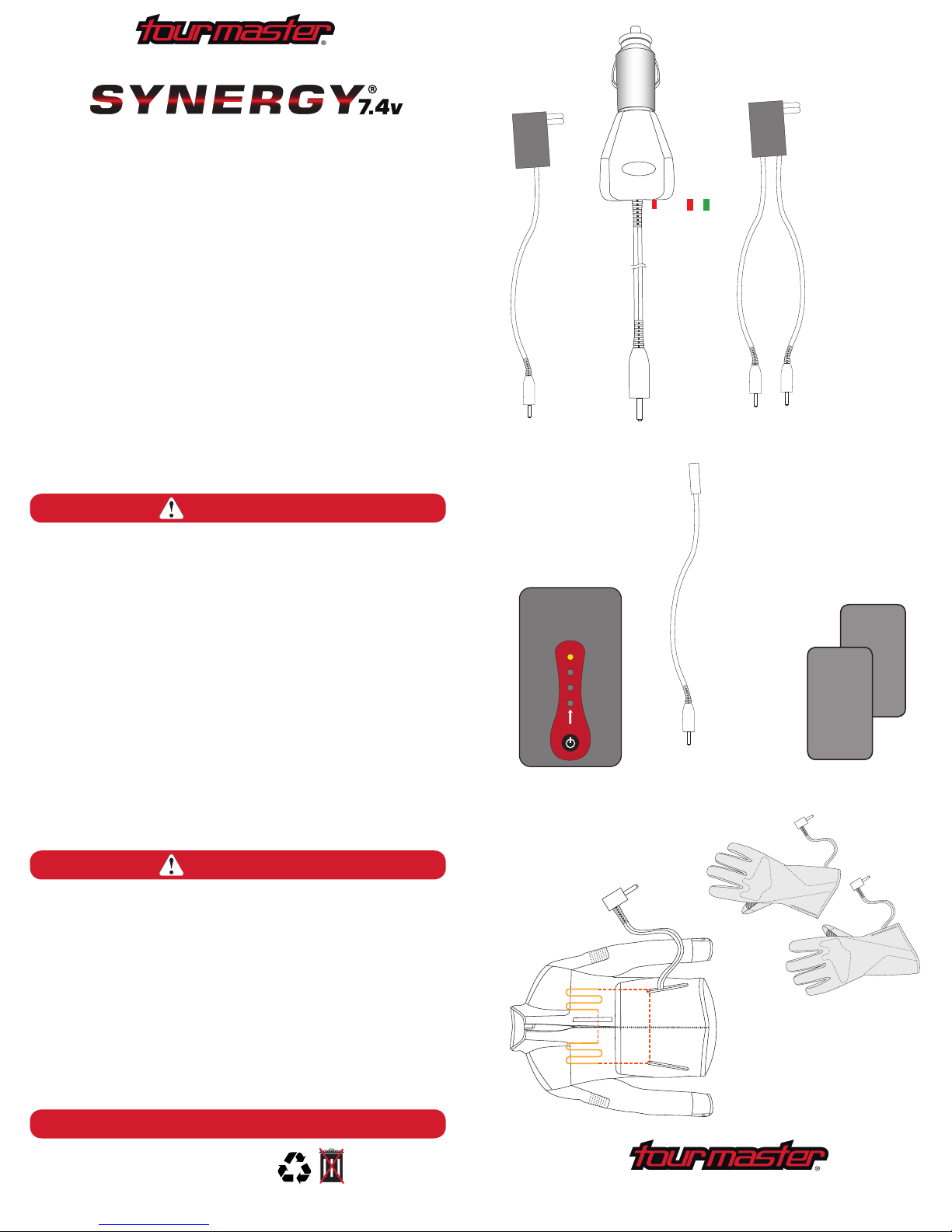

7.4V SYNERGY®
Standard Battery
Part #8761-7401-01
7.4V SYNERGY®
Jacket/Vest
* Can be used to charge both 7.4V Standard and Glove batteries. ** One 7.4V SYNERGY® Glove battery required for each glove.
Optional 21” Extension Cable
Part #8761-7415-01
7.4V SYNERGY®Dual
Battery Charger*
Part #8761-7414-01
7.4V SYNERGY®Single
Battery Charger*
Part #8761-7402-01
7.4V SYNERGY®
Glove Battery**
Part #8761-7403-01
7.4V SYNERGY®
Gloves
7.4V SYNERGY®Car Charger
12V Auto Adaptor*
Part #8761-7413-01
Red = Charging
Green = Charged

• Plug wall charger into a properly rated AC outlet
(100V-240V) Parts #8761-7402-01 & #8761-7414-01
• Plug car charger into a properly rated DC outlet (12V-24V)
Part #8761-7413-01
• The charger’s indicator light will shine RED during the
charging phase of the battery; once fully charged, the
indicator light will shine GREEN
Parts #8761-7402-01, #8761-7414-01, #8761-7413-01

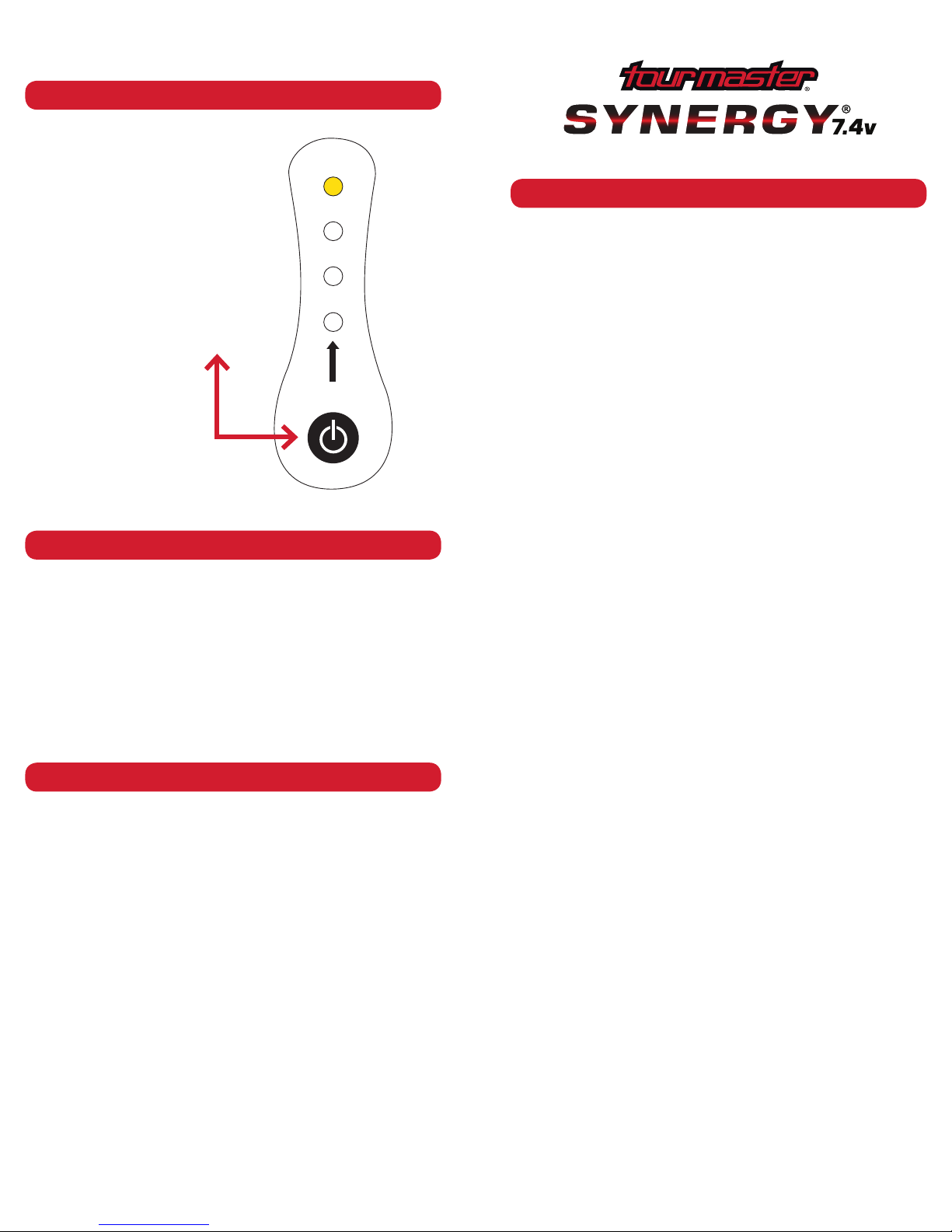

Battery (part #8761-7401-01) is equipped with a power
function that serves two purposes. The button allows the
user to check the remaining charge in the battery pack as
well as turn the battery on and off.
• The remaining power level indicator is only activated
when the battery is off and disconnected. The LED lights
will display the battery’s current charge from 25% to
100%. 100% indicates a full charge. Press and release
power button to check battery strength.
• To turn battery on, press and hold power button until you
hear an audible beep, and a single LED is on. This in-
dicates that the battery is now live (on), and the garment
can now be controlled via the button located on the chest
of the garment.
• To turn battery off, press and hold power button until you
hear an audible beep and the single LED light is off. This
will indicate that the battery is no longer live (off), at which
time you should disconnect the battery from the garment
until next use.
NOTE: The following warranty applies only to the original
purchaser, and only for products purchased directly through
an authorized Tourmaster®dealer.
Limited Warranty
When you purchase a Tourmaster®SYNERGY®heated
garment within the United States, the electrical components
of the garment are warranted to be free from factory defects.
All other non-electrical components of the garment are
warranted to be free from factory defects in materials and
workmanship for a period of one year from the date of the
initial purchase. If there is anything wrong with the sewing
or materials of any Tourmaster®SYNERGY®product you
purchase from us within the rst year that was due to our
neglligence or mistake, or if any problem develops during
the rst year due to our negligence or mistake, the product
will be repaired or replaced at the discretion of Tourmaster®
for free. Shipping and handling fees are the responsibility
of the purchaser.
Damage caused by misuse, improper care, accidents,
normal wear and tear, or natural breakdown of materials
over extended time and use are not covered in this
warranty.
Rechargeable Battery & Charger 90-Day Warranty
Tourmaster®SYNERGY®rechargeable lithium-ion
battery packs and chargers are under warranty from
factory defect for 90 days from the initial purchase. Any
alteration of the product voids the warranty. Tourmaster®
will repair or replace any battery or charger found under
normal use to be defective during the warranty period.
Our warranty does not cover damage caused by misuse,
accisent, abuse or improper care.
Returning Items Under Warranty
Before you send in a product, make sure that it falls under
warranty. No merchandise returns will be accepted without
approval and issued authorization number from our custom-
er service. Any clothing product sent back for repairs must
be WASHED or it may be returned at customer’s expense.
Your parcel must include your return authorization code,
shipping address and phone number, and a copy of original
receipt. Please allow 4-6 weeks for repairs to be returned.
Tourmaster®Inc.
26855 Malibu Hills Drive
Calabasas Hills, CA 91301
www.tourmaster.com
Tourmaster®and SYNERGY®are registered trademarks
of Helmet House, Inc.
CHARGING SPECIFICATIONS
BATTERY SPECIFICATIONS
BATTERY OPERATION
WARRANTY
100% 135ºF 2.5 hours
75% 120ºF 3 hours
50% 105ºF 5 hours
25% 90ºF 10 hours
100
75
50
25
%
