INSTALLATION AND
OPERATION MANUAL
MY1013 (03-30-2021) ©2021 Pentair. All Rights Reserved.
BATTERY BACKUP
MBSP-2C
ENGLISH: 1-16 FRANCAIS: 17-32 ESPANOL: 33-48

TABLE OF CONTENTS
Safety Information................................................................................................................................................................................ 3
Specications.......................................................................................................................................................................................4
Pump Installation.................................................................................................................................................................................. 5
Installation • Operation.......................................................................................................................................................................... 6
BBU Wiring and Setup........................................................................................................................................................................... 7
Wiring • Setup .......................................................................................................................................................................................8
Battery Requirements........................................................................................................................................................................... 9
LED Display..........................................................................................................................................................................................10
Troubleshooting...................................................................................................................................................................................12
Repair Parts - Primary Pump................................................................................................................................................................13
Repair Parts - Battery Backup Unit ......................................................................................................................................................14
Warranty..............................................................................................................................................................................................15

3
MY1013 (03-30-2021)
SAFETY INFORMATION
IMPORTANT SAFETY INSTRUCTIONS
This manual contains important instructions that should be followed
during installation, operation, and maintenance of the product.
This is the safety alert symbol. When you see this symbol on your
pump or in this manual, look for one of the following signal words and
be alert to the potential for personal injury!
indicates a hazard which, if not avoided, will result in
death or serious injury.
indicates a hazard which, if not avoided, can result in
death or serious injury.
indicates a hazard which, if not avoided, can or may
result in minor or moderate injury.
NOTICE: addresses practices not related to personal injury.
Carefully read and follow all safety instructions in this manual and
on pumps. Keep safety labels in good condition. Replace missing or
damaged safety labels.
Battery acid is corrosive. Do not spill on skin, clothing,
or battery charger. Wear eye and head protection when working with
battery. Connect and disconnect DC output terminals only after
removing the charger from the AC outlet. Never allow the DC terminals
to touch each other.
Hazardous Voltage. Can cause severe or fatal
electrical shock. Do not plug in or unplug battery charger while
standing on a wet floor or in water. Be sure one hand is free when
plugging in or unplugging charger. If basement floor is wet, disconnect
power to basement before walking on floor. If shut-off box is in
basement, call electric company or hydro authority to shut-off service
to house, or call your local fire department for instructions. Remove
pump and repair or replace. Failure to follow this warning can result in
fatal electrical shock.
Risk of flooding. Do not run pump dry. To do so will
damage seals and can cause leaking and property damage.
Risk of electrical shock. Do not lift the pump by the
electrical cord; lift pump only by the discharge pipe, lifting ring or
handle on the pump. Lifting by the cord can damage the cord.
CALIFORNIA PROPOSITION 65 WARNING
This product and related accessories contain
chemicals known to the State of California to cause cancer, birth
defects or other reproductive harm.
GENERAL SAFETY
1. Know the pump application, limitations, and potential hazards.
2. Do not use in water with fish present. If any oil leaks out of the
motor it can kill fish.
NOTICE This unit is not designed as a waterfall or fountain
pump, or for applications involving salt water or brine! Use with
waterfalls, fountains, salt water or brine will void warranty.
3. Disconnect power before servicing.
4. Drain all water from system before servicing.
5. Secure discharge line before starting pump. An unsecured
discharge line will whip, possibly causing personal injury and/or
property damage.
6. Check hoses for weak or worn condition before each use, making
certain that all connections are secure.
7. Periodically inspect sump, pump and system components. Keep
free of debris and foreign objects. Perform routine maintenance
as required.
8. Provide means of pressure relief for pumps whose discharge
line can be shut-off or obstructed. Release all pressure within
system before servicing any component.
9. Personal Safety:
 Wear safety glasses at all times when working with pumps.
 Keep work area clean, uncluttered and properly lighted.
Replace all unused tools and equipment.
 Keep visitors at a safe distance from work area.
 Make workshop child-proof – with padlocks, master
switches, and by removing starter keys.
10. Follow local and/or national plumbing and electrical codes when
installing the system. A ground fault circuit interrupter (GFCI) is
recommended for use on any electrical appliance submerged in
water.
11. All wiring should be performed by a qualified electrician.
12. This equipment is only for use on 115 volt
(single phase) and is equipped with an approved 3-conductor
cord and 3-prong, grounding-type plug.
13. Where a 2-prong wall receptacle is encountered, it must be
replaced with properly grounded 3-prong receptacle installed in
accordance with codes and ordinances that apply.
14. Make certain power source conforms to requirements of your
equipment.
15. Protect electrical cord from sharp objects, hot surfaces, oil, and
chemicals. Avoid kinking cord. Replace or repair damaged or
worn cords immediately.
16. Do not touch an operating motor. Modern motors can operate at
high temperatures.
17. Pump clear water only with this pump.
18. Pump is permanently lubricated at the factory. Do not try to
lubricate it!
19. This pump is designed for use in a residential sump only.

4MY1013 (03-30-2021)
GENERAL INFORMATION
The Battery Backup Combo Kit is pre-plumbed up to the hose
and clamp assembly. The system includes the primary sump
pump (PSP), backup sump pump (BSP) assembly, and vertical
float switch. The unit is equipped with two check valves - one
for the primary pump and one for the backup pump.
The battery backup pump is not a substitute for your primary
sump pump. It is designed to temporarily backup your primary
sump pump during a power outage or other problem which
prevents normal operation of the primary pump. Do not use
this system to pump flammable liquids or chemicals. Pump
clear sump water only with this pump. For residential use only.
Keep the battery charger dry and protected from damage.
This system is designed to work with either a sealed lead-acid
AGM battery or a flooded lead-acid battery. Use of a true Gel
Cell (often confused for AGM) or a standard automotive battery
with this charger is not recommended. An automotive battery
may require charging after only 1-2 hours of continuous use,
and the repeated charging cycles may cause early plate failure
in the battery.
SPECIFICATIONS
Maximum vertical pumping distance is 13.35 feet (3.4M) for Model
MBSP-2C.
Power supply required
Primary Sump Pump..........................115V, 60 HZ.
Backup Sump Pump........................12V DC Battery
Liquid Temp. Range..........................32°F to 70°F(0°-21°C)
Individual Branch Circuit Required (min.).............15 Amps
Discharge:
Hose & Clamp Assembly..........1-1/4”Slip / 1-1/2”Slip
Minimum pit diameter ....................................................14”
Minimum depth...............................................................10”
NOTICE: Do not reduce size of discharge pipe or hose below 1-1/4”
diameter. If discharge is too small, pump will overheat and fail
prematurely.
NOTICE: If a Carbon Monoxide (CO) sensor is installed, it
must be at least 15 feet away from battery charger in order to
avoid nuisance CO alarms. Please refer to your CO detector’s
installation guidelines for more information.
PERFORMANCE - PSP
GPM (LPM) at total feet (m) of lift
Series HP 5
(1.5m)
10
(3m)
15
(4.6m)
20
(6.1m) MAX.
LIFT
Capacity Gallons(L)/Min
Primary
(MS33V10) 1/3 53 (201) 45 (170) 36 (136) 24 (91)
25 ft
(7.6m)
PERFORMANCE - BSP
GPM (LPM) at total feet (m) of lift
Series 5 (1.5m) 10 (3m) 12 (3.7m) MAX.
LIFT
Capacity Gallons(L)/Minute
Backup
(PS17-118)
23
(87)
10
(38)
4
(15)
13.35 ft
(3.4m)
ELECTRICAL & SWITCH SPECIFICATIONS
Series HP
Motor
Full Load
Amps
Branch
Circuit
Req.
(Amps)
Switch Setting in
inches (cm)
On Off
MS33V10 1/3 3.9
15
7.5
(19.1)
3
(7.6)
PS17-118 - - 10.5
(26.7) 25 sec.
REQUIRED BATTERY CAPACITY
For best results, use the following AGM Storage Batteries:
Part Amp-Hour Gal/Charge at 10’ Approx Run Time
BAT40 40 3000 4.5 Hours
 Unit equipped with dual battery capability
 Maximum amp-hour: 120
 38-120 Ampere-Hour Storage or Deep Cycle Battery
SPECIFICATIONS

5
MY1013 (03-30-2021)

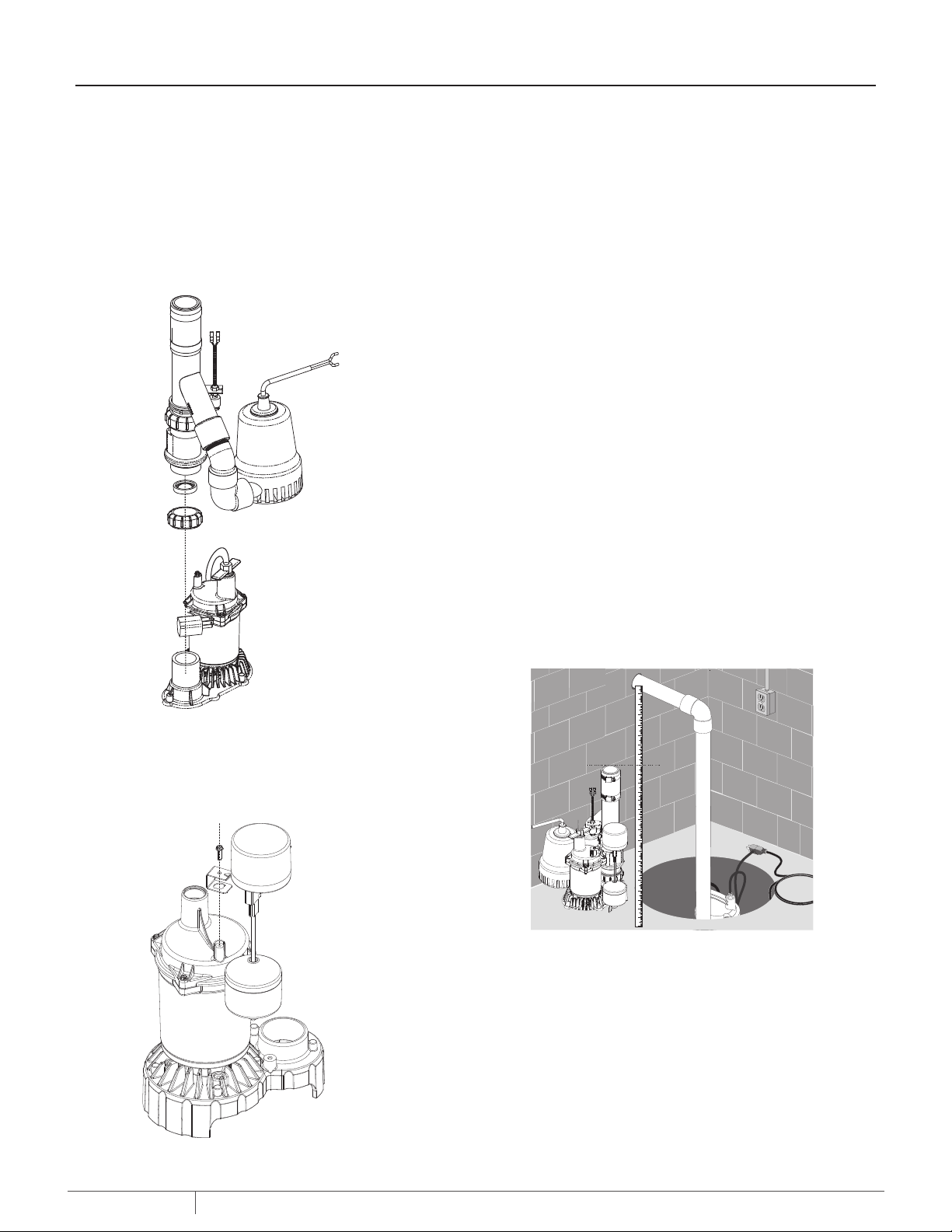

BACKUP ASSEMBLY INSTALLATION
Attach backup pump assembly to primary pump. To do so,
un-screw bottom nut on check valve and remove rubber seal.
Place nut from check valve around discharge PVC pipe on
primary pump, then place rubber seal. Attach backup pump
assembly to the primary pump by tightening nut to the rest
of the check valve unit. Adjust backup pump to sit at an angle
(approx. 10°).
FLOAT SWITCH INSTALLATION
Assemble float switch as shown.
COMBO UNIT INSTALLATION
Suggested Materials Needed: Screwdriver, tape measure,
hacksaw, cable ties.
1. Drain the sump pit as far as possible without running the
pump dry. Do this by:
 Piggyback switch: Unplug the pump and switch from
the outlet, then unplug the pump from the piggyback
switch. Reset the circuit breaker or reinstall the fuse
and plug the pump directly into the outlet. The pump
will start. Drain the pit and unplug the pump. OR
 No piggyback switch: Reset the circuit breaker or
reinstall the fuse and use a non-conducting broom
handle or stick to raise the float switch; the pump
should start. Drain the pit and then release the switch.
 When the pit has drained, turn off (open) the circuit
breaker or remove the fuse again to avoid electrical
shock while working on the installation.
 Unplug existing sump pump and place power cord and
piggyback switch out of the way of work and water.
2. Measure height of MBSP-2C Combo Kit from base to top of
hose clamp assembly. Subtract 1”.
Drop the tape measure into the bottom of sump pit and
mark the cut line on the discharge pipe (1” less than total
height of the Combo Kit).
3. Use hacksaw to cut horizontally along cut line completely
through pipe.
NOTICE: Depending on where your current check valve is
located, there may be excess water. Let the water drain/
drip into the sump pit.
4. Remove old sump from sump pit.
NOTICE: Remove all sand, clay, and gravel before
installing.

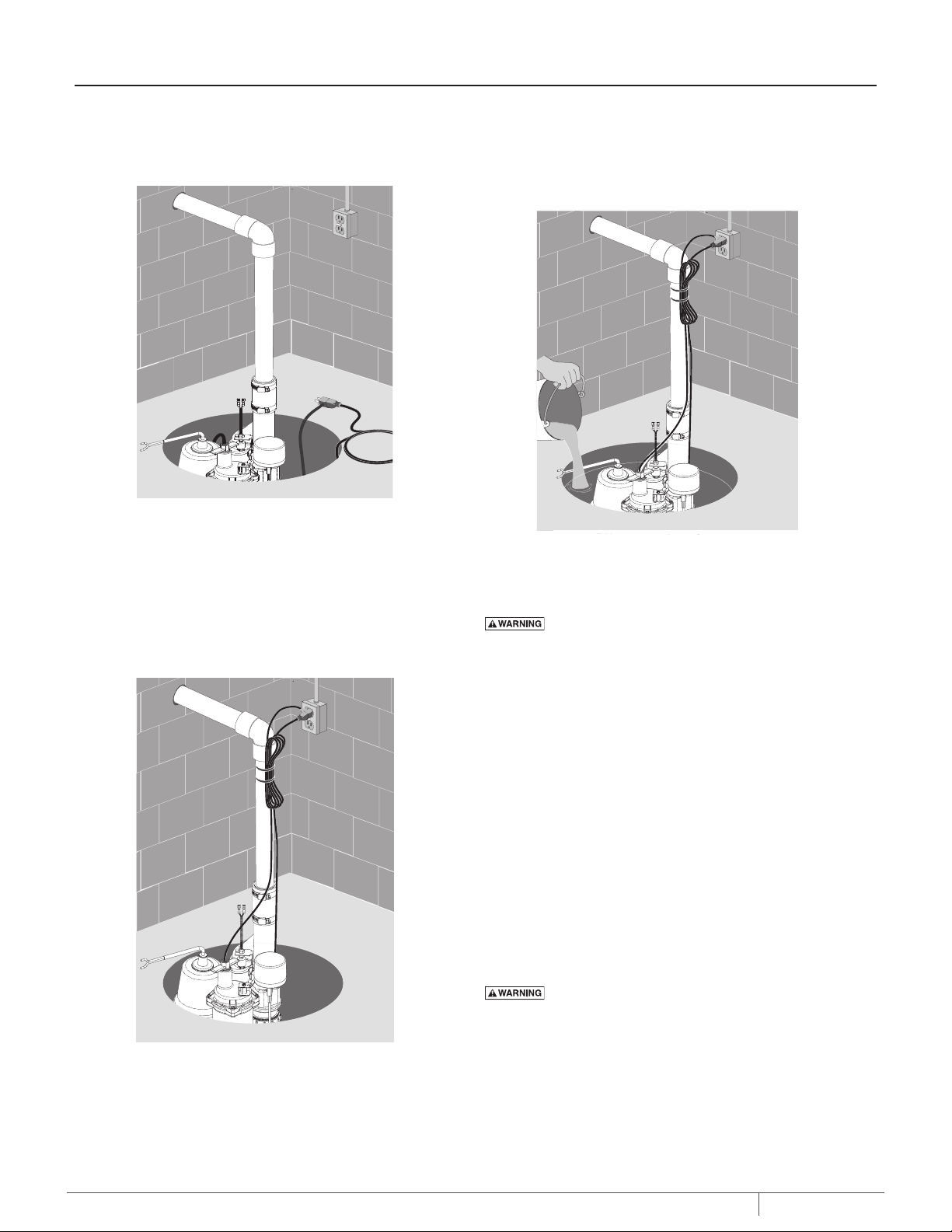

5. Place Combo Kit into sump pit. Make sure vertical float
switches can operate freely inside sump pit.
PUMP INSTALLATION
(10° angle)

6MY1013 (03-30-2021)
6. Once the Combo Kit is firmly seated in the base of the
pit, connect the hose and clamp switch to the existing
discharge pipe and clamp it securely.
7. Secure power cord (PSP & BSP), piggyback switch, and
reed switch cord high up and around pipe with a cable tie.
Plug the primary pump into a standard household 15 amp
outlet.
NOTICE: The circuit should be dedicated to the sump pump
exclusively.
Remember: Do not handle the pump while it is plugged in;
whether it is running or not.
8. Connect BBU. See “BBU Wiring and Setup”.
9. Once all wiring is complete, fill your pit with water and
verify that the PSP removes the water and the BBU doesn't
run. Then, unplug your PSP and refill your pit with water.
Verify that the BBU removes the water.
10. Make sure that the power is on to both pumps, and your
system is ready to use.
OPERATION
Risk of electric shock. Can shock, burn or kill. Do not
handle a pump or pump motor with wet hands or when standing
on wet or damp surface, or in water.
1. Shaft seal depends on water for lubrication. Do not operate
pump unless it is submerged in water as seal may be
damaged if allowed to run dry.
2. Motor is equipped with automatic reset thermal protector.
If temperature in motor should rise, switch will cut off all
power before damage can be done to motor. When motor
has cooled, switch will reset automatically and restart
motor. If protector trips repeatedly, pump should be
removed and checked. Low voltage, long extension cords,
clogged impeller, very low head or lift, or a plugged or
frozen discharge pipe, etc., could cause cycling.
3. Pump will not remove all water. If operating a pump
manually and suddenly no water comes out of the
discharge hose, shut off the unit immediately. The unit has
broken prime due to a very low water level.
Risk of electric shock. Can shock, burn or kill. Before
attempting to check why unit has stopped operating,
disconnect power from unit.
INSTALLATION • OPERATION

7
MY1013 (03-30-2021)
BBU WIRING AND SETUP
1. Connect the positive (+) charger/controller lead wire
(red) to the positive (+) battery terminal (red). Connect
the negative (–) charger/controller lead wire (black) to
the negative (–) terminal (black) on the battery. If you are
using two batteries, use the set of optional terminals and
connect the second battery. Use lead wires (not included)
to connect the positive (+) charger/controller terminal
to the positive (+) battery terminal and the negative (–)
charger/controller terminal to the negative (–) battery
terminal.
2. The backup pump leads are polarity sensitive; connect
the positive pump lead to the terminal labeled Pump ‘+’
and the negative pump lead to the terminal labeled Pump
‘–’. NOTICE: If the leads are reversed, the pump will run
backward and not pump water.
3. The float switch leads are not polarity sensitive; connect
the float switch leads to the ‘Float Switch’ tabs on the
charger/controller.
4. Test the float and the pump by lifting and holding the
float. The ‘Pump Status’ LED will light continuously and
the buzzer will beep steadily. The pump should start
after 3 seconds. If the pump does not run, check all the
connections and remake them as necessary.
5. To stop the pump, lower the float; after 25 seconds the
pump should stop, the ‘Pump Status’ LED should flash, and
the buzzer should beep.
6. With the pump operating, test the ‘SILENCED ALARM’
button; hold for one second; release. The ‘Silenced
Audible Alarm’ LED should illuminate and the buzzer
should stop sounding. To reset the buzzer (allow it to
sound) and extinguish the ‘Silenced Audible Alarm’ LED,
press the ‘Silence Alarm’ button again for one second.
Depress the ‘System Test’ button; hold it for one second;
release. The ‘Pump Status’ LED should stop flashing.
NOTICE: During normal operation, the flashing ‘Pump
Status’ LED indicates that the pump has run in your
absence.
7. Press and hold ‘System Test’ button. All LEDs will light up,
pump will run and buzzer will sound. Release the button
and LEDs should go off, pump should stop, buzzer should
stop.
8. The ‘Battery Status’ LED indicates the battery capacity
when the A.C. power is off.
 Continuously ON - the battery voltage is above 10.9
Volts Direct Current (10.9VDC) and capacity is above
20%.
 Slow Beep/Slow LED Flash - the battery’s capacity is
between 0 and 20%.
 Fast Beep/Fast LED Flash - the battery is severely
discharged. The battery will continue to charge (as
long as the 115V AC power to the charger is on) at the
rate of .5 AH until the battery’s charge is above 20%.
When the first warning occurs (slow beep/slow flash),
you will have approximately 2 hours (or less) of pump
operation left. The actual time of operation will
depend on the condition of the battery and may be as
little as 15 minutes.
9. Connect the Power Supply cable (supplied) to the Charger/
Controller’s Power Input jack.

8MY1013 (03-30-2021)
WIRING • SETUP
-+
Pump Status
AC Power
Silenced Audible Alarm
System Alert Power In
Float Switch
Pump
Circuit Breaker
Area Light
Silence Alarm
System Reset
System Reset
Patent Pending
12VDC 2AMP
Battery Charger
Charging
Battery Status
NOTICE: When the unit is first plugged in, or when it first receives power from the battery, the ‘BATTERY STATUS’ LED will flash
for 3 seconds.
NOTICE: To activate any Control Button, press and hold it for 1 second.
LED DISPLAY AND CONTROL BUTTONS

9
MY1013 (03-30-2021)
BATTERY REQUIREMENTS
Hazardous electric current. Can cause severe
burns and start a fire if the battery terminals are short
circuited. Install the battery in the battery case. To prevent
accidental shorting across battery terminals, close and latch
the battery case securely. Do not leave the battery uncovered.
Do not allow children to play around the battery backup
system installation.
The performance of your backup sump pump depends on
the battery used with it for power. We recommend using
our BAT40. You can also use a group 24M or 27M Deep Cycle
battery. They will provide acceptable performance and will
stand up well to long periods of little or no use.
This system is designed to work with either a sealed lead-acid
AGM battery or a flooded lead-acid battery. Use of a true Gell
Cell (often confused for AGM) or a standard automotive battery
with this charger is not recommended. An automotive battery
may require charging after only 1-2 hours of continuous use,
and the repeated charging cycles may cause early plate failure
in the battery.
Use only lead-acid batteries. This unit is not designed to use
with Li-Ion, NiMh, NiCAD, Liquid Polymer, etc.
Use only the recommended battery or one of the same type
and size so it will fit in the battery box (maximum size: 13” long
x 7” wide x 10” tall (330.2mm x 177.8mm x 254mm) including
terminals) and supply enough voltage for full performance.
BATTERY MAINTENANCE
Severe burn hazard. An acid-filled standard
lead-acid battery contains sulfuric acid. Avoid contact with
skin, eyes or clothing.
NOTICE: To protect the battery case from chipping and
gouging, do not let the battery sit on a concrete floor. Install
the battery on a shelf or protective pad (plywood, 2x4s, etc.).
Always install the battery in a dry location that is protected
from flooding.
PRE-QUALIFICATION TEST – 1 AND 2
Charger is charging at a very low level to try to bring a dead
battery back to life. If the battery is taking too long, try
resetting the charger once or twice (push the ‘System Test’ and
‘Silence Alarm’ buttons together to reset the charger).
Special Features: The charger is equipped with reverse
battery, short circuit, and “runaway charge” protection.
POSSIBLE PROBLEMS AND REMEDIES
1. Wrong Battery Voltage: Reconnect charger to a 12 volt
battery.
2. Reversed Battery Connections: Check all connections.
The negative (black) on the battery must connect to the
negative (black) on the charger, and the positive (red)
on the battery must connect to the positive (red) on the
charger. Reversing the battery connections will cause the
‘System Alert’ and ‘Silenced Audible Alarm’ LEDs to flash.
3. Thermal Runaway Condition: “Thermal Runaway” is the
technical term for the condition of the battery when some
(or all) of the cells have deteriorated to the point that they
won’t take a charge. In this case, replace the battery.
4. Charge Time Monitor – 1 and 2: Battery took too long to
complete its charge. The “Charge Time Monitor” will shut
down the charger after 84 hours of continuous charging.
Possible causes are:
 Pump ran for a long period of time during charging, or
 Battery is too large for the charger (including several
batteries connected in a parallel circuit).
EXCESSIVE BATTERY DRAIN
Pump may have run for a very long time, discharging the
battery. In this case:
1. If 115VAC power is OFF, the charger shuts down until the
power comes back on, but the pump will run as long as the
battery charge lasts. You may need to replace the battery
afterwards.
2. If 115VAC power is ON, the charger/controller continues to
try to charge the battery at a charging rate of .5 AH until
the battery charge is more than 20%, at which point the
charger will resume charging at a rate of 2 AH.
3. If the pump is running and the AC power is on, you may
need to stop the pump to allow the battery to charge.
Follow the battery manufacturer’s recommendations for
maintenance and safe use of the battery.
BATTERY REQUIREMENTS

10 MY1013 (03-30-2021)

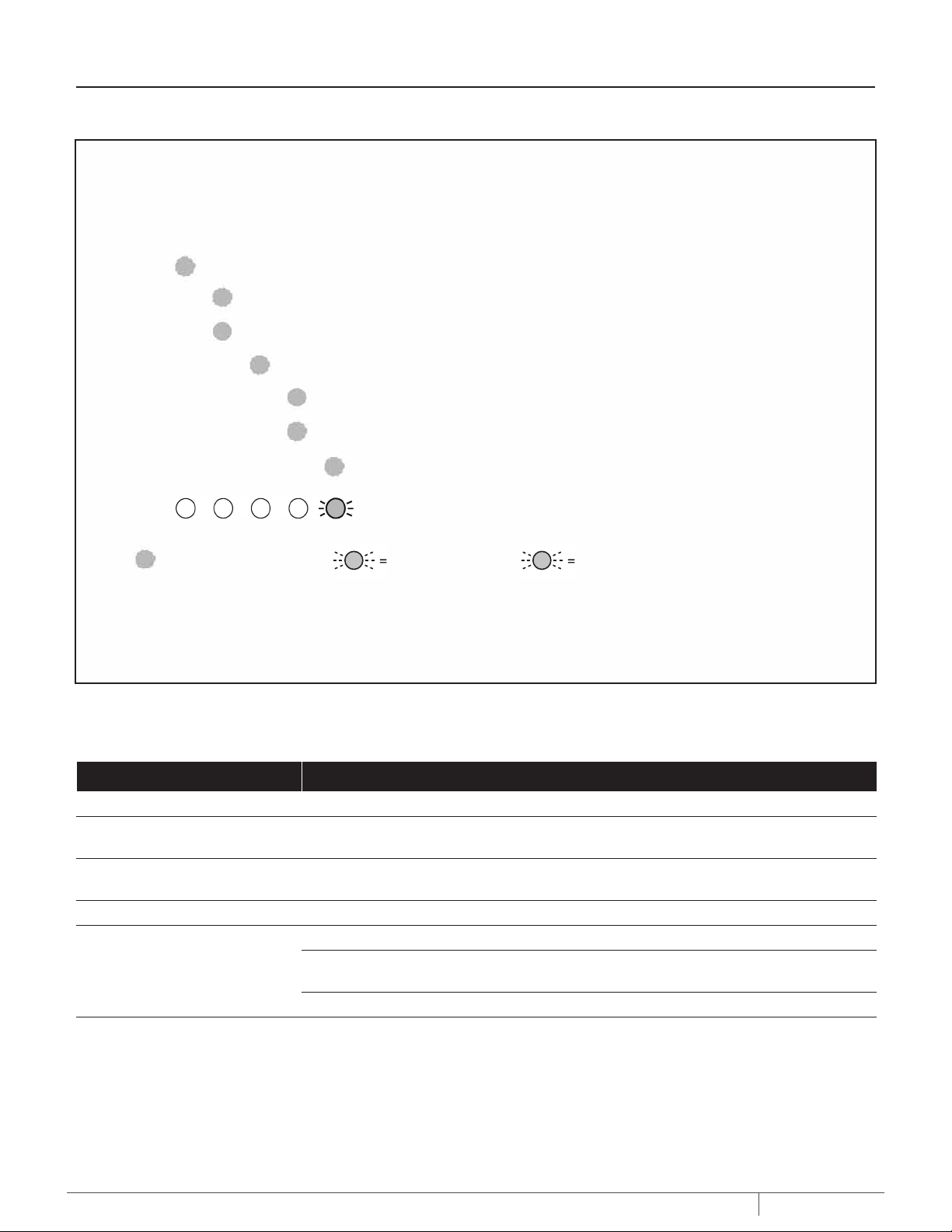

LED DISPLAY
LED Operating Code Display
SYSTEM ALERT

SILENCED AUDIBLE ALARM
System Operating Condition
 
BATTERY STATUS
PUMP STATUS
AC
6
CHARGING
i:   
Indicates



Indicates

Indicates

 -
Indicates

Indicates

Indicates
Ji:
Indicates
 _-
Indicates
11 SV AC Power is connected
Pump is running (continuous LED)
Fast flashing LED: Pump has run
Audible alarm is switched off
Fast flashing LED: Battery pre-qualification test is running
Battery is charging normally
Continuous LED: battery charge is above 20%,
system is maintaining charge
Slow flashing LED: battery charge is below 20%
(i: = LED is ON Continuously =
LED is Flashing (Fast)
=
LED is Flashing (Slow)

= LED is OFF

NOTICE: All of the situations listed above indicate normal system operation; no action is required.
However, if the BBU pump is running or has run, check the primary pump and actively monitor the
charger status for battery life. Always reset the charger after the pump runs.
During normal system operation, the 'SYSTEM ALERT' LED does not light up. The ' C POWER" LED is
lighted as long as the system is plugged in to an operating AC power circuit.
6790 0313
POWER
TABLE II – OPERATING CODE DISPLAYS (LEDS LIGHTED CONTINUOUSLY OR FLASHING)
TABLE III – LED FUNCTION DISPLAYS (LEDS LIGHTED CONTINUOUSLY)
Control LED: Continuous Illumination Indicates Normal Operation:
AC Power AC power is present.
Pump Status The oat switch has been activated. The LED remains on (ashing) after the pump has stopped.
Depress the ‘System Test’ button to reset it.
Silenced Audible Alarm Audible Alarm has been silenced. Press and release the ‘Silence Alarm’ button to reset (activate) the
audible alarm and turn OFF the LED.
Charging Indicates that the battery is charging – see Table II, above.
Battery Status
A. Continuous ON - the battery voltage is above 10.9 Volts DC and capacity is above 20%.
B. Slow Beep/Slow LED Flash - the battery’s capacity is below 20%, and voltage is between 8.2VDC
and 10.9VDC.
C. Fast Beep/Fast LED Flash - the battery has been discharged to less than 8.2VDC.
System Alert
Flashing (in unison with the buzzer) indicates that the charger has entered ‘Failure Mode’. Press the
‘System Test’ and ‘Silence Alarm’ buttons to reset it.
NOTICE: If the source of the failure is not corrected, the charger will reenter “Failure Mode”. See Table
IV for error code information.

11
MY1013 (03-30-2021)
LED DISPLAY
LED Error Code Display
SYSTEM ALERT 
ALARM SILENCED
Error Condition and Corrective Action
NOTICE: When the 'SYSTEM ALERT' LED is flashing,
look for one of the following error conditions.
l
CHARGING

Condition
PUMP ACTIVITY
AC POWER
1 J
BATTERY STATUS
 
Q QQ

Excessive battery drain;
= Battery will not take a charge***; 
Q Q Q Q =
 Q Q  Q=
QQ  Q=
Q Q Q =
Q QQ =
Q Q=
Q Q Q Q =
Reversed battery connections;
Wrong battery voltage;
Failed pre-qualification test - 1 **;
Failed pre-qualification test - 2**;
Charge time monitor - 1; Charge
time monitor - 2; Battery Charge
is Below 20%;
Action
Stop pump, allow battery to charge (AC must be on)
Replace battery with a new 12V lead-acid battery
Connect + to + and - to -. *
Replace battery with a new 12V lead-acid battery
Replace battery with a new 12V lead-acid battery
Replace battery with a new 12V lead-acid battery
Check battery for damage to cells; replace battery
Check battery for damage to cells; replace battery
Pump will shut down, battery is not charging.Replace
battery.

NOTICE: If your AC power is off and the unit is dead (no LEDs lighted, no audible alarm, pump isn't running),
check for reversed battery connections to the charger/controller.
Charger was charging at a very low level to try to bring a dead battery back to life, but the battery took too
long to charge. Try resetting the charger once or twice (push the 'System Test' and 'Silence Alarm' buttons at
the same time to reset the charger).
Thermal Runaway condition
  




Q  
 -:
 
TABLE IV – ERROR CODE DISPLAYS (LEDS FLASHING)
TABLE V – CONTROL BUTTON FUNCTIONS
Control Button: Result of Pushing Button:
System Test
Pump starts and all LEDs light up.
Will reset the ‘Pump Status’ LED.
When pushed with the ‘Silence Alarm’ button, the Charger/Controller microprocessor resets and error code resets.
Silence Alarm Toggle; Prevents the audible alarm sounding. Press and release to reset.
Light Toggles the ood light on the Charger/Controller on and off.
System Reset Press and release ‘System Test’ and ‘Silence Alarm’ to reset system.

12 MY1013 (03-30-2021)
Symptom Corrective Action
Pump won’t run:
Check all the wiring connections.
Check for a low or defective battery.
Check that the automatic switch is free to move up and down.
Press the circuit breaker reset button on the control panel.
Motor hums but pump won’t run: Check for low or defective battery.
Pump runs but pumps very little or no water:
Make sure a check valve is installed and functioning between the primary pump
discharge and the Battery Backup wye.
Check for an obstruction in the discharge pipe.
The discharge pipe length and/or height exceeds the capacity of the pump. See
Table VI, Page 11, for pump capacity.
Check for a low or defective battery.
The Positive (+) and negative (–) pump wires are reversed. Disconnect them and
reconnect correctly.
Pump cycles too frequently:
The check valve located between the discharge of the primary pump and the
Battery Backup wye is not installed or is not working properly. Install an auxiliary
check valve (see Pages 5 and 6) or replace the existing check valve as required.
BATTERY BACKUP SYSTEM TROUBLESHOOTING
TROUBLESHOOTING
Symptom Possible Cause(s) Corrective Action
Pump won’t start or run.
Pump is not plugged in. Check and see if pump is plugged into a proper outlet.
Blown fuse. If blown, replace with fuse of proper size.
Low line voltage If voltage under recommended minimum, check size of wiring from main switch
on property. If OK, contact power company or hydro authority.
Defective motor. Replace pump.
Defective oat switch. Replace oat switch.
Impeller If impeller won’t turn, remove lower pump body and locate source of binding.
Float obstructed Remove obstruction.
Pump starts and stops too
often.
Backow of water from piping Install or replace check-valve.
Faulty oat switch Replace oat switch.
Pump won’t shut off
Defective oat switch Replace oat switch.
Restricted discharge
(obstacle or ice in piping) Remove pump and clean pump and piping.
Float obstructed Remove obstruction.
Restricted intake screen Remove the pump and clean the intake screen and the impeller.
Pump operates but delivers
little or no water
Low line voltage If voltage under recommended minimum, check size of wiring from main switch
on property. If OK, contact power company or hydro authority.
Something caught in impeller Remove the pump and clean out the impeller.
Worn or defective parts or
plugged impeller Clean impeller if plugged; otherwise replace pump.
Check valve installed without
vent hole.
Drill a 1/16” - 1/8” (1.6mm-3.2mm) dia. hole between pump discharge & check valve
(1-2” above where the discharge pipe screws into the pump discharge and below
the waterline).
Restricted intake screen Remove the pump and clean out the intake screen.
Check valve is installed either
backward or upside down Be sure check valve is installed correctly.
PRIMARY PUMP TROUBLESHOOTING

13
MY1013 (03-30-2021)
REPAIR PARTS - PRIMARY PUMP
Ref Description Qty MS33V10
1 Power Cord Assembly 1 PS117-54-TSU
2 Vertical Float Switch Assembly 1 FPS17-66
1
2

14 MY1013 (03-30-2021)

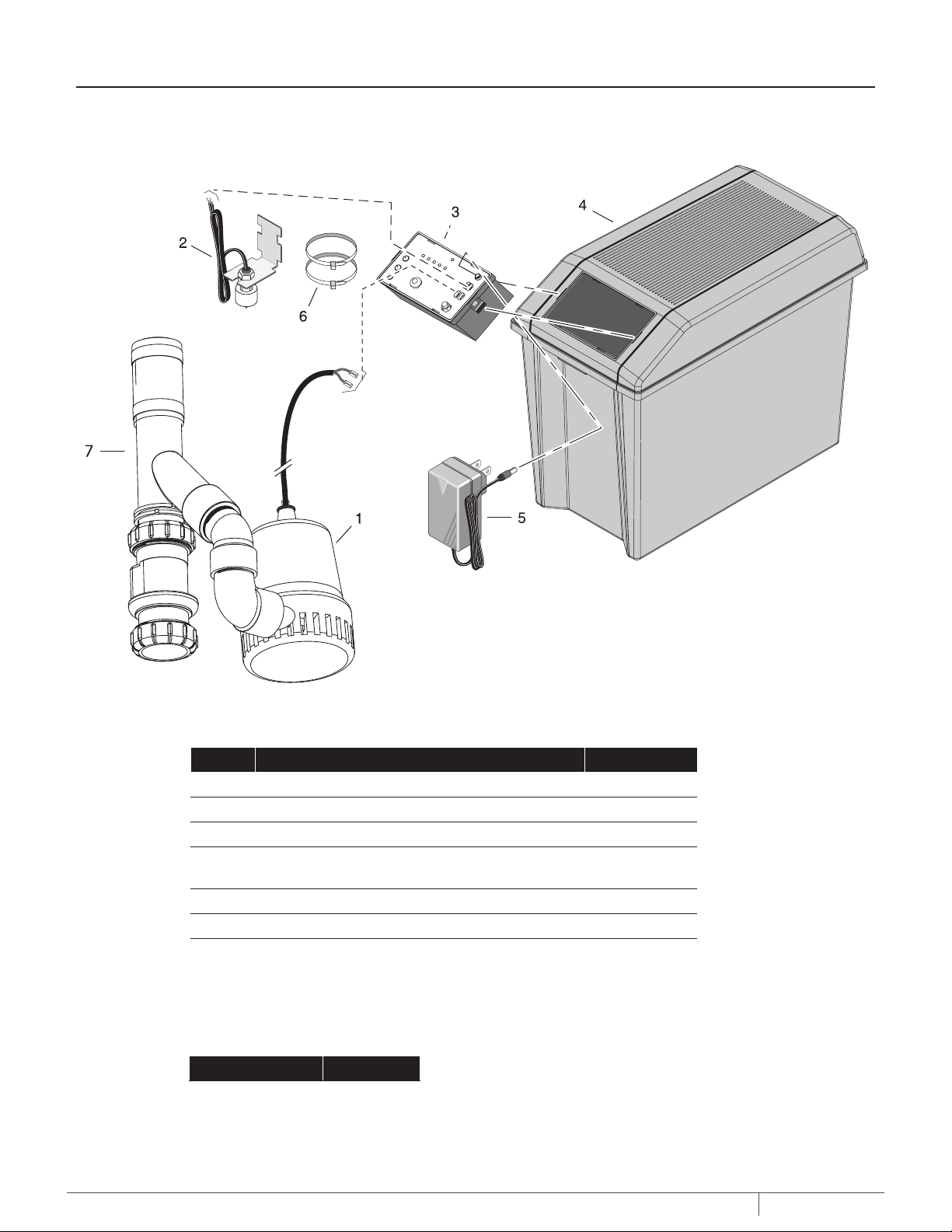

REPAIR PARTS - BATTERY BACKUP UNIT
Key No. Part Description Part Number
1 DC Backup Pump PS17-118*
2 Float Switch PS17-2003
3Charger/Controller PS217-1521
4Battery Case (Complete) PS17-2044
PS17-2045
5 AC Adaptor PS17-2008
6 11” x .14” Plastic Cable Tie **
7 Backup Combo Plumbing Kit (with check valve) U137-692
* If pump fails, replace entire system.
** Purchase separately.
Part Description Part Number
AGM 40A-Hour BAT40
OPTIONAL BATTERIES SOLD SEPARATELY

15
MY1013 (03-30-2021)
WARRANTY
Limited Warranty
Myers®warrants to the original consumer purchaser (“Purchaser” or “You”) of the products listed below, that they
will be free from defects in material and workmanship for the Warranty Period shown below.
Product Warranty Period
whichever occurs first:
Jet pumps, small centrifugal pumps, submersible
pumps and relatedaccessories
12 months from date of original installation,
or 18 months from date of manufacture
Fibrewound Tanks 5 years from date of original installation
Steel Pressure Tanks 5 years from date of original installation
Sump/Sewage/Effluent/Utility/Battery Backup Products 36 months from date of manufacture
Wastewater Solids Handling Pumps 12 months from date of shipment from factory
or 18 months from date of manufacture
Our warranty applies only where such products are used in compliance with the requirements of the applicable
product catalog and/or manuals. For additional information, please refer to the applicable standard limited
warranty featured in the product manual.
Our warranty will not apply to any product that, in our sole judgment, has been subject to negligence,
misapplication, improper installation, or improper maintenance. Without limiting the foregoing, operating a
three phase motor with single phase power through a phase converter will void the warranty. Note also that
three phase motors must be protected by three-leg, ambient compensated, extra-quick trip overload relays of
the recommended size or the warranty is void.
Your only remedy, and MYERS’s only duty, is that MYERS repair or replace defective products (at MYERS’s choice).
You must pay all labor and shipping charges associated with this warranty and must request warranty service
through the installing dealer as soon as a problem is discovered. No request for service will be accepted if
received after the Warranty Period has expired. This warranty is not transferable.
MYERS SHALL NOT BE LIABLE FOR ANY CONSEQUENTIAL, INCIDENTAL, OR CONTINGENT DAMAGES
WHATSOEVER.
THE FOREGOING LIMITED WARRANTIES ARE EXCLUSIVE AND IN LIEU OF ALL OTHER EXPRESS AND IMPLIED
WARRANTIES, INCLUDING BUT NOT LIMITED TO IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS
FOR A PARTICULAR PURPOSE. THE FOREGOING LIMITED WARRANTIES SHALL NOT EXTEND BEYOND THE
DURATION PROVIDED HEREIN.
Some states do not allow the exclusion or limitation of incidental or consequential damages or limitations on the
duration of an implied warranty, so the above limitations or exclusions may not apply to You. This warranty gives
You specific legal rights and You may also have other rights which vary from state to state.
This Limited Warranty is effective January 1, 2021 and replaces all undated warranties and warranties dated
before January 1, 2021.
PENTAIR MYERS
293 Wright Street, Delavan, WI 53115
Phone: [phone] • Fax: [phone] • www.femyers.com
In Canada: 490 Pinebush Road, Unit 4, Cambridge, Ontario N1T 0A5
Phone: [phone] • Fax: [phone]

US: 293 WRIGHT ST
DELAVAN, WI 53115
Phone: [phone]
Fax: [phone]
pentair.com/myers
Pentair trademarks and logos are owned by Pentair or its aliates. Third party registered and unregistered trademarks and logos are the property of their respective owners. Because we are continuously
improving our products and services, Pentair reserves the right to change specications without prior notice. Pentair is an equal opportunity employer.
MY1013 (03-30-2021) ©2021 Pentair. All Rights Reserved.

pentair.com
GUIDE D’INSTALLATION
ET D’UTILISATION
MY1013 (03-30-2021) © Pentair, 2021. Tous droits réservés.
BATTERIE DE SECOURS
MBSP-2C

TABLE DES MATIÈRES
Consignes de sécurité..........................................................................................................................................................................19
Spécications.....................................................................................................................................................................................20
Installation de la pompe .......................................................................................................................................................................21
Installation • Fonctionnement .............................................................................................................................................................22
Câblage et installation du système de batterie de secours.................................................................................................................. 23
Câblage • Installation........................................................................................................................................................................... 24
Exigences relatives à la batterie ......................................................................................................................................................... 25
Achage à DEL................................................................................................................................................................................... 26
Dépannage.......................................................................................................................................................................................... 28
Pièces de rechange – Pompe principale .............................................................................................................................................. 29
Pièces de rechange – Appareil de secours à batterie .......................................................................................................................... 30
Garantie...............................................................................................................................................................................................31

19
MY1013 (03-30-2021)
INFORMATION RELATIVE À LA SÉCURITÉ
IMPORTANTES CONSIGNES DE SÉCURITÉ
Ce manuel contient des consignes importantes qui doivent être suivies
pendant l’installation, l’utilisation et l’entretien du produit.
Ceci est le symbole d’alerte de sécurité. Si vous voyez ce symbole sur
votre pompe ou dans ce manuel, recherchez l’un des mots d’avertissement
ci-dessous et faites attention aux risques de blessures!
indique un danger qui, s’il n’est pas évité, entraînera la mort
ou des blessures graves.
indique un danger qui, s’il n’est pas évité, peut entraîner la
mort ou des blessures graves.
indique un danger qui, s’il n’est pas évité, pourrait entraîner
des blessures légères à modérées.
REMARQUE: Concerne des pratiques non liées aux lésions corporelles.
Lisez attentivement et suivez toutes les instructions de sécurité affichées
dans ce manuel et sur les pompes. Conservez les étiquettes de sécurité en
bon état. Remplacez-les si elles sont manquantes ou endommagées.
L’acide de batterie est corrosif. Évitez les éclaboussures sur la
peau, les vêtements ou le chargeur de batterie. Portez une protection pour les
yeux et la tête lorsque vous manipulez la batterie. Branchez et débranchez les
bornes de sortieCC uniquement après avoir débranché le chargeur de la prise de
courantCA. Ne laissez jamais les bornes de courant continu(CC) se toucher.
Tension dangereuse. Peut provoquer un choc électrique
grave ou mortel. Ne branchez ou ne débranchez pas le chargeur de batterie
lorsque vous vous trouvez sur un plancher mouillé ou dans l’eau. Assurez-vous
de garder une main libre lorsque vous branchez ou débranchez le chargeur. Si
le plancher du sous-sol est mouillé, coupez l’alimentation électrique du
sous-sol avant de marcher sur le plancher. Si la boîte d’arrêt est au sous-sol,
appelez la compagnie ou les autorités d’électricité pour arrêter le service du
domicile ou appelez votre service d’incendie pour obtenir des instructions.
Retirez la pompe et réparez-la ou remplacez-la. Le non-respect de cet
avertissement peut entraîner un choc électrique mortel.
Risque d’inondation. Ne faites pas fonctionner la pompe à
sec. Cela endommagera les joints et pourrait provoquer des fuites et des
dommages matériels.
Risque de choc électrique. Ne soulevez pas la pompe par le
cordon électrique, soulevez-la uniquement par le tuyau d’évacuation, l’anneau
de levage ou la poignée de la pompe. Soulever la pompe par le cordon peut
endommager ce dernier.
AVERTISSEMENT CONCERNANT LA PROPOSITION 65 DE LA
CALIFORNIE
Ce produit et les accessoires connexes comportent des produits
chimiques considérés par l’État de la Californie comme pouvant causer le cancer,
des anomalies congénitales ou d’autres troubles du système reproducteur.
SÉCURITÉ GÉNÉRALE
1. Renseignez-vous sur l’utilisation, les limites et les dangers potentiels de
la pompe.
2. N’utilisez pas ce produit dans l’eau en présence de poissons. De l’huile
qui s’échappe du moteur peut tuer les poissons.
REMARQUE : Cet appareil n’est pas conçu pour être utilisé comme
pompe de cascade ou de fontaine ou avec de l’eau salée ou de la
saumure! L’utilisation avec des cascades, des fontaines, de l’eau salée
ou de la saumure annule la garantie.
3. Débranchez l’alimentation électrique avant de procéder à l’entretien.
4. Vidangez toute l’eau du système avant de procéder à l’entretien.
5. Fixez la conduite d’évacuation avant de démarrer la pompe. Une conduite
d’évacuation qui n’est pas bien fixée pourrait produire un effet de fouet,
causant des blessures corporelles ou des dommages matériels potentiels.
6. Vérifiez si les tuyaux sont en bon état et non usés avant chaque
utilisation pour vous assurer que tous les raccords sont bien serrées.
7. Inspectez périodiquement les composants du puisard, de la pompe et du
système. Gardez les débris et les objets étrangers à l’écart. Effectuez un
entretien de routine au besoin.
8. Assurez un moyen de décompression pour les pompes dont la conduite
d’évacuation peut être fermée ou obstruée. Relâchez toute la pression
du système avant de procéder à l’entretien d’un composant.
9. Sécurité personnelle:
 Portez des lunettes de sécurité en tout temps lorsque vous
travaillez avec des pompes.
 Gardez la zone de travail propre, dégagée et adéquatement
éclairée. Rangez tous les outils et tout l’équipement inutilisés.
 Gardez les visiteurs à une distance sécuritaire de la zone de travail.
 Faites en sorte que l’atelier ne présente aucun danger pour les
enfants en installant des cadenas et des interrupteurs, et en
retirant les clés de contact.
10. Conformez-vous aux codes de plomberie et d’électricité lorsque
vous installez le système. Il est recommandé d’utiliser un disjoncteur
différentiel de fuite à la terre (DDFT) lors de l’utilisation d’un appareil
électrique immergé sous l’eau.
11. Tout le câblage doit être effectué par un électricien qualifié.
12. Cet équipement uniquement destiné à être utilisé sur 115volts
(monophasé) est équipé d’un cordon à trois conducteurs homologué et
d’une fiche de mise à la terre à trois broches.
13. Une prise murale à deuxbroches doit être remplacée par une prise à
troisbroches correctement mise à la terre et installée conformément
aux codes et aux règlements applicables.
14. Assurez-vous que la source d’alimentation est conforme aux exigences
de votre équipement.
15. Protégez le cordon électrique des objets tranchants, des surfaces
chaudes, de l’huile et des produits chimiques. Évitez de plier le cordon.
Remplacez ou réparez immédiatement un cordon endommagé ou usé.
16. Ne touchez pas un moteur en marche. Les moteurs modernes peuvent
fonctionner à température élevée.
17. Utilisez cette pompe uniquement pour pomper de l’eau claire.
18. La pompe est dotée d’une lubrification permanente installée en usine.
N’essayez pas de la lubrifier!
19. Cette pompe est conçue pour être utilisée dans un puisard résidentiel
uniquement.

20 MY1013 (03-30-2021)
RENSEIGNEMENTS GÉNÉRAUX
La trousse combinée de secours à batterie est déjà raccordée à l’ensemble
tuyau et au collier de serrage. Le système comprend la pompe de puisard
principale, l’ensemble de pompe de puisard de secours et l’interrupteur à
flotteur vertical. L’appareil est équipé de deux clapets de non-retour, un
pour la pompe principale et l’autre pour la pompe de secours.
La pompe de secours à batterie ne remplace pas la pompe de puisard
principale. Elle est conçue pour remplacer temporairement votre
pompe de puisard principale pendant une panne de courant ou tout
autre problème qui empêche son fonctionnement normal. N’utilisez
pas cette pompe pour pomper des liquides ou des produits chimiques
inflammables. N’utilisez que de l’eau de puisard claire avec cette pompe.
Pour une utilisation résidentielle seulement.
Gardez le chargeur de batterie au sec et protégez-le contre les dommages.
Ce système est conçu pour fonctionner avec une batterie scellée au
plomb-acide à séparateurs en fibre de verre microporeuse (absorbent
glass mat, ou «AGM»), ou encore une batterie au plomb-acide à
électrolyte liquide. L’utilisation d’une batterie à électrolyte gélifié
(souvent confondue pour AGM) ou d’une batterie automobile standard
avec ce chargeur n’est pas recommandée. Une batterie automobile
pourrait avoir besoin d’être rechargée après seulement 1 à 2heures
d’utilisation continue et les cycles de charge répétés pourraient entraîner
une défaillance prématurée des plaques d’accumulateur de la batterie.
SPÉCIFICATIONS
La distance verticale maximale de pompage est de 13,35pi (3,4m) pour le
modèle MBSP-2C.
Bloc d’alimentation requis
Pompe de puisard principale.........................................115V, 60Hz
Pompe de puisard de secours...........................Batterie CC de 12 V
Plage de température du liquide.........................32°F à 70°F (0°C à 21°C)
Circuit de dérivation individuel requis (min.).........................................15A
Évacuation:
Ensemble tuyau et collier de serrage...11/4po à glisser/11/2po à glisser
Diamètre minimal de la fosse...............................................................14po
Profondeur minimale..........................................................................10po
REMARQUE : Ne réduisez pas la taille du boyau ou du tuyau
d’évacuation à moins de 11/4po de diamètre. Si la décharge est trop
faible, la pompe surchauffera et cessera de fonctionner prématurément.
REMARQUE : Si un détecteur de monoxyde de carbone(CO) est installé,
il doit se situer à au moins 15pieds du chargeur de batterie pour éviter les
fausses alarmes. Pour obtenir de plus amples renseignements, veuillez
consulter les instructions d’installation de votre détecteur de monoxyde
de carbone.
RENDEMENT – POMPE DE PUISARD
Gal/min (l/min) à une élévation maximale en pieds (m)
Série HP 5
(1,5m)
10
(3m)
15
(4,6m)
20
(6,1m) ÉLÉVATION
MAX.
Capacité en gallons (l)/min
Principale
(MS33V10) 1/3 53 (201) 45 (170) 36 (136) 24 (91) 25pi (6,7m)
RENDEMENT – POMPE DE PUISARD DE SECOURS
Gal/min (l/min) à une élévation maximale en pieds (m)
Série 5 (1,5m) 10 (3m) 12 (3,7m) ÉLÉVATION
MAX.
Capacité en gallons (l)/minute
Secours
(PS17-118)
23
(87)
10
(38)
4
(15)
13,35pi
(3,4m)
SPÉCIFICATIONS RELATIVES À L’ÉLECTRICITÉ ET AUX
INTERRUPTEURS
Série HP
Intensité
maximale
du moteur
Circuit de
dérivation
requis (A)
Réglage du
commutateur en
pouces (cm)
Marche Arrêt
MS33V10 1/3 3,9
15
7,5
(19,1)
3
(7,6)
PS17-118 - - 10,5
(26,7) 25s
CAPACITÉ DE BATTERIE NÉCESSAIRE
Pour obtenir de meilleurs résultats, utilisez les batteriesAGM suivantes:
Pièce Ah Gal par recharge
à 10pi
Autonomie
approximative
BAT40 40 3000 4,5heures
 L’appareil peut être équipé de deux batteries
 Charge maximale (Ah): 120
 Batterie rechargeable ou à décharge poussée de 38 à 120ampères-
heures
SPÉCIFICATIONS
