Parkside 351899 2007 User manual

12-V-AKKU 2 Ah
Bedienungsanleitung
2Ah 12V BATTERY
Operating instructions
ΕΠΑΝΑΦΟΡΤΙΖΟΜΕ
ΝΗ ΜΠΑΤΑΡΙΑ 12 V,
2 Ah
Οδηүίες χρήσης
IAN 351899_2007
2Ah 12V BATTERY PAPK 12 A3
BATERIJA 2 Ah
Uputstvo za upotrebu

GB/CY Operating instructions Page 1
RS Uputstvo za upotrebu Strana 21
GR/CY Οδηүίες χρήσης Σελίδα 41
DE/AT/CH Bedienungsanleitung Seite 61
Before reading, unfold the page containing the illustrations
and familiarise yourself with all functions of the device.
Pre čitanja rasklopite stranu sa slikama te se upoznajte
sa svim funkcijama uređaja.
Πριν ξεκινήσετε την ανάγνωση, ανοίξτε τη σελίδα με τις
εικόνες και εξοικειωθείτε με όλες τις λειτουργίες της
συσκευής.
Klappen Sie vor dem Lesen die Seite mit den Abbildungen
aus und machen Sie sich anschließend mit allen Funktionen
des Gerätes vertraut.

A

All Parkside tools and the chargers
PLGK12A1/A2/B2/PDSLG 12 A1 of the
X12V Team series are compatible with the
PAPK12A1/A2/A3/B1 battery pack.
Charging
times
Charging
currents
2 Ah
Battery
pack
PAPK 12 A1
2 Ah
Battery
pack
PAPK 12
A2/A3
4 Ah
Battery
pack
PAPK 12 B1
max. 2,4 A
Charger
PLGK 12 A1/
A2
60 min
2,4 A
60 min
2,4 A
120 min
2,4 A
max. 4,5 A
Charger
PLGK 12 B2
60 min
2,4 A
45 min
3,5 A
60 min
4,5 A
max. 4,5 A
Charger
PDSLG 12 A1
60 min
2,4 A
45 min
3,5 A
60 min
4,5 A

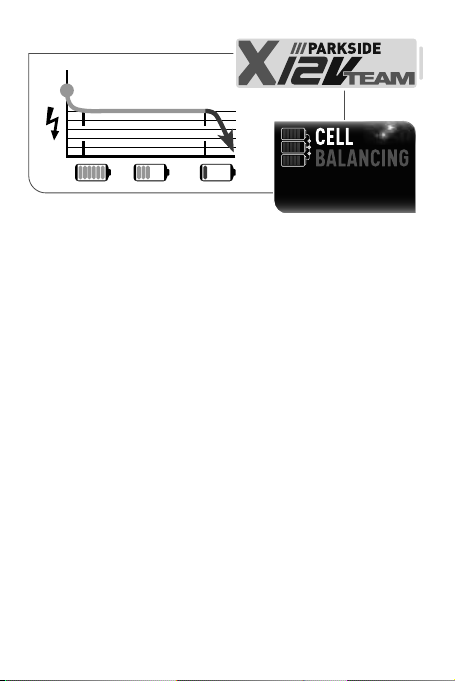

High-performance Li-Ion battery
Cell Balancing – longer battery life, increased
battery lifespan.
Higher battery resources due to evenly used cells.
Maximises the charge potential.
12V max.
10,8V
LONGER BATTERY LIFE.
INCREASED LIFESPAN.

PAPK 12 A3 GB│CY │ 1 ■
Contents
Introduction........................2
Intended use............................. 2
Features ................................ 3
Package contents ......................... 3
Technical specifications .................... 3
General Power Tool Safety Warnings ..5
Extended safety guidelines.................. 7
Charging the battery pack (seefig. A) ..8
Maintenance and storage ............9
Kompernass Handels GmbH warranty 10
Service ...........................15
Importer .........................15
Disposal..........................16
Notes on the EC Declaration
ofConformity .....................18
Ordering a replacement battery......19
Telephone ordering ......................20

PAPK 12 A3■ 2 │ GB│CY
Introduction
Congratulations on the purchase of your new appli-
ance. You have chosen a high-quality product. The
operating instructions are part of this product. They
contain important information about safety, usage and
disposal. Before using the product, please familiarise
yourself with all of the operating and safety instruc-
tions. Use the product only as described and for the
range of applications specified. Please also pass these
operating instructions on to any future owner.
Intended use
This rechargeable battery is suitable for:
This rechargeable battery is not intended for commer-
cial use. Any other usage of or modification to the
appliance is deemed to be improper and carries a
significant risk of accidents. The manufacturer accepts
no responsibility for damage attributable to misuse.

PAPK 12 A3 GB│CY │ 3 ■
Features
Battery pack
Release buttons
Red charge control LED
Green charge control LED
High-speed charger (not supplied)
Package contents
1 2Ah 12V battery
1 set of operating instructions
Technical specifications
PAPK 12 A3
Type LITHIUM ION
Rated voltage 12 V (DC)
Capacity 2000 mAh/24 Wh
Cells 3

PAPK 12 A3■ 4 │ GB│CY
Use only X12V Team Series high-speed battery
chargers to charge the battery pack:
(not supplied).
High-speed battery charger PLGK 12 A1
INPUT
Rated current 220–240 V ∼,
50–60 Hz (AC)
Rated power consumption 50 W
OUTPUT
Rated voltage 12 V (DC)
Rated current 2400 mA
Charging time approx. 60 min
Fuse (internal) 2 A
T2A
Protection class II/ (double insulation)
ATTENTION!
► This charger can only charge the following
batteries: PAPK 12 A1/PAPK 12 A2/
PAPK12A3/PAPK 12 B1.
► A current list of battery compatibility can be
found at www.lidl.de/akku.

PAPK 12 A3 GB│CY │ 5 ■
General Power Tool
Safety Warnings
WARNING!
■Read all safety warnings and all instructions.
Failure to follow the warnings and instructions
may result in electric shock, fire and/or serious
injury. Save all warnings and instructions for
future reference.
a) Charge a rechargeable battery unit using only
the charger recommended by the manufacturer.
Chargers are often designed for a particular type
of rechargeable battery unit. There is the danger
of fire if other types of rechargeable battery units
are used.
b) Only the rechargeable battery units supplied
are to be used with an electrical power tool.
The use of other rechargeable battery units may
lead to the danger of injury or fire.

PAPK 12 A3■ 6 │ GB│CY
c) When they are not being used, store recharge-
able battery units away from paperclips, coins,
keys, nails, screws or other small metal objects
that could cause the contacts to be bridged.
Short-circuiting the contacts of a rechargeable
battery unit may result in heat damage or fire.
d) Fluids may leak out of rechargeable battery
units if they are misused. If this happens, avoid
contact with the fluid. If contact occurs, flush
the affected area with water. Seek additional
medical help if any of the fluid gets into your
eyes. Escaping battery fluid may cause skin
irritation or burns.
CAUTION! RISK OF EXPLOSION!
Never charge non-rechargeable
batteries!
Protect the rechargeable
battery from heat, for example from continuous
exposure to sunlight, fire, water and moisture.
There is a risk of explosion.

PAPK 12 A3 GB│CY │ 7 ■
Extended safety guidelines
■Do not use a damaged or modified battery.
Damaged or modified batteries may behave
unexpectedly and cause fires, explosions or pose
a risk of injury.
■Do not expose a battery to fire or excessively
high temperatures. Fire or temperatures in excess
of 130°C (265°F) can cause an explosion.
■Follow all instructions regarding charging and
never charge the battery or the cordless tool
outside the temperature range given in the
operating instructions.
Incorrect charging or charging outside of the
permissible temperature range can destroy the
battery and increase the risk of fire.

PAPK 12 A3■ 8 │ GB│CY
Charging the battery pack
(seefig. A)
CAUTION!
► Always unplug the appliance before you
remove the battery pack from or connect the
battery pack to the charger.
NOTE
► Never charge the battery pack if the ambient
temperature is below 10°C or above 40°C.
If a lithium-ion battery is to be stored for an
extended period, the charge level should be
checked regularly. The optimum charge level is
between 50% and 80%. The storage climate
should be cool and dry and the ambient
temperature should be between 0°C and
50°C.
♦ Insert the battery pack into the high-speed
charger .
♦ Insert the power plug into the socket. The charge
control LED lights up red.

PAPK 12 A3 GB│CY │ 9 ■
♦ The green charge control LED indicates that
charging is complete and the battery pack is
ready for use.
♦ Push the battery pack into the appliance.
♦ You should always switch the high-speed
charger off for at least 15 minutes between
successive charging processes. Also disconnect
the power plug from the mains power socket.
Maintenance and storage
■ If you do not intend to use the battery for an
extended period, remove it from the appliance
and store it in a clean, dry place out of direct
sunlight.
■ If a lithium-ion battery is to be stored for an
extended period, the charge level should be
checked regularly. The optimum charge level is
between 50% and 80%. The optimum storage
environment is cool and dry.
■Never try to repair damaged batteries.
Maintenance of batteries should only be carried
out by the manufacturer or an approved customer
service centre.

PAPK 12 A3■ 10 │ GB│CY
Kompernass Handels GmbH
warranty
Dear Customer,
This appliance has a 3-year warranty valid from the
date of purchase. If this product has any faults, you,
the buyer, have certain statutory rights. Your statutory
rights are not restricted in any way by the warranty
described below.
Warranty conditions
The warranty period starts on the date of purchase.
Please keep your receipt in a safe place. This will be
required as proof of purchase.
If any material or manufacturing fault occurs within
three years of the date of purchase of the product,
we will either repair or replace the product for you
or refund the purchase price (at our discretion). This
warranty service requires that you present the defec-
tive appliance and the proof of purchase (receipt)
within the three-year warranty period, along with a
brief written description of the fault and of when it
occurred.

PAPK 12 A3 GB│CY │ 11 ■
If the defect is covered by the warranty, your product
will either be repaired or replaced by us. The repair
or replacement of a product does not signify the
beginning of a new warranty period.
X 12 V and X 20 V Team Series battery packs
come with a 3-year warranty valid from the date of
purchase.
Warranty period and statutory claims for
defects
The warranty period is not prolonged by repairs
effected under the warranty. This also applies to
replaced and repaired components. Any damage
and defects present at the time of purchase must
be reported immediately after unpacking. Repairs
carried out after expiry of the warranty period shall
be subject to a fee.

PAPK 12 A3■ 12 │ GB│CY
Scope of the warranty
This appliance has been manufactured in accord-
ance with strict quality guidelines and inspected
meticulously prior to delivery.
The warranty covers material faults or production
faults. The warranty does not extend to product parts
subject to normal wear and tear or to fragile parts
which could be considered as consumable parts
such as switches or parts made of glass.
The warranty does not apply if the product has been
damaged, improperly used or improperly main-
tained. The directions in the operating instructions
for the product regarding proper use of the product
are to be strictly followed. Uses and actions that are
discouraged in the operating instructions or which
are warned against must be avoided.
This product is intended solely for private use and
not for commercial purposes. The warranty shall
be deemed void in cases of misuse or improper
handling, use of force and modifications/repairs
which have not been carried out by one of our
authorised Service centres.

PAPK 12 A3 GB│CY │ 13 ■
The warranty period does not apply to
■ Normal reduction of the battery capacity
over time
■ Commercial use of the product
■ Damage to or alteration of the product by the
customer
■ Non-compliance with safety and maintenance
instructions, operating errors
■ Damage caused by natural hazards
Warranty claim procedure
To ensure quick processing of your case, please
observe the following instructions:
■ Please have the till receipt and the item number
(e.g. IAN 12345) available as proof of purchase.
■ You will find the item number on the type plate on
the product, an engraving on the product, on the
front page of the operating instructions (below
left) or on the sticker on the rear or bottom of the
product.
■ If functional or other defects occur, please
contact the service department listed either by
telephone or by e-mail.

PAPK 12 A3■ 14 │ GB│CY
■ You can return a defective product to us free
of charge to the service address that will be
provided to you. Ensure that you enclose the
proof of purchase (till receipt) and information
about what the defect is and when it occurred.
You can download these instructions
along with many other manuals,
product videos and installation soft-
ware at www.lidl-service.com.
This QR code will take you directly to the Lidl service
page (www.lidl-service.com) where you can open
your operating instructions by entering the item
number (IAN) 351899_2007.

PAPK 12 A3 GB│CY │ 15 ■
Service
Service Great Britain
Tel.: [phone]
E-Mail: kom[email protected]
CY Service Cyprus
Tel.: [phone]
E-Mail: kom[email protected]
IAN 351899_2007
Importer
Please note that the following address is not the
service address. Please use the service address
provided in the operating instructions.
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
GERMANY
www.kompernass.com
