Perfect Aire 3PAMSHHQC18-MZ02 User manual

MULTI-ZONE QUICK CONNECT
DUCTLESS MINI-SPLIT SYSTEM
MODELS: 3PAMSHHQC18-MZ02 / 3PAMSHHQC24-MZ03
OWNER’S MANUAL

SAFETY & PRECAUTIONS CONTINUEDCONTINUED
HEADLINE (Continued)
2
Safety Instructions..............................................................................................................................4
Safety Precautions .............................................................................................................................5
Preparation Before Use ......................................................................................................................7
Parts Breakdown By Box ...................................................................................................................8
Informational Quick Guide..................................................................................................................9
CONTENTS
IMPORTANT NOTE: Read the manual carefully. Make sure to save this manual for future reference.
Illustrations in this manual are for explanatory purposes only, your actual product may look slightly
dierent.

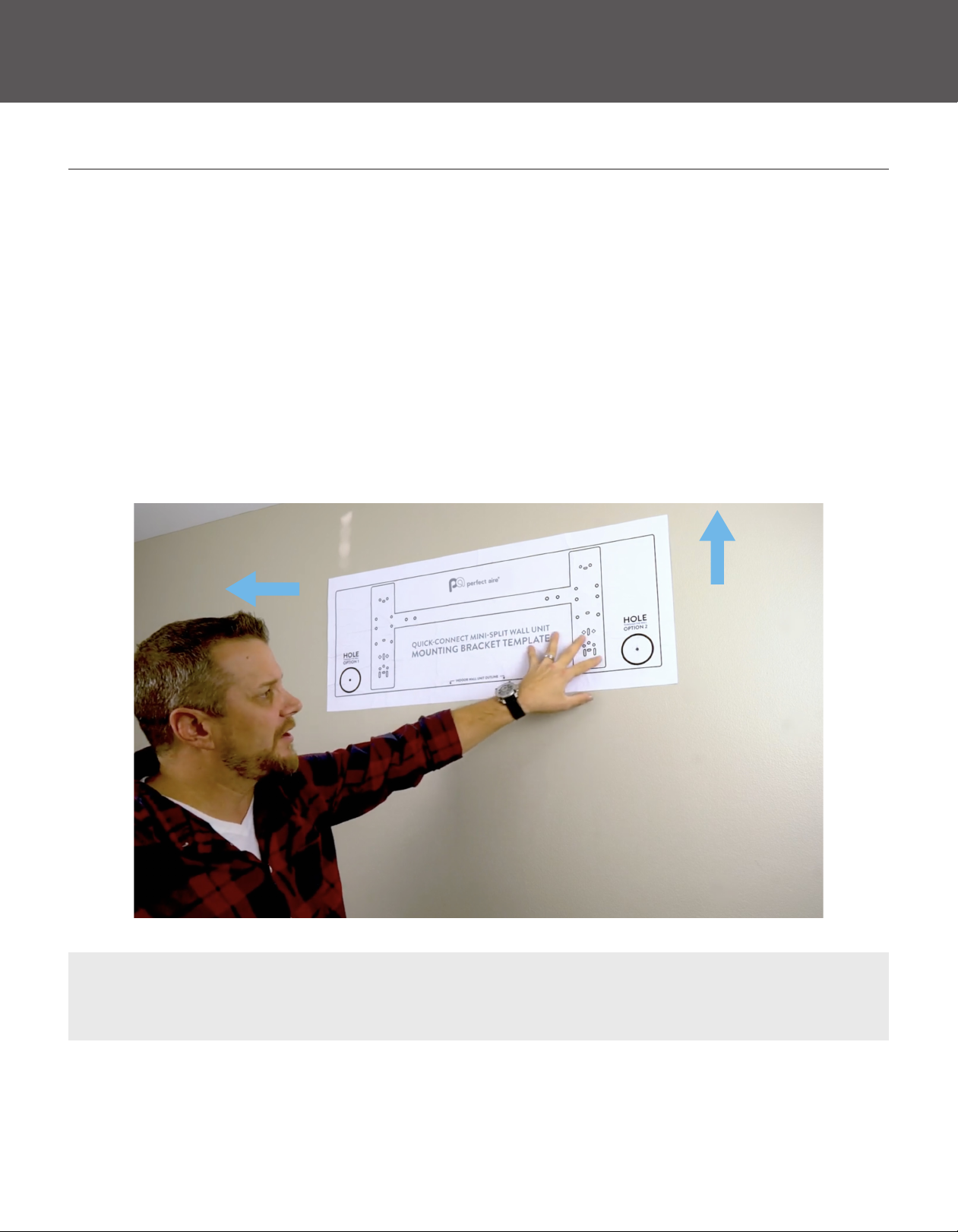

STEP 1: Marking the Wall (Using Template).......................................................................... 16

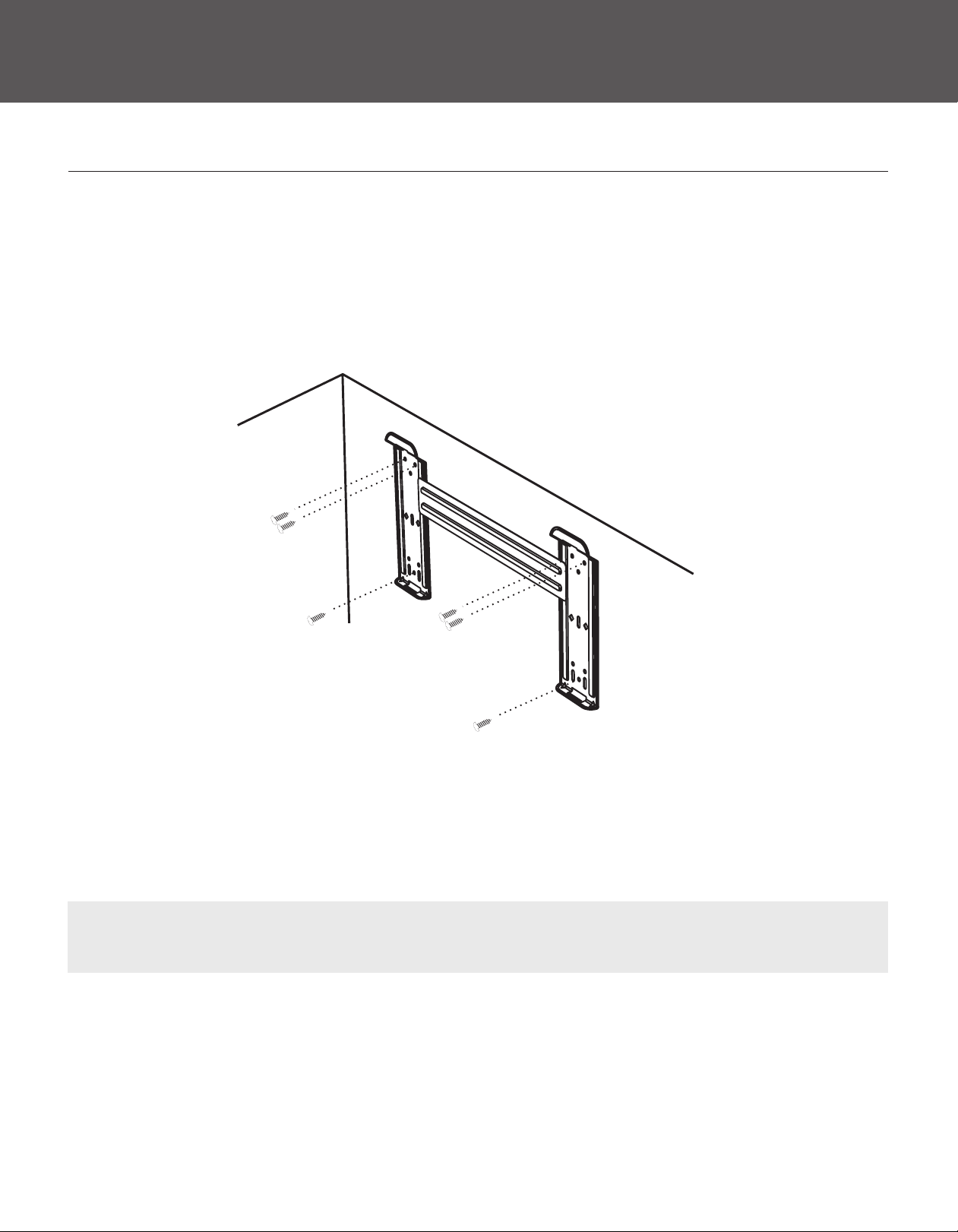

STEP 2: Installing the Wall Bracket....................................................................................... 17
STEP 3: Drilling the Line Set Bundle Hole ............................................................................ 18
STEP 4: Installing the Wall Unit............................................................................................. 18
STEP 5: Securing the Outdoor Unit .................................................................................. 19

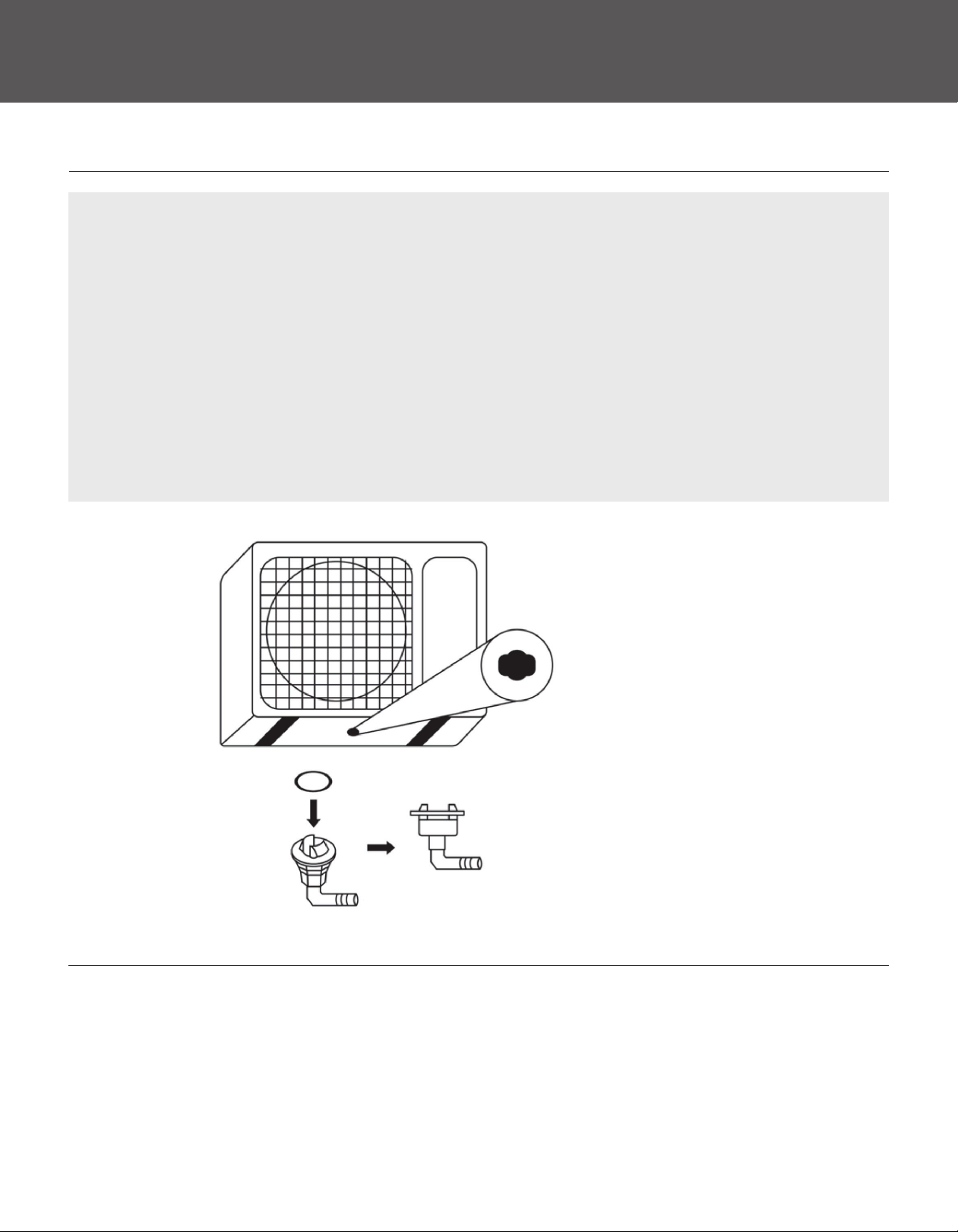

STEP 6: Installing a Drain Joint (Optional) ........................................................................ 20
STEP 7: Installing the Line Set, Opening Unit Valve Caps ................................................ 22
STEP 8: Electrical Connections ........................................................................................ 26
STEP 9: Connecting the Drain Tube.................................................................................. 30
STEP 10: Turning on the Wall Unit .................................................................................... 30
STEP 11: Checking for Leaks ........................................................................................... 30
Maintenance.....................................................................................................................................31
Protection .........................................................................................................................................32
Troubleshooting................................................................................................................................33
Identication of Parts .......................................................................................................................34
Display Introduction .........................................................................................................................35
INSTALLATION INSTRUCTIONS
NOTE: For detailed remote control instructions, see the Remote Control Manual.

SAFETY INSTRUCTIONS (Continued)
3
STEP 1: Marking the Wall (Using Template).......................................................................... 16
STEP 2: Installing the Wall Bracket....................................................................................... 17
STEP 3: Drilling the Line Set Bundle Hole ............................................................................ 18
STEP 4: Installing the Wall Unit............................................................................................. 18
STEP 5: Securing the Outdoor Unit .................................................................................. 19
STEP 6: Installing a Drain Joint (Optional) ........................................................................ 20
STEP 7: Installing the Line Set, Opening Unit Valve Caps ................................................ 22
STEP 8: Electrical Connections ........................................................................................ 26
STEP 9: Connecting the Drain Tube.................................................................................. 30
STEP 10: Turning on the Wall Unit .................................................................................... 30
STEP 11: Checking for Leaks ........................................................................................... 30
1. To guarantee the system will function properly, please read this manually carefully before installation.
2. Properly ground the air conditioner.
3. Check connecting wires and pipes carefully, making sure they are secured before connecting power to the
air conditioner.
4. After installation, the consumer must operate the air conditioner correctly according to this manual.
Required Fuse for the System:
5. WARNING: Risk of electric shock may cause serious injury or death; disconnect all electric power supply
before servicing.
6. The maximum length of the connecting pipe between the indoor and outdoor unit varies per model. See
page 10 for details.
7. The appliance is not intended for use by persons (including children) with reduced physical, sensory
or mental capabilities, or lack of experience or knowledge, unless they have been given supervision or
instruction concerning the use of the appliance by a guardian. Children should be supervised to ensure
they do not play with the appliance.
8. This appliance can be used by children aged 8 or above, and persons with reduced physical, sensory or
mental capabilities if they have been given supervision or instruction concerning safe use of the appliance
and understand the hazards involved. Children should not play with the appliance. Cleaning and user
maintenance should not be made without supervision.
9. Batteries for the remote control must be recycled or disposed of properly. For disposal of scrap batteries,
please discard batteries as sorted municipal waste at an accessible collection point.
10. The appliances must be tted with disconnection from the supply mains having a contact separation in all
poles that provide full disconnection under over-voltage category III conditions. This must be incorporated
in proper wiring in accordance with wiring guidelines.
11. The appliance should not be installed in a laundry room.
12. The appliances shall be installed in accordance with local electrical safety regulations and National
Electrical Codes (NEC).
13. The air conditioner must be repaired by a professional or a qualied person.
MODEL MAXIMUM FUSE OF OUTDOOR UNIT
18K BTU (3PAMSHHQC18-MZ02) 30A 230V
24K BTU (3PAMSHHQC24-MZ03) 30A 230V

SAFETY & PRECAUTIONS CONTINUEDCONTINUED
SAFETY PRECAUTIONS (Continued)
4
SYMBOLS IN THIS USE AND CARE MANUAL ARE INTERPRETED AS SHOWN BELOW.
Do NOT do.
Watch out for the following situation.
Grounding is essential.
Warning: Incorrect handling could cause
serious hazards such as serious injury or even
death.
Use the correct power supply
in accordance with the rating
plate requirements. Otherwise,
serious faults or hazards may
occur, or re may break out.
It is the user’s responsibility to
ground the appliance according
to local codes or ordinances by
a licensed technician.
Keep the power supply circuit
breaker or plug away from dirt
or debris. Firmly and correctly
connect power supply cord
to circuit breaker, to avoid
res and electric shock due to
insucient contact.
It may be harmful to your health
to allow cool air to blow directly
on a person for long period of
time. It is advised to allow air to
ow unrestricted throughout the
room.
Do not use the power
supply circuit breaker to
turn o the unit.
Prevent air ow from the indoor
unit (evaporator) from reaching
gas burners or stoves.
OFF
ON
OFF
ON

SAFETY PRECAUTIONS (Continued)
5
Do not touch any part of the
system with wet hands.
Do not repair the system by
yourself, hire a qualied HVAC
technician. If repairs are done
incorrectly, this may result in
electric shock and voiding of
the warranty.
Turn o the system by remote
control rst before cutting
o power supply in cases of
malfunction.
Do not put any object on top of
the outdoor condensing unit
Never insert a stick or similar
object into the condensing unit.
As the fan inside rotates at a
high speed, injury may occur
when obstructed.
Do not cut, pull, or press the
power supply cord, as it may
break. An electric shock or re
can be caused by a broken
power supply cord.
OFF

SAFETY & PRECAUTIONS CONTINUEDCONTINUED
PREPARATION BEFORE USE (Continued)
6
SAFEGUARDING THE ENVIRONMENT
This appliance is made of recyclable or re-usable material. Scrapping must be carried
out in compliance with local waste disposal regulations.
For more detailed information on handling and recycling this product, contact your local
waste management oces.
This marking indicates that this product should not be disposed of with other household
waste items throughout North America. To prevent possible environmental or human
harm from uncontrolled waste disposal, recycle responsibly to promote the sustainable
reuse of material resources.
TOOLS REQUIRED
2
• Pencil/Nail (To mark wall)
• Level
• Drill
• Stud Finder
• Phillips Head Screwdriver
• Dry Wall Anchors & Screws
• 2.5" Hole Saw
• 2 Adjustable Wrenches
• 5 mm Allen Wrench
• Duct Tape
• Surge Protector (Optional/Highly Recommended)

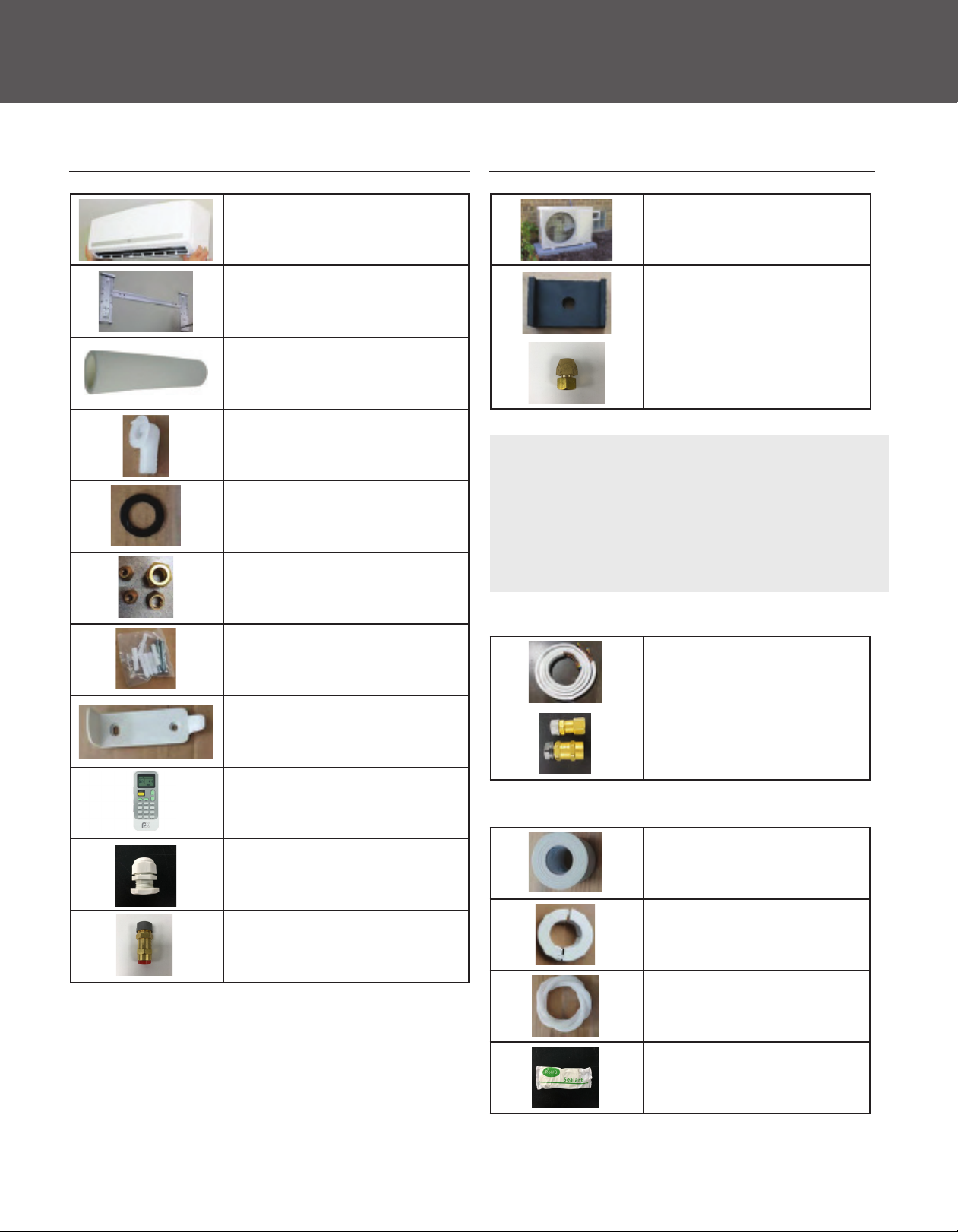

PARTS BREAKDOWN BY BOX (Continued)
7
INDOOR UNIT OUTDOOR UNIT
Line Set
MZ Quick Connect Accessory Kit (MZQCACC-KIT)
• 1x Indoor Evaporator Unit
• 1x Mounting Bracket + Template
Note: Mounting Bracket comes
attached to indoor unit.
• 1x Optional Extra Foam Insulation
(For Insulating Valve Connections)
• 1x Drain Joint
• 1x Drain Joint Rubber Seal
• 4x Flare Nuts
(For ared type Installations)
• 1x Bag of Wall Anchors & Screws
• 1x Remote Control Wall Bracket
• 1x Remote Control
• 1x Waterproof Cord Connector
• 1x FA09 Quick Connect Adaptor
(Only included with 18K BTU,
use FA09 adapter instead of FA12)
• 1x Outdoor Unit
• 4x Outdoor Unit Anti-Vibration
Pads (May or may not be factory
installed)
• 1x Switch Tie
(Only used with ared connections
& 24K outdoor unit)
• 1x 25 ft. Line Set
(with quick connect ttings
installed)
• 2x Male Condenser Couplers
• 2x Vinyl Wrap
• 1x Wall Collar
• 1x Drain Tube (15 ft. / 4.5 m)
• 1x Duct Seal
NOTE:
• 18K and 24K units will have rubber pads on the
feet (factory installed)
• 24K outdoor unit will have 1 switch tie included
for 18K unit indoor unit; This is only used for are
type connections.

SAFETY & PRECAUTIONS CONTINUEDCONTINUED
INFORMATIONAL QUICK GUIDE (Continued)
8
INSTALLATION DIAGRAM
Distance from the wall
should be over 4.75 in. (12 cm)
Distance from the ceiling
should be over 6 in. (15.25 cm)
Distance from the wall
should be over 4.75 in. (12 cm)
Air intake distance from the wall
should be over 10 in. (25.4 cm)
Over 10 in. (25.4 cm)
Should be over 20 in. (51 cm)
Distance from the floor
should be over 98 in. (249 cm)
NOTE:
• The above gure is a simple representation of the unit, it may not match the external appearance of the unit
you purchased.
• Installation must be performed in accordance with the national wiring standards by authorized personnel only.
NOTE: For illustration purposes,
only one indoor head unit is shown.

INFORMATIONAL QUICK GUIDE (Continued)
9
1. Determine the square foot of reach room and pick the appropriate indoor unit for that room. Oversizing
is not always better. If the room is too small and the head is too large, the unit will short cycle and not
remove the humidity from the room.
• Up to 350 sq. feet = 9,000 BTU
• Up to 500 sq. feet = 12,000 BTU
• Up to 750 sq. feet = 18,000 BTU
2. Determine where to install the indoor head in each room.
• An exterior wall works best. If it must be on an interior wall you may need a condensate pump to
remove the condensation in the summer. This is purchased separately.
3. Determine where the outdoor unit will be placed.
• Try to place the outdoor unit centrally to all of the indoor units.
• Keep in mind you will need to run 230v power to the unit, so try to keep it close to your electrical
panel in the house.
4. Now that you have the location of the heads in the building and the outdoor unit outside, you will need
to gure out how long each of the line sets will be.
PRE-PLANNING QUICK GUIDE FOR INSTALLATION
15 FT. Line Sets for shorter runs
15 Ft. Line Sets with refrigerant added for longer runs
Longer Communication Cables (Indoor head comes with 25ft communication cable attached by default)
Make sure you have adequate power to run the mini split system. Your Multi-zone system requires a 230V
dual pole 30-amp breaker.
DESCRIPTION SKU LENGTH REFRIGERANT AMT.
Line set 1/4 + 3/8 1DALS14-38-15
16ft./5m. 1.058oz./30g.
Line set 1/4 + 1/2 1DALS14-12-15
DESCRIPTION SKU LENGTH REFRIGERANT AMT.
Line set 1/4 + 3/8 1DALS14-38-15-75G
16ft./5m. 2.65oz./75g.
Line set 1/4 + 1/2 1DALS14-12-15-75G
DESCRIPTION SKU LENGTH
70’ Communication Cable 1PRCOM70 70 ft.
85’ Communication Cable 1PRCOM85 85 ft.
NOTE: For the ultimate exibility of your Perfect Aire Multi-Zone Mini Split, we oer the following line set
lengths and communication cables to help you achieve the perfect multi-zone system.

SAFETY & PRECAUTIONS CONTINUEDCONTINUED
INFORMATIONAL QUICK GUIDE (Continued)
10

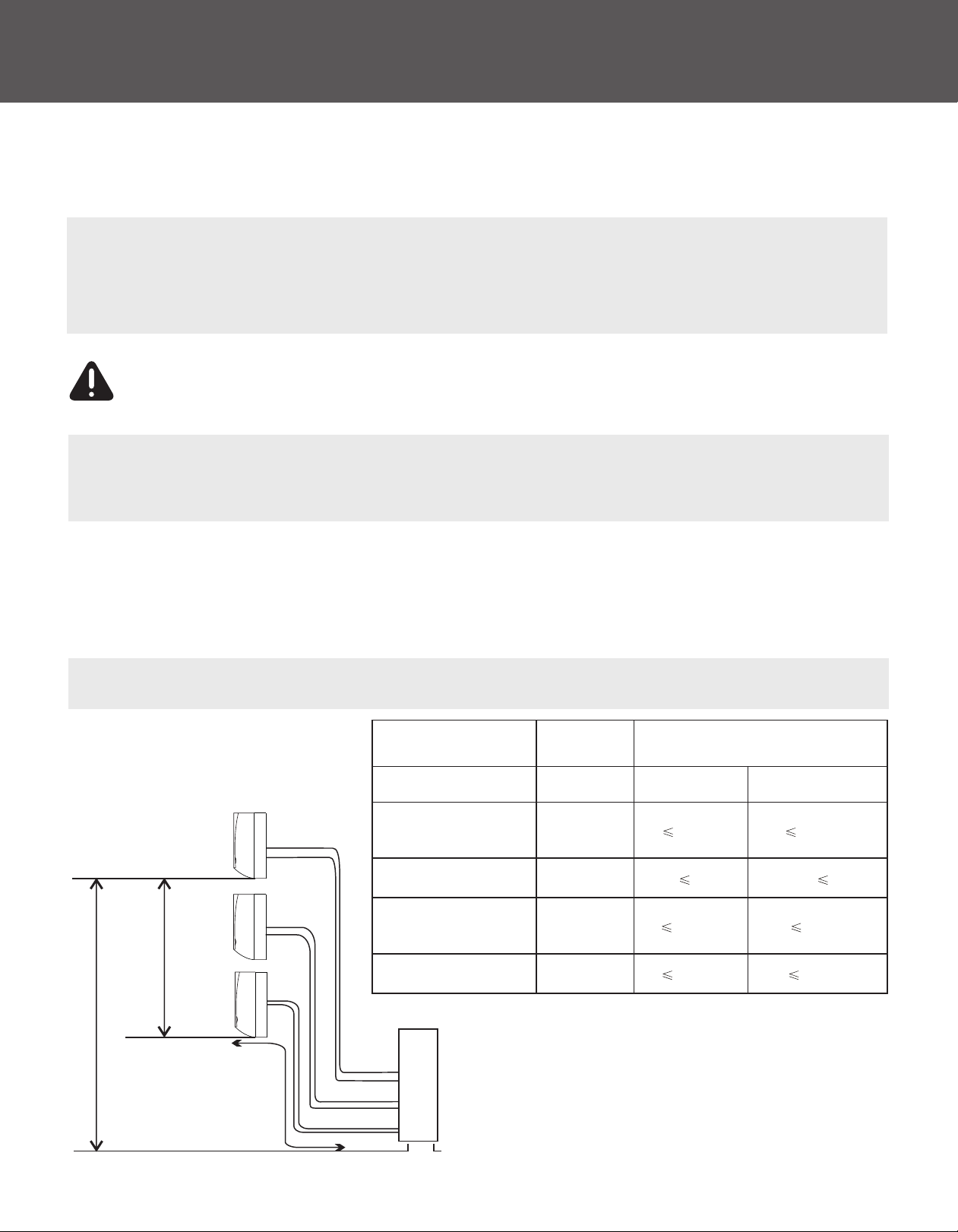

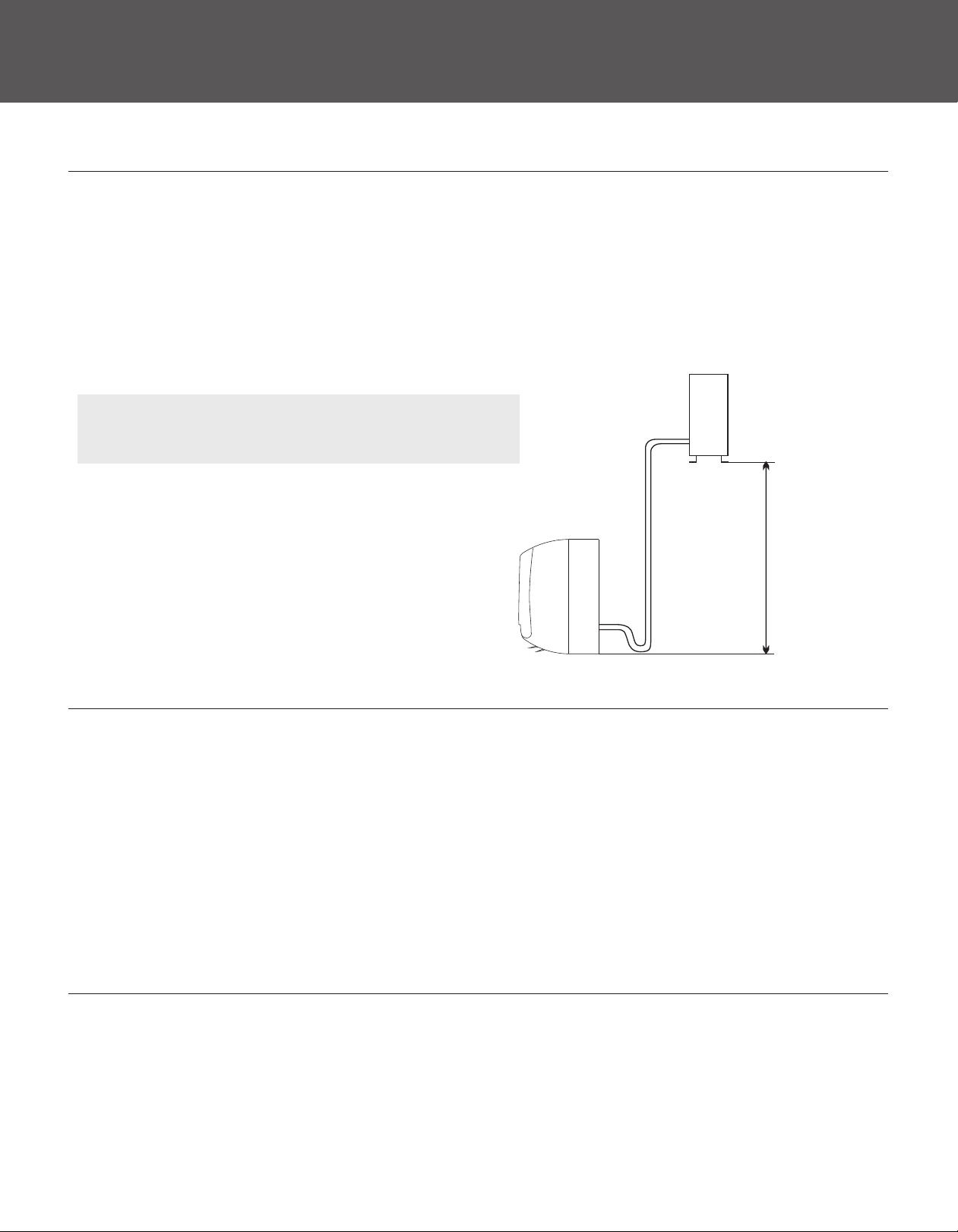

MAXIMUM LENGTH
OF LINE SET SCALE MODEL
18K 24K
Max. length between
indoor unit and outdoor
unit (A/B/C)
ft. (meter) per
zone 82 (25) 65.6 (20)
Total length of piping
between all units ft. (meter) A + B 164 (50) A + B + C 197 (60)
Max. height dierence
between indoor unit and
outdoor unit (D)
ft. (meter) 49 (15) 49 (15)
Max. height dierence
between indoor units (E) ft. (meter) 25 (7.5) 25 (7.5)
5. Measure from the indoor unit down the wall and over to the outdoor unit. Make sure you measure the
exact route you plan on running the line set from the indoor unit to the outdoor unit. If the length is
longer than 25 feet, you will need to purchase additional line set and communication cables.
6. Follow step one for each indoor unit and make sure you purchase the correct lengths needed to do
your job. Then go to steps on how to install the Mini-Split.
• Hang the indoor units
• Place the outdoor unit
• Run the line sets
• Etc.
NOTE: You will also need to purchase new communication cables since the default length that comes
attached to the indoor unit from the factory is 25 ft. Refer to the chart below regarding max line set lengths for
each system. See page 9 for longer communication cable sku number.
Outdoor Unit
Height D
Height E
A
B
C
Indoor Unit
NOTE: Refrigerant pipe should be as short as possible with a 10 ft minimum.
NOTE: Longer is better than shorter, you can always coil the additional line set.
• If the line set run is shorter than 25 ft., you can opt for a 15 ft. line set.
• If your line set will be longer than 25 ft., you will need to purchase additional lengths in 15-foot
increments.
Do not try to solder/braze 2 line sets together to make it longer.
This will void the warranty.
WARNING

INFORMATIONAL QUICK GUIDE (Continued)
11
CHOOSING INSTALLATION LOCATIONS FOR INDOOR WALL UNITS
Before installing the indoor unit, you must choose an appropriate location. The following are standards that
will help you choose an appropriate location for the unit.
The location should also meet these standards:
• A space with good air circulation.
• A space with convenient drainage for indoor condensate (tube that will go to the outside with the
line set bundle).
• A wall strong enough to support the weight of the unit:
• A location at least 3.5 ft. (1.1 m) from all other electrical devices (e.g., TV, radio, computer)
• DO NOT install the unit in the following locations:
• Near any source of heat, steam or combustible gases.
• Near ammable items such as curtains or clothing.
• Near any obstacles that might block air circulation.
• Near a doorway or window.
• In a location in direct sunlight.
Find an area on an exterior wall, at least 6 inches (15.25 cm) from the ceiling and 4.75 inches (12 cm)
from the adjacent wall.
NOTE: The unit can only be installed on an interior wall, if a 3rd party condensate pump (sold separately)
is sourced and installed.
NOTE about the wall hole: While choosing a location, be aware that you need to leave ample room for
a wall hole to pass the communication cable and refrigerant piping (line set) that connect the indoor and
outdoor units. The default position for all piping is the right side of the indoor unit (while facing the unit).

SAFETY & PRECAUTIONS CONTINUEDCONTINUED
INFORMATIONAL QUICK GUIDE (Continued)
12
CHOOSING THE LOCATION FOR THE OUTDOOR UNIT
Before installing the outdoor unit, you must choose an appropriate location. The following are standards that
will help you choose an appropriate location for the unit:
• Accessible to the main electric panel.
• An area with good air circulation and ventilation.
• A rm and solid location to support the unit and prevent from vibration.
• An area where noise from the unit will not disturb you and others.
• An area protected or away from prolonged periods of direct sunlight or rain.
Outdoor Unit
Height should
be less than
16 ft. (4.9 m)
Indoor unit
DO NOT INSTALL THE UNIT IN THE FOLLOWING LOCATIONS:
• Near an obstacle that will block air inlets and outlets.
• Near a public street, in alley ways, crowded areas or where noise from the unit will disturb others.
• Near animals or plants that may be harmed by hot air discharge.
• Near any source of combustible gas or ammable materials.
• Near a heat source or ventilation fans.
• In a location that is exposed to large amounts of dust.
• In a location exposed to an excessive amount of salty air.
• Near a power transformer
SPECIAL CONSIDERATIONS FOR EXTREME WEATHER:
If the outdoor unit will be exposed to heavy wind:
Install unit so that air outlet fan is at a 90° angle (adjacent) to the direction of the wind. For extremely heavy
winds, build a barrier in front of the outdoor unit for added protection.
If the outdoor unit will frequently be exposed to heavy rain or snow:
Build a shelter above the unit to protect it from rain or snow, be careful not to obstruct airow around the unit.
NOTE: If the outdoor unit is higher than the indoor
unit, the max height is 16 ft.

INFORMATIONAL QUICK GUIDE (Continued)
13
MODEL MAXIMUM FUSE OF OUTDOOR UNIT
18K BTU (3PAMSHHQC18-MZ02) 30A 230V
24K BTU (3PAMSHHQC24-MZ03) 30A 230V
POWER SUPPLY
Before beginning installation of your mini-split, it is important to make sure you have enough room in your
electric panel to support the system. If you are unsure about your location’s electrical capabilities, call a
certied electrician.
POWER SURGE PROTECTION (RECOMMENDED)
To ensure proper function and the longevity of your mini split, a single-phase surge protector is highly
recommended on the disconnect box to prevent electrical failure.
In the case of unpredicted power uctuations, power surges or other electrical mishaps, a surge protector can
help protect your mini-split from damage.

SAFETY & PRECAUTIONS CONTINUEDCONTINUED
INFORMATIONAL QUICK GUIDE (Continued)
14
MAIN ELECTRICAL CONNECTION
CHOOSE THE RIGHT CABLE SIZE
The size of the power supply cable, signal cable, fuse, and switch needed is determined by the maximum
current of the unit. The maximum current is indicated on the nameplate located on the side panel of the unit.
Refer to this nameplate to choose the right cable, fuse, or switch.
Run power from the disconnect box to the unit.
All wiring must comply with local and national electrical codes and must be installed by a licensed electrician.
ATTENTION: A surge protector is strongly recommended to prevent electrical failure. You must rst choose
the right cable size before preparing it for connection. Outdoor Power Cable: H07RN-F North America
APPLIANCE AMPS (A) AWG
10 18
13 16
18 14
25 12
30 10
40 8
MODEL MAXIMUM FUSE OF OUTDOOR UNIT
18K BTU (3PAMSHHQC18-MZ02) 30A 230V
24K BTU (3PAMSHHQC24-MZ03) 30A 230V

INSTALLATION INSTRUCTIONS (Continued)
15
STEP 1. MARKING THE WALL (USING TEMPLATE)
The mounting bracket is the device on which you will mount the indoor unit, it is the silver bracket on the
back of the indoor unit. A mounting template has been provided to assist you with proper hole and indoor
unit placement to assist you with the proper location of the holes for the indoor unit mounting bracket and the
power cable / condensate drain pipe.
In the location chosen during pre-planning, locate studs in the wall using a stud nder. If you cannot nd a
stud, you will need to use wall anchors.
1. Place the mounting plate template against the wall, in a location:
• On an exterior wall, at least 6 inches (15.25 cm) from the ceiling and 4.75 inches (12 cm) from adjacent
wall (refer to Figure 1.1).
• Where two studs can be drilled directly into to support the mounting bracket.
• Where the line set hole, as marked on the template, will be free of electrical wiring, plumbing, and other
sensitive components that may be hidden in the wall.
2. Use a level to make sure your template is level.
3. Using something sharp like a nail, mark the areas of the wall where you will be drilling your screws and
the line set hole.
4. Remove the mounting template from the wall.
6 in. (15.25 cm)
4.75 in. (12 cm)
Figure 1.1
NOTE: We strongly advise using the hole located on the right side of the template, as this is where the
indoor unit will have the line set bundle located. If you choose to move the bundle to the left side of the
unit, then you will need to make your line set connections inside, before mounting the unit.

SAFETY & PRECAUTIONS CONTINUEDCONTINUED
INSTALLATION INSTRUCTIONS (Continued)
16
STEP 2. INSTALLING THE WALL BRACKET
1. Detach the silver mounting bracket attached to the back of your indoor unit.
2. Line up the bracket with the screw and hole locations marked previously on your wall.
3. Mount the bracket on the wall using the 6 screws provided. Be sure that you are screwing directly
into the two studs found earlier. If your wall does not have a stud, you will need to use wall anchors
(Mollies) to secure the mounting bracket. (see Figure 2.1)
Mounting Plate
Screw
Figure 2.1
CONCRETE OR BRICK WALLS
If the wall is made of brick, concrete, or similar material, drill 5/16 in diameter holes in the wall and insert the
sleeve anchors provided. Secure the mounting plate to the wall by tightening the screws directly into the wall
anchors.
NOTE: The shape of your mounting plate may be dierent from the one above, but the installation
method is similar.

INSTALLATION INSTRUCTIONS (Continued)
17
For more information on how to change the
communication cable for longer runs, scan this QR code
with your smartphone to view our installation videos at
https://perfectaire.us/resource_category/videos/
When drilling the wall hole, you will need to make sure to avoid electrical wiring,
plumbing, and other sensitive components that may be hidden in the wall.
CAUTION
STEP 3. DRILLING THE LINE SET BUNDLE HOLE
STEP 4. INSTALLING THE WALL UNIT
1. Using a 2.5 in. (63.5mm) core drill, drill a hole in the wall (Figure 3.1). Make sure that the hole is drilled
at a slight downward angle so that the outdoor end of the hole is lower than the indoor end by about
1/2 in. (5 – 7mm) to ensure proper drainage for water condensation.
2. From the outside, place the protective wall cu/sleeve in the hole. This protects the edges of the hole
and seals it when you nish the installation process.
1. Grip the refrigerant copper piping at the base of the bend.
2. Slowly, with even pressure, bend the piping perpendicular to the indoor unit. Do not kink or damage
the piping during the process.
3. CAUTION: Be extremely careful not to kink or damage the piping while bending them away from the
unit. Any kinks in the piping will aect the unit’s performance.
Figure 3.1
The communication cable, the beginning of the drain tube and the beginning of the copper line set is inside
an insulated sleeve attached to the back of the unit. You must prepare the bundle before passing it through
the hole in the wall.
CABLES ADDITIONAL LINE SET LENGTHS WITH REFRIGERANT
1PRCOM70 = 70 ft. 1DALS14-38-75G (9 and 12K indoor unit)
1PRCOM85 = 85 ft. 1DALS14-12-15-75G (18K indoor unit)
NOTE: Your unit comes with a 25 ft. communication cable attached. If you are adding line set length,
you will need to change the communication cable with a longer separately purchased cable.

SAFETY & PRECAUTIONS CONTINUEDCONTINUED
INSTALLATION INSTRUCTIONS (Continued)
18

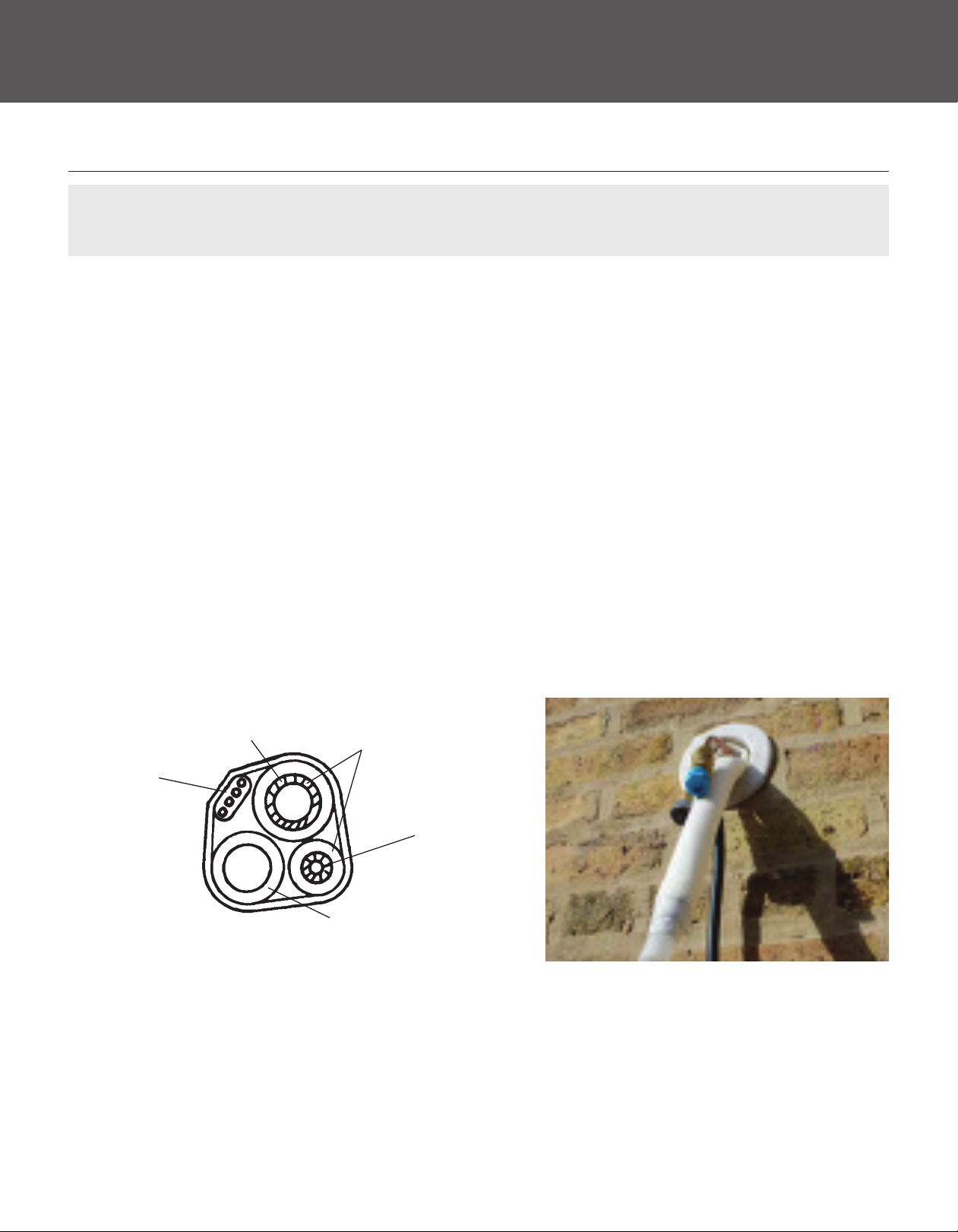

STEP 5. PREPARING THE BUNDLE
Before passing the refrigerant piping, drain hose and communication cable through the wall hole, you must
bundle them together to save space. Make sure that the drain hose is at the bottom of the bundle. Putting the
drain hose at the top of the bundle can cause the drain pan to overow and backup, which can lead to re,
water damage or both. (Figure 5.1)
1. Double-check that the ends of the refrigerant pipes are sealed with color coded caps, preventing dirt
or foreign materials from entering the pipes. Do not remove these caps.
2. Slowly pass the wrapped bundle of refrigerant pipes, drain hose, and communication cable through the
hole in the wall. (Figure 5.2)
3. Hook the top of the indoor unit on the top hook of the mounting plate.
4. Check that the unit is hooked rmly on the mounting plate by applying slight pressure to the left and
right sides of the unit. The unit should not move or shift.
5. Using even pressure, push down on the bottom half of the unit. Keep pushing down until the unit
snaps onto the hooks along the bottom of the mounting plate.
6. Double-check that the unit is rmly mounted by applying slight pressure to the left and the right sides
of the unit.
Power Co
rd
Large Pipe
Thermal
Insulation
Tube
Small Pipe
Drain House
(Prepared by User)
Figure 5.1 Figure 5.2
NOTE: Double-check that the ends of the refrigerant pipes are sealed with color coded caps, preventing
dirt or foreign materials from entering the pipes. Do not remove these caps.

INSTALLATION INSTRUCTIONS (Continued)
19
Anchor the Outdoor Unit
The outdoor unit can be anchored multiple ways* — a pad on the ground, a wall bracket, or a stand/blocks
(*not included).
Installing the unit on a concrete condenser pad:
1. Mark the positions of the four feet.
2. Pre-drill holes for expansion bolts, clean any dust away from holes.
3. Place a nut on the end of each expansion bolt.
4. Hammer expansion bolts into the pre-drilled holes.
5. Remove the nuts from expansion bolts. Place outdoor unit on bolts.
6. Put washer on each expansion bolt, then replace the nuts.
7. Using a wrench, tighten the nuts until snug.
Installing the unit on a wall-mounted bracket?
Please refer to the bracket manufacturer’s directions for installation.
STEP 6. SECURING THE OUTDOOR UNIT
WHEN DRILLING INTO CONCRETE, EYE PROTECTION IS HIGHLY RECOMMENDED.
WARNING

SAFETY & PRECAUTIONS CONTINUEDCONTINUED
INSTALLATION INSTRUCTIONS (Continued)
20
FOR COLD CLIMATES
In cold climates, make sure that the drain hose is as vertical as possible to ensure swift water drainage. If
water drains too slowly, it can freeze in the hose and ood the unit.
OPTIONAL: INSTALLING A DRAIN JOINT
Base Pan Hole of the Outdoor Unit
Seal
Seal
Drain Joint
NOTE:
• The drain joint cannot be used unless you are mounting the outdoor unit on a wall bracket or blocks. The
outdoor unit must be elevated to accommodate the drain joint.
• The drain joint is optional. if you would like to redirect water from the outdoor unit to another location, install
the drain joint.
• The drain join only needs to be used if you need to redirect water.
1. Fit the rubber seal to the end of the drain joint that will connect to the outdoor unit.
2. Insert the drain joint into the hole in the base pan of the unit.
3. Rotate the drain joint 90° until it clicks in place facing the front of the outdoor unit, away from the house.
4. Connect a 3/8” ID drain hose (not included) to the drain joint to redirect water from the outdoor
unit during heating mode.
