Perlegear PGDS1 User manual

Model: PGDS1/PGDS2/PGDS3
Glass Shelf Instruction Manual
V1.0(A)
Thank you for choosing this Perlegear product! At Perlegear we strive to
provide you with the best quality products and services in the industry.
Should you have any issues, please don't hesitate to contact us at
Technical Support:
(US/CA)1-800-456-5231 Mon-Fri 8am - 8pm(CST)
(UK)44-808-196-4165 Mon-Fri 2pm - 10pm(UTC)
Other Info:
[email protected]

01 02
• Check package contents against supplied parts and hardware list to assure that all
components were received undamaged. Do not use damaged or defective parts. lf you
require replacement parts, please contact our customer service at [email protected].
• Carefully read all instructions before attempting installation. If you do not understand the
instructions or have any concerns or questions, please contact customer service at
[email protected].
• Do not use this product for any purpose that is not explicitly specified in this manual. Do
not exceed weight capacity of 17.64lb (8KG). We can not be liable for damage or injury
caused by improper mounting, incorrect assembly or inappropriate use. Thank you for your
understanding.

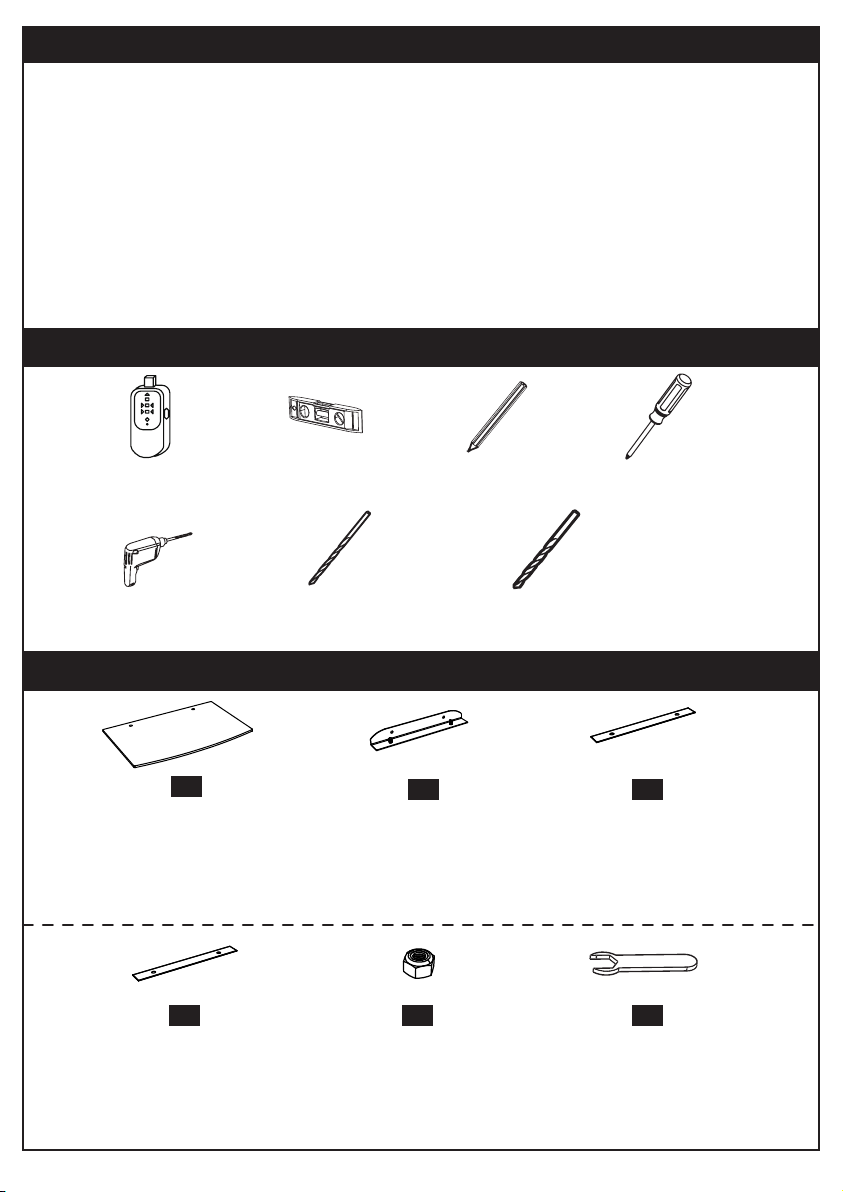

IMPORTANT SAFETY INFORMATION
Supplied Parts and Hardware
Tools Needed (Not lncluded)
Stud Finder Pencil Phillips Screwdriver
Level
Drill
Wrench x1
5/64 in (2mm)
Wood Drill Bit
9/32 in (7mm)
Concrete Drill Bit
Glass Shelf
PGDS1 x1
PGDS2 x2
PGDS3 x3
Bracket
PGDS1 x1
PGDS2 x2
PGDS3 x3
Soft Pad
PGDS1 x1
PGDS2 x2
PGDS3 x3
Metal Plate
PGDS1 x1
PGDS2 x2
PGDS3 x3
M8 Nut
PGDS1 x2
PGDS2 x4
PGDS3 x6
01 02 03
04 06 05

1-1
1-2
01 02
Step 1 Attach the Bracket [02] to the Glass Shelf [01]
Lag Screw
ST4×40mm
PGDS1 x2
PGDS2 x4
PGDS3 x6
02
03
01
A
Washer
φ12x5.3x1.0mm
PGDS1 x2
PGDS2 x4
PGDS3 x6
B
Wall Anchor
M14×42mm
PGDS1 x2
PGDS2 x4
PGDS3 x6
C
Wall Anchor
M7×34mm
PGDS1 x2
PGDS2 x4
PGDS3 x6
D
Soft Pad
CAUTION!
This wall anchor [D] is
for concrete or brick
walls ONLY. DO NOT
use them in drywall
or wood studs.
CAUTION!
This wall anchor [C]
are for drywall ONLY.
DO NOT use them in
concrete / brick / wood
studs wall.

Note: The thickness
of the drywall must
be beyond
25/32 in (20mm)
1-3
Step 2 Secure the Glass Shelf on the Wall
03
01
04
05
06
CAUTION：Glass shelf!
Handle with care.
02
Before installation, please identify your wall type.
For wood stud installation, follow the step 2A.
For drywall installation, follow the step 2B.
For solid concrete and concrete block walls installation, follow the step 2C
Step 2A For Wood Stud
2A-1

For wood stud mounting, wall
anchors [C] and [D] are not
necessary.
WARNING:
XX
C D
Note: The thickness
of the drywall must
be beyond
25/32 in (20mm)
Note: The thickness
of the drywall must
be beyond
25/32 in (20mm)
A
B
C
[Not Included]
(For wood stud only!)
[Optional]
1 37/64 in (40mm)
5/64 in (2mm)
04
02
02
Step 2B For Drywall
2A-3
2A-2
2B-1
The wall anchor
[D] is for drywall
only!
The wall anchor
[C] is for drywall
only!

BA
02
02
05
C
2B-3
2B-2
2C-1
Step 2C For Solid Concrete and Concrete Block Wall

06
1 49/64 in (45mm)
9/32 in (ø7mm)
D
A
02
B
2C-2
2C-4
2C-3
