Perlick BC Series User manual

Installation
& Operation Manual
Flat Top Bottle Cooler
BC Series
Form No. Z2295
Rev. 04.09.2020
C
US
BC72 shown
R290
Refrigerant

Flat Top Bottle Coolers Installation & Operation Manual
Printed in USA 2
Perlick is committed to continuous improvement. Therefore, we reserve the right to change specications without prior notice.
JOB
AREA
ITEM NO.
MODEL NO.
BC24 SERIES
BC36 SERIES
BC48 SERIES
BC60 SERIES
BC72 SERIES
BC96 SERIES
C
US
BC72 shown
* NOTE: This equipment is intended for the storage and display of non-potentially hazardous bottled or canned products only!
BC24 shown
R290
Refrigerant

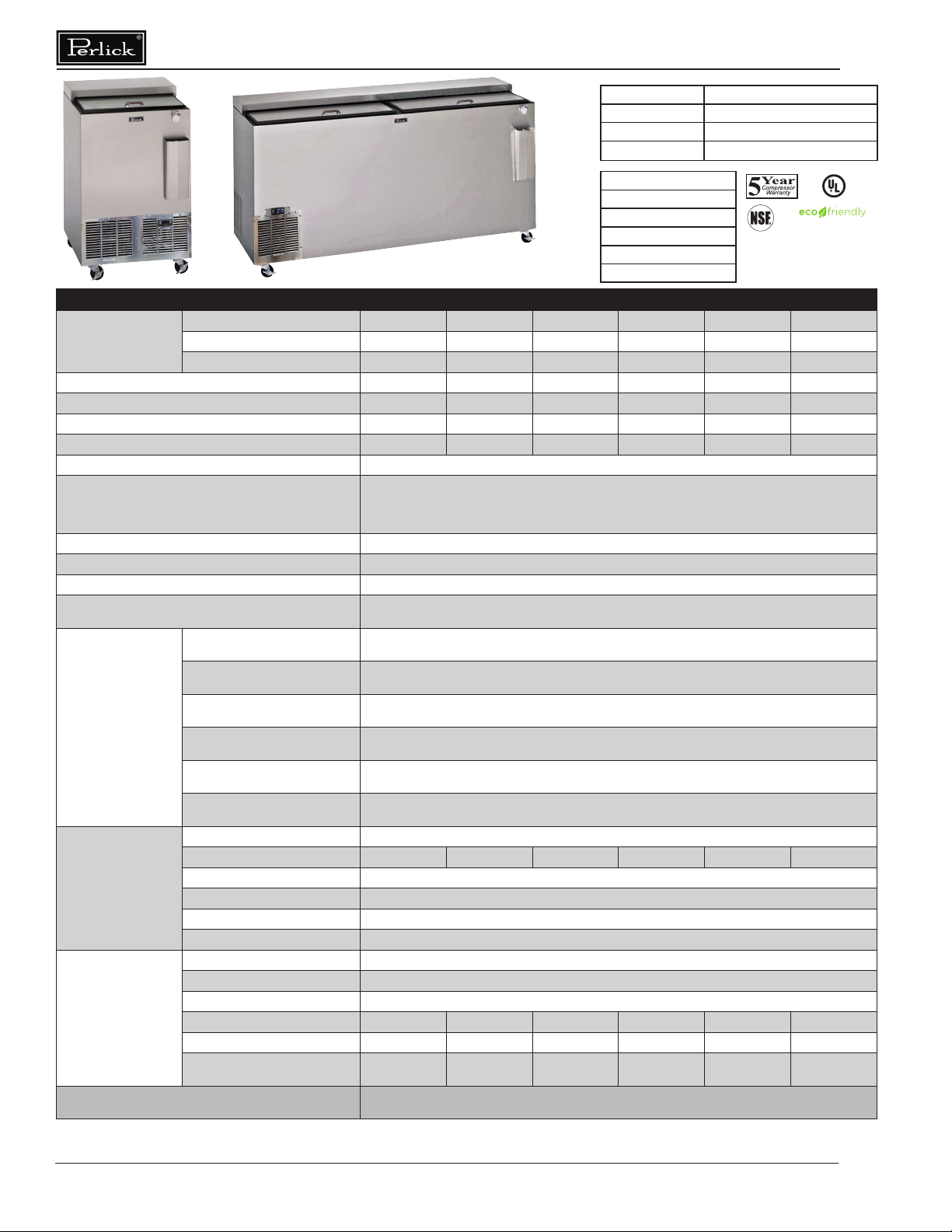

MODEL NUMBERS BC24 BC36 BC48 BC60 BC72 BC96
EXTERIOR CABINET
DIMENSIONS
Length - in. (mm) 24 (610) 36 (914) 48 (1219) 60 (1524) 72 (1829) 96 (2436)
Depth - in. (mm) 24 (610) 24 (610) 24 (610) 24 (610) 24 (610) 24 (610)
Height - in. (mm) 34-1/8 (866) 34-1/8 (866) 34-1/8 (866) 34-1/8 (866) 34-1/8 (866) 34-1/8 (866)
INERNAL NET VOLUME - cubic ft. (liters) 4.2 (118) 8.6 (242) 12.5 (353) 16.3 (462) 20.3 (575) 28.3 (800)
CASE CAPACITY (12 bottles) 5.5 9.8 17.2 21.0 28.3 41.0
CASE CAPACITY (12 cans) 7 16 25 30 36 58
SHIPPING WEIGHT Lbs. (kg.) 190 (86) 245 (111) 300 (136) 353 (160) 405 (184) 515 (235)
CABINET CONSTRUCTION (INTERIOR) All models have stainless steel walls and oor.
CABINET CONSTRUCTION (EXTERIOR)
Choice of black, stainless steel and all stainless.
Black Option: Front and ends are black vinyl coated steel, back and bottom are galvanized.
Stainless Steel Option: Front and ends are stainless steel, back and bottom are galvanized.
All Stainless Option: Front, ends, back and bottom are all stainless steel.
DOORS AND HARDWARE Sliding style open with standard locks. Stainless steel top and bottom panss. Die cast handle
PLUMBING No drain required. Condensate evaporates automatically.
INSULATION 2 inch foamed-in-place, environmentally friendly Ecomate® polyurethane insulation. Blowing agent R-611.
VENTILATION 2’ model is front vented, all other models require 2”clearance from wall on either left end or back of cabinet for
proper air ow.
TEMPERATURE
SPECIFICATIONS
Default Temperature Setpoint:
Standard Temp (RT) Models - °F [°C] 38 [3.3]
Adjustable Setpoint Range:
Standard Temp (RT) Models - °F [°C] 34 - 40 [1.1 - 4.4]
Default Temperature Setpoint:
Low Temp (LT) Models - °F [°C] 30 [-1.1]
Adjustable Setpoint Range:
Low Temp (LT) Models - °F [°C] 28 - 34 [-2.2 - 1.1]
Default Temperature Setpoint:
Wine Temp (WT) Models - °F [°C] 50 [10.0]
Adjustable Setpoint Range:
Wine Temp (WT) Models - °F [°C] 45 - 60 [7.2 - 15.6]
ELECTRICAL
SPECIFICATIONS
Supply 120 VAC/60 Hz/1 Ph
Running Load Amps 1.9 1.9 3.1 4.4 4.4 4.4
Power Cord 6-foot length with NEMA 5-15 plug.
Thermostat NSF Listed electronic control.
Defrost Type Automatic electric defrost (Low Temp models only).
Lighting Type LED (136 Lumens, 5500K)
REFRIGERATION
SPECIFICATIONS
Condensing Unit Hermetic condensing unit pulls out for service and cleaning.
Expansion Device Capillary Tube
Refrigerant R290
Refrigerant Charge (g) 90 110 120 120 120 120
Compressor H.P. 1/6 1/6 1/5 1/4 1/4 1/4
Total Heat of Rejection
At 75°F ambient (BTU/h) 1420 1420 1920 2980 2980 2980
OPTIONAL ACCESSORIES Floor racks • Casters • Bottle opener and receiver • Bin dividers
Speed rails • Adjustable legs • Roller basket shelving
*

Flat Top Bottle Coolers Installation & Operation Manual
Printed in USA 3
Perlick is committed to continuous improvement. Therefore, we reserve the right to change specications without prior notice.
TABLE OF CONTENTS
IMPORTANT!
Read and understand all information in this manual before attempting the installation.
All plumbing and electrical work must be performed by a qualied technician and
conform to all applicable state and local codes.
GENERAL INFORMATION
Warranty
To register your product, visit our web site at
www.perlick.com. Click on “Commercial”, then
“Service”. Click on the link “Warranty Registration
Form”. You must complete and submit this form
or the installation date will revert back to the ship
date.
Please record the purchase date and the dealer’s
name, address and telephone number below.
Model Number: ________________________
Serial Number: _________________________
Purchase Date: _______________________
Dealer Name & Address __________________
______________________________________
______________________________________
Phone Number__________________________
SAFETY
PLEASE READ all instructions completely
before attempting to install or operate the unit.
Take particular note of the DANGER, WARNING
an CAUTION information in the manual. The
information is important for the safe and e󰀩cient
installation, operation and care of your Perlick unit.
DANGER
Indicates a hazard that WILL
result in serious injury or
death if precautions are not followed.
WARNING
Indicates a hazard MAY
cause serious injury or
death if precautions are not followed.
CAUTION
Indicates a hazard where
minor injury or product
damage may occur if precautions are not
followed.
Introduction
This manual has been prepared to assist you
in the installation of your Bottle Cooler and to
acquaint you with its operation and maintenance.
We dedicate considerable time to ensure that our
products provide the highest level of customer
satisfaction. If service is required, call Perlick at
1-800-777-7267 or your dealer who can provide
you with a list of qualied service agents. For
your own protection, never return merchandise
for credit without our approval.
We thank you for selecting a Perlick product
and assure you of our continuing interest in your
satisfaction.
Cabinet Specications................................................................................................................................................................. 2
Installing
- Refrigerant................................................................................................................................................................................ 4
- Uncrating and Inspection.......................................................................................................................................................... 4
- Plumbing .................................................................................................................................................................................. 4
- Electrical................................................................................................................................................................................... 4
- Adjusting Partitions................................................................................................................................................................... 4
- Installing Casters and Legs...................................................................................................................................................... 4
- Placing the Cabinet .................................................................................................................................................................. 4
- Sealing to the Floor .................................................................................................................................................................. 5
Temperature Control.................................................................................................................................................................... 5
Cleaning the Cabinet................................................................................................................................................................... 5

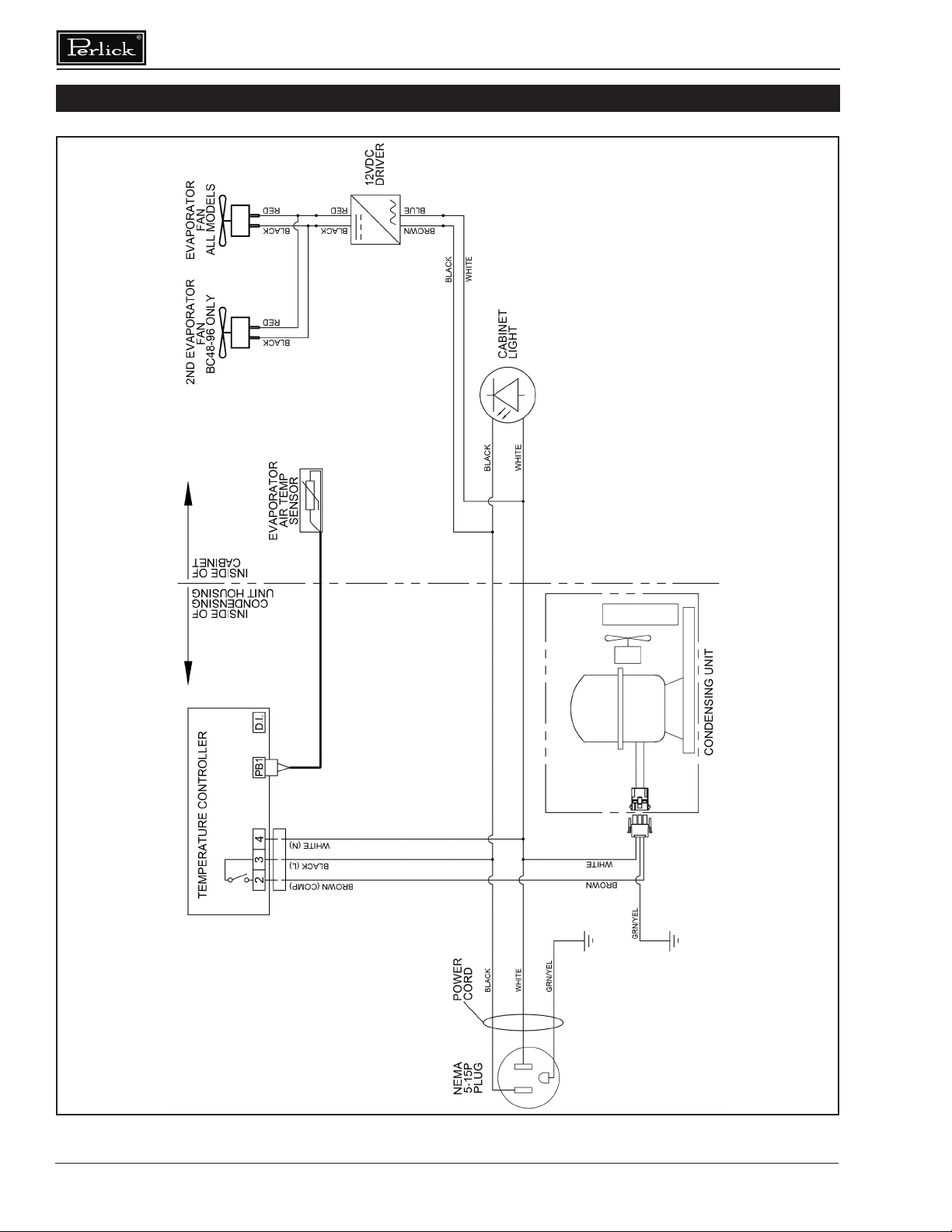

Wiring Diagrams....................................................................................................................................................................... 6/7
Replacement Parts................................................................................................................................................................... 8/9

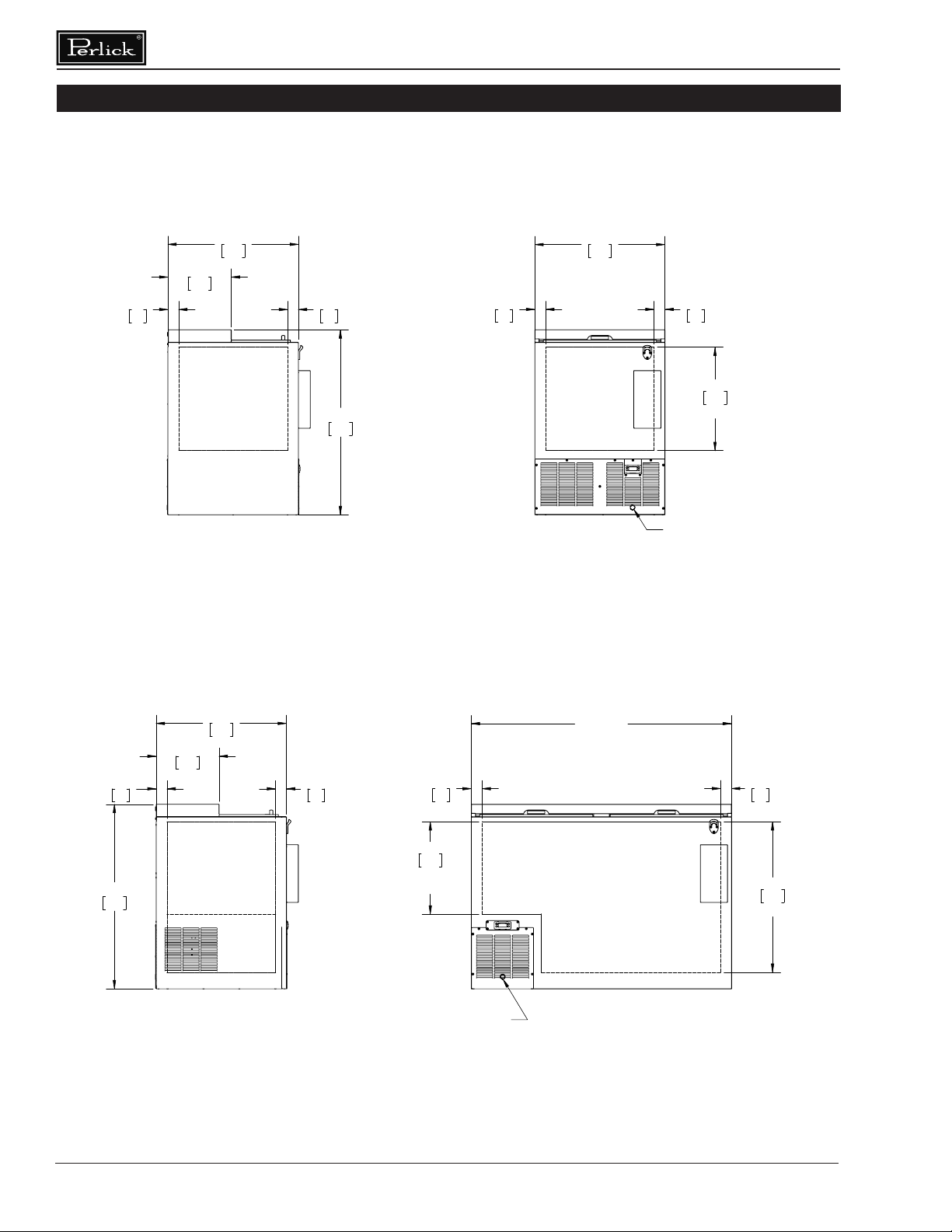

Spec Drawings .......................................................................................................................................................................... 10

Flat Top Bottle Coolers Installation & Operation Manual
Printed in USA 4
Perlick is committed to continuous improvement. Therefore, we reserve the right to change specications without prior notice.
PREPARING THE CABINET -FLAT TOP BOTTLE COOLERS
Refrigerant
All models covered in this user manual are
manufactured using refrigerant R290 (Propane).
R290 is a hydrocarbon. This refrigerant is
ammable and is only allowed for use in
appliances which fulll the requirements of UL
471 (To cover potential risk originated from the
use of ammable refrigerants). Consequently,
R290 is only allowed to be used in refrigerating
appliances which are designed for this
refrigerant and fulll the above-mentioned
standard.
■ R290 is heavier than air. The concentration
will always be highest at oor level.
■ The explosion limits are as follows:
- Lower Limit: 1.7% by vol. (37 g/m3)
- Upper Limit: 9.5% by vol. (177 g/m3)
- Ignition Temperature: 470 °C
Take caution when handling,
moving and using the product
to avoid damaging the refrigerant tubing or
increasing the risk of a leak.
All service work shall
be performed by factory
authorized service personnel and all
component parts shall be replaced with like
components to minimize the risk of possible
ignition due to incorrect parts or improper
service.
If service is necessary,
repair work must be performed by a
Perlick authorized servicer. Work done by
unqualied individuals could potentially be
dangerous and will void the warranty.
Uncrating and Inspection
Remove all crating material. Carefully inspect
cabinet for hidden damage. If damage is
discovered, le your claim immediately with the
transport company. Perlick is not responsible for
damage in transit.
Plumbing
No plumbing connections are required.
Condensate from the cooling coil automatically
evaporated through a condensate pan located in
the condensing unit section.
Electrical
The cabinet must be connected to a separately
fused power source (see Electrical Specication
Plate a󰀩xed to unit) in accordance with National
and Local electrical codes.
Do not operate the equipment
without a light bulb installed. Socket is live
when equipment power is on.
Do not attempt to operate the
equipment on any other power source than
that listed on the Electrical Specication Plate.
Adjustable Partitions & Shelving
Perlick Bottle Coolers may be provided with
adjustable partitions and shelving which will
accommodate various bottle sizes.
■ Remove bottles and cans from their cases
before placing in cooler to ensure proper
air ow.
■ When loading product into cabinet, care must
be taken to avoid blocking airow into and out
of the evaporator. Maintain at least 2” of
clearance on evaporator air intake and
exhaust for proper operation.
Installing Casters or Legs (optional)
Attach casters or legs to the cabinet bottom in
holes provided. Use the supplied 1/4” - 20 hex
head self-tapping machine screws. If unit is tipped
on its back for an extended period of time, wait
24 hours after unit is uprighted to plug the unit in.
Placing the Cabinet
To assure maximum performance, fresh air must
be allowed to circulate through the machinery
compartment. It is important to allow at least
two inched of clearance at the back or left end
of the cabinet. Do not place anything in front of
the cabinet that would obstruct air ow at these
grilles. Do not place the unit in an unventilated
small room.
CAUTION
DANGER
WARNING
DANGER
CAUTION

Flat Top Bottle Coolers Installation & Operation Manual
Printed in USA 5
Perlick is committed to continuous improvement. Therefore, we reserve the right to change specications without prior notice.
HOW TO OPERATE -FLAT TOP BOTTLE COOLERS
Removing the factory installed
back clearance spacers without providing
proper left side grill clearance for compressor
air ow will void the warranty.
Cabinet should be leveled.
For sanitation purposes, it may be necessary to
seal the base of the cabinet to the oor. This can
be accomplished by laying a bead of silicone
sealant along the base of the cabinet as shown
by the gure below (gure 1).
Temperature Control
A digital temperature control is located on the front
face of the Bottle Cooler, above the condensing
unit housing. It is factory set at approximately 38°F
for standard refrigeration, 30°F for low temperature
models, and 50°F for wine temperature models.
Make adjustments as detailed below to attain the
desired temperature.
Digital Temperature Control
To display the Set point values press the key
when the ‘SET’ label is displayed. The Set point
value appears on the display. To change the Set
point value, press the and keys within 15
seconds. Press to conrm the modication.
The condenser fan motor turns o󰀨 and on with
compressor. The evaporator fan motor runs
continuously.
Cleaning the Condenser
Flammable Refrigerant.
Risk of re or explosion. Do not damage
refrigeration tubes.
■ The condenser (located behind the from
grille) should be inspected every 30 days,
and cleaned, if necessary. Failure to
keep the condenser clean will cause a loss
in condensing unit e󰀩ciency, or compressor
failure.
Cleaning the Doors
■ Doors should be periodically removed from
the cabinet and inspected for a buildup of
foreign materials, such as syrups, beer, etc.
Buildups on the underside of the doors,
along with the cabinet breaker strips on
which they ride, will cause them to bind,
and therefore, not function as designed. If
dirty, these surfaces should be cleaned with
a mild detergent and water and then coated
with an NSF certied silicone lubricating
material.
To remove doors:
■ With door closed, lift it upward by its handle
and slide forward until doors clears the
cabinet top. Use the reverse procedure to
reinstall the doors.
Cleaning the Cabinets
■ Use a damp cloth with a mild detergent and
water to clean the inside and outside of the
cabinet. Dry thoroughly. Do not allow cleaning
agents or large amounts of water to go down
the drain. Use an acceptable stainless steel
polish to clean all stainless steel surfaces.
Never use steel wool or scouring pads to clean
stainless steel.
Avoiding Stainless Steel Corrosion
Corrosion can be prevented by following product
cautions, cleaning instructions and avoiding use
of certain chemicals or objects which will cause
stainless steel corrosion.
STAINLESS STEEL ENEMY
■ Steel wool or steel scouring pads
■ Cherry/Orange/Olive juice
■ Chlorine Bleach
■ Sharp Objects
DANGER
Figure 2: Digital Temperature Controller
Cabinet
Bead Silicon
Sealer (RTV)
Floor
Figure 1. Sealing Cabinet to Floor
CAUTION

Flat Top Bottle Coolers Installation & Operation Manual
Printed in USA 6
Perlick is committed to continuous improvement. Therefore, we reserve the right to change specications without prior notice.
WIRING DIAGRAM -STANDARD AND WINE-TEMP BOTTLE COOLERS

Flat Top Bottle Coolers Installation & Operation Manual
Printed in USA 7
Perlick is committed to continuous improvement. Therefore, we reserve the right to change specications without prior notice.
WIRING DIAGRAM -LOW-TEMP BOTTLE COOLERS

Flat Top Bottle Coolers Installation & Operation Manual
Printed in USA 8
Perlick is committed to continuous improvement. Therefore, we reserve the right to change specications without prior notice.
REPLACEMENT PARTS -FLAT TOP BOTTLE COOLERS

Flat Top Bottle Coolers Installation & Operation Manual
Printed in USA 9
Perlick is committed to continuous improvement. Therefore, we reserve the right to change specications without prior notice.
REPLACEMENT PARTS -FLAT TOP BOTTLE COOLERS
MODEL NOS. BC24 RT / LT BC36 RT / LT BC48RT / LT BC60 RT / LT BC72 RT / LT BC96 RT / LT
Item Description Part Numbers
1
Complete condensing unit 1018398 1018398 1018399 1018400 1018400 1018400
Replacement compressor, R290 C22999CMP09 C22999CMP09 C22999CMP10 C22999CMP11 C22999CMP11 C22999CMP11
Condensing unit fan motor assy. 1013047 1013047 1013047 1013047 1013047 1013047
Condensing unit lter drier C22999DAH01 C22999DAH01 C22999DAH01 C22999DAH01 C22999DAH01 C22999DAH01
Condensing units start components C22999STCP08 C22999STCP08 C22999STCP09 C22999STCP10 C22999STCP10 C22999STCP10
3Evaporator fan 71386 71386 71386 71386 71386 71386
4Evaporator coil 64785-1EP C17511-1EP C17511-1EP C17511-2EP C17511-2EP C17511-2EP
5Defrost heater none / C25655-1 none / 65045-1 none / 65045-1 none / 61900 none / 61900 none / 61900
6Temperature sensor 1005668 1005668 1006584 1006584 1006584 1006584
7Bottle opener C6713-1 C6713-1 C6713-1 C6713-1 C6713-1 C6713-1
8Bottle cap receiver C17332SS C17332SS C17332SS C17332SS C17332SS C17332SS
9Front grille 1024465-1 1024230-1 1024230-1 1024230-1 1024230-1 1024230-1
10 Rear grille/panel 66498-1 65662-3 65662-3 65662-3 65662-3 65662-3
11 Top assembly RT-SL2 RT-SL2 RT-SL2 RT-SL2 RT-SL2 RT-SL2
12 Top wiper gasket 63671-24 63671-36 63671-48 63671-60 63671-72 63671-96
13 Door assembly RD-SL2 RD-SL2 RD-SL2 RD-SL2 RD-SL2 RD-SL2
14 Lock assembly 63940 63940 63940 63940 63940 63940
15 Vertical partition 65503 66441 66441 66441 66441 66441
16 Roller basket N/A 66442-1 66442-1 66442-1 66442-1 66442-1
17
Wide shelf N/A 64811-1 64811-1 64811-1 64811-1 64811-1
Narrow shelf 64809-1 64809-1 64809-1 64809-1 64809-1 64809-1
18
Bottom oor rack (wide) 64814-1 64814-1 64814-1 64814-1 64814-1 64814-1
Bottom oor rack (narrow) N/A N/A 64815-1 64815-1 64815-1 N/A
19 Shelf with side rail N/A 64810-1 64810-1 64810-1 64810-1 64810-1
20 Shelf bracket 65653-24 65653-36 65653-48 65653-60 65653-72 65653-96
21 Door handle 63931 63931 63931 63931 63931 63931
22 Light Bulb 1009338 1009338 1009338 1009338 1009338 1009338
23 Light socket 63484 63484 63484 63484 63484 63484
24 Light Guard 65009-1 65009-1 65009-1 65009-1 65009-1 65009-1
25 Evaporator drain pan 1025311-1 1025311-2 1025583-1 1025583-2 1025583-2 1025583-2
ITEMS NOT SHOWN
Wire harness, main 1024877 / 1024910 1024877 / 1024910 1024877 / 1024910 1024877 / 1024910 1024877 / 1024910 1024877 / 1024910
Suction line and capillary tube assembly 1024536 1024536 1023912 1024762 1024296 1024537
Mullion assembly N/A N/A 66551 66551 66551 66551
Refrigerant charge (grams R290) 90 110 120 120 120 120
Defrost temp. limit switch none / 57676 none / 57676 none / 57676 none / 57676 none / 57676 none / 57676
Evaporator fan DC driver 68758 68758 68758 68758 68758 68758
Digital temperature controller 1024855 / 1024856 1024855 / 1024856 1024855 / 1024856 1024855 / 1024856 1024855 / 1024856 1024855 / 1024856

Flat Top Bottle Coolers Installation & Operation Manual
Printed in USA 10
Perlick is committed to continuous improvement. Therefore, we reserve the right to change specications without prior notice.
34 1/8"
866
24"
610
11 5/8"
295
2"
51
2
51
END VIEW*
24" CABINET
24"
610
19 1/16"
484
INSIDE
2"
51
2"
51
POWER CORD EXIT
(BACK OF UNIT)
FRONT VIEW*
24" CABINET
34 1/8"
866
11 5/8"
295
24"
610
2"
51
2"
51
END VIEW*
36", 48", 60", 72", & 96"
CABINET
17 1/16"
433
HOUSING
STEP
27 3/4"
705
INSIDE
2"
51
2"
51
36" [914]
48" [1219]
60" [1524]
72" [1829]
96" [2436]
FRONT VIEW*
36", 48", 60", 72", & 96"
CABINET
POWER CORD EXIT
(BACK OF UNIT)
36", 48", 60", 72", & 96" CABINET
24" CABINET
SPEC DRAWINGS -FLAT TOP BOTTLE COOLERS

Flat Top Bottle Coolers Installation & Operation Manual
Printed in USA 11
Perlick is committed to continuous improvement. Therefore, we reserve the right to change specications without prior notice.

Flat Top Bottle Coolers Installation & Operation Manual
Printed in USA 12
Perlick is committed to continuous improvement. Therefore, we reserve the right to change specications without prior notice.
8300 West Good Hope Road • Milwaukee, WI 53223 •
Toll Free 800.558.5592 • Fax [phone] • www.perlick.com
