PESA CHEETAH 144NE User manual

Publication: 81-9059-0676-0, Rev. A www.pesa.com
July, 2010 Phone: [phone]
USER GUIDE
CHEETAH
144NE FIBER
DIGITAL VIDEO MATRIX SWITCHER

Cheetah 144NE Digital Video Router
Publication 81-9059-0676-0, Rev. A
July 2010
Proprietary Information of PESA I
Thank You !! for purchasing your new Video Routing Equipment from PESA. We appreciate your
confidence in our products. PESA produces quality, state-of-the-art equipment designed to deliver our
users the highest degree of performance, dependability and versatility available anywhere. We want
you to know that if you ever have a concern or problem with a PESA product, we have a team of
engineers, technicians and customer service professionals available 24/7/365 to help resolve the
issue.
Our commitment is to continue earning the trust and confidence of our customers throughout the
industry by incorporating cutting-edge technology into the highest quality, most cost effective products
on the market. And we would like to invite you to tell us how we’re doing. If you have any comments
or suggestions concerning your PESA equipment, please contact our Customer Service Department.
Again thank you for choosing PESA; and we look forward to a long-term partnership with you and
your facility.
S
ERVICE AND O RDERING
A SSISTANCE
PESA
103 Quality Circle, Suite 210
Huntsville AL 35806 USA
www.PESA.com
M AIN O FFICE
Tel: [phone]
Fax: [phone]
S ERVICE D EPARTMENT
Tel: [phone] (24/7)
Toll Free: 800.323.7372
Fax: [phone]
Email: [e-mail]
© 2010 PESA, All Rights Reserved.
No part of this publication (including text, illustrations, tables, and charts) may be reproduced, stored in any retrieval system, or transmitted
in any form or by any means, including but not limited to electronic, mechanical, photocopying, recording or otherwise, without the prior
written permission of PESA.
Microsoft and Windows are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.
All information, illustrations, and specifications contained in this publication are based on the latest product information available at the time
of publication approval. The right is reserved to make changes at any time without notice.
Printed in the United States of America.
July, 2010

Cheetah 144NE Digital Video Router
Publication 81-9059-0676-0, Rev. A
July 2010
Proprietary Information of PESA II
T ABLE OF C ONTENTS
CHAPTER 1 ABOUT THIS MANUAL..........................................................................................1-1
1.1 D OCUMENTATION AND S AFETY O VERVIEW ..........................................................................1-1
1.2 W ARNINGS , C AUTIONS , AND N OTES .....................................................................................1-1
1.2.1 WARNING...........................................................................................................................1-1
1.2.2 CAUTION............................................................................................................................1-1
1.2.3 NOTE..................................................................................................................................1-1
CHAPTER 2 INTRODUCTION.....................................................................................................2-1
2.1 P RODUCT O VERVIEW ...........................................................................................................2-1
2.1.1 Cheetah 144NE Standard Features......................................................................................2-1
CHAPTER 3 CHASSIS VIEWS AND SPECIFICATIONS...........................................................3-1
3.1 C HEETAH 144NE F RAME V IEWS ..........................................................................................3-1
3.2 S PECIFICATIONS ...................................................................................................................3-3
CHAPTER 4 INITIAL SETUP........................................................................................................4-5
4.1 U NPACKING AND I NSPECTION ..............................................................................................4-5
4.2 C HOOSING A L OCATION .......................................................................................................4-5
4.3 M OUNTING A C HEETAH 144NE C HASSIS IN AN E QUIPMENT R ACK .......................................4-5
4.4 S ETTING C HASSIS L EVEL C ODES (S TROBES ) ........................................................................4-6
4.4.1 Chassis Strobe Switch Functions..........................................................................................4-8
4.5 C HASSIS S YSTEM C ONNECTION L OCATIONS .........................................................................4-8
4.6 C HEETAH 144NE C HASSIS I NPUT /O UTPUT S IGNAL C ONNECTORS ........................................4-9
CHAPTER 5 CABLE INSTALLATION AND POWER CONNECTIONS...................................5-1
5.1 C ONNECTING E QUIPMENT C ABLES .......................................................................................5-1
5.2 C ONNECTION G UIDE C HECKLIST ..........................................................................................5-2
5.3 C HASSIS S UPPLY P OWER C ONNECTIONS ..............................................................................5-3
5.3.1 Chassis Supply Power..........................................................................................................5-3
5.3.2 International Power Requirements.......................................................................................5-4
CHAPTER 6 FRAME AND CONTROL VERIFICATION...........................................................6-1
6.1 S YSTEM P RE - START V ERIFICATION C HECKLIST ....................................................................6-1
6.2 S YSTEM S TARTUP ................................................................................................................6-1
CHAPTER 7 OPERATIONAL DESCRIPTIONS AND CARD/MODULE INSTALLATIONS..7-1
7.1 C HEETAH S ERIES P OWER S UPPLIES ......................................................................................7-1
7.1.1 Cheetah Series Power Supply Information ...........................................................................7-1
7.1.2 Cheetah Series Chassis Power Supplies Locations and Allocations......................................7-2
7.1.3 LED Indicators and Test Points ...........................................................................................7-2
7.1.4 +28V Test Points.................................................................................................................7-3
7.1.5 Installing the Power Supplies...............................................................................................7-3
7.1.6 Removing the Power Supplies..............................................................................................7-3
7.2 I NSTALLING I NPUT B UFFER AND O UTPUT C OMBINER C ARDS ...............................................7-4
7.3 144 X 144 V IDEO M ATRIX (C ROSSPOINT ) C ARD .....................................................................7-4
7.4 F UNCTIONAL D ESCRIPTION - 144 X 144 D IGITAL V IDEO M ATRIX C ARD .................................7-6
7.5 M ATRIX F RAME C ONTROLLER (MFC)..................................................................................7-7
7.5.1 MFC LED Indicators...........................................................................................................7-7
7.5.2 MFC 8-Character Display...................................................................................................7-8
7.5.3 MFC Switch Locations and Settings (S1 and S2)................................................................7-10

Cheetah 144NE Digital Video Router
Publication 81-9059-0676-0, Rev. A
July 2010
Proprietary Information of PESA III
T ABLE OF C ONTENTS (C ONT .)
7.6 R
EAR P ANEL C ONNECTORS ................................................................................................7-11
7.6.1 RS-232 Control Connectors COM 1 and COM 2................................................................7-11
7.6.2 RS-422 Control Connectors COM3/PRC............................................................................7-12
7.6.3 System Control Alarm Connector.......................................................................................7-13
7.6.4 PRC Loop Connector.........................................................................................................7-15
7.6.5 RCP Panel Port Connectors...............................................................................................7-16
7.6.6 Network Connectors ..........................................................................................................7-17
7.6.7 Frame and System Alarm Connectors ................................................................................7-19
7.6.8 House Synchronization Input Connectors...........................................................................7-21
CHAPTER 8 MAINTENANCE AND REPAIR..............................................................................8-1
8.1 M AINTENANCE ....................................................................................................................8-1
8.1.1 Maintenance Overview ........................................................................................................8-1
8.1.2 Air Filter .............................................................................................................................8-1
8.2 R EPAIR ................................................................................................................................8-2
8.2.1 Replacement Parts...............................................................................................................8-2
8.2.2 Return Material Authorization (RMA)..................................................................................8-2
8.3 PESA C USTOMER S ERVICE ..................................................................................................8-3
8.4 C HEETAH S ERIES S UPPORT D OCUMENTATION ......................................................................8-3
8.5 PESA (PESA S WITCHING S YSTEMS , I NC .) C USTOMER S ERVICE C ONTACT I NFORMATION ....8-3
CHAPTER 9 APPENDICES............................................................................................................9-1
9.1 A PPENDIX A: E THERNET C ONFIGURATION ..........................................................................9-1
9.2 A PPENDIX B: SNMP............................................................................................................9-4
9.3 A PPENDIX C: PESA M ATRIX F RAME C ONTROLLER D EBUG P ORT P ROTOCOL ......................9-6
9.4 A PPENDIX D: A BBREVIATIONS , A CRONYMS , AND D EFINITIONS (AA&D) ..........................9-19
L IST OF F IGURES
F
IGURE 3-1 C HEETAH 144NE F RONT V IEWS ..................................................................................................3-1
F IGURE 3-2 C HEETAH 144NE R EAR V IEW ......................................................................................................3-2
F IGURE 4-1 C HEETAH 144NE C HASSIS S TROBE S WITCH L OCATION AND S ETTINGS (F RONT V IEW ) ................4-7

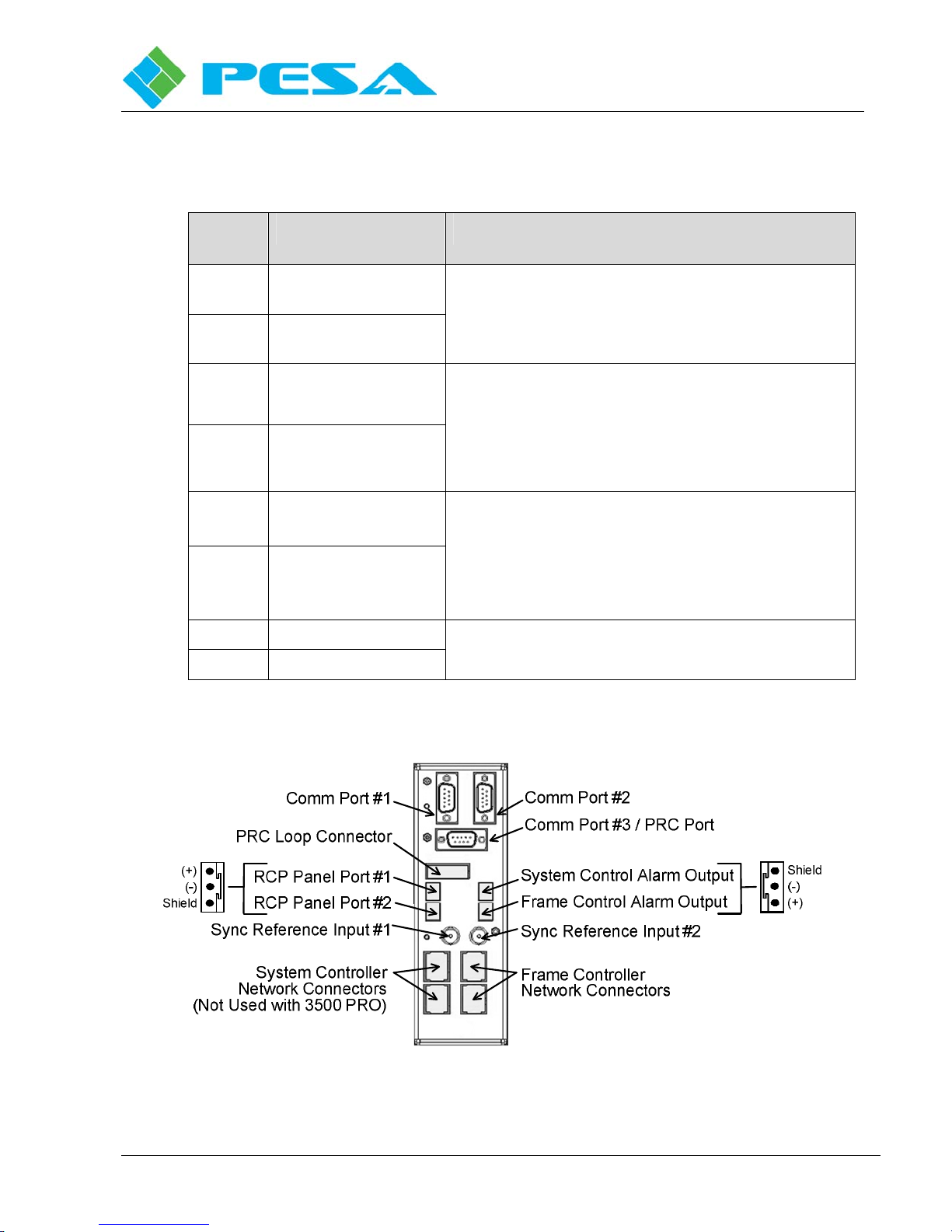

F IGURE 4-2 C HASSIS S YSTEM I NTERFACE C ONNECTOR L OCATIONS AND D ESCRIPTIONS (R EAR V IEW )...........4-8
F IGURE 4-3 C HEETAH 144NE S ERIES I NPUT /O UTPUT S IGNAL C ONNECTORS ( REAR VIEW )..............................4-9
F IGURE 5-1 C ABLES A TTACHED TO S UPPORTS ...............................................................................................5-1
F IGURE 5-2 P OWER S UPPLIES C ONFIGURATION ..............................................................................................5-3
F IGURE 7-1 C HEETAH 144NE C HASSIS P OWER S UPPLY L OCATIONS (F RONT V IEWS )......................................7-2
F IGURE 7-2 P OWER S UPPLY LED I NDICATORS AND T EST P OINTS ...................................................................7-2
F IGURE 7-3 I NPUT /O UTPUT S IGNAL C ONNECTORS ( REAR VIEW ).....................................................................7-4
F IGURE 7-4 144 X 144 V IDEO C ROSSPOINT M ATRIX C ARD LED I NDICATORS ...................................................7-5
F IGURE 7-5 B LOCK D IAGRAM – 144 X 144 D IGITAL V IDEO M ATRIX C ARD ....................................................7-6
F IGURE 7-6 M ATRIX F RAME C ONTROLLER .....................................................................................................7-7

Cheetah 144NE Digital Video Router
Publication 81-9059-0676-0, Rev. A
July 2010
Proprietary Information of PESA IV
L IST OF F IGURES (C ONT .)
F IGURE 7-7 8-C HARACTER D ISPLAY ..............................................................................................................7-8
F IGURE 7-8 MFC D IPSWITCH L OCATIONS ....................................................................................................7-10
F IGURE 7-9 RS-232 C ONTROL C ONNECTORS ................................................................................................7-11
F IGURE 7-10 RS-422 COM 3/PRC C ONTROL C ONNECTOR ...........................................................................7-12
F IGURE 7-11 S YSTEM C ONTROL A LARM C ONNECTOR ..................................................................................7-13
F IGURE 7-12 A LARM C ABLE S ETTING AND A SSOCIATED S CHEMATIC ...........................................................7-14
F IGURE 7-13 PRC L OOP C ONNECTOR ...........................................................................................................7-15
F IGURE 7-14 RS-422 S YSTEM E XPANSION C ABLE ........................................................................................7-15
F IGURE 7-15 RCP P ANEL P ORT C ONNECTORS ..............................................................................................7-16
F IGURE 7-16 RS-485 C ABLE C ONSTRUCTION ...............................................................................................7-16
F IGURE 7-17 N ETWORK C ONNECTORS .........................................................................................................7-17
F IGURE 7-18 E THERNET C ONNECTOR ...........................................................................................................7-17
F IGURE 7-19 T YPICAL M ATRIX F RAME C ONTROLLER C ARDS LOCATIONS , S LOT A AND S LOT B...................7-18
F IGURE 7-20 F RAME AND S YSTEM C ONTROL A LARM C ONNECTOR ..............................................................7-19
F IGURE 7-21 A LARM C ABLE C ONNECTION AND C IRCUIT S CHEMATIC ..........................................................7-20
F IGURE 7-22 H OUSE S YNC I NPUT (R EFERENCE ) C ONNECTORS .....................................................................7-21
L IST OF T ABLES
T ABLE 5-1 AC P OWER C ONNECTORS .............................................................................................................5-4
T ABLE 7-1 P OWER S UPPLY LED I NDICATORS ................................................................................................7-2
T ABLE 7-2 144 X 144 V IDEO C ROSSPOINT M ATRIX C ARD LED D ESCRIPTIONS ................................................7-5
T ABLE 7-3 M ATRIX F RAME C ONTROLLER LED I NDICATORS ..........................................................................7-7
T ABLE 7-3 M ATRIX F RAME C ONTROLLER LED I NDICATORS (C ONT .) ............................................................7-8
T ABLE 7-4 8-C HARACTER D ISPLAY M ESSAGES .............................................................................................7-8
T ABLE 7-4 8-C HARACTER D ISPLAY M ESSAGES (C ONT .)................................................................................7-9
T ABLE 7-5 COM1 AND COM 2 P IN A SSIGNMENTS .......................................................................................7-11
T ABLE 7-6 PESA CPU L INK P ROTOCOLS .....................................................................................................7-12
T ABLE 7-7 COM 3/PRC P IN A SSIGNMENTS ..................................................................................................7-12
T ABLE 7-8 E THERNET LED I NDICATORS ......................................................................................................7-17
T ABLE 9-1 E THERNET C ONFIGURATION .........................................................................................................9-1

Cheetah 144NE Digital Video Router
Publication 81-9059-0676-0, Rev. A
July 2010
Proprietary Information of PESA 1-1
Chapter 1 ABOUT THIS MANUAL
1.1 D OCUMENTATION AND S AFETY O VERVIEW
This manual provides information for the installation and maintenance of PESA’s Cheetah 144NE
Video Routing Switcher.
It is the responsibility of all personnel involved in the installation, operation, and maintenance of the
equipment to know all the applicable safety regulations for the areas they will be working in. Under no
circumstances should any person perform any procedure or sequence in this manual if the
procedural sequence will directly conflict with local Safe Practices. Local Safe Practices shall
remain as the sole determining factor for performing any procedure or sequence outlined in this
document.
Additionally, internal access to the frame compartments of the equipment that is described in this
manual is restricted to qualified service personnel only.
1.2 W ARNINGS , C AUTIONS , AND N OTES
Throughout this document, you should pay attention to various Warnings, Cautions, and Notes. These
addendum statements supply necessary information pertaining to the text or topic they address. It is
important that you read and understand the statements to avoid possible loss of life, personal injury,
and/or destruction/damage to the equipment. These additional statements may also provide added
information that could enhance the operating characteristics of the equipment (i.e., Notes). Examples of
the graphic symbol used to identify each type of statement and the nature of the statement content are
shown in the following paragraphs:
1.2.1 WARNING
Warning statements identify conditions or practices that can result in
loss of life or permanent personal injury if the instructions
contained in the statement are not complied with.
1.2.2 CAUTION
Caution statements identify conditions or practices that can result in
personal injury and/or damage to equipment if the instructions
contained in the statement are not complied with.
1.2.3 NOTE
Notes are for information purposes only. However, they may contain
invaluable information important to the correct installation,
operation, and/or maintenance of the equipment.

Cheetah 144NE Digital Video Router
Publication 81-9059-0676-0, Rev. A
July 2010
Proprietary Information of PESA 2-1
Chapter 2 INTRODUCTION
2.1 P RODUCT O VERVIEW
PESA’s Cheetah 144NE Fiber Router System is a high performance, modular fiber optic switch
system for either ProAV or Broadcast HD-SDI and 3G-SDI applications, and fully supports
SMPTE 259M, 292M, 372M and 424M standards. The Cheetah 144NE Fiber is expandable in
sizes from 36X36 up to 144X144 in the same 4RU frame. It is fully compatible with the new QFX
Series of fiber media extenders for DVI, HD-SDI, and 3G-SDI. The frame supports redundant
power, control, and a hot-swappable 144X144 Crosspoint matrix. I/O cards allow easy expansion
in groups of 36 inputs or 36 outputs per card without the need to replace cards or frames.
The Cheetah 144NE Fiber is a modular design featuring four rear-panel slots for input buffer cards
and four slots for output combiner cards. Each input or output card supports up to 36 fiber optic
connections using standard LC-type fiber SFP modules. The I/O fiber cards are based on 1310nm
singlemode lasers but can be used in multimode applications with reduced performance
specifications. Singlemode fiber allows signal transports up to 10Km while multimode is limited to
approximately 400m with 50/125 cables.
With its small 4RU footprint, the Cheetah 144NE Fiber Router can be configured as a partially
loaded frame allowing for easy future field expansion. The system’s integrated Matrix Frame
Controller monitors the health of the unit and automatically recognizes any new I/O cards. Once
the cards are installed, the Cheetah 144NE Fiber Router can be easily configured with the
3500PRO or PERC 2000 System Controller software. The Cheetah 144NE Fiber Router can be
controlled from the PESA control system or by a third-party control system such as Crestron® or
AMX®.
2.1.1 Cheetah 144NE Standard Features
•Compact 4RU chassis
•Full feature control system using either standard PESA PRC Control or PESA Network
Control (3500Pro or PERC2000)
•Video and data signals from 143Mb/s to 3Gb/s
•Fiber Input and Output cards
•Supported signal types:
HD Multirate from 143Mbs up to 3Gbs
SDI and ASI
•Compatible with SMPTE 259M, 292M, 372M and 424M broadcast standards
•Support for SNMP monitoring and diagnostics
•Full redundant controllers available
•All modules are hot-swappable for on-air maintenance

Cheetah 144NE Digital Video Router
Publication 81-9059-0676-0, Rev. A
July 2010
Proprietary Information of PESA 3-1
Chapter 3 CHASSIS VIEWS AND SPECIFICATIONS
This chapter pictorially displays internal component layout of the switcher, identifies input and output
connections, and lists system specifications.
3.1 C HEETAH 144NE F RAME V IEWS
Fans
Input/Output Cards
Power Supplies
Matrix Card
F IGURE 3-1 Cheetah 144NE Front Views

Cheetah 144NE Digital Video Router
Publication 81-9059-0676-0, Rev. A
July 2010
Proprietary Information of PESA 3-2
F
IGURE 3-2 Cheetah 144NE Rear View

Cheetah 144NE Digital Video Router
Publication 81-9059-0676-0, Rev. A
July 2010
Proprietary Information of PESA 3-3
3.2 S PECIFICATIONS
Digital Specifications
Connector Type Dual Optical SFP Module
Number of Connectors per IO 36
Connector style LC
Return Loss >15dB from 5Mhz to 1.5Ghz
>10dB, 1.5Ghz to 3GHz
Output Signal Level 800mV, p-p, +/-10%
Output Signal Polarity Non-inverted
Input Data Rates 143 Mbps to 1.5Gbps - ASI/SD/HD
143 Mbps to 3.0Gbps - SD/HD/3G
Optical Input wavelength Singlemode ( 1310 optimal)
Input Power -20dBm (min)
-1dBm (max)
Output Data Rates 143 Mbps to 3.0Gbps
Auto reclocking to SMPTE 259M, 292M
424M. Bypass mode - 143Mb to 3Gbps
Output Power -9dBm (min)
-3dBm (max)
Optical Loss Budget Approx. 9dB
assumes two optical connections over
a 10Km singlemode fiber
Jitter < 0.2UI, p-p, SMPTE 259M, 292M
<0.3UI, p-p, SMPTE 424M
compliant with RP-184
Fiber Transmission Specifications IEC 61754-20-1
Typical Operating Distances 9/125u ( 10Km / 6.25 miles)
50/125u (400m / 1200 feet)
62.5/125u (200m / 600feet)
NOTE: Operating distances are approximate only. Cable loss and other interconnects can affect the
total light loss between a TX and RX path. These are only estimates and may not reflect the actual
lengths achievable.
Digital Signal Performance
Re-clocking Auto-detect compliant with
SMPTE 259M, 292M, 424M
Rise/Fall Time < 600 ps, +/- 10% | SMPTE 259M
< 270 ps, | SMPTE 292M
< 135ps, | SMPTE 424M
Overshoot < 10% of amplitude ( max.)

Cheetah 144NE Digital Video Router
Publication 81-9059-0676-0, Rev. A
July 2010
Proprietary Information of PESA 3-4
Alignment Jitter < 0.2UI , 100kHz to 150MHz
< 0.3UI, 150MHz to 300MHz
Timing Jitter <1.0UI from 10Hz to 100kHz | SMPTE 259/292
< 2.0UI from 10Hz to 100kHz | SMPTE 424M
Operational Mode Selections AUTO - detects correct signal type
MANUAL - force to a specific format
BYPASS - allow signals to pass w/o reclocking
Data Rates Supported 143Mbps to 3.0Gbps
Environmental
Cooling Forced air front to back
Operating Temperature 0-40 degrees (C)
Operating Humidity 10-90% non-condensing
AC power connections
144NE IEC - 60320 connector
95VAC to 240VAC, 47-63Hz
450 W Nominal
600 WMax
Safety and Conformance
FCC, CE, UL, RoHS
Warranty 3 years parts and labor
Control and Interfaces
panel communications RS-485 / 3 pin detachable
control communications RS-232 / 422 / Ethernet
connector type 9 pin D-SUB, RJ-45
control system PESA 3500PRO, PERC2000
Third Party Interfaces use PESA CPU Link
Network Software QuView PNC Network interface
Number of Panels per frame 508 (3500PRO System Controller)
256 (PERC2000 System Controller)
Cooling
Internal cooling fans with auto sensing speed adjustments
144NE 2 fans
Mechanical
Dimensions 19.00W X 7.00H X 21.00D
482.6mm X 177.8mm X 533.4mm
Specifications subject to change without notice

Cheetah 144NE Digital Video Router
Publication 81-9059-0676-0, Rev. A
July 2010
Proprietary Information of PESA 4-5
Chapter 4 INITIAL SETUP
4.1 U NPACKING AND I NSPECTION
This equipment contains electrostatic sensitive devices (ESD). Use a grounded
wrist strap, grounding mat, and/or comply with local established ESD
procedures when handling the internal circuit cards to prevent destruction
from electrostatic discharge.
Immediately upon receipt, inspect all shipping containers. Carefully unpack the equipment and
compare the parts received against the packing list. If any parts appear to be missing or damaged,
please contact PESA immediately.
4.2 C HOOSING A L OCATION
For local electrical compliance, this equipment should be located near the
socket-outlet, power strip (if plugs are used), or the supply
disconnect/breaker so that the AC line cord plugs or the supply disconnect
are easily accessible.
This equipment is designed for installation in a standard 19" equipment rack located in an
environment conforming to the specifications for each chassis. Locate each unit as closely as
possible to its associated equipment to minimize cable runs.
Consider the connection from this equipment to the supply circuit, and the effect that possible
overloading can have on overcurrent protection circuits and supply wiring. Refer to nameplate
ratings when addressing this concern.
4.3 M OUNTING A C HEETAH 144NE C HASSIS IN AN E QUIPMENT R ACK
The weight of a fully loaded 144NE chassis is 60 lbs nominal. Installation or
removal of this equipment requires at least two persons in order to avoid
possible personal injury or equipment damage. Install this equipment in such
a manner as to avoid any tipping hazard from uneven loading of the rack.
Make sure that all power is disconnected (Lockout/Tagout) before installing
the specific frame into the rack.
Fans that are mounted on this equipment provide forced-air cooling. Do not
block airflow around these fans. Replace all service panels and blank filler
plates. Keep the chassis door closed during normal operation.

Cheetah 144NE Digital Video Router
Publication 81-9059-0676-0, Rev. A
July 2010
Proprietary Information of PESA 4-6
This equipment is designed for installation in a standard 19" equipment rack. Provide sufficient
space behind the equipment racks to allow for control, signal, power cables, and free airflow after
all cables are installed. Use all chassis mounting holes and tighten mounting hardware securely
by using the rack equipment manufacturer’s suggested torque settings.
Install the equipment into the rack as follows:
1. Carefully, remove the equipment from the packing container and place the unit near the
rack where it will be installed.
2. Insert the chassis into the equipment rack and support the bottom of the chassis while the
mounting hardware is being installed.
3. Install the bottom two chassis mounting screws.
4. Install the top two chassis mounting screws.
5. Install any remaining chassis mounting screws.
6. Tighten all of the chassis mounting screws until they are secure. Release/remove the
support from the bottom of the chassis.
4.4 S ETTING C HASSIS L EVEL C ODES (S TROBES )
Chassis Level Codes (Strobes) assign operational parameters to the switcher frame. There are eight
rotary switches, located just to the right of the power supply modules and accessible from the front
of the router, used to set the chassis level code and other frame operational characteristics. Chassis
switch settings are preset at the factory and should never need any maintenance or adjustment.
This information is provided as a reference so that in the event any switch setting should
inadvertently be changed, it can be restored to its correct setting.
Proper setting positions for these switches are shown in Figure 4-1.
Prior to adjusting any of the chassis strobe switches, it is strongly
recommended that you contact PESA’s Customer Service Department for
assistance.

Cheetah 144NE Digital Video Router
Publication 81-9059-0676-0, Rev. A
July 2010
Proprietary Information of PESA 4-7
Example settings shown are for the 144NE chassis.
F
IGURE 4-1 C HEETAH 144NE C HASSIS S TROBE S WITCH L OCATION AND S ETTINGS (F RONT V IEW )
MSB
LSB
S1
0
8
C4
A
2
E
6
B
97
5
3
1
F
D
S6
0
8
C4
A
2
E
6
B
97
5
3
1F
D
S5
0
8
C4
A
2
E
6
B
97
5
3
1
F
D
S4
0
8
C4
A
2
E
6
B
97
5
3
1
F
D
S3
0
8
C4
A
2
E
6
B
97
5
3
1
F
D
S2
0
8
C4
A
2
E
6
B
97
5
3
1
F
D
MSB
MSB
LSB
LSB
Level
Output
Input
LSB S8
0
8
C4
A
2
E
6
B
97
5
3
1
F
D
S7
0
8
C4
A
2
E
6
B
97
5
3
1
F
D
MSB
Frame
S1 = 0
S2 = 1
S3 = 0
S4 = 0
S5 = 0
S6 = 0
S7 = 2
S8 = 0

Cheetah 144NE Digital Video Router
Publication 81-9059-0676-0, Rev. A
July 2010
Proprietary Information of PESA 4-8
4.4.1 Chassis Strobe Switch Functions
R OTARY
S WITCH N
AME D ESCRIPTION
S1 Most Significant Bit
(MSB) Level Code
S2 Least Significant Bit
(LSB) Level Code
The level code identifies the matrix level of the router.
This setting accepts 1 to 63 in binary (1 to 3F in
hexadecimal). This setting must match the Strobe setting
assigned through the System Controller.
S3 MSB Output Offsets
S4 LSB Output Offsets
This strobe is used to offset output origin when frames
are added to the system. This setting accepts 1 to 255 in
binary (1 to FF in hexadecimal). Set this strobe to the
first offset number you want to use in this unit. This
setting must match the Output Offset setting in the
System Controller.
S5 MSB Input Offsets
S6 LSB Input Offsets
This strobe is used to offset input origin when frames are
added to the system. This setting accepts 1 to 255 in
binary (1 to FF in hexadecimal). Set this strobe to the
first input number you want to use for this unit. This
setting must match the Input Offset setting in the System
Controller.
S7 MSB Frame
S8 LSB Frame
Specifies the type of frame the boards are plugged into.
4.5 C HASSIS S YSTEM C ONNECTION L OCATIONS
F IGURE 4-2 Chassis System Interface Connector Locations and Descriptions (Rear View)

Cheetah 144NE Digital Video Router
Publication 81-9059-0676-0, Rev. A
July 2010
Proprietary Information of PESA 4-9
4.6 C HEETAH 144NE C HASSIS I NPUT /O UTPUT S IGNAL C ONNECTORS
Dual SFP fiber optic connectors, located on the rear of the unit (see Figure 4-3) provide the
input/output signal interface.
A) Cheetah 144NE I/O Connections
B) Signal I/O Channel Connections
F IGURE 4-3 Cheetah 144NE Series Input/Output Signal Connectors (rear view)

Cheetah 144NE Digital Video Router
Publication 81-9059-0676-0, Rev. A
July 2010
Proprietary Information of PESA 5-1
Chapter 5 CABLE INSTALLATION AND POWER CONNECTIONS
5.1 C ONNECTING E QUIPMENT C ABLES
Use the following guidelines when connecting equipment cables:
1. Install the equipment in the rack before connecting cables.
2. Relieve strain on all cables to prevent connector separation.
3. To the extent possible, separate control, signal, and power cables to minimize crosstalk and
interference.
4. Use as many cable ties as necessary to secure cables to the rack (see Figure 5-1). This will
minimize the amount of force transmitted to the equipment and help route cables away from
hazardous areas.
F
IGURE 5-1 Cables Attached to Supports
5. Route cables away from physical traffic areas to avoid creating a safety hazard (trip or
shock).
6. Bundle together any cables connected to a single input/output card and separate them from
the other bundles with enough slack to create a service loop. This will permit individual card
replacement without disruption to the other input/output cards.

Cheetah 144NE Digital Video Router
Publication 81-9059-0676-0, Rev. A
July 2010
Proprietary Information of PESA 5-2
5.2 C ONNECTION G UIDE C HECKLIST
Once the Cheetah Video Matrix Switcher is installed in the equipment rack, the associated system
connections can be completed. Use the following guide to insure that interconnections are properly
connected and that the control, power, sync, and video cables are correctly installed (for further
detailed information, refer to the corresponding sub-section in this Chapter).
1. Connect external sync sources to reference input BNC connectors using Belden 8281 coaxial
cable or equivalent. Reference input BNC connectors are terminated into 75Ωinternal to the
switcher.
2. Connect the primary external computer to the COM 1 Connector using a 9-pin, RS-232
cable. Please note that this connection must be made to configure the internal System
Controller using the 3500 Series Control System software package. If a secondary external
computer is to be used, connect it to the COM 2 Connector.
3. If additional Cheetah Switchers are to be utilized as part of the switching matrix, connect the
PRC Loop jack on the primary Cheetah Switcher to PRC Loop jack on the other Cheetah
Switcher using 5-pin ribbon cables.
4. If an external controller (such as the 3500PRO or PERC2000 System Controller) is used to
control the Cheetah Switcher, connect the external controller to COM 3 PRC using 9-pin RS-
422 cable.
5. Connect the RCP control panels to the RCP Panel Ports (#1 and/or #2) using twisted pair
cables while observing polarity (refer to Chapter 7). Connections to control panel may be
daisy-chained.
6. If Ethernet connectivity is desired (system controller), connect a 10baseT RJ-45 LAN
connector to the System Controller Ethernet jacks.
7. Configure the Ethernet settings as described in Appendix A, paragraph 9.1 of this manual.
8. If SNMP management of additional Cheetah Switchers is to be utilized, connect the
switchers using the Frame Controller Ethernet connectors.
9. Configure the Ethernet and SNMP settings as described in the Appendices.
11. If desired, connect an external alarm to the System Control Alarm (for further connection
compliance information, refer to Chapter 7 for connector pin-outs).
12. If desired, connect an external alarm to the Frame Control Alarm (for further connection
compliance information, refer to Chapter 7 for connector pin-outs).
13. Connect video sources to video inputs using SM or MM fiber optic cable.
14. Connect video outputs to video destinations using SM or MM fiber optic cable.

Cheetah 144NE Digital Video Router
Publication 81-9059-0676-0, Rev. A
July 2010
Proprietary Information of PESA 5-3
5.3 C HASSIS S UPPLY P OWER C ONNECTIONS
All Cheetah frames have two AC receptacle power inputs. As depicted in Figure 5-2, each AC
power input is filtered, full-wave bridge rectified, and then fed to the power supply to be diode
OR’d with the other rectified power inputs to the system supply.
F
IGURE 5-2 Power Supplies Configuration
5.3.1 Chassis Supply Power
Make sure that all source power is within the operating range of the
equipment before completing the specific power connections. Read the
Maximum Voltage requirements starting in this section (Chapter 6).
To prevent damage to the equipment:
•Read all instructions for proper input voltage ranges.
•Use the recommended specified power branch circuit ampacity.
•Follow static prevention precautions prior to handling equipment.
5.3.1.1 Chassis Power Cord
AC power cords may differ depending on your power requirements. The chassis is supplied
with two USA standard power cords for 120VAC-power service (or the standards for the
country that the system is shipped to).
ACH 1
ACN 1
ACG 1
MOV
Filter
Bridge
Rectifier
Cheetah
Power
Supply
+ VDC
Out
(-)
(+)
ACH 1
ACN 1
ACG 1
MOV
Filter
Bridge
Rectifier
Cheetah
Power
Supply
+ VDC
Out
(-)
(+)
System
DC Power
IN

Cheetah 144NE Digital Video Router
Publication 81-9059-0676-0, Rev. A
July 2010
Proprietary Information of PESA 5-4
5.3.1.2 Chassis AC External Power Requirements
The 144NE chassis is supplied with redundant, prefabricated, UL/CSA approved power cords
that include NEMA 5-15P male and IEC-60320-C13 female line connectors. These cords are
for connection to a 120VAC-supply service (refer to Table 6-1).
T
ABLE 5-1 AC Power Connectors
AC Power Cable Minimum Amps
Required IEC Pigtail Service Drops
IEC-type line cord (120VAC connectors)
10A Service Yes No 1-Standard
1-Redundant
This AC power filter assembly has been designed for 95-240VAC, which
includes connectors and cords specified to handle maximum power
requirements.
5.3.2 International Power Requirements
All Cheetah frames have two AC Main power feeds, which are isolated from each another. All
international power requirements are pre-configured at the factory and commercially available,
prefabricated power cords designed for the power source that the equipment will be operating are
supplied with each unit.
As in the United States, international operation with one power supply is the normal, non-option
condition. An optional second (redundant/backup) power supply is available. Typical full-frame
power consumption is approximately 6.0 Amps or approximately 650 Watts at 240 VAC nominal
regardless of the number of power supplies in use.
