PEUGEOT 207 CC 2014 User manual

HANDBOOK

Please note the following point:
The fitting of electrical equipment or accessories which are not
recommended by PEUGEOT may result in a failure of your vehicle's
electronic system. Please note this specific warning. It is advisable
to contact a PEUGEOT dealer to be shown the recommended
equipment and accessories.
On-line handbook
You can find your handbook on the
PEUGEOT
website, under
"MyPEUGEOT".
Referring to the handbook on-line also gives you access to the
latest information available, easily identified by the bookmark,
associated with this symbol:
If the "MyPEUGEOT" function is not available on the
PEUGEOT
public website for your country, you can find your handbook at the
following address:
http://public.servicebox.peugeot.com/ddb/
The Vehicle documentation link in the home page (no registration is
needed),
the language,
the vehicle, its body style,
the print edition of your handbook appropriate for the date of
registration of your vehicle.
Select:
You have access to your handbook on line, together with the latest
information, identified by the symbol:

!
i
1
Thank you for choosing a 207 CC, a
symbol of confi dence, passion and in-
spiration.
This handbook has been designed to
enable you to make the most of your
207 CC.
On the fi rst few pages, you will fi nd a
detailed summary, followed by a quick
reference guide intended to make it
easier for you to become familiar with
your coupé-cabriolet.
All of the details specifi c to your 207 CC,
comfort, safety, driving, are then pre-
sented in this handbook, to increase
your appreciation of the vehicle help
you get the most from it.
Each model may only be fi tted with
some of the equipment mentioned in
this handbook, depending on its version
and the specifi cation for the country in
which it is sold.
Page reference:
this symbol invites you to refer to
the pages which provide details
of the function.
Key
Protection of the environment:
this symbol accompanies advice
relating to protection of the envi-
ronment.
Information:
this symbol draws your attention
to additional information for better
use of your vehicle.
Warning:
this symbol marks warnings which
it is essential to observe for your
own safety, for the safety of others
or to avoid any risk of damaging
your vehicle.
Welcome

2
CONTENTS
■Instrument panels 20
■Indicator and warning lamps 21
■Indicators 28
■Adjustment buttons 32
■Screens without
audio equipment 33
■Screens with audio equipment 35
■16/9 colour screen
(PEUGEOT Connect Navigation) 40
■Trip computer 42
■Ventilation 45
■Heating 47
■Manual air conditioning 47
■Rear screen
demist - defrost 49
■Digital air conditioning 50
■Seats 52
■Steering wheel adjustment 54
■Mirrors 55
■ Interior fi ttings 57
■Windstop 62
COMFORT 45 64
■Remote control key 65
■Alarm 69
■Window controls 71
■Doors 73
■Boot 76
■Fuel tank 77
■Misfuel prevention
(Diesel) 79
ACCESS 65 79
■Lighting control stalk 80
■Static directional lighting 83
■Headlamp adjustment 83
■Wiper control stalk 84
■Courtesy lamp 85
VISIBILITY 80 85
■Conventional child seats 86
■Deactivating
the passenger's front airbag 87
■ISOFIX child seats 94
CHILD SAFETY 86 96
FAMILIARISATION 4 17
MONITORING 20 44
5
4
3
2
1
ECO-DRIVING 18 19

3
CONTENTS
■Direction indicators 97
■Emergency
or assistance call 97
■Warning triangle 97
■Hazard warning lamps 98
■Horn 98
■ Tyre under-infl ation detection 99
■Braking
assistance systems 100
■Trajectory
control systems 101
■Seat belts 102
■Airbags 105
SAFETY 97 108
■Parking brake 109
■Manual gearbox 109
■Gear shift
indicator 110
■Automatic
gearbox 111
■Speed limiter 114
■Cruise control 116
■Parking sensors 118
DRIVING 109 119
■Bonnet 121
■Running out of fuel (Diesel) 121
■Petrol engines 122
■Diesel engine 123
■Checking levels 124
■Checks 126
CHECKS 120 127
■Temporary puncture
repair kit 128
■Changing a wheel 133
■Snow chains 137
■Changing a bulb 138
■Changing a fuse 142
■Battery 147
■Energy economy mode 149
■Changing
a wiper blade 149
■Towing the vehicle 150
■Towing a trailer 151
■Accessories 153
PRACTICAL
INFORMATION 128 153
■Petrol engines 154
■Weights (petrol) 155
■Diesel engine 156
■Weights (Diesel) 157
■Dimensions 158
■ Identifi cation markings 159
TECHNICAL DATA
154 160
AUDIO EQUIPMENT and
TELEMATICS 161 214
■Emergency or assistance 161
■PEUGEOT Connect Navigation
(RNEG) 163
■PEUGEOT Connect Sound
(RD5) 195
ALPHABETICAL
INDEX 219223
7
8
6
9
10
VISUAL
SEARCH 215 218

4
FAMILIARISATION
EXTERIOR
Retractable roof
This system enables you to change the
vehicle from "coupé" to "cabriolet" con-
fi guration and vice versa with a single
action.
Static directional lighting
This additional lighting automatically
provides extended visibility when
turning.
Visual and audible rear parking
sensors
This system provides a warning when
reversing by detecting obstacles locat-
ed behind the vehicle.
Under-inflation detection
This system monitors the pressure in
each tyre and warns you of a punc-
ture or drop in pressure.
Turbulence prevention
net (Windstop)
In "cabriolet" confi guration, this
system reduces the wind turbu-
lence in the front seats.
Temporary puncture repair kit
This kit is a complete system, con-
sisting of a compressor and an inte-
gral sealant, for the temporary repair
of a tyre.
6
83 99 128
61
118

i i
5
FAMILIARISATION
OPENING
Remote control key
A. Unfolding/Folding the key.
B. Unlocking the vehicle.
C. Unlocking and partially opening the
boot.
Also...
D. Normal locking
or
Deadlocking of the vehicle.
Fuel tank
1. Opening the fuel fi ller fl ap.
2. Opening and hooking the fuel fi ller
cap.
Capacity of the tank: approximately
50 litres (petrol) or 48 litres (Diesel).
Boot
From outside
From inside
1. Unlocking the complete vehicle or
unlocking the boot and the vehicle.
2. Opening the boot lid.
1. Key in the ignition switch.
2. Unlocking using the manual central
locking control or the door opening
control.
On Diesel vehicles, the fuel fi ller
neck incorporates a misfuel preven-
tion device which prevents fi lling
with petrol.
65
76
77
79

!
!
i
6
FAMILIARISATION
OPENING
Retractable roof
When washing your vehicle:
- lock the vehicle,
- avoid spraying the upper part
of the windows,
- keep the end of the high-pres-
sure nozzle at least 1 metre
from the windows and door
seals.
After washing the vehicle or fol-
lowing rain, wait until the roof has
dried before opening it.
The roof is operated under the
sole responsibility of the driver.
During operation of the roof, to
avoid the risk of injury, ensure that
no one is in the vicinity of the mov-
ing parts.
You are strongly advised not to op-
erate the roof in strong winds.
It is preferable to operate the roof
with the engine running.
The roof can be operated at
speeds below 6 mph (10 km/h).
It is only possible to carry out the
operation twice with the engine off,
to avoid discharging the battery.
Preliminary conditions
Switch on the ignition.
Ensure that:
- the vehicle is not in energy econo-
my mode (refer to the correspond-
ing section),
- the battery voltage is suffi cient (il-
lumination of the indicator lamp in
the roof control),
- the roof fuse is in good condition
(refer to the corresponding section),
- the electric windows are initialised
(refer to the corresponding section),
- the ambient temperature is above
-15 °C.
Precautions to be taken before
operating the roof
Park the vehicle on level ground.
Check that no object could hinder
the operation of the roof:
- nothing should be placed on the
moving rear shelf 1or on the
net 2.
- if luggage is being carried in the
boot, it must not raise the net.
Ensure that the net 2is secure.
Close the boot correctly.
Maintenance
Carry out a complete opening
and closing operation of the roof
at least once a month to keep it in
good working order.

i
!
!
7
FAMILIARISATION
OPENING
Retractable roof operation
Opening the roof
Pull this control until the roof
is fully open.
Closing the roof
Press this control until the
roof is fully closed.
Do not release the roof control dur-
ing operation of the roof.
However, in the event of danger,
release the control, the roof stops;
then, when the danger is no longer
present, complete the required op-
eration.
If the operation has not completely
fi nished, you will be warned by an
audible signal and a message in
the multifunction screen. These will
be repeated as the vehicle passes
a number of speed thresholds.
Changing to "cabriolet"
confi guration:
- the four windows lower,
- the boot opens,
- the roof folds into the boot,
- the boot closes.
If you continue to pull or press this
control after the end of the opera-
tion, the four windows rise.
The electric window controls and
the control for the four windows
are deactivated during operation
of the roof.
The roof electronic control unit
may interrupt the operation in
progress as a precaution (for ex-
ample: door movement and roof
operation in quick succession). In
this case, release the control then
operate it again to complete the
required operation.
Operating fault
If a malfunction of the roof occurs,
apply the parking brake, switch
off the ignition, restart the engine,
then start the required operation
again.
If the problem persists, contact a
PEUGEOT dealer.
Changing to "coupé" confi guration:
- the four windows lower,
- the boot opens,
- the roof opens out and locks auto-
matically,
- the boot closes.
The end of the operation is confi rmed
by an audible signal and a message in
the multifunction screen.
The end of the operation is confi rmed
by an audible signal and a message in
the multifunction screen.

8
FAMILIARISATION
INTERIOR
Dual-zone digital air
conditioning
This system allows different levels of
comfort to be set for the driver and the
front passenger. It then automatically
controls these levels according to the
ambient conditions.
Automatic gearbox
This system provides perfect driving
pleasure by combining a fully automatic
mode, associated with two special pro-
grammes, and a manual mode.
Audio and communication
systems
These systems benefi t from the latest tech-
nology: MP3 compatible PEUGEOT Connect
Sound (RD5), PEUGEOT Connect USB,
Bluetooth hands-free system, PEUGEOT
Connect Navigation (RNEG) with 16/9 colour
screen, JBL audio system, auxiliary sockets.
PEUGEOT Connect Navigation (RNEG)
Electric windows
On the driver's side, control of
the electric window is automatic
when opening and when closing.
163
195
202
71
111
50
PEUGEOT Connect Sound (RD5)
PEUGEOT Connect USB

9
FAMILIARISATION
INSTRUMENTS AND CONTROLS
1. Audio equipment steering mounted
controls.
2. Steering lock and ignition.
3. Wiper/wash-wipe/trip computer
control stalk.
4. Instrument panel.
5. Driver's airbag.
Horn.
6. Dynamic stability control (ESP/ASR)
button.
Central locking button.
Alarm button.
7. Gear lever.
8. Parking brake.
9. Retractable roof control.
Control for the four windows.
10. Door mirror controls.
Electric window controls.
11. Headlamp height adjustment.
12. Door window demisting vent.
13. Side adjustable air vent.
14. Windscreen demisting vent.

10
FAMILIARISATION
INSTRUMENTS AND CONTROLS
1. Steering wheel adjustment control.
2. Cruise control/speed limiter
switches.
3. Lighting and direction indicator
control stalk.
4. Hazard warning lamps switch.
5. Multifunction screen.
Seat belt fastening status warning
lamps.
6. Sunshine sensor.
7. Passenger's airbag.
8. Speaker (medium tweeter).
9. Glove box / Passenger's airbag
deactivation / Audio/video sockets /
Fusebox.
10. Bonnet release lever.
11. 12 V accessory socket.
12. USB port.
13. Heating/air conditioning controls.
14. Storage compartment.
15. Audio and telematics system.
16. Central adjustable air vents.

i
!
11
FAMILIARISATION
SITTING COMFORTABLY
Also...
5. Access to the rear seats.
Front seat adjustment Steering wheel adjustment
1. Forwards-backwards adjustment.
2. Height adjustment.
3. Seat back angle adjustment.
4. Head restraint height adjustment.
1. Unlocking the control.
2. Adjustment for height and reach.
3. Locking the control.
As a safety precaution, these op-
erations must only be carried out
while stationary.
52
54

i
12
FAMILIARISATION
SITTING COMFORTABLY

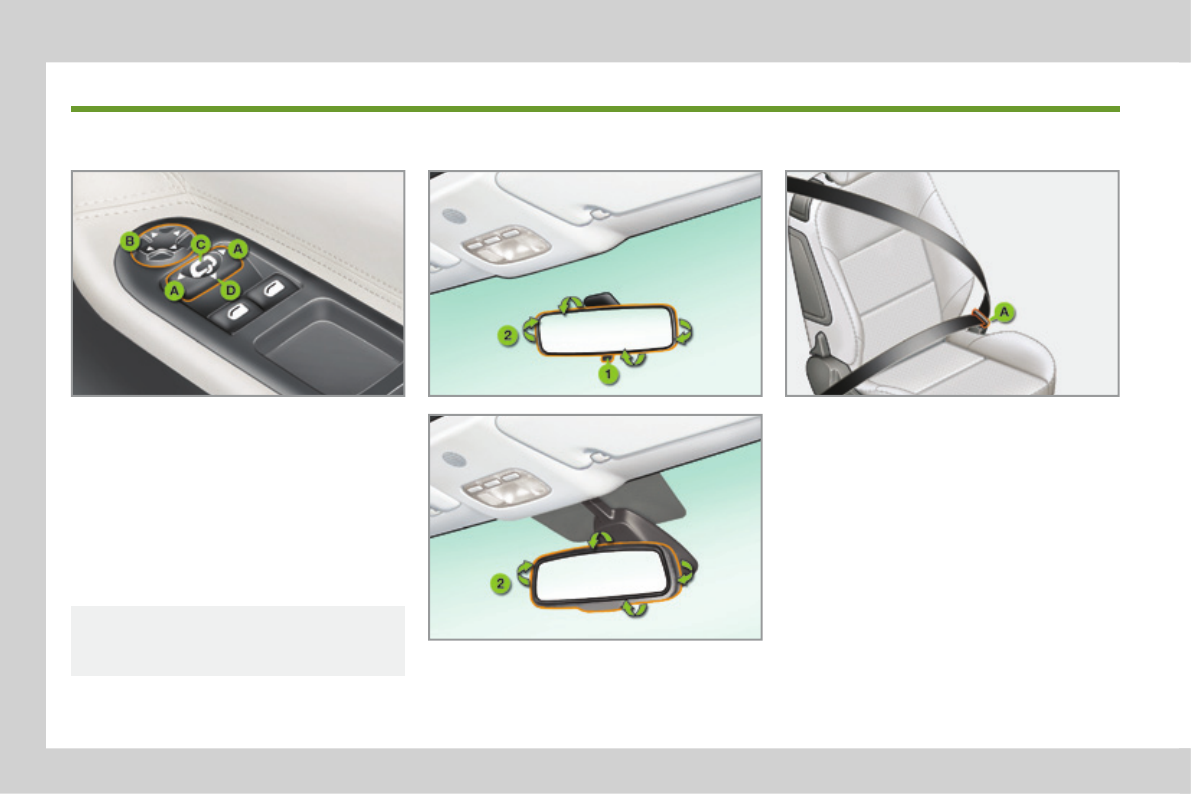

Door mirror adjustment
A. Selecting the mirror.
B. Adjusting the position of the mirror.
C. De-selecting the mirror.
Also...
D. Folding/Unfolding.
Rear view mirror adjustment
1. Selecting the "day" position of the
mirror.
2. Adjusting the mirror.
Front seat belts
A. Installing the strap.
B. Fastening the buckle.
C. Checking the fastening by pulling
the strap.
55
56
103

i
13
FAMILIARISATION
SEEING CLEARLY
Lighting Wipers
Ring B
Front and rear foglamps.
Ring A Stalk A: windscreen wipers
2. Fast wipe.
1. Normal wipe.
I. Intermittent wipe.
0. Park.
Single wipe.
Screenwash: pull the stalk towards you.
Lighting off.
Automatic illumination of head-
lamps.
Sidelamps.
Dipped/main beam headlamps.
Automatic wiping is not currently
available on the 207CC.
80 81 84

–
14
FAMILIARISATION
VENTILATION
Advice on interior settings
Digital air conditioning: use of the fully automatic mode by pressing the "AUTO" button is recommended.
I require...
Heating or Manual air conditioning
Air distribution Air fl ow Air recirculation/
Exterior air intake Temperature Manual A/C
HEAT
COOL
DEMISTING
DEFROSTING

15
FAMILIARISATION
MONITORING
Instrument panel Switch panel
A. With the ignition on, the fuel gauge nee-
dle should rise.
B. With the engine running, the associated
low level warning lamp should switch off.
C. With the ignition on, the oil level in-
dicator should display "OIL OK" for
a few seconds.
If the levels are not correct, top up the level
which is low.
Illumination of the indicator lamp shows
the status of the corresponding function.
A. Deactivation of the ESP/ASR system.
1. With the ignition on, the orange and
red warning lamps come on.
2. With the engine running, these
warning lamps should go off.
If a warning lamp remains on, refer to
the page concerned.
Warning lamps
B. Central locking.
C. Deactivation of the interior volumet-
ric protection alarm.
20
21
101
74
69

!
16
FAMILIARISATION
Front passenger's airbag Ignition switch
1. Open the glove box.
2. Insert the key.
3. Select position:
"ON" (activation), with front passen-
ger or "forwards facing" child seat,
"OFF" (deactivation), with "rear fac-
ing" child seat.
4. Remove the key keeping the switch
in the new position.
1. Stop position.
2. Ignition position.
3. Starting position.
A. Front left seat belt not fastened or
unfastened warning lamp on in red.
B. Front right seat belt not fastened or
unfastened warning lamp on in red.
Front seat belts
A heavy object (key fob...), at-
tached to the key and weighing
down on its shaft in the ignition
switch, could cause a malfunction.
PASSENGER SAFETY
START
106
103
67

17
FAMILIARISATION
DRIVING SAFELY

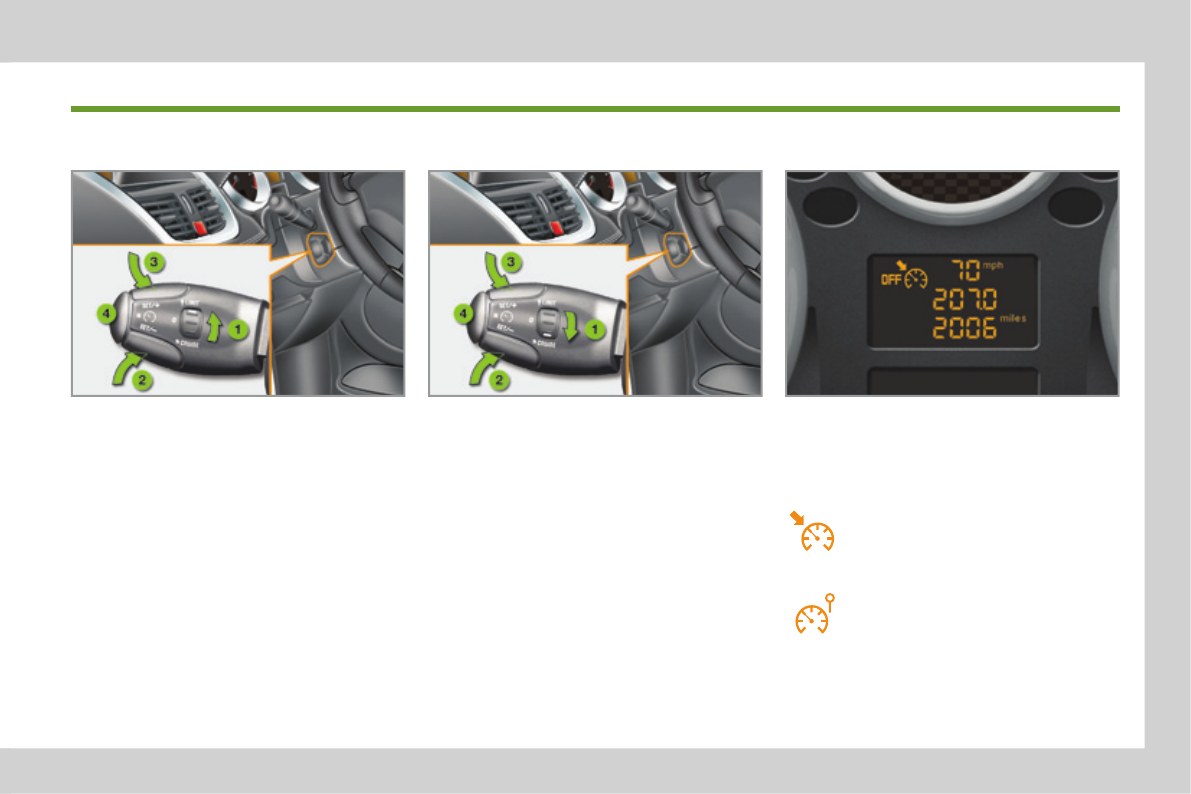

Speed limiter "LIMIT" Instrument panel display
1. Selecting/Switching off speed limiter
mode.
2. Decrease the programmed value.
3. Increase the programmed value.
4. Speed limiter on/off.
The values must be set with the engine
running.
The cruise control or speed limiter
mode appears in the instrument panel
when it is selected.
1. Selecting/Switching off cruise con-
trol mode.
2. Decrease the programmed value.
3. Increase the programmed value.
4. Off/return to cruise control.
In order to be programmed or activated,
the vehicle speed must be higher than
25 mph (40 km/h), with at least fourth
gear engaged on a manual gearbox
(second gear on an automatic gearbox).
Cruise control "CRUISE"
Cruise control
Speed limiter
114
116

18
ECO-DRIVING
Eco-driving is a range of everyday practices that allow the motorist to optimise their fuel consumption and CO2emissions.
Optimise the use of your gearbox
With a manual gearbox, move off gently and change up
without waiting. During acceleration change up early.
With an automatic or electronic gearbox, give preference to
automatic mode and avoid pressing the accelerator pedal
heavily or suddenly.
The gear shift indicator invites you engage the most suitable
gear: as soon as the indication is displayed in the instru-
ment panel, follow it straight away.
For vehicles fi tted with an electronic or automatic gearbox,
this indicator appears only in manual mode.
Drive smoothly
Maintain a safe distance between vehicles, use engine
braking rather than the brake pedal, and press the accel-
erator progressively. These practices contribute towards a
reduction in fuel consumption and CO2emissions and also
helps reduce the background traffi c noise.
Switch off the headlamps and front foglamps when the level
of light does not require their use.
Avoid running the engine before moving off, particularly in
winter; your vehicle will warm up much faster while driving.
As a passenger, if you avoid connecting your multimedia
devices (fi lm, music, video game...), you will contribute to-
wards limiting the consumption of electrical energy, and so
of fuel.
Disconnect your portable devices before leaving the vehicle.
If your vehicle has cruise control, make use of the system at
speeds above 25 mph (40 km/h) when the traffi c is fl owing
well.
Control the use of your electrical equipment
Before moving off, if the passenger compartment is too
warm, ventilate it by opening the windows and air vents be-
fore using the air conditioning.
Above 30 mph (50 km/h), close the windows and leave the
air vents open.
Remember to make use of equipment that can help keep
the temperature in the passenger compartment down (sun-
roof and window blinds...).
Switch off the air conditioning, unless it has automatic regu-
lation, as soon as the desired temperature is attained.
Switch off the demisting and defrosting controls, if not au-
tomatic.
Switch off the heated seat as soon as possible.
