PEUGEOT 108 User manual

Handbook

On-line handbook
Select one of the following means of access to view your
handbook on-line...
Referring to the handbook on-line also gives you access to the latest information available, easily identified by the bookmark, associated with
this symbol:
If the "MyPeuge Ot " function is not available on the Peuge Ot
public website for your country, you can find your handbook at the
following address:
http://public.servicebox.peugeot.com/ddb/
the language,
the vehicle, its body style,
the print edition of your handbook appropriate for the date of registration of
your vehicle.
Select:
Find your handbook on the Peuge Ot website, under
"MyPeuge Ot ". Scan this code for direct access to your handbook.

Key
Warning:
this symbol marks warnings which it is essential to observe for your
own safety, for the safety of others or to avoid any risk of damaging
your vehicle.
Information:
this symbol draws your attention to additional information for better
use of your vehicle.
Protection of the environment:
this symbol accompanies advice relating to protection of
the environment.
Page reference:
this symbol invites you to refer to the pages which provide details of
the function.
Your vehicle is fitted with only some of the equipment described
in this document, depending on its trim level, version and the
specification for the country in which it was sold.
We draw your attention to the following point:
t he fitting of electrical equipment or accessories which are
not recommended by Peuge Ot may result in a failure of your
vehicle's electronic system. Contact a Peuge Ot dealer to be
shown the recommended equipment and accessories.
t hank you for choosing a 108.
t his handbook has been designed to enable you to make the
most of your 108 in all circumstances.
WeLCOMe

.
.
Contents
B3_en_Chap00a_sommaire_ed01-2014
Lighting control stalk 93
Automatic illumination of headlamps 96
Headlamp adjustment 98
Wiper control stalk 99
Courtesy lamp 101
Boot lamp 101
Visibility
Instrument panel 10
Rev counter 10
Display screens 11
Indicator and warning lamps 13
Indicators 24
t rip computer 26
Setting the time 28
Monitoring
Overview Keys 30
"Keyless entry and Starting" system 33
Doors 38
Boot 39
Front electric windows 41
Rear quarter windows 41
electric fabric roof 42
Access
Front seats 47
Rear seats 49
Mirrors 51
Steering wheel adjustment 52
Ventilation 53
Heating 55
Manual air conditioning 56
Automatic air conditioning 58
Front demist - defrost 62
Rear screen demist - defrost 63
Comfort
Interior ttings 64
Rear parcel shelf 68
Boot ttings 69
Fittings
Starting - stopping the engine with the key 71
Starting - stopping the engine with the Keyless
entry and Starting system 72
Manual parking brake 76
5-speed manual gearbox 76
etg electronic gearbox 77
g ear shift indicator 81
Hill start assist 82
Stop & Start 83
Speed limiter 86
Reversing camera 92
Driving
eco-driving

.
.
Contents
B3_en_Chap00a_sommaire_ed01-2014
Direction indicators 102
Horn 102
Hazard warning lamps 103
Under-ination detection 103
eSC system 107
Seat belts 110
Airbags 113
Safety
Child seats 118
Deactivating the passenger's front airbag 121
ISOFIX child seats 127
Child lock 133
Child safety Checks
Fuel tank 134
t emporary puncture repair kit 136
Changing a wheel 141
Snow chains 146
Changing a bulb 147
Changing a fuse 152
12 V battery 161
electrical energy economy mode 164
Changing a wiper blade 164
t owing the vehicle 165
Fitting roof bars 166
Accessories 167
Practical information t echnical data
7-inch touch screen 181
Radio 221
Audio equipment and telematics
Visual search
Alphabetical index
Bonnet 170
Petrol engines 171
Checking levels 172
Checks 175
engines 177
Weights 178
Dimensions 179
Identication markings 180

4
Overview
exterior
103
83
33
Electronic key: Keyless
Entry and Starting
t his system allows the locking, unlocking and
starting the vehicle by keeping the key on your
person and in the recognition zone. Stop & Start
t his system puts the engine temporarily into
standby during stops in the traffic (red lights,
traffic jams, etc....). t he engine restarts
automatically as soon as you want to move
off. t he Stop & Start system reduces fuel
consumption, exhaust emissions and the noise
level when stationary.
Under-inflation detection
t his system automatically checks the tyre
pressures when driving and alerts you in the
event of an under-inflated tyre.
B3_en_Chap00b_vue-ensemble_ed01-2014

.
5
Overview
Electric fabric roof
t his roof can be changed from closed to open
configuration and then closed again with just a
simple action on the control switch.
42
Reversing camera
t his system operates automatically when
engaging reverse gear and provides an image
in the touch screen.
92
exterior
136
Temporary puncture repair
kit
t his kit is a complete system, consisting of a
compressor and a sealant cartridge, for the
temporary repair of a tyre.
B3_en_Chap00b_vue-ensemble_ed01-2014

6
Overview
B3_en_Chap00b_vue-ensemble_ed01-2014

.
7
Overview
Instruments and controls
1. Lighting and direction indicator stalk
2. Steering mounted controls for the audio
system or the touch screen
3. Steering mounted controls for the etg
electronic gearbox
4. Speed limiter control
5. Screen wash/wipe control stalk
6. electric window controls
7. Bonnet release
8. Fuel filler flap release
9. Deactivation of Stop & Start
Headlamp height adjustment
10. Door mirror adjustment controls
11. Deactivation of VSC / t RC systems
12. Steering wheel adjustment control
13. Driver's front airbag
Horn
14. Side air vents
15. Instrument panel
16. Courtesy lamp
electric fabric roof control
17. Passenger's front airbag
18. g love box/
Deactivation of the passenger's front
airbag/
Reinitialisation of the tyre under-inflation
detection system
19. Radio, touch screen or open storage
20. St ARt /St OP button
21. Hazard warning lamps
22. Manual or automatic air conditioning
controls
23. Auxiliary sockets for portable devices
24. g ear lever
25. Cup holder and storage
26. Parking brake
27. Can holder
B3_en_Chap00b_vue-ensemble_ed01-2014

8
eco-driving
Optimise the use of your gearbox
With a manual gearbox, move off gently and change up without waiting.
During acceleration change up early.
With an etg electronic gearbox, give preference to automatic (easy)
mode and avoid pressing the accelerator pedal heavily or suddenly.
Control the use of your electrical
equipment
Before moving off, if the passenger compartment is too warm, ventilate it
by opening the windows and air vents before using the air conditioning.
Above 30 mph (50 km/h), close the windows and leave the air vents
open.
Remember to make use of equipment that can help keep the
temperature in the passenger compartment down (sunroof and window
blinds...).
Switch off the air conditioning, unless it has automatic regulation, as
soon as the desired temperature is attained.
Switch off the demisting and defrosting controls, if not automatic.
Switch off the heated seat as soon as possible.
Switch off the headlamps and front foglamps when the level of light
does not require their use.
Avoid running the engine before moving off, particularly in winter; your
vehicle will warm up much faster while driving.
As a passenger, if you avoid connecting your multimedia devices
(film, music, video game...), you will contribute towards limiting the
consumption of electrical energy, and so of fuel.
Disconnect your portable devices before leaving the vehicle.
eco-driving
eco-driving is a range of everyday practices that allow the motorist to optimise their fuel consumption and CO2emissions.
t he gear shift indicator invites you engage the most suitable gear:
as soon as the indication is displayed in the instrument panel, follow it
straight away.
For vehicles fitted with an etg electronic gearbox, this indicator
appears only in manual mode.
Drive smoothly
Maintain a safe distance between vehicles, use engine braking rather
than the brake pedal, and press the accelerator progressively. t hese
practices contribute towards a reduction in fuel consumption and CO2
emissions and also helps reduce the background traffic noise.

9
.eco-driving
Limit the causes of excess consumption
Spread loads throughout the vehicle; place the heaviest items in the
bottom of the boot, as close as possible to the rear seats.
Limit the loads carried in the vehicle and reduce wind resistance (roof
bars, roof rack...). use a roof box in preference.
Remove roof bars and roof racks after use.
At the end of winter, remove snow tyres and refit your summer tyres.
Observe the recommendations on
maintenance
Check the tyre pressures regularly, when cold, referring to the label in
the door aperture, driver's side.
Carry out this check in particular:
- before a long journey,
- at each change of season,
- after a long period out of use.
Don't forget the spare wheel and the tyres on any trailer or caravan.
Have your vehicle serviced regularly (engine oil, oil filter, air filter,
passenger compartment filter...) and observe the schedule of
operations recommended in the warranty and maintenance record.
When refuelling, do not continue after the third cut-off of the nozzle to
avoid any overflow.
At the wheel of your new vehicle, it is only after the first 1 800 miles
(3 000 kilometres) that you will see the fuel consumption settle down to
a consistent average.

10
Monitoring
Instrument panel
1. Speedometer (mph or km/h).
2. Central display screen.
For more information, refer to the
corresponding section.
3. g ear shift indicator.
4. Display management button (Display).
Display of information in ascending order.
5. Display management button (Display).
Display of information in ascending order.
t he engine speed is indicated by the display of
orange bars.
Above the maximum engine speed, the bars
are displayed in red to indicate the need to
change up.
Rev counter*
* Depending on version.

11
1
Monitoring

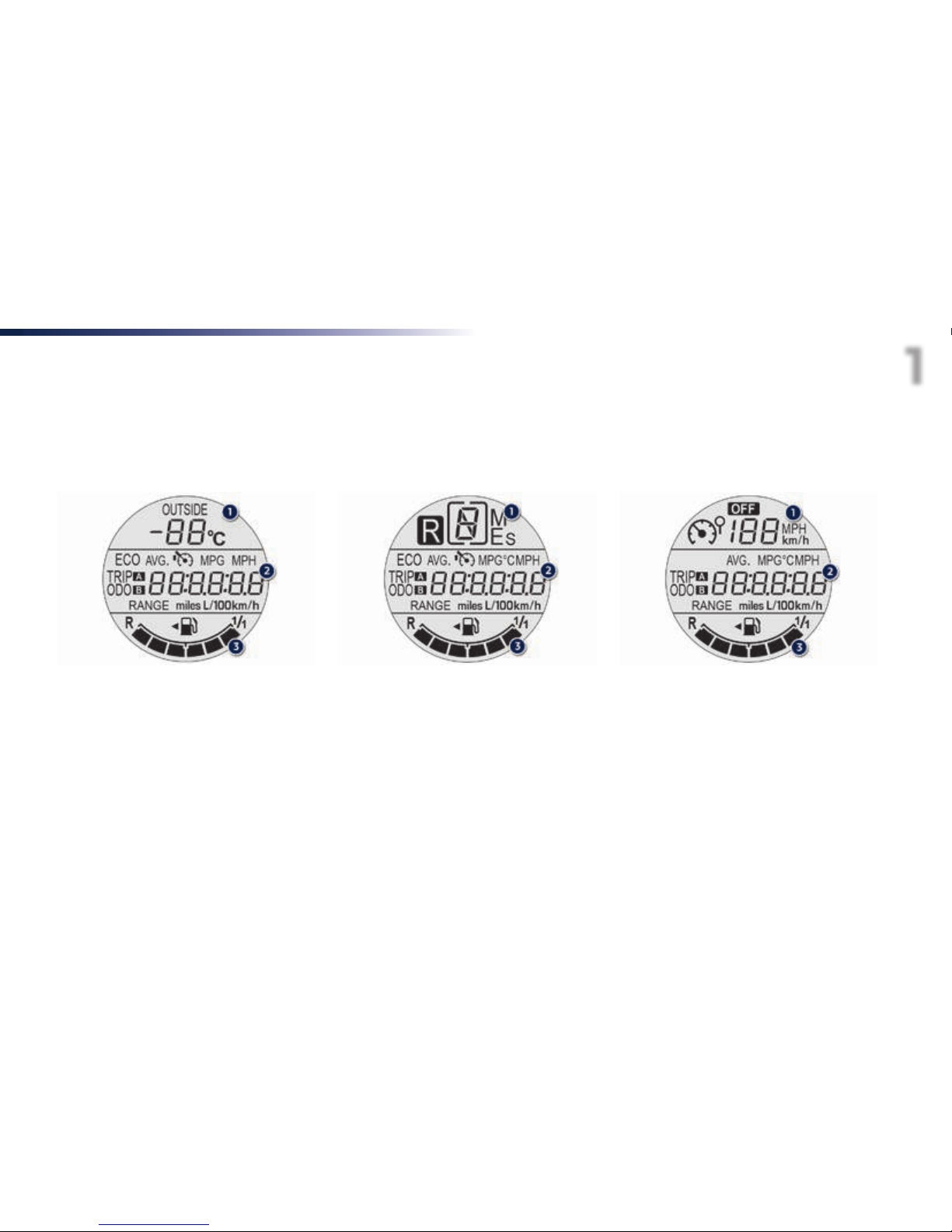

Central display screen
t he information displayed varies according to your vehicle's engine and type of gearbox.
Central display screen
with the VTi 68 engine and
manual gearbox
Central display screen
with the VTi 68 and ETG
electronic gearbox
Central display screen
with the VTi 82 engine and
manual gearbox
1. Ambient temperature.
It flashes if there is a risk of ice.
2. Vehicle information with:
- t otal and trip distance recorders.
Refer to the corresponding section.
- t rip computer information.
Refer to the corresponding section.
- Speed limiter information.
Refer to the corresponding section.
3. Fuel gauge.
1. g ear lever position and gear engaged.
2. Vehicle information with:
- t otal and trip distance recorders.
Refer to the corresponding section.
- t rip computer information.
Refer to the corresponding section.
- Speed limiter information.
Refer to the corresponding section.
3. Fuel gauge.
1. Speed limiter information.
Refer to the corresponding section.
2. Vehicle information with:
- t otal and trip distance recorders.
Refer to the corresponding section.
- t rip computer information.
Refer to the corresponding section.
3. Fuel gauge.

12
Monitoring
Seat belts and passenger's
front airbag warning lamps
display screen
A. Left hand rear seat belt unfastened
warning.
B. Right hand rear seat belt unfastened
warning.
C. Passenger's front airbag deactivated
warning lamp.
D. Passenger's front airbag activated warning
lamp.
Warning lamp Cor Dremains on,
depending on the state of the passenger's
front airbag (deactivated or activated).

13
1
Monitoring
Indicator and warning lamps
Certain warning lamps may come on in
one of two modes: fixed (continuous) or
flashing.
Only by relating the type of illumination
to the operation of the vehicle can it
be determined whether the situation is
normal or a fault has occurred.
Refer to the tables in the following
pages for more information.
Visual indicators informing the driver that a system is in operation or is switched off (indicator lamp) or has a fault (warning lamp).
When the ignition is switched on
Certain warning lamps come on for a few
seconds in the instrument panel when the
vehicle's ignition is switched on.
When the engine is started, these same
warning lamps should go off.
If they remain on, before moving off, refer to the
information on the warning lamp concerned.
Associated warnings
t he switching on of certain warning lamps may
be accompanied by an audible signal.
t he warning lamps may come on continuously
(fixed) or flash.

14
Monitoring
Operation indicator lamps
Left-hand direction
indicator
flashing with buzzer. t he lighting stalk is pushed down.
Right-hand
direction indicator flashing with buzzer. t he lighting stalk is pushed up.
Sidelamps or
dipped beam
headlamps
fixed. t he sidelamps or dipped beam
headlamps are on.
Main beam
headlamps fixed. t he lighting stalk is pulled towards you. Pull the stalk to return to dipped beam headlamps.
Warning / indicator lamp State Cause Action / Observations
Illumination of one of the following indicator lamps confirms that the corresponding system has been switched on.
It may be accompanied by an audible signal.
Rear foglamp fixed. t he rear foglamp is switched on
using the ring on the lighting control
stalk.
t urn the ring on the lighting control stalk to the rear to
switch off the rear foglamp.
Front foglamps fixed. t he front foglamps (if your vehicle
has them) are switched on. t urn the ring on the stalk rearwards twice to switch off the front foglamps.
Please note: if front foglamps have been fitted as an
accessory, the control may be different.

15
1
Monitoring
Parking brake fixed, accompanied by
an audible signal. t he parking brake is applied or not properly released. Release the parking brake to switch off the warning lamp, keeping your foot on the brake pedal.
Observe the safety recommendations.
For more information on the parking brake, refer to the
corresponding section.
Warning / indicator lamp State Cause Action / Observations
Passenger's
front airbag fixed in the seat belt and passenger's front
airbag warning lamps
display.
t he control switch, located in the
glove box, has been placed in the
"ON" position.
t he passenger's front airbag is activated.
In this case, do not install a "rearward facing" child
seat.
Stop & Start
(e-VTi 68 engine) fixed. When the vehicle stops (red lights, traffic jams, ...) the Stop & Start system has put
the engine into St OP mode.
t he indicator lamp goes off and the engine restarts
automatically in St ARt mode, as soon as you want to
move off.
Keyless Entry
and Starting
system
fixed. t he conditions for starting are met. For more information, refer to the "Starting - stopping
the engine with the Keyless entry and Starting
system" section.
flashing slowly. t he vehicle is in "ACC" mode.
t he accessories (audio system,
12V socket...) can be used.

16
Monitoring
Warning / indicator lamp State Cause Action / Observations
Gear shift
indicator. fixed. You can change up. For more information, refer to the corresponding section.
You can change down (only for the
Vt i 68 engine).
Speed limiter
(VTi 68 engine) fixed. t he speed limiter is active.

17
1
Monitoring
Passenger's
front airbag fixed, in the seat belt and front passenger's
airbag warning lamps
display.
t he control switch, located in the
glove box, is set to the OFF position. t he passenger's front airbag is deactivated. You can install a "rearward facing" child seat on the
front seat unless there is a fault with the airbags
(Airbag warning lamp on).
Traction control
(TRC) fixed. A brief press has been made on the button.
t he traction control (t RC) system is
deactivated.
Press the button to activate the system.
t he t RC system is activated automatically when the
vehicle is started.
If deactivated, the system is reactivated automatically
from around 30 mph (50 km/h).
For more information, refer to the corresponding
section.
Dynamic
stability control
(DSC)
fixed. Vehicle stationary, the button
has been pressed for more than
3 seconds.
t he traction control (t RC) and
dynamic stability control (DSC)
systems are deactivated.
Press this button to activate the systems.
t he DSC system is activated automatically when the
vehicle is started.
For more information, refer to the corresponding
section.
Warning / indicator lamp State Cause Action / Observations
Deactivation indicator lamps
If one of the following indicator lamps comes on, this confirms that the corresponding system has been switched off intentionally.
t his is may be accompanied by an audible signal.

18
Monitoring
Warning / indicator lamp State Cause Action / Observations
Stop & Start
(e-VTI 68 engine) fixed. t he Stop & Start system has been deactivated. Reactivate the function by pressing the button again. For more information, refer to the corresponding
section.
