PEUGEOT 308 SW 2009 User manual

Welcome lighting
This additional exterior and interior ligh-
ting, controlled remotely, makes your
approach to the vehicle easier when the
light is poor.
96, 102
Directional lighting
This lighting automatically provides
additional visibility when cornering.
97

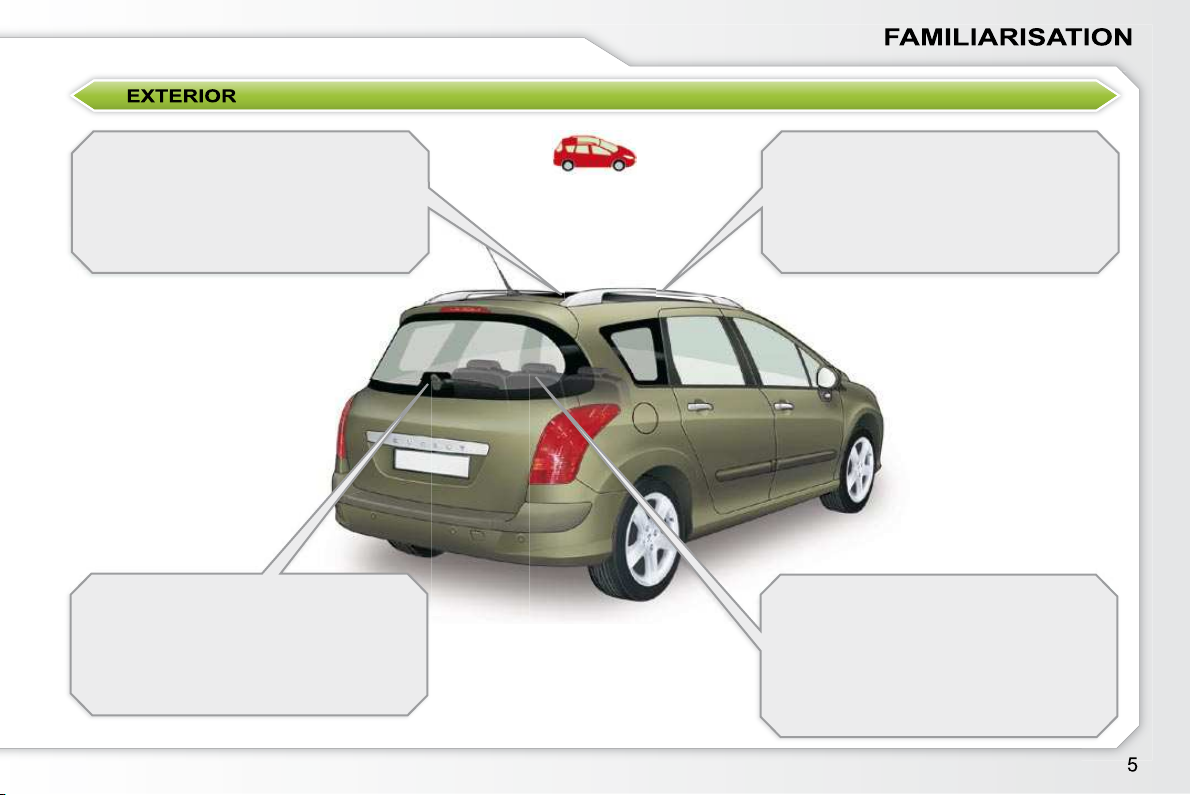

Panoramic sunroof
This roof provides incomparable visibility
and light in the passenger compartment.
90
Temporary puncture repair kit
This kit is a complete system, consist-
ing of a compressor and an integrated
sealant product, for temporary repair
of a tyre.
165

Panoramic sunroof
This roof provides incomparable visibility
and light in the passenger compartment.
90
Opening rear screen
This allows easy access to the luggage
compartment without having to open
the tailgate.
89
Roof bars
Transverse bars fi tted on the longitu-
dinal bars, these permit the loading of
long and bulky objects on the roof.
198
Seat modularity
The 2nd and 3rd row individual rear
seats can be arranged in various ways
to provide different layout and loading
confi gurations.
73

Remote control key
A. Unfolding/Folding of the key.
Normal locking
(press once; fi xed lighting of
the direction indicators).
Fuel tank
1. Opening the fuel fi ller fl ap.
2. Opening and hooking the fuel fi ller
cap.
Unlocking and partial opening
of the rear screen (SW)
(press for more than two se-
conds)
When a sensor detects a low level of
light, remote switching on of the dipped
beam headlamps and sidelamps makes
your approach to the vehicle easier.
In the same way, the passenger com-
partment lighting, such as the courtesy
lamps, the front door sill lamps and the
footwell lamps, comes on.
or
Deadlocking of the vehicle
(press twice in succession;
fi xed lighting of the direction
indicators).
78 102 91
Capacity of the tank: approximately
60 litres.
96
Complete unlocking of the ve-
hicle
(rapid fl ashing of the direction
indicators).

i
Panoramic sunroof Boot Rear screen

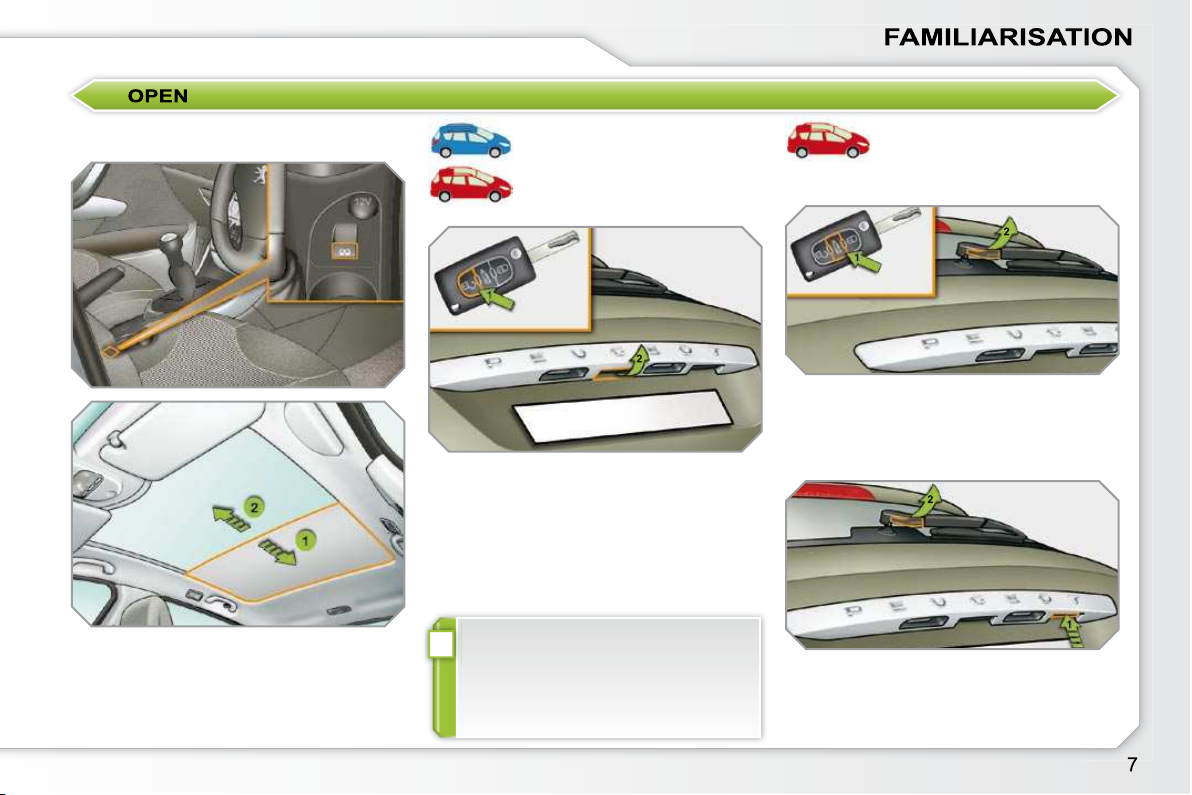

1. Unlocking and partial opening of
the rear screen.
2. Opening of the rear screen.
90
1. Opening the blind.
2. Closing the blind.
1. Unlocking the vehicle.
2. Opening the boot.
89
The tailgate and rear screen can-
not both be open at the same time,
to avoid the risk of damage to the
rear screen.
1. Partial opening of the rear screen.
2. Opening of the rear screen.
Vehicle locked
Vehicle unlocked
89

Interior mood lighting
This dimmed lighting of the passenger
compartment improves visibility inside
the vehicle when the light is poor.
102
6-speed electronic gear control
gearbox
This system provides a fully automat-
ic driving mode, a manual mode and
an auto-sequential mode which com-
bines the advantages of the other two
modes.
143
Audio and communication systems
This equipment benefi ts from the latest
technology: MP3 compatible Peugeot
Connect Sound, Bluetooth, Peugeot
Connect Navigation or Peugeot Connect
Media with 16/9 retractable colour screen,
auxiliary sockets.
Peugeot Connect Sound 299
Peugeot Connect Navigation 271
Peugeot Connect Media 231

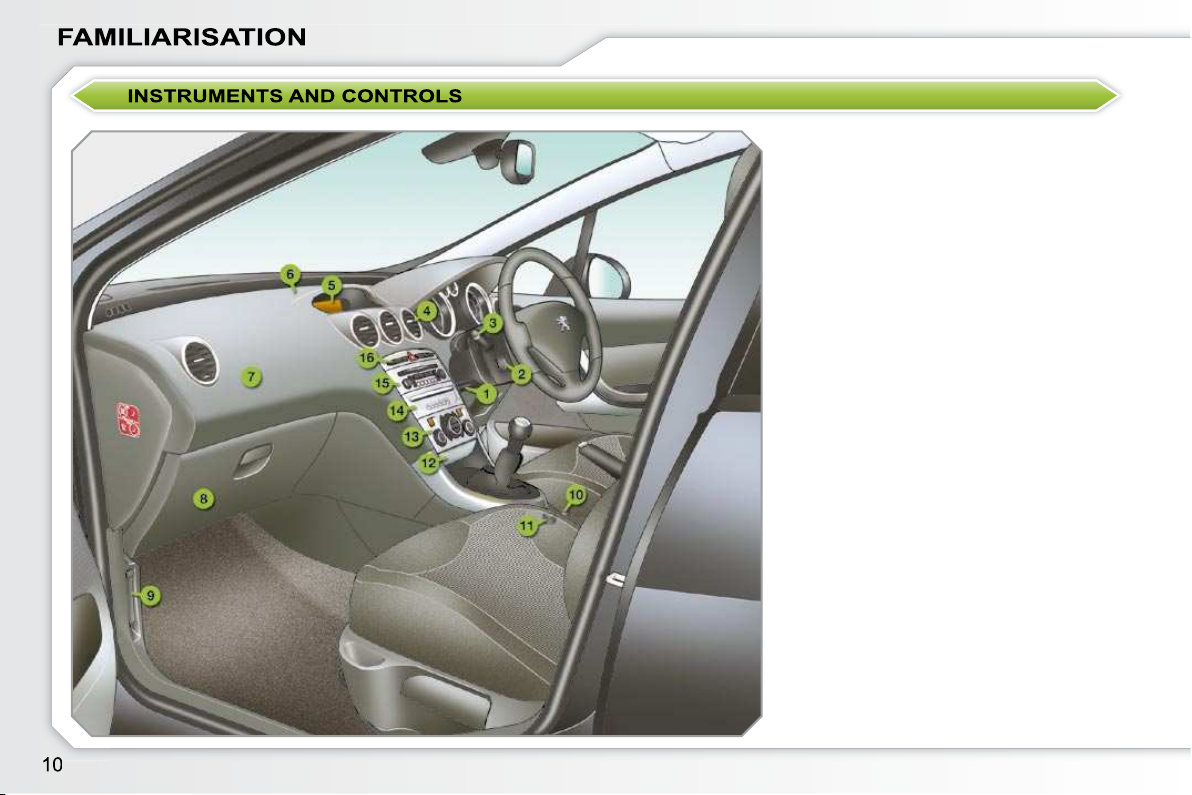

1. Audio and telematics system
steering mounted controls.
2. Steering lock and ignition.
3. Wiper/wash-wipe/trip computer
control stalk.
4. Instrument panel.
5. Driver's airbag.
Horn.
6. Gear lever.
7. Parking brake.
8. Panoramic sunroof blind control.
9. Heated seat control.
10. Door mirror controls.
Electric window controls.
11. Passenger's airbag deactivation
switch.
12. Manual headlamp height
adjustment.
13. Side adjustable air vent.
14. Front side window demisting vent.
15. Speaker (tweeter).
16. Windscreen demisting vent.

1. Steering wheel adjustment control.
2. Cruise control/speed limiter
switches.
3. Lighting and direction indicators
control stalk.
4. Central adjustable air vents.
5. Multifunction screen.
6. Sunshine sensor.
7. Passenger's airbag.
8. Glove box/Audio/video sockets/
Fusebox.
9. Bonnet release lever.
10. Storage compartment or control
panel navigator associated with the
Peugeot Connect Media.
11. 12 V accessories socket.
12. Front ashtray.
13. Heating/air conditioning controls.
14. CD changer.
15. Audio and telematics system.
16. Emergency call button.
Alarm button.
Central locking button.
Hazard warning lamps button.
Dynamic stability control
(ESP/ASR) button.
Parking sensors button.
PEUGEOT services button.

Driver’s seat

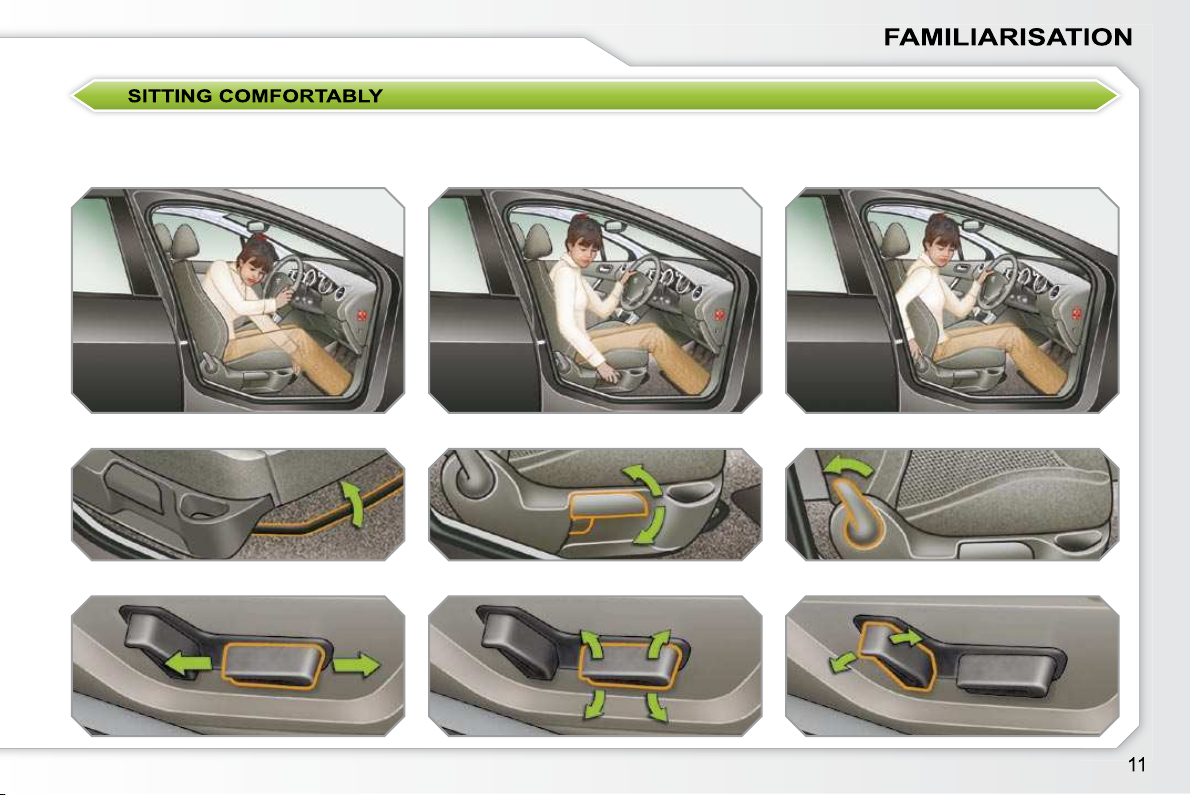

Manual adjustment
Electric adjustment
Forwards-backwards
62
63
Seat back angleHeight

i
!
Steering wheel adjustment
1. Unlocking the control.
2. Adjustment for height and reach.
3. Locking the control.
Front seats Other functions available...
Access to the rear seats (3-door).
Front passenger seat table posi-
tion (SW).
Storing driving positions (driver's
electric seat).
Heated seats.
Head restraint height
Lumbar
Front armrest
64 10677

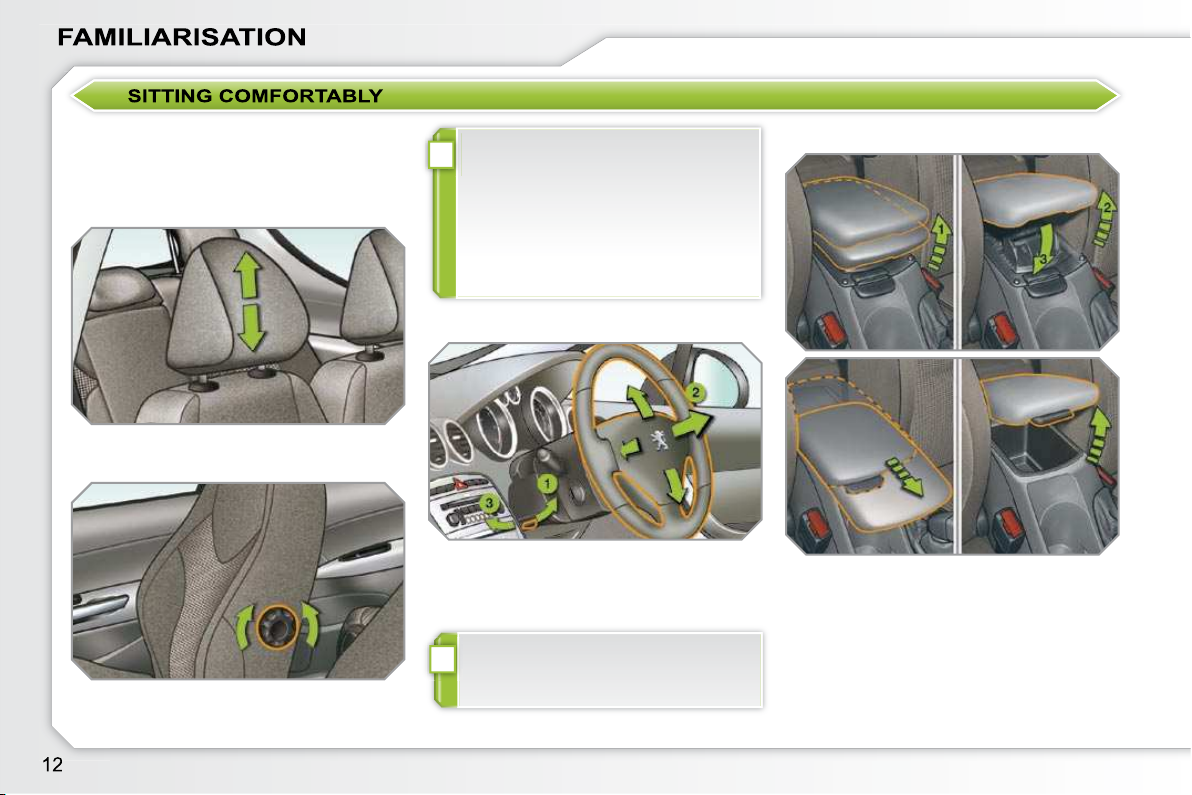

For your comfort, the height and longi-
tudinal position of the front armrest can
be adjusted.
It also has a storage compartment.
As a safety precaution, these op-
erations must only be carried out
when stationary.

i
Door mirrors
A. Selection of the mirror to be adjusted.
B. Adjustment of the position of the
mirror in the four directions.
C. De-selection of the mirror.
Other functions available...
Folding/Unfolding.
Automatic tilting of the mirror in re-
verse gear for parking.
Interior mirror
Manual day/night model
Front seat belts
1. Fastening the buckle.
2. Height adjustment.
76
132
75
1. Selection of the "day" position of
the mirror.
2. Mirror orientation.
Automatic day/night model
1. Automatic detection of the day/
night mode.
2. Mirror orientation.
77
Adjustment

Lighting
Ring A
Ring B
Raise or lower the lighting stalk passing
the point of resistance; the correspond-
ing direction indicators will fl ash for as
long as the stalk remains in this posi-
tion.
Direction indicators
Switching on "AUTO"
Press the stalk down and release it.
Ring B: rear wiper
93 99
Lighting off.
Automatic illumination of head-
lamps.
Sidelamps.
Dipped/main beam headlamps.
Rear foglamp.
or
Front and rear foglamps. Park.
Intermittent wipe.
Wash-wipe.
Stalk A: windscreen wipers
98
Wipers
Switching off "AUTO"
Push the stalk up and return it to
position "0".
100
128
"Motorway" function
Raise or lower the lighting stalk once,
without passing the point of resistance;
the corresponding direction indicators
will fl ash three times.
This function can be used at any speed,
but it is particularly useful when changing
lane on high-speed roads.

–
Recommended interior settings

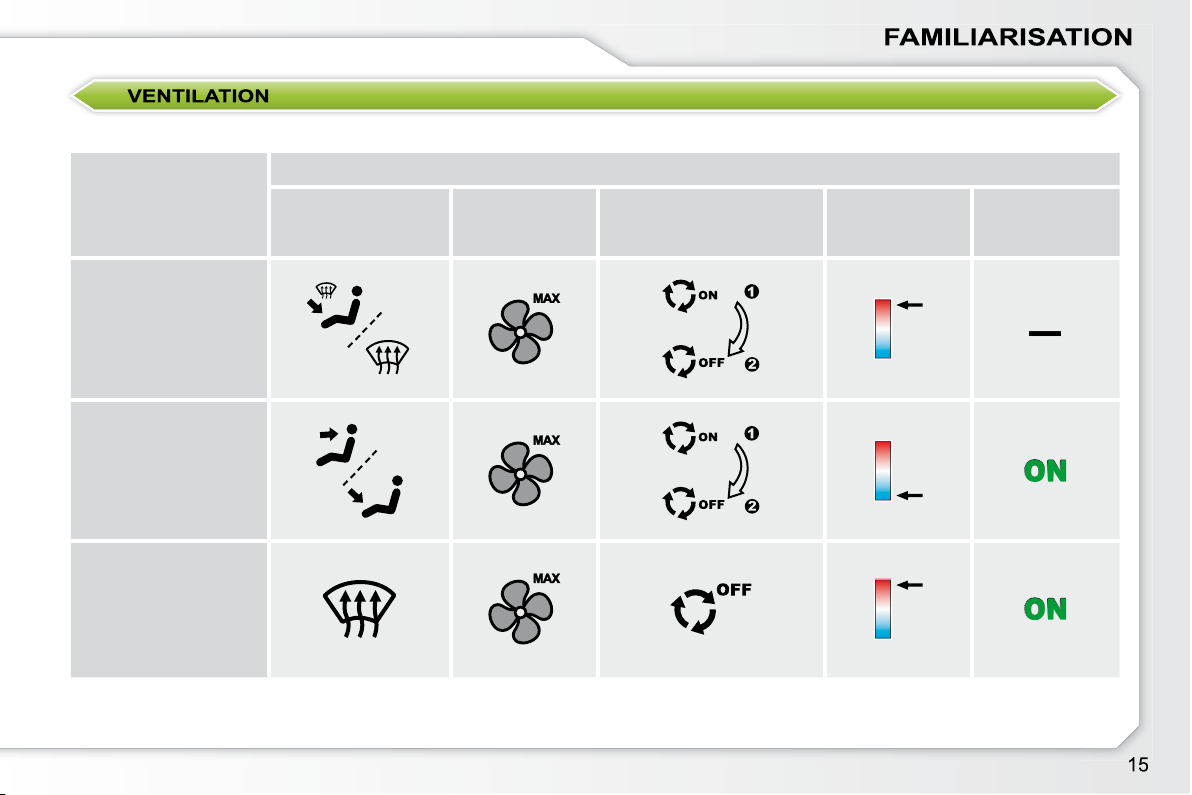

Digital air conditioning: we recommend use of the fully automatic mode by pressing the "AUTO" button.
I require...
Heating or Manual Air Conditioning
Air distribution Air fl ow Air recirculation/
Intake of outside air Temperature Manual A/C
HOT
COLD
DEMISTING
DEFROSTING

Instrument panel Switch panel

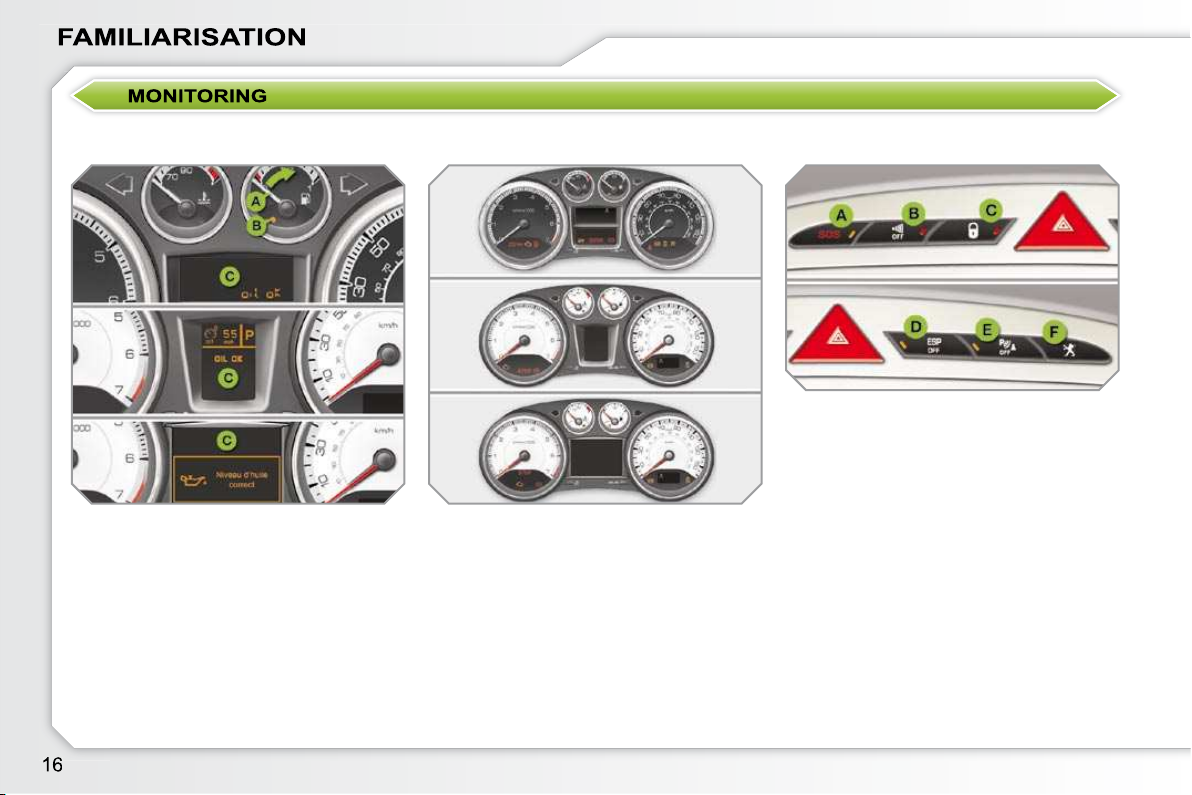

A. With the ignition on, the fuel gauge
needle should indicate the level of
fuel remaining.
B. With the engine running, its
associated low level warning lamp
should switch off.
C. With the ignition on, the oil level
indicator should display "OIL OK"
for a few seconds.
If the levels are not correct, top up the
levels which are low.
Lighting of the indicator lamp indicates
the status of the corresponding function.
A. Emergency call in progress.
227
B. Deactivation of the alarm interior
protection.
82
C. Central locking.
87
D. Deactivation of the ESP/ASR system.
 131
E. Deactivation of the front and rear
parking sensors.
155
F. Access to PEUGEOT services.
227
1. With the ignition on, the orange and
red warning lamps come on.
2. With the engine running, these
warning lamps should switch off.
If warning lamps remain on, refer to the
page concerned.
Warning lamps
22 26

Passenger's front airbag Electric child lock
1. Insert the key.
2. Select the position:
"OFF" (deactivation), with "rear
facing" child seat,
"ON" (activation), with front
passenger or "forwards facing"
child seat.
3. Remove the key keeping the switch
in the new position.
Lighting of the indicator lamp indicates
the status of the corresponding function.
A. Activation of the electric child lock.
A. Front and/or rear seat belts not
fastened/unfastened warning lamp.
B. Front left seat belt warning lamp.
C. Front right seat belt warning lamp.
D. Rear right seat belt warning lamp*.
E. Rear centre seat belt warning
lamp*.
F. Rear left seat belt warning lamp*.
G. Passenger's front airbag
deactivated warning lamp.
H. Passenger's front airbag activated
warning lamp.
Seat belts and passenger's
front airbag
133, 138
137 127* Only on SW panoramic sunroof.

Operating the rear seats
2nd row rear seats
1. Forwards-backwards adjustment.
2. Seat back angle adjustment/Table
position.
3. Head restraint height adjustment.
4. Folding.
5. Removal/Installation.
6. Carrying.
69
3rd row additional seats
A. Seat back angle adjustment/Table
position.
B. Head restraint height adjustment.
C. Folding.
D. Removal/Installation.
E. Carrying.
71
Operating the front
passenger seat
Table position
A. Partial table position.
B. Full table position.
65

A few examples of seat modularity
7 seats
7 seats in 5 seat with additional seats folded
confi guration
Transporting long objects
Loading a large volume
73

Speed limiter "LIMIT" Display on the instrument panel
1. Limiter mode Selection/Off.
2. Decreasing of the programmed
value.
3. Increasing of the programmed
value.
4. Speed limiter On/Off.
The cruise control or speed limiter mode
appears on the instrument panel when
it is selected.
1. Cruise control mode Selection/Off.
2. Programming a speed/Decreasing
of the programmed value.
3. Programming a speed/Increasing of
the programmed value.
4. Cruise control Off/Resume.
Cruise control "CRUISE"
Cruise control
Speed limiter
152150
In order to be programmed or activated,
the vehicle speed must be higher than
25 mph (40 km/h), with at least fourth
gear engaged on the manual gearbox
(second gear for the 6-speed electronic
gear control or automatic gearbox).
The values must be set with the engine
running.

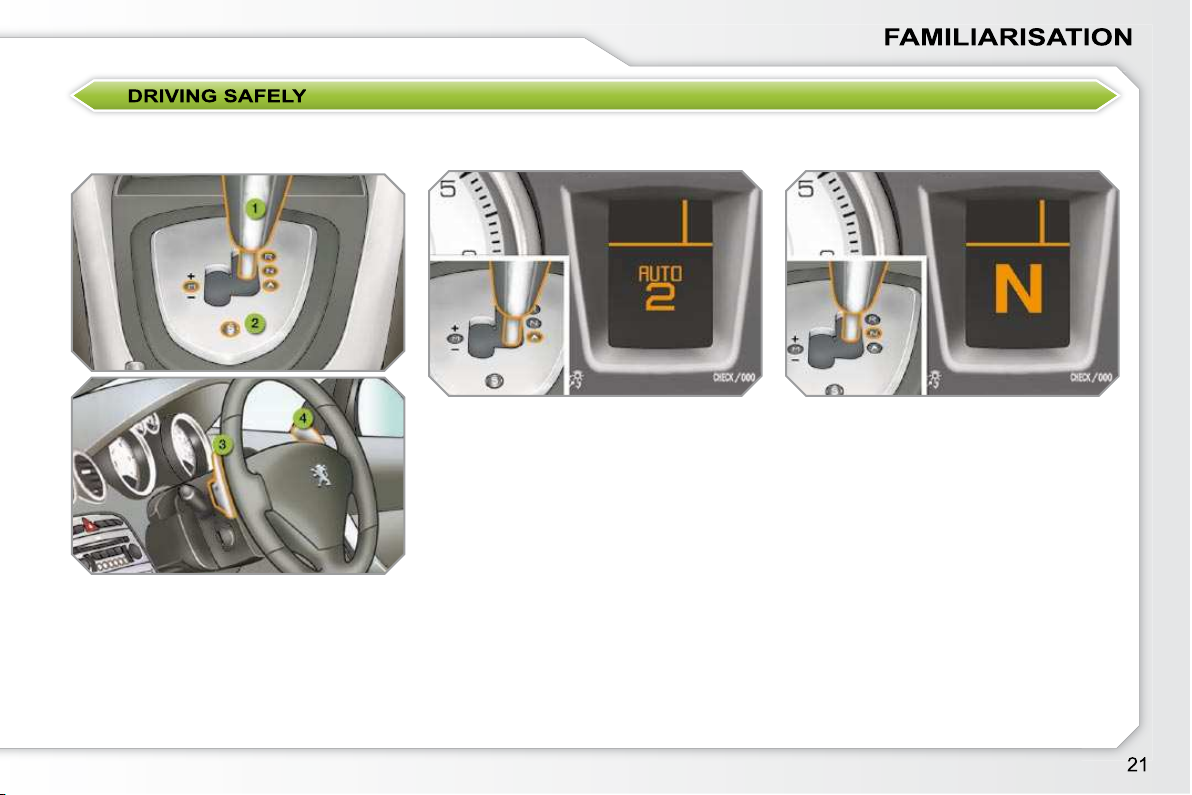

This 6-speed gearbox offers a choice
between the comfort of fully automatic
operation or the pleasure of manual
gear changing.
1. Gear lever.
2. Button "S" (sport).
3. Steering wheel "-" paddle.
4. Steering wheel "+" paddle.
The gear or the driving mode select-
ed appears on the instrument panel
screen.
N: neutral.
R: reverse.
1 2 3 4 5 6: gears engaged.
AUTO: automatic mode.
S: Sport programme.
Display on the instrument panel
Select position Nand press the
brake pedal fi rmly while starting
the engine.
 Engage fi rst gear (position Aor M)
or reverse (position R) using the
gear lever 1.
Release the parking brake.
Take your foot off the brake pedal,
then accelerate.
Moving off
143
6-speed electronic gear
control gearbox

i
22
INSTRUMENTS and CONTROLS
PETROL - DIESEL MANUAL OR 6-SPEED ELECTRONIC GEAR
CONTROL OR AUTOMATIC GEARBOX INSTRUMENT PANELS

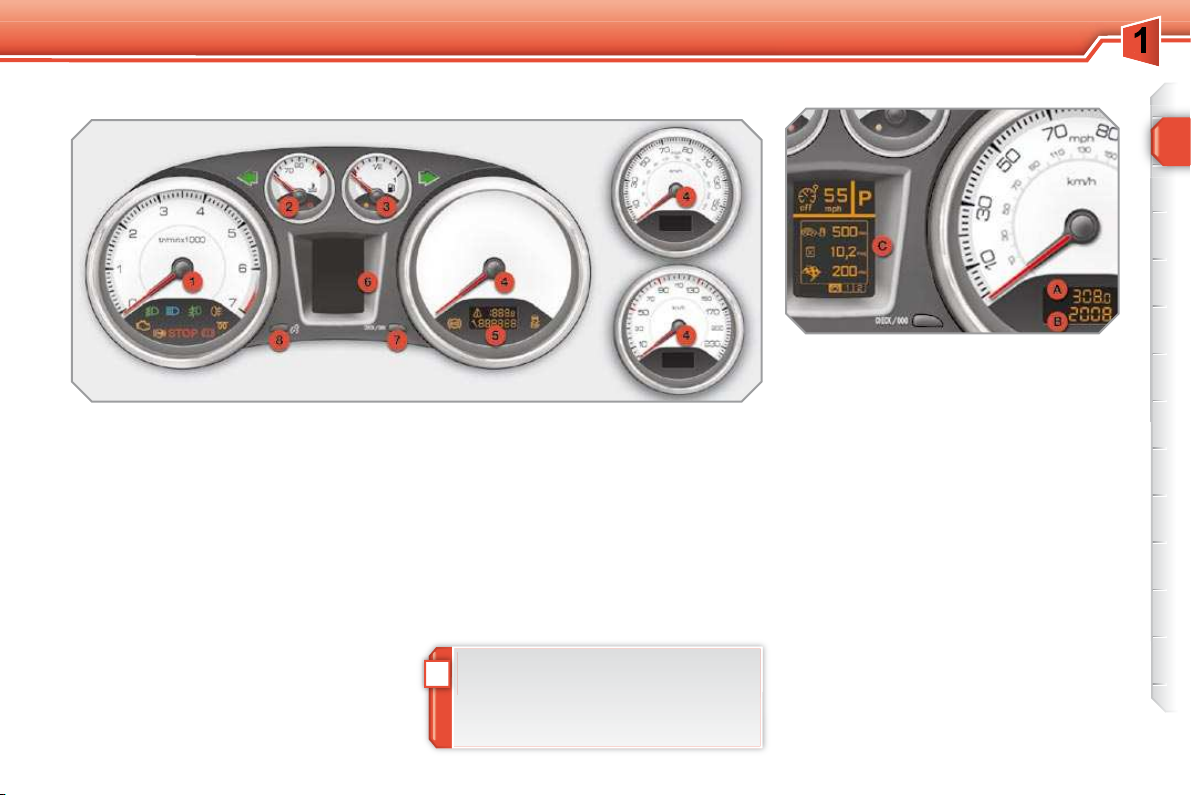

Panel grouping together the vehicle
operation indication dials and warning
lamps.
5. Screen.
6. Display management button.
Recalls the service information.
Resets the selected function to
zero (trip distance recorder or
service indicator).
7. Instrument panel lighting button.
Adjusts the brightness of the
lighting of the instruments and
controls.
Dials
1. Rev counter.
Indicates the speed of rotation of
the engine (x 1 000 rpm).
2. Coolant temperature.
Indicates the temperature of the
engine coolant (° Celsius).
3. Fuel level.
Indicates the quantity of fuel
remaining in the tank.
4. Vehicle speed.
Indicates the current speed of the
moving vehicle (mph or km/h).
A. Speed limiter
(mph or km/h) or
Cruise control.
B. Gear change indicator.
C. 6-speed electronic gear control
or automatic gearbox.
D. Trip distance recorder.
(miles or km)
E. Service indicator
(miles or km) then,
engine oil level indicator
then
distance recorder.
(miles or km)
These three functions are displayed
in succession when the ignition is
switched on.
Display
For further information, refer to the
paragraph relating to the button or
function and its associated display.

i
23
INSTRUMENTS and CONTROLS
PETROL - DIESEL MANUAL OR 6-SPEED ELECTRONIC GEAR
CONTROL OR AUTOMATIC GEARBOX INSTRUMENT PANELS
Panel grouping together the vehicle
operation indication dials and warning
lamps.
5. Small screen.
6. Large central screen.
7. Display management button.
Starts a manual CHECK and
recalls the service information.
Resets the function selected to
zero (trip distance recorder or
service indicator).
8. Instrument panel lighting button.
Adjusts the brightness of the
lighting of the instruments and
controls.
Dials
1. Rev counter.
Indicates the speed of rotation of
the engine (x 1 000 rpm).
2. Coolant temperature.
Indicates the temperature of the
engine coolant (° Celsius).
3. Fuel level.
Indicates the quantity of fuel
remaining in the tank.
4. Vehicle speed.
Indicates the current speed of the
moving vehicle (mph or km/h).
A. Trip distance recorder.
(miles or km)
B. Distance recorder.
(miles or km)
C. Engine oil level indicator,
service indicator.
(miles or km)
These two functions are displayed
when the ignition is switched on,
then disappear after a few seconds.
Displays
For further information, refer to the
paragraph which relates to the but-
ton or function and its associated
display.
The following functions are displayed
depending on the selection.
- Warning lamps/CHECK.
- Tyre under-infl ation detection.
- Speed limiter/Cruise control.
- Gear change indicator.
- 6-speed electronic gear control
or automatic gearbox.
- Navigation - Guidance/
Trip computer.
