PEUGEOT 4007 User manual

PEUGEOT's SERVICE BOX Internet site permits easy
and free consultation of your vehicle documentation
on line.
Access the latest information available.
Connect to http://public.servicebox.peugeot.com:
Simple and user friendly, SERVICE BOX allows you
access:
●to your Handbook,
●to previous Vehicle documentation.
Please note the following point:
The fitting of electrical equipment or accessories which are not recommended by PEUGEOT may result in a failure of
your vehicle's electronic system. Please note this specific warning. It is advisable to contact a PEUGEOT dealer to be
shown the recommended equipment and accessories.
select your language,
click on the link in the "Private customer access"
zone to consult the Vehicle documentation,
A window opens giving access to all of the handbooks...
select your vehicle,
choose its body type then the date of publication
of the handbook,
finally, click on the item which is of interest to you.

1
Thank you for choosing a 4007, a sound
investment and a symbol of confidence,
passion and inspiration.
Each model may only be fitted with
some of the equipment mentioned in
this handbook, depending on the speci-
fication, the models, the versions and
the characteristics particular to the
country in which it is sold. Page reference:
this symbol accompanies advice
relating to protection of the envi-
ronment.
this symbol invites you to refer
to the pages which provide de-
tails of the function.
Warning:
this symbol marks warnings which
it is essential to observe for your
own safety, for the safety of others
or to avoid any risk of damaging
your vehicle.
this symbol draws your attention
to additional information for better
use of your vehicle.
Key
Protection of the environment:
Information:
This handbook has been designed to en-
able you to make the most of your 4007.
On the first few pages, you will find a
detailed summary, followed by a quick
reference guide intended to make it
easier for you to become familiar with
your vehicle.
All of the details specific to your 4007,
comfort, safety, driving, are then pre-
sented in this handbook so as to in-
crease your appreciation of the vehicle
and to help you benefit from it in full.

2
3
46
1
5
CONTENTS
2
INSTRUMENTS
and CONTROLS 21 Î43
Ventilation 44
Automatic air conditioning 46
Front seats 50
Rear seats 53
Rear bench seat 58
Mirrors 61
Steering wheel adjustment 63
Front fittings 64
Rear fittings 69
Boot fittings 70










COMFORT 44 Î72
Remote control key 73
Electric windows 77
Doors 79
Tailgate 80
Lower tailgate 81
Sunroof 82
Fuel tank 84







ACCESS 73 Î85
Lighting stalk 86
Daytime running lamps 88
Automatic illumination of
headlamps 88
Headlamp adjustment 89
Wiper controls 90
Automatic rain sensitive
wipers 91
Courtesy lamps 92







VISIBILITY 86 Î93
Child seats 94
ISOFIX mountings 98
Child lock 101



CHILD
SAFETY 94 Î101
Direction indicators 102
Hazard warning lamps 102
Horn 102
Braking assistance systems 103
Trajectory control systems 104
Front seat belts 105
Airbags 108







SAFETY 102 Î111
Instrument panel 21
Warning lamps 22
Instrument panel displays 25
Information in the instrument
panel screen 31
Distance recorders 32
Service indicator 33
Trip computer 34
Setting menu 35
Monochrome screen 39
Colour screen 41
Lighting rheostat 43











FAMILIARISATION 4 Î20

7
8
9
10
11
CONTENTS
3
Parking brake 112
Manual gearbox 112
CVT gearbox 113
DCS gearbox 115
Four wheel drive system 119
Cruise control 121
Audible rear parking sensors 123
Reversing camera 124








DRIVING 112 Î124
Bonnet 126
Running out of fuel 126
Petrol engine 127
Diesel engine 128
Checking levels 129
Checks 130






CHECKS 125 Î131
Changing a wheel 132
Changing a bulb 137
Changing a fuse 144
Battery 149
Changing a wiper blade 151
Towing 152
Towing a trailer 154
Fitting roof bars 155
Accessories 156









PRACTICAL
INFORMATION 132 Î156
Engines 157
Weights 158
Dimensions 159
Identification markings 160




TECHNICAL
DATA 157 Î161
Audio CD system 162
CD changer 173
Error messages 175
Audio-Telematic System 176
Navigation 178
DVD mode 206
Hands-free telephone 214







AUDIO EQUIPMENT and
TELEMATICS 162 Î221
VISUAL
SEARCH 222 Î228
ALPHABETICAL
INDEX 229 Î232

FAMILIARISATION
4
Sunroof
This roof improves the ventilation and
light in the passenger compartment.
82
81
123
Audible rear parking sensors
This system warns you if an obstacle
is detected behind the vehicle when
reversing.
Reversing camera
This system is activated automati-
cally when reverse gear is engaged
providing a visual image on the colour
screen.
Lower tailgate
This lower tailgate provides remarkable
accessibility and makes the loading of
bulky objects easier.
124

FAMILIARISATION
5
Fuel tank
A. Opening the fuel filler flap.
B. Removing the fuel filler cap.
84
1. Locking the vehicle.
2. Unlocking the vehicle.
Remote control key
A. Unfolding/folding the key.
B. Unlocking the vehicle.
C. Locking the vehicle.
73
Manual central locking
79
OPENING
When refitting the cap, insert the
upper part first turning it to the
right.
Capacity of the tank: approximately
60 litres.

FAMILIARISATION
6
Opening
)After unlocking the vehicle using the
remote control or the key, press the
handle Aand raise the tailgate.
Tailgate Lower tailgate
Opening
)Push the handle Cto the right and
tilt the tailgate Dgently.
The maximum authorised weight
on the lower tailgate when open
is 200 kg.
Spare wheel and tools
Access to the spare wheel
)Remove the plastic cover Eto gain
access to the spare wheel fixing
system.
80
OPENING
81 132
Closing
)Pull the handle Bdownwards.
Closing
)Raise the tailgate D, push it to
close it, then check that it is latched
correctly.
Access to the tools
The tools are stored in the storage com-
partment Fin the boot right-hand trim.

FAMILIARISATION
7
CONFIGURING SEATS
Rear seats (row 2)
Forwards-backwards adjustment
Seat back angle adjustment
53
Head restraint height adjustment
Access to the third row (7-seat version)
54
Rear bench seat (row 3)
The rear bench seat can be folded. It is
stowed in a location in the floor of the
vehicle.
58
52

FAMILIARISATION
8
INTERIOR
Digital air conditioning
This automatic air conditioning system
maintains the desired level of com-
fort and adequate air circulation in the
passenger compartment.
Cruise control
This system automatically maintains
the vehicle speed at the value pro-
grammed by the driver, without use of
the accelerator pedal.
Audio and communication
systems
These systems benefit from the latest
technology: MP3 compatible audio sys-
tem, Bluetooth hands-free telephone,
colour screen...
Four wheel drive system with
electronic control
This system permits the selection of a
transmission mode to suit the driving
conditions.
44
121
162
119

FAMILIARISATION
9

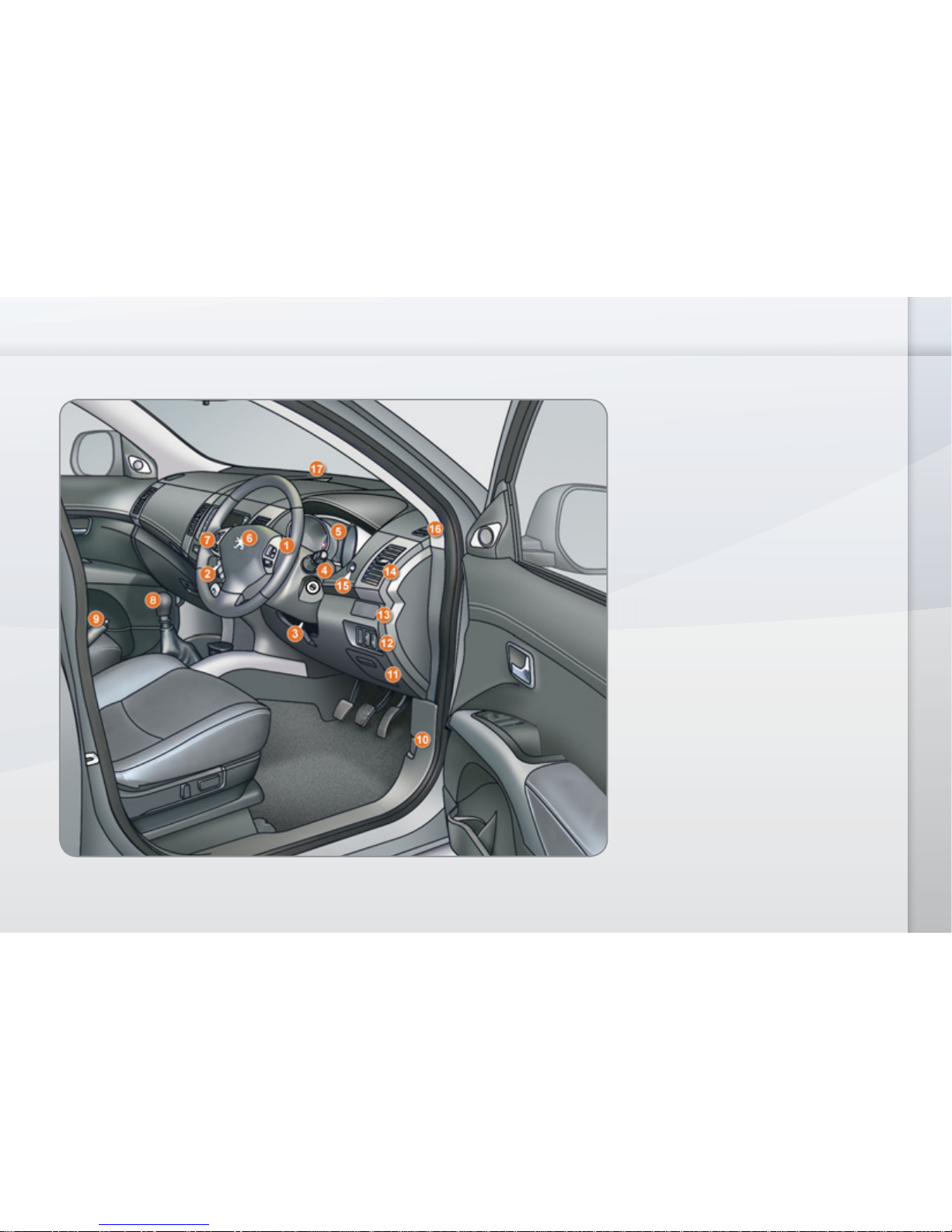

INSTRUMENTS AND CONTROLS
1. Audio system controls.
2. Telephone controls.
3. Steering wheel adjustment control.
4. Front and rear wipers/screenwash
control stalk.
5. Instrument panel.
6. Driver’s airbag.
Horn.
7. Cruise control switches.
8. Gear lever.
9. Parking brake.
10. Bonnet release lever.
11. Enclosed storage compartment.
12. Headlamp height adjustment.
Deactivation of the ASC system.
Deactivation of the audible parking
sensors.
13. Cup holder.
14. Side adjustable air vent.
15. Information button.
16. Window demisting/defrosting vent.
17.
Windscreen demisting/defrosting vent.

FAMILIARISATION
10
INSTRUMENTS AND CONTROLS
1. Steering lock and ignition.
2. Door mirror controls.
Electric window and rear electric
window deactivation controls.
3. Lighting and direction indicator
control stalk. Headlamp wash
control.
4. Central adjustable air vents.
5. Sunshine sensor.
6. Cooled upper glove box.
7. Lockable lower glove box.
Passenger’s airbag deactivation.
Fusebox.
8. Heated seat controls.
9. Armrest with storage
compartments.
12 volt socket (120 W max).
10. Cup holder.
11. Four wheel drive system position
selector.
12. Removable ashtray/
12 volt socket (120 W max).
13. Automatic air conditioning controls.
14. Temperature sensor.
15. Hazard warning lamps switch.
16. Colour screen/Audio system

FAMILIARISATION
11
SITTING COMFORTABLY
51
Front seats
Forwards-backwards Driver’s seat cushion height and angle Seat back angle
Manual adjustments
Electric adjustments (driver’s seat only)
Forwards-backwards Seat cushion height and angle Seat back angle
50

FAMILIARISATION
12
SITTING COMFORTABLY
1. Releasing the adjustment mechanism.
2. Locking the adjustment mechanism.
3. Adjustment of the height of the
steering wheel.
Manual steering wheel height
adjustment Door mirror adjustment
A. Selection of the mirror
B.
Adjustment of the position of the mirror.
C. Folding/Unfolding.
63
Rear view mirror adjustment
D. Control for selection of the "day/
night" position of the mirror.
61
62
Front seat belt
1. Fastening.
2. Height adjustment.
105

FAMILIARISATION
13
SITTING COMFORTABLY
Ignition switch
1. LOCK position.
2. ACC position.
3. ON position.
4. START position.
75
Electric window controls
1. Driver’s electric window control.
2. Passenger’s electric window control.
3. Rear right electric window control.
4. Rear left electric window control.
Also...
5. Deactivation of the front
passenger and rear electric
window controls.
77
Sunroof controls
1. Opening control.
2. Closing control.
3. Tilt opening control.
Also...
3. Allows the sunroof opening/
closing to be stopped at any
time.
82
A heavy object (key fob...), attached
to the key and weighing down on
its shaft in the ignition switch, could
cause a malfunction.

FAMILIARISATION
14
SEEING CLEARLY
Lighting
Ring A
Ring B
Windscreen wipers
Wipers
Rear wiper
Front foglamps and rear foglamps.
86 90 91
Lighting off.
Automatic illumination of head-
lamps.
Sidelamps.
Dipped or main beam head-
lamps.
Single wipe.
Park.
Intermittent (speed adjustable
manually).
Fast.
Park.
Intermittent wipe.
Wiping with screen wash.
Slow.
or
Automatic rain sensitive (speed
adjustable manually).

FAMILIARISATION
15
VENTILATION
Digital air conditioning
Temperature adjustment.
Exterior air intake.
Interior air recirculation.
Air flow adjustment.
Automatic programme (comfort).
Deactivation of the air conditioning.
Air distribution adjustment.
Front visibility setting.
Rear screen demisting/defrosting.
46

FAMILIARISATION
16
MONITORING
Instrument panel Switch panel
When the ignition is on, the orange and
red warning lamps come on.
When the engine is running, these
warning lamps should go off.
If warning lamps remain on, refer to the
page concerned.
Warning lamps
21
A. Passenger’s airbag deactivated
warning lamp.
109
B. Hazard warning lamps switch.
102
C. Front passenger’s seat belt not
fastened or unfastened warning lamp.
106
22
Detection of driver’s seat belt
fastening
When the ignition is switched
on, the seat belt warning lamp
comes on accompanied by an
audible signal if the driver has
not fastened their seat belt.
The warning lamp goes off when the
seat belt is fastened.
24
A. Speedometer.
B. Instrument panel screen.
C. Rev counter.
D. Dashboard lighting dimmer.

FAMILIARISATION
17
PASSENGER SAFETY
Front passenger’s airbag Child lock
1. Insert the key.
2. Select the "OFF" position.
3. Remove the key.
This prevents opening of the door
concerned from the inside.
Lower or raise the control Ato lock or
unlock.
109 101
ISOFIX mountings
Two rings A, located between the seat
back and seat cushion of the vehicle’s seat
are used to install an Isofix child seat.
A ring Bis used to secure the upper
strap referred to as the TOP TETHER.
98

FAMILIARISATION
18
Cruise control
This maintains a constant vehicle speed
programmed by the driver.
1. "ON/OFF" button: activation/de-
activation of cruise control mode.
2. "COAST SET" button: storing a
driving speed then decreasing the
cruising speed.
3. "ACC RES" button: increasing the
cruising speed and recalling the
stored speed.
4. "CANCEL" button: switching off the
cruise control.
In order to be programmed or activated,
the vehicle speed must be higher than
25 mph (40 km/h) with at least second
gear engaged.
This detects obstacles (person, vehicle,
tree, gate, ...) located behind the vehicle.
The vehicle is fitted with four sensors:
D. two side sensors.
E. two central sensors.
Audible rear parking sensors
121 123
DRIVING SAFELY
Four wheel drive system
Three transmission modes are avail-
able and can be selected manually by
the driver to suit the circumstances:
A. Two wheel drive (2WD),
B. Four wheel drive (4WD AUTO),
C. Four wheel drive (4WD LOCK).
119
Also...
You can change transmission
mode when stationary or when
driving at a speed below 60 mph
(100 km/h).
