PEUGEOT 407 2010 User manual

FAMILIARISATION
Sunroof (Saloon)
This roof improves the ventilation and
light in the passenger compartment.
70 68
103
102
Tyre under-inflation detection
This equipment checks the pressure of
the tyres while driving and warns you if
a malfunction occurs.
Rear screen (SW)
This rear screen provides remarkable
accessibility and makes the loading
of objects easier without opening the
boot.
Visual and audible front and
rear parking assistance
This equipment warns you if an obsta-
cle is detected in front of or behind the
vehicle in forward or reverse gear.

FAMILIARISATION

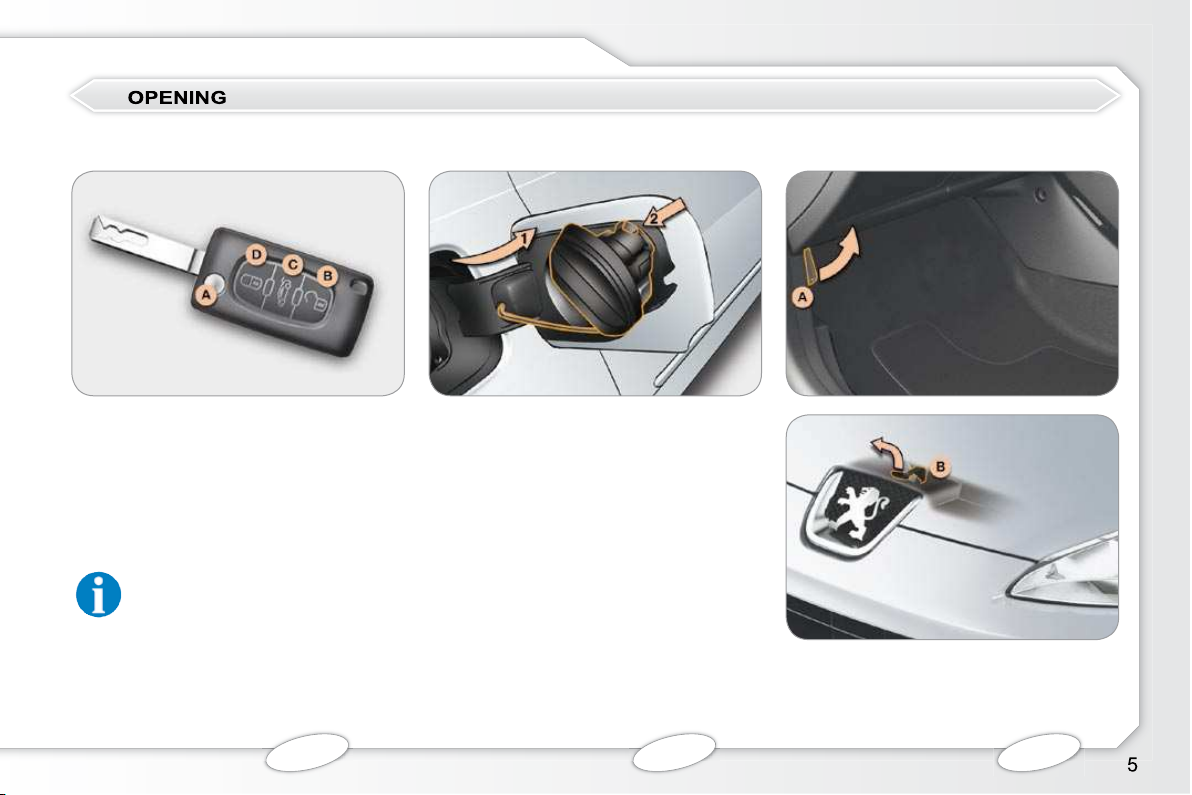

Remote control key
A. Unfolding/folding the key.
B. Unlocking the vehicle
(brief press).
C. Unlocking and partial opening of the
boot (saloon) or of the rear screen (SW )
(long press).
Also...
D. Normal locking
(a single press)
or
deadlocking of the vehicle
(two presses in succession).
Fuel tank
1. Opening of the fuel fi ller fl ap.
2. Opening and hooking of the fuel
tank cap.
Tank capacity: approximately 67 litres.
A. Interior control.
B. Exterior control.
61 72 106
Bonnet

FAMILIARISATION
 Press the button and raise the boot lid.
68 68
With the rear screen closed, to open the
boot, pull the handle Athen raise the
tailgate.
Boot (SW)
Rear screen (SW) Panoramic roof (SW)
71
1. Opening of the shutter.
2. Closing of the shutter.
Boot (Saloon)
With the tailgate closed, to open the
rear screen, pull the handle Bthen
raise the rear screen.
The tailgate and the rear
screen cannot both be open
at the same time.

FAMILIARISATION
Automatic air conditioning
This automatic air conditioning system
guarantees comfort and a suffi cient
circulation of air in the passenger com-
partment.
4 or 6 speed automatic gearbox
This equipment permits driving in auto-
adaptive mode enhanced by a selection
suited to the dynamic driving conditions.
Audio and communication
systems
This equipment benefi ts from the lat-
est technology: MP3 compatible audio
equipment, Bluetooth hands-free tel-
ephone, colour display, audio system,
auxiliary sockets.
Cruise control/speed limiter
The cruise control system automatically
maintains the speed of the vehicle at the
value programmed by the driver, without
any action on the accelerator pedal.
The speed limiter system prevents the
vehicle from exceeding the programmed
speed.
36
137
98
INTERIOR
95

FAMILIARISATION

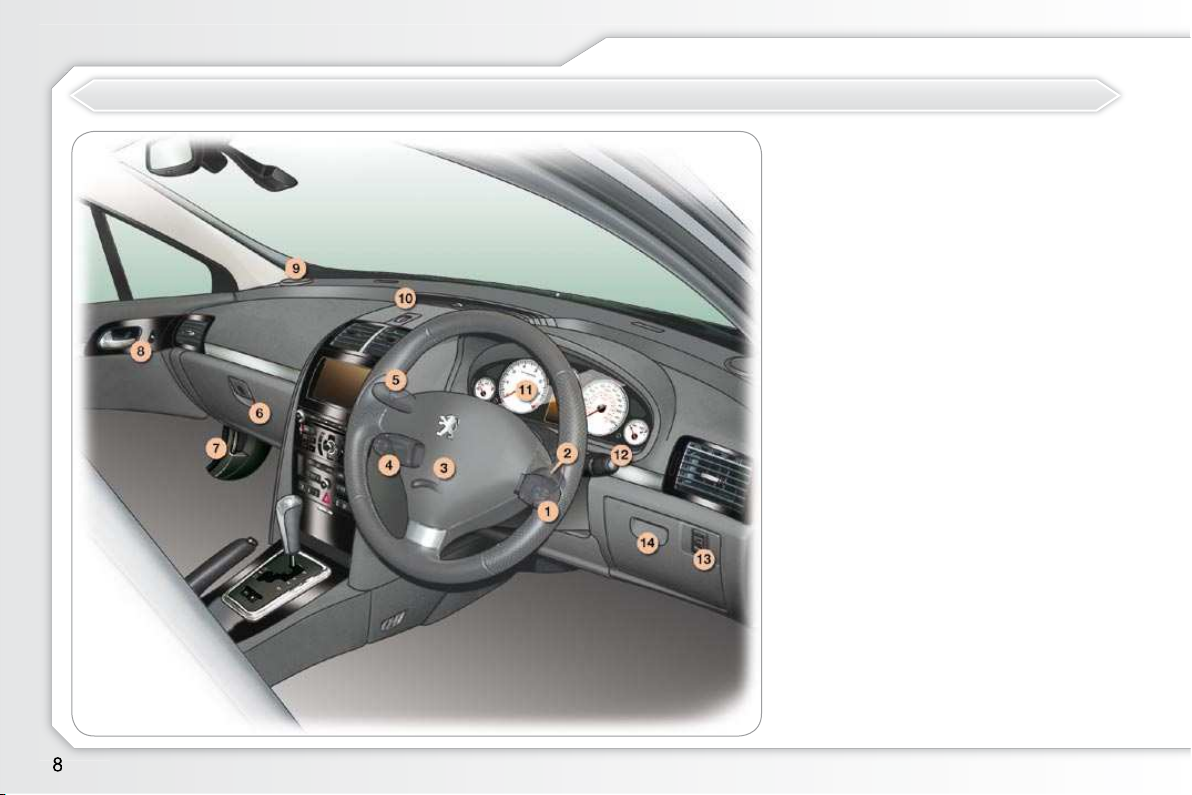

INSTRUMENTS AND CONTROLS
1. Audio equipment steering wheel
stalk.
2. Steering lock and ignition.
3. Steering wheel height and depth
adjustment.
4. Cruise control/speed limiter stalk.
5. Lights/Direction indicator stalk.
6. Air conditioned glove box.
Fuse box.
7. Bonnet release.
8. Passenger-operated electric
window control.
9. Speakers (tweeters).
10. Air diffuser vent grille.
11. Instrument panel.
12. Wiper/Wash-wipe/Trip computer
stalk.
13. Headlamp height adjustment.
14. Storage compartment (driver’s side).

FAMILIARISATION
INSTRUMENTS AND CONTROLS
1. Multifunction display.
2. Audio and telematics system.
3. Automatic air conditioning controls.
4. Deactivation of the audible parking
assistance.
Central locking from the inside.
Alarm control.
Hazard warning lights.
SPORT suspension control.
Deactivation of the ESP system.
Child lock.
5. Ashtray/Front lighter (100 W max).
6. Gear lever.
7. Handbrake.
8. Retractable cup/can holder.
9. Armrest with storage compartment
and USB socket.
10.
12 volt accessories socket (100 W max).
11. Rear ashtray.
139
213
PC Com
PC Nav
184
PC Sound

FAMILIARISATION
50

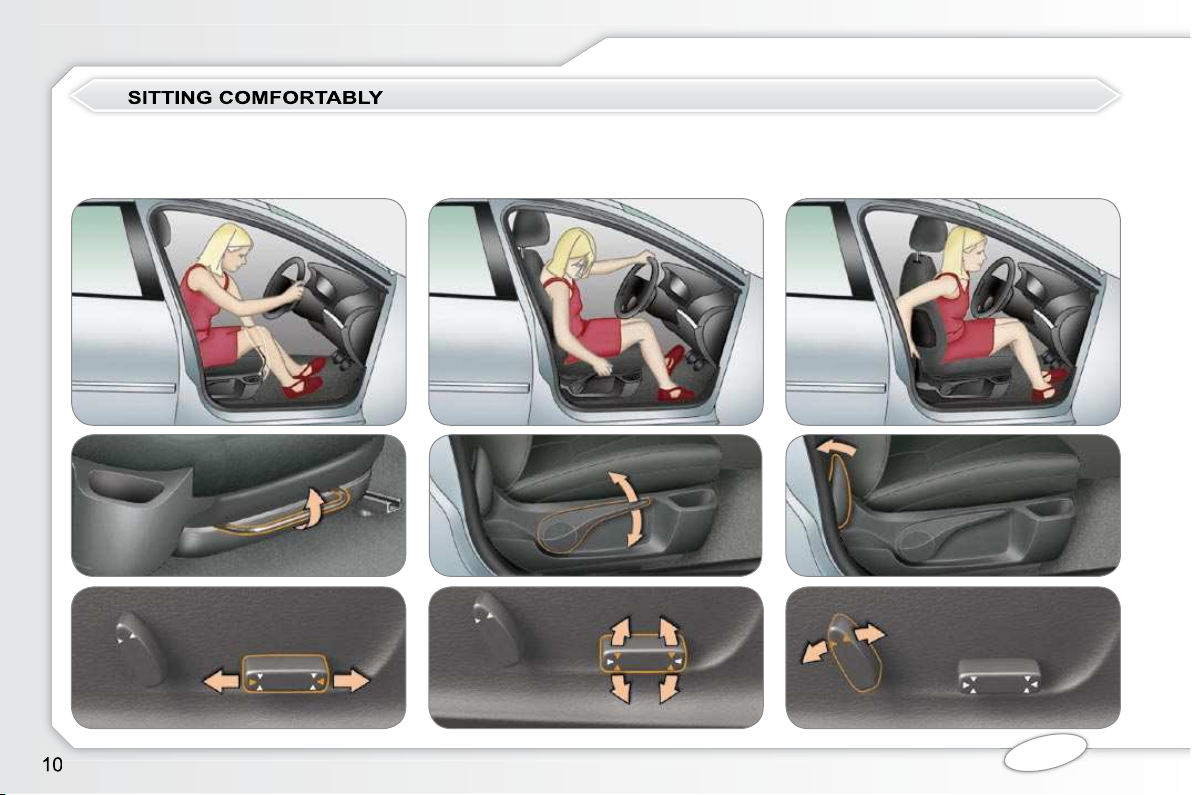

Forwards-backwards Height and angle of the driver’s seat
cushion Seat back angle
Front seat adjustments

FAMILIARISATION
1. Orientation du rétroviseur.
Manual
When stationary, unlock the steering
wheel by pushing the control forwards
then lock by pulling the control fully.
48
48
Exterior mirror adjustment
A. Selection of the mirror.
B. Adjustment of the position of the mirror.
Also...
To guarantee optimum visibility
during your manoeuvres, the
mirror lightens automatically
when reverse gear is engaged.
Steering wheel adjustment Automatic day/night interior
mirror adjustment
49 Also...
C. Folding/Unfolding.

FAMILIARISATION

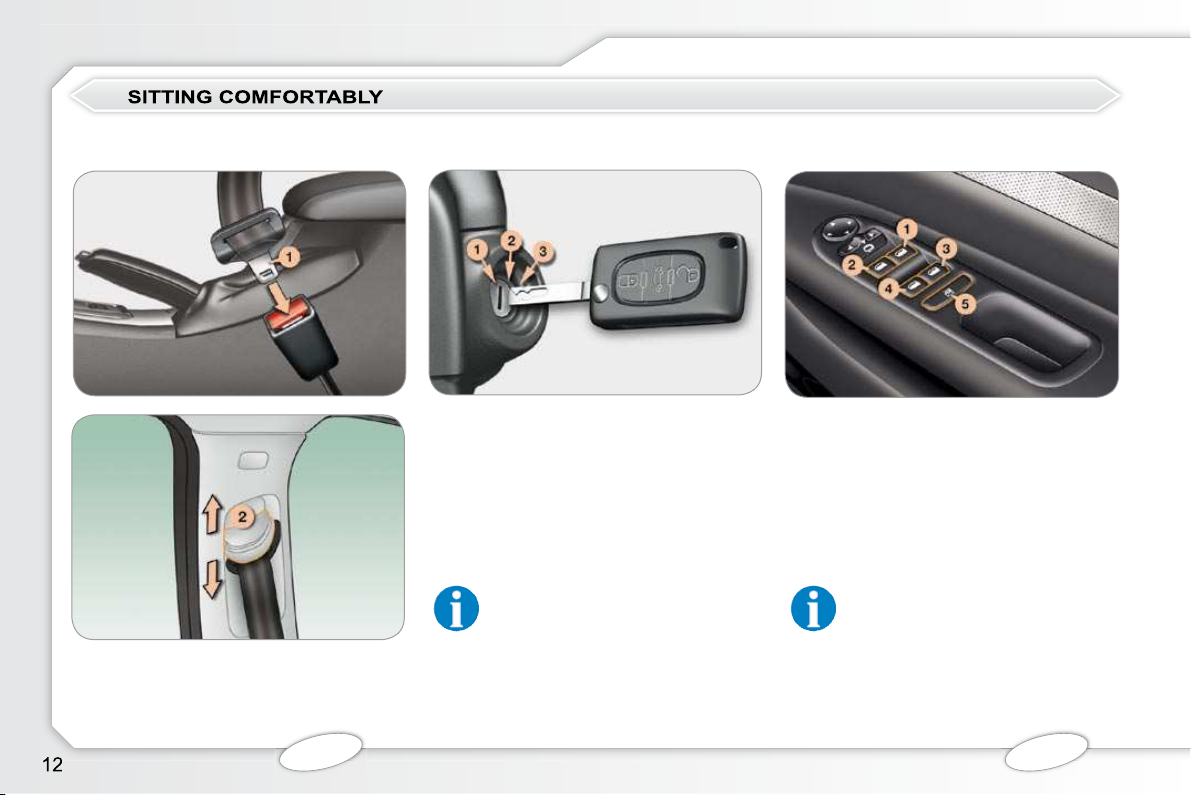

Front seat belt
1. Fastening.
2. Height adjustment.
1. Stop position.
2. Ignition position.
3. Starting position.
67
Electric window controls
1. Driver’s electric window switch.
2. Passenger electric window switch.
3. Rear right electric window switch.
4. Rear left electric window switch.
Ignition switch
88
Also...
5. Deactivation of the electric
window switches located in
the rear (child safety).
A heavy object (key fob...), at-
tached to the key and weighing
down on its shaft in the ignition
switch, could cause a malfunction.

FAMILIARISATION
Lights
Ring B
Windscreen wipers with intermittent wipe
2Fast wipe.
1 Normal wipe.
IIntermittent wipe.
0Park.
 Single wipe.
Wipers
Rear wiper (SW)
Front fog lamps (one press).
Rear fog lamps (two presses).
Park.
Intermittent wipe.
Wash-wipe.
74 77 78
Automatic windscreen wipers
2Fast wipe.
1Normal wipe.
AUTO Automatic wipe.
0 Park.
Single wipe.
Ring A
Lights off
Automatic switching on of the
lights.
Side lights
Dipped/Main beam headlamps
Windscreen wipers with intermittent
and automatic wipe
2Fast wipe.
1 Normal wipe.
IIntermittent wipe.
0Park.
77
Automatic wipe then single
wipe.
