DRYTEL 1025 Series pumping unit
Welcome
You have just purchased a
DRYTEL 1025 Series
pumping unit.
We would like to thank you
and are proud to count you
among our customers.
This product has benefited
from adixen’s many years of
experience in pumping unit
design.
To guarantee high
performance and
full satisfaction from
this equipment, we
suggest that you study
this manual before
any intervention on
your pumping unit,
particularly the chapter
on installation and start-
up.
Drytel 1025 Series
applications
Standard: Drytel 1025 Standard pumping units are recommended for
all applications in which a clean and dry vacuum is required.
Chemical: The Drytel 1025C pumping units can withstand the
pumping of corrosive gas traces. They are equipped with system of
gas injection.
They may be used for different types of application:
• INDUSTRY: Cryogenics, freeze-drying etc.
• INSTRUMENTATION: Mass spectrometry, Airlock analysis etc.
• RESEARCH AND DEVELOPMENT: Pumping small volumes,
Gauge calibration, etc.
• VARIOUS SEMICONDUCTOR PROCESSES: Airlock pumping, etc...
AMD1
AMD4 - AMD4C
AMH020/AMH020C
MDP 5011/5011C
adixen Vacuum Products - Operating instructions - Drytel 1025 Series

2/2
DRYTEL 1025 Series pumping unit
GB 00867 - Edition 04 - 02/2011
This product complies with the requirements of European Directives,
listed in the Declaration of Conformity contained in G 100 of this
operating instructions.
Copyright/Intellectual property:
The use of adixen products are subject to copyright and
intellectual property rights in force in any jurisdiction.
All rights reserved, including copying this document in whole
or any part without prior written authorization from adixen
Vacuum Products
Specifications and information are subject to change without
notice by adixen Vacuum Products.
Advantages •Clean pumping,
•Flexibility, reliability and strength,
•Compact size and low weight,
•Easy maintenance,
•Economical solution,
• Protection by purges of neutral gas.
This product is designed to generate vacuum by pumping on gases, but no
liquids neither solids. It is dedicated for running in industrial and laboratories
environments.
adixen Vacuum Products - Operating instructions - Drytel 1025 Series

GB 00868 - Edition 05 - 12/2012
1/2
Contents
Operating instructions
DRYTEL 1025 Series
MANUAL REFERENCE: 119976
EDITION:05 - 12/2012
Translated from original version
Chapter A PRESENTATION
A 10 - Drytel 1025 Series presentation
A 20 - Drytel 1025 Standard interface description
A 21- Drytel 1025C interface description
A 30 - Drytel 1025 Series application
A 40 - Technical characteristics Drytel 1025 Standard
A 41 - Technical characteristics - Drytel 1025C
A 50 - Drytel 1025 Standard Options
A 51 - Drytel 1025C Options
A 60 - Accessories
Chapter B START-UP
B 10 - Safety instructions for pump
B 20 - Unpacking, storage
B 30 - Mechanical connection Drytel 1025 Series
B 31 - Inert gas purge connection (N2) - Drytel 1025C
B 40 - Electrical connection Drytel 1025 Series
B 50 - Connecting the remote control connector (option) Drytel 1025 Series
B 60 - Connection of gas ballast (option) Drytel 1025 Series
Chapter C OPERATION
C 10 - Safety instructions for product use
C 20 - Using the pumping unit Drytel 1025 Series in local mode
C 30 - Using the pumping unit in remote control mode (option)
C 40 - Using the automatic gas ballast (option)
C 41 - Using purges of Drytel 1025C
Chapter D MAINTENANCE
D 10 - Maintenance safety instructions
D 30 - Troubleshootings and remedies Drytel 1025 Series
D 40 - Drytel 1025 Series Maintenance frequencies
Chapter E MAINTENANCE SHEETS
E 20 - Pumping unit dispatch procedure
E 30 - Fuses replacement
E 40 - Pumping unit maintenance Drytel 1025 Series
E 49 - AMD4/AMD4C roughing pump replacement
E 50 - AMD1 roughing pump maintenance
E 51 - AMD4 roughing pump maintenance
E 52- AMD4C roughing pump maintenance
E 60 - MDP 5011/5011CP pump lubrication
E 70 - Starting up the MDP 5011/5011CP pump after refilling the bearings with
grease
Chapter F MAINTENANCE COMPONENTS
F 000 - Spare parts - Instructions of use
F 10 - Spare parts for first level of maintenance
adixen Vacuum Products - Operating instructions - Drytel 1025 Series

2/2
Contents
Operating instructions
DRYTEL 1025 Series
GB 00868 - Edition 05 - 12/2012
MANUAL REFERENCE: 119976
EDITION:05 - 12/2012
Translated from original version
Indicates a potentially hazardous situation which, if not avoided, could
result in property damage.
Indicates a potentially hazardous situation which, if not avoided, could
result immoderate or minor injury. It may also be used to alert against
unsafe practices.
Indicates a potentially hazardous situation which, if not avoided, could
result in death or severe injury.
Indicated an imminently hazardous situation that, if not avoided, will
result in death or severe injury (extreme situations).
Before switching on the product, study the user’s manual and make sure
you follow the safety instructions. You can recognise these by the ‘Caution’,
‘Warning’ and ‘Danger’ symbols.
Good practice tips and manufacturer’s recommendations are in a blue box.
The performance and operational safety of this product are guaranteed pro-
vided it is used normally in the operating conditions defined in this manual.
It is the customer’s task to:
- train operators to use the product if they do not speak the language the
manual is written in,
- ensure operators know the safe practices to apply when using the
product.
Chapter G APPENDIX
G 100 - Declaration of conformity
G 200 - Service
adixen Vacuum Products - Operating instructions - Drytel 1025 Series

GB 00870 - Edition 04 - 02/2011
1/2
A 10
Drytel 1025 Series presentation
Drytel 1025 Series
pumping units
Different products
available Drytel 1025
Standard
No contamination by internal lubricants
High performance
Economical solution



Main characteristics
DRYTEL 1025
Roughing pump AMD1 or AMD4
High vacuum pump MDP 5011 or AMH020
Options Automatic gas balllast
Remote control
DN16 exhaust and fitting
AMD1
AMD4 - AMD4C
AMH020/AMH020C
MDP 5011/5011CP
DRYTEL 1025 Chemical
Roughing pump AMD4C
High vacuum pump MDP 5011CP or AMH020C
Options Remote control
Gas ballast for roughing pump
One connection for both purges
Different products
available Drytel 1025
Chemical
adixen Vacuum Products - Operating instructions - Drytel 1025 Series

2/2
A 10
Drytel 1025 Series presentation
GB 00870 - Edition 04 - 02/2011
Using and principle of
pumping units
Drytel 1025 Series pumping units are a combination of vacuum
pumps:
- a hybrid or simple turbomolecular secondary pump.
- and a multi-stage diaphragm pump.
They allow the reduction of pressure of the vessel from atmospheric
pressure until low vacuum.
The inlet gases are compressed and exhausted at atmospheric
pressure.
Drytel 1025 Series pumping units are designed for pumping of gases
or of vapors and mustn’t be used for the liquid pumping.
However vapors emanated from liquids or solids can be pumped with
dilution by inert gases.
They are not designed for working as a compressor.
They are not designed for pumping gases at inlet pressure over
atmospheric pressure.


The Drytel 1025 Series are designed for various gases and can be
adapted to the application with accessories. For applications, see
section A 30.
adixen Vacuum Products - Operating instructions - Drytel 1025 Series

GB 00871 - Edition 04 - 02/2011
1/3
A 20
Drytel 1025 Standard interface
description
Description The Drytel 1025 pumping unit is a dry (oil-free) pumping system,
capable of pumping from atmospheric pressure up to high vacuum
pressures.
Pumping Principle
diagram
At the high vacuum pump exhaust, the gases are evacuated to the
atmosphere by a roughing pump.
Ultimate pressure Atmospheric
pressure
Puming unit
Confinement to pump
Roughing pumpHigh vacuum pump
Roughing vacuumHigh vacuum
Roughing pump
High vacuum pump
Converter board
Main board
adixen Vacuum Products - Operating instructions - Drytel 1025 Series

2/3
A 20
Drytel 1025 Standard interface
description
GB 00871 - Edition 04 - 02/2011
Green : the secondary pump has reached its synchronism speed.
Yellow : the secondary pump is speeding up.
Red : fault on the pumping unit.
See section C 20. Using the pumping unit in local mode.
The operating status of the pumping unit is represented by the
three indicator lights.
Machine/Man
interface
Ventilation holes
Male mains connector
Male remote control
connector (*)
Labels
Voltage
Intensity
Fuse
Main switch
Time
meter
Green indicator light
Yellow inicator light
Red indicator light
Fuse holder
Inlet Inlet
Exhaust
Exhaust
Drytel 1025 equipped with
AMD1 and MDP 5011
(rear panel)
Drytel 1025 equipped with
AMD4 and MDP 5011
(rear panel)
(*) Remote control connector (option):
See sections A 50 B 50 C 30.
adixen Vacuum Products - Operating instructions - Drytel 1025 Series

GB 00871 - Edition 04 - 02/2011
3/3
A 20
Drytel 1025 Standard interface
description
Automatic air ballast
operating principle
Drytel Series
Powering up the solenoid valve opens it and introduces a calibrated
quantity of air via a nozzle parallel to the pumped gas.
Sintered metal disks protect the nozzle from dust or foreign bodies
carried by the gas or from the atmosphere.
The air inlet filter protects against dust or foreign bodies from the
atmosphere.
In case of accident or if the pump stops, a valve closes this inlet and
keeps the system anti-suckback.
For more efficiency, it is possible to use a dry neutral gas as a purge
gas.
See section B 30 Connecting the automatic gas ballast (option).
See section C 40 Using the automatic gas ballast (option).
When these condensable gases are pumped, depending on the
nature of the pumped gases, pressure and temperature conditions,
they may condense in the dead volumes of the primary pump.
When the pumping unit is at low pressure, the roughing pump is
at its ultimate pressure. The gases no longer pass through, its check
valves no longer open and the condensates remain inside the pump.
These condensates mix with dust and create a destructive abrasive
for the pump diaphragm.
The introduction of gas at the last stage of the pump has various
effects:
the dilution of the pumped gas and the reduction of the partial
vapor pressure of the residual gas in the pump.
it increases the compression of the pump and heats it, reducing
the risk of condensation by increasing of the temperature of the
internal pump.
it reduces in the last stage the partial pressure of the pumped
gas and it stops its condensation when the gas reaches the
atmospheric pressure.
in case of pumping at low pressure, when there is no flow, it
gives the possibility to open the valves and evacuate the dropless
and residual gases.





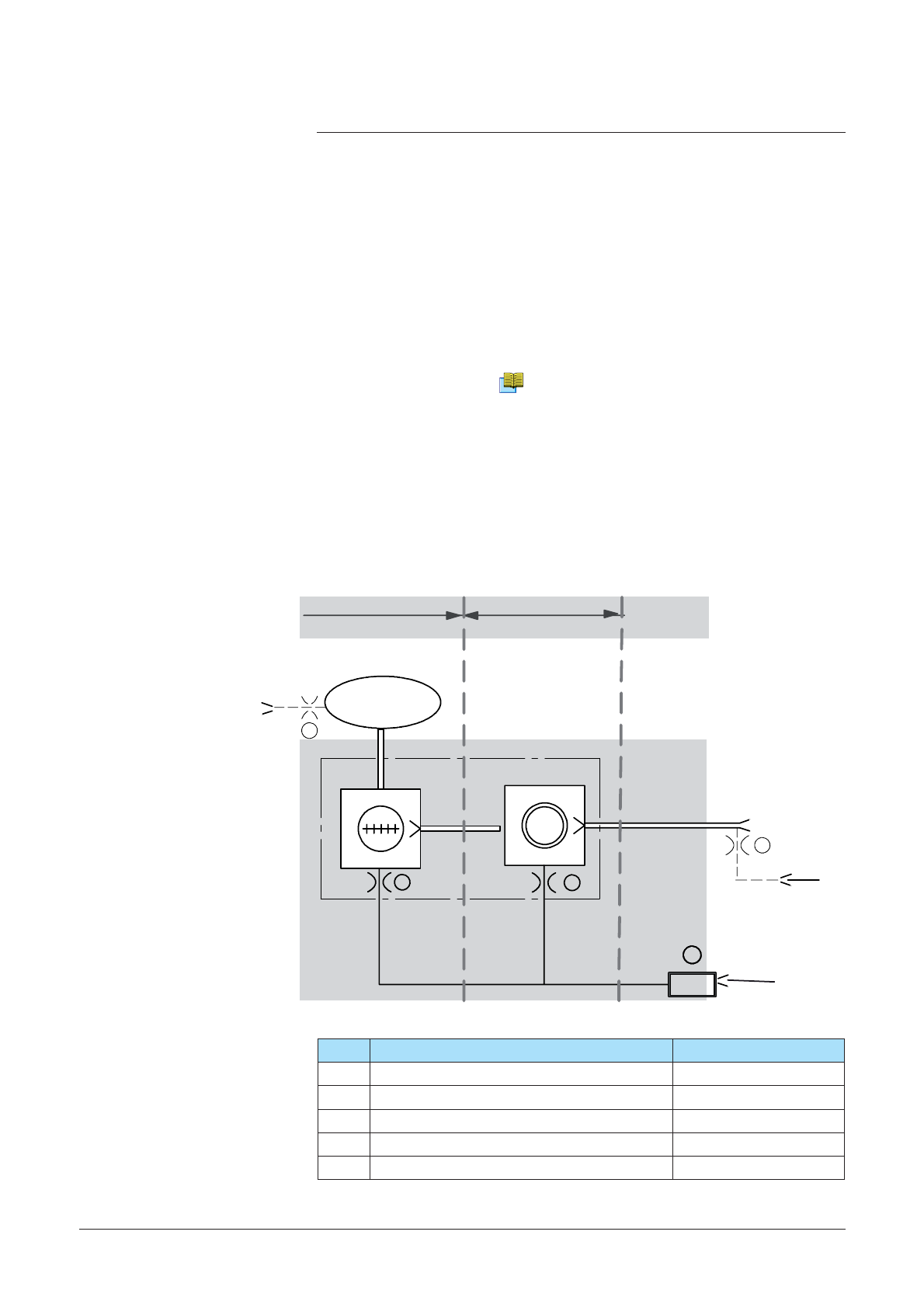

Principle diagram
High vacuum pump Roughing pump
Chamber to be pumped
Minisol
valve
Air inlet filter
Calibrated nozzle
Poral disks
Pumping unit
Drytel 1025 Standard only
adixen Vacuum Products - Operating instructions - Drytel 1025 Series

GB 02311 - Edition 04 - April 2011
1/3
A 21
Drytel 1025C interface description
Principle diagram
Drytel 1025C
1
23
4
5
1
Neutral gas
Neutral gas
Neutral gas Confinement
to pump
Pumping unit
Roughing
pumping
High vaccum
pumping
High vacuum pump Roughing pump
PRESSURE
ULTIMATE ATMOSPHERIC
PRESSURE
Rep Désignation
1 Purge connection Standard
2 High vacuum pump purge Standard
3 Roughing pump air ballast Option
4 Exhaust purge Customer’s furniture
5 Inlet purge Customer’s furniture
Beforehand see section A 20 «Drytel 1025 Standard interface
description».
Man/Product Interface
Description The Drytel 1025C pumping unit is a dry (oil-free) pumping system,
capable of pumping from atmospheric pressure up to secondary
vacuum pressures.
adixen Vacuum Products - Operating instructions - Drytel 1025 Series

2/3
A 21
Drytel 1025C interface description
GB 02311 - Edition 04 - April 2011
The neutral gas
connections and the
different purges

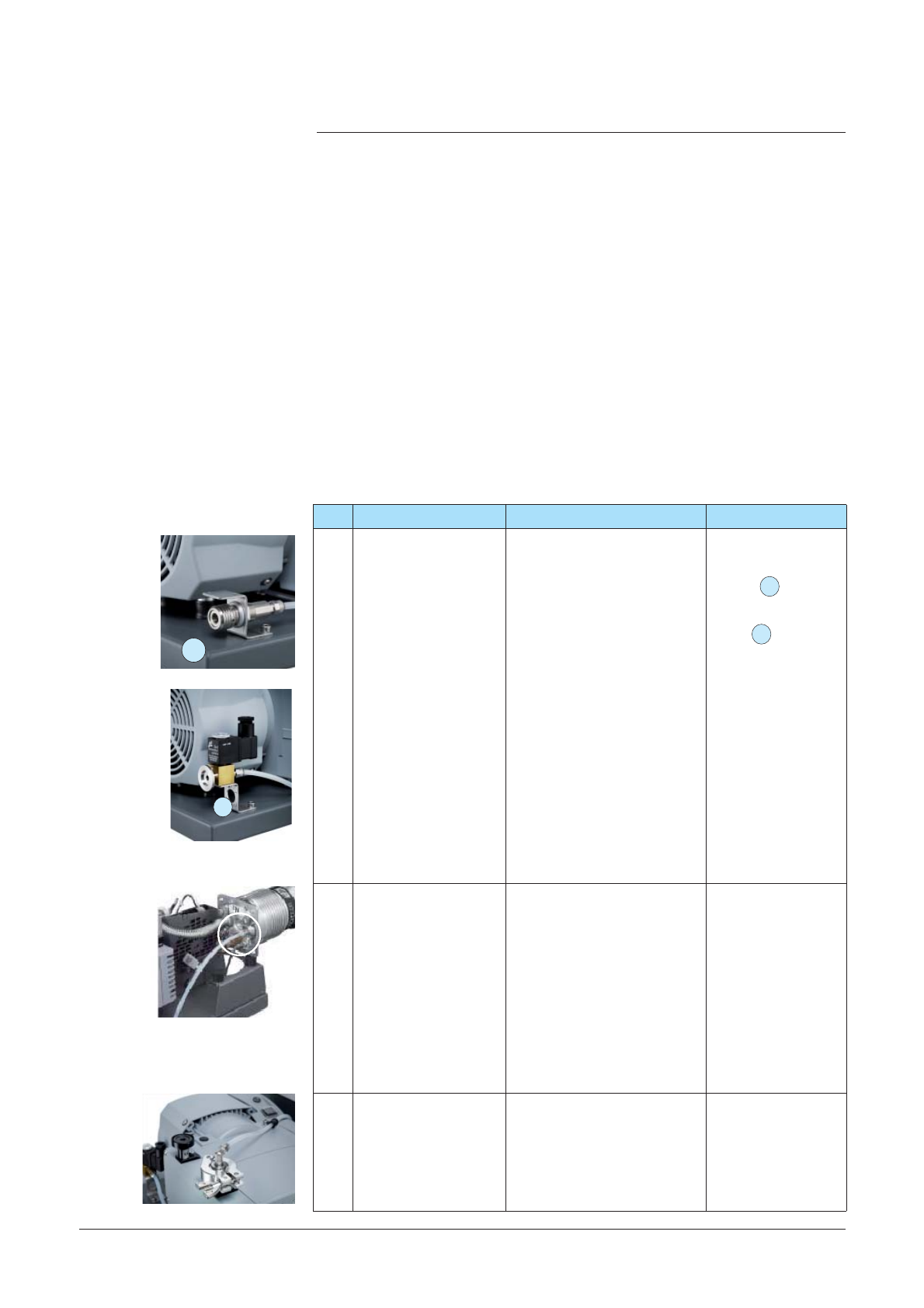

Rep Description Function Furniture
1 Common inlet of
the neutal gas.
Common neutral gas
supply of all the purges
and gas ballast.
Connection is a
quick disconnect
fitting 1or an
electromagnetic
valve 2
(normally closed)
equipped with
DN16 (Purchasing
order).
2 DN16 high vacuum
pump purge.
This purge must be
used. It protects motor
and bearing of the high
vacuum pump against
corrosion.
It is equipped of a 25 sccm
(AMH020C)
or a 50 sccm
(MDP 5011CP).
Standard.
3 DN 16 rouhging
pump gas ballast
It allows the condensable
gas pumping. It forbid the
deposit formation in the
pump. It is done with a 0.3
mm diameter jet.
The exhaust of the Drytel 1025C must be connected to an exhaust
system or scrubber (customer furnished).
The purge of the Drytel 1025C may be connected to the neutral
gas supply through a quick disconnect fitting (manual connection)
or an DN 16 electromagnetic valve (normally closed) (automatic
connection).
The flow rate of the purge is controlled by the manufacturer.
1
2
adixen Vacuum Products - Operating instructions - Drytel 1025 Series

GB 02311 - Edition 04 - April 2011
3/3
A 21
Drytel 1025C interface description
Rep Description Function Furniture
4 Exhaust purge. The exhaust purge
dilutes pumped gases
with a inert gas. It
makes it possible to limit
corrosion, condensation
and accumulation of
gases in the pipes and
accessories connected at
the exhaust of the pump.
The flow rate (depending
on application) will be
ensure to satisfy the
dilution conditions.
Caution: do not generate
an excess pressure > 0.1
relative bar.
The
manufacturer
advises these
purges.
They must be
provided by
the customer.
Contact the
Service centre
for informations.
5 Inlet purge. In case of inlet purge, a
jet must be installed on
the inlet line. The flow
rate of purge will depend
on the jet diameter
and the flow rate will
be ensure to satisfy the
dilution conditions and
at the maximum pressure
of Drytel inlet (See A40).
See section A 20 «Drytel 1025 standard interface description».
Automatic gas ballast
operating principle
The neutral gas
connections and the
different purges (Cdt.)
adixen Vacuum Products - Operating instructions - Drytel 1025 Series

GB 04634 - Edition 01 - 02/2011
1/4
A 30
Drytel 1025 Series application
Gas and vapor
pumped
The chemical and standard Drytel 1025 are designed for various
gases and can be adapted to the application with accessories.
The gases pumped can be identify as follow:
1 - neutral or inert, air, nitrogen, CO2, rare gases or permanent
non reactive gases,
2 - gas containing condensable vapor, gases able to condense them
selves, gases able to polymerize,
3 - reactive and / or corrosive gases with : air, moisture or together
with material of the pumping line depending on the conditions...,
4 - oxidizing, reactive, in particular with hydrocarboned compounds
hydro-carbonés O2,O3 ,CO ,NO , NO3...,
5 - flammable or explosive, in mixture with a combustive
including oxygen like air.
This is the user and/or the OEM’s responsibility to avoid any explosive
mixture.
6 - toxic and / or asphyxiating,
7 - any possible combinations of them.
See page 3 , the chart «equipment choice depending on
application».
Use of the pumping
units
Drytel 1025 The standard Drytel 1025 are designed for pumping of neutral, inert
(air, nitrogen...) and permanent gases . The purges are not included.
However, if the pumped gaseous composition contains condensable
vapors, the gas ballast optional use of the group (unit pumping) may
be required.
The chemical Drytel 1025C are designed for pumping at low pressure
corrosive internal parts of the pump, as condensable vapors.
The high vacuum pump is equipped itself with a purge to protect the
mechanical part and its motor.
The roughing pump AMD4C may is equipped with a gas ballast (op-
tion) or a purge on line eshaust (customer’s furniture)
Warning, some gases can damage the pumping unit ( ex: NH4OH
damages FPM elastomer, some fluorine damage the Teflon...).
Drytel 1025C
adixen Vacuum Products - Operating instructions - Drytel 1025 Series

2/4
A 30
Drytel 1025 Series application
GB 04634 - Edition 01 - 02/2011
Accessories
description
Precautions of use
The use of specific accessories allows the pumping of different vapors
and gases.
The purges decrease the reactivity of different gases and vapors.
They reduce the concentration of the pumped gases.
The gas ballast generates the thermodynamic conditions (tempera-
ture and concentration) necessary to avoid condensation or deposits
inside the pump.
During some applications, it is not possible to know what is really
pumped.
The vacuum outgassing of pumping line materials can generate
reactive gases (solvent, acid) which may change the nature of the
pumped gas mixture.
The gases or vapors at low pressure have a poor concentration and
are not very reactive. When the pressure is closer to atmosphere,
they can occur the saturation. Their reactivity can become important.
Listed below are different pumping cases, and recommended
technical solutions. (This list is not exhaustive).
The Drytel 1025C version are made to pump on corrosive gas traces.
The user and /or OEM are ultimately responsible for operating the equipment
in a safe manner. The manufacturer has no control over the types of gases
exposed to this pump. This is the user and/or the OEM’s responsibility to
follow the necessary safety requirements.
Frequently process gases are toxic, flammable, corrosive, explosive and/or
otherwise reactive.
Toxic gases can cause serious injury or death. Operators and users must
take the appropriate safety recommendations to prevent injury. Consult the
responsible department for instructions and safety information.
Hazardous gases through the pump can cause serious injury or death.
It’s mandatory by regulations to connect the pump’s exhaust to a facility
hazardous gas exhaust system which incorporates appropriate filters,
scrubbers, etc. This system must meet all air and water regulations. Check
that pump is correctly connected to the equipment ( B 60).
adixen Vacuum Products - Operating instructions - Drytel 1025 Series

GB 04634 - Edition 01 - 02/2011
3/4
A 30
Drytel 1025 Series application
Vapor / Gas Points to check
when pumping Safety measures
Pumping units and
recommended accessories
Drytel 1025 Drytel 1025 C Gas ballast Exhaust smoke Purge
1 Neutral or
inert gas
Nothing. Nothing. x x
2-a Slightly
condensable
vapor
Avoid condensa-
tion. Reduce pump
performance and
reliability.
Avoid over pressurization at ex-
haust.
Before pumping, heat up the group
by working on itself. «Under the
supervision of customer».
xxx
2-b Polymerizing
vapor
Avoid condensa-
tion. Reduce pump
performance and
reliability.
Use the gas ballast of Drytel or
roughing pump, according to the
concentration.
Before pumping, heat up the group
by working in itself. «Under the
supervision of customer».
xx
3-a Reactive and
/ or corrosive,
slightly con-
centrated
Avoid moisture
which can create
liquid phases and
destroy the pump
components.
Check that the gas
does not reach its
partial pressure of
vapor in the rough-
ing pump.
Dilute the gas to reduce the concen-
tration and avoid transformation
into liquid phase or sublimation.
Use the gas ballast of group.
Avoid over pressurization at exhaust
and make sure that tightness of the
pumping group is efficient.
Check that the pump materials are
compatible with vapors pumped.
«Under the supervision of custom-
er».
x
x
x
x
xx
3-b Reactive and
/ or corrosive
highly concen-
trated
Avoid moisture
which can create
liquid phases and
destroy the pump
components.
Check that the gas
does not reach its
partial pressure of
vapor in the rough-
ing pump.
Dilute the gas to reduce the concen-
tration and avoid transformation
into liquid phase or sublimation.
Use the gas ballast of group.
Avoid over pressurization at exhaust
and make sure that tightness of the
pumping group is efficient to pro-
tect the surrounding environment.
Check that pump and pumping
line materials are compatible with
vapors pumped.
«Under the supervision of costu-
mer».
xxx
Equipment choice
depending on
application
adixen Vacuum Products - Operating instructions - Drytel 1025 Series

4/4
A 30
Drytel 1025 Series application
GB 04634 - Edition 01 - 02/2011
Vapor / Gas Points to check
when pumping Safety measures
Pumping units and
recommended accessories
Drytel 1025 Drytel 1025 C Gas ballast Exhaust smoke Purge
4 Oxidizing gas Avoid moisture
which can create
liquid phases and
destroy the pump
components.
Prevent the pres-
ence of combustive.
Dilute the gas in order to reduce its
concentration (important).
Avoid over pressurization at exhaust
and securit it.
«Under the supervision of custom-
er».
xxx
5 Flammable or
explosive gas
Dilute the gas to
decrease its concen-
tration.
Work at pressure far
from the flash point
in air or oxygen.
Avoid any accumulation of gas
inside pumping line.
Forbid all flame or sparks near
pumping.
Control the internal temperature of
pumps.
Not recommended. Use
another type of pump
designed to stand an
internal flammation or
explosion (dedicated to
stand hazardous environ-
ments). Please consult us.
Refer to EC directives:
Explosive Atmosphere,
ATEX.
6 Asphyxiating
and toxic gases
Avoid leaks towards
environment by
roughing pump or
pumping line.
Make sure that the tightness of the
pumping unit is efficient to protect
the surrounding environment.
«Under the supervision of custo-
mer».
Not recommended. Use
another type of pump
chemical version. Howev-
er, it is possible in some
cases. Please consult us.
7 Fluoride gas Incompatibility with
pump materials
(PTFE).
Check that pump and pumping
line materials are compatible with
vapors pumped.
«Under the supervision of custo-
mer».
Not recommended.
However, it is possible
in some cases. Please
consult us.
adixen Vacuum Products - Operating instructions - Drytel 1025 Series

GB 00873 - Edition 04 - 02/2011
Technical characteristics - Drytel 1025
Standard
1/5
A 40
Technical data
(*) Ultimate vacuum measured according PNEUROP specification
Drytel 1025
with MDP 5011
Drytel 1025
with AMH020
AMD1 AMD4 AMD1 AMD4
CHARACTERISTICS UNIT
Ultimate pressure (*) hPa < 1·10-6 < 1·10-8
Pumping rate N2
Pumping rate He
Pumping rate H2
l/s
7.5
4
3
30
20
14
Primary pump pumping rate (50 et 60 HZ) m3/h 1.0 / 1.2 3.0 / 3.4 1.0 / 1.2 3.2 / 4.0
Pumping max.flow hPa·l/s 300 720 330 800
Exhaust pressure hPa 1013
Start-up time mn < 2
Cooling system / Air
Maximum inlet pressure hPa 5 0.5
Maximum differential pressure at exhaust kPa 110
Tightness (typical value) hPa·l/s 5·10-4
Purge maximum pressure kPa 110
Purge gas temperature °C 30 maxi
Inlet flange / DN 63 ISO-K DN 63 ISO-K - DN63 CF-F
Noise filter - G1/8 BSPT G1/4 BSPT G1/8 BSPT G1/4 BSPT
Frequencies Hz See section B40
Power voltage V 100 / 115 / 200 / 230
Noise level dB(A) < 52 < 56 < 52 < 56
Weight kg 15 26
Maximum temperature pumping gases °C 60
Maximum weight on inlet flange kg 30
Storage temperature °C -10 to +60
Protection degree IP21
Automatic gas ballast (See section A20)
- Neutral gas pressure
- Flow rate
- Solenoid valve power supply voltage
- Connection thread
kPa
sccm
VDC
-
100 to 110
60
24
G 1/8 BSPT
adixen Vacuum Products - Operating instructions - Drytel 1025 Series

Technical characteristics - Drytel 1025
Standard
GB 00873 - Edition 04 - 02/2011
2/5
A 40
Drytel 1025
with MDP 5011
Drytel 1025
with AMH020
AMD1 AMD4 AMD1 AMD4
CHARACTERISTICS UNIT
Environmental conditions:
Maximum relative humidity Maximum relative humidity 80 % up to 31 °C
decreasing until 50 % at 40 °C
Use of the product - Indoor
Ambient operating temperature °C 5 to 35
Maximum altitude m < 2000
Pollution degree - Category II
adixen Vacuum Products - Operating instructions - Drytel 1025 Series

GB 00873 - Edition 04 - 02/2011
Technical characteristics - Drytel 1025
Standard
3/5
A 40
8.70
Power supply plug.
1.69
12
Power supply plug
2.20
Interface board
Interface board
Exhaust DN16
9.47
Inlet port DN 63
2.36
Inlet port DN 63
2.76
Gas ballast
4.80
Gas ballast
1.65
Inlet port DN63
10.39
15.16
Leds 196
Leds
6.14
0.25
Dn 63
3.20
2.08
Exhaust DN16
4 holes
0.43
1.65
0.47
Ø
4 holes for fixing of 4 screws 8,8 ISO 4017 category screws 4 (customer’s supply).
Dimensions (inch)
Drytel 1025 with AMD1
Inlet
Inlet
Exhaust
Bottom view
adixen Vacuum Products - Operating instructions - Drytel 1025 Series
