WOD 250 B, WOD 440 B,
WOD 900/950 A/B, WOD 1600 A/B
WOD 1800 A/B, WOD 2001
WOD 3000 A/B, WOD 3001 A,
WOD 3500 A,
Betriebsanleitung • Operating Instructions

2
1. Safety Precautions .................................. 2
1.1. For Your Orientation........................................................... 2
1.2. Pictogram-Definition ......................................................... 2
2. Understanding The Pumping Station..... 3
2.1. Main Features..................................................................... 3
2.2. The Delivery Consignment................................................ 4
2.3. Pump Combination Options .............................................. 4
3. Installation ............................................... 5
3.1. Pumping Station Set-Up And Location........................... 5
3.2. Connecting The Vacuum Side.......................................... 5
3.3. Connecting The Exhaust Side .......................................... 5
3.4. Electrical Connections ...................................................... 5
3.5. Filling In Operating Fluid ................................................... 6
3.6. Noise Reduction................................................................. 6
4. Operations ................................................ 7
4.1. Important Information ....................................................... 7
4.2. Switching On The Pumping Station ................................ 7
4.3. Switching Off The Pumping Station ................................ 7
4.4. Pumping Station Operations With Switch Cabinet....... 7
5. What To Do In Case Of Breakdown ....... 9
6. Maintenance .......................................... 10
7. Service .................................................... 10
8. Technical Data ....................................... 11
8.1. Dimensions........................................................................ 15
8.2. Relevant Operating Instructions.................................... 20
9. Accessories............................................ 20
10. Spare Parts ............................................. 21
Declaration Of Contamination ................... 23
Manufacturer´s Declaration ......... last pages
Declaration Of Conformity............. last pages
INDEX
Page Please note:
Current operating instructions are also available via
www.pfeiffer-vacuum.net

3
1. Safety Precautions
☞Read and follow all the instructions in this manual and in
the component instructions (Section 8.2) as well.
☞Inform yourself regarding:
– Hazards which can be caused by the pumping station;
– Hazards which can arise in your system;
– Hazards which can be caused by the medium being
pumped.
☞Avoid exposing any part of the body to vacuum.
☞Observe all safety and accident prevention regulations.
☞Check regularly that all safety requirements are being
complied with.
☞Do not use the pumping station and components for the
purpose of generating pressure.
☞Do not carry out any unauthorised conversions or
modifications on the pumping station.
☞When returning the pumping station to us please note the
shipping instructions (see the operating instructions for
the individual components).
1.1. For Your Orientation
In the text
➡Operating instruction: Here, you have to do something.
Symbols Used
The following symbols are used throughout in the
illustrations:
Vacuum flange
Exhaust flange
Electrical connection
Danger of damage to the pump or the system.
CAUTION
Danger of burns from touching hot parts.
WARNING
Danger of an electric shock.
WARNING
Danger of personal injury.
WARNING
Modifications reserved.
1.2. Pictogram-Definitions
Attention to particularly important information
on the product, handling the product, or to a
particular part of the documentation.
☞
PLEASE NOTE

4
2.1. Main Features
2. Understanding The Pumping Station
Proper Use
– The Roots vacuum pumping station may only be used for
the purpose of generating vacuum.
– Do not pump corrosive or explosive gases (a special
version for these applications is available on request).
– Do not operate the pumping station in areas where there is
a danger of explosion. For this a special ex version is
required.
– Accessories other than those referred to in these
operating instructions may not be used without the
agreement of Pfeiffer Vacuum.
Improper use will cause all liability claims and guarantee
rights to be forfeited.
The WOD series comprises a combination of Roots and rotary
vane vacuum pumps with oil mist filter. A high vacuum safety
valve* with ventilation valve which is integrated in the rotary
vane vacuum pump is arranged between the Roots vacuum
pump and the rotary vane vacuum pump. This shuts off the
vacuum chamber in the event of a power failure and
ventilates the backing pump.
The technical details concerning the components used in the
pumping station are contained in the relevant operating
instructions.
The pumping station is fitted in a frame and is equipped with
all the necessary connection lines and including counter
flanges on the intake and the pressure sides. The pumping
station is designed to pump dry, inert and non-reactive gases
and gaseous mixtures.
The maximum working range is from atmospheric pressure to
approx.:
1 z10-3 mbar with 1 stage rotary vane vacuum pump.
< 3 z10-4 mbar with 2 stage rotary vane vacuum pump.
PP952S_2
1234 5
Roots Vacuum Pumping Station Schematic
1 Roots vacuum pump
2 High vacuum safety valve
3 Ventilating valve
4 Rotary vane vacuum pump
5 Oil mist filter
Roots Vacuum Pumping Station WOD 1800 B
Vacuum flange 10 WKP 2000 A/AD
Exhaust flange 20 DUO 250 A
Electrical connection
30 ONF 100
20
30
10
Roots Vacuum Pumping Station WOD 3500 A
Vacuum flange 11 WKP 4000 A/AD 31 ONF 160
Exhaust flange 21 BA 501
Electrical connection
31
21
11
* not integrated in pumping stations where the rotary vane pumps
BA 251 or BA 501 are involved.

5
RRoooottssVVaaccuuuumm--
ppuummpp
BBaacckkiinnggppuummppWWKKPP225500AAWWKKPP550000AAWWKKPP11000000AA//AADDWWKKPP22000000AA//AADDWWKKPP44000000AA//AADDWWKKPP88000000
UNO 65 WOD 802 A
DUO 65 WOD 802 B
UNO 120 A WOD 900 A WOD 1600 A
DUO 120 A WOD 250 B WOD 440 B WOD 900 B WOD 1600 A
UNO 250 A WOD 950 A WOD 1800 A WOD 3000 A
DUO 250 A WOD 950 B WOD 1800 B WOD 3000 B
BA 251 WOD 951 WOD 1801 WOD 3001 A
BA 501 WOD 2001 WOD 3500 A WOD 6500 A
2.2. The Delivery Consignment
The pumping station is supplied in two versions:
Pumping station without switch cabinet and without
electrical wiring.
– The standard pumping station is supplied with a filling of
operating fluid P3 for the Rotary Vane Vacuum Pump
and for the Roots Vacuum Pump a filling of lubrication
(P3) for the gears.
For special applications other operating
fluids/lubricants like e.g. PFPE (F5) or T 100 are available
for ordering separately.
– The pumping station is provided with a set of screws,
the required seal (with ISO flanges with centering ring)
on the intake connecting flange and counter flange.
– Counter flanges (with pipe connection) for the vacuum
and the exhaust flanges.
2.3. Pump Combination Options
RRoottaarryyVVaanneePPuummpp
Preferred types
Pumping station with integrated switch cabinet as
per VDE
– The standard pumping station is supplied with a
filling of operating fluid P3 for the Rotary Vane
Vacuum Pump and for the Roots Vacuum Pump
a filling of lubrication (P3) for the gears.
For special applications other operating
fluids/lubricants like e.g. PFPE (F5) or T 100 must
be ordered separately.
– The pumping station is provided with a set of
screws, the required seal (with ISO flanges with
centering ring) on the intake connecting flange
and counter flange.
– Counter flanges (with pipe connection) for the
vacuum and the exhaust flanges.
– An on/off switch for pumps with interlocking
against improper operating, signal lamps for
function control with flashing relay for
component malfunctions as well as a tripping
unit for thermistor protection (motor protection
with semiconductor sensors (3TF) in the motor
coil).
– Vacuum gauge (medium range).

6
3. Installation
3.1. Pumping Station Set-Up And Location
– The pumping station is mounted in a base frame, ready for
connection.
– If parts of the system have to be detached for
transportation reasons, they should be re-fitted in
accordance with the assembly plan.
– The set-up location should be so selected that the ambient
temperature is in the range +12 ...+ 40 °C and adequate air
circulation must be provided.
– The pumping station must be protected from draughts and
the direct effect of the weather.
– If the pumping station is intended for stationary operations,
it should be aligned horizontally to the standing surface
and anchored. Borings are provided in the base frame for
securing to the standing surface.
– Before setting up the pumping station, the loading capacity
of the standing surface must be checked against the
weight of the pumping station.
– Where mobile versions of the pumping station are involved
it must be ensured that during operation the pumping
station is placed on a horizontal surface and that the
rollers are locked.
3.2. Connecting The Vacuum Side
➡The connection between the vacuum chamber and the
pumping station should be as short as possible.
➡Ensure there are no welding beads, scaling, loose parts
and the similar which could get into the intake line of the
Roots vacuum pump.
➡Connect the piping free of stress.
➡To compensate for any stress it is recommended to fit a
bellows into the piping.
3.3. Connecting The Exhaust Side
Lay exhaust lines without shut-off units. If shut-
off units are fitted there is a danger that over-
pressure can build up in the lines. The local
regulations concerning accident prevention
must be followed (see the operating
instructions for the pumps).
Exhausted gases and vapours can, depending
on the application, be hazardous to health
and/or environmentally harmful. When working
with toxic substances the relevant regulations
must be followed.
WARNING
CAUTION
3.4. Electrical Connection
The electrical connection must be carried out in
accordance with local regulations.
– The voltage and frequency values on the rating plate of the
pumping station, the Roots vacuum pump and the rotary
vane vacuum pump must concur with the mains voltage.
– The pumping stations with switch cabinet are internally
completely wired. The electrical connections must be
carried out in accordance with the valid circuit diagram
(see enclosure). This also applies for other voltages.
– The drive motors of the Roots vacuum pump and the rotary
vane vacuum pump are switched so that they rotate in the
same direction.
Safety Feature
– In the switch cabinet version the phase sequence relay
has a simultaneous monitoring function for the rotary vane
pump blow-out fuse (pump 2).
– The mains unit for vacuum measurement has an internal
micro fuse (100 mA).
CAUTION

7
3.5. Filling In Operating Fluid
The pumping station has been tested using
operating fluid P3.
Only by using this operating fluid are
guarantees relating to attainment of final
pressures and trouble free functioning applica-
ble. The pumping station delivery consignment
contains a filling of operating fluid (only for P3).
Used operating and lubricating agents must be
disposed off in accordance with the local
regulations.
Pumps for special applications (e.g. for pumping corrosive
gases) can be operated with special operating fluids such as
F5, T 100 and other Pfeiffer Vacuum operating fluids. The use
of such operating fluids requires prior agreement with Pfeiffer
Vacuum.
➡Fill operating fluid in accordance with the operating
instructions for the pump concerned.
– Amount and type of operating fluid please see always
rating plate.
➡Check the sealing oil level (lubricant) in the oiler of the
WKP-Pumps. If necessary fill up the oiler to a maximium of
half-filled when the pump is cold.
CAUTION
3.6. Noise Reduction
Under certain operating conditions it is possible that the
pumping station noise level can exceed the legally prescribed
limits. In these cases the operator will have to take protective
action. Noise protection hoods are available from Pfeiffer
Vacuum.
If ‘’F5’’ is heated above 300°C, toxic vapours
which can harm the airways are given off.
Do not allow ‘’F5’’ to come into contact with
tobacco products (danger of poisoning when
ignited). The precautions necessary in the
handling of chemicals must be observed.
Please find enclosed the safety instruction data
sheet for operating fluid F5 “Fomblin“ or
request from Pfeiffer Vacuum please.
☞
PLEASE NOTE
WARNING

8
4.4. Pumping Station Operations With Switch
Cabinet
To ensure reliable process operations the pumping station
should be operated as follows:
Status at rest
– The intake port valve (if available) to be closed.
– The exhaust valve (if available) to be closed.
– Mains power switch 2QO on the switch cabinet in the
position “0”.
Starting the pump
Note the instructions in the operating manuals
for the individual components where operations
involve a frequency converter.
➡Open the exhaust valve (ball type valve) if available.
➡Put mains power switch 2Q0 into position “1”.
➡Switch on the pump by activating key 3S3.2.
– Pumping stations with switch cabinets are switched on
and off with a pressure switch combination. The
switching on sequence is prescribed by the controller.
➡Pump warms up.
➡Open the exhaust port valve (ball type valve) if available.
Switch off the pump
Remark:
Depending on the process, the pumping station can continue
to be operated during process intervals with closed intake
port valve (if available) and a flushing procedure (accessory).
➡Close the intake port valve (if available).
➡Switch off the pump by activating key 3S3.1.
– The pumping station with switch cabinet is switched on
and off via a pressure switch combination (ON/OFF).
The switching sequence is regulated by the control.
➡Close the pressure port valve (if available).
After switching off, the pump can be switched
on again immediately. If the pump is switched
off for longer periods, do not switch on again
until at least 60 minutes has elapsed owing to
the differing rates of cooling on the WKP casing
and rotor.
CAUTION
CAUTION
4. Operations
4.1. Important Information
➡Check the lubricant level before starting the pumps.
➡Before switching on the pumping station check that all
components and lines have been correctly connected.
Take note of the operating instructions for operating the
components.
➡Shut-off valves in the exhaust line should be activated so
that they open either before or simultaneously with the
start of the pumps.
If condensation is expected, the pump must
have operating temperature before the process
is started.
4.2. Switching On The Pumping Station
➡Close intake port valve.
➡Switch on pumping station.
Please note:
The pumping station can be switched on with a switch
contact common to the backing pump and the Roots vacuum
pump or can be switched on with independent switches.
Where pumping stations with independent switches are
involved, the Roots vacuum pump (depending on the process
situation) can be switched on at any vacuum level and at any
time during the evacuation period.
➡Check the operating fluid level of the backing pump with
the closed valves and closed gas ballast valve. Please
note the instructions in the individual component operating
manuals.
➡Open intake port valve.
Before starting the pumping station the
direction of rotation on the rotary vane vacuum
pump must be checked as follows:
➡Switch on the pump for a short time (max. 3 seconds).
➡Motor and motor fan must turn in a clockwise direction
(see arrow on the casing).
➡If the direction of rotation is incorrect, interchange two
phases on the mains cable.
Where pumping stations without switch cabinet are involved
the direction of rotation of the Roots vacuum pump must also
be checked, as above (see also the operating instructions for
the pumps).
CAUTION
ACHTUNG
4.3. Switching Off The Pumping Station
➡Close intake port valve.
➡Switch off the pumping station.
➡Where pumping stations with manual valves are involved
ventilate the backing pump.
➡When shutting down for longer periods is involved please
refer to the operating instructions (Section 8.2) for the
pumps.

9
PP952S
Switch cabinet operating
9 Switch cabinet
2Q0 Mains power switch
2S3.1 Pumping station OFF
2S3.2 Pumping station ON
9.4. Not in use
3S1 Lamp test
3H1 Malfunction, thyristor protection
3H2 Malfunction, fuse or phase sequence
3H9 Pump 1 operations
3H7 Pump 2 operations
3H5 Operating hours counter
4P5 Vacuum gauge (medium vacuum range).
9 3H5 3H2 3H9 4P5 3H7
3H1
3S3.2 3S1
9.4
2Q0
3S3.1

10
5. What To Do In Case Of Breakdown ?
PPrroobblleemmwwiitthhRRoooottssPPuummppPPoossssiibblleeCCaauusseeRReemmeeddyy
Pump doesn't attain final pressure Pump dirty Clean suction chamber, see Section 6.3. in the operating
manuals for the individual components.
Lubricant dirty Change lubricant, see Section 6.2. in the operating
manual for the individual components.
Leak in system Repair leak.
Backing pump faulty Check backing pump.
Overflow valve faulty Clean overflow valve and check for wear
Oiler looses lubricant Request repair by Pfeiffer Vacuum Service.
Unusual operating noises Pump dirty Clean suction chamber, see Section 6.3. in the operating
manual for the individual components.
Damage to bearing or gear cogs Request repair by Pfeiffer Vacuum Service.
Dirty overflow valve Clean overflow valve, see section 6.4. in the operating
manual for the individual components.
Damage to motor shaft bearing Request repair by Pfeiffer Vacuum Service.
Pump doesn't start Pump dirty Clean suction chamber, see Section 6.3. in the operating
manual for the individual components.
Damage to gear cogs Request repair by Pfeiffer Vacuum Service.
Damage to bearing Request repair by Pfeiffer Vacuum Service.
Mains power failure Check electrical connections.
Further repairs can only be carried out by trained specialists in accordance with service instructions.
PPrroobblleemmwwiitthhrroottaarryyvvaanneeppuummppPPoossssiibblleeCCaauusseessRReemmeeddyy
Pump doesn't attain final pressure Pump dirty Operate pump for a longer period with open
Operating fluid dirty gas ballast valve or change operating fluid
Leak in system Repair leak
Unusual operating noises Damaged pump stages Request repair by Pfeiffer Vacuum Service
Damaged coupling piece Request repair by Pfeiffer Vacuum Service
Noise reduction incorrect Control/Adjust see Section 6.2
Oil leaking from the foot of the pump Radial shaft seal defective Request repair by Pfeiffer Vacuum Service
Pump doesn't start Ambient temperature < 12 °C Warm up pump
Dirty pump stages Request cleaning by Pfeiffer Vacuum Service
Further repairs can only be carried out by trained specialists in accordance with service instructions.

11
7. Service
Regular maintenance ensures the system operates trouble
free.
Maintenance of the individual components is covered in the
respective operating instructions.
During operations the checks on the pumping unit are essen-
tially concerned with:
– Check the operating fluid level for the rotary vane pump.
– Check the operating fluid level for the Roots vacuum pump.
– Change the operating fluid/lubricant.
– Check the filter element in the oil mist filter.
– Check the level of condensate in the condensate separator
if available.
6. Maintenance
Checks should be carried out in accordance with the
instructions in the respective operating instructions for the
individual components.
➡Used lubricant must be disposed of in accordance with
current regulations.
➡When working with synthetic lubricant and with toxic or
with substances enriched with corrosive gases, the
respective application instructions must be followed.
➡Clean pump parts only with benzine or similar washing
agents.
Repair work may only be carried out by
specially trained Pfeiffer Vacuum personnel.
The maintenance interval for clean operations
is 12 months.
Whenever work is carried out on the pump, it
must be secure against being accidentally
switched on.
CAUTION
Decontaminate units before returning or
possible disposal. Do not return any units which
are microbiologically, explosively or radio-
actively contaminated.
Returning Contaminated Units
If contaminated units have to be returned for
maintenance/repair, the following instructions concerning
shipping must be followed without fail:
➡Neutralise the pump by flushing with nitrogen or dry air.
➡Seal all openings to the air.
➡Seal pump or unit in suitable protective foil.
➡Ship units only in appropriate transport containers.
Repair orders are carried out according to our
general conditions of sale and supply.
➡If repairs are necessary, please send the unit together
with a short damage description to your nearest Pfeiffer
Vacuum Service Center.
☞
PLEASE NOTE
WARNING
Do Make Use Of Our Service Facilities
In the event that repairs are necessary to your pumping
station, a number of options are available to you to ensure
any system down time is kept to a minimum:
– Have the pump repaired on the spot by our Pfeiffer
Vacuum Service Engineers;
– Return the individual components to the manufacturer for
repairs;
– Replace individual components with a new value
exchange units.
Local Pfeiffer Vacuum representatives can provide full
details.
Before Returning:
➡Dismantle all accessories.
➡Drain lubricant.
➡Attach a clearly visible notice: “Free of contamination” (to
the unit being returned, the delivery note and accompany-
ing paperwork).
Harmful substances" are substances and preparations as
defined in current legislation. Pfeiffer Vacuum will carry out
the decontamination and invoice this work to you if you have
not attached this note. This also applies where the operator
does not have the facilities to carry out the decontamination
work. Units which are contaminated microbiologically, explo-
sively or radioactively cannot be accepted as a matter of
principle.
Fill Out The Contamination Declaration
➡In every case the "Contamination Declaration" must be
completed diligently and truthfully.
➡A copy of the completed declaration must accompany the
unit; any additional copies must be sent to your local
Pfeiffer Vacuum Service Center.
Please get in touch with your local Pfeiffer Vacuum represen-
tatives if there are any questions regarding contamination.

12
8. Technical Data
DDeessccrriippttiioonnUUnniittWWOODD225500BBWWOODD225500BBssppeecciiaallWWOODD444400BB
Connection
Vacuum side DN 63 ISO-F DN 63 ISO-F DN 100 ISO-F
Exhaust side DN 63 ISO-F DN 63 ISO-F DN 63 ISO-K
Volume flow rate at 10-1 mbar
50/60 Hz m3/h 250 / 300 250 / 300 450
Final pressure
without/ with gas ballast mbar < 3 •10-4 / 5 •10-4 < 3 •10-4 / 5 •10-4 < 3 •10-4 / 5 •10-4
Water vapour compatibility of
rotary vane pump mbar 20 20 20
Installed nominal motor rating1)
50/60 Hz kW 4.75 / 5.1 4.75 / 5.1 5.5 / 5.5
Noise level, approx
at pA=1 • 10-2 dB(A) < 75 < 75 < 75
Cooling Air Air Air
Lubricant-/Operating fluid filling
WKP Pump l 1.3 1.3 1.3
Rotary Vane Pump l 13 13 13
Max. ambient temperature °C 40 40 40
Weight kg 470 475 400
Order numbers
230/400 V, 50 Hz, IP54 without switch cabinet3,4) PP S20 733 PP S20 754 with special gas PP S20 821, PP S20 832
ballast valve and level switch PP S20 864, PP S20 873
for operating fluid control
230/400 V, 50 Hz, IP54 3,4), with switch cabinet PP S20 737
1) Depending on the operations status, the power draw can be lower.
3) Other voltages and frequencies available on request. 4)Voltages in accordance with DIN IEC 38.
DDeessccrriippttiioonnUUnniittWWOODD990000AAWWOODD990000BBWWOODD995500AAWWOODD995500BB
Connection
Vacuum side DN 160 ISO-F DN 160 ISO-F DN 160 ISO-F DN 160 ISO-F
Exhaust side DN 63 ISO-F DN 63 ISO-F DN 100 ISO-F DN 100 ISO-F
Volume flow rate at 10-1 mbar
50/60 Hz m3/h 900 / 1080 900 / 1080 950 / 1100 950 / 1100
Final pressure
without/ with gas ballast mbar < 1 •10-3/< 5 •10-2 < 3 •10-4/< 5 •10-4 < 1 •10-3 / < 5 •10-2 < 3 •10-4 / < 5 •10-4
Water vapour compatibility of
rotary vane pump mbar 33 20 33 20
Installed nominal motor rating1)
50/60 Hz kW 7/8 7/8 10.5 / 11.5 10.5 / 11.5
Noise level, approx
at pA=1 • 10-2 dB(A) < 75 < 75 < 75 < 75
Cooling Air Air Air Air
Lubricant-/Operating fluid filling
WKP Pump l 2.9 2.9 2.9 2.9
Rotary Vane Pump l 17 13 30 23
Max. ambient temperature °C 40 40 40 40
Weight, approx. kg 530 530 700 700
Order numbers
230/400 V, 50 Hz, IP54 without switch cabinet3,4) PP S41 000 PP S42 000 PP S20 818
PP S41 010 PP S42 010 PP S20 854
PP S20 859
480 V, 60 Hz, IP54 3,4), without switch cabinet 3,4) PP S20 799
460 V, 60 Hz, IP54 3,4), with switch cabinet PP S20 804
230/400 V, 60 Hz, IP54 3,4), with switch cabinet PP S20 709
PP S20 765
230/400 V, 50 Hz, IP54 with switch cabinet; PP S20 825
PP S20 850
control voltage 220V incl. PP S41 012 PP S42 002
meter for medium vacuum 3,4). PP S42 012
1) Depending on the operations status, the power draw can be lower.
3) Other voltages and frequencies available on request. 4)Voltages in accordance with DIN IEC 38. 7) Incl. level switch for operating fluid control.

13
DDeessccrriippttiioonnUUnniittWWOODD11880000AAWWOODD11880000BBWWOODD11880011AA
Connection
Vacuum side DN 160 ISO-F DN 160 ISO-F DN 160 ISO-F
Exhaust side DN 100 ISO-F DN 100 ISO-F DN 100 ISO-F
Volume flow rate at 10-1 mbar
50/60 Hz m3/h 1800/2160 1800/2160 1800/2160
Final pressure
without/ with gas ballast mbar < 1 •10-3/ < 5 •10-2 < 3 •10-4/< 5 •10-4 < 1 •10-3/< 5 •10-2
Water vapour compatibility of
rotary vane pump mbar 33 20 30
Installed nominal motor rating1)
50/60 Hz kW 13/15 13/15 16.5/18.5
Noise level, approx
at pA=1 • 10-2 dB(A) < 75 < 75 < 75
Cooling Air Air Water (1 l/min) 5)
Lubricant-/Operating fluid filling
WKP Pump l 5.0 5.0 5.0
Rotary Vane Pump l 30 23 17.0
Max. ambient temperature °C 40 40 40
Weight, approx. kg 980 980 1150
Order numbers PP S30 494
230/400 V, 50 Hz, IP54 without switch cabinet3,4) PP S51 010 PP S30 468
PP S52 000 PP S51 115
PP S52 010
PP S30 3917)
208 V, 60 Hz, IP54 3,4), without switch cabinet 3,4) PP S30 435 PP S30 487
230/400 V, 60 Hz, IP54 3,4), with switch cabinet
230/400 V, 50 Hz, IP54 with switch cabinet;
control voltage 220V incl.
meter for medium vacuum 3,4). PP S51 012 PP S52 002
PP S52 012
1) Depending on the operations status, the power draw can be lower. 3) Other voltages and frequencies available on request.
4)Voltages in accordance with DIN IEC 38. 5) Only for backing pump. 7) incl. level switch for operating fluid control
DDeessccrriippttiioonnUUnniittWWOODD11660000AAWWOODD11660000BBWWOODD22000011
Connection
Vacuum side DN 160 ISO-F DN 160 ISO-F DN 160 ISO-F
Exhaust side DN 100 ISO-F DN 100 ISO-F DN 100 ISO-K
Volume flow rate at 10-1 mbar
50/60 Hz m3/h 1600/1920 1600/1920 2000/2400
Final pressure
without/ with gas ballast mbar < 1 •10-3/ < 5 •10-2 < 3 •10-4/< 5 •10-4 < 1 •10-3/< 5 •10-2
Water vapour compatibility of
rotary vane pump mbar 33 20 30
Installed nominal motor rating1)
50/60 Hz kW 9.5/11 9.5/11 20.5/22.5
Noise level, approx
at pA=1 • 10-2 dB(A) < 75 < 75 < 75
Cooling Air Air Water (1.5 l/min)
Lubricant-/Operating fluid filling
WKP Pump l 5.0 5.0 5.0
Rotary Vane Pump l 17 13 45
Max. ambient temperature °C 40 40 40
Weight, approx. kg 760 760 2000
Order numbers
230/400 V, 50 Hz, IP54 without switch cabinet3,4) PP S30 493
PP S30 502
208 V, 60 Hz, IP54 3,4), without switch cabinet 3,4)
230/400 V, 60 Hz, IP54 3,4), with switch cabinet PP S30 480
230/400 V, 50 Hz, IP54 with switch cabinet;
control voltage 220V incl.
meter for medium vacuum 3,4).
1) Depending on the operations status, the power draw can be lower. 3) Other voltages and frequencies available on request.
4)Voltages in accordance with DIN IEC 38. 5) Only for backing pump. 7) incl. level switch for operating fluid control

14
DDeessccrriippttiioonnUUnniittWWOODD33000000AAWWOODD33000000BBWWOODD33550000AAWWOODD33000011AA
Connection
Vacuum side DN 250 ISO-F DN 250 ISO-F DN 250 ISO-F DN 250 ISO-F
DN 250 PN 16 DN 250 PN 16
Exhaust side DN 100 ISO-F DN 100 ISO-F DN 100 ISO-K DN 100 ISO-K
Volume flow rate at 10-1 mbar
50/60 Hz m3/h 3000/3600 3000/3600 3500/3900 3000/3600
Final pressure
without/ with gas ballast mbar < 1 •10-3/ < 5 •10-2 < 3 •10-4/ < 5 •10-4 < 1 •10-3/<5•10-2 < 1 •10-3/ < 5 •10-2
Water vapour compatibility of
rotary vane pump mbar 33 20 30 30
Installed nominal motor rating1)
50/60 Hz kW 18.5/22.5 18.5/22.5 26 / 30 22 / 26
Noise level, approx.
at pA=1 • 10-2 dB(A) < 75 < 75 < 75 < 75
Cooling Air Air Water (2 l/min) 5) Water (1 l/min) 5
Lubricant-/Operating fluid filling
WKP Pump l 6.8 6.8 6.8 6.8
Rotary Vane Pump l 30 23 45 17
Max. ambient temperature °C 40 40 40 40
Weight, approx. kg 1180 1180 1750 1300
Order numbers
230/400 V, 50 Hz, IP54 without switch cabinet3,4). PP S61 010 PP S62 010 PP S61 013, PP S30 429
PP S30 393, PP S30 462
PP S30 385, PP S30 477
PP S30 469
415 V/50 Hz, IP54 without switch cabinet PP S30 379
220/380 V, 60 Hz, IP54 without switch cabinet PP S30 415
230/400 V, 50 Hz, IP54 with switch cabinet;
control voltage 220V incl.
meter for medium vacuum 3,4). PP S61 012 PP S62 012 PP S61 014
1) Depending on the operations status, the power draw can be lower.
3) Other voltages and frequencies available on request. 4)Voltages in accordance with DIN IEC 38. 5) Only for backing pump.

15
A
C
DH
DN 2
DN 1
FG
B
E
I

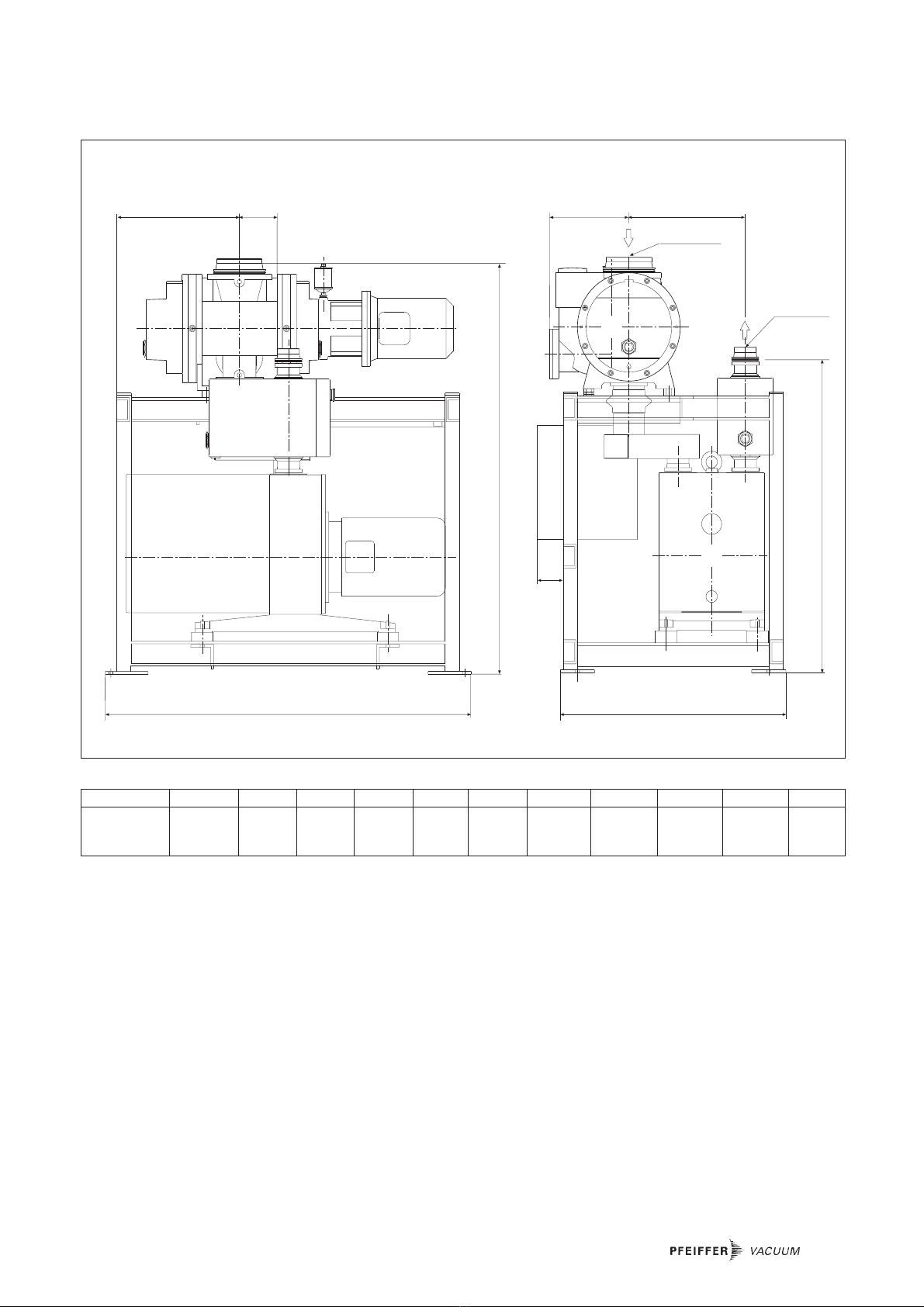

WOD 900 A/B
8.1 Dimensions
PPuummppiinnggSSttaattiioonnDDNN11DDNN22AABBCCDDEEFFGGHHII
WOD 250 B 63 ISO-F 63 ISO-F 1238 808 1310 440 746 240 408 172
WOD 900 A/B 160 ISO-F 63 ISO-F 1280 790 1330 430 1045 266 400 175 90

16
DN 100 ISK-K
DN 160 ISO-K
DN 160 ISO-K
1100 740
235 343
1383
114
1723
43
ca. 682
ca. 1431
ca. 791
543
440
120
WKP 1000 A
UNO/DUO 250 A
ONF 100

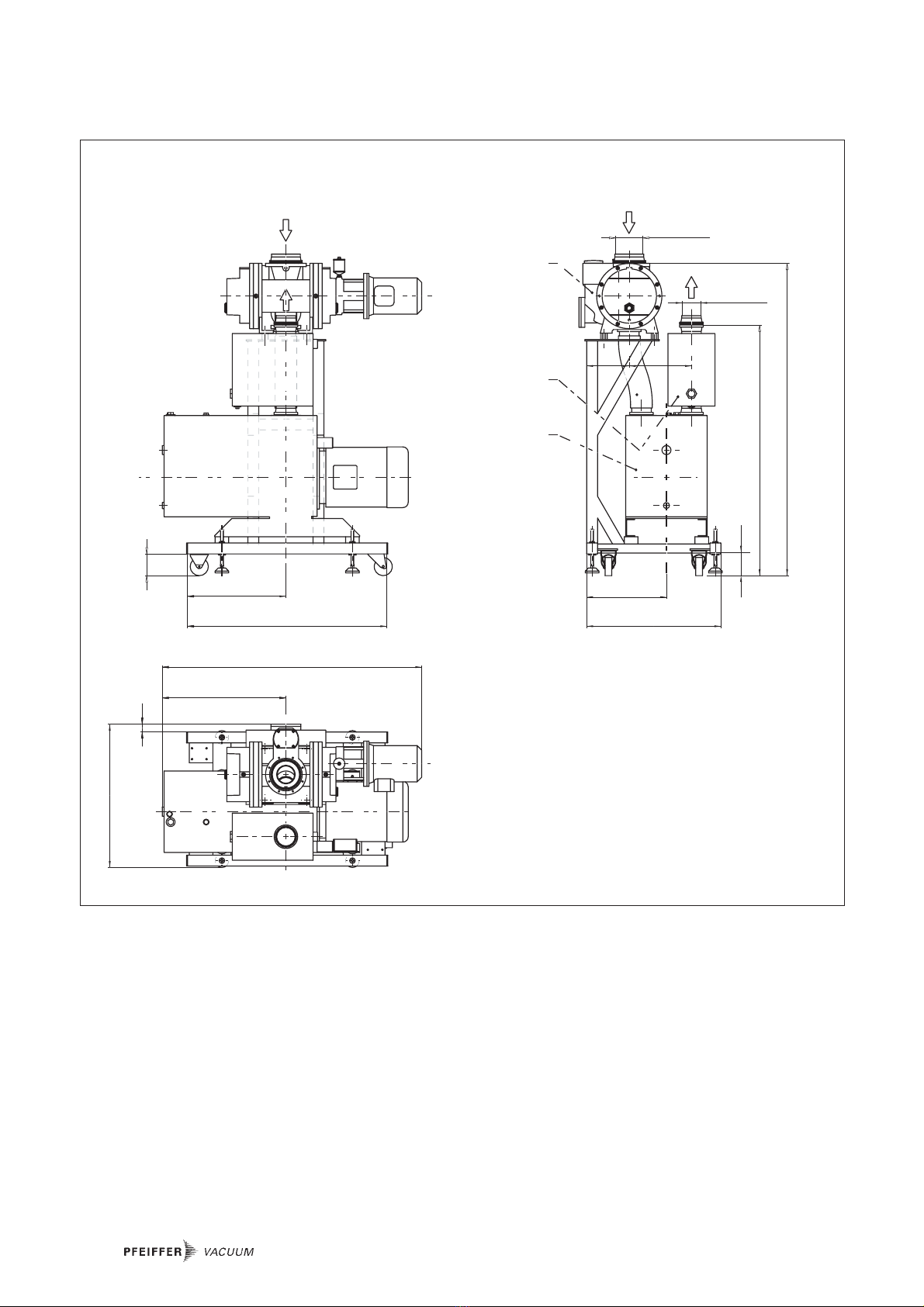

WOD 950 A/B

17
D
G
DN 1
DN2
F
B
A
H
D1
E1
C
E
C1

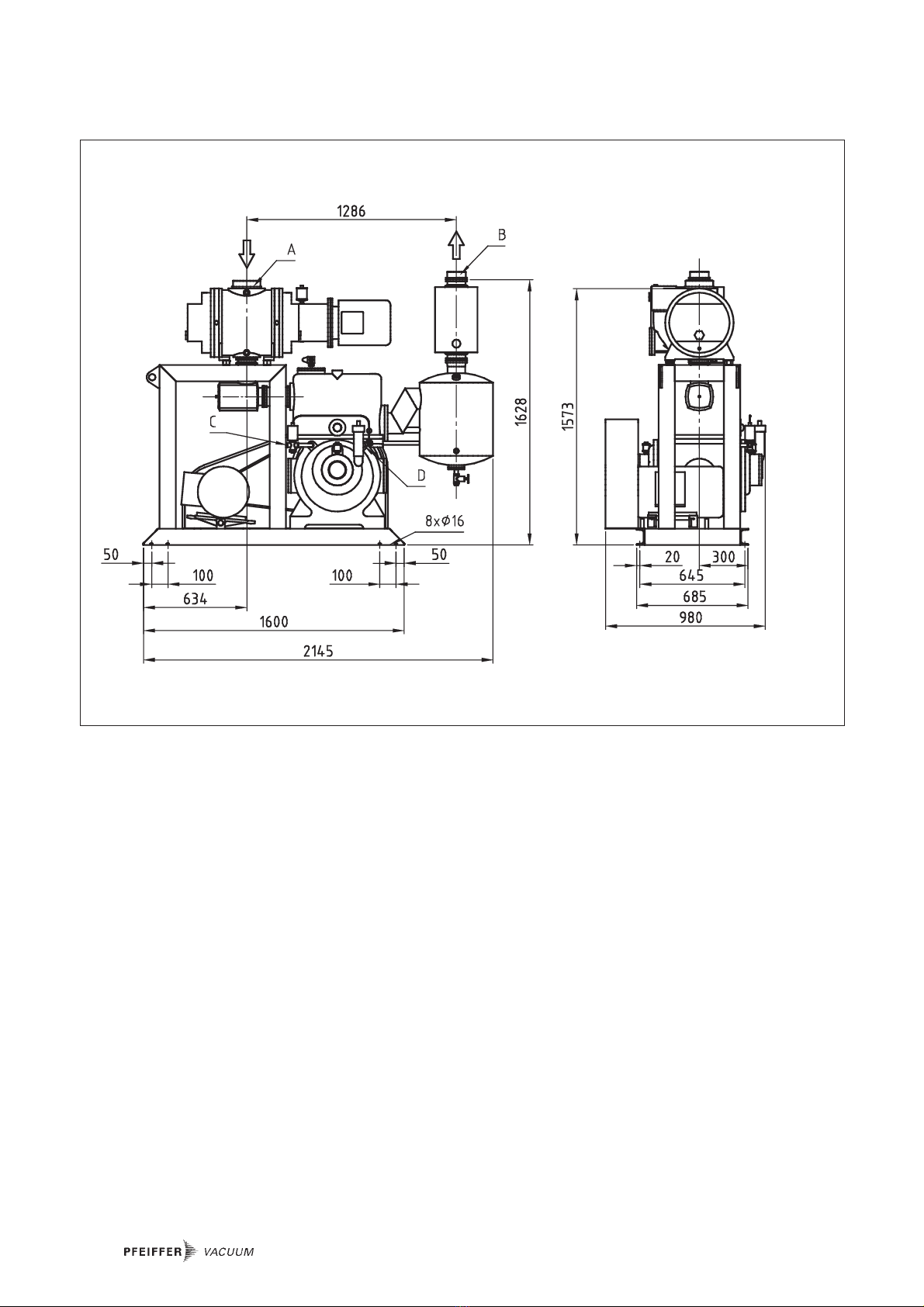

WOD 1600 A/B
WOD 1800 A/B
WOD 3000 A/B
PPuummppiinnggSSttaattiioonnDDNN11DDNN22AABBCCCC11DDDD11EEEE11FFGGHH
WOD 1600 A/B 160 ISO-F 63 ISO-K 1429 1001 1247-1347 550 507 1076-1176 673 100
WOD 1800 A/B 160 ISO-F 100 ISO-F 1504 1040 1346 625 1283 230 680 1000
WOD 3000 A/B 250 ISO-F 100 ISO-F 1778 1250 1411 625 1283 275 842 1000

18
WOD 2001

19
DN 2
DN 2
B
H
E
E1
D
C
G
DN 1
K
A
F
J
F
F
1
2
B1
D1

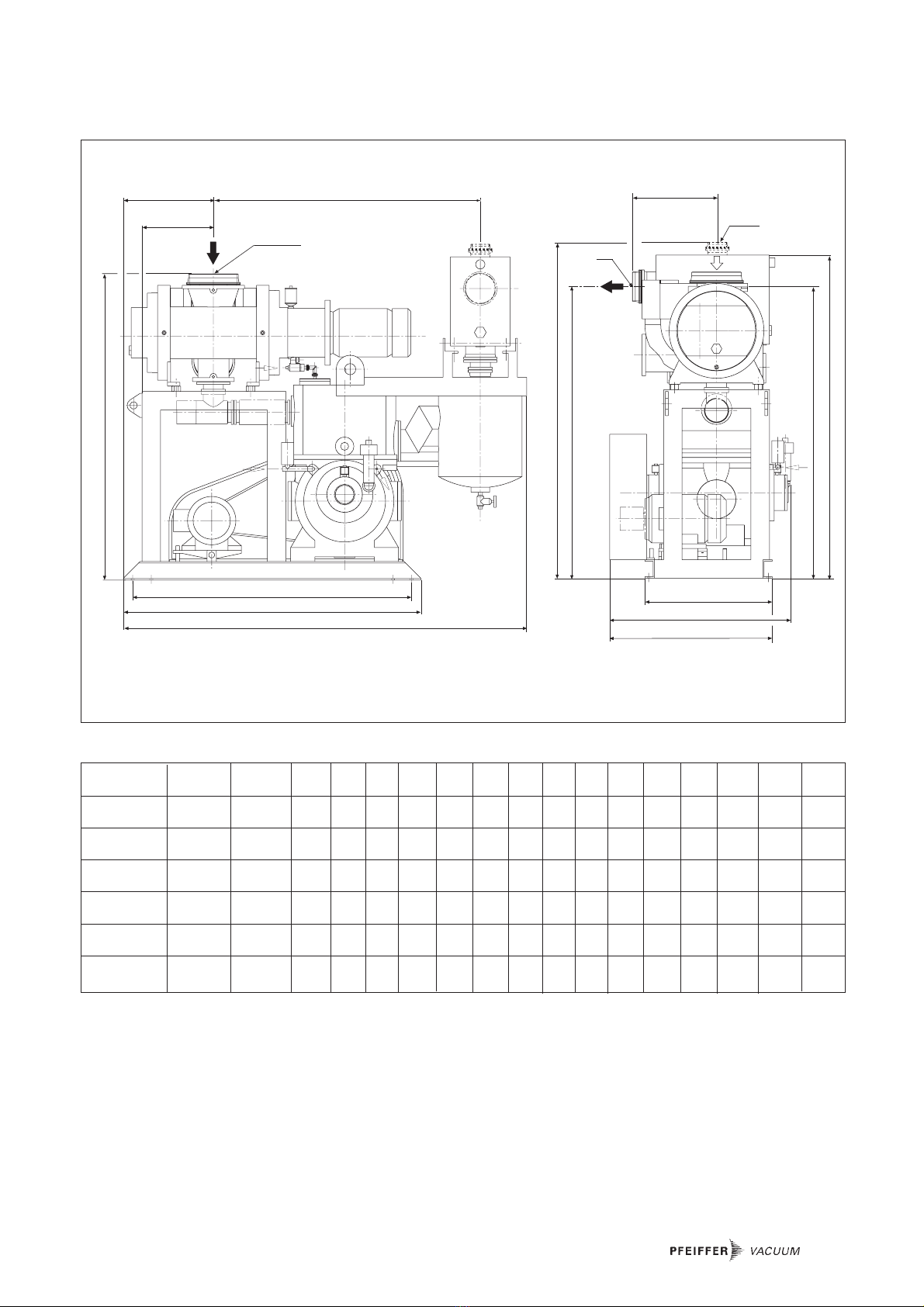

WOD 3500 A
PPuummppiinnggDDNN11DDNN22AABBBB11CCDDDD11EEEE11FFFF11FF22GGHHJJKK
ssttaattiioonn
WOD 1801 A
PP S51 115 160 ISO-F 100 ISO-K 1708 768 730 1405 1405 1442 - 1442 421 331 - 600 1300 1230
WOD 3500 A
Standard vers. 250 ISO-F 160 ISO-K 2170 990 - 1739 1586 - 1569 - 484 453 685 1600 1500
WOD 3500 A
PP S30 385 250 ISO-F 160 ISO-K 2170 990 - 1739 1586 - 1568 - 437 452 685 1600 1500
WOD 3500 A
PP S30 393 250 ISO-F 160 ISO-K 2170 - 875 1744 1586 1648 1568 - 437 357 - 432 685 1600 1500
WOD 3500 A
PP S30 456 250 ISO-F 160 ISO-K 2170 - 875 1744 1586 1648 1568 - - 337 1483 452 685 1600 1500
WOD 3500 A
PP S30 469 250 ISO-F 100 ISO-K 2170 980 875 1744 1586 1648 1569 - - 337 1483 401 685 1600 1500

20
1185
ca./approx. 1260
675 285
300
4 x Ø 18.5
80
900
1060
80
1060
ca./approx. 1979
638
1062 745
WOD 3001
