Phantos CF100 User manual

V1.3
201310
DMX Flame Machine
Quad Flame
Model Number: CF100
Please note that as part of our ongoing commitment to continuous product development, specifications
are subject to change without notice. Whilst every care is taken in the preparation of this manual we
reserve the right to change specifications in the course of product improvement. The publishers cannot be
held responsible for the accuracy of the information herein, or any consequence arising from them.
1/11 ©PHANTOS®Distributed in Australia by PHANTOS www.phantos.com.au
1. INTRODUCTION
Thank you for purchasing MLB Flame Machine CF100. Please read
this user manual carefully and thoroughly before operation. Please
keep this user guide for future reference. This device has left our
premises in absolutely perfect condition. In order to maintain this
condition and to ensure a safe operation, it is absolutely necessary
for the user to follow the safety instructions and warning notes written
in this manual. The manufacturer/distributors/dealers will not accept
liability for any resulting damages caused by the non-observance of
this manual or any unauthorized modification to the device.
1.1 What is Included
a) 1X MLB Flame Machine CF100
b) 1X user manual
c) 1X Power Lead
Carefully unpack the carton, check the contents to ensure that all
parts are present and in good condition. Contact your supplier if any
part is missing or damaged.
1.3 Safety Instructions
▪Avoid brute force when installing or operating the fixture.
▪This device is for professional use only and must be operated by an
experienced operator.
▪When choosing the installation spot, please make sure that the
fixture is not exposed to extreme heat or dust.
▪Avoid using the unit in locations subject to possible impacts.
WARNING!!! To reduce risk of fire, electric shock, or
injury, follow these important safety instructions

2/11 ©PHANTOS®Distributed in Australia by PHANTOS www.phantos.com.au
▪This unit is designed for indoor/undercover use only.
▪Always turn off, unplug power and allow fixture to cool before
servicing.
▪Ensure that fixture is properly grounded. Do not attempt to remove
or break off the ground prong from the electrical cord. This prong is
used to reduce the risk of electrical shock and fire in case of an
internal short.
▪Always make sure that you are connecting to the proper voltage
and that the line voltage you are connecting to is not higher than
that stated on decal or rear panel of the fixture.
▪To prevent risk of fire or shock, do not expose fixture to rain or
moisture.
▪Make sure power cord is never crimped or damaged. Do not
attempt to operate this unit if the power cord has been frayed or
broken.
▪Do not remove the cover under any conditions, unless consent
given by distributor. There are no user serviceable parts inside.
▪DO NOT connect this product to a dimmer or rheostat.
▪ONLY connect this product to a grounded and protected circuit.
▪ONLY use the hanging/mounting bracket to carry this product.
▪Never aim the output nozzle directly at people.
▪Always check the condition of the canister before putting it into
machine. If damages or leaking noticed, do not use it.
▪Never fire continuously for more than 2 seconds.
▪This unit requires minimum 8 meters clearance from above, and 6
meters clearance around it.
3/11 ©PHANTOS®Distributed in Australia by PHANTOS www.phantos.com.au
2. SET UP
2.1 Mounting
This unit may be free standing, or clamp mounted.
IMPORTANT!!! Safety cables must always be used for overhead
mounting. The safety cable must be capable of holding 10 times
the weight of the fixture.

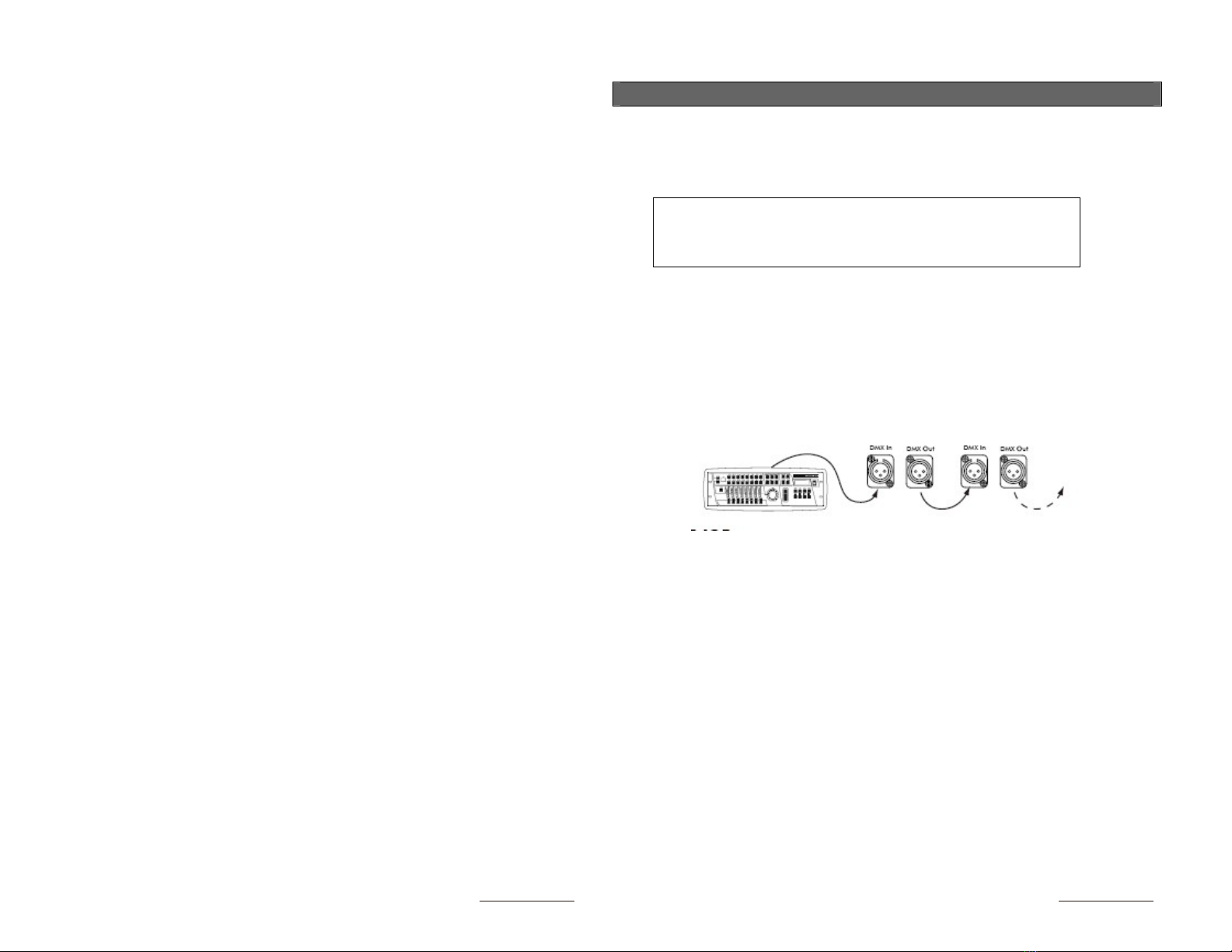

2.2 Fixture Linking
To run your show of one or more fixtures using a DMX-512 controller or to
run synchronized shows on two or more fixtures in master/slave
operating mode, you need DMX cables to link the units from DMX IN to
DMX OUT.
Only use standard 110-120 Ohm shielded cable. These are 2
core-screened cables, with each core having at least a 0.5mm
diameter. Do not use the ground lug on the XLR connector. Do not
connect the cable’s shield conductor to the ground lug or allow the
shield conductor to come in contact with the XLR’s outer casing.
Grounding the shield could cause a short circuit and erratic
behavior.

4/11 ©PHANTOS®Distributed in Australia by PHANTOS www.phantos.com.au
2.2.1 Line Termination
In DMX Mode, at the last fixture in the chain, the DMX output has to
be connected with a DMX terminator. This prevents electrical noise
from disturbing and corrupting the DMX control signals. The DMX
terminator is simply an XLR connector with a 120(ohm) resistor
connected across pins 2 and 3, which is then plugged into the
output socket on the last projector in the chain. The connections are
illustrated below.
2.3 AC Power
This product has an auto-ranging power supply that can work with
an input voltage range of 100~240 VAC, 50/60 Hz.
Warning!!! All fixtures must be connected to circuits
with a suitable Earth Ground.
5/11 ©PHANTOS®Distributed in Australia by PHANTOS www.phantos.com.au
3. OPERATION INSTRUCTIONS
Always check the condition of the canister before putting it into
machine. If damages or leaking noticed, do not use it.
Power on the machine and make sure there is minimum 8 meters
clearance in front of the nozzle, and 6 meters clearance around it.
Make sure the unit is secured in place and not to fell on its side in any
circumstances during the show. All cable and leads must be secured in
a way that a pull on the cable/leads will not cause the machine to fell
on its side.
Never flame continuously for more than 2 seconds
The machine can only be controlled via DMX controller.
3.1 DMX Mode
In DMX mode, you can control the fixture with a DMX controller.
DMX Protocol:
Std. DMX Function
Ch1 0-100 No Function
101-255 Flame from Canister 1
Ch2 0-100 No Function
101-254 Flame from Canister 2
Ch3 0-100 No Function
101-255 Flame from Canister 3
Ch4 0-100 No Function
101-255 Flame from Canister 4
Ch5 0-100 No Function
101-255 Built in Program Activated See below
note

6/11 ©PHANTOS®Distributed in Australia by PHANTOS www.phantos.com.au
When CH5 is activated, CH1-CH4 will function as program selector:
CH1: Quick short flame chase effect
CH2: Slow short flame chase effect
CH3: Short flame chase from odd then even numbered canisters
CH4: Full flame from all canisters
7/11 ©PHANTOS®Distributed in Australia by PHANTOS www.phantos.com.au
4. TROUBLE SHOOTING
1. Unit does not respond to DMX:
Check that the DMX cables are connected properly and are wired
correctly (pin 3 is “hot”; on some other DMX devices pin 2 may be ‘hot’).
It does matter which way the inputs and outputs are connected.
2. Low output, mechanical noise or no output at all:
Unplug immediately and check fuel level, the external fuse, remote
connection, and power from the wall. If all of the above appears to be
O.K., plug the unit in again. If machine does not function after 30
seconds, discontinue operation or permanent damage to the unit may
result. Return the machine to your dealer.
Disconnect from mains before servicing.

8/11 ©PHANTOS®Distributed in Australia by PHANTOS www.phantos.com.au
5.TECHNICAL SPECIFICATIONS
WEIGHT&DIMENSIONS
Length 50cm
Depth 33cm
Height 25cm
Weight 9.0kg
POWER
AC Power AC110-240V 50/60Hz
Power Consumption 200W MAX.
Control DMX
9/11 ©PHANTOS®Distributed in Australia by PHANTOS www.phantos.com.au
6 WARRANTY
Phantos Lighting hereby warrants, to the original purchaser, distributed
products to be free of manufacturing defects in material and
workmanship for a prescribed period from the date of purchase. This
warranty shall be valid only if the product is purchased in Australia
through distributor/dealers. It is the owner’s responsibility to establish the
date and place of purchase by acceptable evidence, at the time
service is sought.
For warranty service you must obtain a Return Authorization number
(RA#) via email before sending back the product. Send the product
only to Phantos Lighting. All shipping charges must be pre-paid. If the
requested repairs or service (including parts replacement) are within the
terms of this warranty, Phantos Lighting will pay return shipping charges
only to a designated point within Australia. No accessories should be
shipped with the product. If any accessories are shipped with the
product, Phantos Lighting shall have no liability whatsoever for loss of or
damage to any such accessories, nor for the safe return thereof.
This warranty is void if:
the serial number (if applied) has been altered or removed;
the product is modified in any manner which Phantos Lighting
concludes, after inspection, affects the reliability of the product;
the product has been repaired or serviced by anyone other than
Phantos Lighting unless prior written authorization was issued to
purchaser by Phantos Lighting;
the product is damaged because not properly maintained as
set forth in the instruction manual.
This is not a service contract, and this warranty does not include
maintenance, cleaning or periodic check-up. During the period
specified above, Phantos Lighting will replace defective parts at its
expense with new or refurbished parts, and will absorb all expenses for

10/11 ©PHANTOS®Distributed in Australia by PHANTOS www.phantos.com.au
warranty service and repair labor by reason of defects in material or
workmanship. The sole responsibility of Phantos Lighting under this
warranty shall be limited to the repair of the product, or replacement
thereof, including parts, at the sole discretion of Phantos Lighting.
Phantos Lighting reserves the right to make changes in design and/or
improvements upon its products without any obligation to include these
changes in any products theretofore manufactured. No warranty,
whether expressed or implied, is given or made with respect to any
accessory supplied with products described above. Except to the
extent prohibited by applicable law, all implied warranties made by
Phantos Lighting in connection with this product, including warranties of
merchantability or fitness, are limited in duration to the warranty period
set forth above. And no warranties, whether expressed or implied,
including warranties of merchantability or fitness, shall apply to this
product after said period has expired. The consumer’s sole remedy shall
be such repair or replacement as is expressly provided above; and
under no circumstances shall Phantos Lighting be liable for any loss or
damage, direct or consequential, arising out of the use of, or inability to
use, this product.
