Phantos Sensation User manual

Caution: please read this user manual carefully before you initially start-up

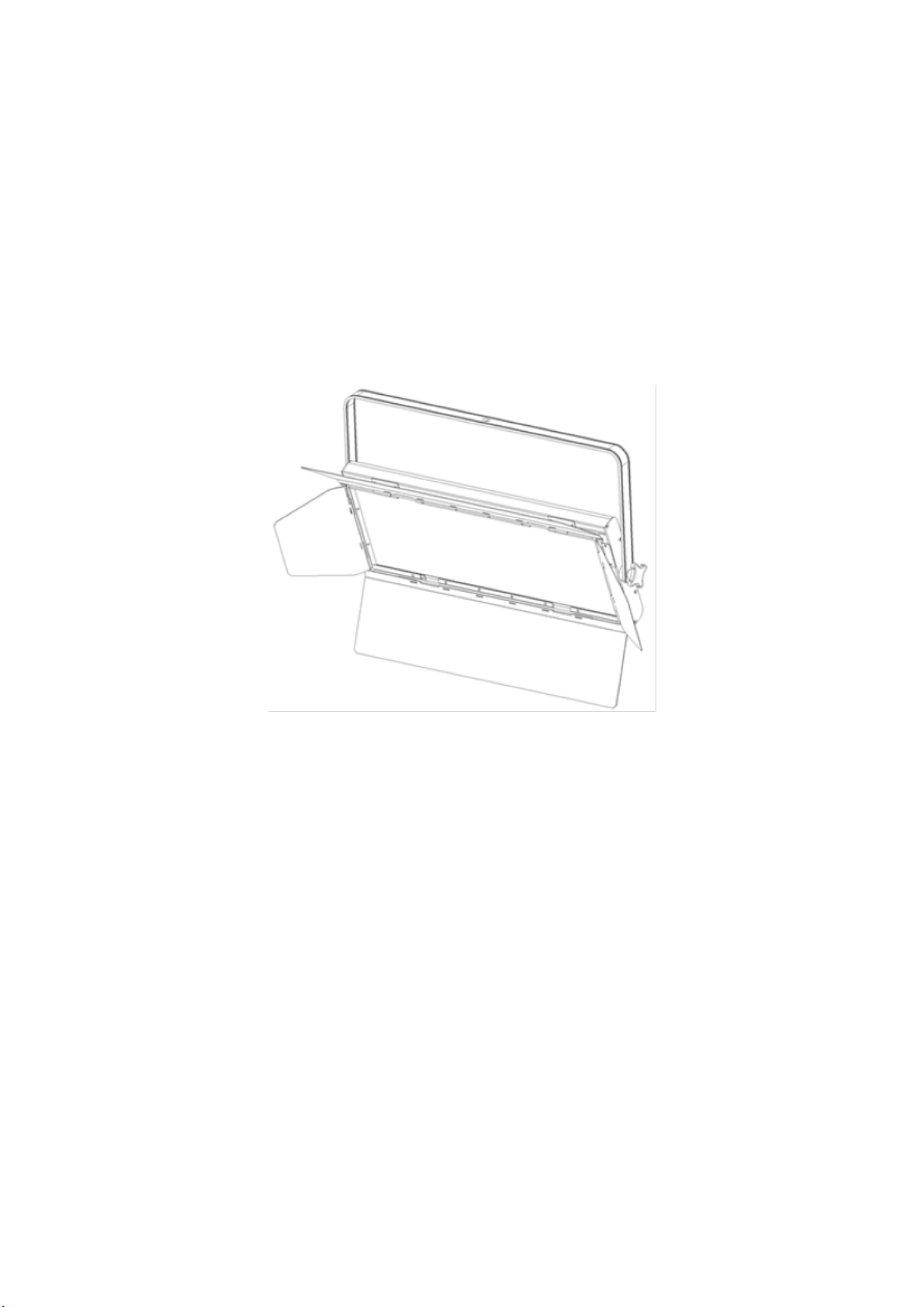

LED CTC Panel Light
User Manual
LED CTC Panel Lighting
Professional lighting equipment

Catalogue
1、Overviews............................................................................................ 4
2、Packing list..........................................................................................4
3、Product data....................................................................................... 4
4、Technical parameters......................................................................... 5
5、Dimension、Mappings & Pictures of fittings.................................. 6
6、Control system description............................................................... 7
7、Operating instructions........................................................................8
8、Safety instructions............................................................................10
9、Notes for installation and operation............................................. 11
10、Comparison of common faults..................................................... 12

Guarantee card
All products sold by Ilightings are covered by 12 months warranty from the date of purchase.
During this period, we will guarantee to keep the goods in repair if a failure occurs under normal
operation.
Ilightings assumes no responsibility for the following circumstance
1. Those products that have refitted by the customers;
2. The troubles resulting from customer's careless or abnormal use;
3. The improper installation and the incorrect voltage supply;
4. The damage or faulty performance caused by misuse, improper installation, careless
handling or where repairs have been attempted by others.
5. The breakdown and the damage caused by the Force majeure.
6. Without guarantee card;
Ilightings provide paid service for the products which beyond the guarantee conditions.
Customer name：
Contact phone No.：
Date of purchase ：
Product model No. ：
Dealer ：

Operation, Programming and Safety Manual
1、Overviews
Thank you for purchasing our product. Before carrying out any operations with
the product ,carefully read this instruction manual and keep it with cure for
future reference. It contains important information about the installation,
usage and maintenance of the unit. Please strictly follow it.
The product conforms to the international standard DMX512 agreement. The
products can be controlled in signal use and also can be controlled in many
units. Sleek and stylish, precise and accurate optical system design, bring and
clear light effects. All above makes our products applicable to be used within
the scope of film and television, theater, live events, trade show exhibits,
educational facilities, retail environments, and corporate shows, etc.
* The product is compliance with the CE Standard & ROHS Standard.
* The product belongs to Ilightings registered company. the intellectual
property is exclusively reserved. We will file a lawsuit on condition that it
is illegally copied and imitated.
2、Packing list
This series of products supply standard carton packaging, flight case can be
supply for your requirement.
Do not extrude the plastic parts for avoiding any breaking or deformation.
When receiving the product, please carefully check whether there is any
damage caused by the transportation. Check whether the following fitting s are
attached :
Manual /Certificate
If you need other fittings , please list them in your order .
3、Product data
Product name ：100w & 200w LED Color temperature-adjustable Panel light
Product features
1) High illuminance: close to the traditional tungsten lamp
2) Super beam angle:120 °large area irradiation and soft edge of spot. The
effect of the spots close to the traditional three-band floodlight
which is smooth enough for camera shooting. The beam angle of competing
products is 60°which makes the spot with sharp edge, and the spot is

not smooth.
3) Good performance of cooling system
4) Low power, light weight
Scope of application
The scope of film and television, theater, live events, trade show exhibits,
educational facilities, retail environments, and corporate shows, etc.
The scope of major television, HD studio, intelligent HD video conference
room, HD intelligent studio, the surface light, top light, side light of multi-
function hall, etc.
Product description
Aluminum alloy sheet shell, excellent for the light and thin, simple and
sleek, double modular structure , easy handling , maintenance friendly , LED cold
light sources, matrix distribution, high-light diffusion plate, soft and smooth
light output ,no infrared, ultraviolet rays, no glare, better energy saving
than the traditional three-band fluorescent Lamp. The double-balance heat
conduction technology and natural flow type heat dissipation design are used to
export a greater flow of energy effectively with noise free. 120° ultra beam
angle ensure the large-area diffused lighting and viewfinder. It can be used as
auxiliary lighting applications.
4、Technical parameters
Power supply ：AC90V-120V/200V-250V ，50Hz/60Hz
Light source ：Everlihgt brand High illuminance imported LED chip
Quantity of chip ：3380Pcs（W:1690Pcs,Amber:1690Pcs ）
Power：200W
Optical lens：Dot-matrix compound eye optical system
Adjustable Color temperature:3000K~6500K
Preset Color Temperature: 3000K、3200K、4500K、5600K、6500K
Color Temperature deviation: ±5%
Color rendering index: CRI 85 Ra
Manual Dimmer ：0%～100%
Beam angle: 120°
Control system ：16 Bit dimming,STM32 control chip,DMX512
Max Clock frequency : 72m/Hz
Dimming Frequency : 8k/Hz
Channels ：3CH
Display screen ：LCD
Power Connection: Power Con
Working Environment ：-20℃～35℃
Life：50000h
Tilt：±90°

Protection class ：IP23
Light barrier ：Four-leaf(supply for requirement )
Weight ：3KG
5、Dimension、Mappings & Pictures of fittings
Dimension ：682x432x 120MM
Hanging installation: screw holes can be installed 12MM

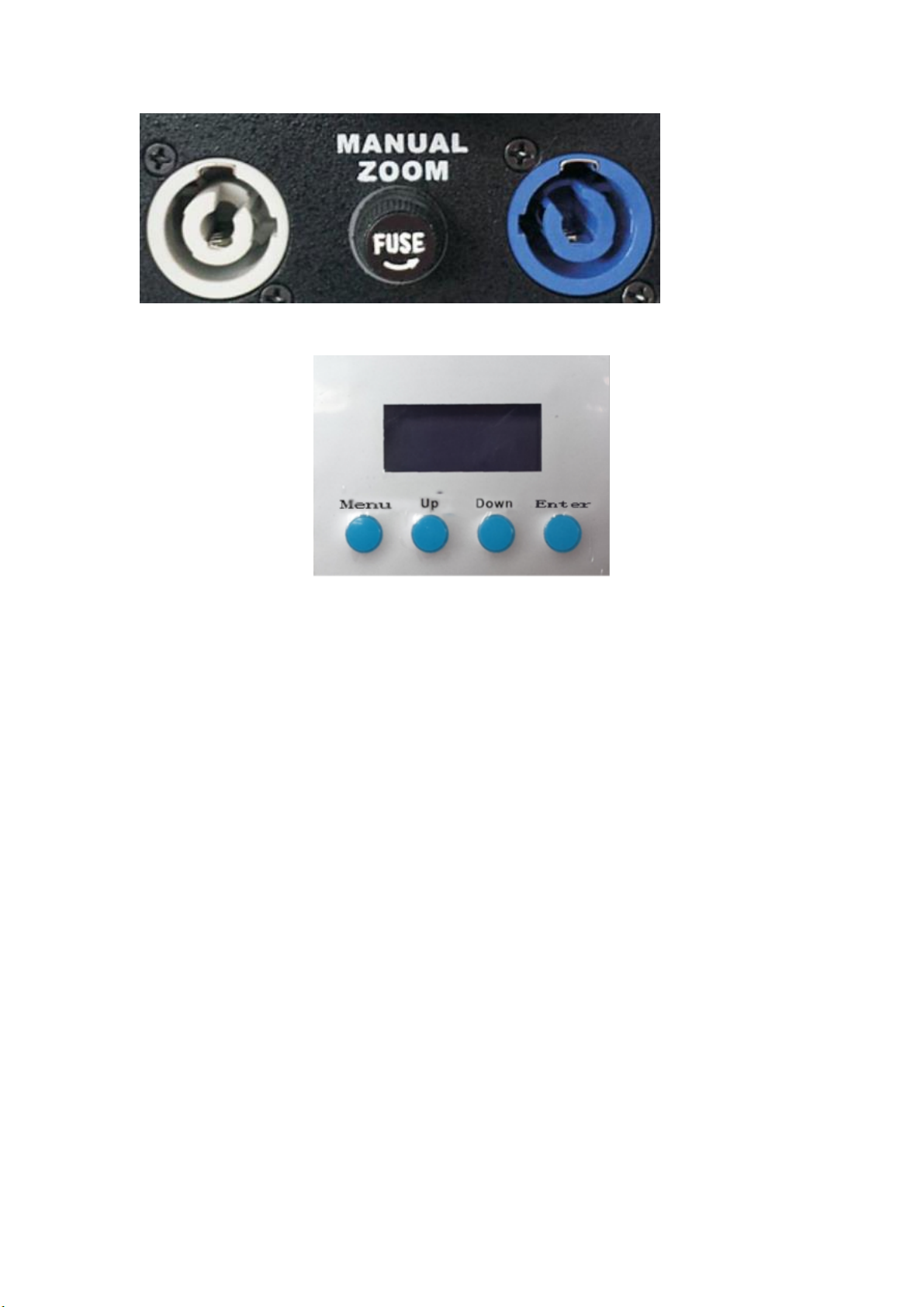

Signal Cannon
Power Connection: Swiss Neutrik Power Con

Display screen ：LCD：
6、Control system description
Lamp power supply & connection of signal line
1、Connection and control of the lamp power source
The product uses 1.5 SQMM copper core cables to be the input line for power
supply. When connecting the power line, the maximum of connecting lamps is 12
under voltage 220V; and the maximum of connecting lamps is 6 under voltage 110V.
When using the DMX console, the length of wire between console and the lamp,
and the length of wire between the lamps should not be longer than 60 meters.
There must be signal amplifier when the length of wire is longer than 60 meters.
2、Connection of the lamp signal line
This LED lamp receive digital signal in DMX512 (1900) format. It can work in
either the master or slaver mode under EDIT and self-propelled mode. The master
-slave mode also connects by DMX line. Using the cylindrical 3 core XLP cable
provided by the manufacturer, connect the XLR-XLR control line from the DMX
controller output port to the DMX input port of 1st lamp, then from the DMX
output port of 1st lamp to the DMX input port of 2nd lamp, etc. Until all the
lamp s are connected in a chain . Finally insert the loop into the DMX input port
of last lamp for complete the connection.

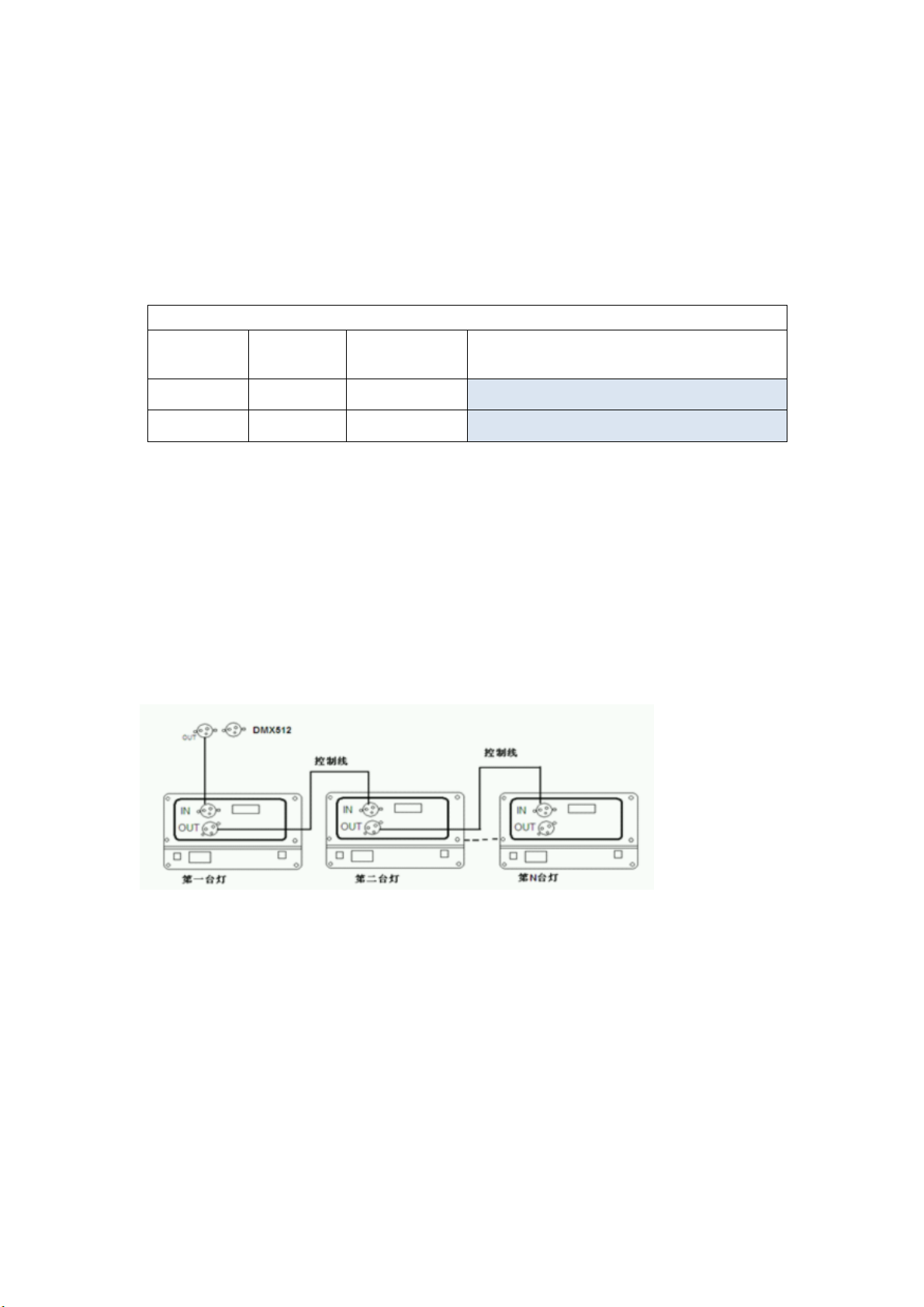

Diagram of signal connection
7、Operating instructions
1、Display screen ：Menu items and indication function
2、Functional setting and operating
Please press（MENU）for setting. Use the（UP）and（DOWN ）to select required
address. Press （ENTER ）to go to the next menu or confirm . Press (MEAU ) to
return to previous menu . To change the function, please get to the bottom of
the menu and press （ENTER ）.
3、Signal functional instruction
MENU
selection
UP
advance
DOWN
return
ENTER
confirmation
4、DMX IN/DMX OUT: DMX512 input and output connection
5、POWER IN/ POWER OUT: input and output connection of power
The characteristic of control system:

16 Bit dimming level: Comparing to the 8 Bit dimming, the changing of the light
is more soft and delicate. The precision stabilizing control chip STM32; the
international signal protocol DMX512 .
Maximum clock frequency ：72m/Hz；
Output frequency ：8k/Hz；
Main function menu ：
Details
First
level
menu
Second lever
menu
Third
lever
menu
Optional
Value
Notes
DMX
DMX address
adjusting
0-512
Channel initial value
selection
STAT
（static
state ）
H.000
0-255
R、G、A adjusting
L.000
0-255
B、W、Y adjusting
SCE
(scene)
SEC1--SCE10
(scene 1 to
scene 10)
H.000
0-255
Adjustable scene 1 to scene 10
R、G、A
(The first color)
L.000
0-255
Adjustable scene 1 to scene 10
B、W、Y（The second color）
FADE
(Dimming
delay)
Default 2
0-9
0 denotes stop the FADE.1-9
denotes rising delay .
TEMP
(Tempera
ture
control)
C.000
0-150
Current temperature
t.065(Press 【
ENTER】for
adjusting )
0-150
Protected temperature
VERSION
(Version
informat
ion)
Display the current software
version
Notes:
Before entering the screensaver, beyond the non-manual and scene editing
mode, the exclamatory mark will glittering in the screen when no signal
input;
For the two-color adjusting ，R、G、A denotes the same adjusting ，B、W、Y
denotes the same adjusting;
Without any key operation in the 30 seconds, the LCD display board will
automatically enter the screensaver . Beyond the non-manual and scene
editing mode, the LCD screen will glittering without the DMX signal;
Version number of the program will be shown when power on

When the current temperature passes over the temperature protection value,
the lamp will slowly reduce to half-power ; when the current temperature
return s to normal range, the lamp will slowly return to full power;
Press 【MENU】for about 3 seconds under【DMX】，it can quickly close optical
mode selection，press“UP”or“DOWN”to select“YES”to open the
mode，“NO”to stop it.
Channel description
CH2 mode function table（2-channels ）
Channel
Main
function
Value
Description
CH1
H
0-255
R、G、A illuminance adjusting
CH2
L
0-255
B、W、Y illuminance adjusting
Master-slave model
Connect the control line from the DMX output port of 1st lamp to the DMX
input port of 2nd lamp, then from the DMX output port of 2nd lamp to the DMX
input port of 3rd lamp, etc. Until all the lamps are connected in a chain.
Finally insert the loop into the DMX input port of last lamp for complete the
connection. Choose the 1st lamp to function as the master, and run it in the
Self-propelled Mode or EDIT mode; other lamps will work as slaves with the same
effect, and run them in the Slave Mode or Address code Mode. Note: the DMX
input port should not input the DMX512 signal
8、Safety instructions
1.Maintenance ：
The lamp has been passed strict examination before leaving the factory.
In order to ensure the normal and safe operation, user must follow the
instructions of this manual ;
Ilightings assumes no responsibility for those products that have
refitted by the customers ,and the troubles resulting from customer's

careless or abnormal use;
Keep the lamp work under the required voltage ,ensure the use of
voltage is in the voltage range of technical parameters ;
For using the power line input and output connector, the maximum of
lamps is 12 under the voltage 220V; the maximum of lamps is 6 under the
voltage 110V. The number of lamps for using the DMX512 input and output
signal line is not limited ;
Do not install the lights near the heat source to avoid the rising of
lamp temperature and affecting the normal use of lamps and lanterns,
even damaging the lamp;
Check before use the connection of 110V~220V AC power to ensure that
the connection between power supply and switch is good. Please use
qualified power plug and outlet ;
During move and installation, make sure the device not crashed with
metal parts and other tough materials .
2. Warning ：
Unqualified person involved with installation, operation and
maintenance of this lamp is prohibited
Don't insert other things into the inside of the lamp, so as to avoid
anything reach ing the part with high voltage, then lead to partial
short circuit , or else a fire or electric shock may occur, and then
affect the normal use of the product.
Please keep the bulb clean, do not direct ly touch the bulb glass by
hand.
Do not watch the light source straightly for avoid the damage to the
eyes.
9、Notes for installation and operation
1. Installation
（1)Before the location and installation of the lamp, ensure the stability
of its installation point, which can hold at least 10 times the weight of
the lamp.
(2) Installation method: use one piece of professional clamp , M13 bolts,
and our own retaining screw to install; pull the safety chain( distribution
or owned) through the yoke or other hanging objects and tighten the
fixation screw. Check if there is any wear of the safety chain and loosen
of the clamp periodically . In addition, cut off the power supply when
remove the lamps to ensure safety. Take the safety rope first, then remove
the hanging, and pay attention to the safety of pedestrians below.
2. Notes:
（1）Do not frequently switch the lamp, so as not to affect the service
life of the bulb. Try to avoid the lamp to run for long periods of time.

（2）All screws used for installing the lamp and any of its parts should be
tightly fastened to avoid the strong jarring or pounding. Don’t use the
lamp in a jittering situation.
10、Comparison of common faults
Comparison of common faults
Problem s
Reason and resolution
Lamp not work
1、Check if the power line is connected
2、Check if the lamp work under the
required voltage
Lamp work ，not control
by the controller
1、Check if the DIP starting address code
setting is correct
2、Check if the XLR signal line is
destroyed
Master-slaver Mode,
the master work, but
the slaver not work
1、Confirm there is only one master
connected without the DMX console ；others
are in the slaver or address code mode
2、The Master-Slave Mode has some problems .
Check for the connected line
Keys not work
Check if any of the keys does not reset
Low light
intensity ，brightness
decrease obviously
1、Check if the LED light source at the
end of their life span
2、Make sure the internal and external of
the optical system is clean
Beam impure (with
halo)
Clean the bulk and lens from impurities
caused by dust and oil
