PREPARATION
Getting Started
It's a good idea to read all of the instructions
before beginning the installation.
Contents
Installation Instructions................... .,' 3
Wiring ............... .................... .
... 5
Installing the Removable Faceplate .. 6
Operating Instructions .................. ...... 7
CD Player Operating Instructions. ....
11
MP3 Player Operation (UMP400)........... 13
CD Changer Controls............................ 14
Remote Control..... ................. ..15
Care and Maintenance ........................ 16
Specifications ........... ...................... .... 17
90 Day Limited warranty. . .. 18
Installation Requirements
This unit is designed for installation in cars,
trucks and vans with an existing radio opening.
In many cases, a special installation kit will be
required to mount
the radio to the dashboard.
These kits are available
at electronics supply
stores and
car stereo specialty shops. Always
check
the kit application before purchasing to
make sure
the kit works with your vehicle. If you
need a kit but cannot locate one, call
our
customer support line at 1-800-323-4815.
(U.S.A. and Canada only,)
Tools and Supplies
The following tools and supplies are needed to
install
the radio.
Torx type, ftathead and Philips
screwdrivers
Wire cutters and strippers
Tools to remove existing radio
(screwdriver, socket wrench set
or other
tools)
Electrical tape
Crimping tool
Volt meterltest light
Crimp connections
18 gauge wire for power connections
16-18 gauge speakerwire
Speaker Requirements
Only connect speakers rated with a load
impedance
of 4 ohms. Speakers with a load
impedance
of less than 4 ohms could damage
the unit.
2
Disconnect Battery
Before you begin, disconnect the battery
negative terminal.
------------
Toll-Free Installation Assistance
Ifyou require assistance, contact Technical
Support at 1-800-323-4815 from 8:30 a.m. to
7:00 p.m. EST Monday through Friday and from
9:00 a.m. to 5:00 p.m. EST on Saturday.
(U.S.A. and Canada only.)

UCD300/UMP400
INSTALLATION INSTRUCTIONS
Installation Using a Mounting
Sleeve
1. Slide the mounting sleeve offthe chassis.
Ifit is locked into position, use the removal
tools (supplied) to disengage
tl.
2. Check the dashboard opening size by
sliding the mounting sleeve into it. Ifthe
opening istoo small, carefully cut or file as
necessary until the sleeve easily slides
into the opening. Do not force the sleeve
into
the opening or cause it to bend or
bow. Check forsufficient space behind the
dashboard for the radio chassis.
3. Locate the series of bend tabs along the
top, bottom, and sides of the mounting
sleeve. With the sleeve fully inserted into
the dashboard opening, bend as many of
the tabs outward as necessary to firmly
secure the sleeve
to the dashboard.
4. Place the radio in front of the dashboard
opening so the wiring can be brought
through the mounting sleeve. Follow the
wiring diagram carefully and make certain
all connections are secure and insulated
with wire nuts or electrical tape. After
completing the wiring connections, turn
the unit on to confirm operation (vehicle
ignition must
be "on"). Ifthe unit does not
operate, re-check all wiring until the
problem is corrected.
5.
6.
7.
Make sure the radio is right-side up, then
carefully slide the radio into the mounting
sleeve until itis fully seated
and the spring
clips lock it into place.
Attach
one end ofthe perforated support
strap (supplied) to the screw stud
on the
rear of the chassis using the hex nut
provided. Fasten the other end of
the
perforated strapto a secure part ofthe
dashboard either above or below the radio
using the screw provided.
Bend the strap
to position itas necessary.
Test the radio using the Operating Instruc-
tions that follow.
CAUTION: The support strap
must be usedto prevent
damage to the dashboard from
the weight
of the radio or
Improperoperation due to
vibration.
CAUTION: For proper operation
of the CD player, the chassis
must be mounted within 20° of
horizontal. Make sure the unit is
mounted within this limitation.
3
INSTALLATION
BEND TABS

INSTALLATION INSTRUCTIONS
Installation Using a Kit
Ifyour vehicle requires the use of an installation
kit to mount this radio, follow the instructions
included
with the installation kit to attach the
radio to the mounting plate supplied with the kit.
1. Wire and test the radio as described in
step 4 of"Installation Using a Mounting
Sleeve" .
2. Install the radio mounting plate assembly
to the sub~dashboard according to the
installation kit instructions.
3. Attach the support strap to the radio and
dashboard as described in step 6 of
"Installation Using a Mounting Sleeve" .
4. Replace the dashboard trim panel.
ISO Installation
This unit hasthreaded hotes in the chassis side
panels which
may be used with the original
factory mounting brackets of some Toyota,
Nissan, Mitsubishi, Isuzu, Hyundai and Honda
vehicles to mount the radio to the dashboard.
Please consult with your local car stereo
specialty shop for assistance
on this type of
installation.
1. Remove the existing factory radio from the
dashboard
or centerconsole mounting.
Save all hardware and brackets as they
will
be used to mount the new radio.
ISO INSTALLATION
2. Carefully unsnap the plastic frame from
the front ofthenew radio chassis. Remove
and discard the frame.
3. Remove the factory mounting brackets
and
hardWare from the existing radio and
attach them to the new radio.
CAUTION: Do not exceed M5 X 6 MM screw
size. Longerscrews may touch anddamage
components inside the chassis.
4. Wire the new radio to the vehicle as
described
in step 4 of ~Installation Using a
Mounting Sleeve" .
5. Mount the new radio assembly to the
dashboard or center console using the
4
UCD300jUMP400
reverse procedure in step 1 of "Installation
Using a Mounting Sleeve" .
Removing the Radio
To remove the radio after installation, remove
the trim ring by lifting in the centerand pulling it
offfrom either side. Insert the removal keys
straight back until they lock, then pull the
radio
out. If removal keys are inserted at an angle,
they
will not lock properly and will not release
the unit.
REMOVING THE RADIO
'''''.:_>.
[~~ ...... ~ ........ ~ ..... .
(Q;~:> """~'"

UCD300/UMP400
WIRING
..
~ ~ ~
coo
..
()~~ 0 mE>
<) c ~ ... : :::.:,:::::
o 0 0 ...
t
Antenna COilIlector
Amplifier Wiring
Connect line
out for optional
external amplifiers. The red
connector is
for the right and the
white connector is
for the left.
WARNING! Never combine (bridge) outputs
for use with 1speaker.
WARNING! Neverground negative speaker
leads to chassis ground.
CAUTION: Failure to wire exactly as shown
may cause electrical damage to the radio. LRrARG
@) 5
tlCOOID IJ
CD Changer
Connector
Power Antenna
Connect to power antenna
or amplifier. If not used. tape
bare
end of wire.
Ground
Connect to ground terminal.
Memory/Battery
Connect to battery
or 12 volt
power source that is always
live.
The radio will not work
if this wire is notconnected.
Accessoryllgnition
Connect
to existing radio
wire
or radio fuse.
Fuses
When replacing a fuse, make
sure the new fuse is thecorrect
type
(ATO) and amperage,
Using an incorrect fuse could
damage the radio.

INSTALLING THE REMOVABLE FACEPLATE
Faceplate Installation
To installthe faceplate, slip the right edge olthe
front panel into the radio then gently press the
left side into place.
Faceplate Detachment
To remove the faceplate, press the RELEASE
... button, and pull gently on the left side olthe
front panel.
For safekeeping, store the front panel in the
protective case provided.
Handling Precautions
Make sure the front panel is right-side-up
when attaching itto the chassis as it
cannot be attached when up-side down.
Do not pressvery hard on the front panel
when attaching itto the chassis. No more
than lightto moderate pressure is needed.
When attaching the front panel, make sure
it iscentered in the chassis frame and is
pressed straight into position.
Do not drop the front panel.
Do not put pressure on the display or
control buttons when handling the front
panel.
Do nottouch the electrical terminatson the
front panel or main unit.
Remove dirt or foreign substances with a
clean, drycloth
only.
Do not expose the front panel to extreme
temperatures or direct sunlight.
Keep volatile agents such as benzene,
thinner or insecticidesaway from the front
panel.
Do not disassemble the front panel.
When taking the front panel w'lth you,
please use the supplied carrying case to
protect
the panel from dirt and damage,
6
UCD300/UMP400
Make sure there is no dust or dirt on the
electrical terminals on the back ofthe
panel as this could cause intermittent
operation or other malfunctions,

UCD300/UMP400
OPERATING INSTRUCTIONS
CD Power On/Off Button (PWR)
Press the PWR button (1) to turn the unit on
and offwhen the vehicle ignition switch is on.
When the unit isoff, the clock is automatically
displayed on the Liquid Crystal Display (LCD)
panel unlessthe ignition switch is
off. Ifthe
radio isoffwhen the ignition switch is turned off,
the PWR button must be pressed to turn the
radio on afterthe ignition switch is turned on. If
the ignition switch is turned offwhile the radio is
on, the radio will come
on automatically when
the ignition switch is again turned
on.
® Liquid Crystal Display Panel
The Liquid Crystal Display (LCD) panel displays
the frequency, time and all activated functions,
including a5-bar graph which depicts the signal
level.
NOTE; It is a characteristic of LCDpanels
that,
if subjected to cold temperatures for an
extended period oft/mel they may take
longer to illuminate than under nonnal
conditions. In additlonl the visibility of the
numbers
on the LCD may slightly decrease.
The LCDread-out
will return to nonnal when
the temperatureinside the vehicle increases
to a normal range.
® Volume Control (AUDIO)
To increase the volume level, turn the AUDIO
control (3) clockwise. To decrease the volume
level, turn the AUDIO control counter-
clockwise.
The volume will increase/decrease
and the level will
be shown on display panel
from aminimum ofuVOL OO"to a maximum of
"VOL 1 00". The display will automatically return
to the normal indication 5 seconds after the last
volume adjustment orwhen another function is
activated.
The AUDIO control is also used in
conjunction with the SEL button (4) to adjust
the bass, treble, balance and fader levels.
3
4
7
@ Select Button (SEL)
The SELbutton is used to select the audio
function (volume, bass, treble, balance or fade)
to be adjusted using the AUDIO control (3).
Press the SEL button (4) once to set the unit for
volume adjustment (~VOL" will appear on the
display panel). Press the button additional
times
to select bass adjustment (" BAS" on
display panel), treble adjustment (TRB),
balance (BAL), fader (FAD), and volume (VOL)
again. The display will return to the normal
indication 5 secondsafterthe
last adjustment or
when another function
is activated.

OPERATING INSTRUCTIONS
o Bass Control
To adjust the basslevel, first select the Bass
mode by pressing the SEL button (4) until
"BASH appears on the display panel. Within five
seconds, turn the AUDIO control (3) to adjust
the bass response from a minimum of"BAS -
10" to a maximum of "BAS 10". ~BAS 00"
represents a flat response.
o Treble Control
To adjust the treble level, press the SEL button
(4) until "TRB" appears on the display panel.
Within five seconds, turn the
AUDIO control (3)
to adjust the treble from a minimum of"TRB -
10" to a maximum of~TRB 10", "TRB 00"
represents a flat response.
o left/Right Balance Control
To adjust the left-right speaker balance, press
and release the SEL button (4) until the "BAL"
indication appears on the display panel. Within
five seconds, turn the AUDIO control (3) to
adjust
the balance between the left and right
speakers from "BAL 1
OL" (fuJlleH) to "BAL 1 OR"
(full right). "BAL L=R" represents an equal
balance level between the left
and right
speakers.
o Front/Rear Fader Control
To adjust the front/rear speaker balance, press
the SEL button (4) until "FAD" appears on the
display panel. Within five seconds, turn the
AUDIO control (3) to adjust the balance
between the front and rear speakers
from "FAD
10F" (full front) to "FAD 1 OR" (full rear). "FAD
F=R" represents an equal balance level
between the front and rear speakers.
3
4
8
UCD300/UMP400
o Audible Beep
Press SEL (4) for> 3 seconds to access the
Beep Tone menu. Turn the AUDIO control (3)
to select "BEEP ALL", "BEEP 2ND", or "BEEP
OFF".
® AM/FM Band Selector (BAND)
During radio play, each time the BAND button
(5) is pressed, the radio band changes. The
indications "AM 1", " F 1", "F 2", or"F 3" will
appear
on the display panel according to your
selection.

UCD300/UMP400
OPERATING INSTRUCTIONS
® Loudness Control (BANDI
LOUD)
When listening to music at low volume levels,
this feature will boost the bass and treble
ranges to compensate for
the characteristics of
hUman hearing. Press and hold the BANDI
LOUD button (5) to activate this feature as
indicated
by a beep tone and "LOUD ON"
appearing on the display panel. ("LOU" remains
on the display.) Pressing and holding the button
again will sound a beep tone and display
"LOUD OFF". "LOU" will disappear.
® Tuning Control
Seek Tuning
Press the lUNEI1RACK (
.. ,) button (6a) to
tune the radio higher, or the ruNE/TRACK
(<:""111) button (6b) to tune the radio lower. The
radio will seek the next strong station and stop.
Manual Tuning
To manually seek a specific station, first press
and hold eitherthe
up or down lUNEITRACK
button (6a and 6b) until "MANUAL" appears on
the display. Press the up or down ruNEI
TRACK buttons momentarily to tune two
frequency steps
at a time.lf no further tuning is
performed after
five seconds, "AUTO" will
appear momentarily on the display, and tuning
will revert to the original tuning mode.
(J) FM Mono Select (MON)
During FM radio operation, the MON button (7)
is used to select monaural or stereo reception
of the broadcast signal. Under normal reception
conditions, the unit should be left in the stereo
mode (indicated by "STEREO" when tuned to
an FM stereo signal). If the Signal is too noisy
for comfortable listening, press the
MON
button; the "STEREO" indication will disappear
from the display panel and "MONO" will appear.
To return to stereo reception mode, press the
button again.
® Auto-Store/Pre-Set Scan
(AS/PS or AMS)
Press the AS/PS or AMS button (8)
momentarily to scan the 6 stations in the pre-
set memory for all FM bands. The unit will stop
at each pre-set station for 10 seconds. Press
AS/PS or AMS again to stop scanning and
select the current frequency. Press the AS/PS
or AMS button for more than 2 seconds to
activate the Auto-store Tuning feature. The
radio will automatically scan the band
in use
and enter strong stations into the pre-set
memory positions for that
band. Auto-store will
erase
any stored stations.
9
® Local Button (LOC)
During radio operation, received signals are
usually in stereo mode as indicated by the "ST'
icon; however, when the signals are weak or
intermittent, you can activate the Local (LOC)
mode by pressing the LOC button (9)("LOC"
appears on the display). This mode favors
access to local stations whose signals are
much stronger; thereby improving radio
reception. Press
the LOC button again to
terminate Local receive mode ("LOC"
disappears from the display panel).
@ Audio Mute (MUT)
Press the MUT button (10) to silence the
volume from the system. "MUTE" will appear on
the display panel. Press MUT again (or activate
another function)
to return the volume level to
the setting that was in use before the Mute
function was activated.

OPERATING INSTRUCTIONS
® Station Pre-Set Memories
To set any of the 6 pre~set memory buttons,
use the following procedure:
1. Turn the unit on and select the desired
band.
2. Select the first station to be pre-set using
the lUNEIlRACK buttons (6a and 6b).
3. Press and hold a pre-set button until you
heara confirmation tone. The pre-set
number will appear on the display panel.
The station is
now stored and can be re-
called at any time by momentarily pressing
that button.
Repeat the above procedure forthe remaining
5 pre-sets for
the current band. Six stations can
be stored
for each of the bands.
@ Equalizer Selector (EQ)
The EQ button (12) applies preset sound
effects to the unit's audio output signal. When
pressed, it
will activate one of the following
modes: "FLAT', "CLASSICS", "POP M", "ROCK
M" or "DSP OFF".
\lVhen the Equalizer function
is active, the
bass and treble levels can still be
changed to accommodate the listener's ear.
VVhen the EQ function is notactive, the unit
returns to the user-set bass and treble levels.
@ Display Selector (DSP)
This unit can display either the clock time or
radio frequency/CD player functions. Press the
DSP or DISP/O button (13) to display the time
for approximately 5 seconds. The correct time-
of-day can
be set by pressing and holding the
DSP or DISP/O button.
Settingthe Clock
To set the clock, perform the following steps:
1. Press the DSP
or DtSP/O button (13) to
display the clock.
2. Press and hold the DSP or DtSP/o button
(13) until the time display flashes.
10
UCD300/UMP400
3. Within 5 seconds, press the TUNE!
TRACK « ..)button (6b) to adjust the
minutes
to the desired setting.
4. Press the
lUNE/TRACK ( .. » button (6a)
to adjust the
hour and the "AM"I"PM"
indication to the desired time.
5. Press the DSP
or DISPJO button again to
return to radio frequency or disc play
or
wait five seconds and normal operation
will resume automatically.

UCD300/UMP400
CD PLAYER OPERATING INSTRUCTIONS
@ Disc Slot
With the label surface facing up, gently insert
the disc into the slot until the soft-loading
mechanism engagesand disc play begins.
"5--
Cop ---" will appear momentarily. Once
loaded, the (II') indication will become
animated and the track number
and elapsed
time will appear
in the display.
NOTE: The unit is designed for play of
standard 5" (12 cmJ compact discs only. Do
notattemptto use 3" (8 em.) CD singles in
this unit, either with or without an adaptor,
asdamage to the player andlor the disc may
occur. Such damage will not be covered by
the warrantyon this product
® Track Selector (TUNE/
TRACK)
The Track Select functions are used to quickly
access the beginning
of a particular track. Each
time the ruNEIlRACK ( .. » button (6a) is
pressed, the next higher track number is
selected, as shown
on the display panel. Each
time the ruNEIlRACK «"") button (6b) is
pressed, the next lower track number is
selected, as shown on the display panel.
® Cue/Review Functions
Press and hold the ruNEIlRACK ( .. » button
(6a) to adVance rapidly forward or the ruNEI
lRACK «"") button (6b) to advance rapidly
backward. During either function, the elapsed
time of each track will be shown on the display
panel.
@ Disc Play/Pause Select
Press the 1 PAU or 1>111 button (16) to freeze
disc play. "S-PAUSE" will appear on the display.
Press 1 PAU or .... /11 again to resume disc play
and the "S-PAUSE" indication will disappear.
11
@ Track Scan Select (SCN)
During disc play, pressthe 2 SCN button (17) to
play the first 10 seconds ofeach track.
("S-SCN" will be displayed with the track
number). VVhen a desired track is reached,
press the 2
SeN button again to cancel the
function and play the selected track. Track
Scan mode can also be canceled by activating
the Repeat Play (18) or Random Play (19)
fUnctions.

CD PLAYER OPERATING INSTRUCTIONS
@ Track Repeat Play Select
(RPT)
During disc play, pressthe 3 RPT button (18) to
repeat play
of the selected track ("S-RPT' will
appear on the display penel). Play ofthe track
will continue to repeat until 3 RPT is pressed
again
and the "S-RPT" indication disappears
from the display panel. Repeat Play mode can
also
be canceled by activating the Track Scan
(17) or Random Play (19) functions.
@ Random Play Select (SHF)
During disc play, pressthe 4 SHF button (19) to
play the trackson the discin a random, shuffled
order
("S-SHF~ will appear on the display
panel).
In Random Play mode, you can press
the lUNEITRACKbuttons (6a and 6b) to select
tracks in a random order instead ofthe normal
progression. Press4 SHF again
to cancel
Random Play mode. Random Play mode can
also be canceled
by activating the Repeat Play
(18) or Track Scan (17) functions.
@ Mode Selector (MODE)
Pressthe MODE button (14) to change
between CD player and radio operation. The
current
mode is indicated on the display panel.
During CD player operation, this button may be
used to change to radio without ejecting the
disc (the CD icon (,) will remain on the
display to show that a disc is still loaded).
Press MODE again
to return to CD player
mode.
UCD300/UMP400
@ Disc Eject Button
V\lhen the disc eject.!: button (20) is pressed,
disc play is stopped,
the disc is ejected, and the
unit will change to radio operation. Ifthe disc is
not removed from the unit within
15 seconds,
the discwill be re-Ioaded.
NOTE: To prevent a disc from accidentally
being damaged, always remove the
disc
from the unit when disc play Is finished.

UCD300/UMP400
MP3 PLAYER OPERATION (UMP400)
This section applies to the UMP400 only.
Instructions forlnsert/Eject, PlaylPause, Track
Selection, Cue/Review, Scan, Repeat, and
Random are the same for CD and MP3
operation. Please see the CD Player Operation
section for information aboutthese topics.
After inserting an MP3 disc, "MP3 T" and the
track number momentarily appear, followed by
the ID Tag (if supported). After these initial
indications, the track number and song title
alternately appear, with the song title scrolnng
right to left across the display.
Display Information
Press BAND (5 ) to display the 103 tag. if
available, The 10 tag can specify the song title,
artist, album, year and/or comments. If no JO
tag is available, "-NO 103" will appear in the
display following the comments.
Direct Song/ File Access
Press the AMS (8) button once to enable direct
track searching. Use the AUDIO control (3) to
select the desired song/file. Pressthe
BAND/
LOUD/ENTER (5) button to play the selected
song/file, or do nothing and the unit wilt search
and play the song/file within three seconds.
Searching by Name
1. Press the AMS button (8) twice to enable
directory or file name searching.
2. Use the AUDIO control (3) to select the
characters A-Z, _, -,
+, and 0-9.
3. Press the SEL button (4) to confirm entry
of each character.
4. Pressthe BAND/LOUD/ENTER button (5)
to begin the search.
If the selected entry is
a directory name, '" '" will be displayed.
5. Use the AUDIO control to select the song/
file in this directory/folder.
6. Press BAND/LOUD/ENTERto play the
selected song/file.
13
Searching the Root Directory
1. Press the AMS button (8) three times.
2. Use the AUDIO control (3) to select the
desired directory/song. Ifa directory
is
present, "O-DIR" appears in the display.
3. Pressthe BAND/LOUD/ENTER button (5)
to access the directory.
", '" will appear
in the display indicating that a directory
has been selected for searching.
4. Use the AUDIO control to select the songl
file.
5. Press BAND/LOUD/ENTERto play your
selection.

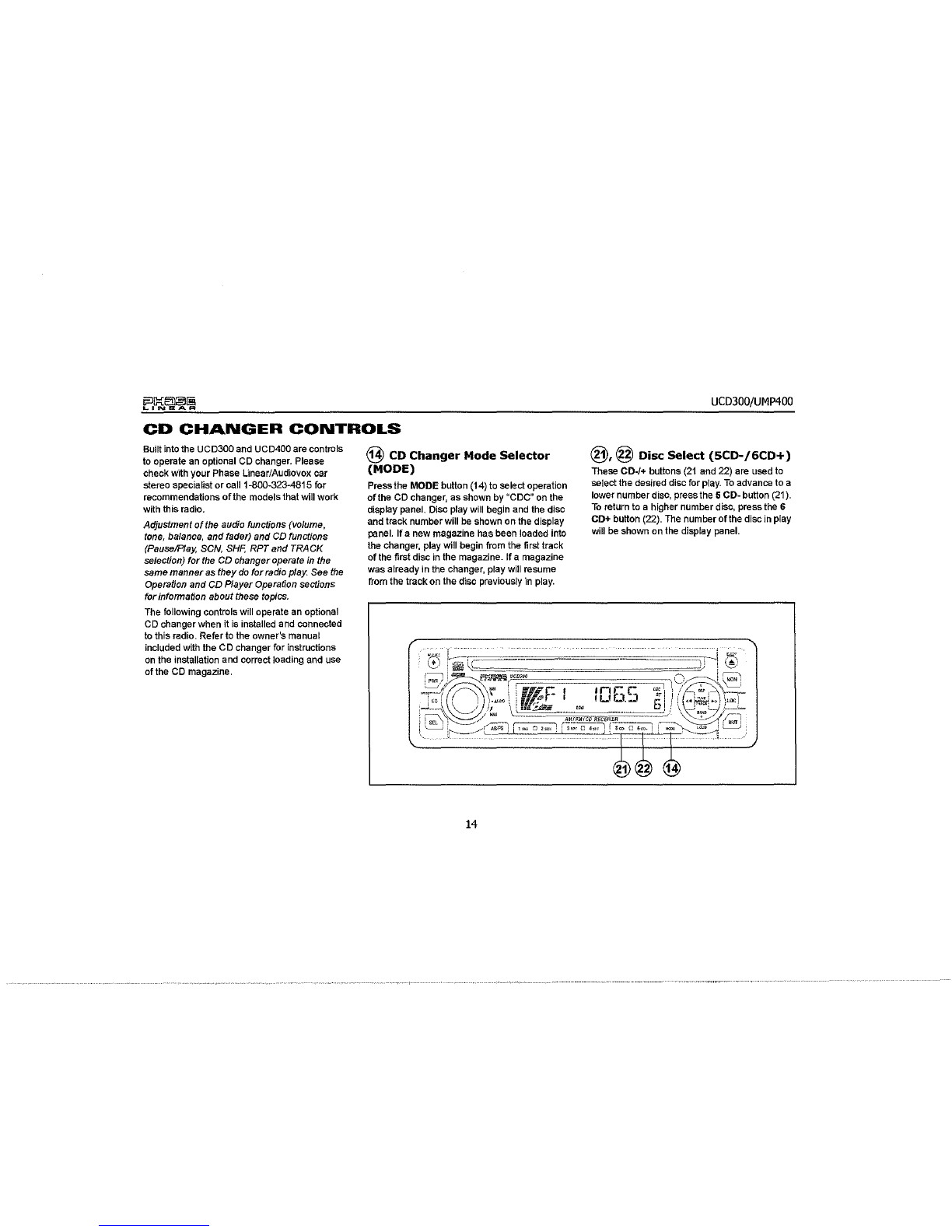

CD CHANGER CONTROLS
Built into the UCD300and UCD40Q are controls
to operate an optional CD changer. Please
check with your Phase Unear/AudiovQx car
stereo specialist or call1-800~323-4815 for
recommendations of the models that will work
with this radio.
Adjustment of the audio functions (volume,
tone, balancs,
and fader) and CD fUnctions
(PauselPlay, SCN, SHF, RPT and TRACK
selection)
for the CD changeroperate in the
same manner as they do for radio play. See the
Operation and CD Player Operation sections
forinfonnation aboutthese topics.
The following controls will operate an optional
CD changer when it is installed and connected
to this radio. Refer to the owner's manual
included with the CD changer for instructions
on the installation and correct loading and use
of the CD magazine.
@ CD Changer Mode Selector
(MODE)
Pressthe MODE button (14) to select operation
ofthe
CD changer, as shown by "CDC" on the
display panel. Disc play will begin and the disc
and track number will
be shown on the display
panel. Ifa new magazine has been loaded into
the changer, play will begin from the first track
of the first disc in the magazine. Ifa magazine
was already
in the changer, play will resume
from the track on the disc previously in play.
14
UCD300/UMP400
@, @ Disc Select (5CD-/6CD+)
These CD-I+ buttons (21 and 22) are used to
select the desired disc for play. To advance to a
lower numberdisc, press
the 5CD- button (21).
To return to a higher number disc, press the 6
CD+ button (22). The number of the disc in play
will be shown on the display panel.

UCD300jUMP400
REMOTE CONTROL
The remote control will allow you to control the
basic functions of the UCD300/UMP400.
UCD300 REMOTE CONTROL
~
..
-----
(
--, .. -
--
,,:
MOD= MODE @
8J8~8
BND = BAND
PWR
~. ~J /"'~\...... ..... ".~:
AMS = AS/PS
'8' GY
I ~ (-TUNEfSEEK-,: ~ i
~~~"'-/;--~
.. ,' ,/
81.918
PAU
seN RP"!
CD CD CD
<3
SHF
/.---" ·DlSC" ~
0 (D
.C~)
INFRARED REMOTE CONTROLLER
!l
-:::::~)
\...--
_.
. .•.•.• ,.
UMP400 REMOTE CONTROL
MOD= MODE @
8.J(~5i 8
BND =BAND
PWR '/.~
r-
J /
VOL ~--"-'i
DSP = DISP (Display)
8i8~EK;Gj9
PAU =~III
'~ VOl//~--
'8
LOU i !
ENT 8 1,9:, DSP 0
L __ . ___ --!
PAU seN RPT D-AUO
CD CD
CD <3
SHF
.~ -DISC· -~
0
0_(~)
INFRARED REMOTE CONTROLLER
15

CARE AND MAINTENANCE
Your new radio/CD player does not require any
maintenance. However, proper understanding
ofits
use and handling will help you obtain
maximum enjoyment ofits capabilities. We
recommend that you keep this manual for
reference
on the many features ofthis unit as
well as how to set the clock. The following
points should be observed:
When cleaning the interior of the vehicle,
do not get water or cleaning fluids on the
unit.
The CD player is a precision instrument
and will not operate properly in extreme
heat or cold. If such conditions occur, wait
until the interior of the vehicle reaches a
normal temperature before using the
player.
Ifthe temperature inside the player gets
too hot, a protective circuit will
automatically stop play of the disc. In this
case, allow
the unit to cool before
operating the player again.
Never insert anything other than a 5" (12
cm) compact disc into the player as
the
mechanism can be damaged by foreign
objects.
Do not attempt to use 3" (8 em) CD-Single
discs in this unit, either with or without an
adaptor, asdamage to the player and/or
disc
may occur. Such damage will not be
covered by the Warranty on this product.
When not using the disc player, always
remove the compact disc.
Do not leave an
ejected disc sitting in the disc slot as this
can expose it to sunlight and other causes
ofdamage.
Do not attempt to open the unit chassis.
There are no user-serviceable parts or
adjustment points inside.
VVhen the vehicle warms up during cold
weather or under damp conditions,
condensation
may appear on the lens of
the disc player. Should this occur, the
player will not operate properly until the
moisture has evaporated.
The unit is designed with a vibration
dampening CD mechanism to minimize
interruption of disc play
due to normal
vibration.
\fVhen driving on rough roads,
however, occasional sound skips
may
occur. This will not scratch or damage the
disc
and normal play will resume when the
rough conditions cease.
Handling Compact Discs
Dirt, dust, scratches and warping can cause
skips in the playbackand deterioration ofsound
quality. Please follow these guidelines to take
care ofyour compact discs:
16
UCD300jUMP400
Carefully wipe fingerprints, dust and dirt
from the disc's playing surface with a soft
cloth.
VVipe in a straight motion from the
center to the outside of the disc.
Never
use chemicals such as record
sprays or household cleaners
to clean
CDs, as they can irreparably damage the
disc's surface.
Discs should
be kept in their storage
cases when not in
use.
Do not expose discs to direct sunlight,
high temperatures or
high humidity for
long periods.
Do not stick paper, tape or labels on disc
surfaces.
RESET BUTTON
A Reset button is locatedbehind the
faceplate on the leftside (the frontpanel
must be removedto access the button). The
Resetfunction
is providedto protect the
microprocessorcircuitry
and should only
be activatedunderthe following
circumstances
as it will erase the time and
pre-setmemories:Upon initialinstallation
aflerallwiring is completed; If there is a
malfunction of any of the switches on the
unit, pressing the Resetbutton
may clear
the system andreturn to normaloperation.

UCD300/UMP400
SPECIFICATIONS
CD-R and CD-RW Capability
Depending on media type and method of
"recording/burning", some CD-RIRWs may be
incompatible with this unit. After "recording/
burning", the session must be closed. Please
refer to your software's recommended
procedures for closing a disc/session. Review
your recording software
to familiarize yourself
with the correct"recording/burning" procedures.
We recommend using the latest versions of
ROXIO™ or NEROTM burning software.
UCD300
This unit will only recognize the CODA
(Compact Disc Digital Audio) format
"recorded/burned" onto a CD-R/RW This unit
does not support .MP3, .WMA, .wAV, .OGG or
other formats. The CODA format isthe standard
format of an "original store-bought" CD. VVhen
recording/burning a CO-R/RW make sure the
CDDA format is selected.
UMP400
This unit will only recognize the CODA
(Compact Disc Digital Audio), .MP3 and
.WMA formats "recorded / burned" onto a CD-
R/RW. This unit does not support .wAV, .OGG
or other formats.
Technical Specifications
CEA Power Ratings
Power Output: 13 watts RMS X 4 channels into
4-ohms @ < 1% TH D+N
Signal to Noise Ratio: 70dBA below reference.
(Reference: 1 watt, 4-ohms)
Frequency Response: 20Hz to 20kHz, -3dB
Reference Supply Voltage: 14.4VDC
CD Player
Signal to Noise Ratio: > 7SdBA
Frequency Response: 20Hz to 18kHz, ·3dB
Channel Separation: > 55dB @ 1kHz
D/A converter: 1BitiCh
FMTuner
Tuning Range: 87.SMHz -107.9MHz
Mono Sensitivity: 18dBf
SOdS Stereo Quieting Sensitivity: 20dBf
stereo Separation @ 1 kHz: >30d B
Frequency Response: 30Hz
to 12kHz, -3dS
17
AM Tuner
Tuning Range: 530kHz -1710kHz
Sensitivity @ 20dB Signal to Noise: 30uV
Frequency Response: 30Hz -2kHz, -3dB
General
Power Supply: 11 to 16VDC, negative ground
Fuses: Battery
-15 amp, ATO
20-pin quick-connect harness
Dimensions:
7" X 7" X 2" (178mm x 178mm x
51mm)
Specifications subject to change without
notice.

90 DAY LIMITED WARRANTY
AUDIOVOX CORPORATION (the Company)
warrants to the original retail purchaser of this
product that should this product or any
part
thereof, under normal use and conditions, be
proven defective in material orworkmanship
within 90 days from the date
of original
purchase, such defect(s) will be repaired or
replaced with new Of reconditioned product (at
the Company's option) without charge for parts
and repair labor. To obtain repair or
replacement within the terms of thiswarranty,
the product is to be delivered with proof of
warranty coverage (e.g. dated bill of sale),
specification of defect(s), transportation
prepaid,
to the warranty center at the address
shown below.
This warranty does not extend to the
elimination ofcaf static or motor noise, to
correction of antenna problems, to costs
incurred for installation, removal, or
reinstallation ofthe product, or damage to
tapes, compact discs, accessories orvehicle
electrical systems. This
VVarranty does not
apply to any product or part thereofwhich, in
the opinion of the Company, has suffered or
been damaged through alteration, improper
installation, mishandling, misuse, neglect,
accident, or by removal or defacement of the
factory serial number/bar
code label(s) or
markings. THE EXTENT OF THE COMPANY'S
LIABILITY UNDER THIS WARRANTY IS
LIMITED TO THE REPAIR OR
REPLACEMENT PROVIDED ABOVE AND,IN
NO EVENT, SHALL THE COMPANY'S
LIABILITY EXCEED THE PURCHASE PRICE
PAID BY PURCHASER FOR THE PRODUCT.
This warranty is in lieu of all otherexpress
warranties or liabilities.
ANY IMPLIED
WARRANTIES, INCLUDING ANY IMPLIED
WARRANTY OF MERCHANTABILITY, SHALL
BE LIMITED TO THE DURATION OF THIS
WRITTEN
WARRANTY. ANY ACTION FOR
BREACH OF ANY WARRANTY HEREUNDER
INCLUDING ANY IMPLIED WARRANTY OF
MERCHANTABILITY MUST BE BROUGHT
WITHIN A PERIOD OF 30 MONTHS FROM
DATE OF ORIGINAL PURCHASE. IN NO
CASE SHALL THE COMPANY BE LIABLE
FOR ANY CONSEQUENTIAL OR
INCIDENTAL DAMAGES FOR BREACH OF
THIS OR ANY OTHER WARRANTY,
EXPRESS OR IMPLIED, WHATSOEVER. No
person or representative is authorized to
assume for the Company any liability other than
expressed herein
in connection with the sale of
this product.
Some states do not allow limitations on how
long
an implied warranty lasts or the exclusion
or limitation ofincidental or consequential
damage
so the above limitations or exclusions
18
UCD300jUMP400
may not apply to you. This warranty gives you
specific legal rights
and you may also have
other rights which vary from state
to state.
U.S.A: Audiovox Corporation, 150 Marcus
Blvd., Hauppauge, NY 11788,1-800-323-4815
CANADA: Call 1-800-323-4815 for location ofa
warranty station serving your area.
Audiovox Electronics Corporation
150 Marcus Boulevard
Hauppauge,
NY 11788
1-800-323-4815
www.audiovox.com
©2005 Audiovox
v.01t505
