Phcbi MPR-S150H Series User manual

MPR-S150H
MPR-S300HSeries
Please read the operating instructions carefully before using this product, and keep the operating
instructions for future use.
See page 63 for all model numbers.
Operating Instructions
Pharmaceutical Refrigerator
MPR-S150H

2
CONTENTS
INTRODUCTION ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 4
PRECAUTIONS FOR SAFE OPERATION ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 5
ENVIRONMENTAL CONDITIONS ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 10
SYMBOLS ON UNIT ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 11
REFRIGERATOR COMPONENTS

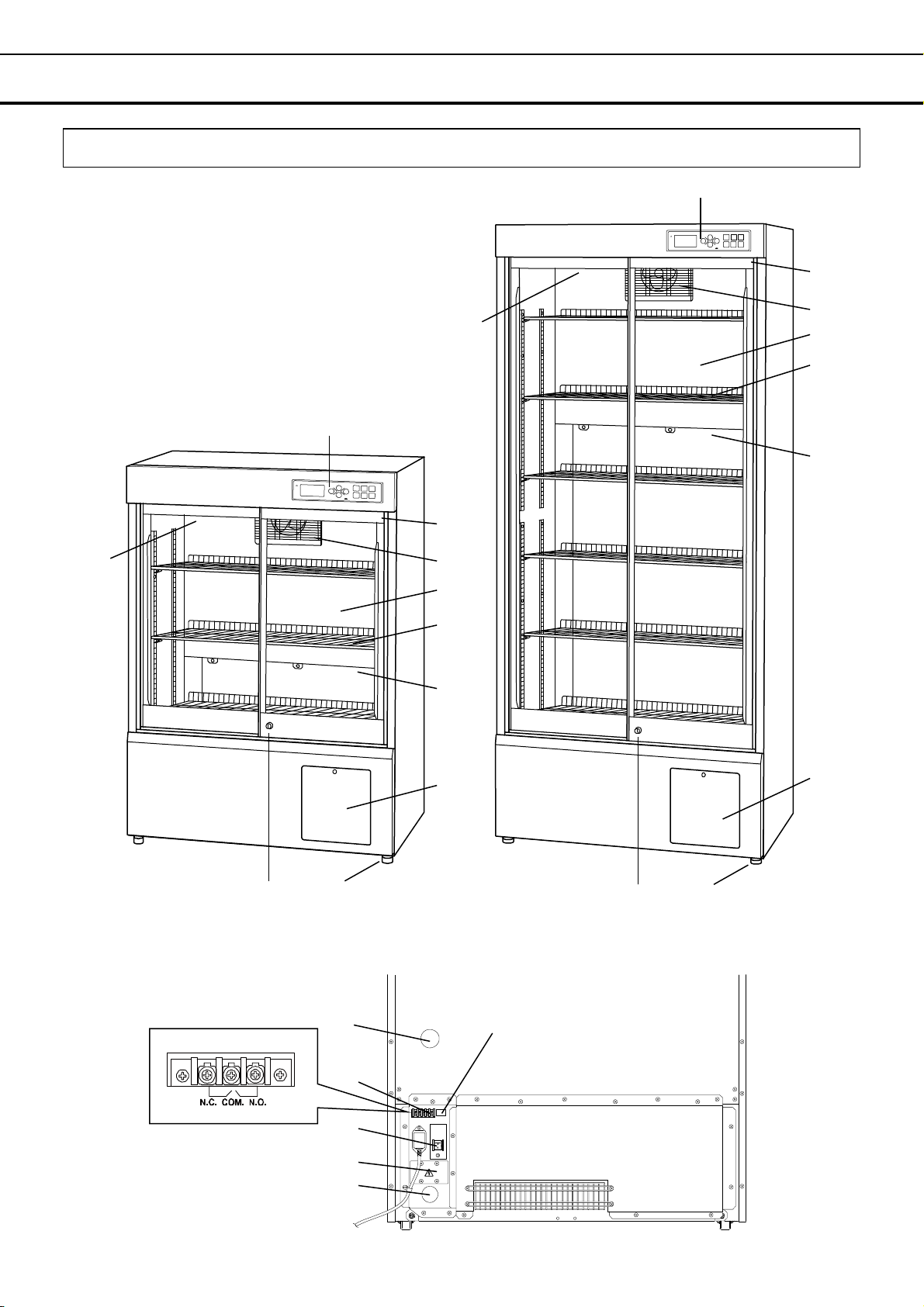

Main body ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 12

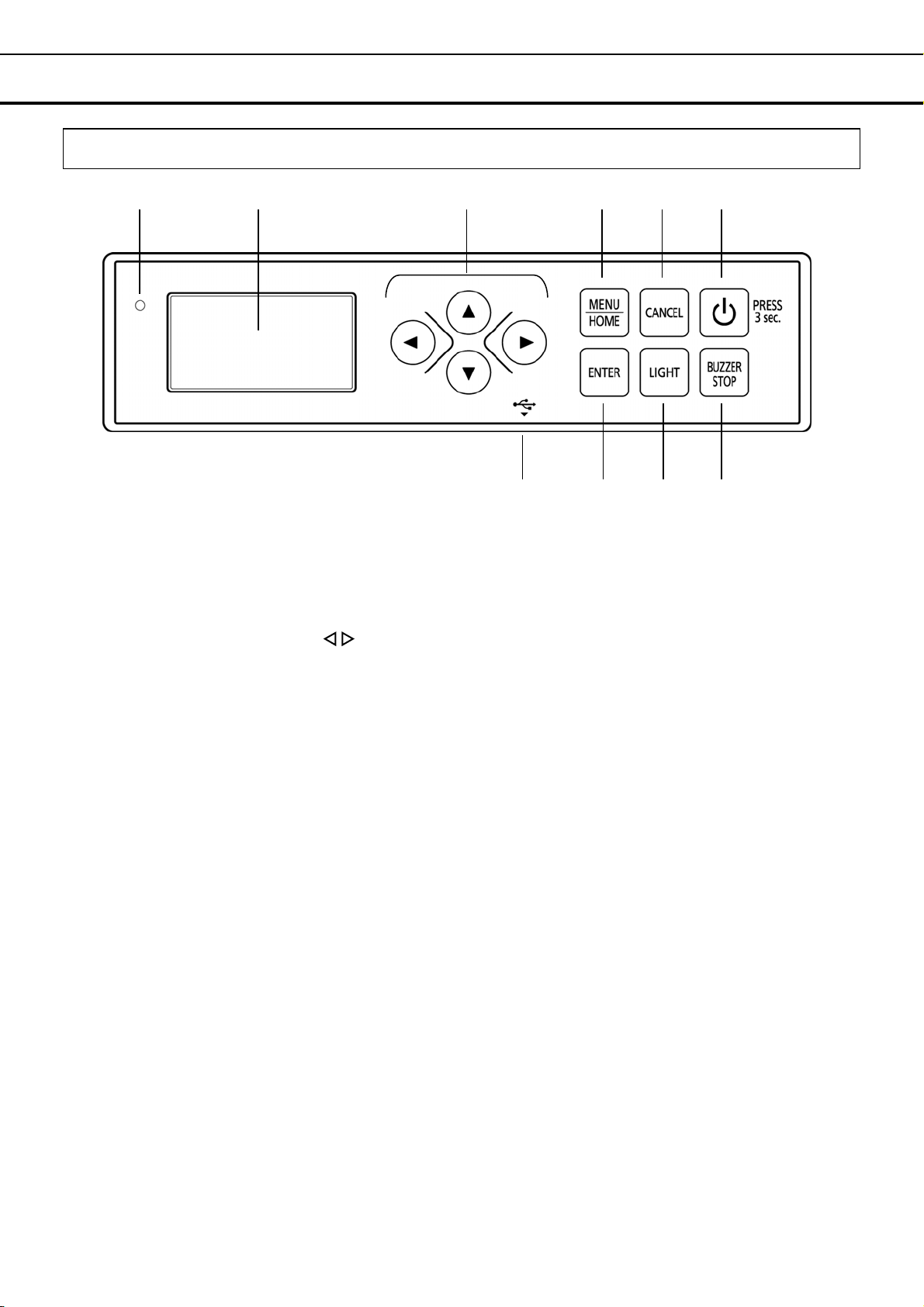

Control panel ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 14
INSTALLATION SITE ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 15
INSTALLATION ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 16
START-UP PROCEDURE ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 18
AFTER RECOVERY FROM POWER FAILURE ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 18
HOME SCREEN (Temperature display screen) ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 19
MENU SCREEN ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 20
SETTING THE CHAMBER TEMPERATURE ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 22
SETTING THE KEYPAD LOCK ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 23
RELEASING THE KEYPAD LOCK ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 24
DISPLAY OF MAX/MIN TEMPERATURE ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 25
RESET OF MAX/MIN TEMPERATURE ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 26
SETTING THE PERIOD FOR MAX/MIN TEMPERATURE ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 27
DISPLAY AND EXPORT OF DATA LOG
Display & export of temp. and door operation logs ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 28
Export of temperature and door operation logs ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 30
Setting the log interval ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 31
Setting the device ID ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 32
DISPLAY OF ALARM LOG ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 33
EXPORT OF ALARM LOG ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 34
SETTING THE SELECTABLE PARAMETERS
Selectable parameters ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 35
Setting the temperature display ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 36
Setting the high-temperature alarm ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 37
Setting the low-temperature alarm ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 38
Setting the door buzzer delay ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 39
Setting the buzzer suspended period ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 40
Setting the buzzer volume ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 41
Setting the remote alarm
ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 42
Setting the interior light ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 43
Setting the lighting time ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 44
Setting the compressor delay ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 45
Setting the device ID for data acquisition ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 46

3
CONTENTS
Setting the speed for data acquisition ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 47
Setting the remote controlꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 48
Setting the date display (format) ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 49
Setting the date ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 50
Setting the time ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 51
REMOTE ALARM TERMINAL ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 52
ALARMS AND SELF-DIAGNOSIS ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 53
ROUTINE MAINTENANCE
Cleaning of exterior, interior, and accessories ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 54
DEFROSTING ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 54
TROUBLESHOOTING ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 55
DISPOSAL OF UNIT ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 56
Decontamination of unit ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 56
TEMPERATURE RECORDER (OPTION) ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 61
BATTERY KIT FOR POWER FAILURE ALARM (OPTION) ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 61
INTERFACE BOARD (OPTION) ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 61
SHADING GLASS DOOR (OPTION) ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 61
SPECIFICATIONS ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 62
PERFORMANCE ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 63
SAFETY CHECK SHEETꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 64

4
INTRODUCTION
Read the operating instructions carefully before using the appliance and follow the instructions for safe
operation.
Handling of Operating Instructions
 PHC Corporation never guarantees any safety if the appliance is used for any objects other than
intended use or used by any procedures other than those mentioned in the operating instructions.
 Keep the operating instructions in an adequate place to refer to it as necessary.
 Contact our sales representative or agent if any page of the operating instructions is lost or page order
is incorrect.
 Contact our sales representative or agent if any point in the operating instructions is unclear or if there
are any inaccuracies.
The operating instructions is only for the pharmaceutical refrigerator MPR-S150H and MPR-S300H made by PHC
Corporation.
The contents are subject to change without notice.
No part of the operating instructions may be reproduced in any form without the expressed written permission of
PHC Corporation.
Proposal for safe storage of refrigerator contents
We can offer some precautions below to protect the valuable material against accidental temperature rise.
Contact our sales representative or agent for the details or installation.
▪ Temperature recorder (Option)
▪ Battery kit for power failure alarm (Option)
▪ Remote alarm system (Marketed product)
IMPORTANT NOTICE
PHC Corporation guarantees this product under certain warranty conditions. However, please note that
PHC Corporation shall not be responsible for any loss or damage to the contents of the product.
<Intended Use>
This equipment is designed for storage of pharmaceuticals, samples and reagents.

5
PRECAUTIONS FOR SAFE OPERATION
It is imperative that the user complies with the operating instructions
as they contain important safety advice.
Items and procedures are described so that you can use this unit correctly and safely.
Following these precautions will prevent possible injury to the user and any other
person.
Precautions are illustrated in the following way:
WARNING
Warning indicates a potentially hazardous situation which, if not avoided,
could result in serious injury or death.
CAUTION
Failure to observe CAUTION signs could result in injury to personnel and
damage to the unit and associated property.
Symbols have the following meanings:
This symbol means caution.
This symbol means an action is prohibited.
This symbol means an instruction must be followed.
Be sure to keep the operating instructions in a place that is accessible to users of this
unit.

6
PRECAUTIONS FOR SAFE OPERATION
Never damage the power supply cord or power supply plug (by breaking, adapting, placing
near a source of heat, bending with force, twisting, pulling, adding weight, or binding). A
damaged power supply cord or power supply plug may cause electric shock, short circuit, or fire.
Remove dust from the power supply plug periodically. Dust on the power supply plug may cause
insulation failure due to moisture and thus cause a fire. Disconnect the power supply plug and wipe it
with a dry cloth.
Make sure the power supply plug is pushed fully in. Faulty insertion of the power supply plug may
cause electric shock or fire due to generation of heat. Never use a damaged power supply plug or
loose power outlet.
Do not touch any electrical parts (such as power supply plug) or operate switches with a wet
hand. This may cause electric shock.
Use a dedicated power source as indicated on the rating label attached to the unit. A
multiple-tap may cause fire resulting from abnormal heating.
Do not use the unit outdoors. Exposure to rain may cause leakage and/or electric shock.
Only qualified engineers or service personnel should install the unit. Installation by unqualified
personnel may cause water leakage, electric shock, or fire.
Install the unit in a location capable of bearing the total combined weight (product + optional
accessories + stored items). After installing the unit, be absolutely sure to take precautions to
prevent the unit from falling over. If the unit is installed in a location which is not strong enough or if
the proper precautions are not taken, the unit may fall over and cause injuries.
Do not install the unit in a location where flammable or volatile substances are present.
Installing the unit in a location where flammable or volatile substances are present may cause
explosions and/or a fire.
Do not install the unit where there are high levels of moisture or where it may be splashed with
water. Installing the unit where there are high levels of moisture or where it may be splashed with
water may cause the insulation to deteriorate and give rise to leakage and/or electric shock.
Be absolutely sure to earth (gound) the unit in order to prevent electric shock. Failure to earth
the product may give rise to electric shock. If necessary, ask a qualified contractor to do this work.
Do not connect the earth wire to a gas pipe, water pipe, or lightning rod when earthing
the unit. Earthing the unit improperly may give rise to electric shock.
WARNING

7
PRECAUTIONS FOR SAFE OPERATION
Never store volatile or flammable substances in this unit except in a sealed container. Such
substances may cause explosion or fire if they leak.
Never insert metal objects such as pins and wires into any vent, gap, or outlet on the unit.
This may cause electric shock or injury by accidental contact with moving parts.
When handling harmful samples (for example, those which consist of toxic, pathogenic, or
radioactive substances), install the unit inside a designated isolation facility. If the unit is
installed in a location which is not an isolation facility, there may be detrimental effects on both people
and the natural environment.
Before proceeding with maintenance or checking of the unit, disconnect the power supply plug.
Performing the work while power is still flowing to the product or while the power supply plug is still
connected may give rise to electric shock and/or injury.
Wear protective gloves and mask during maintenance. Touching or inhaling chemicals or aerosols
from around the unit may be detrimental to health.
Never splash water directly onto the unit as this may cause electric shock or short circuit.
Never put containers with liquid on top of the unit as this may cause electric shock or short circuit
if the liquid is spilled.
Never disassemble, repair, or modify the unit yourself. A high-voltage area is located inside the
unit. Any work carried out by unauthorized personnel may result in electric shock. Contact our sales
representative or agent for maintenance or repair.
Disconnect the power supply plug if there is anything wrong with the unit. Continued abnormal
operation may cause electric shock or fire.
Grip the power supply plug when disconnecting the power supply cord from the outlet.
Pulling the power supply cord may cause electric shock or short circuit.
Disconnect the power supply cord when the unit is not in use for long periods. Keeping the unit
connected may cause electric shock, leakage, or fire due to the deterioration of insulation.
Do not place this unit in a location where it is difficult to disconnect the power supply plug.
Failure to disconnect the power supply plug may cause fire in the event of a problem or malfunction.
If the unit is to be stored unused in an unsupervised area for a long period, ensure that children do
not have access and that doors cannot be closed completely.
WARNING

8
PRECAUTIONS FOR SAFE OPERATION
Ask a qualified contractor to carry out disassembly and disposal of the unit. Leaving the unit in
a location that can be accessed by third parties may result in unexpected accidents (e.g. the unit may
be used for unintended purposes).
Do not leave the plastic bags used for packing in a place where they can be reached by small
children as this may result in unexpected accidents such as suffocation.
When moving the unit, be sure to take precautions to prevent it from falling over. Moving the
unit with too much force may cause it to fall over, possibly resulting in injury. A qualified individual
must be assigned to supervise the safe movement and relocation of the unit.
Do not install the unit in a location where corrosive gases such as acids are present. Installing
the unit in a location where corrosive substances are present may cause electric components to
corrode, leading to leakage and/or electric shock due to the deterioration of insulation resulting from
corroded electrical components.
Connect the unit to a power source as indicated on the rating label attached to the unit. Use of
any other voltage or frequency other than that on the rating label may cause fire or electric shock.
Never damage the chamber wall or pipework in the chamber when removing frost. The
refrigerant is flammable and may cause a fire if it leaks.
Install the unit in a well-ventilated (airy) location to prevent the accumulation of flammable
refrigerant. The flammable refrigerant may cause fire if it leaks.
Flammable and explosive product. The unit contains flammable refrigerant. When repairing or
recycling, only trained service personnel will repair and follow the procedure below.
 Well ventilate the room to prevent refrigerant accumulation.
 Keep fire away when the refrigerant is contained in the product.
 Do not damage or break the pipework.
Stop using the fire, open the windows for ventilation, and leave the unit as it is if the pipework
is damaged or the leakage of flammable refrigerant is noticed. Then contact our sales
representative or agent. Disconnection or connection of the power supply plug may cause ignition,
explosion, or fire.
Always use the power supply cord that is provided. Other power supply cord may cause electric
shock or fire.
Do not use the provided power supply cord for other equipment. That may cause electric shock
or fire.
WARNING

9
PRECAUTIONS FOR SAFE OPERATION
Do not climb on top of the unit or put any objects on the unit. Falling from the unit may cause
injury; falling objects may cause damage to the unit.
Never install the unit in a location where corrosive materials such as sulphur compounds are
likely to be generated (e.g. near a drainage facility). Corrosion of the copper pipes may result in the
deterioration and consequently the failure of the cooling unit.
Before resuming operation after the unit has been turned off, be absolutely sure to check the
settings. Items stored inside the unit may be adversely affected if operation of the unit is resumed
with changed settings.
Never store corrosive substances such as acids or alkalis in the unit except in a sealed
container. These may be detrimental to health and may cause corrosion of internal components,
cooling circuit or electrical components.
To ensure the safety of the service engineer, submit a safety check sheet with the required
items filled out. This is provided as the photocopiable “Safety Check Sheet” at the end of these
operating instructions.
Use designated parts for parts replacement. Using an incorrect part may cause fire.
Do not give strong shock or vibration during movement or use. The piping may be damaged,
causing a fire.
Flammable and explosive product. The unit contains flammable refrigerant. Consult repair
manual/owner’s guide before attempting to install or service this product. All safety precautions must
be followed.
Flammable refrigerant used. Flammable and explosive product. Dispose of properly in
accordance with national regulations.
Take care not to fall down the glass door when removing. Improper handling may cause damage
of glass door or injury.
CAUTION

10
ENVIRONMENTAL CONDITIONS
This equipment is designed to be safe at least under the following conditions (based on the IEC 61010-1):
 Indoor use;
 Altitude up to 2000 m;
 Temperature 5 oC to 40 oC;
 Maximum relative humidity 80 % for temperature up to 31 oC decreasing linearly to 50 % relative
humidity at 40 oC;
 Mains supply voltage fluctuations up to ±10 % of the nominal voltage;
 Transient overvoltages up to the levels of OVERVOLTAGE CATEGORY II;
 Temporary OVERVOLTAGES occurring on the mains supply;
 Applicable pollution degree of the intended environment (POLLUTION DEGREE 2 in most cases);
The above is not a performance specification. Refer to “PERFORMANCE” page for the performance
specifications and the environmental conditions.

11
SYMBOLS ON UNIT
The following symbols are attached to the unit. The table describes the meaning of the symbols.
This symbol is attached to covers that access high-voltage electrical components to
prevent electric shock. Only a qualified engineer or service personnel should be
allowed to open these covers.
This symbol indicates that caution is required. Refer to product documentation for
details.
This symbol indicates incorrect usage could lead to a fire hazard.
This symbol indicates an earth.
This symbol means “ON” for a power switch.
This symbol means “OFF” for a power switch.

12
REFRIGERATOR COMPONENTS
Main body
MPR-S300H MPR-S150H
Back side
②
①
⑧
③
⑥
⑦
⑨
①
②
③
⑥
⑦
⑧⑨
⑤
⑤
⑩
⑪
⑫
⑬
⑭
④
④
⑮※
Interior
light
Interior
light

13
REFRIGERATOR COMPONENTS
① Control panel: The chamber temperature and other alarms/functions can be set using the keys on the
control panel. The operational status can be checked on the temperature display and indicator [page 14].
② Door switch: This switch detects the door open/close status. The red LED lamp blinks when the door
is opened.
③ Air intake vent: This is an air intake vent for circulating the air in the chamber. Do not block this vent.
Blocking this vent may cause unstable chamber temperature.
④ Glass door: Sliding type. The recessed portion on the rail enables the self-closing of the door. The
glass is pair construction.
The condensation may be found on the door frame and on the glass surface depending on the
installation environment. This is not a malfunction.
The condensation on the door is dropped on the rail and exhausted to the evaporating tray.
⑤ Shelf: The location is selectable. Set the shelves horizontally and securely. The allowable load is 20
kg per shelf.
Items to be stored in the chamber must be placed on the shelves. Do not put stored items directly on
the bottom of the chamber.
⑥ Air exhaust vent: This is an air exhaust vent for circulating the air in the chamber. Do not block this
vent.
Blocking this vent may cause unstable chamber temperature.
⑦ Space for temperature recorder: A temperature recorder (optional) can be mounted here so that the
chamber temperature can be recorded automatically [page 61].
Contact our sales representative or agent to arrange the installation.
⑧ Leveling foot (front): These are screw bolts used to install and fix the unit. Adjust the height of the
levelling feet by turning the screw bolts until the two front casters are away from the floor [page 16].
⑨ Keyhole: Push and turn the key clockwise through 90 degree to securely lock the door.
⑩ Access port: This port is used to pass the sensor or cable of measuring equipment, or the sensor of
a temperature recorder (optional) to the chamber.
Replace the insulation and the rubber caps when the access port is not in use. Improper replacement
may cause an increase in chamber temperature or condensation around the access port.
⑪ Remote alarm terminal (backside): A remote alarm device (separately available) can be connected
to this terminal. The remote alarm relays the alarm to an operator in a remote location if the unit is un
attended [page 52].
Contact our sales representative or agent to arrange the installation
⑫ Circuit breaker (backside): Before starting the refrigerator, check the switch is on.（ON=“｜”，
OFF=“○”）
The round button under the circuit breaker is a leakage test button. The operation check of the circuit
breaker can be performed by pressing this button. But note the power supply to the unit is disconnected
when this button is pressed.
⑬ Space for interface board: An interface board (optional) can be mounted here [page 61].
Contact our sales representative or agent to arrange the installation.
⑭ Port for servicing (back, left): This is a access port for servicing. Do not remove the rubber cap.
⑮ Switch for power failure alarm: This is a switch for power failure alarm [page 61]. Normally, set the
switch to ON. Turn off the switch when the refrigerator is no use.
This switch is provided with the optional battery kit for power failure alarm.

14
REFRIGERATOR COMPONENTS
Control panel
① LED indicator: In normal operation, the green LED lamp lights up, and during alarm condition, the red
LED lamp blinks to indicate alarm. The orange LED lamp lights up during standby status.
② Temperature display: The present chamber temperature, log chart, or input screen, etc. are
displayed.
③ Up/down/left/right key (△▽ ):
On the screen “other than the home screen”: pressing this key moves the cursor, etc.
④ Menu key (MENU/HOME):
On the “home screen (temperature display screen)”: pressing this key leads the menu screen. It is
possible to set various setting on the menu screen.
On the ”other than the home screen”: pressing this key leads the home screen.
⑤ Cancel key (CANCEL): On the setting screen, pressing this key changes into the screen of one level
up.
⑥ Standby key: The normal status and standby status is changed by pressing this key for three
seconds. Pressing this key for three seconds during normal operation displays “Waiting” until the
compressor stops. After a few minutes (up to 5 minutes) the display disappears and the orange LED lamp
lights up. Pressing this key for three seconds during standby status appears the home screen
(temperature display) and lights up the green LED lamp.
⑦ Buzzer stop key (BUZZER STOP): The buzzer is silenced by pressing this key when the buzzer
sounds.
⑧ Light key (LIGHT): The light turns on by pressing this key when the light is off. The light turns off by
pressing this key when the light is on.
This key is invalid when the setting of interior light is ON or OFF.
⑨ Enter key (ENTER): Press this to select the menu item. Press this key to enter the required value
during the setting procedure.
⑩ USB port (under side): Insert a USB memory device to export data logs.
Do not insert anything other than a USB memory device.
⑨ ⑧ ⑦
⑤②① ③ ④ ⑥
⑩

15
INSTALLATION SITE
This unit must be installed in a location which meets all the conditions described below.
 If the unit is installed in a location which does not meet the conditions, its specified performance may
not be achieved or malfunctions and accidents may occur.
■ A location not exposed to direct sunlight
Avoid any location which is exposed to direct sunlight. Installing the unit in a location exposed to direct
sunlight may reduce its cooling performance.
■ A well-ventilated (airy) location
In order to ensure ventilation, leave clearances of at least 10 cm around the unit (at the left, right, top and
back). Blocking the ventilation may reduce the unit’s cooling performance or cause malfunctions.
■ A location away from sources of heat
Avoid any location which is close to a major source of heat (such as a heater or boiler). Installing the unit
near a major source of heat may reduce the unit’s cooling performance.
■ A location with minimal changes in temperature
Avoid any location where the ambient temperature is subject to sudden changes. If the unit is installed in
a location where the ambient temperature is subject to sudden changes, it will not be possible to achieve
a stable cooling performance.
■ A flat surface where the floor is also capable of bearing the total combined weight (product +
optional accessories + stored items)
Install the unit on a flat surface which is even and which is capable of bearing the total combined weight
(product + optional accessories + stored items). If the unit is installed where the surface is uneven or
where the unit will be inclined at an angle, the unit will be unstable, and accidents or injuries may occur
and/or vibration or unnecessary noise may be generated.
■ A location with minimal humidity
Install the unit in a location where the relative humidity is less than 80 %R.H. Installing the unit in a very
humid location may cause earth faults and/or electric shock.
■ A location free of flammable or corrosive gases
Avoid any location exposed to flammable or corrosive gases. Flammable or corrosive gases can cause
explosions and/or a fire. Furthermore, corrosion of electrical parts may cause insulation to be reduced
and result in earth faults and/or electric shock.
■ A location where nothing can fall onto the unit
Avoid locations where objects may fall onto the unit. Objects falling and hitting the unit may cause it to
break down or fail.

16
INSTALLATION
1. Preparations after unpacking
Remove all the tape used to secure the doors and interior parts, and leave the doors open for a short
while for ventilation.
If any surfaces of the outer cabinet are dirty, wipe the surface using a cloth moistened with a diluted
neutral dish-washing detergent.
Using an undiluted solution of detergent may cause the unit’s plastic areas to crack. Follow the
directions on the detergent for details of dilution.
After wiping the unit using the diluted detergent, be absolutely sure to wipe the surfaces with a cloth
dipped in clean water to remove traces of the detergent. After this, be absolutely sure to wipe the
surfaces with a dry cloth, allowing the surfaces of the outer cabinet to dry out completely, and then
proceed with the installation.
2. Securing and levelling the unit using the levelling
feet
Rotate the front levelling feet until the casters are raised
above the floor surface [Fig. 1].
In addition, rotate the levelling feet slightly clockwise or
anticlockwise, and adjust them so that the unit is
completely level.
When the casters are raised from the floor surface, the
unit will be secured. If they are left touching the floor, the
unit may accidently move when its door is opened or
closed.
3. Securing the unit by using the fixtures
Use the fixtures on the rear panel of the unit, and secure
the unit to a wall with a strong rope or chain [Fig. 2].
4. Preventing electric shock by earthing the unit
When installing the unit, be absolutely sure to earth
(ground) it. Earthing is necessary to prevent electric
shocks resulting from deterioration of electrical insulations.
This unit comes with a 3-pin plug having one earth pin.
Earthing is not required in the case of a 3-pin power outlet
equipped with an earth contact.
If the power outlet is not a 3-pin outlet equipped with an
earth contact, ask a qualified contractor to do the earthing
work.
Fig. 1
Leveling foot
Fixture
Fig. 2
Shrink
Stretch

17
INSTALLATION
5. Setting up the shelves
The shelves are packaged at the bottom of the chamber.
Set the shelves firmly in place on the shelf stoppers at the
standard locations with marking [Fig. 3].
When installing shelves outside the standard location,
please attach it where it does not interfere with the ③ air
intake vent [page 12 and page 13].
<Important>
Items to be stored in the chamber must be placed on the
shelves. Do not put stored items directly on the bottom of
the chamber.
How to remove the glass door
Move the glass door to the center position when removing
the glass door
Take care to handle the glass door after removing. The
rough handling may cause damage of the glass door or
injury.
When installing a net shelf in a position other than the standard position, use it in a position where the
cold air inlet does not interfere with the net shelf.
Marking
Shelf support
Shelf stopper
Fig.3

18
START-UP PROCEDURE
Follow this procedure for the initial operation of the unit and for consequent operations (after temporary
stoppage for cleaning, maintenance or moving) .
After a power failure, the unit will restart operation automatically with the same settings as before the
power failure.
1. Check the circuit breaker switch is ON.
2. Connect the power supply cord to the dedicated power source with the appropriate rating with the
chamber empty.
3. Press the standby key on the control panel for more than three seconds.
►The home screen (temperature display screen) is displayed. The red LED lamp blinks. (This is caused
by the high-temperature alarm function and is not a malfunction.)
4. Turn on the battery switch of power failure alarm (when the optional battery kit for power failure alarm
is installed).
“S02:Battery Err” is displayed and the buzzer sounds when the battery switch of power failure alarm is
OFF. The message disappears and the buzzer stops when the battery switch of power failure alarm is
turned ON.
5. Set the date and time displayed on the temperature display to the current date and time [pages 50 to
51].
6. Set the desired chamber temperature [page 22].
The factory setting of refrigerator chamber temperature is 5 oC .
7. Open the door to check that the interior light is on.
8. Using the temperature display, check that the chamber temperature has cooled to the set temperature.
9. Gradually place the material inside the chamber.
Putting a large amount of material into the chamber at one time causes the temperature to rise.
Do not block the air intake vent nor air exhaust vent in the chamber.
10. Set a selectable parameter (keypad lock, alarm temperature, delay of door alarm buzzer, etc.) as
required [page 21].
AFTER RECOVERY FROM POWER FAILURE
After recovery from a power failure, the operation will resume automatically with the same settings as
before the power failure. There is no need to re-set. However, always check the operational status
after recovery.
The settings are memorized during power failure by nonvolatile memory.

19
HOME SCREEN
(Temperature display screen)
When the standby key is pressed for more than three seconds, the following home screen (temperature
display screen) is displayed.
Following shows the integer display mode.
<Change of display mode>
On the home screen, the temperature display is selectable; integer display mode or decimal display mode.
Following shows an example of decimal representation mode.
In both the integer display and decimal display, the chamber temperature is displayed repeatedly at
certain interval when there is no key operation (sleeping mode).
Pressing any key cancels the repeated display of chamber temperature.
① Message column
Normally, the time (24-hour notation) is displayed.
Under alarm status or self-diagnosis function, the
error code and message are displayed.
② Temperature display
The current chamber temperature is displayed.
During the temperature alarm, the chamber
temperature blinks.
①
②
12:00
oC
5
12:00
oC
.05

20
MENU SCREEN
The menu screen is displayed by pressing the menu key (MENU/HOME) while the home screen
(temperature display screen) is displayed. Following shows the menu screen.
① Cursor
This is used for selecting the menu. The cursor moves by pressing the up/down key (△▽).
② Chamber set temperature
Select this menu when changing the refrigerator set temperature. Moving the cursor to this menu and
pressing the enter key (ENTER) lead the screen for setting the refrigerator temperature.
③ Keypad lock
Select this menu to set the keypad lock. Moving the cursor to this menu and pressing the enter key
(ENTER) lead the screen for setting the keypad lock.
The setting can be locked to avoid accidental changes. When the keypad lock is ON, a change of
setting is not accepted even if the key on the control panel is operated.
④ Temp. Max / Min
Select this menu to check the maximum or minimum chamber temperature (refrigerator or freezer) during
every 12 hours or 24 hours. Moving the cursor to this menu and pressing the enter key (ENTER) lead the
screen for selecting the maximum or minimum temperature display.
⑤ Data Log
Select this menu to display the log on the screen or export the log to a USB memory device. Moving the
cursor to this menu and pressing the enter key (ENTER) lead the “Data Log” screen.
⑥ Alarms & Controls
Select this menu to set the high/low temperature alarm, or other parameters. Moving the cursor to this
menu and pressing the enter key (ENTER) lead the “Alarms & controls” screen.
⑦ Temperature display
The setting of chamber temperature is displayed.
①
②
③
④
⑤
⑥
⑦
Menu
SetTemp.5
oC
KeypadLock
Temp.Max/Min
DataLog
Alarms&Controls
