PhDsolutions MXC-P8X8-HDTE User manual

CMSI-8H8CVE
HDBaseT™ 8x8 HDMI Matrix over CAT5e/6/7
with LAN Serving
Operation Manual
Operation Manual
MXC-P8X8-HDTE

SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or
operate this equipment and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
• Always follow basic safety precautions to reduce the risk of fi re,
electrical shock and injury to persons.
• To prevent fi re or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any
openings or empty slots in the unit, as you may damage parts
inside the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the PSU
if it is damaged.
• Do not allow anything to rest on the power cabling or allow any
weight to be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or
openings in the unit housing that provide ventilation and allow for
suffi cient space for air to circulate around the unit.
REVISION HISTORY
VERSION NO. DATE DD/MM/YY SUMMARY OF CHANGE
VR0 11/06/11 Preliminary Release

CONTENTS
1. Introduction............................................ 1
2. Applications........................................... 1
3. Package Contents ................................ 1
4. System Requirements............................ 2
5. Features.................................................. 2
6. Operation Controls and Functions....... 3
6.1 Front Panel ........................................3
6.2 Rear Panel.........................................4
6.3 Side Panel .........................................5
6.4 Remote Control................................6
6.5 IR Cable Pin Assignment..................6
6.6 RS-232 Protocols ...............................7
6.7 RS-232 & Telnet Commands............8
6.8 Telnet Control ...................................9
6.9 Web GUI Control ............................11
7. Connection Diagram .......................... 13
8. Specifi cations ...................................... 15
9. Acronyms ............................................. 16

1
1
1. INTRODUCTION
The HDBaseT™ 8 by 8 HDMI Matrix over CAT5e/6/7 supports
the transmission of video (resolutions up to 1080p Full HD and
1920x1200@60Hz), multi-channel digital audio and control via IR, RS-
232 or Telnet and Web GUI from eight high defi nition sources to eight
outputs over a single CAT5e/6/7 cable (up to 100m) for each output.
It supports high resolution digital audio formats such as LPCM 7.1CH,
Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio as well as
3D content that can be displayed when connecting a 3DTV and 3D
source. Power over Ethernet (PoE) support means that compatible
receivers do not need their own power supplies allowing for greater
fl exibility in installations and LAN serving allows devices such as Smart
TVs to be connected to the network.
2. APPLICATIONS
• Domestic HDMI Matrix System
• Video/TV wall display and control
• Security surveillance and control
• Commercial advertising, display and control
• University lecture hall, display and control
• Retail sales and demonstration
3. PACKAGE CONTENTS
• 8×8 HDMI Matrix Switcher over CAT5e/6/7
• 2×IR Extender
• 2×IR Blaster
• 2×24 V/6.25 A DC Power Adaptor (1 for PoE)
• 1×Power Cable
• 1×IR Remote Control
• Operation Manual

2
1
1. INTRODUCTION
The HDBaseT™ 8 by 8 HDMI Matrix over CAT5e/6/7 supports
the transmission of video (resolutions up to 1080p Full HD and
1920x1200@60Hz), multi-channel digital audio and control via IR, RS-
232 or Telnet and Web GUI from eight high defi nition sources to eight
outputs over a single CAT5e/6/7 cable (up to 100m) for each output.
It supports high resolution digital audio formats such as LPCM 7.1CH,
Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio as well as
3D content that can be displayed when connecting a 3DTV and 3D
source. Power over Ethernet (PoE) support means that compatible
receivers do not need their own power supplies allowing for greater
fl exibility in installations and LAN serving allows devices such as Smart
TVs to be connected to the network.
2. APPLICATIONS
• Domestic HDMI Matrix System
• Video/TV wall display and control
• Security surveillance and control
• Commercial advertising, display and control
• University lecture hall, display and control
• Retail sales and demonstration
3. PACKAGE CONTENTS
• 8×8 HDMI Matrix Switcher over CAT5e/6/7
• 2×IR Extender
• 2×IR Blaster
• 2×24 V/6.25 A DC Power Adaptor (1 for PoE)
• 1×Power Cable
• 1×IR Remote Control
• Operation Manual
2
4. SYSTEM REQUIREMENTS
• HDMI equipped source devices, connect with HDMI cables or DVI
equipped source, connect with DVI to HDMI cables
• HDMI equipped displays (TVs or monitors) or HDMI equipped AV
receivers, connect with HDMI cables
• Industry standard CAT5e/6/7 cables
• HDBaseT™ Receivers (i.e. CH-506RX, CH-507RX or CH-1109RX)
5. FEATURES
• HDMI, HDCP 1.1 and DVI compliant
• Supports HDMI 3D features
• Supports resolutions VGA~WUXGA and 480i~1080p dependent upon
the output display’s EDID settings
• Supports distances up to 100 meters through CAT6/7 cables
• Supports 3D signal display dependent upon the output display EDID
settings
• Supports PoE (Power over Ethernet) on compatible receivers only
• Supports HDMI input up to 15 meters at 8-bit resolution or 10 meters
at 12-bit resolution
• Supports bi-directional IR from input and output locations
• Supports RS-232, remote control, on-panel control and IP Control
(Telnet & Web GUI)
• Supports LAN serving function through the LAN port
• 2U size design
• Supports external and internal EDID settings
• Supports LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD
Master Audio transmission
Note: 1. The PoE function is designed for powering compatible
receiver units only—non-PoE receivers will need their own
power supply. Receivers of another brand may not be
compatible.
2. Do not connect the LAN port to CAT outputs of this device
or to CAT inputs or receiver. Doing so may demagethe unit.

3
3
6. OPERATION CONTROLS AND FUNCTIONS
6.1 Front Panel
POWER LOCK
MENU OUTA 1B2C3D4
IN
E5F6G7H8
8X8 HDMI MATRIX over CAT5e/6 MXC-P8X8-HDTE
2 3 4 5 61
1LCD: Displays the setting information of each input and output
setting.
2
POWER: Press this button to power the device on/off. The LED will
illuminate green when the power is on, red when it is in 'Standby'
mode.
3
LOCK: Press this button to lock all the buttons on the panel; press
again to unlock. The LED will illuminate green when locked.
4
IR: IR Receiver window (accepts the remote control signal of this
device only).
5
MENU: Press this button to access the LCM menu system, from
here EDID settings can be managed and IP system settings are
displayed.
6
1~8/A~H and In/Out: Press the Out or In button to select the output
or input mode and then press the required number button to make
the selection accordingly.
For example, if outputs A~D need to be set to input 1 and outputs
E~H need to be set to input 2, then the following sequence of
button presses need to be performed:
Press: Out →A→B→C→D→In→1→Menu,
and then press: Out→E→F→G→H→In→2→Menu.
Note: If the menu button is not pressed the selection will not be
changed.

4
4
6.2 Rear Panel
RS232
SERVICE
IR OUT
IR IN
IR OUT
IR IN
IR OUT
IR IN
ALL A B C D E F G H
CAT5e/6 OUT
IR OUT
IR IN
CAT5e/6 OUT
IR OUT
IR IN
CAT5e/6 OUT
IR OUT
IR IN
CAT5e/6 OUT
IR OUT
IR IN
CAT5e/6 OUT
IR OUT
IR IN
CAT5e/6 OUTCAT5e/6 OUT
IR OUT
IR IN
CAT5e/6 OUT
MAIN 24V
POE 24V
1
HDMI IN
2
HDMI IN
3
HDMI IN
4
HDMI IN
5
HDMI IN
6
HDMI IN
7
HDMI IN
8
HDMI IN
1
2
3
4
V+
GND
GND GND
V+
CONTROL
24
3
510 111
6
8
7
9
1
LAN: Connect to an active network for LAN serving and Telnet and
Web GUI control (refer to Sections 6.8 and 6.9).
When the Matrix or any compatible LAN equipped receivers are
connected to a network, this allows the network access (including
internet access if available) to be shared between the Matrix and
all connected receivers. Connect any Ethernet equipped device
e.g. a Smart TV or games console to the LAN port of a receiver for
that device to share the network/internet access.
2
RS-232: Connect to a PC or control system with D-Sub 9-pin cable
for the transmission of RS-232 commands.
3
ALL IR OUT: Connect to the IR blaster for IR signal transmission to
the source side. Place the IR blaster in direct line-of-sight of the
equipment to be controlled for it will blaster out all signal received
from the IR IN at the receiver sides.
4
ALL IR IN: Connect to the IR extender for IR signal reception. Ensure
that remote being used is within the direct line-of-sight of the IR
extender for it will send out the signal to all receiver's IR OUT.
5
SERVICE: Manufacturer use only.
6
IR OUT 1~8: Connect to the IR blasters for IR signal transmission.
Place the IR blaster in direct line-of-sight of the equipment to be
controlled for it will blaster out the IR signal received from the
receiver side choosen by input selection.
7
IR IN 1~8: Connect to the IR extenders for IR signal reception. Ensure
that remote being used is within the direct line-of-sight of the IR
extender for it will send out the IR signal to the selected receiver's
IR OUT.

5
5
8
CAT5e/6/7 OUT 1~8: Connect from these CAT outputs to the CAT
input port of the receiver units with a single CAT5e/6/7 cable for HDMI
Audio/Video and IR/RS-232 control signal transmission.
9
HDMI IN 1~8: Connect to the HDMI input source devices such as a
DVD player or a Set-top Box with HDMI cable or DVI to HDMI cable.
10
DC 24V MAIN POWER: Plug the 24 V DC power supply into the unit
and connect the adaptor to an AC outlet.
11
PoE 24V: Plug the 24 V PoE power supply into the unit and connect
the adaptor to an AC outlet. This unit will power PoE (Power over
Ethernet) capable receiver units.
Warning: Please do not connect the CAT5e/6/7 cable into the
receiver's LAN port.
6.3 Side Panel
1
1
Fan Ventilator: These are air ventilation areas, DO NOT block these
areas or cover it with any object. Please allow adequate space
around the unit for air circulation.

6
6
6.4 Remote Control
1
POWER: Press this button to
switch on the device or set it to
standby mode.
2
IN: Input ports selection 1~8.
3
OUT: Output ports selection A~H.
6.5 IR Cable Pin Assignment
3
1
3
1
2
2
Power 5 V
IR Blaster Signal
NC
IR Signal
Power 5 V
Grounding
IR Receiver
IR Blaster
1
23

7
7
6.6 RS-232 Protocols
Pin Assignment
CMSI-8H8CVE Remote Control Console
PIN Assignment PIN Assignment
1 NC 1 NC
2Tx 2Rx
3Rx 3Tx
4 NC 4 NC
5 GND 5 GND
6 NC 6 NC
7 NC 7 NC
8 NC 8 NC
9 NC 9 NC
Baud Rate: 19200 bps
Data bit: 8 bits
Parity: None
Stop Bit: 1
Flow Control: None
PHD-CMSI-8H8CVE

8
8
6.7 RS-232 & Telnet Commands
Command Description
A1~A8 Switch Output A to 1~8
B1~B8 Switch Output B to 1~8
C1~C8 Switch Output C to 1~8
D1~D8 Switch Output D to 1~8
E1~E8 Switch Output E to 1~8
F1~F8 Switch Output F to 1~8
G1~G8 Switch Output G to 1~8
H1~H8 Switch Output H to 1~8
ABCD...1~ABCD...8 Switch Output A B C D... to 1~8 at the
same time
SETIP <IP> <SubNet> <GW> Setting IP. SubNet. GateWay (Static IP)
RSTIP IP Confi guration Was Reset To Factory
Defaults <DHCP>
IPCONFIG Display the current IP confi g
P0 Power OFF
P1 Power ON
I1~I8 Switch all the Output to 1~8
ST Display the current matrix status and F/
W version
RS System Reset to A1, B2, C3, D4, E5, F6,
G7, H8
EM Setting EDID MODE. 1-STD 2-TV
?Display all the available commands
Quit Exit(for telnet only)
Note: Any commands will not be executed unless followed by a
carriage return. Commands are case insensitive.

9
9
6.8 Telnet Control
Before attempting to use the telnet control, please ensure that both
the Matrix (via the 'LAN port) and the PC/Laptop are connected to
the active networks.
To access the telnet control in Windows 7, click on the 'Start' menu
and type "cmd" in the Search fi eld then press enter.
Under Windows XP go to the 'Start' menu and click on "Run", type
"cmd" with then press enter.
Under Mac OS X, go to Go→Applications→Utilities→Terminal
See below for reference.

10
10
Once in the command line interface (CLI) type "telnet", the IP address
of the unit you wish to control and "23", then hit enter.
Note: The IP address of the Matrix can be displayed on the device's
LCM monitor by pressing the Menu button twice/three times.
This will bring us into the device which we wish to control. Type "HELP"
to list the available commands.
Type “IPCONFIG” To show all IP confi gurations. To reset the IP,
type “RSTIP” and to use a set static IP, type ”SETIP” (For a full list of
commands, see Section 6.7).
Note: Any commands will not be executed unless followed by a
carriage return. Commands are not case-sensitive. If the IP is changed
then the IP Address required for Telnet access will also change
accordingly.

11
11

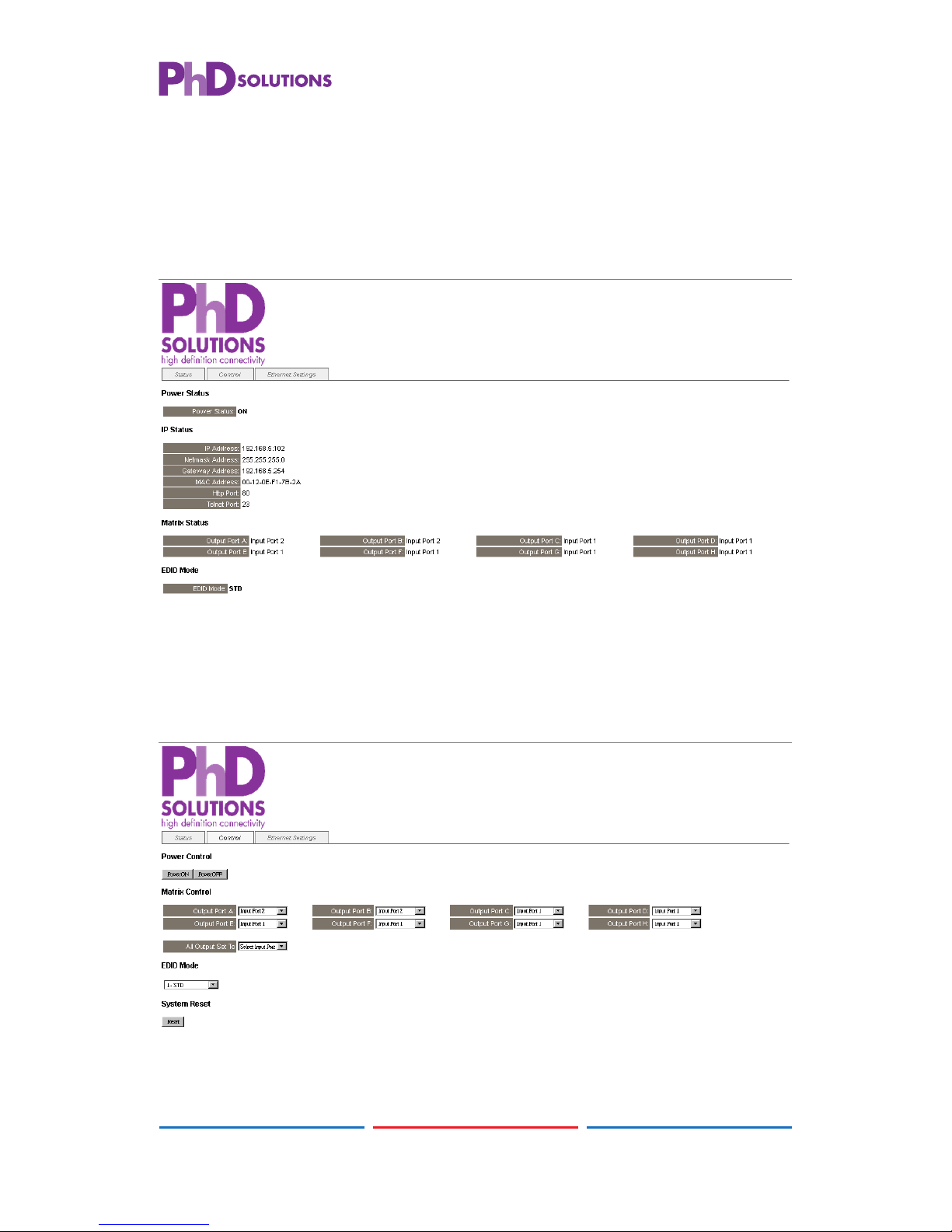

6.9 Web GUI Control
On a PC/Laptop that is connected to the same active network as the
Matrix, open a web browser and type device's IP address on the web
address entry bar. The browser will display the device's status, control
and User setting pages.
Click on the 'Control' tab to control power, input/output ports, EDID
and reset mode.

12
12
Clicking on the 'User Setting' tab allows you to reset the IP
confi guration. The system will ask for a reboot of the device every time
any of the settings are changed. The IP address needed to access
the Web GUI control will also need to be changed accordingly on the
web address entry bar.

13
13
7. CONNECTION DIAGRAM
IR BLASTER
1.5m
60°
IR RECEIVER
7m
3m 3m
60°
m
ZONE A
LAN
RS232
SERVICE
IR OUT
IR IN
IR OUT
IR IN
IR OUT
IR IN
ALL A B C D E
F G H
CAT5e/6 OUT
IR OUT
IR IN
CAT5e/6 OUT
IR OUT
IR IN
CAT5e/6 OUT
IR OUT
IR IN
CAT5e/6 OUT
IR OUT
IR IN
CAT5e/6 OUT
IR OUT
IR IN
CAT5e/6 OUT
CAT5e/6 OUT
IR OUT
IR IN
CAT5e/6 OUT
MAIN 24V
POE 24V
1
HDMI IN
2
HDMI IN
3
HDMI IN
4
HDMI IN
5
HDMI IN
6
HDMI IN
7
HDMI IN
8
HDMI IN
12
34
V+
GND
GND
GND
V+
1234
56 87
RX
ZONE
B
Power
Extender Blaster
IR 2
IR 1
RS232 Out CAT5e/6 In
Link RX Power
Extender Blaster
IR 2
IR 1
RS232 OutCAT5e/6In
Link
ZONE C
RX Power
Extender Blaster
IR 2
IR 1
RS232 OutCAT5e/6In
Link
ZONE
D
RX Power
Extender Blaster
IR 2
IR 1
RS232 OutCAT5e/6In
Link RX Power
Extender Blaster
IR 2
IR 1
RS232 OutCAT5e/6In
Link RX Power
Extender Blaster
IR 2
IR 1
RS232 OutCAT5e/6In
Link RX Power
Extender Blaster
IR 2
IR 1
RS232 Out CAT5e/6 In
Link
ZONE EZONE FZONE GZONE H
RX Power
Extender Blaster
IR 2
IR 1
RS232 Out CAT5e/6 In
Link
Main Power Supply
Power Supply for
Power-over-Ethernet
IR
Out
(All)
IR In (ALL)
Receiver Units
Single
CAT 5e/6
Cable
HDMI Inputs
IR Out/In
HDMI Outputs
IR Out/In
Source
Equipment
Displays
RS-232 Equipped
PC or Notebook
Wireless
Router(with
Internet
Connection)
Model Shown:
8×8 HDMI Matrix
Smartphone
or Tablet

14
14
7. CONNECTION DIAGRAM
IR BLASTER
1.5m
60°
IR RECEIVER
7m
3m 3m
60°
m
ZONE A
LAN
RS232
SERVICE
IR OUT
IR IN
IR OUT
IR IN
IR OUT
IR IN
ALL A B C D E
F G H
CAT5e/6 OUT
IR OUT
IR IN
CAT5e/6 OUT
IR OUT
IR IN
CAT5e/6 OUT
IR OUT
IR IN
CAT5e/6 OUT
IR OUT
IR IN
CAT5e/6 OUT
IR OUT
IR IN
CAT5e/6 OUT
CAT5e/6 OUT
IR OUT
IR IN
CAT5e/6 OUT
MAIN 24V
POE 24V
1
HDMI IN
2
HDMI IN
3
HDMI IN
4
HDMI IN
5
HDMI IN
6
HDMI IN
7
HDMI IN
8
HDMI IN
12
34
V+
GND
GND
GND
V+
123456
87
RX
ZONE B
Power
Extender Blaster
IR 2
IR 1
RS232 Out CAT5e/6 In
Link RX Power
Extender Blaster
IR 2
IR 1
RS232 OutCAT5e/6In
Link
ZONE C
RX Power
Extender Blaster
IR 2
IR 1
RS232 OutCAT5e/6In
Link
ZONE D
RX
Power
Extender Blaster
IR 2
IR 1
RS232 OutCAT5e/6In
Link RX Power
Extender Blaster
IR 2
IR 1
RS232 OutCAT5e/6In
Link RX Power
Extender Blaster
IR 2
IR 1
RS232 OutCAT5e/6In
Link RX Power
Extender Blaster
IR 2
IR 1
RS232 Out CAT5e/6 In
Link
ZONE
EZONE
FZONE GZONE
H
RX Power
Extender Blaster
IR 2
IR 1
RS232 Out CAT5e/6 In
Link
Main Power Supply
Power Supply for
Power-over-Ethernet
IR
Out
(All)
IR In (ALL)
Receiver Units
Single
CAT 5e/6
Cable
HDMI Inputs
IR Out/In
HDMI Outputs
IR Out/In
Source
Equipment
Displays
RS-232 Equipped
PC or Notebook
Wireless
Router(with
Internet
Connection)
Model Shown:
8×8 HDMI Matrix
Smartphone
or Tablet

15
15
8. SPECIFICATIONS
Video Bandwidth 225 MHz/6.75 Gbps
Input Ports 8×HDMI, 9×IR Extender,
1×RS-232, 1xLAN, 1×Mini USB-B type (for
fi rmware update only)
Output Ports 8×CAT5e/6/7, 9×IR
ESD Protection Human-body Model:
± 8kV (Air-gap discharge)
± 4kV (Contact discharge)
Power Supply 24 V/6.25 A DC (US/EU standards, CE/
FCC/UL certifi ed)
Dimensions 438 mm (W)×255 mm (D)×92 mm (H)
Weight 4268g
Chassis Material Metal
Silkscreen Color Black
Operating Temperature 0 ºC~40 ºC/32 ºF~104 ºF
Storage Temperature −20 ºC~60 ºC/−4 ºF~140 ºF
Relative Humidity 20~90 % RH (non-condensing)
Power Consumption 84 W Tx (Main), 52 W Rx (PoE)

16
16
9. ACRONYMS
ACRONYM COMPLETE TERM
CLI Command Line Interface
DTS Digital Theater System
DVI Digital Visual Interface
EDID Extended Display Identification Data
GUI Graphical User Interface
HDCP High-bandwidth Digital Content Protection
HDMI High-Defi nition Multimedia Interface
HDTV High-Defi nition Television
LCM Liquid Crystal Module
USB Universal Serial Bus
VGA Video Graphics Array
WUXGA Widescreen Ultra Extended Graphics Array

17
Warranty
Limited Warranty
Premium High Definition Solutions warrants that (a) its products will perform substantially in
accordance with the accompanying written materials for a period of 1 year from the date of receipt
and (b) that the product will be free from defects in materials and workmanship under normal use
and service for a period of 1 year. In the event applicable law imposes any implied warranties, the
implied warranty period is limited to 1 year from the date of receipt.
Some jurisdictions do not allow such limitations on duration of an implied warranty, so the above
limitation may not apply to customers that fall within those areas.
Customer Remedies
Premium High Definition Solutions ’ and its suppliers’ entire liability and Customer’s exclusive
remedy shall be, at Premium High Definition Solutions ’ decision, either return of the price paid for
the product, repair, or replacement of the product that does not meet this Limited Warranty and
which is returned to Premium High Definition Solutions with a copy of the Customer’s receipt.
This Limited Warranty is void if failure of the product has resulted from accident, abuse,
misapplication, or natural occurrence. In example but not limited to: power surges (electrical
storms, local power outage, Electro Static Discharge (ESD), dropping the product (or items on the
product), contact with fluids, and physical misconduct (i.e. kicking or punching). Any replacement
product will be warranted for the remainder of the original warranty period.
No other warranties
To the maximum extent permitted by applicable law, Premium High Definition Solutions and its
suppliers disclaim all other warranties, expressed or implied, including, but not limited to, implied
warranties of merchantability and fitness for a particular purpose, with regard to the product and
any related written materials. This Limited Warranty gives customer specific legal rights.
Customers may have other rights depending on the jurisdiction.
No liability for damages
To the maximum extent permitted by applicable law, in no event shall Premium High Definition
Solutions or its suppliers be liable for any damages arising out of the use of or inability to use this
product, even if Premium High Definition Solutions has been advised of the possibility of such
damages. Such damages include but are not limited to: special, incidental, consequential, or
indirect damages for personal injury, loss of business profits, business interruption, loss of
business information, or any other pecuniary loss. Premium High Definition Solutions’ and its
suppliers’ entire liability under any provision of this agreement shall be limited to the amount
actually paid by you for the product. Some Jurisdictions do not allow may not apply to you in such
jurisdictional cases.
