Philips BDP1300/55 User manual

www.philips.com/support
User manual
Always there to help you
Register your product and get support at
Question?
Contact
Philips
BDP1300

1EN
Safety and important notice
Read and understand all instructions before you use this Blu-ray disc/ DVD player. If
damage is caused by failure to follow the instructions, the warranty does not apply.
Safety
Risk of electric shock or re!
• Before you make or change any connections, make sure that all devices are
disconnected from the power outlet.
• Never expose the product and accessories to rain or water. Never place
liquid containers, such as vases, near the product. If liquids are spilt on or into
the product, disconnect it from the power outlet immediately. Contact Philips
Consumer Care to have the product checked before use.
• Never place the product and accessories near naked ames or other heat sources,
including direct sunlight.
• Never insert objects into the ventilation slots or other openings on the product.
• Where the mains plug or an appliance coupler is used as the disconnect device,
the disconnect device shall remain readily operable.
• Batteries (battery pack or batteries installed) shall not be exposed to excessive
heat such as sunshine, re or the like.
• Disconnect the product from the power outlet before lightning storms.
• When you disconnect the power cord, always pull the plug, never the cable.
Risk of short circuit or re!
• For identication and supply ratings, see the type plate at the back or bottom of
the product.
• Before you connect the product to the power outlet, ensure that the power
voltage matches the value printed on the back or bottom of the product. Never
connect the product to the power outlet if the voltage is different.
Risk of injury or damage to the product!
• Visible and invisible laser radiation when open. Avoid exposure to beam.
• Do not touch the disc optical lens inside the disc compartment.
• Never place the product or any objects on power cords or on other electrical
equipment.
• If the product is transported in temperatures below 5°C, unpack the product and
wait until its temperature matches room temperature before connecting it to the
power outlet.

2EN
Risk of overheating!
• Never install this product in a conned space. Always leave a space of at least four
inches around the product for ventilation. Make sure that curtains or other objects
never cover the ventilation slots on the product.
Risk of contamination!
• Do not mix batteries (old and new or carbon and alkaline, etc.).
• Danger of explosion if batteries are incorrectly replaced. Replace only with the
same or equivalent type.
• Remove batteries if they are exhausted or if the remote control is not to be used
for a long time.
• Batteries contain chemical substances, they should be disposed of properly.
Risk of swallowing batteries!
• The product/remote control may contain a coin/button type battery, which can be
swallowed. Keep the battery out of reach of children at all times! If swallowed, the
battery can cause serious injury or death. Severe internal burns can occur within
two hours of ingestion.
• If you suspect that a battery has been swallowed or placed inside any part of the
body, seek immediate medical attention.
• When you change the batteries, always keep all new and used batteries out of
reach of children. Ensure that the battery compartment is completely secure after
you replace the battery.
• If the battery compartment cannot be completely secured, discontinue use of the
product. Keep out of reach of children and contact the manufacturer.
This is CLASS II apparatus with double insulation, and no protective earth provided.
CLASS 1
LASER PRODUCT

3EN
Care for your product
• Do not insert any objects other than discs into the disc compartment.
• Do not insert warped or cracked discs into the disc compartment.
• Remove discs from the disc compartment if you are not using the product for an
extended period of time.
• Only use microber cloth to clean the product.
Care of the environment
Disposal of your old product
Your product is designed and manufactured with high quality materials and components,
which can be recycled and reused.
Do not throw away the product with the normal household waste at the end of its
life, but hand it in at an ofcial collection point or recycling. By doing this, you help to
preserve the environment.
Copyright
This item incorporates copy protection technology that is protected by U.S. patents
and other intellectual property rights of Rovi Corporation. Reverse engineering and
disassembly are prohibited.
This product incorporates proprietary technology under license from Verance
Corporation and is protected by U.S. Patent 7,369,677 and other U.S. and worldwide
patents issued and pending as well as copyright and trade secret protection for certain
aspects of such technology. Cinavia is a trademark of Verance Corporation. Copyright
2004-2013 Verance Corporation. All rights reserved byVerance. Reverse engineering or
disassembly is prohibited.
Cinavia notice
This product uses Cinavia technology to limit the use of unauthorized copies of some
commercially-produced lm and videos and their soundtracks. When a prohibited use of
an unauthorized copy is detected, a message will be displayed and playback or copying
will be interrupted.

4EN
More information about Cinavia technology is provided at the Cinavia Online Consumer
Information Center at http://www.cinavia.com.To request additional information about
Cinavia by mail, send a postcard with your mailing address to: Cinavia Consumer
Information Center, P.O. Box 86851, San Diego, CA, 92138, USA.
Open source software
Philips Electronics Singapore hereby offers to deliver, upon request, a copy of the
complete corresponding source code for the copyrighted open source software
packages used in this product for which such delivery is requested by the respective
licenses.This offer is valid up to three years after product purchase to anyone in receipt
of this information.To obtain source code, please send your request in English with
product type to [email protected]. If you prefer not to use email or if you do not
receive conrmation receipt within 2 weeks after mailing to this email address, please
write in English to “Open Source Team, Philips Intellectual Property & Standards, P.O. Box
220, 5600 AE Eindhoven, The Netherlands”. If you do not receive timely conrmation
of your letter, please email to the email address above.The texts of the licenses and
acknowledgements for open source software used in this product are included on a
separate leaet.

5
User manual

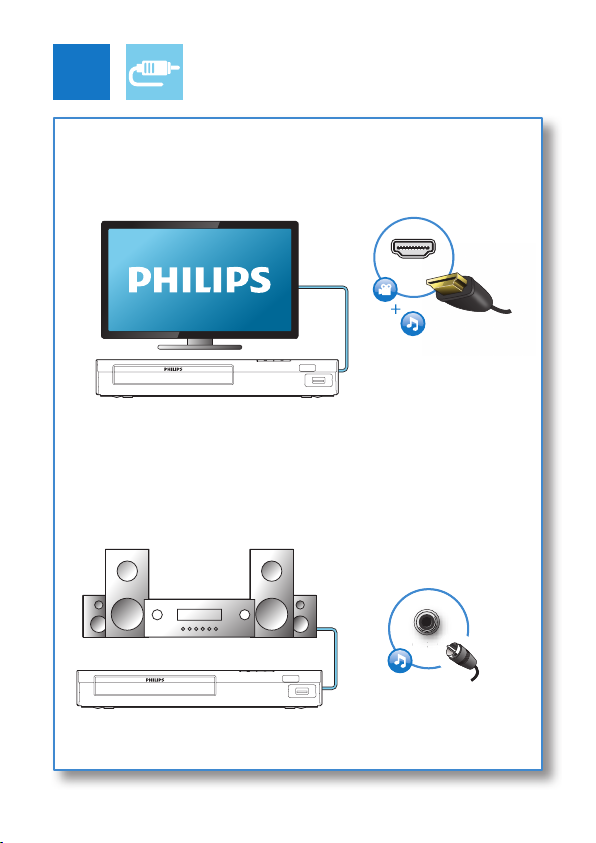

HDMI
HDMI
COAXIAL
C
OA
X
I
AL
A
A
1

6
2
HDMI
COAX IAL
C
OA
XIA
AL
A
A
COAXIAL
HDMI

7
4
3
5
SOURCE
1
2
TV
2 x AAA

8
6
USB
1
2
3
2
1
DVD/VCD/CD
DivX Plus HD/MKV
BD
MP3 / JPEG
3
4

1EN
Contents
1 Use your Blu-ray disc / DVD player 2
Basic play control 2
Video, audio and picture options 3
DivX videos 5
Play a musical slideshow 6
BonusView on Blu-ray 7
Use Philips EasyLink 7
2 Change settings 8
Picture 8
Sound 9
Preference (languages, parental control...) 9
Advanced options (clear memory...) 10
3 Update software 10
Update software via USB 11
4 Product specications 11
5 Troubleshooting 13

2EN
1 Use your Blu-ray disc / DVD player
Congratulations on your purchase, and welcome to Philips! To fully benet from the
support that Philips offers (e.g. product software upgrade), register your product at
www.philips.com/welcome.
Basic play control
During play, press the following buttons to control.
DISC MENU

3EN
Button Action
Turn on the player, or switch to standby.
Access the home menu.
SUBTITLE Select a subtitle language.
AUDIO Select an audio language or channel.
DISC MENU /
POP-UP MENU
Access or exit the disc menu.
TOP MENU Access the main menu of a video disc.
Navigate the menus.
Press to rotate a picture clockwise or counter-clockwise
during slideshow.
OK Conrm a selection or entry.
Return to a previous display menu.
Access more options during play.
Stop play.
Start or resume play.
Pause play.
Press repeatedly to slow forward frame by frame.
Open or close the disc compartment.
/ Skip to the previous or next track, chapter or le.
/ Fast backward or forward.
Press repeatedly to change the search speed.
Press once, and then press to slow forward.
Color buttons Select tasks or options for Blu-ray discs.
Video, audio and picture options
More options are available for video or picture play from a disc or USB storage device.

4EN
Video options
Access more options during video play.
• [Audio language]: Select an audio language.
• [Subtitle language]: Select a subtitle language.
• [Subtitle shift]: Change the subtitle position on the screen. Press to change
the subtitle position.
• [Info]: Display play information.
• [Character set]: Select a character set that supports the DivX video subtitle (only
for DivX videos).
• [Time search]: Skip to a specic time via the numeric buttons on the remote
control.
• [2nd audio language]: Select the second audio language (only for Blu-ray discs that
support BonusView).
• [2nd subtitle language]: Select the second subtitle language (only for Blu-ray discs
that support BonusView).
• [Titles]: Select a title.
• [Chapters]: Select a chapter.
• [Angle list]: Select a camera angle.
• [Menus]: Display a disc menu.
• [PIP selection]: Display a picture-in-picture window (only for Blu-ray discs that
support BonusView).
• [Zoom]: Zoom into a video picture. Press to select a zoom factor.
• [Repeat]: Repeat a chapter or title.
• [Repeat A-B]: Mark two points within a chapter for repeat play, or turn off repeat
mode.
• [Picture settings]: Select a predened color setting.
Note
• Available video options depend on the video source.
3
2
1
DISC MENU

5EN
Picture options
Access more options during slideshow.
• [Rotate +90]: Rotate a picture 90 degrees clockwise.
• [Rotate -90]: Rotate a picture 90 degrees counter-clockwise.
• [Zoom]: Zoom into a picture. Press to select a zoom factor.
• [Info]: Display picture information.
• [Duration per slide]: Set a display interval for a slideshow.
• [Slide animation]: Select a transition effect for a slideshow.
• [Picture settings]: Select a predened color setting.
• [Repeat]: Repeat a selected folder.
Audio options
Press repeatedly to cycle through the following options.
• Repeat the current track.
• Repeat all the tracks on the disc or folder.
• Play audio tracks in a random loop.
• Turn off a repeat mode.
DivX videos
You can play DivX videos from a disc or a USB storage device.
VOD code for DivX
• Before you purchase DivX videos and play them on this player, register this player
on www.divx.com using the DivX VOD code.
3
2
1
DISC MENU

6EN
• Display the DivXVOD code: press , and select [Setup] > [Advanced] > [DivX®
VOD Code].
DivX subtitles
• Press SUBTITLE to select a language.
• If the subtitle is not displayed correctly, change the character set that supports the
DivX subtitle. Select a character set: press , and select [Character set].
Character set Languages
[Standard] English,Albanian, Danish, Dutch, Finnish, French, Gaelic,
German, Italian, Kurdish (Latin), Norwegian, Portuguese,
Spanish, Swedish, and Turkish
[Central Europe] Albanian, Croat, Czech, Dutch, English, German, Hungarian,
Irish, Polish, Romanian, Slovak, Slovene, and Serbian
[Cyrillic] Bulgarian, Belorussian, English, Macedonian, Moldavian, Russian,
Serbian, and Ukrainian
[Greek] Greek
[Baltic] Estonian, Latvian and Lithuanian
[Chinese] Simplied Chinese
[Chinese-Traditional] Traditional Chinese
[Korean] English and Korean
Note
• To use the subtitles, make sure that the subtitle le has the same name as the DivX video
le name. For example, if the DivX video le is named “movie.avi", save the subtitle le as
“movie.srt”, or “movie.sub”.
• This player can play subtitle les in the following formats: .srt, .sub, .txt, .ssa, and .smi.
Play a musical slideshow
Play music and pictures simultaneously to create a musical slideshow.
1 From a disc or connected USB storage device, play a music le.
2 Press , and go to the picture folder.
3 Select a picture from the same disc or USB, and press OK to start slideshow.
4 Press to stop slideshow.
5 Press again to stop music play.

7EN
BonusView on Blu-ray
View special content (such as commentaries) in a small screen window.
This feature is only applicable to Blu-ray discs compatible with BonusView (also known
as picture in picture).
1 During play, press .
» The options menu is displayed.
2 Select [PIP selection] > [PIP], and press OK.
» PIP options [1]/[2] depend on the video contents.
» The secondary video window is displayed.
3 Select [2nd audio language] or [2nd subtitle language], and press OK.
Use Philips EasyLink
This player supports Philips EasyLink which uses the HDMI CEC (Consumer
Electronics Control) protocol.You can use a single remote control to control EasyLink
compliant devices that are connected through HDMI. Philips does not guarantee 100%
interoperability with all HDMI CEC devices.
1 Connect the HDMI CEC compliant devices through HDMI, and turn on the HDMI
CEC operations on the TV and other connected devices (see the user manual of
the TV or other devices for details).
2 Press .
3 Select [Setup]> [EasyLink].
4 Select [On] under the options: [EasyLink], [One Touch Play] and [One Touch
Standby].
» EasyLink function is turned on.
One Touch Play
When a video disc is in the disc compartment, press to wake up the TV from
standby, and then play a disc.
One Touch Standby
When a connected device (for example TV) is put to standby with its own remote
control, this player is put to standby automatically.

8EN
2 Change settings
This section helps you change the settings of this player.
Note
• You cannot change a menu option that is grayed out.
• To return to the previous menu, press . To exit the menu, press .
1 Press .
2 Select [Setup] > [Video] to access the video setup options.
• [TV display]: Select a picture display format to t the TV screen.
• [HDMI video]: Select an HDMI video resolution.
• [HDMI Deep Color]: Display colors with more shades and hues when the video
content is recorded in Deep Color and the TV supports this feature.
• [Picture settings]: Select a predened color setting.
Note
• If you change a setting, make sure that the TV supports the new setting.
1
DISCMENU
2
3

9EN
Sound
1 Press .
2 Select [Setup] > [Audio] to access the audio setup options.
• [Night mode]: Select quiet or full dynamic sound. Night mode decreases the
volume of loud sound and increases the volume of soft sound (such as speech).
• [HDMI audio]: Set an HDMI audio format when this player is connected through
HDMI.
• [Digital audio]: Select an audio format for the sound output when this player is
connected through a digital connector (coaxial).
• [PCM downsampling]: Set the sampling rate for PCM audio output when this
player is connected through a digital connector (coaxial).
Note
• For settings related to HDMI, the TV must be connected through HDMI.
• Night mode is only available for Dolby®TrueHD / Dolby®Digital Plus encoded DVD and
Blu-ray discs.
Preference (languages, parental control...)
1 Press .
2 Select [Setup] > [Preference] to access the preference setup options.
• [Menu language]: Select an onscreen display menu language.
• [Audio]: Select an audio language for video.
• [Subtitle]: Select a subtitle language for video.
• [Disc menu]: Select a menu language for a video disc.
• [Parental control]: Restrict access to discs that are encoded with ratings. Input
"0000" to access the restriction options. To play all discs irrespective of the rating,
select level "8".
• [Screen saver]: Enable or disable screen saver mode. If enabled, the screen enters
idle mode after 10 minutes of inactivity (for example, in pause or stop mode).
• [Auto subtitle shift]: Enable or disable subtitle shift. If enabled, the subtitle position
is changed automatically to t the TV screen (this feature works with some Philips
TVs only).
• [Change password]: Set or change a password to play a restricted disc. Input
"0000" if you do not have a password or if you have forgotten your password.

10 EN
• [Auto standby]: Enable or disable auto standby. If enabled, the player switches to
standby after 30 minutes of inactivity (for example, in pause or stop mode).
• [VCD PBC]: Display or skip the content menu for VCD and SVCD.
Note
• If your preferred language is not available for disc language, audio or subtitle, you can
select [Others] from the menu options and input 4-digit language code which can be
found at the back of this user manual.
• If you select a language which is not available on a disc, this player uses the default
language of the disc.
Advanced options (clear memory...)
1 Press .
2 Select [Setup] > [Advanced] to access the advanced setup options.
• [Downmix mode]: Control 2-channel stereo audio output.
• [Software update]: Select to update software from USB storage device.
• [Version information]: Display the software version of this player.
• [Restore default settings]: Reset this player to the default settings made at the
factory, except for password and parental control level.
• [Clear memory]: Remove some Blu-ray disc data (such as BonusView) that
are automatically copied on the connected USB device. A “BUDA” folder is
automatically created to store some necessary data from Blu-ray disc.
• [DivX®VOD Code]: Display the DivX®registration code or the deregistration
code for this player.
Note
• Before you purchase DivX videos and play them on this player, register this player on
www.divx.com with the DivX VOD code.
3 Update software
Before you update the software of this player, check the current software version:
• Press , and then select [Setup] > [Advanced] > [Version information], and
press OK.
