Special Features 3
Control Locations 4
Installation 5
Operation 7
LCD Prompts 13
Troubleshooting 14
Care & Maintenance 15
Technical Support 16
Warranty 16
Contents
EN
2

Special Features
• 6.5" x 2.25" Large Liquid Crystal Display - displays three full lines of
information including time of the call.
• Caller ID Record* - stores up to 90 Caller ID records each of which
up to 14 digits number and 15 characters name.
3
Special Features EN
•Area Code Setting - sets your local area code.
• New Call Light Indicator (Green LED)* - lights up steadily when
thereis a new call.
•Message Waiting Light Indicator (Red LED)** - lights up steadily
when there are voice mail messages in your mailbox.
• Review Scrolling - easily scroll through the Caller ID records.
• Dial Button - dials the number shown on the LCD display.
•Delete Button - allows you to delete one or all Caller ID record.
•DIALVM Button** - dials to your voice mail access number.
• Languages - English, Spanish or French display prompts.
•Real Time Clock - shows the current time on the LCD display.
• LCD Display Contrast Control - allows you to adjust the display
contrast.
• Wall Mountable - allows you to mount your caller ID unit on the
wall.
• Backlit LCD Display
Note:
*You must subscribe to the Caller ID service from your local tele-
phone company.
** You must subscribe to the Voice Mail service from your local tele-
phone company to retrieve voice mail messages.
IMPORTANT :
a) The AC Power Adapter (included) must be connected to operate
your Caller ID unit.
b) 4 X AAA batteries are recommended to be installed to retain your
Caller ID memory.

Control Locations

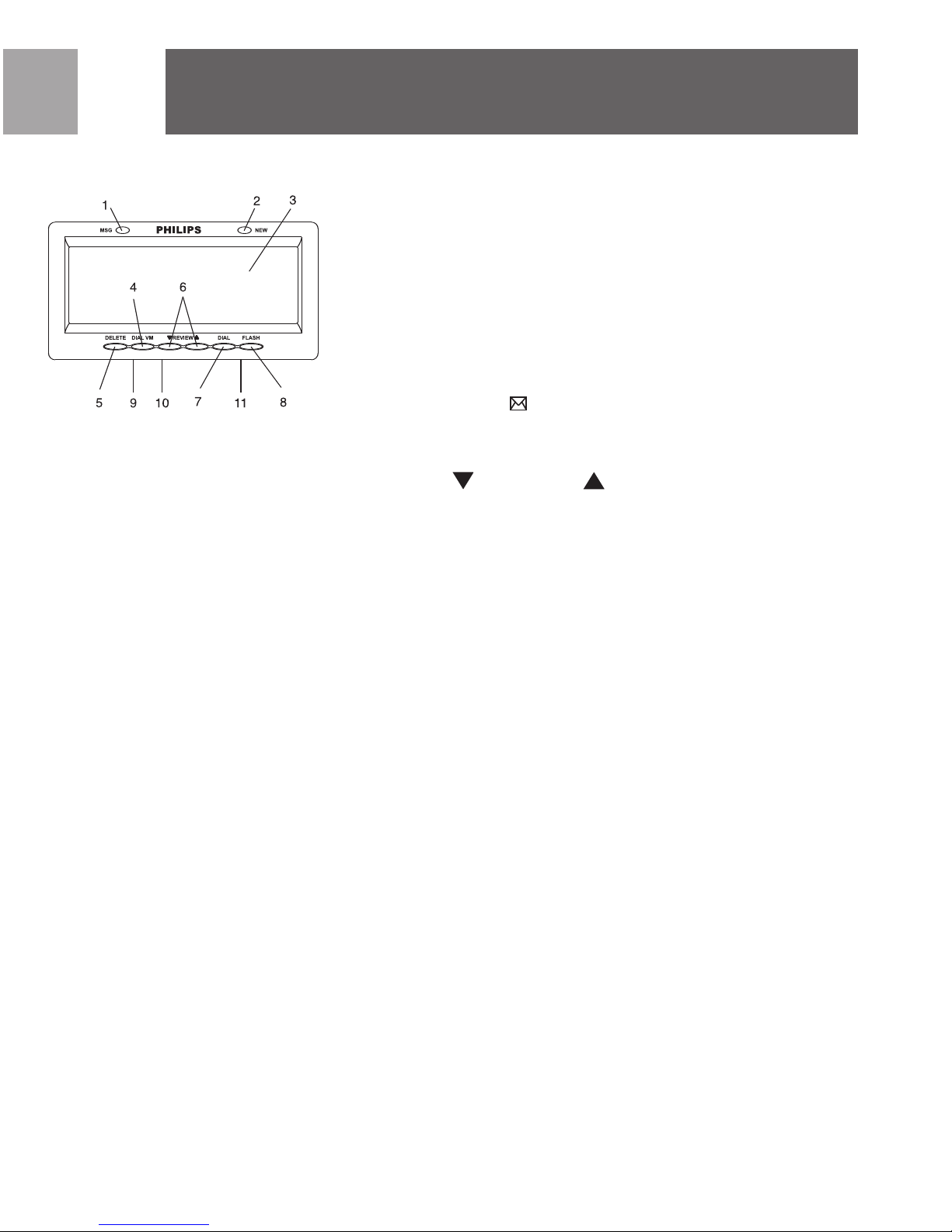

1. MessageWaiting Light Indicator (red LED) - lights up steadily when
you have new voice mail messages.
2. New Call Light Indicator (green LED) - lights up steadily when new
calls are received.
3. Visual Display Panel - shows the caller’s name and / or number,
incoming call time & date, Call Counter, New Call icon (NEW) and
Voice Mail icon ( ).
4. [DIALVM] Button - dials to your voice mail access number.
5. [DELETE] Button - deletes Caller ID records.
6. [REVIEW ] / [REVIEW ] Buttons - views the Caller
ID records.
7. [DIAL] Button - dials the number shown on the display. You also
use this button to set language, area code, time and date and LCD
display contrast.
8. [FLASH] Button - activates 3-Wayconference or CallWaiting calls.

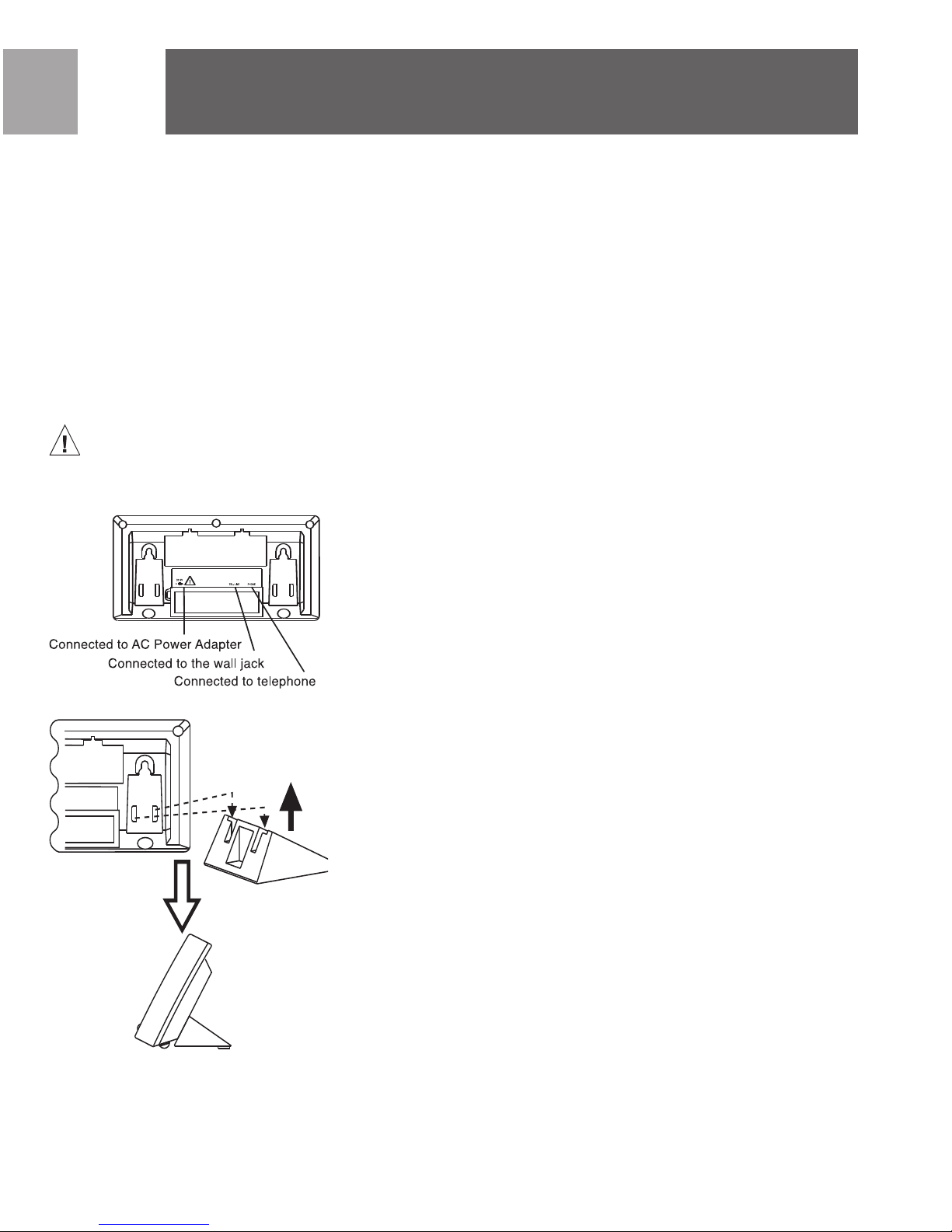

9. TELEPHONE Jack - connect line cord from your telephone into
the jack labeled PHONE at the back of your caller ID unit.
10. TEL LINE Cord Jack - insert one end of the telephone line cord into
the jack labeledTEL. LINE and the other end into your wall jack.
11. DC Jack - the ACadapter must be connected for your Caller ID
unit to operate. Plug the adapter into the DC 9V jack at the back.
Installation
THEACPOWER ADAPTORTHAT COMESWITHYOUR CALLER
ID UNIT IS REQUIRED FOR THE OPERATION OF THE UNIT.
HOWEVER , IT IS RECOMMENDED TO INSTALL 4 X AAA SIZE
BATTERIES TO PREVENT LOSS OF MEMORY WHEN THERE IS A
POWER FAILURE.
Please check to be sureall supplied accessories come with your Caller
ID unit. If there is anything missing or visible damage, please contact the
original place of purchase. Do not attempt to operate your caller ID
unit if it is damaged.
Control Locations
EN
4

a) Caller ID unit 1 pc.
b) Stand studs 2 pcs.
c) AC power adapter 1 pc.
d) Long phone line cord 1 pc
e) Short phone line cord 1 pc
INSTALLING BATTERIES
Please install 4 x AAA batteries (alkaline batteries are recommended)
to retain the Caller ID records and keep real time clock running in case
thereis a power failure.
IMPORTANT :
a) Use only fresh batteries of the required size and recommended
type.
b) Do not mix old and new batteries, different types of batteries
(standard, alkaline or rechargeable) or rechargeable batteries of
different capacities.
c) When replacing the batteries, if you do notinstall the new bat-
teries within 30 seconds after removing the old ones, you may
lose all information stored in your unit.
d) If you do not plan to use your unit with batteries for a month or
longer, remove the batteries. Batteries can leak chemicals that can
destroy electronic parts.
e) Dispose of old batteries promptly and properly. Do not burn or
burythem.
When the Low Battery icon ( ) appears, replace the batteries.
1. Disconnect the telephone line.
2. Open the batterycover by inserting a sharp object (such as a clip
or a pencil) into the two slots at the top of the battery compart-
ment cover on the bottom of your Caller ID unit.
3. Place the newbatteries in the compartment following the polari-
ty symbols (+ and -) marked inside.
4. Replace the battery cover.
5. Reconnect the telephone line.
IMPORTANT :
When replacing the batteries, if you do not install the newbatter-
ies within 30 seconds after removing the old ones, you may lose all
Caller ID records stored in your Caller ID unit.
5
Installation EN

Connecting to a telephone and/or
answering machine
After installing 4 x AAA batteries, connect one end of the line cord
provided into your Caller ID unit's jack labeled TEL. LINE and connect
the other end of the line cord into the telephone wall jack.Connect the
existing line cord on your telephone into your Caller ID unit's jack
labeled PHONE. If you have a telephone answering machine, connect a
line cord from your Caller ID unit's PHONE jack to the answering
machine LINE jack. Connect another line cord from the answering
machine PHONE jack to the jack on your telephone.
CONNECTING THE AC ADAPTER
The AC adapter must be connected for your Caller ID unit to operate.
Plug the adapter's barrel plug into your Caller ID unit's DC 9V jack and
plug the adapter into a standardACoutlet.
PLACING ON THE DESK
Insert the slots of the two Stand Studs into the matching tabs on the
bottom cabinet respectively.Then slide the Stand Studs along the tabs
until they are locked to the bottom cabinet.
MOUNTING ON THE WALL
1. Drill two 1/8-inch diameter holes, 5-1/8 inches (130 mm) apart, into
the wall. Thread a screw (not included) into each hole, letting the
heads extend 1/8 inch from the wall.
2. Align the keyhole slots (on the bottom of your Caller ID unit) with
the mounting screws and slide your Caller ID unit downward to
secure it.
Installation
EN
6
The AC adapter must
be a Class 2 Power
Source, 9V DC, 200mA
PHONETEL. LINE

Operation
IDLE MODE
When your Caller ID unit is in idle mode, the calls status and clock are
shown on the LCD display :
SETUP MENU
There are five options in the setup menu.
Set Language
Allows you to select the LCD display prompts in English, Spanish or
French. It is set at English when ex-factory.
1. During idle mode, press and hold [DIAL] button for about 3 sec-
onds.The LCD display shows “SETUP MENU ”.
2. Press [REVIEW ] button until “SET LANGUAGE” appears.
3. Press [DIAL] button again.The LCD display shows “ENGLISH”.
4. Press [REVIEW ] or [REVIEW ] button to select English,
French or Spanish.
5. Press [DIAL] button to save your setting and [REVIEW ]button
to go to the next setting option SET AREA CODE.
Set Area Code
Area codes of all incoming calls will be compared with the area code
you entered to determine if it is a local call.
1. Press [DIAL] button when“SETAREA CODE” appears on the LCD.
The first digit of the 3- digit area code will blink.
2. Press [REVIEW ] or [REVIEW ] button to scroll digits to enter
the first digit of your area code.
3. Press [DIAL] button to moveon to the second digit.
4. Repeat steps (2) and (3) until you have entered your local area code.
5. Press [DIAL] button to save your setting and [REVIEW ] button
to go to the next setting option SET TIME / DATE.
Note : If you want to change your area code, repeat the steps 1 - 4.
7
Operation EN

SetTime / Date
Allows you to set the clock (hour and minute) and date (month and
day).The clock will also be updated by incoming Caller ID, if you have
subscribed to Caller ID service. The clock is set at “12:00AM 01/01”
when ex-factory.
1. Press [DIAL] button when “SETTIME / DATE” appears on the LCD.
The hour digit will blink.
2. Press [REVIEW ] or [REVIEW ] button to scroll digits to set
the hour. After the hour is set, press [DIAL] button to move on to
set the minute.
3. Repeat step 2 until you have set the hour, minute, month and day.
4. Press [DIAL] button to save your setting and [REVIEW] button
to go to the next setting option
Set Contrast
Allows you to adjust the LCD display contrast at 8 different levels. It is
set at level 4 when ex-factory.
1. Press [DIAL] button when “SET CONTRAST” appears on the
LCD.
2. Press [REVIEW ] or [REVIEW ] button to decrease
or increase the LCD display contrast.
3. Press [DIAL] button to save your setting.
4. Press [REVIEW ] button to go to the next setting option
SET DIALVM.
Set DialVM
Allows you to set your own voice mail access number.
1. Press [DIAL] button when “SET DIAL VM” appears on the LCD.
The first digit of the voice mail access number will blink.
2. Press [REVIEW ] or [REVIEW ] button to scroll digits to
enter the first digit of the access number.
3. Press [DIAL] button to move on to the second digit.
4. Repeat steps (2) and (3) until you haveentered your voice mail
access number.You are now ready to dial your voice mail access
number bypressing the [DIALVM] button.
5. Press [DIAL] button to save your setting and [REVIEW ] button
to go to the next setting option EXIT and press [DIAL] button to
leave the setup menu.
Note : If you want to change your voice mail access number,repeat the
steps 1-4.
Operation
EN
8

CALLER ID MEMORY
If you have subscribed to the Caller ID service from your local tele-
phone company, your Caller ID unit will receive and display incoming
caller’s name (if applicable) and number together with the date and time
of the call. It stores up to 90 records, each of which contains up to 14-
digit number and 15-character name.When the Caller ID memory is
full, the oldest Caller ID record will be deleted automatically to make
room for the new one.
REVIEWING CALLER ID
1. Press [REVIEW ] button to view the Caller ID record from
the newest call (i.e. #90) to the oldest (#01).
2. Press [REVIEW ] button to view the Caller ID record from the
oldest (#01) to the newest (i.e. #90).
Note :
a) In some areas, Caller ID information may not be available.
“UNKNOWN NAME” or “UNKNOWN CALL” will be shown on
the LCD display in such cases.
b) Callers have the option to block their Caller ID information.
“PRIVATE NAME” or “PRIVATE CALL” will be shown on the LCD
display in such cases.
c) If the area code of a caller’s number matches your pre-set local area
code, only the last 7 digits will be shown on the LCD display. (refer
to the “Set Area Code” section on page 7)
NEW CALL LIGHT INDICATOR (Green)

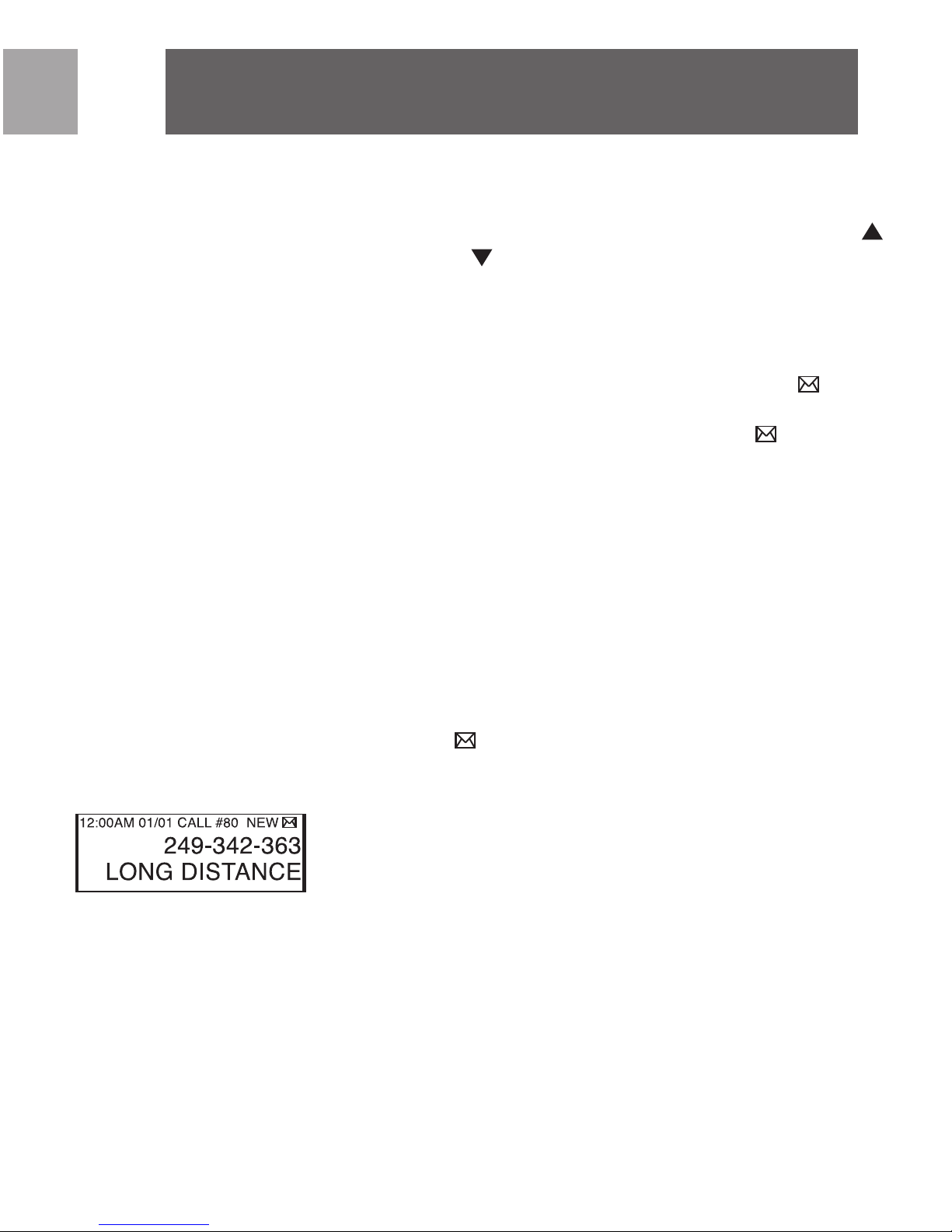

When your caller ID unit receives a new incoming call,the new call icon
“NEW” appears on the LCD display and the New Call Light Indicator
(Green LED) lights up steadily.The LCD display also shows the infor-
mation of the new incoming call for about 10 seconds and then returns
to the idle mode.
Note :
a) You or your answering machine must answer the new incoming call
onlyafter the first ring. Otherwise,the information of the new
incoming call will not be registered.
b) If theAC adapter is not connected,the New Call Light Indicator will
flash every 3 seconds when there is new call not yet reviewed.
9
Operation EN
12:00AM 01/01 CALL #80 NEW
249-342-363
JOHN SMITH
Time and date
when this call was
received.
Sequence
number of this
incoming call
It is a new call
You have new
voice mail
message(s)
Caller's name
Caller's number

c) The New Call Light Indicator does not stop lighting up unless you
have reviewed ALL new incoming calls by pressing [REVIEW ]
or [REVIEW ] button.
VOICE MAIL
If you have subscribed toVoice Mail service from your local telephone
company, the Message Waiting Light Indicator lights up steadily when
you have voice mails in your mailbox, and the LCD icon ( ) appears
on the LCD display. After you have listened to your voice mails, the
Message Waiting Light Indicator and the LCD icon ( ) will turn off.
To listen to your voice mails,press [DIALVM] button to dial your voice
mail access number. The LCD display shows "PICK UP HANDSET".
Then, lift the Handset to dial the access number. Refer to the "Set DIAL
VM" section on page 8 to set the voice mail access number.
IMPORTANT:
Operation
EN
10
a) If the AC adapter is not connected, the Message Waiting Light
Indicator will flash every 3 seconds when you have new voice
mail(s).
LONG DISTANCE CALL
If there is a long distance incoming call, "LONG DISTANCE" appears
alternatively with the caller's name.
DIALING FROM CALLER ID
1. When reviewing a Caller ID record,press [DIAL] button to dial the
number shown on the LCD display. If the number format of the
Caller ID is not adjustable, the LCD display shows “PICK UP
HANDSET”. Lift the Handset to dial the number.
2. If you have pre-stored an area code, the number format of the
Caller ID is adjustable (see the "Important" section on page 11).
b)If the Message Waiting Light Indicator keeps on lighting up and the
LCD icon ( ) still appears after you have listened to all your voice
mails,press [DELETE] button to turn off the light and the LCD icon.

The LCD display shows “PICK UP OR ADJ” after you press
[DIAL] button.
3. Press [DIAL] button again to change number format among:
a) 7 digits (phone number)
b) 10 digits (area code + phone number)
c) 11 digits (1 + area code + phone number)
4. Lift the Handset to dial the number shown.
IMPORTANT:
a) You must pre-store an area code before you can adjust the numbers
format. Refer to the“Set Area Code” section on page 7.
b) If you have set your local area code, area code of all incoming num-
bers will be compared against your pre-set local area code to deter-
mine if it is a local call.
c) Only the last 7 digits of the incoming number will be shown on the
LCD display if it is a local call. If it is not a local call, 11digits (1 + area
code + phone number) will be shown when dialing back.
DELETING CALLER ID RECORD
When the Caller ID record is full, it automatically deletes the oldest
Caller ID record as a new call comes in.You can also delete individual
call or all calls in the Caller ID record.
To Delete A Caller ID Record
1. While reviewing a Caller ID record, press [DELETE] button and
the LCD displayshows “DELETE CALL?”.
2. Press [DELETE] button again to delete.
ToDelete All Caller ID Records
1. While reviewing a Caller ID record, press and hold [DELETE] but-
ton for about 3 seconds.“DEL ALL CALLS?” appears on the LCD
display.
2. Press [DELETE] button again to delete all records.
11
Operation EN

Operation
EN
12

13
LCD prompts EN

Troubleshooting
EN
14
Symptoms
The display is blank
The display is faded
Caller ID doesn’t work
No caller’s name
The New Call Light Indicator
(green) lights up
The New Call Light Indicator
(green) doesn’t light up if
there is new call.
The Message Waiting Light
Indicator (red) doesn’t light
up if you have voice
messages
The Message Waiting Light
Indicator (red) lights up
Solutions
a) Make sure the AC adaptor is connected to the
jack labeled DC 9V at the back of your caller
ID unit and plugged into a wall socket that is
not controlled by a wall switch.
b) Adjust the display contrast (refer to “Set
Contrast”)
a) Adjust the LCD display contrast (refer to “Set
Contrast”)
a) Make sure you have subscribed to the Caller
ID service.
b) Wait until the phone rings twice before
answering a call.
c) Make sure telephone line cords are connected
correctly (refer to “Connecting to a Telephone
and/or Answering Machine”).
a) Make sure you have subscribed to the Caller
ID service including the CALLERS NAME
DELIVERY feature?
a) Make sure you have reviewed all the new calls.
a) Make sure you have connected the power
adaptor properly.
b) Make sure you have subscribed to the Caller
ID service.
a) Make sure you have subscribed to the Voice
Mail service.
b) Make sure you have connected the power
adaptor properly.
a) Make sure you have accessed your voice mail
message(s)

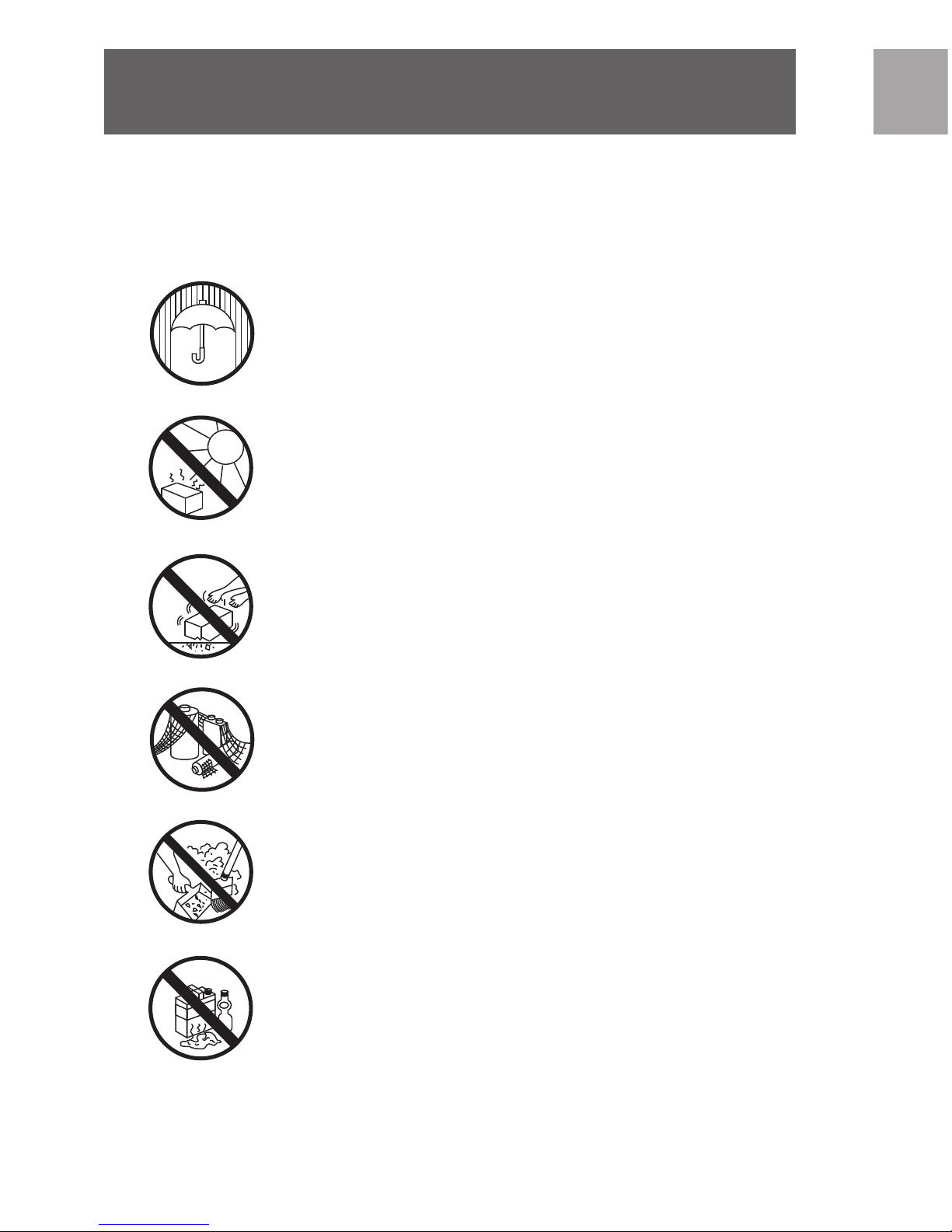

Care & Maintenance
The following suggestions will help you care for the system so you can
enjoy it for years.
Keep the unit dry. If it gets wet, wipe it dry immediately. Liquids might
contain minerals that can corrode the electronic circuits.
Use and store the Caller ID only in normal temperature environments.
Temperature extremes can shorten the life of electronic devices, and
distort or melt plastic parts.
Handle the Caller ID gentlyand carefully. Dropping it can damage cir-
cuit boards and cases and can cause the unit to work improperly.
Use only fresh batteries of the required size and type.Always remove
old or weak batteries.They can leak chemicals which can destroy elec-
tronic circuits.
Keep the Caller ID away from excessive dust and dirt, which can cause
premature wear of parts.
Wipe the unit with a damp cloth occasionallyto keep it looking new.
Do not use harsh chemicals, cleaning solvents, or strong detergents to
clean the system.
Modifying or tampering with the Caller ID’s internal components can
cause a malfunction and might invalidate the unit’s warranty and void
your FCC authorization to operate it. If your Caller ID is not perform-
ing as it should, call someone with qualifications for assistance.15
Care & Maintenance EN
BELNNE

Technical Support
For technical support send an email with the model number of the
product and a detailed description of your problem to:
Email: accessorysuppor[email protected]
©2006
Accessories Service Center
Philips
Accessories and Computer Peripherals,
Ledgewood, NJ 07852 USA
Manufactured in China
Printed in China
Limited One-Year Warranty
What does the Philips limited warranty cover?
Philips Electronics warrants to the original purchaser of this product
("Consumer" or "you") that the product and all accessories provided by
Philips in original package ("Product") are free from material defects in
material and workmanship, subject to the terms and conditions set
forth below, when installed and used normally and in accordance with
operation instructions. This limited warranty extends only to
Consumers of Products purchased and used in the United States of
America and Canada.
Technical Support
EN
16
Warranty

What will Philips do if the product is not free from material
defects in materials and workmanship during the limited war-
ranty period ("Materially Defective Product")?
During the limited warranty period, Philips will replace without charge,
amaterially defective product. Philips will return repaired or replace-
ment products to you in working condition. Philips will retain defective
parts, modules, or equipment. If Philips elects, in its sole discretion, to
replace a materially defective product, you should expect the
replacement to take approximately 30 days.
Howlong is the limited warranty period?
The limited warranty period for the product extends for ONE (1)
YEAR from date of purchase. This limited warranty also applies to
replacement products for a period of either (a) 90 days from the date
the replacement product is shipped to you or (b) the time remaining
on the original one-year limited warranty, whichever is longer.
What is not covered by this limited warranty?
This limited warranty does not cover:
1. Product that has been subjected to misuse, accident, shipping or
other physical damage, improper installation, abnormal operation
or handling,neglect, inundation,fire, water or other liquid intrusion;
or
2. Product that has been damaged due to repair, alteration or modi-
fication; or
3. Problems caused by signal conditions, network reliability or cable
or antenna systems; or
4. Problems caused byuse with non-Philips electrical accessories; or
5. Product whose warranty/quality stickers, product serial numbers
plates or electronic serial numbers have been removed, altered or
rendered illegible; or
6. Product purchased, used, serviced, from outside the United States
or Canada, or used for commercial or institutional purposes
(including but not limited to products used for rental purposes); or
7. Product returned without valid proof of purchase (see below); or
8. Charges for installation or set up,adjustment of customer controls,
and installation or repair of systems outside the unit.
9. Please note that this warranty does not include consumable items
such as batteries and anyother components with limited lifetime
and wear. 17
Warranty EN

How do you get warranty service?
•To obtain warranty service in the United States of America. Call 1-
800-233-8413 for customer support and for instructions for war-
ranty service. Before calling for service, please check the user's
manual.A check of the product controls and features may save you
aservice call.
•Except as provided by applicable law, you assume the risk of loss or
damage during transit and transportation and are responsible for
delivery or handling charges incurred in the transport of product(s)
to the service location. Philips will return repaired or replaced
product under this limited warranty to you, transportation,delivery
or handling charges prepaid. Philips assumes no risk for damage or
loss of the product in transit.
•If the Product failure is not covered by this limited warranty, or
proof of purchase does not meet the terms of this limited warran-
ty,Philips will notify you and will request that you authorize the cost
of replacement and return shipping costs for conditions not cov-
ered by this limited warranty.
What must you return with the Product to get warranty service?
1. The entire original package and contents including the product
and accessories along with a description of the malfunction or dif-
ficulty;
2. Valid “proof of purchase" (sales receipt) identifying the Product
purchased (Product model) and the date of purchase or receipt;
and
3. Your name, complete and correct mailing address, and day time
and evening telephone numbers.
Other limitations
This warranty is the complete and exclusive agreement between you
and Philips. It supersedes all other written or oral communications
related to the product. Philips provides no other warranties for the
product.The warranty exclusively describes all of Philips responsibilities
regarding the product.There are no other express warranties. No one
is authorized to make modifications to this warranty and you should
not rely on any such modification.
Warranty
EN
18

State Law Rights:
This warranty gives you specific legal rights, and you may also have
other rights which vary from state to state.
Limitations:
Implied warranties, including those of fitness for a particular purpose
(an unwritten warranty that the product is fit for ordinary use) and
merchantantability are limited to one year from date of purchase. Some
states do not allow limitations on how long an implied warranty lasts,
so the above limitation may not apply to you.
In no event shall Philips be liable for any indirect, special, incidental, con-
sequential, or similar damages (including, but not limited to lost profits
or revenue,inability to use the product,or other associated equipment,
the cost of substitute equipment, and claims by third parties) resulting
from the use of the product. Some states may not allow the exclusion
or limitation of incidental or consequential damages, so the above limi-
tation or exclusion maynot apply to you.
19
Warranty EN

Características especiales 21
Controle las Ubicaciones 22
Instalación 23
Operación 25
LED 32
Localización de fallas 33
Cuide y Limpiar 34
Asistencia Técnica 35
Garantía 35
Contenido
SP
20
