Philips AZ 7356 User manual

MAGNAVOX
PHILIPS I
AZ 7356 Portable Compact Disc Player
Owner's Manual
Mode d'emploi
Instructive de manejo
Toll Free Help Line
Ligne d'assistance en service fibre
Unea de ayuda telefonica sin car^o
800-53I-0039

Return your Warranty Registration card today to
ensure you receive all the benefits you’re entitled to.
• Once your Philips Magnavox purchase
is registered, you're eligible to receive
all the privileges of owning a Philips
Magnavox product
• So complete and return the Warranty
Registration Card enclosed with your
purchase at once.And take advantage
of these important benefits.
, Warranty
Verification
Registering your product
within 10 days confirms
your right to maximum
protection under the
terms and conditions of
your Philips Magnavox
warranty.
^ Owner i
Confirmation
Your completed Warranty
Registration Card serves
as verification of
ownership in the event of
product theft or loss.
, Model
Registration
Returning yourWairanty
Registration Card right
av/ay guarantees you’ll
receive all the information
and special offers which
you qualify for as the
owner of your model.
Know these
symbols
A
ICAUTIOIM 1
A
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAirnON: TO REDUCE THE RISK OF ElECTRIC SHOCK, CX3 NOT
REMOVE COVER [OR BACK}. NO USERSERVICEABIX PARTS
INSIDE. REFER SERVICING TO QUAURED SERVICE PERSONNEL
A This “bolt of lightning”
indicates uninsulated material
within your unit may cause an
elearical shock. For the safety of
everyone In your household, please
do not remove product covering.
A The “exclamation point” calls
attention to features for
which you should read the enclosed
literature closely to prevent
operating and maintenance problems.
For Customer Use
Enter below the Serial No. which is
located on the rear of the cabinet. Retain
this information for future reference.
Model No._
Serial No. _
WARNING: TO PREVENT FIRE
OR SHOCK HAZARD, DO NOT
EXPOSETHIS EQUIPMENTTO
RAIN OR MOISTURE
CAUTION: To prevent electric
shock, match wide blade of plug to
wide slot, and fully insert.
MACS 097

VODUME
6VDC
BAHERIES

English:
This digital apparatus does not exceed
the Class B limits for radio noise
emissions from digital apparatus as
set out in the Radio Interference
Regulations of the Canadian
Department of Communications,
Frangais:
Cet apparel I num^rique n'6met pas de
bruits radio§Iectrlques depassant les
limites applicables aux appareils
numiriques de Classe B prescrites
dans le R^glement sur le Brouillage
Radio6lectrique 6dicte par le Minist^re
des Communications du Canada.
Es necesario que lea cuidadosamente su instructivo de manejo.
PRECAU C I O N - ADVER TENCIA
ATENCIONZ
No abrir, riesgo de cheque electnco
Verifique que el voltaje de alimentacion
sea el requertdo para su aparato
A
Para evitar el riesgo de cheque el^ctrico, no quite la tapa.
En case de requerir servicio, dlrijase al personal callflcado.

fp Ij . Introduction...
cngiisn safety Instructions.
.......4V
...5
Controls.....
.6/7
Connections.....
.8/9
Power Supply.....
..10

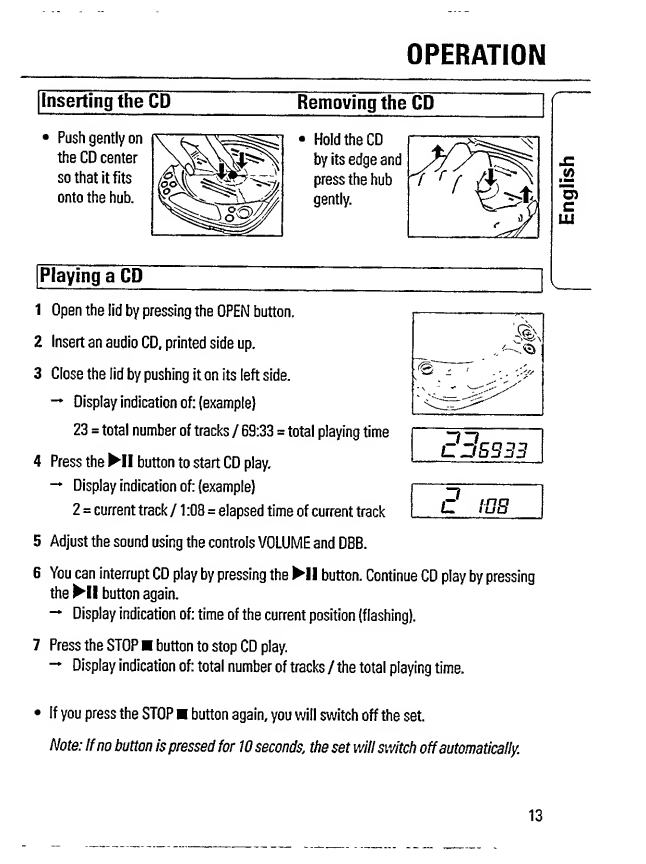

Operation.......
...11/13

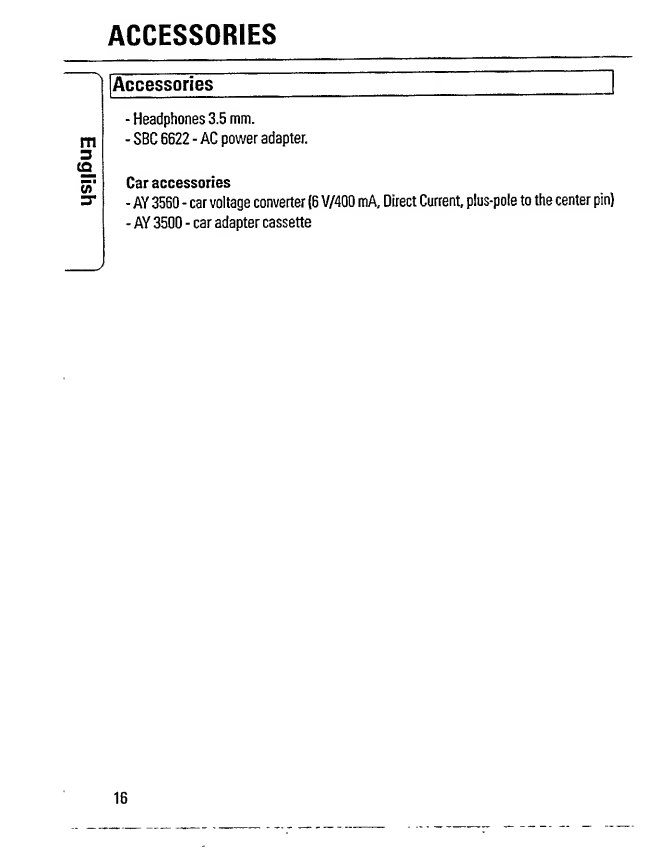

Accessories..
.....14
General Information..
.15

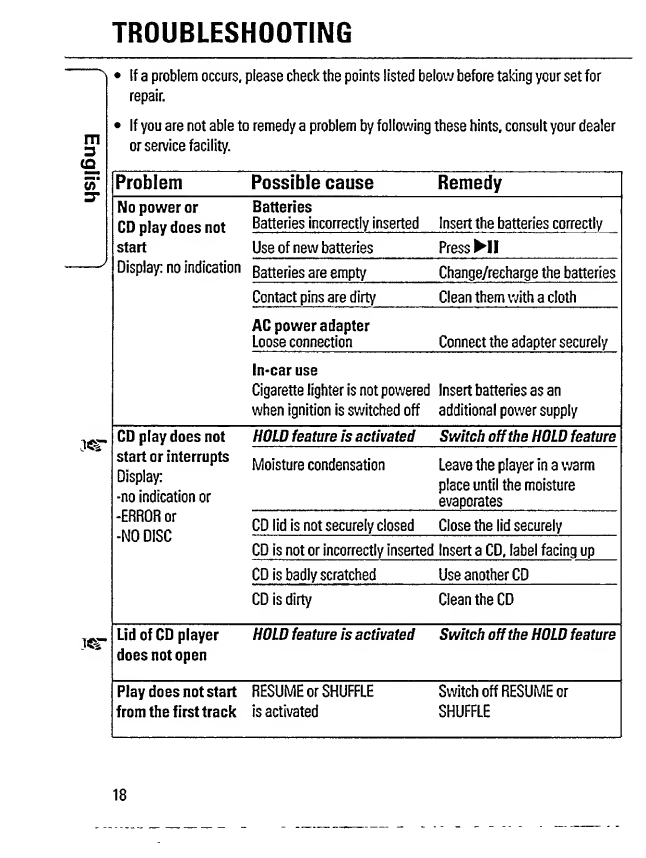

Troubleshooting.
.16/17

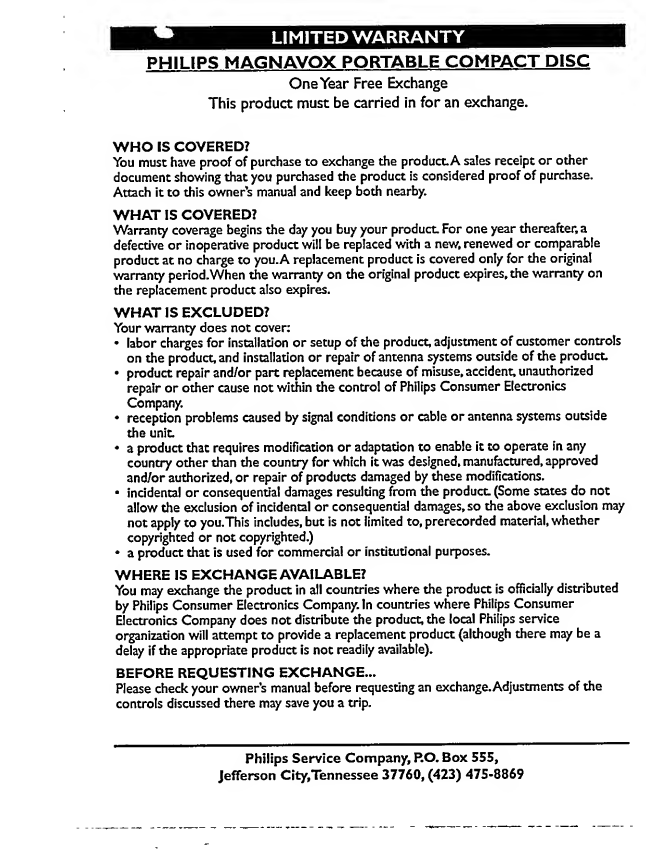

Limited Warranty....
...18/19
_ ^ \
Frangais
Introduction.....
Conseils de Sdcuritd...
Commandes.
.20
.21
.22/23
Branchements...
...24/25
Alimentation...
...26
Fonctionnement...
....27/29
Accessoires....
..30
Gdndralitds......
..31
Ddpistage des pannes.
.32/33
Garantie limitde...
.34/35
Espanol
Introduccion. 36
Instrucciones sobre seguridad...37
Mandos. 38/39
Conexiones. 40/41
Alimentacidn. 42
Funclonamiento.... 43/45
Accesorios... . .46
Informacidn general......47
Deteccion de anomalfas........48/49
Garantfa limitada. ......50/51
Espanol
Frangais
English

6

PHILIPS Visit cur World Wide Web Site at htip:A\vi\Vi.\rnagnavox.com
PHILIPS
MAGNAVOX
Congratulations on your purchase,
and welcome to the "family!"
Dear Philips Magnavox product owner:
Thank you for your confidence in Philips Magnavox,YauVe selected one of the
best-bullt, best'backed products available today.And we’ll do everything in our
power to keep you happy with your purchase for many years to come.
As a member of the Philips Magnavox “family,” you’re entided to protection by
one of the most comprehensive warranties and outstanding service networks in
the industry.
What’s more, your purchase guarantees you’ll receive all the information and
special offers for which you qualify, plus easy access to accessories from our
convenient home shopping network.
And most importandy you can count on our uncompromising commitment to
your total satisfaction.
All of this is our way of saying welcome-and thanks for investing in a Philips
Magnavox product.
Sincerely,
Robert Minkhorst
President and Chief Executive Officer
P.S, Remember, to get the most from your Philips Magnavox product,
you must return your Warranty Registration Card within 10 days.
So please mail it to us right now!

English

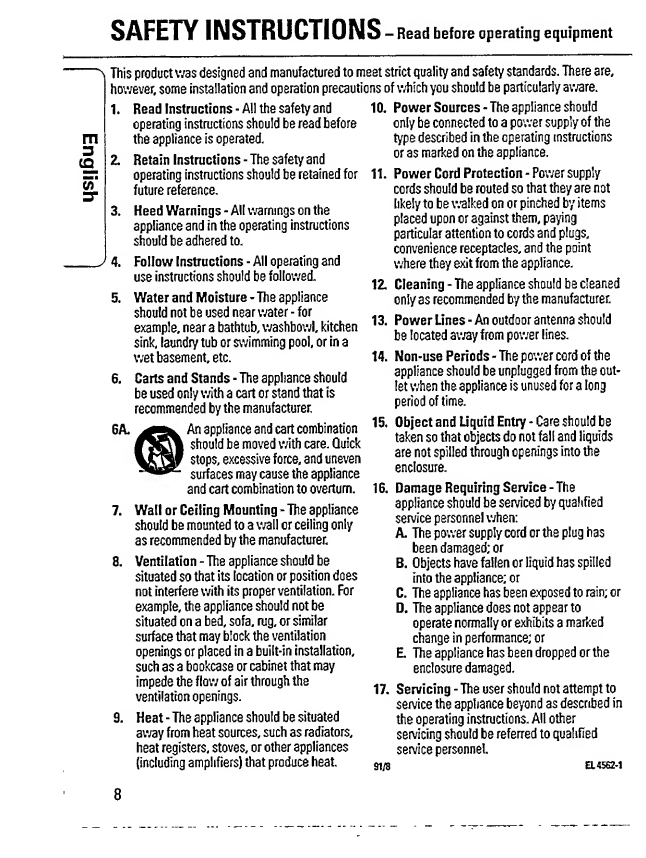

SAFETY INSTRUCTIONS - Read before operating equipment
This product was designed and manufactured to meet strict quality and safety standards. There are,
however, some installation and operation precautions of v/hich you should be particularly av;are.
1. Read Instructions - All the safety and
operating Instructions should be read before
the appliance is operated.
Z Retain Instructions - The safety and
operating instructions should be retained for
future reference,
3. Heed Warnings - All warnings on the
appliance and in the operating instructions
should be adhered to.
4. Follow Instructions - All operating and
use instructions should be followed.
5. Water and Moisture - The appliance
should not be used near water - for
example, near a bathtub, washbowl, kitchen
sink, laundry tub or swimming pool, or in a
wet basement, etc.
6. Carts and Stands - The appliance should
be used only with a cart or stand that is
recommended by the manufacturer.
6A. An appliance and cart combination
/jKl should be moved with care. Quick
stops, excessive force, and uneven
surfaces may cause the appliance
and cart combination to overturn,
7. Wall or Ceiling Mounting - The appliance
should be mounted to a v;all or ceiling only
as recommended by the manufacturer.
8. Ventilation - The appliance should be
situated so that its location or position does
not interfere with its proper ventilation. For
example, the appliance should not be
situated on a bed. sofa. rug. or similar
surface that may block the ventilation
openings or placed in a built-in installation,
such as a bookcase or cabinet that may
impede the flov; of air through the
ventilation openings.
9. Heat - The appliance should be situated
av;ay from heat sources, such as radiators,
heat registers, stoves, or other appliances
(including amplifiers) that produce heat.
10. Power Sources - The appliance should
only be connected to a power supply of the
type described in the operating instructions
or as marked on the appliance,
11. Power Cord Protection - Power supply
cords should be routed so that they are not
likely to be walked on or pinched by items
placed upon or against them, paying
particular attention to cords and plugs,
convenience receptacles, and the point
where they exit from the appliance,
12. Cleaning - The appliance should be cleaned
only as recommended by the manufacturer,
13. Power Lines - An outdoor antenna should
be located away from power lines.
14. Non-use Periods - The power cord of the
appliance should be unplugged from the out¬
let when the appliance is unused for a long
period of time.
15. Object and Liquid Entry - Care should be
taken so that objects do not fall and liquids
are not spilled through openings into the
enclosure.
16. Damage Requiring Service - The
appliance should be serviced by qualified
service personnel ivhen:
A. The power supply cord or the plug has
been damaged; or
B. Objects have fallen or liquid has spilled
into the appliance: or
C. The appliance has been exposed to rain; or
D. The appliance does not appear to
operate normally or exhibits a marked
change in performance; or
E The appliance has been dropped or the
enclosure damaged.
17. Servicing - The user should not attempt to
service the appliance beyond as described in
the operating instructions. All other
servicing should be referred to qualified
service personnel.
91/8 a«62-i
8

CONTROLS see illustration an page 3
DISPLAY . Window for showing the different playing modes, tracks and
times
OPEN . Button for opening the lid of the CD player
VOLUME.. ...........Control for adjusting the volume at the headphone output
Hi . Button for starting and pausing CD play
STOP ■ . Button for stopping CD play, deleting various settings, and
switching off the CD player
DBB.....Dynamic Bass Boost Button for boosting the bass response
....Button for selecting the previous music track or, if held down,
for searching backward for a particular passage on the CD
► W.Button for selecting the next music track or, if held down.
for searching forward for a particular passage on the CD
MODE O.Button for selecting the different playing modes:
SHUFFLE-REPEAT/SHUFFLE--REPEAT-off

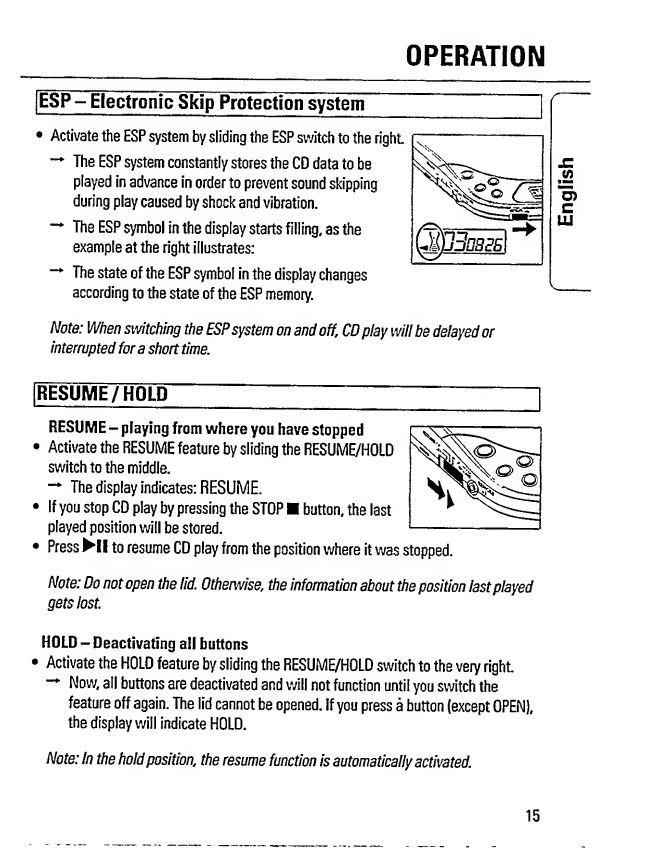

ESP.Electronic Skip Protection: Switch for activating the
electronic buffer memory for an undisturbed sound
RESUM^/HOLD.Switch for activating the RESUME feature {resuming CD play)
and/or HOLD feature (blocking all buttons)
REMOTE 0 . H eadphone control jack (3.5mm)
6 V DC. . Jack for external power supply
Battery compartment ..which holds four batteries
WARNING: To reduce the risk of fire or electric shock, do not expose
this appliance to rain or moisture.
CAUTION: Use of controls or adjustments or performance of
procedures other than those herein may result in hazardous
radiation exposure.
The set complies with the FCC-Rules, Part 15 and with 21CFR1040.10.
9
English

English
CONNECTIONS
Connections for in-car use
1 Find a good and safe place
for the CD player on a
horizontal, vibration-free, and
stable surface that is not
dangerous or in the way of the
driver or passengers.
2 Connect the DC plug of the
voltage converter AY 3560
(6V/400 mA Direct Current, ❖
^ plus-pole ❖ to the center pin,
only for a 12 V car battery, negative grounding) to the 6V DC jack of your CD player.
3 Then insert the voltage converter into the cigarette lighter jack. If necessary, clean
the cigarette lighter jack to obtain a good electrical contact.
4 Turn down the volume and switch off the auto reverse feature (if present) of
your car radio cassette player
5 Connect the cassette adapter plug to the REMOTE O jack of the CD player.
6 Slide the cassette adapter carefully into the car radio cassette player.
7 Make sure that the cord cannot hinder your driving.
8 Start the CD player, turn its volume to middle position (approx, position 6-8) and
adjust the sound with the car radio controls.
• To remove the cassette adapter, press the eject button of the car radio.
• Always remove the voltage converter when the CD player is not in use.
Notes on In-car Use:
- Avoid excessive beat from the car beating or from direct sunshine (e.g., when
parking in tbe sun).
- If your car radio bas a LINE IN jack, it is best to use it for tbe car radio connection
instead of tbe cassette adapter. Connect a signal lead (optional) to this LINE IN jack
and the REMOTER jack of tbe CD player.
10

CONNECTIONS
REMOTE o - headphone control jack
• Connect the supplied headphones (16-32 ohms
/3.5mm jack plug) with the REMOTE Q jack.
Note: Use this jack also for connecting
- your HiFi system or your car radio (the cassette adapter from
the car accessory kit AY3500 ora signal lead): in both cases
the volume of the CD player has to be set to
midposition (aprox. 6-8).
Use your head when using headphones
• Hearing safety: Do not play your headset at a high volume. Hearing experts
advise against continual extended play.
• If you experience a ringing in your ears, reduce the volume or discontinue use,
• Traffic safety: Do not use while driving a motorized vehicle. Using while driving
may create a traffic hazard and is illegal in many areas.
• You should use extreme caution or temporarily discontinue use in potentially haz¬
ardous situations.
• Even If your headset is an open-air type designed to let you hear outside sounds,
don't turn up the volume so high that you can't hear the sounds around you.
EL 3493-2
11
English

English
POWER SUPPLY
|AC power adapter SBC6622 (supplied)
1 Make sure that the local voltage corresponds to
the voltage of the adapter (see accessories).
2 Connect the supplied AC power adapter
(6 V/400 mA Direct Current plus-pole to the
center pin) to the player's 6 V DC jack and to the
wall outlet.
\ ^/6VDC^
• Always disconnect the adapter if you are not
using it.
Batteries, type R6, UM3 or AA (optional)
• Open the battery compartment and insert
four alkaline batteries.
Approx, playing times under normal conditions;
Alkaline batteries: 10 hours
• Remove the batteries if they are empty or the CD
player is not to be used for a long time.
Note: In the top right corner of the display the battery condition will be indicated:
- Full batteries: no indication.
‘Weak batteries: ("fuir symbol) flashes. (This symbol is not available when
nickel-cadmium batteries are used.)
‘ Empty batteries: <=: ("empty" symbol) flashes and the message BATT appears.
Replace the batteries or connect the AC power adapter.
12

OPERATION
[Inserting the CD
Removing the CD
• Push gently on
the CD center
so that it fits
onto the hub.
• Hold the CD
by its edge and
press the hub
gently.
Playing a CD
1 Open the lid by pressing the OPEN button,
2 Insert an audio CD, printed side up.
3 Close the lid by pushing it on its left side.
— Display indication of: (example)
23 = total number of tracks / 69:33 = total playing time
4 Press the ► !! button to start CD play.
-* Display indication of: (example)
2 = current track /1:08 = elapsed time of current track
5 Adjust the sound using the controls VOLUME and DBB.
6 You can interrupt CD play by pressing the ► !! button. Continue CD play by pressing
the ► ! ! button again.
-* Display indication of: time of the current position (flashing).
7 Press the STOP ■ button to stop CD play.
Display indication of: total number of tracks / the total playing time.
If you press the STOP ■ button again, you will switch off the set.
Note: If no button is pressed for 10 seconds, the set will switch off automatically.
13
English

English
OPERATION
\\«»\
Selecting another track
• Briefly press the or button once/severa! times to skip
to the beginning of the current/previous or next track(s).
Display indication of: selected track number.
During play: CD play continues automatically with the
selected track.
In stop position: press the ► !! button to start CD play.
Searching for a passage during CD play
1 Hold down the or button to find a particular passage in foavard or baclavard
direction.
After two seconds, searching will start at high speed.
2 Release the button when you have reached the desired passage.
Note: In the shuffle mode, searching is only possible within the particular track.
MODE o- different playing modes _
• By pressing the MODE O button, you can
successively activate the playing modes:
SHUFFLE: The tracks are played in random order
until all of them have been played once.
SHUFFLE REPEAT: All tracks are played repeatedly in
random ordermtW you leave this mode.
REPEAT: The CD is played repeaferf//until you leave this mode.
Display indication of: an arrow pointing towards the selected playing mode.
During play: CO play continues automatically with the selected playing mode.
In stop position: press the Hi button to start CD play.
• Deactivate all modes with the MODE O button.
14

OPERATION
ESP - Electronic Skip Protection system
• Activate the ESP system by sliding the ESP switch to the right.
The ESP system constantly stores the CD data to be
played in advance in order to prevent sound skipping
during play caused by shock and vibration.
The ESP symbol in the display starts filling, as the
example at the right illustrates:
The state of the ESP symbol in the display changes
according to the state of the ESP memory.
Note: When switching the ESP system on and off, CD play will be delayed or
interrupted fora short time.
RESUME/HOLD _
RESUME - playing from where you have stopped
• Activate the RESUME feature by sliding the RESUME/HOLD
switch to the middle.
The display indicates: RESUME.
• If you stop CD play by pressing the STOP ■ button, the last
played position will be stored.
• Press ► !! to resume CD play from the position where it was stopped.
Note: Do not open the lid. Otherwise, the information about the position last played
gets lost.
HOLD - Deactivating all buttons
• Activate the HOLD feature by sliding the RESUME/HOLD switch to the very right.
-*• Now. all buttons are deactivated and will not function until you switch the
feature off again. The lid cannot be opened. If you press a button (except OPEN),
the display will indicate HOLO.
Note: In the hold position, the resume function is automatically activated.
15
English

English
ACCESSORIES
Accessories __|
- Headphones 3.5 mm.
- SBC 6622 - AC power adapter.
Car accessories
- AY 3560 - car voltage converter (6 V/400 mA, Direct Current, pius-pole to the center pin)
- AY 3500 - car adapter cassette
16

GENERAL INFORMATION
Maintenance and CD handling _
• The lens (x) of the CD player should never be touched!
• Do not expose the CD player, batteries or CDs to rain,
dampness, sand, dust or excessive heat caused by heating
equipment, or to direct sunlight {for example inside
a car parked in the sun).
• The lens may cloud over when the set is suddenly moved from cold to warm
surroundings. Playing a CD is then not possible.
Leave the CD player in a warm environment until the moisture evaporates.
• You can clean the CD player with a soft and slightly dampened chamois leather.
Do not use any cleaning agents as they may have a corrosive effect.
• Always pick up the CD by the edge and put it back in its box
after use.
• To clean the CD, wipe it off in a straight line from the center
towards the edge using a soft, lint-free cloth.
A cleaning agent may damage the disc!
• When a newly purchased CD does not stay on the hub, this
is caused by small burrs around the center hole of the CD.
Remove the burrs by rubbing the edge of the center hole with
a pen or other such instrument.
lEnvironmental information
• Please observe the local regulations regarding the disposal of packing materials,
exhausted batteries, and old equipment.
• All redundant packaging material has been omitted. We have done our utmost to
make the packaging easy separable into three mono-materials: cardboard (box),
expandable polystyrene (buffer), polyethylene (bags, protective foam sheet)
• Your set consists of materials which can be recycled if disassembled by a specialized
company.
• Do not dispose of exhausted batteries with your household waste.
17
English

English
TROUBLESHOOTING
• If a problem occurs, please check the points listed below before taking your set for
repair.
• If you are not able to remedy a problem by following these hints, consult your dealer
or service facility.
Problem Possible cause
Remedy
No power or
CD play does not
start
Batteries
Batteries incorrectly inserted Insert the batteries correctly
Use of new batteries Press ► !!
Display: no indication
Batteries are empty
Change/recharge the batteries
Contact pins are dirty Clean them with a cloth
AC power adapter
Loose connection
Connect the adapter securely
In-car use
Cigarette lighter is not powered Insert batteries as an
when Ignition is switched off additional power supply
CD play does not
HOLD feature is activated
Switch off the HOLD feature
start or Interrupts
Display:
-no indication or
Moisture condensation
Leave the player In a warm
place until the moisture
evaporates
-ERROR or
-NO DISC
CD lid is not securely closed Close the lid securely
CD is not or incorrectly inserted Insert a CD, label facing up
CD is badly scratched Use another CD
CD is dirty
Clean the CD
, Lid of CD player
does not open
HOLD feature is activated Switch off the HOLD feature
Play does not start
from the first track
RESUME or SHUFFLE
is activated
Switch off RESUME or
SHUFFLE
18

TROUBLESHOOTING
Under no circumstances should you try to repair the unit yourself, as this
will invalidate the warranty.
Problem
Possible cause
Remedy
No sound or bad
PAUSE is activated
Press ► !!
sound quality
Loose or wrong connections
Check connections
Volume is not turned up
Adjust the volume
Headphones worn the wrong
way
Pay attention to the L (left)
and R (right) indications
Headphone plug is dirty
Clean the headphone plug
Strong magnetic fields near
the CD player
Change the player's position or
connections
Electrostatic discharge of the
user through the CD player
Press or once or
press ► !! twice
In-car use
Strong vibrations
Find another place for the set
Adapter cassette is
incorrectly inserted
Insert the adapter cassette
correctly
Temperature inside car is too
high/low
Let the CD player acclimatize
Cigarette lighter/jack is too
dirty
Clean the cigarette
lighter/jack
Wrong playback direction of
the auto reverse feature of
the car cassette player
Change the auto reverse
direction
19
English

LIMITED WARRANTY
PHILIPS MAGNAVOX PORTABLE COMPACT DISC
One Year Free Exchange
This product must be carried in for an exchange.
WHO IS COVERED?
You must have proof of purchase to exchange the pro duct. A sales receipt or other
document showing that you purchased the product is considered proof of purchase.
Attach it to this owner’s manual and keep both nearby.
WHAT IS COVERED?
Warranty coverage begins the day you buy your product. For one year thereafter, a
defective or inoperative product will be replaced with a new, renewed or comparable
product at no charge to you. A replacement product is covered only for the original
warranty period.When the warranty on the original product expires, the warranty on
the replacement product also expires.
WHAT IS EXCLUDED?
Your warranty does not cover:
• labor charges for installation or setup of the product, adjustment of customer controls
on the product, and installation or repair of antenna systems outside of the product
• product repair and/or part replacement because of misuse, accident, unauthorized
repair or other cause not within the control of Philips Consumer Electronics
Company.
• reception problems caused by signal conditions or cable or antenna systems outside
the unit.
• a product that requires modification or adaptation to enable it to operate in any
country other than the country for which It was designed, manufactured, approved
and/or authorized, or repair of products damaged by these modifications.
• incidental or consequential damages resulting from the product. (Some states do not
allow the exclusion of incidental or consequential damages, so the above exclusion may
not apply to you.This includes, but is not limited to, prerecorded material, whether
copyrighted or not copyrighted.)
• a product that is used for commercial or institutional purposes.
WHERE IS EXCHANGE AVAILABLE?
You may exchange the product in all countries where the product is officially distributed
by Philips Consumer Electronics Company. In countries where Philips Consumer
Electronics Company does not distribute the product, the local Philips service
organization will attempt to provide a replacement product (although there may be a
delay if the appropriate produa is not readily available).
BEFORE REQUESTING EXCHANGE...
Please check your owner’s manual before requesting an exchange. Adjustments of the
controls discussed there may save you a trip.
Philips Service Company, P.O. Box 555,
Jefferson City,Tennessee 37760, [phone]
