Philips AZ5740/55 User manual

Cadastre seu produto e obtenha suporte em
www.philips.com/welcome
AZ5740
EN User manual

English
1 Important
Safety
Important Safety Instructions
a Read these instructions.
b Keep these instructions.
c Heed all warnings.
d Follow all instructions.
e Do not use this apparatus near water.
f Clean only with dry cloth.
g Do not block any ventilation openings. Install in
accordance with the manufacturer’s instructions.
h Do not install near any heat sources such as radiators,
heat registers, stoves, or other apparatus (including
ampliers) that produce heat.
i Protect the power cord from being walked on or
pinched, particularly at plugs, convenience receptacles,
and the point where they exit from the apparatus.
j Only use attachments/accessories specied by the
manufacturer.
k Use only with the cart, stand, tripod, bracket, or table
specied by the manufacturer or sold with the apparatus.

When a cart is used, use caution when moving the cart/
apparatus combination to avoid injury from tip-over.
l Unplug this apparatus during lightning storms or when
unused for long periods of time.
m Refer all servicing to qualied service personnel.
Servicing is required when the apparatus has been
damaged in any way, such as power-supply cord or plug
is damaged, liquid has been spilled or objects have fallen
into the apparatus, the apparatus has been exposed to
rain or moisture, does not operate normally, or has been
dropped.
n Battery usage CAUTION – To prevent battery leakage
which may result in bodily injury, property damage, or
damage to the unit:
Install all batteries correctly, + and - as marked on
•
the unit.
Do not mix batteries (old and new or carbon and
•
alkaline, etc.).
Remove batteries when the unit is not used for a
•
long time.
o Apparatus shall not be exposed to dripping or splashing.
p Do not place any sources of danger on the apparatus (e.g.
liquid lled objects, lighted candles).

q This product may contain lead and mercury. Disposal of
these materials may be regulated due to environmental
considerations. For disposal or recycling information,
please contact your local authorities or the Electronic
Industries Alliance: www.eiae.org.
r Where the MAINS plug or an appliance coupler is used as
the disconnect device, the disconnect device shall remain
readily operable.
Warning
Never remove the casing of this apparatus.•
Never lubricate any part of this apparatus.•
Never place this apparatus on other electrical equipment.•
Keep this apparatus away from direct sunlight, naked•
ames or heat.
Never look into the laser beam inside this apparatus.
•
Ensure that you always have easy access to the power•
cord, plug or adaptor to disconnect this apparatus from
the power.
Notice
Any changes or modications made to this device that are not
expressly approved by Philips Consumer Lifestyle may void the
user’s authority to operate the equipment.
Your product is designed and manufactured with high quality
materials and components, which can be recycled and reused.

When this crossed-out wheeled bin symbol is attached to a
product it means that the product is covered by the European
Directive 2002/96/EC.
Please inform yourself about the local separate collection system
for electrical and electronic products.
Please act according to your local rules and do not dispose of
your old products with your normal household waste. Correct
disposal of your old product helps to prevent potential negative
consequences for the environment and human health.
Your product contains batteries covered by the European
Directive 2006/66/EC, which cannot be disposed with normal
household waste.Please inform yourself about the local rules on
separate collection of batteries because correct disposal helps
to prevent negative consequences for the environmental and
human health.
Environmental information
All unnecessary packaging has been omitted. We have tried
to make the packaging easy to separate into three materials:
cardboard (box), polystyrene foam (buffer) and polyethylene
(bags, protective foam sheet.)
Your system consists of materials which can be recycled
and reused if disassembled by a specialized company. Please
observe the local regulations regarding the disposal of packaging
materials, exhausted batteries and old equipment.

Recording and playback of material might require consent. See
Copyright Act 1956 and The Performer’s Protection Acts 1958
to 1972.
The making of unauthorized copies of copy-protected material,
including computer programs, les, broadcasts and sound
recordings, may be an infringement of copyrights and constitute
a criminal offence. This equipment should not be used for such
purposes.
Manufactured under license from Dolby Laboratories. Dolby and
the double-D symbol are trademarks of Dolby Laboratories.
This apparatus includes this label:

Windows Media and the Windows logo are trademarks, or
registered trademarks of Microsoft Corporation in the United
States and/or other countries.

2 Your DVD Soundmachine
Congratulations on your purchase, and welcome to Philips! To fully
benet from the support that Philips offers, register your product at
www.philips.com/welcome.
Introduction
With this unit, you can enjoy:
Video from DVD/VCD/SVCD or USB devices.
•
Audio from discs, radio, tape, or USB devices.•
Pictures from Kodak/JPEG discs, or USB devices.•
The unit supports the following media formats:
Recordable
ReWritable

You can play DVD discs with the following region codes:
DVD region code Countries
Latin America
What’s in the box
Check and identify the contents of your package:
Main unit
•
Remote control•
AC power cord•
Composite AV cable•
User manual•
Quick start guide•

Overview of the main unit
AZ5740
SUBTITLE
FM
TAP E
USB
DISC
l
g
h
i
a
e
f
b
d
n
o
c
j
q
p
k
m

a LIFT TO OPEN
Open/close the disc compartment.
•
b TUNING
Tune to radio stations.
•
c SUBTITLE
Select a subtitle language.
•
d VOLUME
Adjust volume.
•
e AUDIO
For CD/MP3 discs, select an audio mode.
•
For DVD, select an audio language.•
f Display panel
Show current status.
•
g
Jack for a USB mass storage device.
•
h MODE
Select a play mode.
•
i
Stop play.•
j
•
Start or pause play.
• SEARCH /
Skip to the previous/next track.
Search within a track/disc/USB.
• ALBUM /
Skip to the previous/next album.

k IR
The remote control sensor.
•
l Source selector
Turn on or off the unit, or select a source.
•
m Tape controls
• RECORD
Start to record.
• PLAY
Start tape play.
• SEARCH /
Fast rewind/forward the tape.
• STOP/OPEN /
Stop the tape play or open the tape door.
• PAUSE
Pause tape play or pause recording.
n
Jack for headphone.
•
o AC MAINS
Socket for the power cord.
•
p AV OUT
Transmit audio/video to a connected device.•
q Telescopic antenna
Improve FM reception.
•

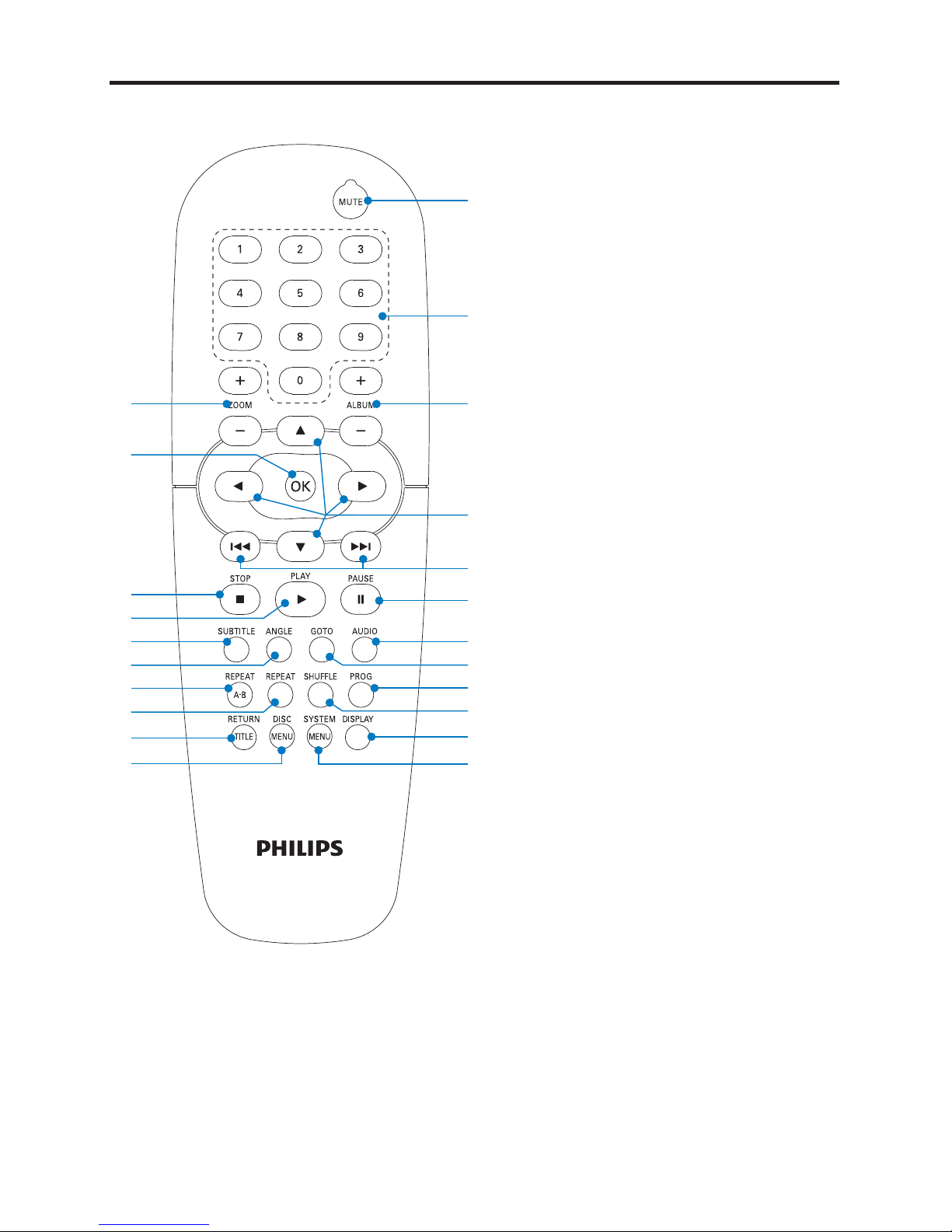

Overview of the remote control
a MUTE
Mute volume.
•
b Numeric keypad
Select a track/title/le directly.
•
Input password.•
v
t
r
p
u
s
q
o
n
m
f
g
h
i
k
l
a
b
c
d
e
j

c ALBUM +/-
Skip to the previous/next album.
•
d
• / / /
Navigate through the menu.
For JPEG discs, rotate the picture.
Move an enlarged picture up/down/left/right.
• /
For DVD/MP3/VCD/SVCD/CD discs, search
backward or forward.
e /
Skip to the previous/next chapter/track.
•
f PAUSE
Pause or resume playback.
•
g AUDIO
For CD/MP3 discs, select an audio mode.
•
For DVD, select an audio language.•
h GOTO
For DVD/SVCD/VCD, go to the desired title,
•
chapter or time.
For CD/MP3, go to the desired album/track.
•
i PROG
Program tracks.
•
j SHUFFLE
Play in random order.
•
k DISPLAY
Show current status.
•
For pictures, select slide show mode.•

l SYSTEM MENU
Display/exit the system menu.
•
m DISC MENU
For DVD, display the root menu.
•
For VCD/SVCD, select PBC ON/OFF.•
n RETURNTITLE
Return to the previous menu.
•
o REPEAT
Play a track repeatedly.
•
p REPEAT A-B
Repeat a specic section within a track/disc.
•
q ANGLE
Selects a different viewing angle of a DVD.
•
r SUBTITLE
Select a subtitle language.
•
s
Start play
•
t
Stop play.•
u OK
Conrm a selection.
•
v ZOOM+/-
Zoom into or out of an image.
•

3 Get started
Caution
Use of controls or adjustments or performance of•
procedures other than herein may result in hazardous
radiation exposure or other unsafe operation.
Always follow the instructions in this chapter in sequence.
If you contact Philips, you will be asked for the model and serial
number of this apparatus.The model number and serial number are
on the bottom of the apparatus.Write the numbers here:
Model No. __________________________
Serial No. ___________________________
Install remote control batteries
Caution
Risk of explosion! Keep batteries away from•
heat, sunshine or re. Never discard batteries
in re.
Risk of decreased battery life! Never mix•
different brands or types of batteries.
Risk of product damage! When the remote
•
control is not used for long periods, remove the
batteries.

1 Open the battery compartment.
2 Insert 2 AA batteries with correct polarity (+/-) as
indicated.
3 Close the battery compartment.
Connect TV
1 Connect the black end of the supplied video cable to the
AV OUT socket on this unit.
2 Connect the yellow plug to the VIDEO INPUT socket on
the TV.
3 Connect the red plug to the AUDIO INPUT socket
marked “R”.
4 Connect the white plug to the AUDIO INPUT socket
marked “L”.
3
1
2

Connect power
Caution
Risk of product damage! Ensure that the power•
supply voltage corresponds to the voltage printed on
the bottom of the unit.
The type plate is located on the bottom of the main•
unit.
Before connecting the AC power cord, ensure you•
have completed all other connections.
1 Switch the voltage selector at the bottom of the unit to
the local power line voltage.
2 Connect the AC power cable to:
TV
IN

the main unit.•
the wall socket.•
Turn on
1 Push the source selector on the main unit to
DISC/USB/FM/TAPE.
Turn off
1 Push the source selector on the main unit to OFF.
Find the correct viewing channel
1 Push the source selector to DISC to switch to disc mode.
2 Turn on the TV and switch to the correct video-in channel
in one of the following ways:

Go to the lowest channel on your TV, then press the•
Channel Down button until you see the blue screen.
Press the source button repeatedly on the remote
•
control of your TV.
Tip
The video-in channel is between the lowest and•
highest channels and may be called FRONT, A/V
IN, VIDEO etc. See the TV user manual on how
to select the correct input on the TV.
Select TV system that match the
connected TV
This DVD player is compatible with both NTSC and PAL. For the
playback of a DVD disc on this DVD soundmachine, the color
systems of the TV set and DVD player should match.
1 Press SYSTEM MENU.
2 Select [SYSTEM SETUP] >[TV SYSTEM], and then press
.
3 Press / to select one of the options below and then
press OK.
