1 Important
Safety
Important Safety Instructions
aRead these instructions.
bKeep these instructions.
cHeed all warnings.
dFollow all instructions.
eDo not use this apparatus near water.
fClean only with dry cloth.
gDo not block any ventilation openings. Install in accordance
with the manufacturer’s instructions.
hDo not install near any heat sources such as radiators, heat
registers, stoves, or other apparatus (including ampliers)
that produce heat.
iProtect the power cord from being walked on or pinched,
particularly at plugs, convenience receptacles, and the point
where they exit from the apparatus.
j Only use attachments/accessories specied by the
manufacturer.
kUse only with the cart, stand, tripod, bracket, or table
specied by the manufacturer or sold with the apparatus.
When a cart is used, use caution when moving the cart/
apparatus combination to avoid injury from tip-over.
English
EN

4
lUnplug this apparatus during lightning storms or when
unused for long periods of time.
m Refer all servicing to qualied service personnel. Servicing is
required when the apparatus has been damaged in any way,
such as power-supply cord or plug is damaged, liquid has
been spilled or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture, does not
operate normally, or has been dropped.
nBattery usage CAUTION – To prevent battery leakage
which may result in bodily injury, property damage, or
damage to the unit:
Install all batteries correctly, + and - as marked on the•
unit.
Do not mix batteries (old and new or carbon and•
alkaline, etc.).
Remove batteries when the unit is not used for a long•
time.
The batteries shall not be exposed to excessive heat such•
assunshine,reorthelike.
oApparatus shall not be exposed to dripping or splashing.
pDo not place any sources of danger on the apparatus (e.g.
liquid lled objects, lighted candles).
qThis product may contain lead and mercury. Disposal of
these materials may be regulated due to environmental
considerations. For disposal or recycling information, please
contact your local authorities or the Electronic Industries
Alliance: www.eiae.org.
EN

5
Warning
Never remove the casing of this apparatus.•
Never lubricate any part of this apparatus.•
Never place this apparatus on other electrical equipment.•
Keepthisapparatusawayfromdirectsunlight,nakedamesorheat.•
Never look into the laser beam inside this apparatus.•
Ensure that you always have easy access to the power cord, plug or•
adaptor to disconnect this apparatus from the power.
Where the MAINS plug or an appliance coupler is used as the•
disconnect device, the disconnect device shall remain readily
operable.
Caution
Use of controls or adjustments or performance of procedures other•
than herein may result in hazardous radiation exposure or other
unsafe operation.
Notice
Anychangesormodicationsmadetothisdevicethatarenot
expressly approved by Philips Consumer Lifestyle may void the
user’s authority to operate the equipment.
Recording and playback of material might require consent. See
Copyright Act 1956 and The Performer’s Protection Acts 1958 to
1972.
English
EN

6
Your product is designed and manufactured with high quality
materials and components, which can be recycled and reused.
When this crossed-out wheeled bin symbol is attached to a
product it means that the product is covered by the European
Directive 2002/96/EC.
Please inform yourself about the local separate collection system
for electrical and electronic products.
Please act according to your local rules and do not dispose of
your old products with your normal household waste. Correct
disposal of your old product helps to prevent potential negative
consequences for the environment and human health.
Your product contains batteries covered by the European Directive
2006/66/EC, which cannot be disposed with normal household
waste.Please inform yourself about the local rules on separate
collection of batteries because correct disposal helps to prevent
negative consequences for the environmental and human health.
Environmental information
All unnecessary packaging has been omitted. We have tried
to make the packaging easy to separate into three materials:
cardboard (box), paper pulp (buffer) and polyethylene (bags,
protective foam sheet.)
Your system consists of materials which can be recycled and
reused if disassembled by a specialized company. Please observe
the local regulations regarding the disposal of packaging materials,
exhausted batteries and old equipment.
EN

7
The making of unauthorized copies of copy-protected material,
includingcomputerprograms,les,broadcastsandsound
recordings, may be an infringement of copyrights and constitute
a criminal offence. This equipment should not be used for such
purposes.
This apparatus includes this label:
Windows Media and the Windows logo are trademarks, or
registered trademarks of Microsoft Corporation in the United
States and/or other countries.
Note
The type plate is located on the bottom of the apparatus.•
English
EN

8
2 Your CD Soundmachine
Introduction
With the CD Soundmachine, you can:
play CDs, MP3/wma discs•
playmp3/wmalesonUSBdevices•
listen to FM/MW radio•
program the play sequence of tracks.•
What’s in the box
Check and identify the contents of the package:
Main unit•
AC power cord•
User Manual•
Overview of the main unit
MP3-LINK
n
EN

9
aSource selector: CD,TUNER, USB, OFF.
SelectCD,tuner,orUSBsourceorturnofftheunit•
b
USBsocket.•
cVOL+/-
Adjust volume level•
d
Start or pause play•
eALBUM+/-
For MP3-CDs: skip to the next/previous album in an•
MP3-CD
fLIFT TO OPEN
Open the CD compartment•
gMODE
Select a play mode: REPEAT or SHUFFLE•
hPROG
Program tracks and browse the program•
FM
MW
MHz
KHzx10
CDSOUNDMACHINEAZ1627
ALBUM
PROG MODE
TUNING
LIFTTO OPEN
VOL
CD
TUNERUSB
OFF
m
English
EN

10
i
Stop play•
Erase a program•
j/
Select the previous/next track•
Search backward/forward•
kTUNING+/-
Tune to radio stations•
lFM/MW selector
Select the FM or MW source.•
mTelescopic antenna
Adjust FM reception•
nMP3 LINK
Jack for an external audio device.•
EN

11
3 Get started
Caution
Use of controls or adjustments or performance of procedures other•
than herein may result in hazardous radiation exposure or other
unsafe operation.
Always follow the instructions in this chapter in sequence.
If you contact Philips, you will be asked for the model and serial
number of this apparatus.The model number and serial number are
on the bottom of the apparatus.Write the numbers here:
Model No. __________________________
Serial No. ___________________________
Install batteries
English
EN

12
Note
You can use both batteries and AC power as power supply of this•
apparatus.
Batteriesarenotsuppliedwiththeaccessories.
•

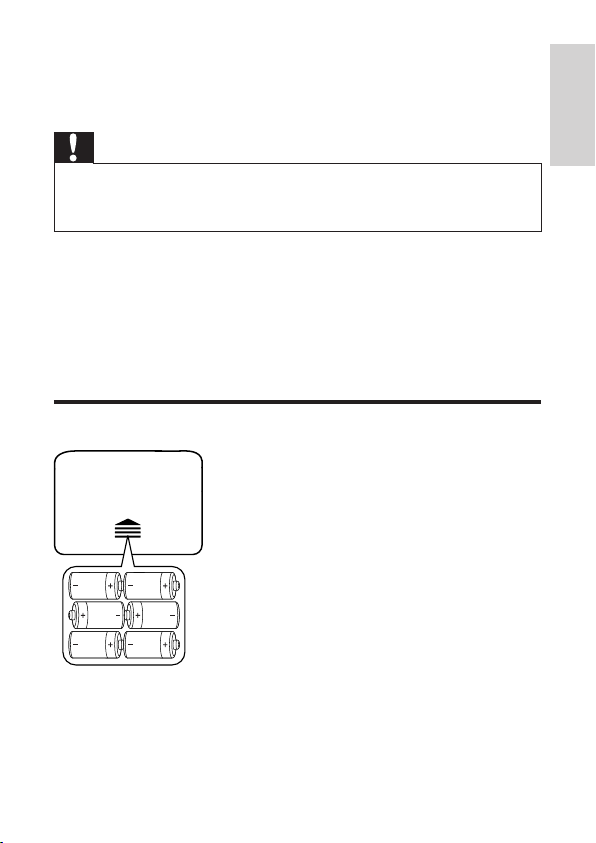

1Open the battery compartment.
2Insert 6 x 1.5V R14/UM-2/C-cell batteries with correct
polarity (+/-) as indicated.
3Close the battery compartment.
Connect AC power
Warning
Risk of product damage! Ensure that the power supply voltage•
corresponds to the voltage printed on the back or the underside of
the apparatus.
Risk of electric shock! When you disconnect the AC power, always
•
pull the plug from the socket. Never pull the cord.
EN

13
Note
Install the apparatus near the power supply socket and where the AC•
power plug can be easily reached.

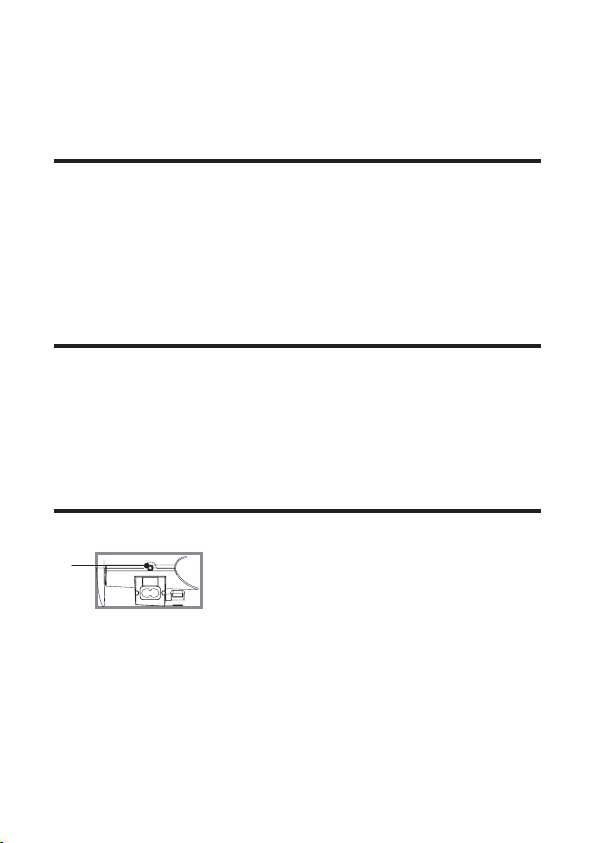

1Connect the power cord to the AC~ MAINS socket on the
apparatus and to the power supply socket.
To switch the apparatus off completely, disconnect the•
power cord from the power supply socket.
Note
To save energy: after use, set the switch to•OFF.
English
EN

14
4 Use your CD
Soundmachine
Play a CD
Note
You cannot play CDs encoded with copyright protection•
technologies.
You can play commercially available audio CDs:
CD-Recordables (CD-R)•
CD-Rewritables (CD-RW)•
MP3-CDs•
WMA-CDs•
1Switch the source selector to CD.
2Lift the lid of the CD compartment.
3Insert a CD with the printed side facing up.
4Close the CD lid gently.
The total number of tracks is displayed.»
5Press to start play.
»[]is displayed.
To stop play, press».
To pause or resume play, press».
Play from USB devices
EN

15
Note
•EnsurethattheUSBdevicecontainsplayableaudiocontentsfor
supported formats.(see‘USBplayabilityinformation’onpage19)
1 InserttheUSBconnectoronthedeviceintothe socket.
2Select USB source.
3Press ALBUM+/- to select a folder.
4Press / toselectale.
5Press to start play.
To stop play, press• .
To pause or resume play, press• .
Select a track
1Press / to select a track.
Select an album
For MP3-CDs only.
1Press ALBUM+/- to select an album.
Find a passage within a track
1Press and hold / .
The CD is played at high speed and with reduced volume.»
2Release / to resume normal play.
English
EN

16
Tip
When search reaches the end of the last track, the CD stops.•
Select play modes
1Press MODE repeatedly to select a play mode:
• [](repeat) – repeat a track
• [ALL] (repeat all) - repeat an entire CD/program
• [] (shufe)-playtracksrandomly
• [](shuferepeatall)-repeatalltracksrandomly.
2To return to normal play, press MODE repeatedly until play
mode icons are no longer displayed.
Tip
Shufeplaycannotbeselectedwhenyouplayprogrammedtracks.•
Program play sequence
You can program up to 20 tracks in the desired sequence.
1In stop mode, press PROG to start to program play
sequence.
»[PROG] and [P01] are displayed.
For MP3-CDs: press»ALBUM+/- to select an album.
2Press / to select a track.
3Press PROG to program the track.
»[PROG] and [P02] are displayed.
4Repeat steps 2 to 4 to select and program all tracks.
EN

17
When all 20 tracks are stored, no more tracks can be»
selected and the display shows [FUL].
5To play program, press .
In stop mode, press and hold• PROG to browse
programmed tracks.
6To delete program, press in stop mode.
»[CLr]is displayed.
Listen to an external device
You can listen to an MP3 player through this apparatus.
Note
When you connect an external device to•MP3 LINK jack, the
apparatus switches to MP3 LINK source automatically.
1Use a cable with 3.5mm plugs on both ends (not supplied) to
connect MP3 LINK jack (3.5mm) on this apparatus and the
headphone jack on an MP3 player.
Listen to radio
1Select TUNER source.
2Switch the FM/MW selector to FM or MW.
3Turn TUNING+/-untilyoundoptimalreception.
Tip
To improve FM reception, you can extend, incline or turn the•
telescopic antenna for best reception.
To improve MW reception, turn the apparatus to face a different
•
direction.
English
EN

18
5 Product information
Note
Product information is subject to change without prior notice.•
Dimensions
(W x H x D)
348 x 127 x 238 mm
Weight 1.7 kg
3.75 pound
Power supply DC 9V 1.5 A
AC 220-240V
Power consumption Active <12 W
Power output 2 x 1 W RMS
Operating temperature
range
-10 °C - 50 °C
14 °F -122 °F
USB playability information
Compatible USB devices:
USBashmemory(USB2.0orUSB1.1)•
USBashplayers(USB2.0orUSB1.1)•
memory cards (requires an additional card reader to•
work with this apparatus)
Supported formats:
USBormemoryleformatFAT12,FAT16,FAT32(sector•
size: 512 bytes)
MP3 bit rate (data rate): 32-320 Kbps and variable bit rate•
EN

19
WMA v9 or earlier•
Directory nesting up to a maximum of 8 levels•
Number of albums/ folders: maximum 99•
Number of tracks/titles: maximum 999•
ID3 tag v2.0 or later•
File name in Unicode UTF8 (maximum length: 128 bytes)•
Unsupported formats:
Empty albums: an empty album is an album that does•
notcontainMP3/WMAles,andisnotbeshowninthe
display.
Unsupportedleformatsareskipped.Forexample,•
Worddocuments(.doc)orMP3leswithextension.dlf
are ignored and not played.
AAC,WAV,PCMaudioles•
DRMprotectedWMAles(.wav,.m4a,.m4p,.mp4,.aac)•
WMAlesinLosslessformat•
English
EN

20
6 Troubleshooting
Troubleshooting
Warning
Never remove the casing of this apparatus.•
To keep the warranty valid, never try to repair the system yourself.
If you encounter problems when using this apparatus, check the
following points before requesting service. If the problem remains
unsolved, go to the Philips web site (www.Philips.com/support), or
contact Philips (see Contact information).When you contact Philips,
ensure that the apparatus is nearby and the model number and
serial number are available.
No power
Ensure that the Mains cord is connected securely.•
Ensure that there is power at the AC Mains.•
Ensure that the batteries are inserted correctly.•
No sound
Adjust the volume.•
Ensure that the track played is of a compatible format.•
Display does not function properly./No reaction to operation of
any of the controls.
1Disconnect the AC power cord.
2Connect the AC power cord after a few seconds.
Cannot play disc
Ensure that the disc label is inserted with the printed side•
facing up.
Wipethediscwithbrecleaningclothfromthecentretothe•
edge in a straight line.
EN
