INTRODUCTION
The Compact Disc system is a major step forward in the sphere
of audio technology. By employing the most sophisticated digital
and optical technologies, Compact Disc not only produces the
ultimate in sound reproduction, it also offers unprecedented ease
of operation, with rapid access to every track on the disc and the
possibility of programming._
CONTENTS Page
INSTALLATION 1
OPERATION 2-5
PROGRAMMING 5-6
FAVOURITE TRACK SELECTION 6-7
OTHER POSSIBILITIES 7-8
ADDITIONAL INFORMATION 9
FAULTS AND THEIR LIKELY CAUSES 9
ILLUSTRATIONS 82
INSTALLATION
CHECKING THE POWER SUPPLY SETTING
• Check that the type plate on the rear of your player indicates the
correct supply voltage.
• If your mains supply voltage is different, consult your dealer or
our Service Organisation.
Important!
Certain versions of this player are equipped with a voltage
selector (e), which enables you to set the player to the correct
mains voltage yourself. When changing the voltage setting from
220/240 V to 110/127 V or vice versa, it is also necessary to
change the mains fuse to one of the correct rating.
Replacing the mains fuse
• Using a screwdriver, remove the mains fuse holder (f).
• Remove the old fuse and replace with a fuse of the correct
rating (800 mA for 110/127 V; 500 mA for 220/240 V).
• Refit the mains fuse holder.
REMOVING THE TRANSIT CLAMPS (Fig. 1-2)
The two red transit clamps on the bottom lockthe play mechanism
to protect it during transportation.
• Turn the player upside down.
• Turn the clamps anti-clockwise and remove them from the
player.
• Store them in the recesses provided.
Replace the clamps if you wish to transport the player. To do this,
turn the player upside down, insert the clamps in the holes
provided and rotate them clockwise until they lock in position.
INSERTING AND REPLACING THE BATTERIES IN THE REMOTE
CONTROL (Fig. 3)
• Open the battery compartment.
• Insert the two batteries according to the diagram in the
compartment.
• Replace the cover.
The life of the batteries is around one year. Remove them when
they are flat or when you are not intending to use the remote
control for some time.
In this way you will prevent damage to the remote control by
possible battery leakage.
For replacement only use batteries of the type R03, UM4 or AAA.
SITING THE COMPACT DISC PLAYER
Free-standing
• Always position the player horizontally on a flat, firm surface.
• Allow a free space of at least 3 cm above the player so as not
to interfere with the cooling of the player.
In an audio rack
• The player can be sited in any desired position.
Stacked
• Site the player preferably at the bottom or at the top.
• Never position the player directly on top of a high-power
amplifier, as such an amplifier gives off a substantial amount of
heat.
Important!
Never allow the player to stand for long periods in direct sunlight
or near a heat source.
CONNECTIONS (Fig. 4)
a Connection for the mains lead
b ANALOGUE OUTPUT:
FIXED (1): for connection to a PHILIPS amplifier or HiFi system
with its own remote control.
VARIABLE (2): For connection to an amplifier or HiFi system
without its own remote control.
• Insert a red plug into the ’R’ socket (right-hand channel) and the
other plug into the ’L’ socket (left-hand channel) of the FIXED
output (b-1) or the VARIABLE output (b-2). In the case of
connection via the VARIABLE output, the sound level can be
adjusted with the ▼ VOLUME ▲ keys on the remote control.
• Insert the two otherplugs into the corresponding sockets of the
CD or AUX input of your amplifier.
You can also use the TUNER orTAPE IN connection, but never
the PHONO input. This is not suitable for Compact Disc
reproduction.
c DIGITAL OUTPUT COAX: for digital signal processing or future
applications such as CD-I. This output supplies a digital signal
and can therefore only be connected to an input which is
suitable for this signal. Use here a lead with one cinch plug on
either end.
Important!
Never connect this socket to a non-digital input of an amplifier,
such as AUX, CD, TAPE, PHONO, etc. This can damage the
amplifier and the loudspeakers.
d REMOTE CONTROL OUT IN: for a remote control system.
Use this connection for:
- Connecting up the equipment when you are incorporating the
player in a PHILIPS HiFi system with its own remote control
system.
- Connecting the remote control receiver EM 2200, available as
an accessory, if the siting of the player prevents its IR REMOTE
eye from receiving the signals from the remote control directly.
e VOLTAGE SELECTOR: see 'Checking the pqwer supply set¬
ting’.
f MAINS FUSE HOLDER: see 'Replacing the mains fuse’.
1

OPERATION

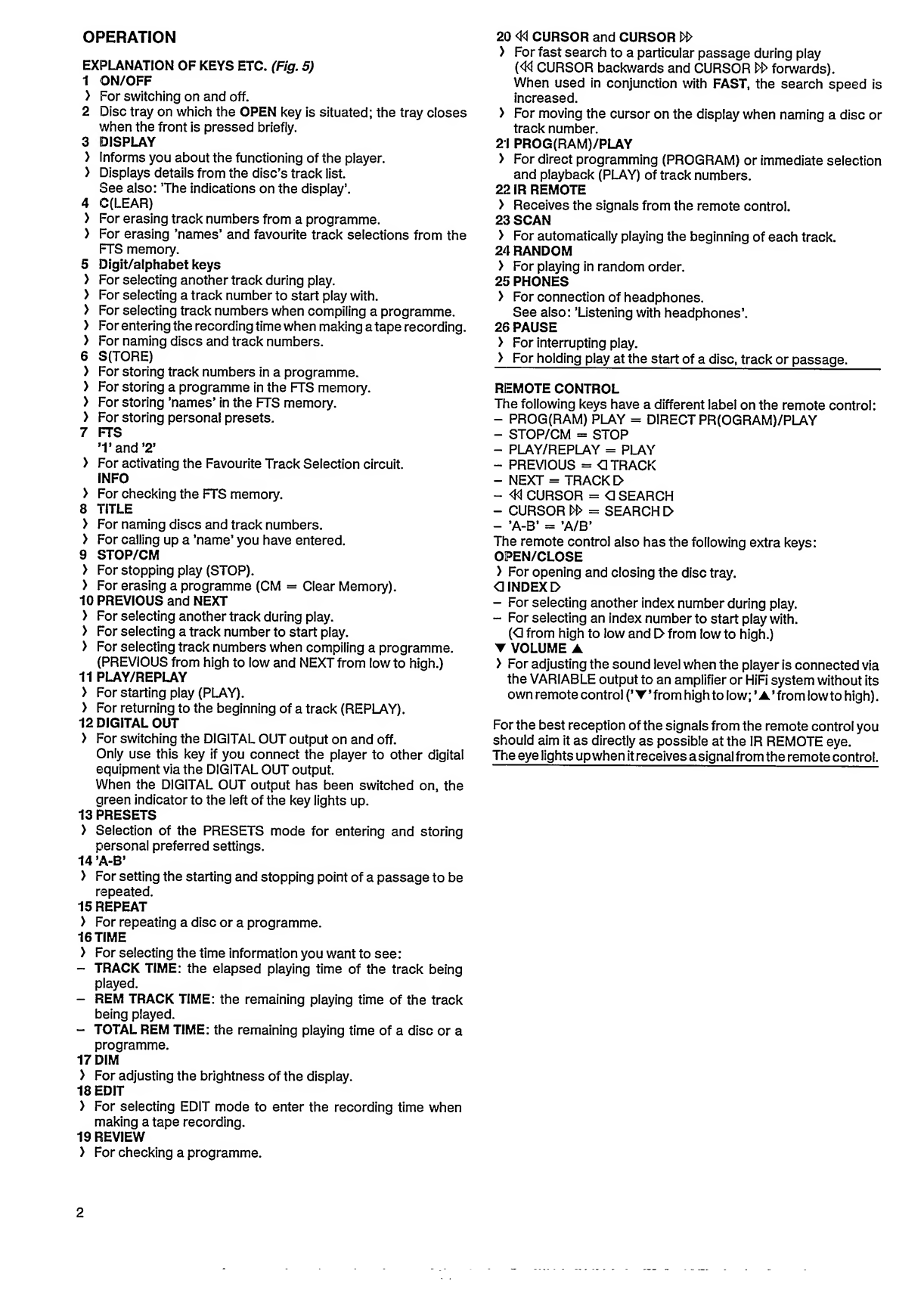

EXPLANATION OF KEYS ETC. (Fig. 5)
1 ON/OFF
> For switching on and off.
2 Disc tray on which the OPEN key is situated; the tray closes
when the front is pressed briefly.
3 DISPLAY
> Informs you about the functioning of the player.
> Displays details from the disc’s track list.
See also: The indications on the display’.
4 C(LEAR)
> For erasing track numbers from a programme.
> For erasing ’names’ and favourite track selections from the
FTS memory.
5 Digit/alphabet keys
> For selecting another track during play.
> For selecting a track number to start play with.
> For selecting track numbers when compiling a programme.
> For entering the recording time when making a tape recording.
> For naming discs and track numbers.
6 S(TORE)
> For storing track numbers in a programme.
> For storing a programme in the FTS memory.
> For storing ’names’ in the FTS memory.
> For storing personal presets.
7 FTS
T and *2’
> For activating the Favourite Track Selection circuit.
INFO
> For checking the FTS memory.
8 TITLE
> For naming discs and track numbers.
> For calling up a ’name’ you have entered.
9 STOP/CM
> For stopping play (STOP).
> For erasing a programme (CM = Clear Memory).
10 PREVIOUS and NEXT
> For selecting another track during play.
> For selecting a track number to start play.
> For selecting track numbers when compiling a programme.
(PREVIOUS from high to low and NEXT from low to high.)
11 PLAY/REPLAY
> For starting play (PLAY).
> For returning to the beginning of a track (REPLAY).
12 DIGITAL OUT
> For switching the DIGITAL OUT output on and off.
Only use this key if you connect the player to other digital
equipment via the DIGITAL OUT output.
When the DIGITAL OUT output has been switched on, the
green indicator to the left of the key lights up.
13 PRESETS
> Selection of the PRESETS mode for entering and storing
personal preferred settings.
14 ’A-B*
> For setting the starting and stopping point of a passage to be
repeated.
15 REPEAT
> For repeating a disc or a programme.
16 TIME
> For selecting the time information you want to see:
- TRACK TIME: the elapsed playing time of the track being
played.
- REM TRACK TIME: the remaining playing time of the track
being played.
- TOTAL REM TIME: the remaining playing time of a disc or a
programme.
17 DIM
> For adjusting the brightness of the display.
18 EDIT
> For selecting EDIT mode to enter the recording time when
making a tape recording.
19 REVIEW
> For checking a programme.
20 «! CURSOR and CURSOR W
> For fast search to a particular passage during play
(<M CURSOR backwards and CURSOR N> forwards).
When used in conjunction with FAST, the search speed is
increased.
> For moving the cursor on the display when naming a disc or
track number.
21 PROG(RAM)/PLAY
> For direct programming (PROGRAM) or immediate selection
and playback (PLAY) of track numbers.
22IR REMOTE
> Receives the signals from the remote control.
23 SCAN
> For automatically playing the beginning of each track.
24 RANDOM
> For playing in random order.
25 PHONES
> For connection of headphones.
See also: ’Listening with headphones’.
26 PAUSE
> For interrupting play.
> For holding play at the start of a disc, track or passage.
REMOTE CONTROL
The following keys have a different label on the remote control:
- PROG(RAM) PLAY = DIRECT PR(OGRAM)/PLAY
- STOP/CM = STOP
- PLAY/REPLAY = PLAY
- PREVIOUS = <3 TRACK
_ NEXT = TRACK O
- <N CURSOR = d SEARCH
- CURSOR » = SEARCH O
- ’A-B’ = ’A/B’
The remote control also has the following extra keys:
OPEN/CLOSE
> For opening and closing the disc tray.
d INDEX D
- For selecting another index number during play.
- For selecting an index number to start play with.
(d from high to low and O from low to high.)
T VOLUME A
> For adjusting the sound level when the player is connected via
the VARIABLE output to an amplifier or HiFi system without its
own remote control (’ ▼ ’ f romhighto low; ’A’fromlowtohigh).
For the best reception of the signals from the remote control you
should aim it as directly as possible at the IR REMOTE eye.
The eye lights up when it receives a signal from the remote control.
2

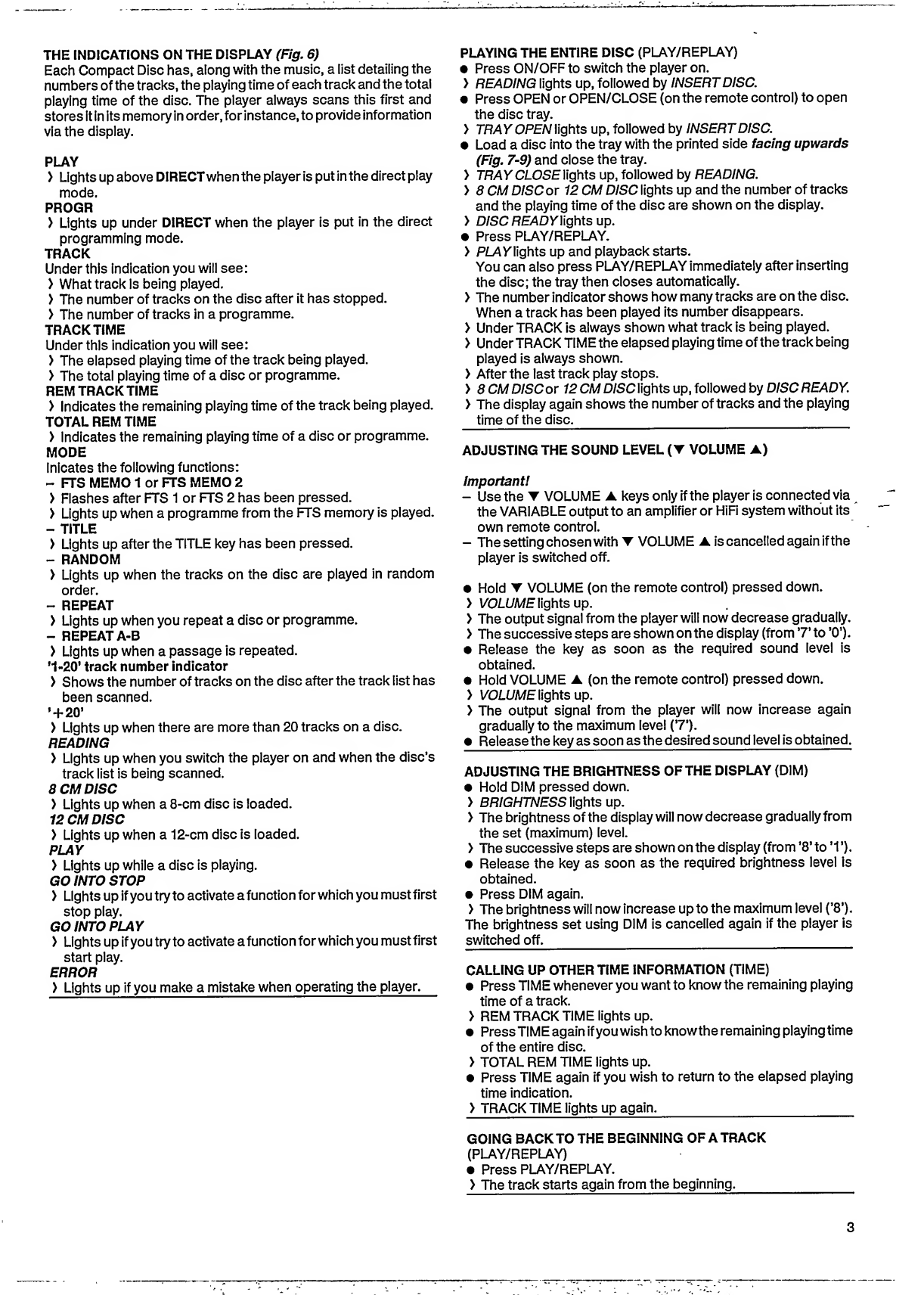

THE INDICATIONS ON THE DISPLAY (Fig. 6)
Each Compact Disc has, along with the music, a list detailing the
numbers of the tracks, the playing time of each track and the total
playing time of the disc. The player always scans this first and
stores it in its memory in order, for instance, to provide information
via the display.
PLAY
> Lights up above DIRECT when the player is put in the direct play
mode.
PROGR
> Lights up under DIRECT when the player is put in the direct
programming mode.
TRACK
Under this indication you will see:
> What track is being played.
> The number of tracks on the disc after it has stopped.
> The number of tracks in a programme.
TRACK TIME
Under this indication you will see:
> The elapsed playing time of the track being played.
> The total playing time of a disc or programme.
REM TRACK TIME
> Indicates the remaining playing time of the track being played.
TOTAL REM TIME
> Indicates the remaining playing time of a disc or programme.
MODE
Inicates the following functions:
- FTS MEM01 or FTS MEMO 2
> Flashes after FTS 1 or FTS 2 has been pressed.
> Lights up when a programme from the FTS memory is played.
- TITLE
> Lights up after the TITLE key has been pressed.
- RANDOM
> Lights up when the tracks on the disc are played in random
order.
- REPEAT
> Lights up when you repeat a disc or programme.
- REPEAT A-B
> Lights up when a passage is repeated.
’1-20’ track number indicator
> Shows the number of tracks on the disc after the track list has
been scanned.
’+20’
> Lights up when there are more than 20 tracks on a disc.
READING
> Lights up when you switch the player on and when the disc’s
track list is being scanned.
8 CM DISC
> Lights up when a 8-cm disc is loaded.
12 CM DISC
> Lights up when a 12-cm disc is loaded.
PLAY
> Lights up while a disc is playing.
GO INTO STOP
> Lights up if you try to activate a function for which you must first
stop play.
GO INTO PLAY
> Lights up if you try to activate a function for which you mustfirst
start play.
ERROR
> Lights up if you make a mistake when operating the player.
PLAYING THE ENTIRE DISC (PLAY/REPLAY)
• Press ON/OFF to switch the player on.
> READING lights up, followed by INSERT DISC.
• Press OPEN or OPEN/CLOSE (on the remote control) to open
the disc tray.
> TRAY OPEN lights up, followed by INSERT DISC.
• Load a disc into the tray with the printed side facing upwards
(Fig. 7-9) and close the tray.
> TRAY CLOSE lights up, followed by READING.
> 8 CM DISC or 12 CM DISC lights up and the number of tracks
and the playing time of the disc are shown on the display.
> DISC READY lights up.
• Press PLAY/REPLAY.
> PM/lights up and playback starts.
You can also press PLAY/REPLAY immediately after inserting
the disc; the tray then closes automatically.
> The number indicator shows how many tracks are on the disc.
When a track has been played its number disappears.
> Under TRACK is always shown what track is being played.
> Under TRACK TIME the elapsed playing time of the track being
played is always shown.
> After the last track play stops.
> 8 CM DISCor 12 CM DISC lights up, followed by DISC READY.
> The display again shows the number of tracks and the playing
time of the disc. _
ADJUSTING THE SOUND LEVEL (T VOLUME A)
Important!
- Use the ▼ VOLUME A keys only if the player is connected via
the VARIABLE output to an amplifier or HiFi system without its
own remote control.
- The setting chosen with ▼ VOLUME A is cancelled again if the
player is switched off.
• Hold ▼ VOLUME (on the remote control) pressed down.
> VOLUME lights up.
> The output signal from the player will now decrease gradually.
> The successive steps are shown on the display (from 7’to ’O’).
• Release the key as soon as the required sound level is
obtained.
• Hold VOLUME A (on the remote control) pressed down.
> VOLUME lights up.
> The output signal from the player will now increase again
gradually to the maximum level (T).
• Release the key as soon as the desired sound level is obtained.
ADJUSTING THE BRIGHTNESS OF THE DISPLAY (DIM)
• Hold DIM pressed down.
> BRIGHTNESS lights up.
> The brightness of the display will now decrease gradually from
the set (maximum) level.
> The successive steps are shown on the display (from ’8’ to '1 ’).
• Release the key as soon as the required brightness level is
obtained.
• Press DIM again.
> The brightness will now increase up to the maximum level (’8’).
The brightness set using DIM is cancelled again if the player is
switched off. _
CALLING UP OTHER TIME INFORMATION (TIME)
• Press TIME whenever you want to know the remaining playing
time of a track.
> REM TRACK TIME lights up.
• Press TIME again ifyouwish to knowthe remaining playing time
of the entire disc.
> TOTAL REM TIME lights up.
• Press TIME again if you wish to return to the elapsed playing
time indication.
> TRACK TIME lights up again. _
GOING BACK TO THE BEGINNING OF A TRACK
(PLAY/REPLAY)
• Press PLAY/REPLAY.
> The track starts again from the beginning._

SELECTING ANOTHER TRACK DURING PLAY
( # 1 - 0\ NEXT or PREVIOUS)
• Put the player in the direct play mode using PROGRAM/PLAY.
> PLAY lights up above DIRECT.
• Key in the desired number (numbers consisting of two figures
must be keyed in within 2 seconds) or press NEXT or
PREVIOUS until the number appears under TRACK.
> The music stops and a moment later the selected track begins
to play.
DISC END will light up if you press NEXT while playing the last
track.
DISCBEGINw\\\ light up if you press PREVIOUS while playing the
first track.
WRONG TRACK will light up if you select a non-existent number
with the ’1-0’ digit keys._
SELECTING ANOTHER INDEX NUMBER DURING PLAY
(<3 INDEX D)
Important!
Index numbers are not indicated specifically on the display. If the
parts of a track have index numbers, this will be specified in the
track list in the disc holder.
• Press INDEX D or <3 INDEX until the required index number
appears under INDEX.
> The music stops and a moment later the selected index number
begins to play.
If the index number selected does not exist, play will start again at
the beginning of the current index number.
SEARCHING FOR A PARTICULAR PASSAGE DURING PLAY
(<M CURSOR and CURSOR M>)
• Hold 44 CURSOR down to search backwards to the beginning.
• Hold CURSOR W> down to search forwards to the end.
As soon as the key is released play restarts at once. As soon as
you reach the beginning of the first track, a ’P’ appears on the
display; then, following a two-second pause, DISC BEGIN lights
up and play will resume there as soon as you release the key. If you
reach the end of the last track, DISC END will light up. If youthen
release the key, play will resume a few seconds before the end of
the disc.
At this search speed sound is audible.
FAST SEARCH FOR A PASSAGE
(FAST and <M CURSOR or CURSOR i»)
• Press FAST.
> FAST lights up.
• Now press 44 CURSOR or CURSOR W> within 2 seconds.
• Hold the key down; if you release the key briefly, searching will
resume at the lowest speed.
At this search speed no sound is audible.
SCANNING A DISC (SCAN)
• Press SCAN before or during play.
> SCANNING lights up.
> If the tray was open, it will now close.
> The first 20 seconds of each track are played in turn.
• When the player reaches a track which you wish to hear in full,
press PLAY/REPLAY.
• Press SCAN again to end the scanning.
> SCANNING then goes out and play continues as normal.
During scanning the digit keys ’1-0’, NEXT and PREVIOUS can be
used.
If you only wish to hear the first 10 seconds:
• Press FAST and then SCAN.
> FAST SCAN lights up.
> The first 10 seconds of each track are played in turn.
• When the player reaches a track which you wish to hear in full,
press PLAY/REPLAY.
• Press SCAN again to end the scanning.
> FAST SCAN then goes out and play continues as normal.
BEGINNING WITH A PARTICULAR TRACK NUMBER
With the digit keys ’1-0*
«> Put the player in the direct play mode using PROGRAM/PLAY.
> PLAY lights up above DIRECT.
«> Key in the required number (numbers consisting of two figures
must be keyed in within 2 seconds).
> The number appears under TRACK.
> On the number indicator the selected track number and those
following it light up.
> PMYlights up and play starts from the selected track.
WRONG TRACK lights up if you select a non-existent number.
With NEXT or PREVIOUS
• Press NEXT or PREVIOUS until the required number appears
underTRACK. If you wish to begin with the highest number, you
must still press PREVIOUS once.
• Press PLAY/REPLAY within 7seconds.
} On the number indicator the selected track number and those
following it light up.
> PMYlights up and play starts from the selected track. _
BEGINNING WITH A PARTICULAR INDEX NUMBER
(<3 INDEX [> and PLAY/REPLAY)
important!
Before selecting an index number you must first select a track
number. If you select the track number with the digit keys '1-0\
then no more than 2 seconds may elapse between the pressing
of the different keys. If you select the track number with NEXT or
PREVIOUS, then no more than 7 seconds may elapse between
the pressing of the different keys.
• Select the track number you wish to start with.
> Then press INDEX D or d INDEX until the desired index number
appears on the display.
• Press PLAY/REPLAY.
> PLAY lights up and play starts from the selected index number.
If you select a non-existent index number, playback starts with the
selected track.
PLAYING THE DISC IN RANDOM ORDER (RANDOM)
• Before or during play press RANDOM.
> The RANDOM indication lights up.
> If the tray was open, it will now close.
> All the tracks on the disc are now played in a sequence to be
determined by the player.
> Press RANDOM again if you wish to return to normal play.
If during play you press PREVIOUS you will return to a track which
has already been played. If you press NEXT you are selecting any
one of the following tracks. If you press PREVIOUS during the first
track or NEXT during the last track, ERROR will light up.
By pressing REPEAT you can repeat random-order play. The
player then always begins with the same track, but otherwise
changes the sequence every time the disc is repeated.
The digit keys ’1-0’ cannot be used during random-order play.
4

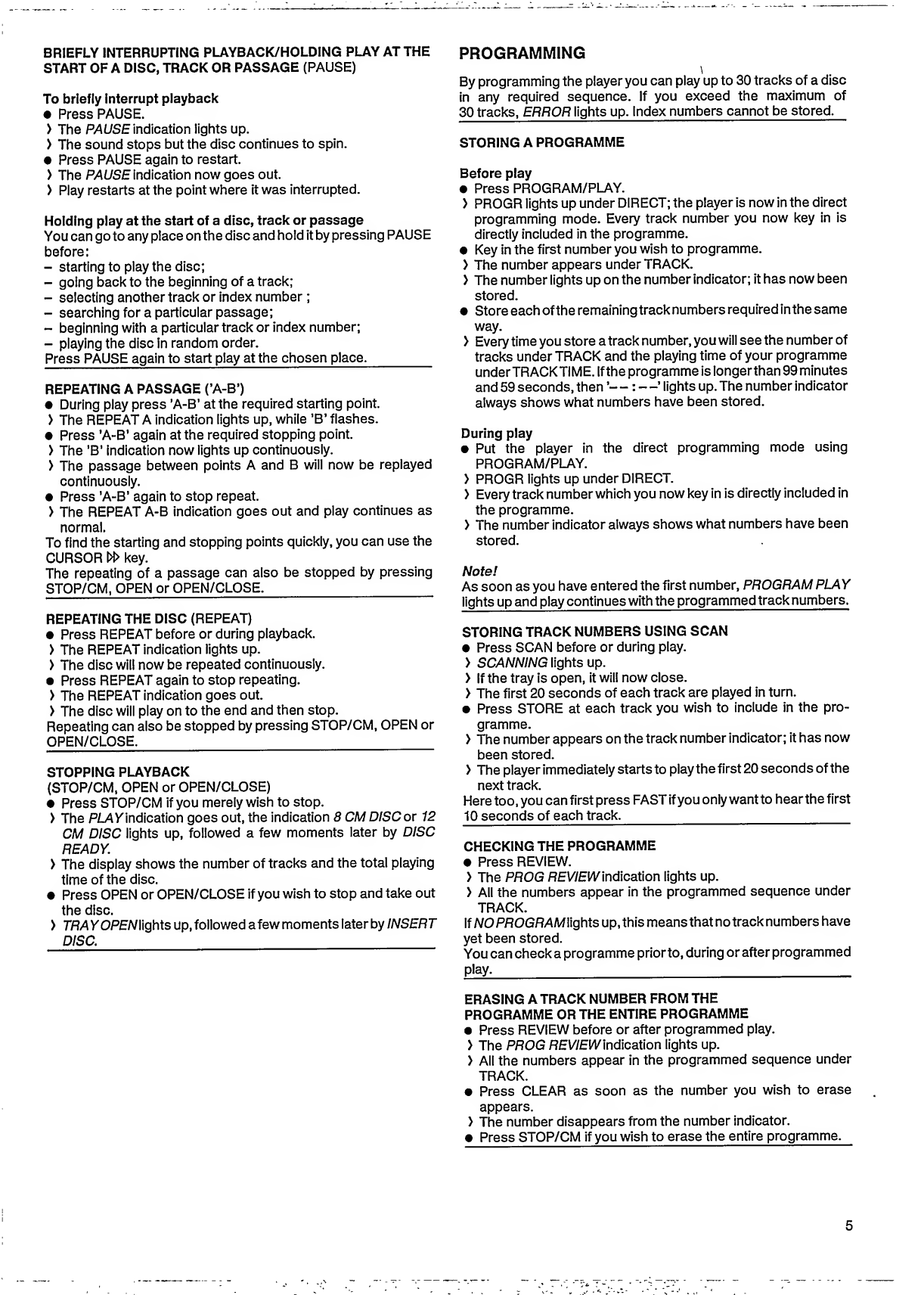

BRIEFLY INTERRUPTING PLAYBACK/HOLDING PLAY AT THE
START OF A DISC, TRACK OR PASSAGE (PAUSE)
To briefly interrupt playback
• Press PAUSE.
> The PAUSE indication lights up.
> The sound stops but the disc continues to spin.
• Press PAUSE again to restart.
> The PAUSE indication now goes out.
> Play restarts at the point where it was interrupted.
Holding play at the start of a disc, track or passage
You can go to any place on the disc and hold it by pressing PAUSE
before:
- starting to play the disc;
- going back to the beginning of a track;
- selecting another track or index number;
- searching for a particular passage;
- beginning with a particular track or index number;
- playing the disc in random order.
Press PAUSE again to start play at the chosen place._
REPEATING A PASSAGE ('A-B’)
• During play press ’A-B’ at the required starting point.
> The REPEAT A indication lights up, while ’B’ flashes.
• Press ’A-B’ again at the required stopping point.
> The ’B’ indication now lights up continuously.
> The passage between points A and B will now be replayed
continuously.
• Press 'A-B' again to stop repeat.
> The REPEAT A-B indication goes out and play continues as
normal.
To find the starting and stopping points quickly, you can use the
CURSOR W> key.
The repeating of a passage can also be stopped by pressing
STOP/CM, OPEN or OPEN/CLOSE._
REPEATING THE DISC (REPEAT)
• Press REPEAT before or during playback.
> The REPEAT indication lights up.
> The disc will now be repeated continuously.
• Press REPEAT again to stop repeating.
> The REPEAT indication goes out.
> The disc will play on to the end and then stop.
Repeating can also be stopped by pressing STOP/CM, OPEN or
OPEN/CLOSE. _
STOPPING PLAYBACK
(STOP/CM, OPEN or OPEN/CLOSE)
• Press STOP/CM if you merely wish to stop.
> The PLA Vindication goes out, the indication 8 CM DISC or 12
CM DISC lights up, followed a few moments later by DISC
READY.
> The display shows the number of tracks and the total playing
time of the disc.
• Press OPEN or OPEN/CLOSE if you wish to stop and take out
the disc.
> TRAYOPENWgMs up, followed afew moments later by INSERT
DISC. _
PROGRAMMING
\
By programming the player you can play up to 30 tracks of a disc
in any required sequence. If you exceed the maximum of
30 tracks, ERROR lights up. Index numbers cannot be stored.
STORING A PROGRAMME
Before play
• Press PROGRAM/PLAY.
> PROGR lights up under DIRECT; the player is now in the direct
programming mode. Every track number you now key in is
directly included in the programme.
• Key in the first number you wish to programme.
> The number appears under TRACK.
> The number lights up on the number indicator; it has now been
stored.
• Store each of the remaining track numbers required in the same
way.
> Every time you store a track number, you will see the number of
tracks under TRACK and the playing time of your programme
underTRACKTIME. If the programme is longerthan 99 minutes
and 59 seconds, then ’—: - lights up. The number indicator
always shows what numbers have been stored.
During play
• Put the player in the direct programming mode using
PROGRAM/PLAY.
> PROGR lights up under DIRECT.
> Every track numberwhich you now key in is directly included in
the programme.
> The number indicator always shows what numbers have been
stored.
Note!
As soon as you have entered the first number, PROGRAM PLAY
lights up and play continues with the programmed track numbers.
STORING TRACK NUMBERS USING SCAN
• Press SCAN before or during play.
> SCANNING lights up.
> If the tray is open, it will now close.
> The first 20 seconds of each track are played in turn.
• Press STORE at each track you wish to include in the pro¬
gramme.
> The number appears on the track number indicator; it has now
been stored.
> The player immediately starts to play the first 20 seconds of the
next track.
Here too, you can first press FAST if you only want to hear the first
10 seconds of each track. _
CHECKING THE PROGRAMME
• Press REVIEW.
> The PROG REWEWindication lights up.
> All the numbers appear in the programmed sequence under
TRACK.
If NO PROGRAMlights up, this means that no track numbers have
yet been stored.
You can check a programme prior to, during or after programmed
Play. __
ERASING A TRACK NUMBER FROM THE
PROGRAMME OR THE ENTIRE PROGRAMME
• Press REVIEW before or after programmed play.
> The PROG REV/EWindication lights up.
> All the numbers appear in the programmed sequence under
TRACK.
• Press CLEAR as soon as the number you wish to erase
appears.
> The number disappears from the number indicator.
• Press STOP/CM if you wish to erase the entire programme.
5

PLAYING THE PROGRAMME
• Press PLAY/REPLAY.
> PROGRAM PLAY lights up and playback starts with the first
number of the programme.
All keys can be used during programmed play. Search for a
particular passage is only possible within the track being played.
As soon as you reach the beginning of the track, BEGIN OF NR
lights up; when you reach the end the track, END OF NR lights up.
As long as the player is in the direct programming mode you can
continue to add to the programme during playback. When
STOP/CM is pressed or when the programme has been played,
the disc stops, but the programme remains stored. The pro¬
gramme will be erased when you open the tray or if you press
STOP/CM twice in succession during playback. _
FAVOURITE TRACK SELECTIONS (FTS)
For each disc you can store two programmes in the player’s
permanent (FTS) memory.
Your favourite track selections of a given disc can then be called
up and played whenever you wish.
The selections will remain stored in the FTS memory even if you
play the entire disc or compile a different programme from it.
The number of discs which can be stored in the FTS memory
depends on the number of tracks in each programme._
STORING A FAVOURITE TRACK SELECTION
• Compile your programme as described inthe PROGRAMMING
section.
• Press FTS 1.
> FTS MEMO 1 starts flashing.
• Press STORE.
> STORED lights up, followed by the ranking number of this
programme.
> The selection is now stored in the FTS 1 memory under this
ranking number.
If you wish to store a further selection from the same disc:
• Press STOP/CM. (If you have stored the first programme
during playback you must press STOP/CM twice.)
• Compile your programme as described inthe PROGRAMMING
section.
• Press FTS 2.
> FTS MEMO 2 starts flashing.
• Press STORE.
> STORED lights up, followed by the ranking number of this
programme.
> The selection is now stored in the FTS 2 memory under this
ranking number.
Note!
- If a selection of a particular disc had already been stored, then
it is automatically erased and the new selection is stored under
the old ranking number.
- If NO SPACE appears after you have pressed STORE, then the
FTS memory is full: you must erase one or more old FTS
programmes to make room to store the new programme.
- If NO PROGRAM appears after you have pressed STORE, then
no programme has been compiled first._
FTS PROGRAMMED PLAY
• Press FTS 1 or FTS 2.
> FTS MEMO 1 or FTS MEMO 2 starts flashing.
• Press PLAY/REPLAY.
> FTS MEMO 1 or FTS MEMO 2 now lights up continuously.
> PROGRAMPLA Ylights up and the chosen selection will now be
played.
If NOTIN FTS f, NOT IN FTS 2 or NO FTS FOUND appears, no
favourite selection has been stored.
• Press STOP/CM twice if you wish to revert to normal play.
All keys can be used while a favourite selection is being played.
Search for a passage is only possible in the track which is being
played. As soon as you reach the beginning of the track, BEGIN
OF NR lights up; when you reach the end the track, END OF NR
lights up.
As long as the player is in the direct programming mode you can
continue to add to the programme during playback._
6

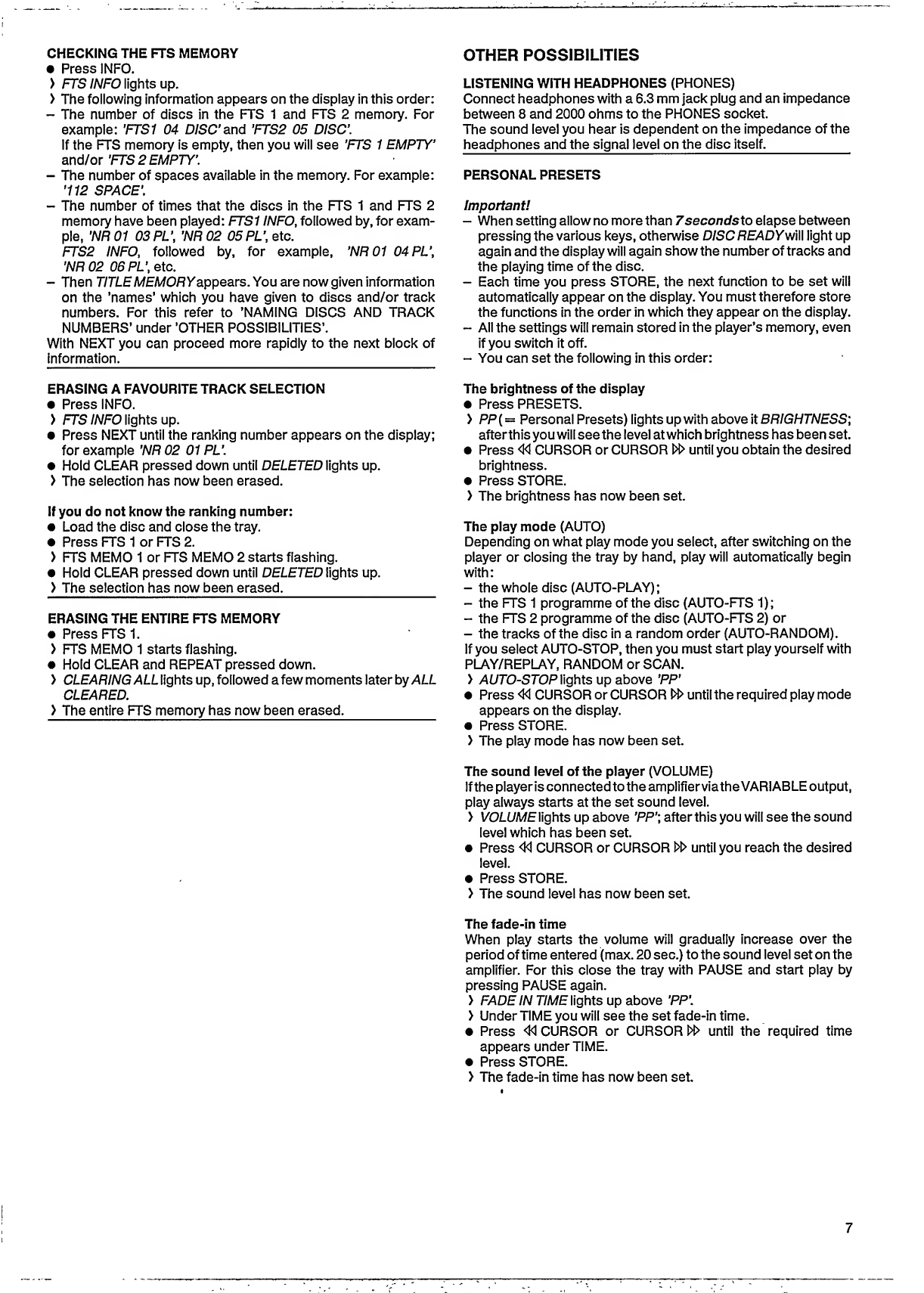

CHECKING THE FTS MEMORY
• Press INFO.
> FTS/A/FO lights up.
> The following information appears on the display in this order:
- The number of discs in the FTS 1 and FTS 2 memory. For
example: 'FTS 1 04 D/SC'and ' FTS2 05 DISC '
If the FTS memory is empty, then you will see 'FTS 1 EMPTY '
and/or 'FTS 2 EMPTY*.
- The number of spaces available in the memory. For example:
’112 SPACE'. ‘
- The number of times that the discs in the FTS 1 and FTS 2
memory have been played: FTS1 INFO , followed by, for exam¬
ple, ’NR 01 03 PL\ ’NR 02 05 PL\ etc.
FTS2 INFO , followed by, for example, ’NR 01 04PL\
’NR 02 06 PL\ etc.
- Then TITLE MEMORY appears. You are now given information
on the ’names' which you have given to discs and/or track
numbers. For this refer to ’NAMING DISCS AND TRACK
NUMBERS’ under ’OTHER POSSIBILITIES’.
With NEXT you can proceed more rapidly to the next block of
information.
ERASING A FAVOURITE TRACK SELECTION
• Press INFO.
> FTS/A/FO lights up.
• Press NEXT until the ranking number appears on the display;
for example ’NR 02 01 PL’.
• Hold CLEAR pressed down until DELETED lights up.
> The selection has now been erased.
If you do not know the ranking number:
• Load the disc and close the tray.
• Press FTS 1 or FTS 2.
> FTS MEMO 1 or FTS MEMO 2 starts flashing.
• Hold CLEAR pressed down until DELETED lights up.
> The selection has now been erased.
ERASING THE ENTIRE FTS MEMORY
• Press FTS 1.
> FTS MEMO 1 starts flashing.
• Hold CLEAR and REPEAT pressed down.
> CLEARING ALL lights up, followed a few moments later by ALL
CLEARED .
> The entire FTS memory has now been erased._
OTHER POSSIBILITIES
LISTENING WITH HEADPHONES (PHONES)
Connect headphones with a 6.3 mm jack plug and an impedance
between 8 and 2000 ohms to the PHONES socket.
The sound level you hear is dependent on the impedance of the
headphones and the signal level on the disc itself._
PERSONAL PRESETS
Important!
- When setting allow no more than 7secondsto elapse between
pressing the various keys, otherwise DISC READYm\\ light up
again and the display will again show the number of tracks and
the playing time of the disc.
- Each time you press STORE, the next function to be set will
automatically appear on the display. You must therefore store
the functions in the order in which they appear on the display.
- All the settings will remain stored in the player’s memory, even
if you switch it off.
- You can set the following in this order:
The brightness of the display
• Press PRESETS.
> PP{ = Personal Presets) lights up with above it BRIGHTNESS ;
after this you will seethe level at which brightness has been set.
• Press <W CURSOR or CURSOR W> until you obtain the desired
brightness.
• Press STORE.
> The brightness has now been set.
The play mode (AUTO)
Depending on what play mode you select, after switching on the
player or closing the tray by hand, play will automatically begin
with:
- the whole disc (AUTO-PLAY);
- the FTS 1 programme of the disc (AUTO-FTS 1);
- the FTS 2 programme of the disc (AUTO-FTS 2) or
- the tracks of the disc in a random order (AUTO-RANDOM).
if you select AUTO-STOP, then you must start play yourself with
PLAY/REPLAY, RANDOM or SCAN.
> AUTO-STOP lights up above VP’
• Press <M CURSOR or CURSOR N> until the required play mode
appears on the display.
• Press STORE.
> The play mode has now been set.
The sound level of the player (VOLUME)
Iftheplayerisconnectedtotheamplifierviathe VARIABLE output,
play always starts at the set sound level.
> VOLUME lights up above 'PP'; after this you will see the sound
level which has been set.
• Press <W CURSOR or CURSOR N> until you reach the desired
level.
• Press STORE.
> The sound level has now been set.
The fade-in time
When play starts the volume will gradually increase over the
period of time entered (max. 20 sec.) to the sound level set on the
amplifier. For this close the tray with PAUSE and start play by
pressing PAUSE again.
> FADE IN TIME lights up above ’PP\
> Under TIME you will see the set fade-in time.
• Press <M CURSOR or CURSORS until the required time
appears under TIME.
• Press STORE.
> The fade-in time has now been set.
7

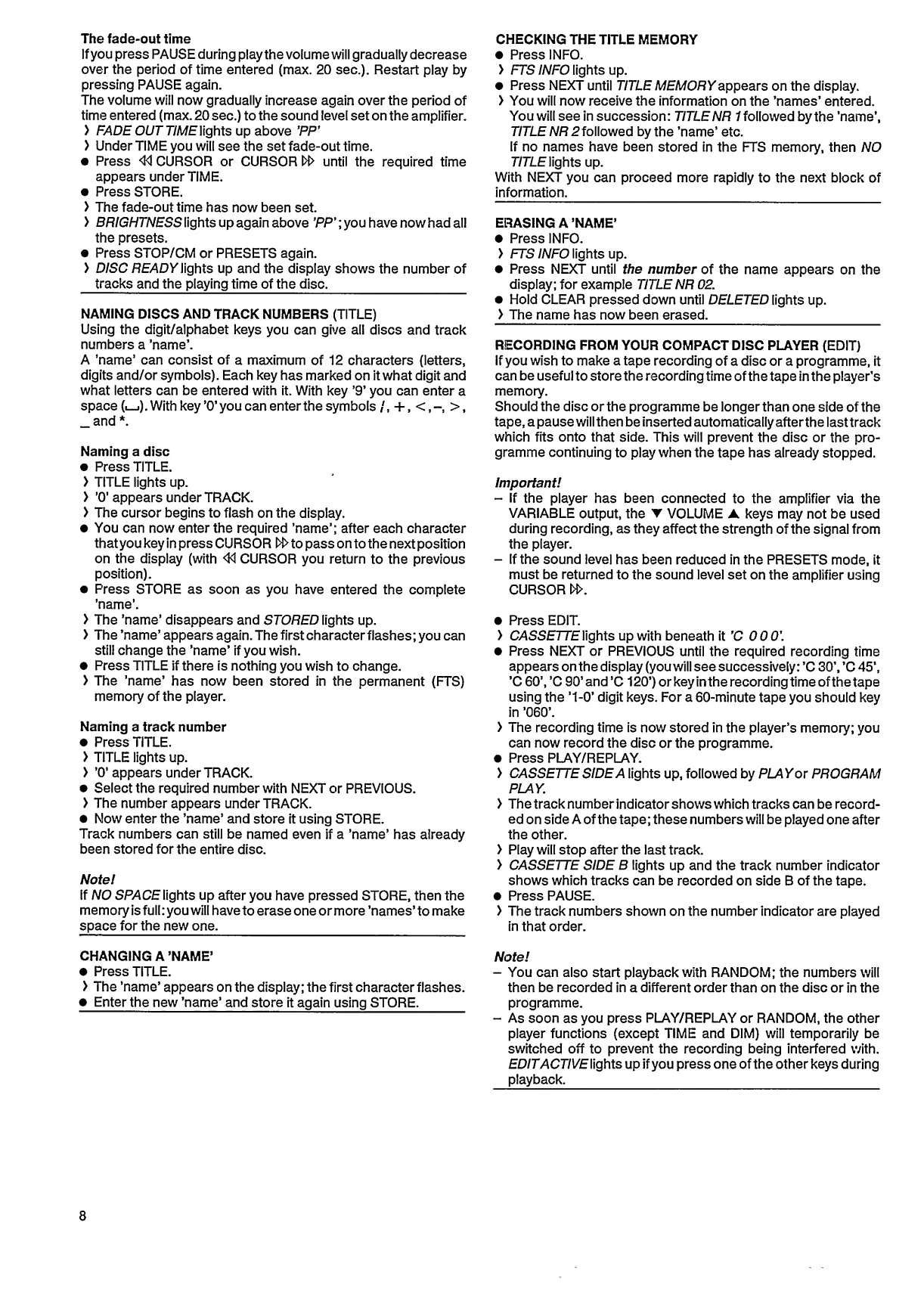

The fade-out time
If you press PAUSE during play the volume will gradually decrease
over the period of time entered (max. 20 sec.). Restart play by
pressing PAUSE again.
The volume will now gradually increase again over the period of
time entered (max. 20 sec.) to the sound level set on the amplifier.
> FADE OUT TIME lights up above ’PP f
> Under TIME you will see the set fade-out time.
• Press CURSOR or CURSOR W> until the required time
appears under TIME.
• Press STORE.
> The fade-out time has now been set.
> BRIGHTNESS lights up again above ’PP f ; you have now had all
the presets.
• Press STOP/CM or PRESETS again.
> DISC READY lights up and the display shows the number of
tracks and the playing time of the disc.
NAMING DISCS AND TRACK NUMBERS (TITLE)
Using the digit/alphabet keys you can give all discs and track
numbers a ’name’.
A ’name’ can consist of a maximum of 12 characters (letters,
digits and/or symbols). Each key has marked on it what digit and
what letters can be entered with it. With key ’9’ you can enter a
space («_»). With key ’0’ you can enter the symbols /, +
_ and *.
Naming a disc
• Press TITLE.
> TITLE lights up.
> ’0’ appears under TRACK.
> The cursor begins to flash on the display.
• You can now enter the required ’name’; after each character
that you key in press CURSOR M> to pass on to the next position
on the display (with <M CURSOR you return to the previous
position).
• Press STORE as soon as you have entered the complete
’name’.
> The ’name’ disappears and STORED lights up.
> The ’name’ appears again. The first character flashes; you can
still change the ’name’ if you wish.
• Press TITLE if there is nothing you wish to change.
> The ’name’ has now been stored in the permanent (FTS)
memory of the player.
Naming a track number
• Press TITLE.
> TITLE lights up.
> ’O’appears under TRACK.
• Select the required number with NEXT or PREVIOUS.
> The number appears under TRACK.
• Now enter the ’name’ and store it using STORE.
Track numbers can still be named even if a ’name’ has already
been stored for the entire disc.
Note!
If NO SPACE lights up after you have pressed STORE, then the
memory is full: you will have to erase one or more ’names’ to make
space for the new one._
CHANGING A ’NAME’
• Press TITLE.
> The ’name’ appears on the display; the first character flashes.
• Enter the new ’name’ and store it again using STORE._
CHECKING THE TITLE MEMORY
• Press INFO.
> FTS INFO lights up.
• Press NEXT until TITLE MEMORY appears on the display.
> You will now receive the information on the ’names’ entered.
You will see in succession: TITLE NR 1 followed by the ’name*,
TITLE A/R 2followed by the ’name’ etc.
If no names have been stored in the FTS memory, then NO
TITLE lights up.
With NEXT you can proceed more rapidly to the next block of
information.
ERASING A ’NAME*
• Press INFO.
> FTS INFO lights up.
• Press NEXT until the number of the name appears on the
display; for example TITLE NR 02 .L
• Hold CLEAR pressed down until DELETED lights up.
> The name has now been erased.
RECORDING FROM YOUR COMPACT DISC PLAYER (EDIT)
If you wish to make a tape recording of a disc or a programme, it
can be useful to store the recording time of the tape in the player’s
memory.
Should the disc or the programme be longer than one side of the
tape, apausewillthen be inserted automatically afterthelasttrack
which fits onto that side. This will prevent the disc or the pro¬
gramme continuing to play when the tape has already stopped.
Important!
- If the player has been connected to the amplifier via the
VARIABLE output, the T VOLUME A keys may not be used
during recording, as they affect the strength of the signal from
the player.
- If the sound level has been reduced in the PRESETS mode, it
must be returned to the sound level set on the amplifier using
CURSOR N>.
• Press EDIT.
> CASSETTE lights up with beneath it *C 000\
• Press NEXT or PREVIOUS until the required recording time
appears on the display (you will see successively: ’C 30’, ’C 45’,
’C 60’, ’C 90’ and *C 120’) or key in the recording time of the tape
using the *1-0’ digit keys. For a 60-minute tape you should key
in ’060’.
> The recording time is now stored in the player’s memory; you
can now record the disc or the programme.
• Press PLAY/REPLAY.
> CASSETTE SIDE A lights up, followed by PLAY or PROGRAM
PLAY.
> The track number indicator shows which tracks can be record¬
ed on side A of the tape; these numbers will be played one after
the other.
> Play will stop after the last track.
> CASSETTE SIDE B lights up and the track number indicator
shows which tracks can be recorded on side B of the tape.
• Press PAUSE.
> The track numbers shown on the number indicator are played
in that order.
Note!
- You can also start playback with RANDOM; the numbers will
then be recorded in a different order than on the disc or in the
programme.
- As soon as you press PLAY/REPLAY or RANDOM, the other
player functions (except TIME and DIM) will temporarily be
switched off to prevent the recording being interfered with.
ED/77\C77l/Elights up if you press one of the other keys during
playback._
8

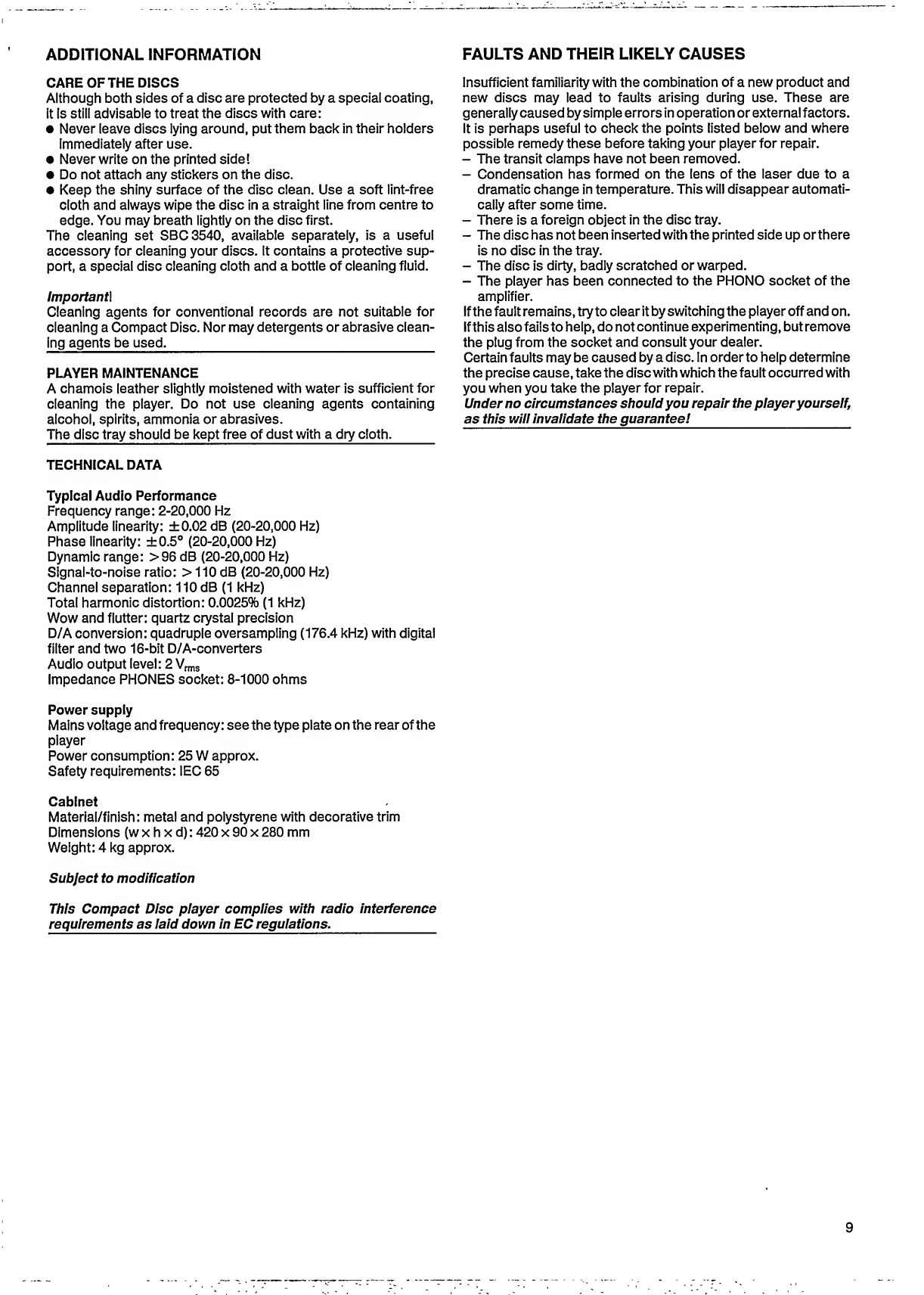

ADDITIONAL INFORMATION
CARE OF THE DISCS
Although both sides of a disc are protected by a special coating,
It is still advisable to treat the discs with care:
• Never leave discs lying around, put them back in their holders
immediately after use.
• Never write on the printed side!
• Do not attach any stickers on the disc.
• Keep the shiny surface of the disc clean. Use a soft lint-free
cloth and always wipe the disc in a straight line from centre to
edge. You may breath lightly on the disc first.
The cleaning set SBC 3540, available separately, is a useful
accessory for cleaning your discs. It contains a protective sup¬
port, a special disc cleaning cloth and a bottle of cleaning fluid.
important !
Cleaning agents for conventional records are not suitable for
cleaning a Compact Disc. Nor may detergents or abrasive clean-
ing agents be used._
PLAYER MAINTENANCE
A chamois leather slightly moistened with water is sufficient for
cleaning the player. Do not use cleaning agents containing
alcohol, spirits, ammonia or abrasives.
The disc tray should be kept free of dust with a dry cloth._
TECHNICAL DATA
Typical Audio Performance
Frequency range: 2-20,000 Hz
Amplitude linearity: ±0.02 dB (20-20,000 Hz)
Phase linearity: ±0.5° (20-20,000 Hz)
Dynamic range: >96 dB (20-20,000 Hz)
Signal-to-noise ratio: > 110 dB (20-20,000 Hz)
Channel separation: 110 dB (1 kHz)
Total harmonic distortion: 0.0025% (1 kHz)
Wow and flutter: quartz crystal precision
D/A conversion: quadruple oversampling (176.4 kHz) with digital
filter and two 16-bit D/A-converters
Audio output level: 2
Impedance PHONES socket: 8-1000 ohms
Power supply
Mains voltage and frequency: see the type plate on the rear of the
player
Power consumption: 25 W approx.
Safety requirements: IEC 65
Cabinet
Material/finish: metal and polystyrene with decorative trim
Dimensions (w x h x d): 420 x 90 x 280 mm
Weight: 4 kg approx.
Subject to modification
This Compact Disc player complies with radio interference
requirements as iaid down in EC regulations. _
FAULTS AND THEIR LIKELY CAUSES
Insufficient familiarity with the combination of a new product and
new discs may lead to faults arising during use. These are
generally caused by simple errors in operation or external factors.
It is perhaps useful to check the points listed below and where
possible remedy these before taking your player for repair.
- The transit clamps have not been removed.
- Condensation has formed on the lens of the laser due to a
dramatic change in temperature. This will disappear automati¬
cally after some time.
- There is a foreign object in the disc tray.
- The disc has not been inserted with the printed side up or there
is no disc in the tray.
- The disc is dirty, badly scratched or warped.
- The player has been connected to the PHONO socket of the
amplifier.
If the fault remains, try to clear it by switching the player off and on.
If this also fails to help, do not continue experimenting, but remove
the plug from the socket and consult your dealer.
Certain faults may be caused by a disc. In order to help determine
the precise cause, take the disc with which the fault occurred with
you when you take the player for repair.
Under no circumstances should you repair the player yourself,
as this will invalidate the guarantee! _
9

32

3104106 96563
Printed in Belgium
889/1
