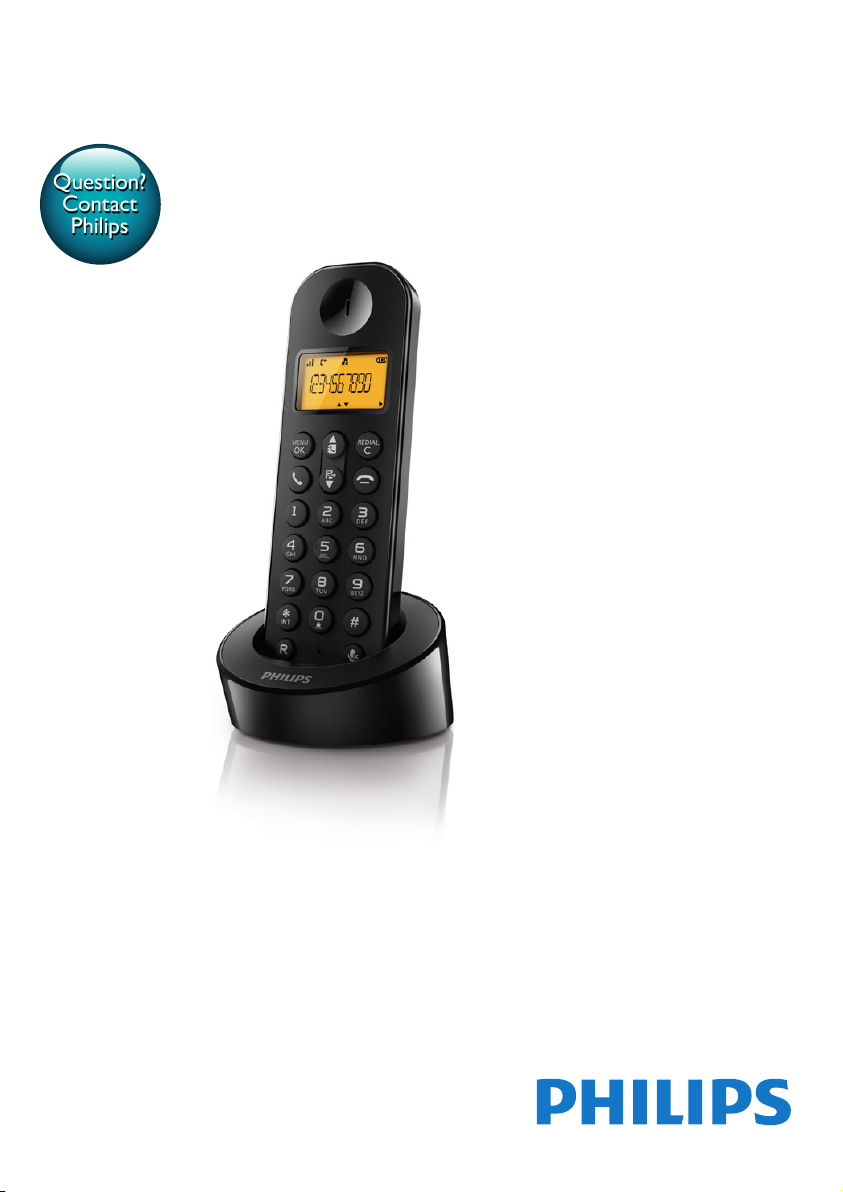

Philips B140 Operator's manual

www.philips.com/support
Always there to help you
Register your product and get support at
Extended user
documentation
Question?
Contact
Philips
B140

1EN
Contents
1 Important safety instructions 3
2 Your phone 4
What is in the box 4
Overview of the phone 4
Overview of the base station 5
Display icons 6
3 Get started 7
Connect the base station 7
Insert the supplied batteries 8
Congure your phone (country
dependent) 8
Charge the handset 9
Check the battery level 9
What is standby mode? 9
Check the signal strength 9
Switch the handset on or off 9
4 Calls 10
Make a call 10
Answer a call 10
End a call 10
Mute the microphone 11
Adjust the earpiece volume 11
Make a second call 11
Answer a second call 11
Switch between two calls 11
Make a conference call with the
external callers 11
5 Intercom and conference calls 12
Make a call to another handset 12
Transfer a call 12
Make a conference call 12
6 Text and numbers 14
Enter text and numbers 14
7 Phonebook 15
View the phonebook 15
Search a record 15
Call from the phonebook 15
Add a record 15
Edit a record 16
Delete a record 16
Delete all records 16
8 Call log 17
View the call records 17
Save a call record to the phonebook 17
Return a call 17
Delete a call record 17
Delete all call records 17
9 Redial list 19
View the redial records 19
Redial a call 19
Save a call record to the phonebook 19
Delete a redial record 19
Delete all redial records 19
10 Phone settings 20
Sound settings 20
Name the handset 20
Set the date and time 20
Set the display language 20
11 Services 22
Auto conference 22
Auto prex 22
Network type 22
Select the recall duration 22
Dial mode 23
Auto clock 23
Register additional handsets 23
Unregister the handsets 23
Restore default settings 24
12 Technical data 25
13 Notice 26
Declaration of conformity 26

2EN
Use GAP standard compliance 26
Compliance with EMF 26
Disposal of your old product and
batteries 26
14 Frequently asked questions 28
15 Appendix 29
Text and number input tables 29

3EN
1 Important safety
instructions
Power requirements
• This product requires an electrical supply
of 100-240 volts AC. In case of power
failure, the communication can be lost.
• The voltage on the network is classied
as TNV-3 (Telecommunication Network
Voltages), as dened in the standard EN
60950.
Warning
• The Electrical network is classied as hazardous. The
only way to power down the charger is to unplug the
power supply from the electrical outlet. Ensure that the
electrical outlet is always easily accessible.
To avoid damage or malfunction
Caution
• Use only the power adapter listed in the user
instructions.
• Use only the batteries listed in the user instructions.
• Do not dispose of batteries in re.
• Do not allow the charging contacts or the battery to
come into contact with metal objects.
• Do not open the handset, base station or charger as
you could be exposed to high voltages.
• Do not allow the product to come into contact with
liquids.
• Risk of explosion if battery is replaced by an incorrect
type.
• Dispose of used batteries according to the instructions.
• Always use the cables provided with the product.
• For pluggable equipment, the socket-outlet shall
be installed near the equipment and shall be easily
accessible.
• This equipment is not designed to make emergency
calls when the power fails.An alternative has to be
made available to allow emergency calls.
• Do not expose the phone to excessive heat caused by
heating equipment or direct sunlight.
• Do not drop your phone or allow objects to fall on
your phone.
• Do not use any cleaning agents containing alcohol,
ammonia, benzene, or abrasives as these may harm
the set.
• Do not use the product in places where there are
explosive hazards.
• Do not let small metal objects come into contact with
the product.This can deteriorate audio quality and
damage the product.
• Active mobile phones in the vicinity may cause
interference.
• Metallic objects may be retained if placed near or on
the handset receiver.
About operating and storage temperatures
• Operate in a place where temperature is
always between 0°C to +35°C (32°F to
95°F).
• Store in a place where temperature is
always between -20°C and +45°C (-4° F
to 113° F).
• Battery life may be shortened in low
temperature conditions.

4EN
2 Your phone
Congratulations on your purchase and welcome
to Philips!
To fully benet from the support that Philips
offers, register your product at www.philips.
com/welcome.
What is in the box
Handset**
Base station
Charger**
Power adapter**
Line cord*
Guarantee
Short user manual
Note
• * In some countries, you have to connect the line
adapter to the line cord, then plug the line cord to the
telephone socket.
• ** In multi-handset packs, there are additional handsets
and chargers and power adapters.
Overview of the phone
4XLFNVWDUWJXLGH
a
d
c
b
g
f
e
h






5EN
a Earpiece
b
• Scroll up on the menu.
• Increase the earpiece volume.
• Access the phonebook.
c REDIAL/C
• Delete text or digits.
• Cancel operation.
• Access the redial list.
d
• End the call.
• Exit the menu/operation.
• Press and hold to switch the handset
on or off.
e
• Press to enter a space during text
editing.
• Press and hold to lock/unlock the
keypad in standby mode.
f #
Press and hold to enter a pause.
g
Mute or unmute the microphone.
h Microphone
i R
Recall key (This function is network
dependent.)
j
n
Set the dial mode (pulse mode or
temporary tone mode).
k
• Scroll down on the menu.
• Decrease the earpiece volume.
• Access the call log.
l
Make and receive calls.
m MENU/OK
• Access the main menu.
• Conrm selection.
• Enter the options menu.
• Select the function displayed on the
handset screen directly above the key.
n Battery door
Overview of the base station
a
• Press to nd handsets.
• Press and hold to enter the registration
mode.
a

6EN
Display icons
In standby mode, the icons shown on the main
screen tell you what features are available on
your handset.
Icon Descriptions
When the handset is off the base
station/charger, the bars indicate the
battery level (from full to low).
When the handset is on the base
station/charger, the bars keep scrolling
until charging is complete.
The empty battery icon ashes and you
hear an alert tone.
The battery is low and needs recharging.
It displays the connection status between
the handset and base station.The more
bars are shown, the better the signal
strength is.
It remains steadily on when browsing
incoming calls in the call log.
It indicates an outgoing call in the redial
list.
It ashes when there is a new missed call
or when browsing new missed calls.
It remains steadily on when browsing the
missed calls in call log that are already
read.
It ashes when receiving incoming call.
It remains steadily on during a call.
The ringer is off.
It ashes when there is a new voice
message.
It remains steadily on when the voice
messages are already viewed in the call
log.
The icon is not shown when there is no
voice message.
/ It is displayed when you scroll up/down a
list/increase and decrease the volume.
There are more digits on the right. Press
REDIAL/C to read.

7EN
3 Get started
Caution
• Make sure that you have read the safety instructions in
the 'Important safety instructions' section before you
connect and install your handset.
Connect the base station
Warning
• Risk of product damage! Ensure that the power supply
voltage corresponds to the voltage printed on the back
or the underside of the phone.
• Use only the supplied power adapter to charge the
batteries.
Note
• If you subscribe to the digital subscriber line (DSL) high
speed internet service through your telephone line,
ensure you install a DSL lter between the telephone
line cord and the power socket. The lter prevents
noise and caller ID problems caused by the DSL
interference. For more information on the DSL lters,
contact your DSL service provider.
• The type plate is located on the bottom of the base
station.
1 Connect each end of the power adapter
to:
• the DC input jack at the back of the
base station;
• the power socket on the wall.
2 Connect each end of the line cord to:
• the telephone socket at the back of
the base station;
• the telephone socket on the wall.
3 Connect each end of the power adapter
to (for multi handset version only):
• the DC input jack at the bottom of the
extra handset charger.
• the power socket on the wall.

8EN
Insert the supplied batteries
Caution
• Risk of explosion! Keep batteries away from heat,
sunshine or re. Never discard batteries in re.
• Use only the supplied batteries.
• Risk of decreased battery life! Never mix different
brands or types of batteries.
Note
• Charge the batteries for 8 hours before rst use.
• If the handset becomes warm when the batteries are
charging, it is normal.
Warning
• Check the battery polarity when inserting in the
battery compartment. Incorrect polarity may damage
the product.
1
2
3
Congure your phone
(country dependent)
1 When using your phone for the rst time,
you see a welcome message.
2 Press MENU/OK.
Set the country/language
Select your country/language, then press
MENU/OK to conrm.
» The country/language setting is saved.
Note
• The country/language setting option is country
dependent. If no welcome message is displayed, it
means the country/language setting is preset for your
country.
To re-set the language, see the following steps.
1 Select MENU/OK > [PHONE SETUP] >
[LANGUAGE], then press MENU/OK to
conrm.
2 Select a language, then press MENU/OK
to conrm.
» The setting is saved.
Set the date and time
1 Press MENU/OK.
2 Select [PHONE SETUP] > [DATE/TIME],
then press MENU/OK to conrm.
3 Press the numeric buttons to enter the
date, then press MENU/OK to conrm.
» The time setting menu is displayed on
the handset.
4 Press the numeric buttons to enter the
time.
• If the time is in 12-hour format, press
/ to select [AM] or [PM].
5 Press MENU/OK to conrm.

9EN
Charge the handset
Place the handset on the base station or the
charging cradle to charge the handset. When
the handset is placed correctly on the base
station, you hear a docking sound.
» The handset starts charging.
Note
• Charge the batteries for 8 hours before rst use.
• If the handset becomes warm when the batteries are
being charged, it is normal.
You can activate or deactivate the docking tone.
Your phone is now ready to use.
Check the battery level
The battery icon displays the current battery
level.
When the handset is off the base
station/charger, the bars indicate
the battery level (full, medium and
low).
When the handset is on the base
station/charger, the bars ash until
charging completes.
The empty battery icon ashes.
The battery is low and needs
recharging.
The handset turns off if the batteries are empty.
If you are on the phone, you hear warning
tones when the batteries are almost empty.The
call gets disconnected after the warning.
What is standby mode?
Your phone is in standby mode when it is idle.
The standby screen displays the handset name
or date and time, and handset number.
Tip
• Press and hold MENU/OK to switch between the
handset name and date and time display.
Check the signal strength
The number of bars indicates
the connection status between
the handset and base station.The
more bars are shown, the better
the connection is.
• Make sure the handset is connected to the
base station before you make or receive
calls and carry out the phone functions
and features.
• If you hear warning tones when you are
on the phone, the handset is almost out
of battery or the handset is out of range.
Charge the battery or move the handset
nearer to the base station.
Switch the handset on or off
Press and hold to switch the handset on or
off.

10 EN
4 Calls
Note
• When the power fails, the phone cannot access
emergency services.
Tip
• Check the signal strength before you make a call or
when you are in a call.
Make a call
You can make a call in these ways:
• Normal call
• Predial call
You can also make a call from the redial list (see
'Redial a call' on page 19), phonebook list (see
'Call from the phonebook' on page 15) and call
log (see 'Return a call' on page 17).
Normal call
1 Press .
2 Dial the phone number.
» The number is dialed out.
» The duration of your current call is
displayed.
Predial call
1 Dial the phone number.
• To erase a digit, press REDIAL/C.
• To enter a pause, press and hold #.
2 Press to dial out the call.
Note
• The talk time of your current call is displayed on the
call timer.
• If you hear warning tones, the phone is almost out of
battery or out of range. Charge the battery or move
the phone close to the base station.
Answer a call
When there is an incoming call, press to
answer the call.
Warning
• When the handset rings , keep the handset away from
your ear to avoid ear damage.
Note
• The caller ID service is available if you have registered
to the caller ID service with your service provider.
Tip
• When there is a missed call, a notication message
appears.
Turn off the ringer for an incoming
call
When the phone rings, press REDIAL/C.
End a call
You can end a call in these ways:
• Press ;
• Place the handset to the base station
or charging cradle.

11EN
Mute the microphone
1 Press during a call.
» The handset displays [MUTE ON].
» The caller cannot hear you, but you
can still hear his voice.
2 Press again to unmute the microphone.
» You can now communicate with the
caller.
Adjust the earpiece volume
Press / to adjust the volume during a call.
» The earpiece volume is adjusted and
the phone is back to the call screen.
Make a second call
Note
• This service is network dependent.
1 Press R during a call.
» The rst call is put on hold.
2 Dial the second number.
» The number displayed on the screen is
dialed out.
Answer a second call
Note
• This service is network dependent.
When there is a periodical beep to notify you
of an incoming call, you can answer the call in
these ways:
1 Press Rand to answer the call.
» The rst call is put on hold, and you
are now connected to the second call.
2 Press Rand to end the current call and
answer the rst call.
Switch between two calls
Note
• This service is network dependent.
Press Rand .
» The current call is put on hold, and you
are now connected to the other call.
Make a conference call with
the external callers
Note
• This service is network dependent. Check with the
service provider for additional charges.
When you are connected to two calls, press R,
then .
» The two calls are combined and a
conference call is established.

12 EN
5 Intercom and
conference calls
An intercom call is a call to another handset
that shares the same base station. A conference
call involves a conversation between you,
another handset user and the outside callers.
Make a call to another
handset
Note
• If the base station only has 2 registered handsets, press
and hold to make a call to another handset.
1 Press and hold .
» For multi-handset versions, the
handsets available for intercom are
displayed, then go to step 2.
» For two-handset versions, the other
handset rings, then go to step 3.
2 Select a handset number, then press
MENU/OK to conrm.
» The selected handset rings.
3 Press on the selected handset.
» The intercom is established.
4 Press REDIAL/C or to cancel or end
the intercom call.
While you are on the phone
You can go from one handset to another during
a call:
1 Press and hold .
» The current caller is put on hold.
» For multi-handset versions, the
handsets available for intercom are
displayed, then go to step 2.
2 Select a handset number, then press
MENU/OK to conrm.
» Wait for the other side to answer your
call.
Switch between calls
Press and hold to switch between the outside
call and the intercom call.
Transfer a call
Note
• If the base station only has 2 registered handsets, press
and hold to transfer a call to another handset.
1 Press and hold during a call.
» For multi-handset versions, the
handsets available for intercom are
displayed, then go to step 2.
» For two-handset versions, the other
handset rings, then go to step 3.
2 Select a handset number, then press
MENU/OK to conrm.
3 Press when the other side answers
your call.
» The call is now transferred to the
selected handset.
Make a conference call
A 3-way conference call is between you,
another handset user and the outside callers. It
requires two handsets to share the same base
station.
During an external call
1 Press and hold to initiate an internal call.
» The external caller is put on hold.

13EN
» For multi-handset versions, the
handsets available for intercom are
displayed, then go to step 2.
» For two-handset versions, the other
handset rings, then go to step 3.
2 Select or enter a handset number, then
press MENU/OK to conrm.
» The selected handset rings.
3 Press on the selected handset.
» The intercom is established.
4 Press MENU/OK .
» You are now in a 3-way conference
call with an external call and a selected
handset.
5 Press to end the conference call.
Note
• Press to join an ongoing conference with another
handset if [SERVICES] > [CONFERENCE] is set to
[AUTO].
During the conference call
1 Press and hold to put the external call
on hold and go back to the internal call.
» The external call is put on hold.
2 Press and hold again to establish the
conference call again.
Note
• If a handset hangs up during the conference call, the
other handset remains connected to the external call.

14 EN
6 Text and
numbers
You can enter text and numbers for handset
name, phonebook records, and other menu
items.
Enter text and numbers
1 Press once or several times on the
alphanumeric key to enter the selected
character.
2 Press REDIAL/C to delete a character.
Press and hold REDIAL/C to delete all
characters. Press and to move the
cursor left and right.
3 Press to add a space.
Note
• For information on key mapping of characters and
numbers, see the chapter 'Appendix'.

15EN
7 Phonebook
This phone has a phonebook that stores up to
50 records.You can access the phonebook from
the handset. Each record can have a name up
to 12 characters long and a number up to 24
digits long.
View the phonebook
Note
• You can view the phonebook on one handset only
each time.
1 Press or press MENU/OK >
[PHONEBOOK] > [VIEW] to access the
phonebook list.
2 Select a contact and view the available
information.
Search a record
You can search the phonebook records in these
ways:
• Scroll the contacts list.
• Enter the rst character of the contact.
Scroll the contact list
1 Press or press MENU/OK >
[PHONEBOOK] > [VIEW] to access the
phonebook list.
2 Press and to scroll through the
phonebook list.
Enter the rst character of a contact
1 Press or press MENU/OK >
[PHONEBOOK] > [VIEW] to access the
phonebook list.
2 Press the alphanumerical key that matches
the character.
» The rst record that starts with this
character is displayed.
Call from the phonebook
1 Press or press MENU/OK >
[PHONEBOOK] > [VIEW] to access the
phonebook list.
2 Select a contact in the phonebook list.
3 Press to make the call.
Add a record
Note
• If your phonebook memory is full, the handset displays
a notication message. Delete some records to add
new ones.
• The phonebook overwrites the old number with the
new number.
1 Press MENU/OK.
2 Select [PHONEBOOK] > [ADD NEW],
then press MENU/OK to conrm.
3 Enter the name, then press MENU/OK to
conrm.
4 Enter the number, then press MENU/OK
to conrm
» Your new record is saved.
Tip
• Press and hold #to insert a pause.
• Press once or several times on the alphanumeric key to
enter the selected character.
• Press REDIAL/C to delete the character. Press /
to move the cursor left and right.

16 EN
Edit a record
1 Press MENU/OK.
2 Select [PHONEBOOK] > [EDIT], then
press MENU/OK to conrm.
3 Select a contact, then press MENU/OK to
conrm.
4 Edit the name, then press MENU/OK to
conrm.
5 Edit the number, then press MENU/OK to
conrm.
» The record is saved.
Delete a record
1 Press MENU/OK.
2 Select [PHONEBOOK] > [DELETE], then
press MENU/OK to conrm.
3 Select a contact, then press MENU/OK to
conrm.
» A conrmation request is displayed on
the handset.
4 Press MENU/OK to conrm.
» The record is deleted.
Delete all records
Press MENU/OK.
1 Select [PHONEBOOK] > [DELETE ALL],
press MENU/OK to conrm.
» A conrmation request is displayed on
the handset.
2 Press MENU/OK to conrm.
» All records are deleted.

17EN
8 Call log
The call log stores the call history of all missed
or received calls. The incoming call history
includes the name and number of the caller,
call time and date.This feature is available if you
have registered to the caller ID service with
your service provider.
Your phone can store up to 20 call records.The
call log icon on the handset ashes to remind
you of any unanswered calls. If the caller allows
the display of his identity, you can view his
name or number.The call records are displayed
in chronological order with the most recent
received call at the top of the list.
Note
• Make sure that the number in the call list is valid before
you can call back directly from the call list.
The icons shown on the screen tell you
whether they are missed/received calls.
Icons Description
It ashes when there is a new missed
call or when browsing new missed calls.
It remains steadily on when browsing
the missed calls in call log that are
already read.
View the call records
1 Press .
» The incoming call log is displayed.
2 Select a record, then press MENU/OK
and select [VIEW] for more available
information.
Save a call record to the
phonebook
1 Press .
» The incoming call log is displayed.
2 Select a record, then press MENU/OK to
conrm.
3 Select [SAVE NUMBER], then press
MENU/OK to conrm.
4 Enter and edit the name, then press
MENU/OK to conrm.
5 Enter and edit the number, then press
MENU/OK to conrm.
» The record is saved.
Return a call
1 Press .
2 Select a record on the list.
3 Press to make the call.
Delete a call record
1 Press .
» The incoming call log is displayed.
2 Select a record, then press MENU/OK to
conrm.
3 Select [DELETE], then press MENU/OK
to conrm.
» A conrmation request is displayed on
the handset.
4 Press MENU/OK to conrm.
» The record is deleted.
Delete all call records
1 Press .

18 EN
» The incoming call log is displayed.
2 Press MENU/OK to enter the options
menu.
3 Select [DELETE ALL], then press MENU/
OK to conrm.
» A conrmation request is displayed on
the handset.
4 Press MENU/OK to conrm.
» All records are deleted.
