Philips DS8550 User manual

© 2011 Koninklijke Philips Electronics N.V.
All rights reserved.
DS8550_79_UM_V1.0

Register your product and get support at
www.philips.com/welcome
EN User manual
DS8550

3
English
EN
Contents
1 Important 4
Safety 4
Notice 6
2 Your Docking Speaker 8
Introduction 8
What’s in the box 8
Overview of the main unit 9
Overview of the remote control 10
3 Get started 11
Prepare the remote control 11
Connect power 12
Turn on 14
4 Play 15
Play from iPod/iPhone/iPad 15
Play from Bluetooth device 16
Play from an external device 17
Adjust volume level 18
Mute sound 18
5 Product information 18
Specifications 18
6 Troubleshooting 19
About Bluetooth device 19

4
1 Important
Safety
Important Safety Instructions
aRead these instructions.
bKeep these instructions.
cHeed all warnings.
dFollow all instructions.
eDo not use this apparatus near water.
fClean only with dry cloth.
gDo not block any ventilation openings. Install in accordance with
the manufacturer’s instructions.
hDo not install near any heat sources such as radiators, heat

produce heat.
iProtect the power cord from being walked on or pinched,
particularly at plugs, convenience receptacles, and the point where
they exit from the apparatus.
j 
k !
the manufacturer or sold with the apparatus. When a cart is used,
use caution when moving the cart/apparatus combination to avoid
injury from tip-over.
lUnplug this apparatus during lightning storms or when unused for
long periods of time.
EN

5
m "#$
required when the apparatus has been damaged in any way, such
as power-supply cord or plug is damaged, liquid has been spilled
or objects have fallen into the apparatus, the apparatus has been
exposed to rain or moisture, does not operate normally, or has
been dropped.
nBattery usage CAUTION – To prevent battery leakage which may
result in bodily injury, property damage, or damage to the unit,the
!%
%!
oApparatus shall not be exposed to dripping or splashing.
pDo not place any sources of danger on the apparatus (e.g. liquid
&
qWhere the MAINS plug or an appliance coupler is used as the
disconnect device, the disconnect device shall remain readily
operable.
Hearing safety
Listen at a moderate volume.
• Using headphones at a high volume can impair your hearing. This
product can produce sounds in decibel ranges that may cause hearing
loss for a normal person, even for exposure less than a minute. The
higher decibel ranges are offered for those that may have already
experienced some hearing loss.
• Sound can be deceiving. Over time your hearing ‘comfort level’
adapts to higher volumes of sound. So after prolonged listening, what
sounds ‘normal’ can actually be loud and harmful to your hearing. To
guard against this, set your volume to a safe level before your hearing
adapts and leave it there.
To establish a safe volume level:
• Set your volume control at a low setting.
• Slowly increase the sound until you can hear it comfortably and
clearly, without distortion.
English
EN

6
Listen for reasonable periods of time:
• Prolonged exposure to sound, even at normally ‘safe’ levels, can also
cause hearing loss.
• Be sure to use your equipment reasonably and take appropriate
breaks.
Be sure to observe the following guidelines when using your
headphones.
• Listen at reasonable volumes for reasonable periods of time.
• Be careful not to adjust the volume as your hearing adapts.
• Do not turn up the volume so high that you can’t hear what’s around
you.
• You should use caution or temporarily discontinue use in potentially
hazardous situations. Do not use headphones while operating a
motorized vehicle, cycling, skateboarding, etc.; it may create a traffic
hazard and is illegal in many areas.
Warning
• Never remove the casing of this apparatus.
• Never lubricate any part of this apparatus.
• Never place this apparatus on other electrical equipment.
• Keep this apparatus away from direct sunlight, naked flames or heat.
• Ensure that you always have easy access to the power cord, plug or adaptor to
disconnect the apparatus from the power.
Notice
Any changes or modifications made to this device that are not expressly
approved by Philips Consumer Lifestyle may void the user’s authority to
operate the equipment.
“Made for iPod®,” “Made for iPhone®,” and “Made for iPad®” mean that
an electronic accessory has been designed to connect specificaly to iPod,
iPhone, or iPad, respectively, and has been certified y the developer to
meet Apple performance standards. Apple is not responsible for the
EN

7
operation of this device or its compliance with safety and regulatory
standards. Please note that the use of this accessory with iPod, iPhone, or
iPad may affect wireless performance. iPod and iPhone are trademarks of
Apple Inc., registered in the U.S. and other countries. iPad is a trademark
of Apple Inc.
iPhone, iPod, iPod touch®, iPod classic®, iPod nano®, and iPod shuffe®are
trademarks of Apple Inc., registered in the U.S. and other countries. iPad is
a trademark of Apple Inc.
Recycling
Your product is designed and manufactured with high quality materials and
components, which can be recycled and reused.
When you see the crossed-out wheel bin symbol attached to a product, it
means the product is covered by the European Directive 2002/96/EC:
Never dispose of your product with other household waste. Please inform
yourself about the local rules on the separate collection of electrical and
electronic products. The correct disposal of your old product helps prevent
potentially negative consequences on the environment and human health.
Your product contains batteries covered by the European Directive
2006/66/EC, which cannot be disposed of with normal household waste.
Please inform yourself about the local rules on separate collection of
batteries. The correct disposal of batteries helps prevent potentially
negative consequences on the environment and human health.
Always bring your product to a professional to remove the built-in battery.
English
EN

8
Environmental information
All unnecessary packaging has been omitted. We have tried to make
the packaging easy to separate into three materials: cardboard (box),
polystyrene foam (buffer) and polyethylene (bags, protective foam sheet.)
Your system consists of materials which can be recycled and reused
if disassembled by a specialized company. Please observe the local
regulations regarding the disposal of packaging materials, exhausted
batteries and old equipment.
Note
• The type plate is located on the bottom of the apparatus.
2 Your Docking Speaker
Congratulations on your purchase, and welcome to Philips!To fully benefit
from the support that Philips offers, register your product at www.philips.
com/welcome.
Introduction
With this unit, you can enjoy audio from the iPod/iPhone/iPad and other
audio devices.
What’s in the box
Check and identify the contents of your package:
• Main unit
• Remote control
• 1 x AC adaptor
• 1 x AC power cord
• 1 x Aux-in cable
• User manual
• Quick Start Guide
EN

9
Overview of the main unit
a
• Turn on/off the unit.
b
• Select Bluetooth mode
• Pair with Bluetooth device.
a b d e
g f
c
English
EN

10
ciPod/iPhone/iPad dock
d/
• Adjust volume.
eBuilt-in battery LED indicator
fPower supply socket
gAUX IN
• Jack for an external audio device.

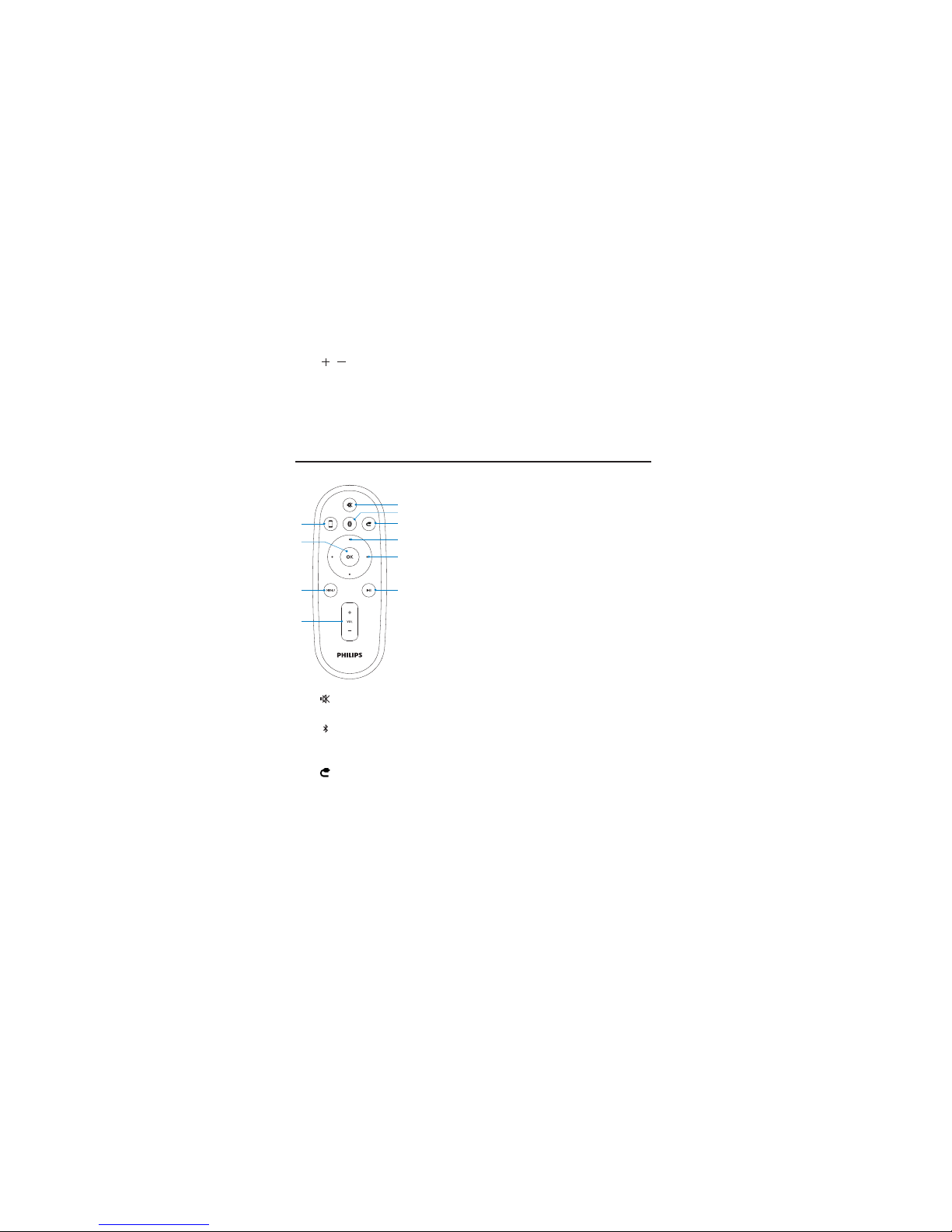

Overview of the remote control
1
• Mute volume.
2
• Select Bluetooth mode
• Pair with Bluetooth device.
3
• Select Aux-in mode
4Up/down keys
• Navigate through the iPod/iPhone/iPad menu.
5Fast forward/backward keys
• Fast reverse or fast forward within a track or iPhone/iPod/iPad.
• Skip to the previous/next track.
j
h
g
i
a
f
e
c
b
d
EN

11
6
• Start or pause play.
7VOL +/-
• Adjust volume.
8MENU
• Access the iPod/iPhone/iPad menu.
9OK
• Confirm a selection.
10
• Select iPod/iPhone/iPad dock mode
3 Get started
Caution
• Use of controls or adjustments or performance of procedures other than herein
may result in hazardous radiation exposure or other unsafe operation.
Always follow the instructions in this chapter in sequence.
If you contact Philips, you will be asked for the model and serial number of
this apparatus.The model number and serial number are on the bottom of
the apparatus.Write the numbers here:
Model No. __________________________
Serial No. ___________________________
Prepare the remote control
Caution
• Risk of explosion! Keep batteries away from heat, sunshine or fire. Never discard
batteries in fire.
')*
1Remove the protective tab to activate the remote control battery.
English
EN

12
To replace the remote control battery:
1Open the battery compartment.
2Insert one CR2025 battery with correct polarity (+/-) as indicated.
3Close the battery compartment.
Note
• Before pressing any function button on the remote control, first select the correct
source with the remote control instead of the main unit.
• If you are not going to use the remote control for a long time, remove the battery.
Connect power
Caution
• Risk of product damage! Ensure that the power supply voltage corresponds to the
voltage printed on the bottom of the unit.
• Risk of electric shock! When you unplug the AC adaptor, always pull the plug from
the socket. Never pull the cord.
• Before connecting the AC adaptor, ensure you have completed all other
connections.
1Insert the plug from the AC adaptor to the DC IN socket on the
back of the main unit.
EN

13
2Connect one end of the AC power cord to the AC adaptor.
3Connect the other end of the AC power cord to the wall outlet.
Built-in Battery
Note
• Always bring your product to a professional to remove the built-in battery.
Caution
• Danger of explosion if battery is incorrectly replaced. Replace only with the same or
equivalent type.
The unit can also operate on built-in rechargeable battery.
English
EN

14
Battery power LED indicator
Low Red
Medium Yellow
Full Green
Note
• Use only the supplied AC adapter to charge the battery.
To recharge the built-in battery:
Connect the unit to the mains power supply.
Turn on
1Press on the main unit.
»When user approaches the unit, light LED under volume button on
the main unit turns on automatically.
Switch to ECO standby
The unit switches to standby mode automatically, when:
• In DOCK mode: the iPod/iPhone is disconnected from the unit.
• In Aux-in mode: the device no longer playing music for more than 15
minutes.
• In Bluetooth mode: the Bluetooth device no longer playing music for
more than 15 minutes.
Tip
• Under standby mode, press , or on the remote control, the unit will switch on
to the corresponding selected source.
EN

15
4 Play
Play from iPod/iPhone/iPad
You can enjoy audio from iPod/iPhone/iPad through this unit.
Compatible iPod/iPhone/iPad
Apple iPod, iPhone and iPad models with a 30-pin dock connector. Made
for :
• iPod (5th generation)
• iPod nano (1st generation)
• iPod nano (2nd generation)
• iPod nano (3rd generation)
• iPod nano (4th generation)
• iPod nano (5th generation)
• iPod classic
• iPod touch (1st generation)
• iPod touch (2nd generation)
• iPod touch (3rd generation)
• iPhone
• iPhone4
• iPhone 3G
• iPhone 3GS
• iPad.
Load the iPod/iPhone/iPad
1Place the iPod/iPhone/iPad in the dock.
English
EN

16
Remove the iPod/iPhone/iPad
1Pull the iPod/iPhone/iPad out of the dock.
Listen to the iPod/iPhone/iPad
1Ensure that the iPod/iPhone/iPad is loaded correctly.
2Press to select dock mode.
3Press .
»The connected iPod/iPhone/iPad starts play.
• To pause/resume play, press .
• To skip to a track, press fast forward/backward keys.
• To search during play, press and hold fast forward/backward
keys, then release to resume normal play.
• To navigate the menu, press MENU, then press up/down keysto
select, and press OK to confirm.
Charge the iPod/iPhone/iPad
When the unit is connected to AC power, the docked iPod/iPhone/iPad
begins to charge.
Tip
• You can also charge your iPod/iPhone via the built-in battery. Before charging your
iPod/iPhone via the built-in battery, ensure the Fidelio battery-charging function is
turn on.
• You cannot charge your iPad via the built-in battery. To charge your iPad, connect
the unit to AC power.
Play from Bluetooth device
Pair with Bluetooth deivces
1Press to select Bluetooth source.
2Press and hold for 3 seconds to start pairing.
»LED under button on the main unit flashes rapidly.
3Turn on Bluetooth function on your device.
4Search for Bluetooth devices that can pair with your device.
5When “PHILIPS DC8550” displays, select it to start connection.
EN

17
6When prompted for a password, enter “0000”.
»Double beep tone confirmation is heard and the LED turns on
stably if connection is successful.
»If the pairing cannot be completed within one minute, LED turns
off.
Tip
• If your Bluetooth device is already paired with DS8550 before, you just need to find
out the “PHILIPS DS8550” on your Bluetooth menu, then confirm the connection.
To disconnect Bluetooth
1Turn off the connected device or move it beyond the communication
range.
»LED turns off.
;
Note
• Make sure the Bluetooth connection between the unit and the device is active.
• To start play, press on the remote control.
• To pause/resume play, press again.
• To track up/down, press forward/backward keys.
Play from an external device
You can also listen to an external audio device through this unit.
1Press to select Aux-in mode.
2Connect the supplied Aux-in link cable to:
• the AUX IN jack (3.5mm) on the back of the unit.
• the headphone jack on an external device.
3Start to play the device (see the device user manual).
English
EN

18
Adjust volume level
1During play, press VOL +/- to increase/decrease the volume level.
Mute sound
1During play, press MUTE to mute/unmute sound.
5 Product information
Note
• Product information is subject to change without prior notice.
$
<
Rated Output Power 2X15 W RMS
Signal to Noise Ratio 85 dB
Aux-in Link 0.6 V RMS 10 kohm
General information
AC power (power adaptor) OH-1065A1803500U2 (Philips)
Input: 100-240V, 50/60Hz, 1.5A;
Output: 18V 3.5A;
Operation Power Consumption <40W
ECO Standby Power Consumption <1W
Dimensions
- Main Unit (W x H x D) 169 x 420 x 108mm
Weight
- Main Unit 2.22 kg
EN
