Philips DVP520/00 User manual

. Technical Specifications…………………………………….………1-2
. Safety Instructions, Warnings, Notes...……………………...……1-3
. Mechanical and Dismantling Instructions…………………....……2-1
. Software Version& Upgrades…........................……………...…...3-1
. Trouble Shooting Chart…………………………………..…….……4-1
. Block and Wiring Diagram…………………………………….…….5-1
. Electrical Diagrams and Print-layouts
Front Board……………………………...…………………………..6-1
Power Board………………………………………………………...7-1
Main Board………………..………………………….…….….…….8-1
. Set Mechanical Exploded view& Parts List………………………..9-1
. Revision List……………….……………………………………......10-1
DVD Player DVP520/00/02/05
Service
TABLEOFCONTENTS
Page
3139 785 30530
Version 1.0
Service Manual
PHILIPS
GB
Copyright 2004Philips Consumer Electronics B.V. Eindhoven, The Netherlands
All rights reserved. No part of this publication may be reproduced, stored in aretrieval system or
transmitted, in any form or by any means, electronic, mechanical, photocopying, or otherwise
without the prior permission of Philips.
CLASS 1
LASER PRODUCT
Published by TCL-KC 0412 Service Audio Printed in The Netherlands Subject to modification
C

Technical Specifications
TV standard (PAL/50Hz) (NTSC/60Hz)
Number of lines 625 525
Playback Multi standard (PAL/NTSC)
Video performance
Video output 1Vpp into 75ohm
S-video output Y: 1Vpp into 75ohm
C: 0.3Vpp into 75ohm
RGB(SCART) output
Y:0.7Vppinto75ohm
Audio format
Digital MPEG CompressedDigital
Dolby Digital 16, 20, 24bits
PCM fs,44.1,48,96kHz
MP3(ISO 9660) 96,112,128,256kbps
& variable bit rate fs,32,
44.1,48 kHz
Analogue Sound Stereo
Dolby surround-compatible downmix from Dolby Digital multi-channel
sound
Audio performance
DA converter 24bits
DVD fs 96kHz 4Hz----44kHz
fs 48kHz 4Hz----22kHz
SVCD fs 48kHz 4Hz----22kHz
fs 44.1kHz 4Hz----20kHz
CD/VCD fs 44.1kHz 4Hz----20kHz
Signal-Noise (1kHz) >90dB
Dynamic Range (1kHz) >80dB
Cross talk (1kHz) >80dB
Distortion/Noise (1kHz) >80dB
MPEG MP3 MPEG Audio L3
Audio L+R output: 1.0~2.0 Vpp into 10K ohm
Connections
Scart Output Euroconnector
S-video output Mini DIN, 4pins
Video output Cinch( yellow)
Audio L+R output Cinch (white/red)
Digitaloutput 1coaxial
IEC60958 for CDDA/LPCM
IEC61937 for MPEG1/2,
Dobly Digital
Cabinet
Dimensions (w X h X d) 360 X 43 X 285mm
Weight Approximately2.0kg
Power consumption
Power supply 230V for/00/02/05
Powerconsumption <12W
Power consumption in Standby mode <1W
*Typical playing time for movie with 2 spoken languages and
3 subtitle languages.
Specifications subjects to change without prior notice.
1-2

Safety instructions
1. General safety
Safety regulations require that during a repair:
. Connect the unit to the mains via an isolation transformer.
. Replace safety components indicated by the symbol ,
only by components identical to the original ones. Any other
component substitution (other than original type) may
increase risk of fire or electrical shock hazard.
Safety regulations require that after a repair, you must return
the unit in its original condition. Pay, in particular, attention to
the following points:
. Route the wires/cables correctly, and fix them with the
mounted cable clamps.
. Check the insulation of the mains lead for external
damage.
. Check the electrical DC resistance between the mains plug
and the secondary side:
1) Unplug the mains cord, and connect a wire between
the two pins of the mains plug.
2) Set the mains switch the “on” position (keep the
mains cord unplug).
3) Measure the resistance value between the mains
plug and the front panel, controls, and chassis
bottom.
4) Repair or correct unit when the resistance
measurement is less than 1M .
5) Verify this, before you return the unit to the
customer/user (ref. UL-standard no. 1492).
6) Switch the unit “off”, and remove the wire between
the two pins of the mains plug.
2.Laser safety
This unit employs a laser. Only qualified service personnel
may remove the cover, or attempt to service this device (due
to possible eye injury).
Laser device unit
Type : Semiconductor laser GaAlAs
Wavelength : 650nm (DVD)
: 780nm (VCD/CD)
Output power : 7mW (DVD)
:10mW(DVD/CD)
Beam divergence: 60 degree
Note: Use of controls or adjustments or performance of
procedure other than those specified herein, may result in
hazardous radiation exposure. Avoid direct exposure to
beam.
Safet
y
instructions, Warnin
g
s, Notes
1-3

Warnings
1.General
. All ICs and many other semiconductors are susceptible to
electrostatic discharges (ESD). Careless handing during
repair can reduce life drastically. Make sure that, during
repair, you are at the same potential as the mass of the set
by a wristband with resistance. Keep components and tools
at this same potential. Available ESD protection equipment:
1) Complete kit ESD3 (small tablemat, wristband,
connection box, extension cable and earth cable) 4822
310 10671.
2) Wristband tester 4822 344 13999.
. Be careful during measurements in the live voltage section.
The primary side of the power supply , including the heat
sink, carries live mains voltage when you connect the player
to the mains (even when the player is “off”!). It is possible to
touch copper tracks and/or components in this unshielded
primary area, when you service the player. Service
personnel must take precautions to prevent touching this
area or components in this area. A “lighting stroke” and a
stripe-marked printing on the printed wiring board, indicate
the primary side of the power supply.
. Never replace modules, or components, while the unit is
“on”.
2. Laser
. The use of optical instruments with this product, will
increase eye hazard.
. Only qualified service personnel may remove the cover or
attempt to service this device, due to possible eye injury.
. Repair handing should take place as much as possible with
a disc loaded inside the player.
. Text below is placed inside the unit, on the laser cover
shield:
Notes: Manufactured under licence from Dolby Laboratories.
The double-D symbol is trademarks of Dolby Laboratories,
Inc. All rights reserved.
CAUTION: VISIBLE AND INVISIBLE LASER RADIATION
WHEN OPEN, AVOID EXPOSURE TO BEAM.
1-4

Mechanical and Dismantling Instructions
Dismantling Instruction
The following guidelines show how to dismantle the player.
Step1: Remove 5 screws around the Top Cover. And remove
it (Figure 1)
Step2: If it is necessary to dismantle Loader or Front Panel,
It should be remove the front door assembly first. (Figure 2)
If the trace can’t open in normal way, you can make it by push
the gear wheel manually using the slot below the bottom
chassis with a tool.. (Figure 3)
Note: Make sure to operate gently otherwise the gear wheel
would be damaged.
2-1
Figure 2
Figure 1
Figure 3
Push the gear gentl
y
until the trace out.
Make sure operate
gentlyto avoid the gea
r
wheel dama
g
ed.

Mechanical and Dismantling Instructions

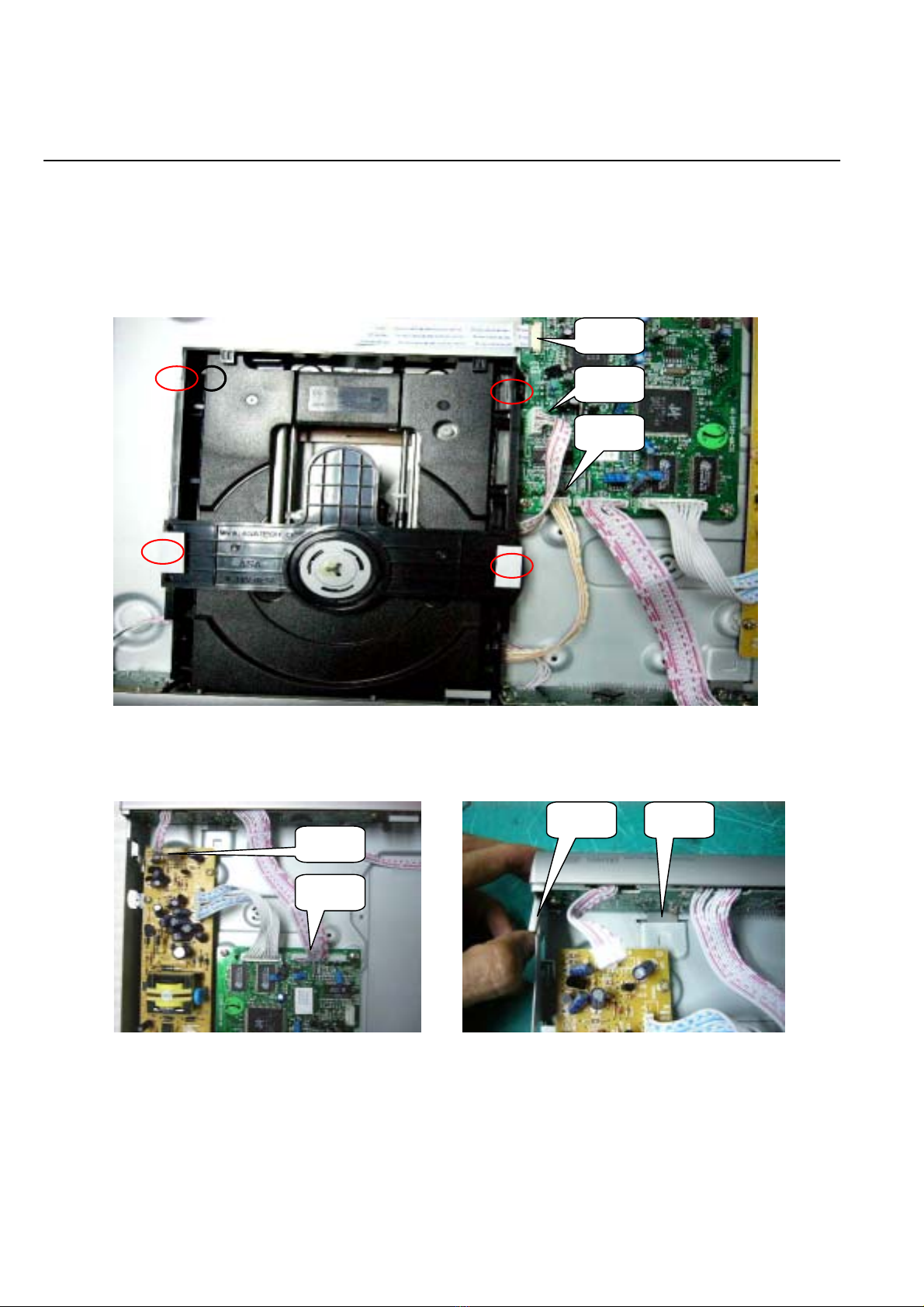

Step3: Dismantling Loader, First, disconnect the 3 connectors
aiming in the figure, and then remove the 4 screws at both
sides of the loader,(Figure 4)
Step4:Dismantling Front Panel: disconnect the 2 connectors
aiming in the figure then Release the snaps on the both sides
of Front Panel and gently pull the Panel out from the set.
Figure4
Figure 5Figure 6
Snap1 Snap2
CON 1
CON 2
CON 3
CON 4
CON 5
2-2
(Figure5& 6)

Mechanical and Dismantling Instructions

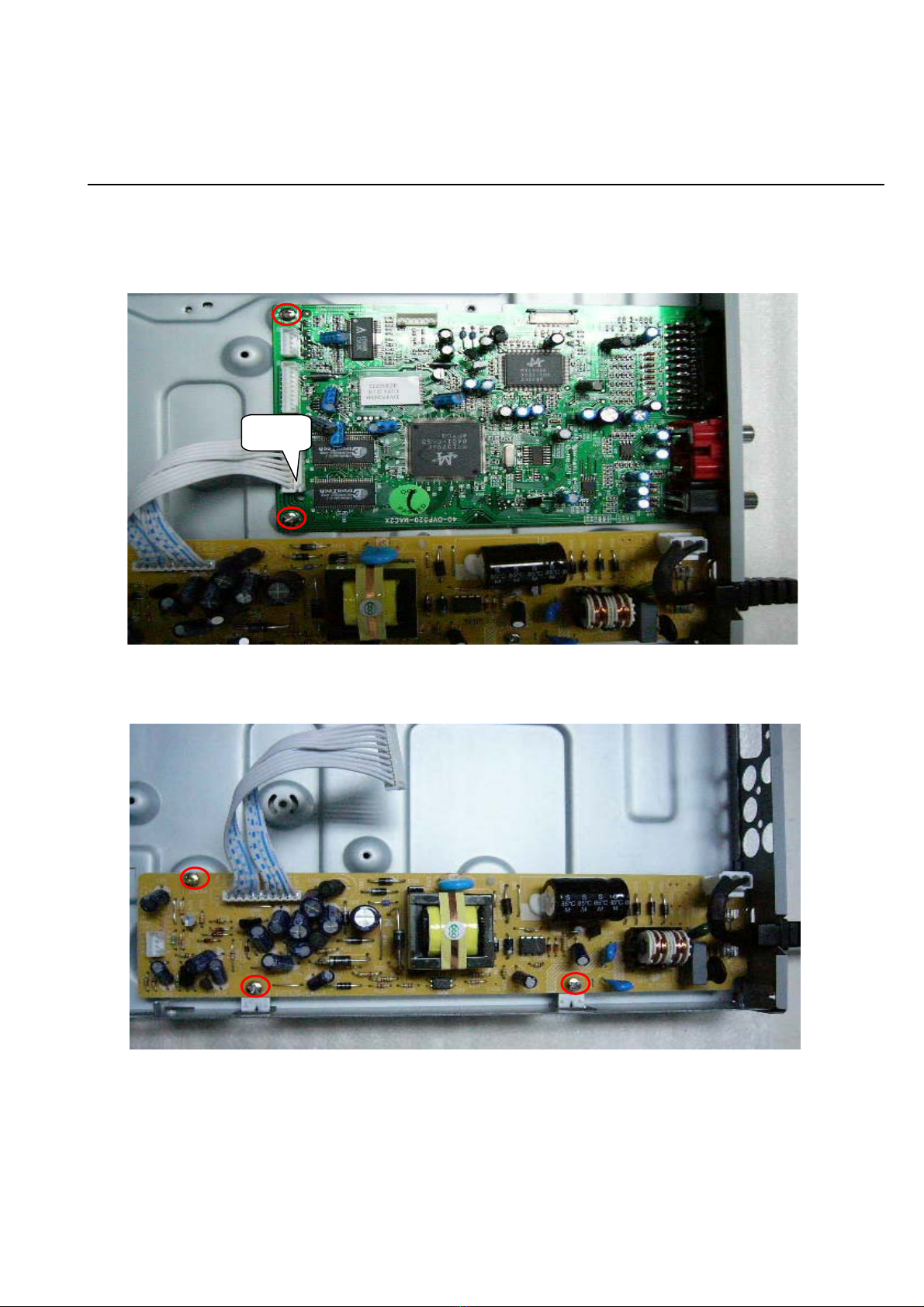

Step5: Dismantling Main Board, first disconnect the
connector,and then remove the relative screws, (Figure 7)
Step6: Removethe 3 screwson power board to dismantle
the power board. (Figure 8)
Figure 6
Figure 8
CON 6
2-3
Figure 7

Mechanical and Dismantling Instructions

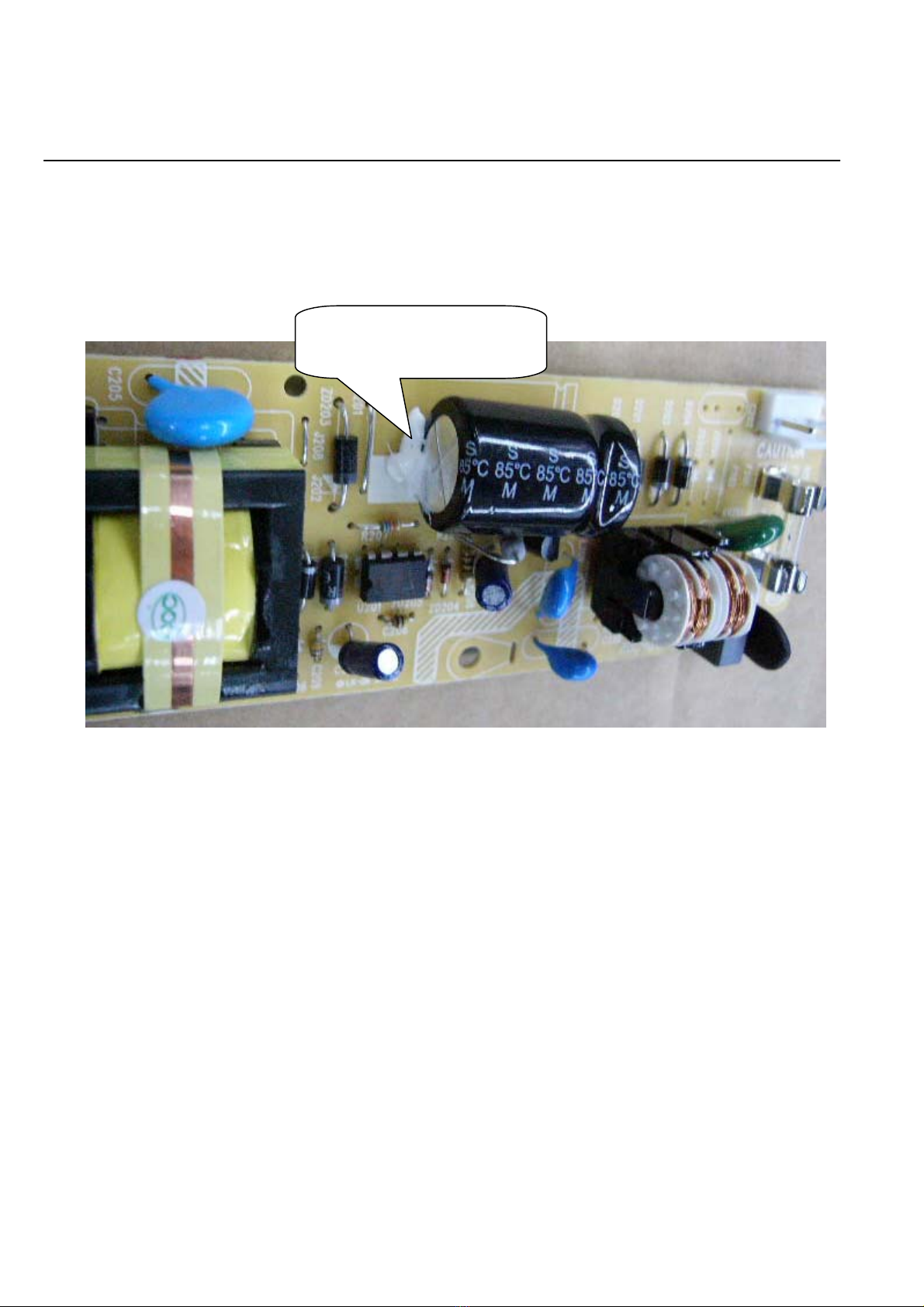

ATTENTION OF REPAIRING
Make sure adding silicon glue to fix the capacitor C203 after repairing, ( Avoid the hazard of C203 touching the Top
Cover.)
Figure 9
A
dd Silicon glue or Heat glue to fix
C203 to keep this status
2-4

Software upgrade
A. Preparation to upgrade software
1) Start the CD Burning software and create a new CD
project (Data Disc) with the following setting:
Label: DVP5XX
File System: DVP530.BIN
Note: It is required capital letter for the Label name &
the File System name.
2) Burn the data onto a blank CDR
B. Procedure for software upgrade:
1) Power up the set and insert the prepared Upgrade
CDR.
2) The set will starts reading disc & response with the
following display TV screen:
Upgrade File DETECTED
Upgrade?
Press Play TO START
3) Press <Play>button to confirm, then screen will display :
Files coping…
UPGRADING…
3) The upgraded disc will automatically out when files
coping complete, then take out the disc.
4) About 1 minute later, the trace will automatically close
when upgrading complete.
C. Read out the software versions to confirm upgrading
1) Power up the set and press <system menu> button on
the remote control.
2) Press <1><3><7><9> button.
The software version and other information are display
on the TV screen as follows:
Version XX.XX.XX.XX (Main version)
SUB-VER XX.XX.XX.XX ( software version of
application software)
8032 XX.XX.XX.XX
Servo XX.XX.XX.XX (software version of Servo)
RISC XX.XX.XX.XX
DSP XX.XX.XX.XX
Region Code X
3-1
Caution: The set must not be power off during
upgrading, in that case the decoder board will
be damaged entirely.

4-1

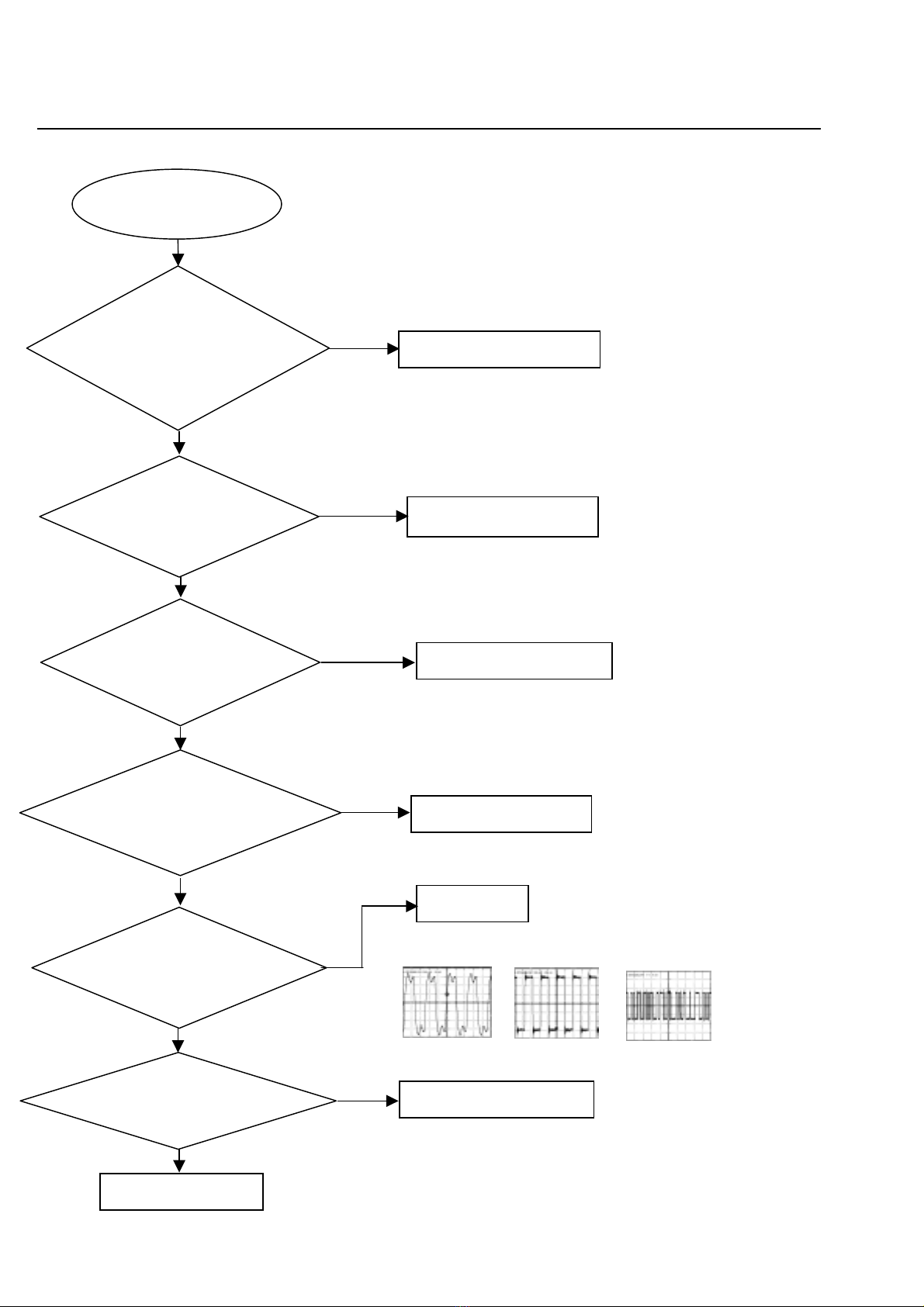

Spindle motor does not rotate
Yes
Yes
No
No
No
No
Yes
Check whether “AVCC”
(+5V) voltage is normal.
Fix connection
Check the AVCC powe
r
supply
Check/Replace Q5 Q6.
Check/ Replace U1.
Check whether the
pich-up doesn't focus
1.Check there is signal from pin 12
and pin 13 of U3 to pin 1 and pin 26
of U2,
2.Check whether there are F+, F-,
T+ and T- signals from U2.
Check/Replace the loader
Yes
Yes
No
Go
Check whether laser voltage
(2V for VCD & 2.2V for DVD)
on Collector of Q5 and Q6
Check the FFC connection
between 24P and the loader.
1.Whether voltage on pin 52 of U1
varies between 0 and 3.3V (3.3V fo
r
VCD and 0V for DVD),
2.Whether peripheral components
are eroded or badly soldered.
Trouble shooting chart
Motor does not rotate

4-2
The power can not be on or off
Go
Yes
Yes
No
No
The power can’t be
on or off
Yes
Repair the power board
Check the power suppl
y
on the power board is
normal.
Check/Correct
connection of FFC
CN303
Whether the connection
to K301 is broken. Fix connection
Replace U4.
No
No
Yes
Yes
Check if the FFC CN303
on the front board to CN5
on the decoder board is in
good contact.
Whether there is 0V and
3.3V voltage difference on
Pin 68 of U4.
Trouble shooting chart

4-3

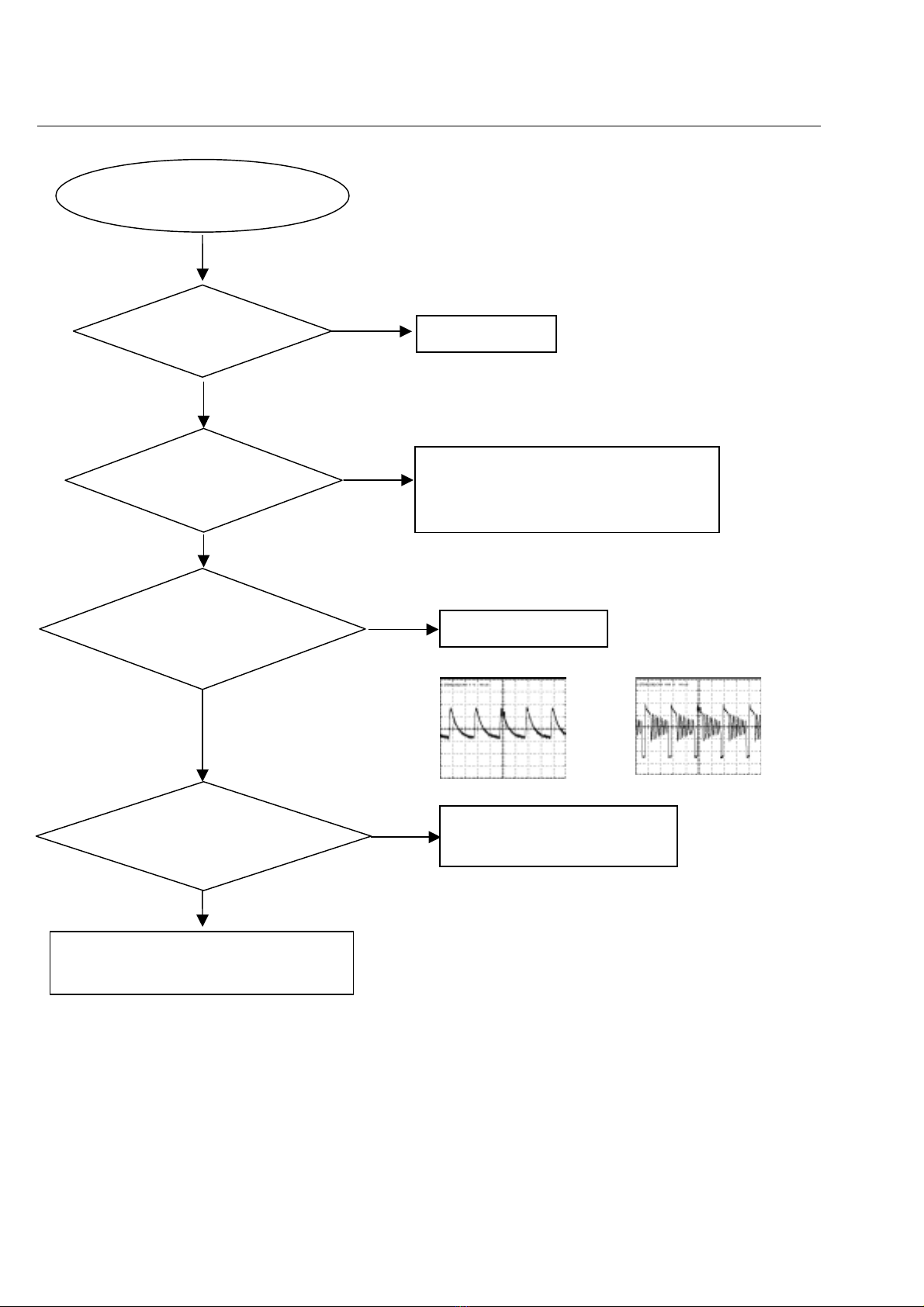

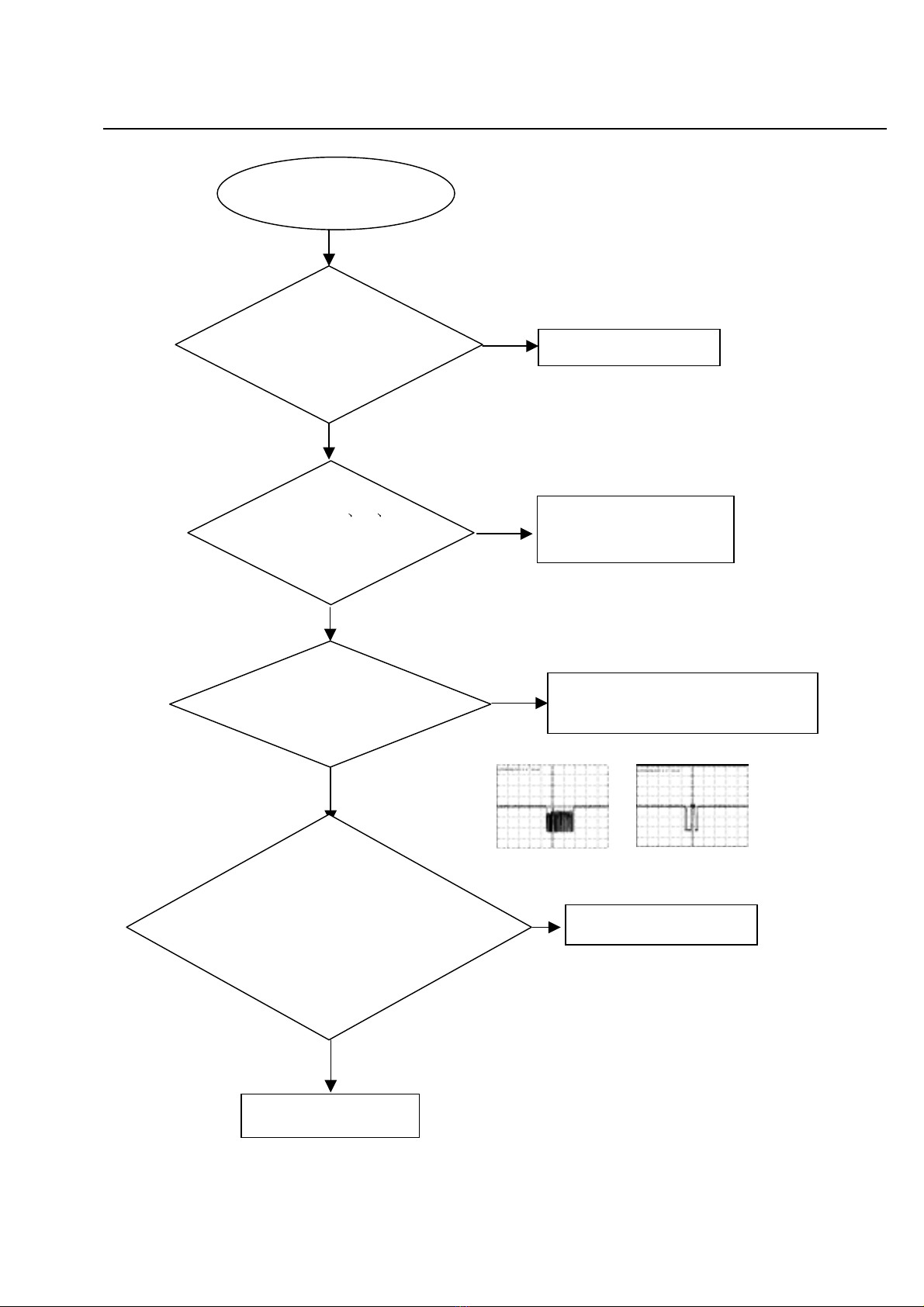

All output voltages on the power board is 0V or deviated.
No
No
No
Yes
No
U201(PIN 8 - Drain waveform)
Replace F201
1.Check D201, D202, D203, D204.
2.Replace C203 if D201, D202, D203, D204
are normal.
Check/ replace U201.
Check whether U202 and U203
are eroded.
Check whether there is
300V on C203.
Check whether 100KHz
oscillating signal on
Pin3 of U201
Check if +5V, +3.3v, +12V,
-12V and -24V are short.
Check whether the components in the
short-circuit voltage are defected or eroded.
Yes
Yes
Yes
Yes
U201(PIN 3 - RC waveform)
Trouble shooting chart
Check whether
F201 is blown
A
ll output voltages on the
p
ower board is 0V or deviated.

4-4
Disc cannot be read.
No
Yes
No
Yes
No
Yes
Yes
No
No
Yes
Disc cannot be read.
Check the loaded circuit
1.Check voltage on pin 52 of U1 varies
between 0 and 3.3V:
Æ3.3V for VCD
Æ0V for DVD
2.Check whether peripheral components
are eroded or defect
Check the FFC connection
between 24P and the loader.
Check U1 and peripheral components
Re-solder or replace the defective parts
Check the connection
between U4 and U1 Fix connection
Replace U1 or loader.
Yes
Check whether there is lase
r
voltage (2V for VCD and 2.2V fo
r
DVD) on Collector of Q5 &Q6
Check whether there is RFO signal
on pin17 of CN2. (The normal RFO
signal is a clear reticulated wave)
Trouble shooting chart
Check whether U1, U2, U4
and peripheral components
are eroded or badly soldered.

4-5
Only DVD disc or only disc except DVD can be recognized.
No
No
Yes
Only DVD disc, or only dis
c
exce
p
t DVD can be reco
g
nized.
Check the FFC
connection between
24P and the loader.
Check the loaded circuit
Check the solder status on U1 and
peripheral components
Check whether there
is voltage variance on
p
in 52 of U1.
check if bad solder exist on U1 and
peripheral components
Replace the bad spare parts
Check whether pin 1 to pin38
of U1 and peripheral
components are badly
soldered, defected
Check whether Q4,
Q2,R3,R4,R5 are in
good connection
Yes
Yes
Yes
Go
Fix connection
Change U1 or the loader.
No
No
Yes
Check laser voltage (2V) outpu
t
on Collector of Q6, if pin 125 o
f
U1 is at low level.
Trouble shooting chart
No

4-6
No display on VFD, and buttons do not work
No
No
No
Yes
Yes
No display on VFD, and
buttons do not work
Check whether there is
correct contact between
CN303 and CN5 Fix connection
Fix relative electric circuit in
power supply board
Check connection between the pin62,
pin63 & pin64 of U3 to CN5
Fix connection
Replace U301 or VFD
Yes
Yes
Yes
No
check the -24V F+ F-
VCC(+5v) voltage on the
power and front board
Check there are VSTB,
VSDA0 and VSCK signals
on CN303 on the front board.
1.Check whether bad solder exists on
U301 and pins of VFD,
2.Check whether the circuit connected to
K302, K303, K304 and K301 is broken,
3.Check whether R300, R301 and R302
are open-circuit.
Trouble shooting chart
CN5 (PIN 4 V.SCK) CN5 (PIN 3 VSDA0)

4-7
Distorted audio and loud noise
No
Yes
No
Yes
Yes
No
No
Distorted audio and
loud noise
Replace Q15 and Q16
Check L11and L12
Replace Q11,Q12 and Q13
Check whether the
muting transistor Q15
and Q16 are normal
Yes
Check whether the
muting transistor Q11,
Q12 and Q13 are normal
Checking whether the feet
of U8 or U9 are broken Fix connection
Replace U3
if the clock signal ACLK,
A
BCK and ALRCK
out
p
ut b
y
U3 are normal
Check whether the U8 or U9
power supply are normal
No
Yes
Check whether there are +12
V
and -12V to IC U10 U11or U12
Yes
Check U7
Replace U8 or U9
No
Yes
Trouble shooting chart
SACLK waveform SBCLK waveform SSLRCK waveform

4-8
Abnormal color of video picture
Yes
Abnormal color of
video
p
icture
Check whether the 3.3V
and 2.5V power supply
voltages on the decode
r
board are normal.
Check Y1,R50,R51,C80 and C81
Check relative power supply circuit
Fix connection
Check whether the
video filter network
circuit is normal.
Check whether the signals are
normal from pin164 to Pin173 of U3
one by one
Replace U3 or U14 U15
Yes
Yes
Yes
No
No
No
No
Check whether the
27MHz out
p
ut si
g
nal is
Trouble shooting chart

4-9

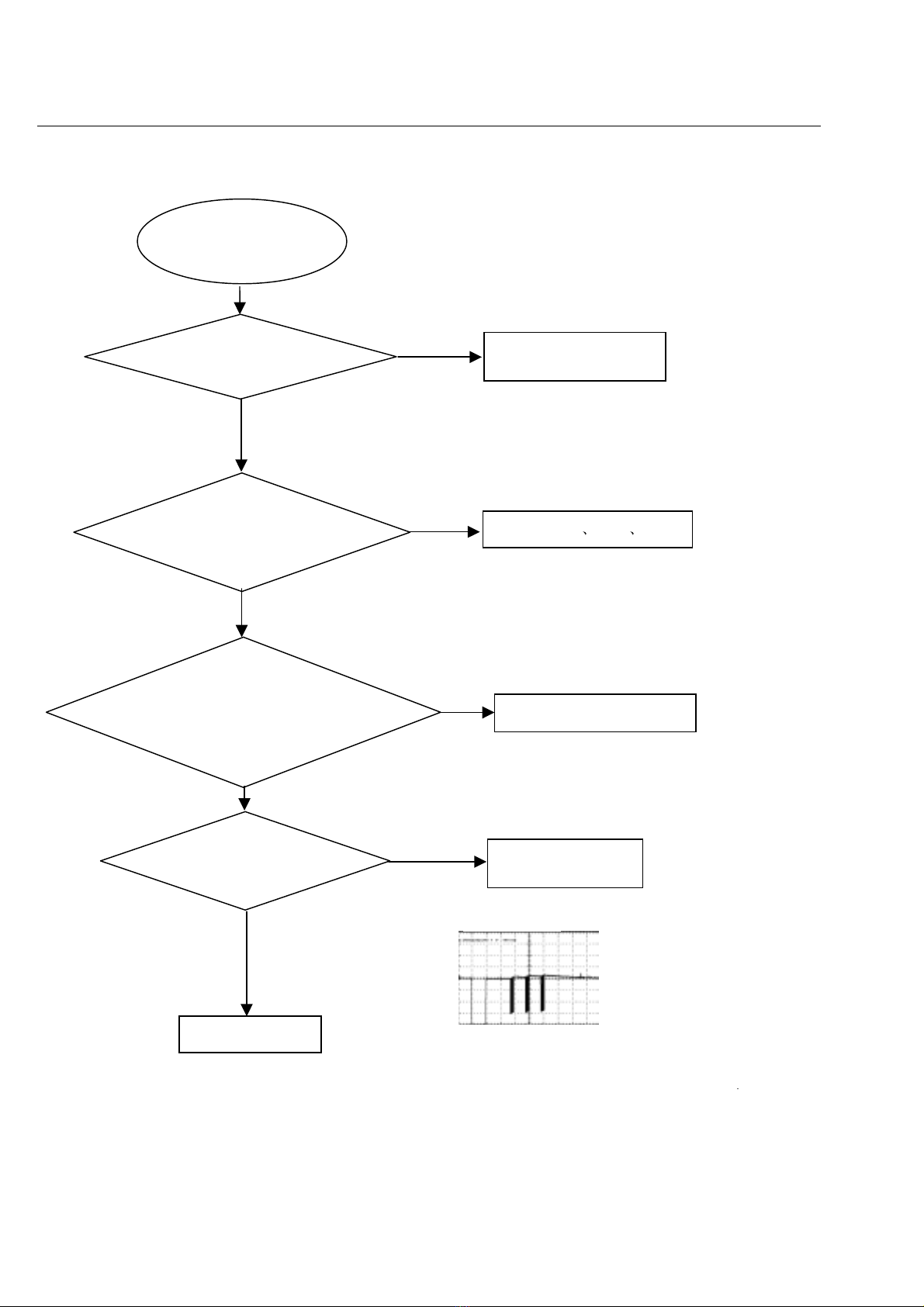

Remote reception is insensitive or fails.
No
Remote reception is
insensitive or fails.
Check whether the remote
control works properly. Check battery
Check R317 C303 C304
Use an oscilloscope to check whethe
r
there is output waveform from the first pin IR
of the remote censor after pressing button
on the remote control.
U201(PIN 3 - RC waveform)
Check whether there is I
R
signal on pin 71 of U3
Check whether the powe
r
supply voltage to the remote
censor is normal.
Go
No
No
No
Yes
Yes
Yes
Fix connection
Yes Replace U3
IR waveform
Trouble shooting chart

4-10
No video picture, no sound.
Change C1, D1 and R1.
No video picture,
no sound.
Check whether the reset circuit
consisting of C1, R1 and D1 is
normal (at a high level for tens o
f
milliseconds
,
then constantl
y
at 0V
)
.
Check whether there is
27MHz si
g
nal out
p
ut.
Check whether there is
93MHz signal from R82.
Check the loaded circuit
Crystal oscillator Y1 and
peripheral components
are defected or eroded.
Check whether short-circuit
or bad solder on U7, U8 or
U9, SDRAM, U6 U7.
Check whether short-circuit and
bad solder on Pin Y1 and Y6 of U4
to the subsequent filter circuit.
No
No
No
No
No
YesYes
Yes
Yes
Yes
Reconnect the component in
short-circuit
Check U4.
Yes
No
27M waveform
SDRAM (R82 SDCLK) waveform
Trouble shooting chart
Check whether all the voltages
from the power board to the
decoder board are normal. CVBS(R85 point) waveform

A
A
B
B
C
C
D
D
E
E
4 4
3 3
2 2
1 1
FRONT BOARD
VFD/KEY
POWER
BOARD
24
1
51
1
10
8
MAIN BOARD
DVP520 WIRING DIAGRAM
1
1
6
DVD LOADER
1
5PIN*2.0
10PIN*2.0
6PIN*2.0
10PIN*2.0
24PIN*0.5
10PIN*2.0
4PIN*2.0
S-VIDEO
CVBS
COAX
L
R
SCART
10 5
1
12
10
CN1
CN5
CN3
CN4
CN2
CN303
10PIN*2.0
CN304
4PIN*2.0
CN202
CN201
CN301CN302
1
41
4
4PIN*2.04PIN*2.0
SWITCH
BOARD
CN9 CN7 CN10
AGND
-12V
+12V
VCC
+5V
GND
GND
3.3V
DATA CLK CS
IR
GND F+ -24V
PCON
SP+
GND
LOAD+
TRIN
SL+
SP-
LOAD-
TROUT
GND
SL-
LIMIT
LED GND DV33
3.3v
POWER-K
VCC GND
F-
POWER-K
GND
LED-
LED+
5-1
5-1
