Philips DVP3111 User manual

DVD PLAYER DVP3111/12/51/58/77/98/79
Published by BU AVM CY– SL Printed in the Netherlands Subject to modification 3141 785 34160
Version 1.0
TABLE OF CONTENTS
Chapter
Technical Specification, PCBs Location………………….. 1
Safety Instruction ……………………………………………… 2
Instruction for Use………………………………………………3
Mechanical and Dismantling Instructions…………………. 4
Troubleshooting ………………………………………………. 5
Overall Block Diagram …………………………………………6
Electrical Diagram……………………………………………… 7
Exploded View Diagram & Service Part List………………..8
Revision List……………………………………………………. 9
©Copyright 2009 Philips Consumer Electronics B.V. Eindhoven, The Netherlands
All rights reserved. No part of this publication may by reproduced, stored in a retrieval system or
transmitted, in any form or by any means, electronics, mechanical, photocopying, or otherwise
without the prior permission of Philips.
Service Manual

1.0 TECHNICAL SPECIFICATION
VIDEO PERFORMANCE
Test equipment：Tektronics VM700T
Test discs：DVD test disc：Philips LVP 10.01（PAL）
/Abex TDV-540（NTSC）
Load Impedance：75Ω
VIDEO FORMAT
DVD，VCD，MP3，JPEG,DivX
AUDIO PERFORMANCE
Line outputs
Test equipment：Audio Precision System2
Test discs:CDDA:Philips audio signal test disc 1
DVD: Philips LVP 9.01 audio test disc
Load Impedance：100KΩfor Audio
AUDIO FORMAT
CD/MP3,DVD audio
CVBS
Amplitude output:1Vpp± 0.1V/
White bar: 714mV ± 10%/700mVpp ± 10%
Sync. Amplitude: 286mV ± 100mV/300mVpp ± 100mV
Burst/chroma ratio: ± 10%
S/N luminance: ≥52dB
COMPONENT VIDEO RGB
Luminance amplitude output: 700mV ± 10%
RGB unbalance:5%
Sync. Amplitude: 300mV ± 100mV
S/N on RGB outputs: ≥52dB
DC Level: ≤1V
COMPONENT VIDEO YPbP
r
PbPr output unbalance:3%
Sync. Amplitude: 286mV ± 100mV
Video Bandwidth 4.2 MHz:- 5db / 5.8MHz:-8dB
With progressive scan:8.4MHz -5dB
S/N on outputs: YUV: ≥52 dB
POWER CONSUMPTION
Power-Supply:100-240V ac,50/60Hz,
Supply voltage:AC 100~240V
Supply Power consumption(AC 100/240V):10W/+10%
Standby Power,230V AC: <1W
GENERAL DESCRIPTION
Optical Pickup: IM S76RFVP
Chip set/Solution:Mediatek MTK1389DE-LA
Disc Size:8cm/12cm
1-1

1.1 PCBs LOCATION
VERSION VARIATIONS
Type/Versions:
Service policy
Board in used:
DVP3111
58 77 98 12
DVD BOARD X C/M C/M
MMXDRAOBREWOPP2/W8
C/MM/CXDRAOBYEK
USB BOARD X C C
POWER SW BOARD X C C
*TIPS: C -- Component Lever Repair.
M -- Module Lever Repair
X -- OCX
1-2
DVD BOARD
KEY BOARD
DECK AMI
POWER SW BOARD
USB BOARD
8W/2P POWER BOARD
DVD BOARD
X
X
X
X
X

1.2 System, Region Code, etc. Setting Procedure
Procedure to change region code of your DVD
Portable
1. Power ON the DVD player and do not insert
DISC inside player
2. Setup Prefer
Press IR in the sequence as
9 6 5 3
The LCD display showed the existing region
Code
3. Press▲(navigation up)or▼(navigation down)
repeatedly to select the number from 0 to 6.
4. Then press OK to confirm your region code.
5. Refer below table for your region code setting
Select “0” setting = Region Free (confidential)
Procedure for SW upgrade
1. The upgrade will provide a document
re-named: PHILIPS.BIN
2. “PHILIPS.BIN” copy to USB or CD-ROM into
the data;
3. Reading the USB or CD-ROM，in accordance
with prompt，press ”OK” key to upgrade.
Warning: Do not unplug the AC adapter during
firmware upgrade to prevent flash corrupt of
the set!!
Procedure to check SW version of your DVD
Portable
1. OPEN
2. Press SETUP MENU
3. Select Preferences
4. Select Version
Info
5. Press “OK” key
1-3

2.0 Safety instruction
1. General safety
Safety regulations require that during a repair:
. Connect the unit to the mains via an isolation
transformer.
. Replace safety components indicated by the
symbol
Only by components identical to the original ones.
Any
Other component substitution (other than original
type)
May increase risk of fire or electrical shock hazard.
Safety regulations require that after a repair, you
must
Return the unit in its original condition. Pay, in
particular,
Attention to the following points:
. Route the wires/cables correctly, and fix them with
the
mounted cable clamps
. Check the insulation of the mains lead for external
Damage
. Check the electrical DC resistance between the
mains
Plug and the secondary side:
1) Unplug the mains cord, and connect a wire
between
The two pins of the mains plug.
2) Set the mains switch the “on” position (keep
the
Mains cord unplug).
3) Measure the resistance value between the
mains
plug and the front panel, controls, and chassis
bottom.
4) Repair or correct unit when the resistance
measurement is less than 1M Ω
5) Verify this, before you return the unit to the
customer/user (ref. UL-standard no. 1492).
6) Switch the unit “off”, and remove the wire
between
the two pins of the mains plug.
2. Laser safety
This unit employs a laser. Only qualified service
personnel
May remove the cover, or attempt to service this
device
(due to possible eye injury).
Laser device unit
Type :Semiconductor laser GaAIAs
Wavelength :650nm (DVD)
:780nm (VCD/CD)
Output power :7mW(DVD)
:10mW(DVD/CD)
Beam divergence:60 degree
Note: Use of controls or adjustments or
performance of procedure other than those
specified herein, may result in hazardous
radiation exposure. Avoid direct exposure to
beam.
2-1

3.0 INSTRUCTION FOR USE
You can download this information from the following websites:
http://www.philips.com/support
http://www.p4c.philips.com
3-1

4.0 MECHANICAL AND DISMANTLING INSTRUCTIONS
The following guidelines show how to dismantle the player.
Step1: Remove 5 screws around the Top Cover, and then remove the Top Cover(Figure1)
Figure 1
Step2:If the tray can’t open in normal way, you can make it through the instruction as below (Figure2)
Figure 2
Step3: If it is necessary to dismantle Loader or Front Panel, the Front door should be removed first(Figure3)
4-1
Figure 3

Figure 5
Step4: Remove the 10 screws on board to dismantle the DVD BOARD & POWER BOARD & LED BOARD (Figure 4&5)
Figure4
4.0 MECHANICAL AND DISMANTLING INSTRUCTIONS
4-2

Spindle motor does not move
Yes
Yes
No
No
No
No
Yes
Check whether “MO_VCC”
(VCC) voltage is normal.
Correct connection
Check the MOVCC power
supply
Check/Replace Q10ǃQ11.
Check/ Replace U1.
Check opu focus
1. Check U2 25pin FOO signals
2.If there are F+, F-, T+ and T-
signals output from U1.
Check/Replace the loader
Yes
Yes
No
Go
Check whether laser voltage
(1.9V for CD & 2.3V for DVD)
on L21 & L22
Check the FFC connection
between 24P and the loader.
1. Whether voltage on pin 23 of U2
varies between 0 and 3.3V (3.3V
for CD and 0V for DVD),
2. Whether peripheral components
are eroded or badly soldered.

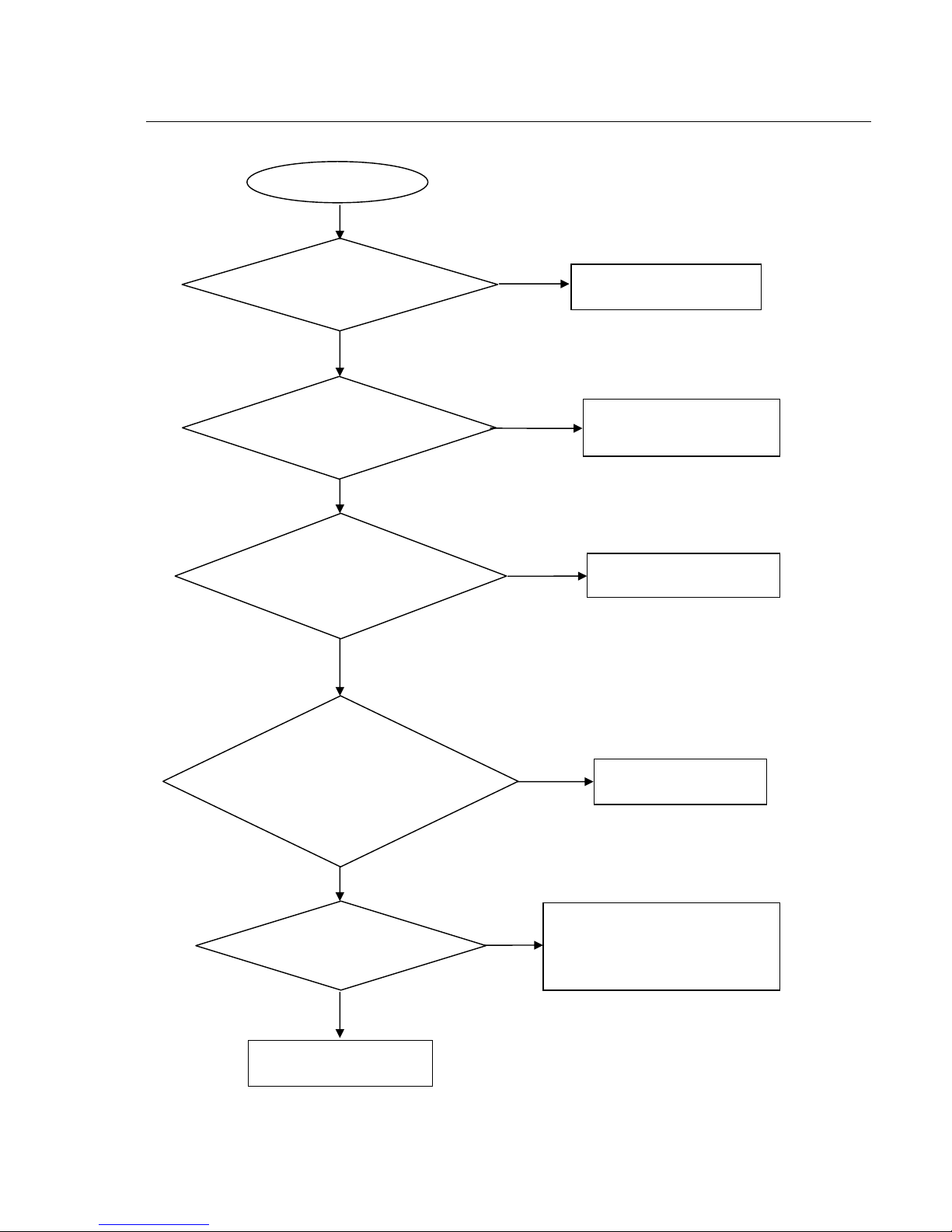

Trouble shooting chart
Motor not move
5-1

The power can not be on or off
Go
Yes
Yes
No
No
The power can’t be
on or off
Yes
Replace the power board
Check the power supply
on the power board and the connection to
to decoder board is normal.
Check/Correct connection
Whether the connection
to Standby Board is broken. Correct the connection
Replace U1.
No
No
Yes
Yes
Check if the CON2 on the front
board to J 6(7PIN) on the decoder board
is in good contact.
Whether there is 0V or
3.3V voltage difference on
Pin41 of U2
Trouble shooting chart
or correct the connection
5-2

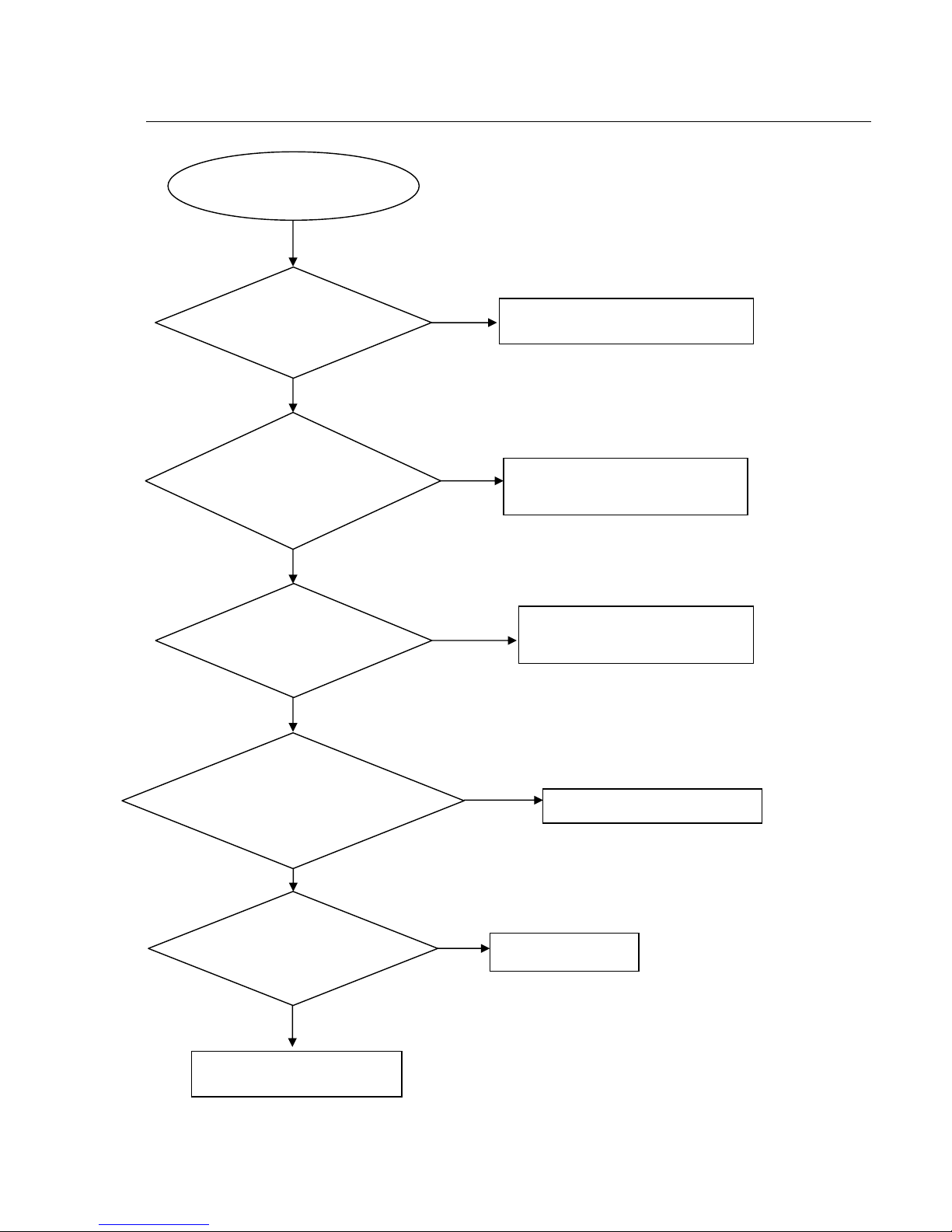

Disc cannot be read.
No
Yes
No
Yes
No
Yes
Yes
No
No
Yes
Disc cannot be read.
Check the loaded circuit
1.Check voltage on pin 23 of U2
varies between 0 and 3.3V:
Æ3.3V for CD
Æ0V for DVD
2.Check whether peripheral
components are eroded or defect
Check the FFC connection
between 24P and the loader.
Check U2 and peripheral components
Re-solder or replace the defective parts
Check the connection
between U2
Correct connection
Replace U2 or loader.
Yes
Check whether there is
laser voltage (1.9V for CD
and 2.3V for DVD) on
Collector of Q11 &Q10
Check if there is RFO signal
on the pin8 of HA1. (The
normal RFO signal is a clear
reticulated wave)
Check U1, U2, and
peripheral components are
eroded or badly soldered.
Trouble shooting chart
5-3

Only DVD disc or only disc except DVD can be played
No
No
Yes
Only DVD disc, or only disc
exce
p
t DVD can be Pla
y
ed.
Check the FFC
connection between
24
p
in and the loader.
Check the loaded circuit
Check the solder status on U2 and
peripheral components
Check whether there
is voltage variance on
p
in 18 of U2.
check if bad solder exist on U2 and
peripheral components
Replace the bad spare parts
Check whether pin 1 - 26 and
pin 125-128 of U2 and peripheral
components are badly
soldered
,
defected
Check Q5, Q6, Q7
whether in good
condition
Yes
Yes
Yes
Go
Correct connection
Change U2 or the loader.
No
No
Yes
Check laser voltage (1.9V)
output on Collector of Q11, if
pin 17 of U2 is at low level.
No
Trouble shooting chart
5-4

Distorted audio and loud noise
Yes
No
Yes
Yes
No
Distorted audio and
loud noise
Replace L2
Replace Q12, Q14
Check he power supply
voltages +12V
to the operation amplifying
L2 are normal
Check whether the
muting transistors Q12,
Q14, are normal
Checking the U2 leads
the feet has no to break
to open
Correct connection
Check whether the U5
or U2 power supply
normal
No
Yes
Yes
Check U2, U5
Replace U2, U5
No
Trouble shooting chart
No
5-5

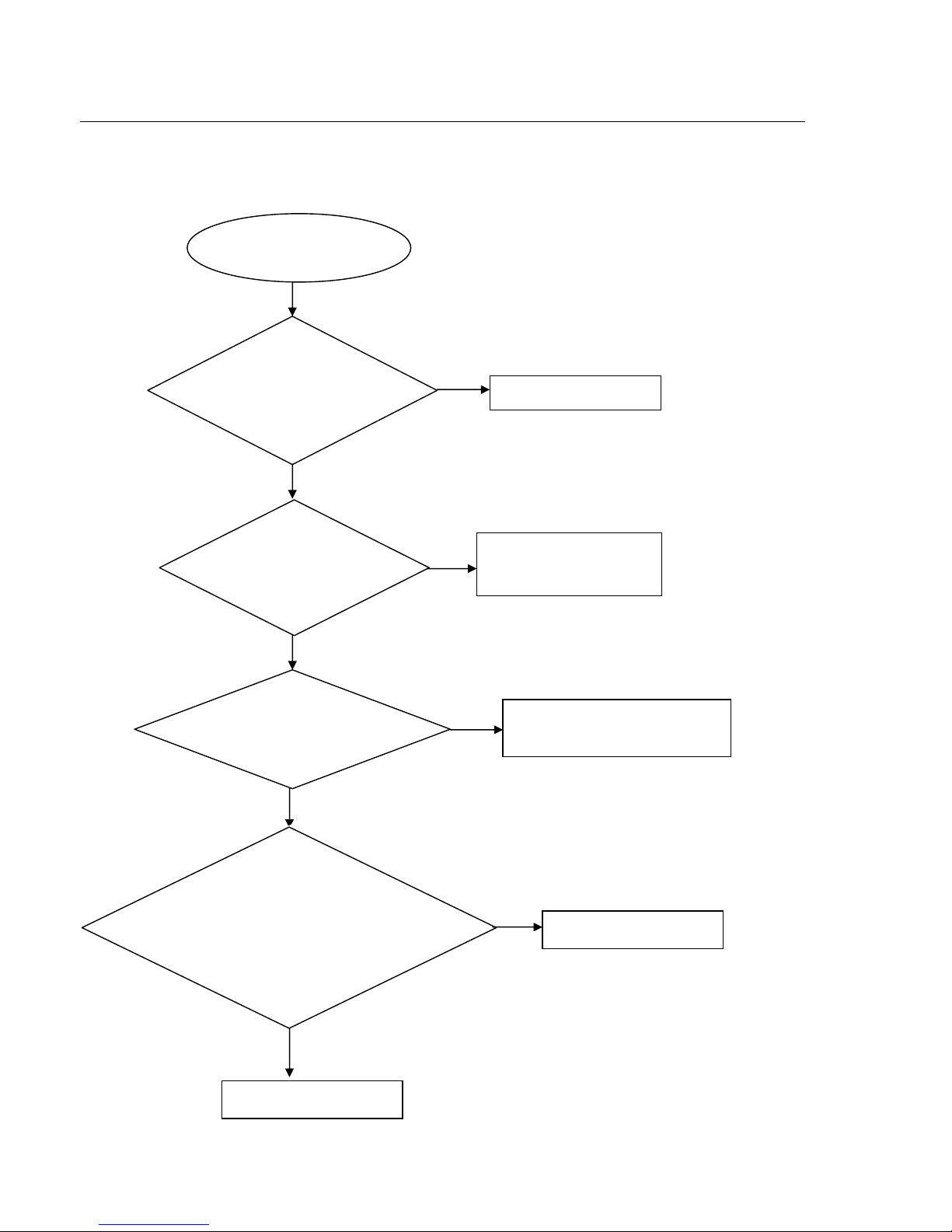

Abnormal color of video picture
Yes
Abnormal color of
video
p
icture
Check whether the 3.3V
and 1.8V power supply
voltages on the decoder
board are normal.
Check Y1, R17, C21 and C22
Check other of power supply electric
circuit
Correct the connection
Check whether the
video filter network
circuit is normal.
Yes
Yes
No
No
No
Check whether the 27MHz
output signal is normal.
Change U2
Yes
Trouble shooting chart
5-6

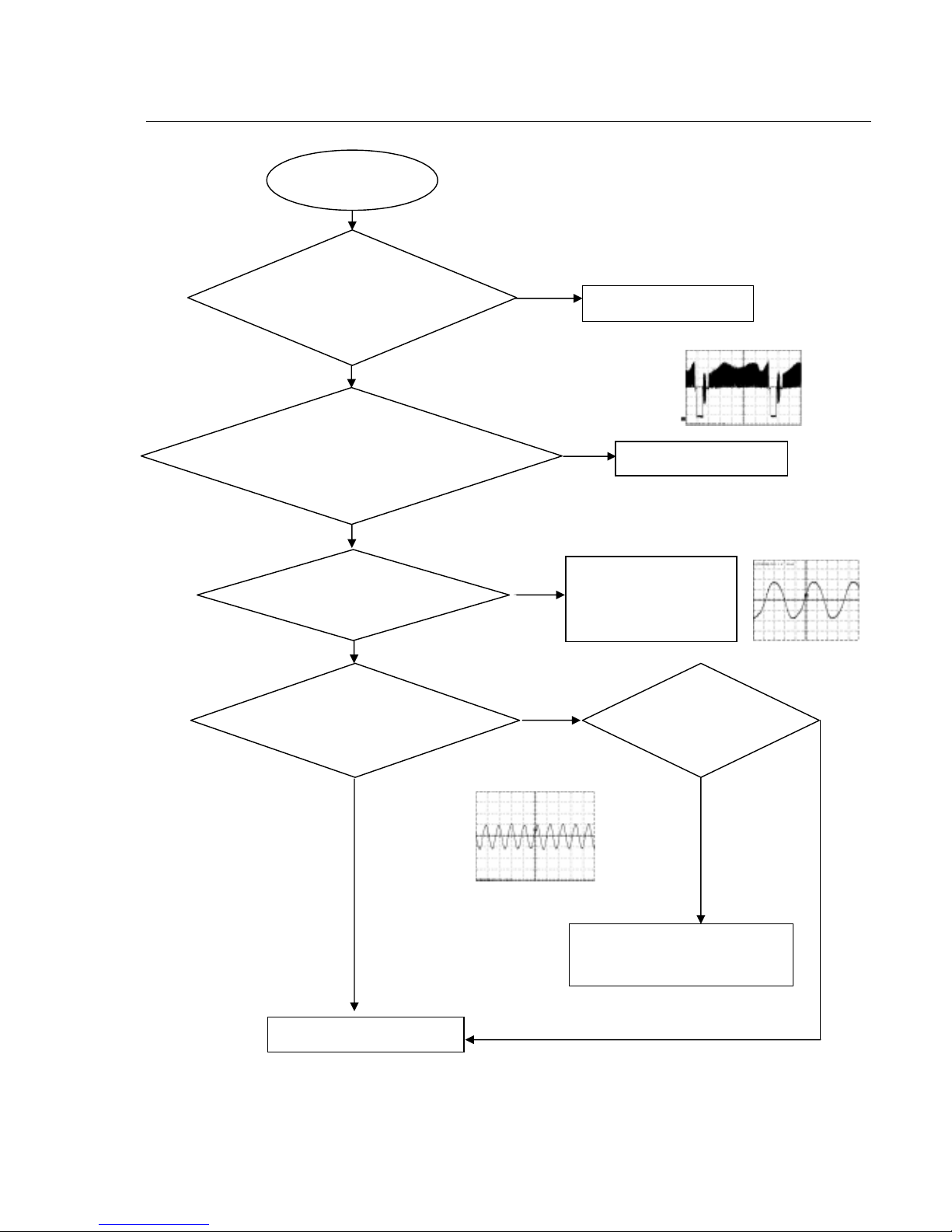

Remote reception is insensitive or fails.
No
Remote reception is
insensitive or fails.
Check if the remote
control works
p
ro
p
erl
y
.
Check battery
Check R1 R2 on front board
Use an oscilloscope to check
if there is output waveform
from the first pin IR of the
remote censor after pressing
button on the remote control.
IR1(PIN 3 - RCwaveform)
Check if there is IR
signal on pin 44 of
U2
Check if the power
supply voltage to the
remote censor is normal
Go
No
No
No
Yes
Yes
Yes
Correct connection
Yes
Change U2
IR waveform
Trouble shooting chart
5-7

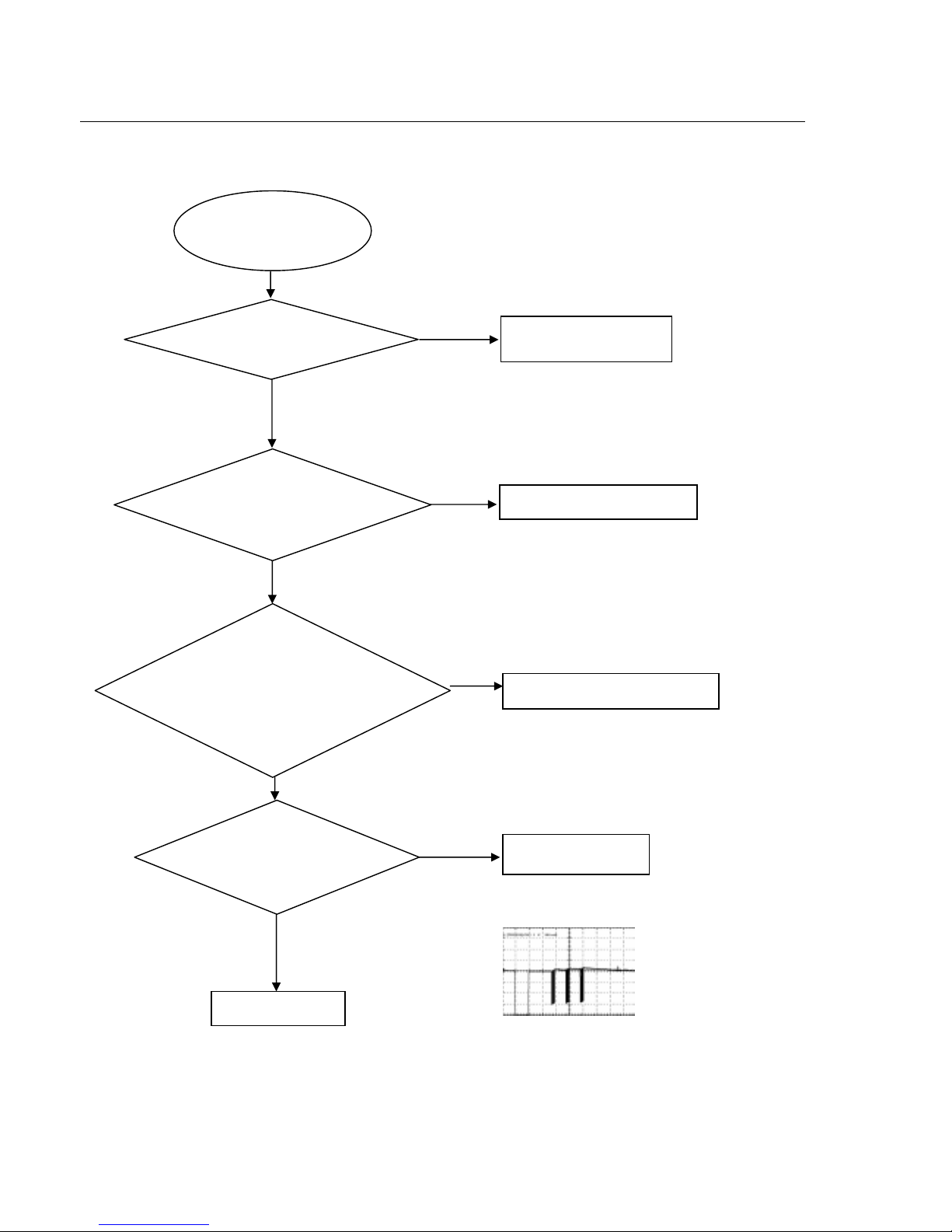

No video picture, no sound.
Change C13,Q4,Q3
No video picture,
no sound.
Check if the reset circuit consisting
of C13, Q4, Q3,R11,R12,R13,R15,R16 is normal
(at a high level for tens of milliseconds,
then constantl
y
at 0V
)
.
Check whether there is
27MHz signal output.
Check if there is 128MHz
signal output on R49.
Check the loaded circuit
Crystal oscillator Y1 and
peripheral components
are defected or eroded.
Check whether
short-circuit or bad
solder on U3, U4
No
No
No
No
Yes
Yes
Yes
Yes
Yes
Reconnect the component in
short-circuit
Check U3.
27M waveform
SDRAM(R49 SDCLK) waveform
Check whether all the
voltages from the power
board to the decoder board
are normal. CVBS(L27 point) waveform
Trouble shooting chart
Go
No
5-8

No display on LED, and buttons do not work
No
No
No
LED and
buttons do not work
Check whether there is
correct contact
between CON1 of front board
and J 6 of decoder board
Correct connection
Fix power supply board top
a power supply for should
electric circuit
Check the U2’s pin 33,34,40,41 arrive
the J 6 connect condition
Correct connection
Replace LED or Q1,Q2,Q3,Q4
Yes
Yes
Yes
Check DV33(+3.3V)
voltage on the power
and front board
Check whether there is 0V
or 3.3V on the signals of VPLAY,STB
CLK, DATA
Check whether the circuit
connected to LED & BUTTONS
is broken,
Trouble shooting chart
Yes
Yes
No
Check wether Q1,Q2,Q3,Q4 for 3904
&LED is broken,
5-9

1
3.3V
RF
1.8V
DVD LOADER
MT1389L
AM5888S
AV-OUT RCA
5V
DVD-AU-R
WIRING DIAGRAM
3.3V
LED LIGHT & KEY
IR
1.8V
OP
COAX
12V
IR
SENSOR
Y&U&V RCA
DVD-CVBS
5V
DVD-AU-L
4558
SDRAM
4*16
SPI
Flash
8M&16M
USB BOARD
POWER
SUPPLIER
6-1

DRAM I/F
S-FLASH
AUDIO I/F
VIDEO I/F
SERVO RF DeCAP.
RF Reference
VR-CD
16
3
NC
2
NC
4
CD/DVD SW
F-
F
1
20
VR-DVD
T-
B/b
24
6
23
CD-LD
Vcc
7
5
19
8
GND-LD
HFM
17
F+
12
21
T+
RF
22
14
18
10
MD
GND-PD
Vc(Vref)
E
15
C/c
13
D/d
A/a
9
11
DVD-LD
2SK3018
1
1
C
2N3904
B
3
2
SG
3E
Very Important to
reduce Noise
SERVO I/F
Chip Decap.
D2
MIX
close to USB connector
CIRCUIT DIAGRAM - DVD MAIN BOARD
MCU&SERVO
CAS#
RAS#
DQM[0..1]
MA[0..11]
DCLK
WE#
DQ[0..15]
BA[0..1]
SF_DO
SF_CK
SF_DI
SF_CS
CVBS_OUT
ADACVDD
RFV18-1
IOA
_3 _2
LDO1
_4
VR-CD
B
E
F+
T-
A
MDI1
F-
T+
IOA
D
C
F
VR-DVD
V20
AVCC
AVCC
LD-CD
LD-DVD
LDO2
SP+
SL+
SL-
SP-A
RFO
F-
T-
F+
SL+
SL-
SP-
SP+
T+
TRSO
FOSO
FMSO
DMSO
SP-
89L_3V3
ASPDIF
V_B
V_R
V_G
AR
AL
AVCC
V1P4
OP+
OP-
_1
DMO
TRO
FOO
FMO
SP-A
URST#
DMSO
FOSO
TRSO
UP1_7
STBY
TROPEN
TRIN
TROUT
RFO
LIMIT
DV33
VCC
89L_3V3
V18
IOA TROPENGPO_B
LIMIT TROUT
GPIO8
PWR2
GPIO3
USB5V
USB_DM
VSTB
VSCK
VCC
VSDA
VPLAY
IR
DV33
VPLAY
UP1_6
GPIO4
+12V
VR-CD
VR-DVD
VSCK
VSTB
REXT
STBY
VREF
GPO_B
AKIN
ADVCM
GPIO20
USB_DP
GPIO12 ASPDIF
CVBS_OUT AVCM
BA1
MA3
DQ7
UP1_7
USB_V33
AVDD33
MDI2
DQ3
GPIO3
FOO
DACVDD3DACVDD3
MA7
WE#
DQ11
V_G
AR
C
B
MA1
V1P4
DQ8
DQ14 IR UP1_6
USB_DP
TRAY-OPEN
RFVDD3
AADVDD
AL
RFV18-1
DQ6
USB_EN
V_R
GPIO8
DQ2
SF_CK
SF_DI
TRIN
ADVCM
XO
OP+
MA5
DQM1
DQ9
E
FS
AKIN
CAS#
MA2
DCLK
REXT
XI
RFV18-1
VSDA
TRAY-CLOSE
DACVDD3
A
DQ5 SF_CS
GPIO20
DQ1
V20
DACVDD3
D
MA4
MA10
DQ10
LDO2
XI
BA0
DQ12
URST#
DMO
F
APLLVDD3
TRAY-OPEN
USB_EN
DACVDD3
OP-
MA9
DQM0
USB_DM
MDI1
GND
RFVDD3
RAS#
MA0
GPIO12
MA11
DQ4 SF_DO
USB_V18
LDO1
V1P4
MA6
DQ0
TRO
V18
AADVDD
MA8
DQ13
FMO
V20
V1P4
ADACVDD
VREF
V_B
DQ15
TRAY-CLOSE
XO
APLLVDD3
ALF ALS
ALS VIDEO_EN
ALF AUDIO_MUTE
GPIO6
TRCLOSE
GPIO6 TRCLOSE
GPIO4
VIDEO_EN
AUDIO_MUTE
AVCC
RX
TX
TX
RX
FMSO
MDI1 MDI2
AVCC
DQ[0..15] [3]
MA[0..11] [3]
DQM[0..1] [3]
BA[0..1] [3]
DCLK [3]
RAS# [3]
CAS# [3]
WE# [3]
SF_DI [3]
SF_CK [3]
SF_CS [3]
SF_DO [3]
CVBS_OUT [5]
T- [1]
T+ [1]
F- [1]
F+ [1]
SL- [1]
SL+ [1]
SP- [1]
SP+ [1]
FOSO [1]
TRSO [1]
FMSO [1]
DMSO [1]
ASPDIF [4]
V_B [5]
V_G [5]
V_R [5]
AR [4]
AL [4]
AVCC [1,4,5]
V1P4 [1]
URST# [1]
STBY [1]
TROPEN [1]
TRIN [1]
TROUT [1]
DV33 [1,3,4,5]
VCC [1,4]
89L_3V3 [1]
V18 [1]
+12V [1]
AKIN [4]
DV33
TRCLOSE [1]
VIDEO_EN [5]
AUDIO_MUTE [4]
V1889L_3V3
V18
V18 89L_3V3
89L_3V3
V1889L_3V3
DV33
VCC
DV33
89L_3V3
V18
89L_3V3
89L_3V3
89L_3V3
USB5V
VCC
DV33
L20 FB
L21
10uH
R27 100k
C51
330pF
L17
FB
TX
R29
0
C59
0.1uF
L22
10uH
C26 0.1uF
R21 0
C56
100pF
J3
6x1 W/HOUSING
1
2
3
4
5
6
C39
0.1uF
C31 10uF/10v
C52
0.1uF
Q7
2SK3018
1
32
+
CE8
100uF/10v
C24
0.1uF
C44
0.1uF
C61
0.1uF
C38
0.1uF
Q11
8550
2
31
C53
0.015uF
C45
10uF/10v
D1
BAT54C
1
3
2
C36
220pF
C40
4.7uF
C17
0.1uF
C30 10uF/10v
C25
6800pF
R23
560
R41 4.7
C23
0.1uF
C32
0.1uF
R30
0
R35 NC
TOP
HA1
HEADER 24 SMD0.5 TOP
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
C57
100pF
+
CE16
100uF/10v
Q8
2302
C50
330pF
R17 100k
C41
0.1uF
C35
1uF
Q10
8550
2
3 1
L9 0R
C49
NC
C28
0.1uF
+
CE15
100uF/10V
C29 4.7uF
C48 0.1uF
C21
22pF
Q5
2N3904
1
3 2
R44 27k
+
CE12
470uF/6.3v
R19 10k
R37 NC
R34 5.1k
R24 100k
Y1
27MHz
MT1389L/K
LQFP 128
V1.0
Desktop
U2
MT1389L/K/SMD
1389L
5
6
7
8
9
10
11
12
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33 34 36 37 38 39 40 41 42 43 44 45 46 47 48 49 51 52 53 50 55 56 57 54 58 59 61 62 63 60 64
65
66
67
69
70
94
90
93
92
91
89
88
8413
35
86
79
85
83
82
81
80
78
77
76
75
74
68
73
72
71
4
3
2
1
128 127 126 125 124 123 118 117 116 111 110 109 108 107 106 105 104 103 102 101 100 99 98 97
96
95
87
112 113 122 121 120 119 115 114
RFE
RFF
AVDD18
AVDD33
XTALI
XTALO
AGND
V20
REXT
MDI1
MDI2
LDO1
LDO2
AVDD33
DMO
FMO
TRAY_OPEN
TRAY_CLOSE
TRO
FOO
FG / GPIO2
USB_DP
USB_DM
USB_V33
USB_GND
PAD_VRT
USB_V18
GPIO3 / INT# GPIO4 SF_CS_ SF_DO SF_DI SF_CK UP1_6 / SCL UP1_7 / SDA ICE PRST# IR RD0 RD1 RD2 RD3 RD4 RD5 RD6 RD7 DVDD33 DQM0 RD15 RD14 DVDD18 RD13 RD12 RD11 RD10 RD9 DVSS33 RD8
DQM1
RCLK
RA11
RA9
RA8
GPIO13
DVDD18
SPDIF / GPIO12
GPIO11
GPIO10
GPIO9
GPIO8
DVDD33V14
GPIO6
RA3
DVSS18
RA2
RA1
RA0
RA10
BA1
BA0
RAS#
CAS#
RWE#
RA4
DVDD33
RA5
RA6
RA7
RFD
RFC
RFB
RFA
RFH / OPINN
RFG / OPINP
RFIN / OPOUT
RFIP
AGND18
AVDD18
AL / GPIO1
AVCM
AR / GPIO0
APLLCAP
APLLVDD
AADVDD
AKIN1 / GPIO21 / Audio_Mute
ADVCM / GPIO20
AKIN2 / GPIO19 / Audio_Mute
AADVSS
R
B
G
DACVDDA DACVDDB
CVBS
DACVSSC
FS
VREF
DACVDDC
GPIO7 / CKE
ADACVSS2 ADACVSS1
ADACVDD2 ADACVDD1
ALF / GPIO
ALS / GPIO
ARS / GPIO
ARF / GPIO
R38 NC
J4
4x1 W/HOUSING
1
2
3
4
C15 0.1uF
R32
4.7K
C63
0.1uF
C34 0.1uF
L18 FB
L11 FB
R25 10k
C46
10uF/10v
+
CE10
10uF
C33 1500pF
+
CE9
10uF/10v
R33 470R
R46 10k
C37 0.1uF
C60
0.1uF
C16 0.1uF
R42 NC
C54
100pF
RX
+
CE18
47uF/6.3v
R22 10k
R26 10k
+
CE14470uF/10v
L19 FB
R43 27k
R36 0R
R45 15k
R18 10k
C18
0.1uF
+
CE11
10uF
Q9
3904
1
3 2
R39 4.7
L15
FB600R
L16
FB600R
1 2
C62
0.1uF
L10 0R
R31 10K
C43
NC/0.1uF
C20
0.1uF
R28 15k
L12 FB600R
C47
0.1uF
+
CE17
47uF/6.3v
C55
100pF
Q6
2SK3018
1
32
C27 0.1uF
C22
22pF
R20
1
C58
0.1uF
R40 0R
J5
6x1 W/HOUSING
8P2.0
1
2
3
4
5
6
7
8
F1 500mA
140
L13 FB
7-1

DRAM I/F
S-FLASH
8M/16M bit
S-FLASH
POWER

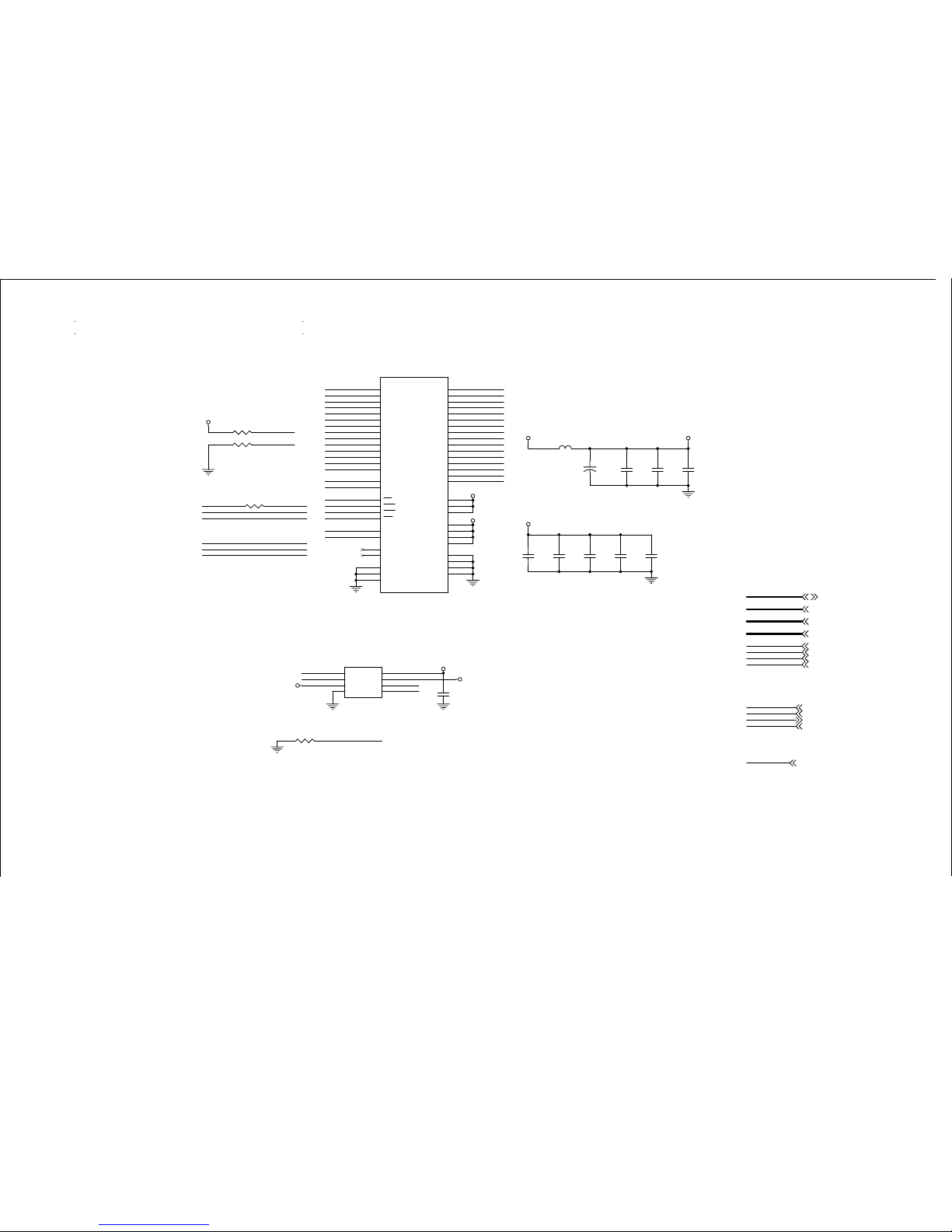

CIRCUIT DIAGRAM - DVD MAIN BOARD
SDRAM&FLASH
DCLK
DCAS#CAS#
SDCLK
BA0 DBA0
DQ[0..15]
MA[0..11]
DQM[0..1]
BA[0..1]
DCLK
RAS#
CAS#
WE#
SF_CK
SF_CS
SF_DI
SF_DO
DCS#
SF_DI
SF_DO
SF_CS
SF_CS
SF_CK
DV33
SDCKE
DBA1BA1
DRAS#RAS#
DWE#WE#
DQ13
DQM0
DQ11
SDCKE
MA1
DQ7
SDCLK
MA3
DQ14
DQ4
DQ15
MA9
DQ5
DQ8
MA11
MA6
MA5
DQ12
MA7
DQM1
DBA1
DCAS#
MA8
MA0
MA4
DCS#
DQ0
DBA0
DQ3
DQ6
DQ9
DQ10
DRAS#
DQ1
DQ2MA2
MA10
DWE#
DQ[0..15] [2]
MA[0..11] [2]
DQM[0..1] [2]
BA[0..1] [2]
DCLK [2]
RAS# [2]
CAS# [2]
WE# [2]
SF_DI [2]
SF_CK [2]
SF_CS [2]
SF_DO [2]
DV33 [1,2,4,5]
V33
DV33
DV33
DV33
SD33
SD33
SD33
SD33
SD33
R47 10k
R48 10k
C71
0.1uF
U4
1
2
3
4 5
6
7
8
CE#
SO
WP#
VSS SI
SCK
HOLD#
VDD
R49 33
C65
0.1uF
C69
0.1uF
C66
0.1uF
C70
0.1uF
C64
0.1uF
L23 FB
C68
0.1uF
C72
0.1uF
U3
1
2
4
12
5
7
9
8
10
46
11
13
15
16
17
18
19
35
22
23
24
25
26
14
41
29
30
31
32
33
34
36
37
38
39
40
43
42
44
52
45
47
49
48
50
51
53
54
20
21
3
6
27
28
VCC
DQ0
DQ1
VSSQ
DQ2
DQ3
VCCQ
DQ4
DQ5
VSSQ
DQ6
DQ7
DQML
WE
CAS
RAS
CS
A11
A10/AP
A0
A1
A2
A3
VCC
VSS
A4
A5
A6
A7
A8
A9
NC
CKE
CLK
DQMH
NC
VCCQ
DQ8
DQ9
VSSQ
DQ10
DQ11
VCCQ
DQ12
DQ13
DQ14
DQ15
VSS
BA0/A13
BA1/A12
VCCQ
VSSQ
VCC
VSS
R55 10k
C67
0.1uF
+
CE19
100uF/10v
7-2
